This script is designed to plot potential support and resistance levels on a trading chart, based on different calculation methods. It's like drawing lines on a map to highlight possible areas where the price might change direction.
Here's a breakdown of what it does:
-
Setup and Customization: The script starts by allowing you, the user, to set various options. You can turn on or off different types of levels (like Camarilla, Fibonacci, Standard Pivots, and Mid Pivots), customize the colors and sizes of the lines and labels, and even set up alerts. You also define your timezone offset in hours from GMT, and how far away from the latest bars to draw the labels and lines.
-
Data Gathering: The script goes back through a set number of past price bars (up to 720) to find the highest and lowest prices for each day. It also determines the opening price for the current day and the closing price from the previous day. Think of it as collecting the necessary data points to draw the lines.
-
Calculations: Based on the previous day's high, low, and close prices, the script calculates several sets of potential support and resistance levels using different formulas:
-
Pivot Points: A basic average of the previous day's high, low, and closing prices. This serves as a central reference point.
-
Camarilla Levels: These levels are calculated using the previous day's high, low, and close, along with some fixed ratios. They aim to identify potential breakout and reversal points.
-
Fibonacci Levels: Based on the previous day's range (the difference between the high and low), Fibonacci retracement levels are calculated relative to a Standard Pivot calculation. These levels are thought to represent areas of potential support or resistance.
-
Standard Pivot Points: Based on the Pivot Point, these levels give resistance and support one, two, and three, using previous day's high and low.
-
Mid Pivots: Based on the Standard Pivot Points, these levels find the middle points between the different Standard Pivot levels.
-
-

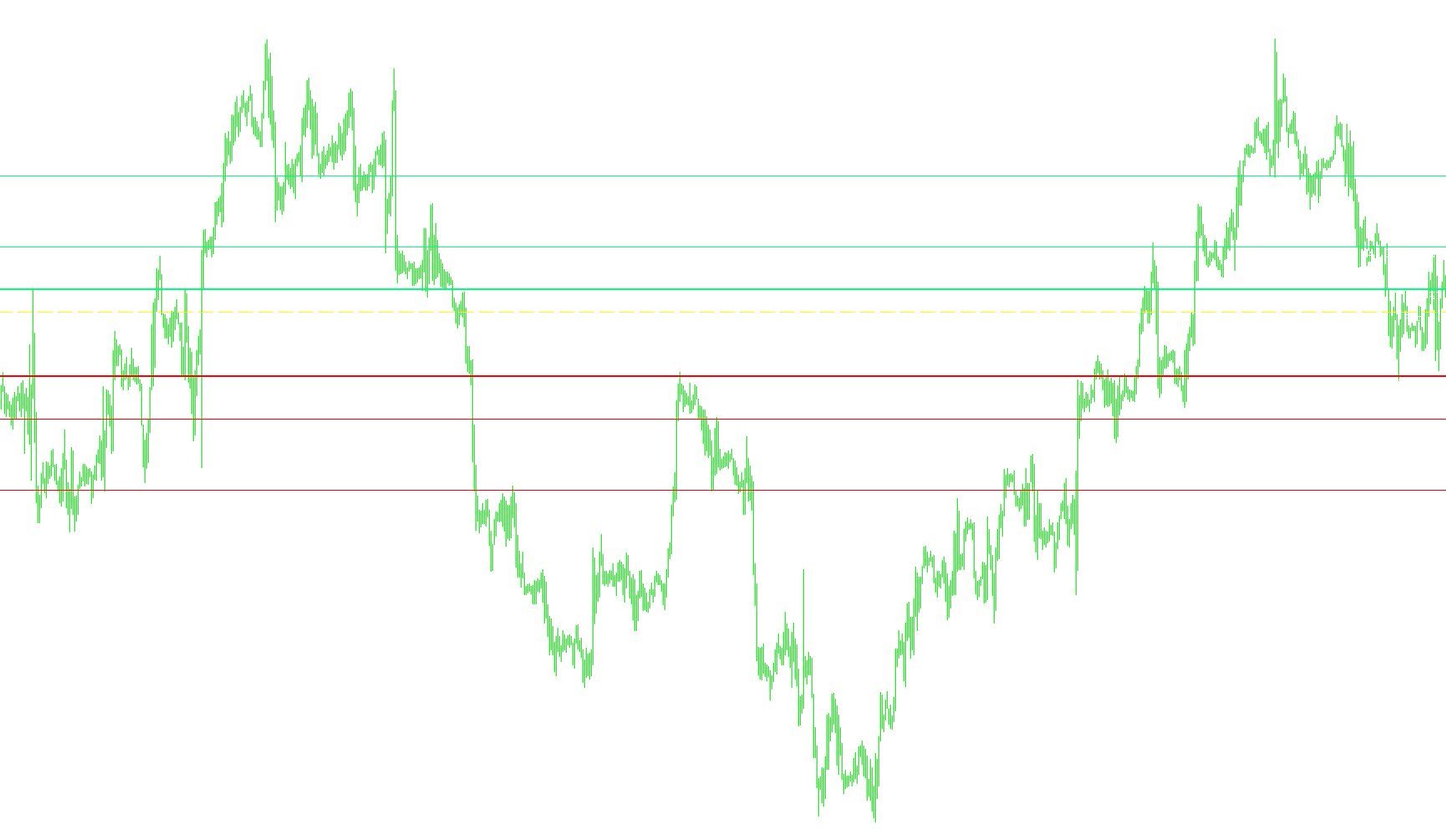

Display: The script then draws horizontal lines on the chart at the calculated levels. It also adds labels to these lines, indicating what they represent (e.g., "H3," "Fib R1"). You can adjust the appearance of these lines and labels through the script's settings. It uses distinct colors and styles (solid, dashed, etc.) to differentiate between the types of levels.
-
Alerts (Optional): If you've enabled alerts, the script will monitor the current price in relation to the Camarilla levels. If the price gets within a certain distance of a Camarilla level (H3 or L3), it can trigger an alert sound and a pop-up message. This feature can help you stay informed about potential trading opportunities. The alert will only happen once until the price moves far enough away from the level, preventing repeated alerts for the same level.
-
Information Displayed: Lastly, the script shows the previous day's high, low, closing prices and range directly on the chart screen.
In essence, the script automates the process of calculating and plotting potential support and resistance levels on a chart, offering a visual aid for making trading decisions. You can turn each category of plots on or off, customize each type of plot, and set alerts for price interaction with one of the calculation categories.
Miscellaneous
4
Views
1
Downloads
0
Favorites
Pivots_v5
//+------------------------------------------------------------------+
//| camarilladt8.mq4 |
//| Copyright © 2005, MetaQuotes Software Corp. |
//| http://www.metaquotes.net |
//| Fixed Sunday/Monday problem |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net"
//----
#property indicator_chart_window
//---- input parameters
extern bool Alerts=false;
extern int GMTshift=0;
extern int LabelShift=20;
extern int LineShift=40;
extern bool Pivot=true;
extern color PivotColor=Yellow;
extern color PivotFontColor=White;
extern int PivotFontSize=8;
extern int PivotWidth=1;
extern int PipDistance=20;
extern bool Cams=true;
extern color CamFontColor=White;
extern int CamFontSize=10;
extern bool Fibs=false;
extern color FibColor=Sienna;
extern color FibFontColor=White;
extern int FibFontSize=8;
extern bool StandardPivots=false;
extern color StandardFontColor=White;
extern int StandardFontSize=8;
extern color SupportColor=White;
extern color ResistanceColor=FireBrick;
extern bool MidPivots=false;
extern color MidPivotColor=White;
extern int MidFontSize=8;
//----
datetime LabelShiftTime, LineShiftTime;
double P, H3, H4, H5;
double L3, L4, L5;
double LastHigh,LastLow,x;
double day_high;
double day_low;
double yesterday_open;
double today_open;
double cur_day;
double prev_day;
bool firstL3=true;
bool firstH3=true;
//----
double D1=0.091667;
double D2=0.183333;
double D3=0.2750;
double D4=0.55;
// Fib variables
double yesterday_high=0;
double yesterday_low=0;
double yesterday_close=0;
double r3=0;
double r2=0;
double r1=0;
double p=0;
double s1=0;
double s2=0;
double s3=0;
double R;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//---- TODO: add your code here
if (Fibs)
{ObjectDelete("FibR1 Label");
ObjectDelete("FibR1 Line");
ObjectDelete("FibR2 Label");
ObjectDelete("FibR2 Line");
ObjectDelete("FibR3 Label");
ObjectDelete("FibR3 Line");
ObjectDelete("FibS1 Label");
ObjectDelete("FibS1 Line");
ObjectDelete("FibS2 Label");
ObjectDelete("FibS2 Line");
ObjectDelete("FibS3 Label");
ObjectDelete("FibS3 Line");
}
if (Pivot)
{
ObjectDelete("P Label");
ObjectDelete("P Line");
}
if (Cams)
{
ObjectDelete("H5 Label");
ObjectDelete("H5 Line");
ObjectDelete("H4 Label");
ObjectDelete("H4 Line");
ObjectDelete("H3 Label");
ObjectDelete("H3 Line");
ObjectDelete("L3 Label");
ObjectDelete("L3 Line");
ObjectDelete("L4 Label");
ObjectDelete("L4 Line");
ObjectDelete("L5 Label");
ObjectDelete("L5 Line");
}
//----
if (StandardPivots)
{
ObjectDelete("R1 Label");
ObjectDelete("R1 Line");
ObjectDelete("R2 Label");
ObjectDelete("R2 Line");
ObjectDelete("R3 Label");
ObjectDelete("R3 Line");
ObjectDelete("S1 Label");
ObjectDelete("S1 Line");
ObjectDelete("S2 Label");
ObjectDelete("S2 Line");
ObjectDelete("S3 Label");
ObjectDelete("S3 Line");
}
if (MidPivots)
{
ObjectDelete("M5 Label");
ObjectDelete("M5 Line");
ObjectDelete("M4 Label");
ObjectDelete("M4 Line");
ObjectDelete("M3 Label");
ObjectDelete("M3 Line");
ObjectDelete("M2 Label");
ObjectDelete("M2 Line");
ObjectDelete("M1 Label");
ObjectDelete("M1 Line");
ObjectDelete("M0 Label");
ObjectDelete("M0 Line");
}
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int DoAlerts()
{
double DifAboveL3,PipsLimit;
double DifBelowH3;
//----
DifBelowH3=H3 - Close[0];
DifAboveL3=Close[0] - L3;
PipsLimit=PipDistance*Point;
//----
if (DifBelowH3 > PipsLimit) firstH3=true;
if (DifBelowH3<=PipsLimit && DifBelowH3 > 0)
{
if (firstH3)
{
Alert("Below Cam H3 Line by ",DifBelowH3, " for ", Symbol(),"-",Period());
PlaySound("alert.wav");
firstH3=false;
}
}
if (DifAboveL3 > PipsLimit) firstL3=true;
if (DifAboveL3<=PipsLimit && DifAboveL3 > 0)
{
if (firstL3)
{
Alert("Above Cam L3 Line by ",DifAboveL3," for ", Symbol(),"-",Period());
Sleep(2000);
PlaySound("timeout.wav");
firstL3=false;
}
}
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars=IndicatorCounted();
//---- TODO: add your code here
double Q=0,S=0,R=0,M2=0,M3=0,S1=0,R1=0,M1=0,M4=0,S2=0,R2=0,M0=0,M5=0,S3=0,R3=0,nQ=0,nD=0,D=0;
int cnt=720;
//---- exit if period is greater than daily charts
if(Period() > 1440)
{
Print("Error - Chart period is greater than 1 day.");
return(-1); // then exit
}
//---- Get new daily prices & calculate pivots
day_high=0;
day_low=0;
yesterday_open=0;
today_open=0;
cur_day=0;
prev_day=0;
while(cnt!= 0)
{
if (TimeDayOfWeek(Time[cnt])==0)
{
cur_day=prev_day;
}
else
{
cur_day=TimeDay(Time[cnt]- (GMTshift*3600));
}
if (prev_day!=cur_day)
{
yesterday_close=Close[cnt+1];
today_open=Open[cnt];
yesterday_high=day_high;
yesterday_low=day_low;
day_high=High[cnt];
day_low =Low[cnt];
prev_day=cur_day;
}
if (High[cnt]>day_high)
{
day_high=High[cnt];
}
if (Low[cnt]<day_low)
{
day_low=Low[cnt];
}
cnt--;
}
D=(day_high - day_low);
Q=(yesterday_high - yesterday_low);
//------ Pivot Points ------
P=(yesterday_high + yesterday_low + yesterday_close)/3;//Pivot
if (Cams)
{
//---- To display all 8 Camarilla pivots remove comment symbols below and
// add the appropriate object functions below
H5=(yesterday_high/yesterday_low)*yesterday_close;
H4=((yesterday_high - yesterday_low)* D4) + yesterday_close;
H3=((yesterday_high - yesterday_low)* D3) + yesterday_close;
//H2 = ((yesterday_high - yesterday_low) * D2) + yesterday_close;
//H1 = ((yesterday_high - yesterday_low) * D1) + yesterday_close;
//L1 = yesterday_close - ((yesterday_high - yesterday_low)*(D1));
//L2 = yesterday_close - ((yesterday_high - yesterday_low)*(D2));
L3=yesterday_close - ((yesterday_high - yesterday_low)*(D3));
L4=yesterday_close - ((yesterday_high - yesterday_low)*(D4));
L5=yesterday_close - (H5 - yesterday_close);
}
if (Fibs)
{
R=yesterday_high - yesterday_low;//range
p=(yesterday_high + yesterday_low + yesterday_close)/3;// Standard Pivot
r1=p + (R * 0.38);
r2=p + (R * 0.62);
r3=p + (R * 0.99);
s1=p - (R * 0.38);
s2=p - (R * 0.62);
s3=p - (R * 0.99);
}
if (StandardPivots)
{
R1=(2*P)-yesterday_low;
S1=(2*P)-yesterday_high;
R2=P-S1+R1;
S2=P-R1+S1;
R3=(2*P)+(yesterday_high-(2*yesterday_low));
S3=(2*P)-((2* yesterday_high)-yesterday_low);
}
if (MidPivots && StandardPivots)
{
M0=(S2+S3)/2;
M1=(S1+S2)/2;
M2=(P+S1)/2;
M3=(P+R1)/2;
M4=(R1+R2)/2;
M5=(R2+R3)/2;
}
//comment on OHLC and daily range
if (Q > 5)
{
nQ=Q;
}
else
{
nQ=Q*10000;
}
if (D > 5)
{
nD=D;
}
else
{
nD=D*10000;
}
if (StringSubstr(Symbol(),3,3)=="JPY")
{
nQ=nQ/100;
nD=nD/100;
}
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,"\nLow= ",yesterday_low," Current Days Range= ",nD,"\nClose= ",yesterday_close);
LabelShiftTime=Time[LabelShift];
LineShiftTime=Time[LineShift];
//---- Set line labels on chart window
if (Pivot)
{
if(ObjectFind("P label")!=0)
{
ObjectCreate("P label", OBJ_TEXT, 0, LabelShiftTime, P);
ObjectSetText("P label", "Pivot", PivotFontSize, "Arial", PivotFontColor);
}
else
{
ObjectMove("P label", 0, LabelShiftTime, P);
}
//--- Draw Pivot lines on chart
if(ObjectFind("P line")!=0)
{
ObjectCreate("P line", OBJ_HLINE, 0, LineShiftTime, P);
ObjectSet("P line", OBJPROP_STYLE, STYLE_DASH);
ObjectSet("P line", OBJPROP_COLOR, PivotColor);
}
else
{
ObjectMove("P line", 0, LineShiftTime, P);
}
}
if (StandardPivots)
{
if(ObjectFind("R1 label")!=0)
{
ObjectCreate("R1 label", OBJ_TEXT, 0, LabelShiftTime, R1);
ObjectSetText("R1 label", " R1", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R1 label", 0, LabelShiftTime, R1);
}
if(ObjectFind("R2 label")!=0)
{
ObjectCreate("R2 label", OBJ_TEXT, 0, LabelShiftTime, R2);
ObjectSetText("R2 label", " R2", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R2 label", 0, LabelShiftTime, R2);
}
if(ObjectFind("R3 label")!=0)
{
ObjectCreate("R3 label", OBJ_TEXT, 0, LabelShiftTime, R3);
ObjectSetText("R3 label", " R3", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R3 label", 0, LabelShiftTime, R3);
}
if(ObjectFind("S1 label")!=0)
{
ObjectCreate("S1 label", OBJ_TEXT, 0, LabelShiftTime, S1);
ObjectSetText("S1 label", "S1", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S1 label", 0, LabelShiftTime, S1);
}
if(ObjectFind("S2 label")!=0)
{
ObjectCreate("S2 label", OBJ_TEXT, 0, LabelShiftTime, S2);
ObjectSetText("S2 label", "S2", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S2 label", 0, LabelShiftTime, S2);
}
if(ObjectFind("S3 label")!=0)
{
ObjectCreate("S3 label", OBJ_TEXT, 0, LabelShiftTime, S3);
ObjectSetText("S3 label", "S3", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S3 label", 0, LabelShiftTime, S3);
}
//--- Draw Pivot lines on chart
if(ObjectFind("S1 line")!=0)
{
ObjectCreate("S1 line", OBJ_HLINE, 0, LineShiftTime, S1);
ObjectSet("S1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S1 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S1 line", 0, LineShiftTime, S1);
}
if(ObjectFind("S2 line")!=0)
{
ObjectCreate("S2 line", OBJ_HLINE, 0, LineShiftTime, S2);
ObjectSet("S2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S2 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S2 line", 0, LineShiftTime, S2);
}
if(ObjectFind("S3 line")!=0)
{
ObjectCreate("S3 line", OBJ_HLINE, 0, LineShiftTime, S3);
ObjectSet("S3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S3 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S3 line", 0, LineShiftTime, S3);
}
if(ObjectFind("R1 line")!=0)
{
ObjectCreate("R1 line", OBJ_HLINE, 0, LineShiftTime, R1);
ObjectSet("R1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R1 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R1 line", 0, LineShiftTime, R1);
}
if(ObjectFind("R2 line")!=0)
{
ObjectCreate("R2 line", OBJ_HLINE, 0, LineShiftTime, R2);
ObjectSet("R2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R2 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R2 line", 0, LineShiftTime, R2);
}
if(ObjectFind("R3 line")!=0)
{
ObjectCreate("R3 line", OBJ_HLINE, 0, LineShiftTime, R3);
ObjectSet("R3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R3 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R3 line", 0, LineShiftTime, R3);
}
}
if (MidPivots)
{
if(ObjectFind("M5 label")!=0)
{
ObjectCreate("M5 label", OBJ_TEXT, 0, LabelShiftTime, M5);
ObjectSetText("M5 label", " M5", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M5 label", 0, LabelShiftTime, M5);
}
if(ObjectFind("M4 label")!=0)
{
ObjectCreate("M4 label", OBJ_TEXT, 0, LabelShiftTime, M4);
ObjectSetText("M4 label", " M4", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M4 label", 0, LabelShiftTime, M4);
}
if(ObjectFind("M3 label")!=0)
{
ObjectCreate("M3 label", OBJ_TEXT, 0, LabelShiftTime, M3);
ObjectSetText("M3 label", " M3", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M3 label", 0, LabelShiftTime, M3);
}
if(ObjectFind("M2 label")!=0)
{
ObjectCreate("M2 label", OBJ_TEXT, 0, LabelShiftTime, M2);
ObjectSetText("M2 label", " M2", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M2 label", 0, LabelShiftTime, M2);
}
if(ObjectFind("M1 label")!=0)
{
ObjectCreate("M1 label", OBJ_TEXT, 0, LabelShiftTime, M1);
ObjectSetText("M1 label", " M1", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M1 label", 0, LabelShiftTime, M1);
}
if(ObjectFind("M0 label")!=0)
{
ObjectCreate("M0 label", OBJ_TEXT, 0, LabelShiftTime, M0);
ObjectSetText("M0 label", " M0", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M0 label", 0, LabelShiftTime, M0);
}
if(ObjectFind("M5 line")!=0)
{
ObjectCreate("M5 line", OBJ_HLINE, 0, LineShiftTime, M5);
ObjectSet("M5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M5 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M5 line", 0, LineShiftTime, M5);
}
if(ObjectFind("M4 line")!=0)
{
ObjectCreate("M4 line", OBJ_HLINE, 0, LineShiftTime, M4);
ObjectSet("M4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M4 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M4 line", 0, LineShiftTime, M4);
}
if(ObjectFind("M3 line")!=0)
{
ObjectCreate("M3 line", OBJ_HLINE, 0, LineShiftTime, M3);
ObjectSet("M3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M3 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M3 line", 0, LineShiftTime, M3);
}
if(ObjectFind("M2 line")!=0)
{
ObjectCreate("M2 line", OBJ_HLINE, 0, LineShiftTime, M2);
ObjectSet("M2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M2 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M2 line", 0, LineShiftTime, M2);
}
if(ObjectFind("M1 line")!=0)
{
ObjectCreate("M1 line", OBJ_HLINE, 0, LineShiftTime, M1);
ObjectSet("M1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M1 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M1 line", 0, LineShiftTime, M1);
}
if(ObjectFind("M0 line")!=0)
{
ObjectCreate("M0 line", OBJ_HLINE, 0, LineShiftTime, M0);
ObjectSet("M0 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M0 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M0 line", 0, LineShiftTime, M0);
}
}
if (Fibs)
{
if(ObjectFind("FibR1 label")!=0)
{
ObjectCreate("FibR1 label", OBJ_TEXT, 0, LabelShiftTime, 0);
ObjectSetText("FibR1 label", "Fib R1", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR1 label", 0, LabelShiftTime, r1);
}
if(ObjectFind("FibR2 label")!=0)
{
ObjectCreate("FibR2 label", OBJ_TEXT, 0, LabelShiftTime, 0);
ObjectSetText("FibR2 label", "Fib R2", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR2 label", 0, LabelShiftTime, r2);
}
if(ObjectFind("FibR3 label")!=0)
{
ObjectCreate("FibR3 label", OBJ_TEXT, 0, LabelShiftTime, 0);
ObjectSetText("FibR3 label", "Fib R3", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR3 label", 0, LabelShiftTime, r3);
}
if(ObjectFind("FibS1 label")!=0)
{
ObjectCreate("FibS1 label", OBJ_TEXT, 0, LabelShiftTime, 0);
ObjectSetText("FibS1 label", "Fib S1", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS1 label", 0, LabelShiftTime, s1);
}
if(ObjectFind("FibS2 label")!=0)
{
ObjectCreate("FibS2 label", OBJ_TEXT, 0, LabelShiftTime, 0);
ObjectSetText("FibS2 label", "Fib S2", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS2 label", 0, LabelShiftTime, s2);
}
if(ObjectFind("FibS3 label")!=0)
{
ObjectCreate("FibS3 label", OBJ_TEXT, 0, LabelShiftTime, 0);
ObjectSetText("FibS3 label", "Fib S3", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS3 label", 0, LabelShiftTime, s3);
}
//---- Set lines on chart window
if(ObjectFind("FibS1 line")!=0)
{
ObjectCreate("FibS1 line", OBJ_HLINE, 0, LineShiftTime, 0);
ObjectSet("FibS1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS1 line", OBJPROP_COLOR, FibColor);
}
else
{
ObjectMove("FibS1 line", 0, LineShiftTime, s1);
}
if(ObjectFind("FibS2 line")!=0)
{
ObjectCreate("FibS2 line", OBJ_HLINE, 0, LineShiftTime, 0);
ObjectSet("FibS2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS2 line", OBJPROP_COLOR, FibColor);
}
else
{
ObjectMove("FibS2 line", 0, LineShiftTime, s2);
}
if(ObjectFind("FibS3 line")!=0)
{
ObjectCreate("FibS3 line", OBJ_HLINE, 0, LineShiftTime, 0);
ObjectSet("FibS3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS3 line", OBJPROP_COLOR, FibColor);
}
else
{
ObjectMove("FibS3 line", 0, LineShiftTime, s3);
}
if(ObjectFind("FibR1 line")!=0)
{
ObjectCreate("FibR1 line", OBJ_HLINE, 0, LineShiftTime, 0);
ObjectSet("FibR1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR1 line", OBJPROP_COLOR, FibColor);
}
else
{
ObjectMove("FibR1 line", 0, LineShiftTime, r1);
}
if(ObjectFind("FibR2 line")!=0)
{
ObjectCreate("FibR2 line", OBJ_HLINE, 0, LineShiftTime, 0);
ObjectSet("FibR2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR2 line", OBJPROP_COLOR, FibColor);
}
else
{
ObjectMove("FibR2 line", 0, LineShiftTime, r2);
}
if(ObjectFind("FibR3 line")!=0)
{
ObjectCreate("FibR3 line", OBJ_HLINE, 0, LineShiftTime, 0);
ObjectSet("FibR3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR3 line", OBJPROP_COLOR, FibColor);
}
else
{
ObjectMove("FibR3 line", 0, LineShiftTime, r3);
}
}
if (Cams)
{
// --- THE CAMARILLA ---
if(ObjectFind("H5 label")!=0)
{
ObjectCreate("H5 label", OBJ_TEXT, 0, LabelShiftTime, H5);
ObjectSetText("H5 label", " H5 LB TARGET", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("H5 label", 0, LabelShiftTime, H5);
}
if(ObjectFind("H4 label")!=0)
{
ObjectCreate("H4 label", OBJ_TEXT, 0, LabelShiftTime, H4);
ObjectSetText("H4 label", " H4 LONG BREAKOUT", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("H4 label", 0, LabelShiftTime, H4);
}
if(ObjectFind("H3 label")!=0)
{
ObjectCreate("H3 label", OBJ_TEXT, 0, LabelShiftTime, H3);
ObjectSetText("H3 label", " H3 SHORT", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("H3 label", 0, LabelShiftTime, H3);
}
if(ObjectFind("L3 label")!=0)
{
ObjectCreate("L3 label", OBJ_TEXT, 0, LabelShiftTime, L3);
ObjectSetText("L3 label", " L3 LONG", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("L3 label", 0, LabelShiftTime, L3);
}
if(ObjectFind("L4 label")!=0)
{
ObjectCreate("L4 label", OBJ_TEXT, 0, LabelShiftTime, L4);
ObjectSetText("L4 label", " L4 SHORT BREAKOUT", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("L4 label", 0, LabelShiftTime, L4);
}
if(ObjectFind("L5 label")!=0)
{
ObjectCreate("L5 label", OBJ_TEXT, 0, LabelShiftTime, L5);
ObjectSetText("L5 label", " L5 SB TARGET", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("L5 label", 0, LabelShiftTime, L5);
}
//---- Draw Camarilla lines on Chart
if(ObjectFind("H5 line")!=0)
{
ObjectCreate("H5 line", OBJ_HLINE, 0, LineShiftTime, H5);
ObjectSet("H5 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("H5 line", OBJPROP_COLOR, SpringGreen);
ObjectSet("H5 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("H5 line", 0, LineShiftTime, H5);
}
if(ObjectFind("H4 line")!=0)
{
ObjectCreate("H4 line", OBJ_HLINE, 0, LineShiftTime, H4);
ObjectSet("H4 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("H4 line", OBJPROP_COLOR, SpringGreen);
ObjectSet("H4 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("H4 line", 0, LineShiftTime, H4);
}
if(ObjectFind("H3 line")!=0)
{
ObjectCreate("H3 line", OBJ_HLINE, 0, LineShiftTime, H3);
ObjectSet("H3 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("H3 line", OBJPROP_COLOR, SpringGreen);
ObjectSet("H3 line", OBJPROP_WIDTH, 2);
}
else
{
ObjectMove("H3 line", 0, LineShiftTime, H3);
}
if(ObjectFind("L3 line")!=0)
{
ObjectCreate("L3 line", OBJ_HLINE, 0, LineShiftTime, L3);
ObjectSet("L3 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("L3 line", OBJPROP_COLOR, Red);
ObjectSet("L3 line", OBJPROP_WIDTH, 2);
}
else
{
ObjectMove("L3 line", 0, LineShiftTime, L3);
}
if(ObjectFind("L4 line")!=0)
{
ObjectCreate("L4 line", OBJ_HLINE, 0, LineShiftTime, L4);
ObjectSet("L4 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("L4 line", OBJPROP_COLOR, Red);
ObjectSet("L4 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("L4 line", 0, LineShiftTime, L4);
}
if(ObjectFind("L5 line")!=0)
{
ObjectCreate("L5 line", OBJ_HLINE, 0, LineShiftTime, L5);
ObjectSet("L5 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("L5 line", OBJPROP_COLOR, Red);
ObjectSet("L5 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("L5 line", 0, LineShiftTime, L5);
}
}
//---- done
// Now check for Alert
if (Alerts) DoAlerts();
//----
return(0);
}
//+------------------------------------------------------------------+
Comments
