camarilladt7v11_v1
Download script
This script is designed to provide traders with a comprehensive visual map of key price levels on their trading charts. By analyzing historical data from the previous trading day, it automatically calculates and draws several layers of technical analysis markers—specifically Pivot Points, Camarilla Levels, and Fibonacci levels—to help identify potential areas of support and resistance.
Core Functionality
1. Automated Data Gathering The script starts by scanning back through recent price history to identify the specific "High," "Low," and "Closing" prices from the previous day. It uses these three data points as the foundation for all subsequent calculations, ensuring that the levels displayed on your chart are always synchronized with current market cycles.
2. Pivot Point Systems The logic includes several popular methods for identifying "Pivot" prices (the balance point of a market):
- Standard Pivots: Calculates a central pivot and various support (S1–S5) and resistance (R1–R5) levels.
- Mid-Pivots: Provides more granular intermediate levels (M0–M5) for traders who prefer identifying smaller fluctuations between the main pivots.
3. Camarilla Breakout Levels A specialized section of the logic focuses on "Camarilla" levels. These are specifically used by some traders to identify breakout opportunities and targets:
- Breakout Zones: Identifies levels where price might break out significantly (H4, L4).
- Short/Long Targets: Highlights specific boundaries for potential short positions (H3) or long positions (L3).
- Extreme Targets: Marks the "outer" limits of expected price movement (H5, L5).
4. Fibonacci Integration The script can project a wide range of Fibonacci levels based on the previous day's price range. It allows for the display of multiple tiers (e.g., 1–3, 4–6, or 7–16), enabling traders to see deeper harmonic retracement levels that often act as psychological barriers in the market.
User Experience & Visual Aids

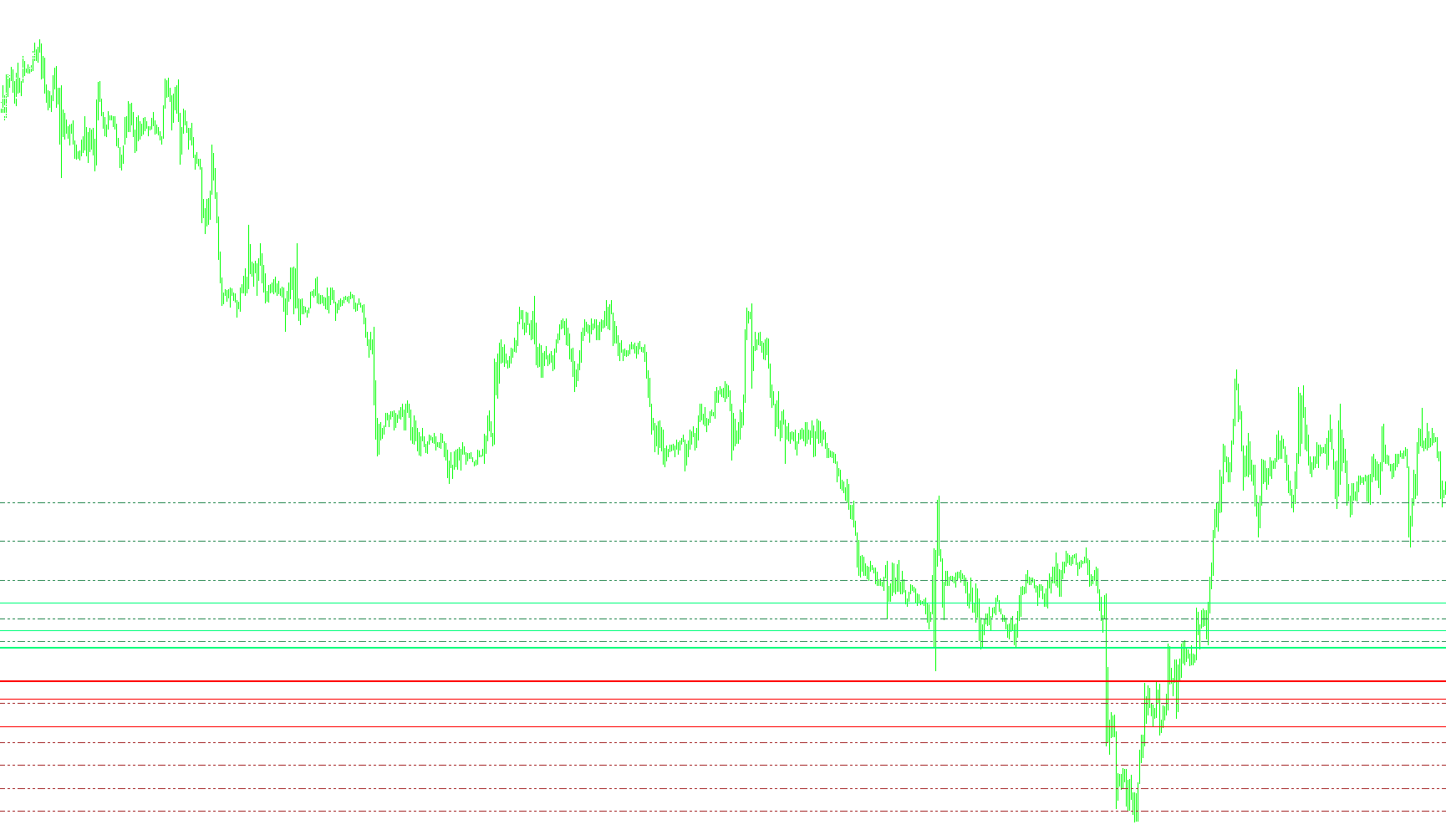

- Dynamic Charting: Instead of just calculating numbers in the background, the script draws actual lines and text labels directly on your chart. This allows for an immediate visual understanding of where "walls" (resistance) and "floors" (support) are located.
- Real-Time Dashboard: The script provides a text summary on the chart display. This dashboard shows the previous day's range, the current day's high/low, and all calculated levels in one glance, removing the need to do any manual math.
- Proximity Alerts: You can enable an alert system that monitors the current price. If the market price moves within a specific "Pip Distance" of a key Camarilla level (like H3 or L3), the script will trigger an audible sound and a visual notification. This helps traders stay focused on their targets without having to stare at the screen constantly.
- Clean Management: The logic includes a cleanup process that ensures when you remove the indicator, all the lines and labels it created are automatically wiped from your chart, keeping your workspace organized.
Miscellaneous
15
Views
0
Downloads
0
Favorites
camarilladt7v11_v1
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| camarilladt.mq4 |
//| Copyright © 2005, MetaQuotes Software Corp. |
//| http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net"
#include <stdlib.mqh>
#property indicator_chart_window
//---- input parameters
extern bool Alerts = false;
extern double GMTshiftSun=0; //sun into mon cams use this corrected value for fri data
extern double GMTshift=1;
extern bool Pivot = true;
extern bool CamTargets = true;
extern bool ListCamTargets = true;
extern color PivotColor = LimeGreen;
extern color PivotFontColor = White;
extern int PivotFontSize = 8;
extern int PivotWidth = 1;
extern int PipDistance = 20;
extern color CamFontColor = Gray;
extern int CamFontSize = 10;
extern bool Fibs = true;
extern color FibColorRes = SeaGreen;
extern color FibColorSup = Brown;
extern color FibFontColor = Gray;
extern int FibFontSize = 8;
extern bool DisplayFibLevels_1_3 = false;
extern double FibLevel1 = 0.236;
extern double FibLevel2 = 0.382;
extern double FibLevel3 = 0.50;
extern bool DisplayFibLevels_4_6 = true;
extern double FibLevel4 = 0.618;
extern double FibLevel5 = 0.764;
extern double FibLevel6 = 0.99;
extern bool DisplayFibLevels_7_16 = true;
extern double FibLevel7 = 1.27;
extern double FibLevel8 = 1.618;
extern double FibLevel9 = 1.99;
extern double FibLevel10 = 2.236;
extern double FibLevel11 = 2.618;
extern double FibLevel12 = 2.99;
extern double FibLevel13 = 3.236;
extern double FibLevel14 = 3.618;
extern double FibLevel15 = 3.99;
extern double FibLevel16 = 4.236;
extern bool StandardPivots = true;
extern bool ListStandardPivots = true;
extern color StandardFontColor = Gray;
extern int StandardFontSize = 8;
extern color SupportColor = Brown;
extern color ResistanceColor = SeaGreen;
extern bool MidPivots = false;
extern color MidPivotColor = White;
extern int MidFontSize = 8;
double P, H3, H4, H5;
double L3, L4, L5;
double LastHigh,LastLow,x;
bool firstL3=true;
bool firstH3=true;
double D1=0.091667;
double D2=0.183333;
double D3=0.2750;
double D4=0.55;
// Fib variables
double yesterday_high=0;
double yesterday_low=0;
double yesterday_close=0;
double p=0;
double r1=0,r2=0,r3=0,r4=0,r5=0,r6=0,r7=0,r8=0,r9=0,r10=0,r11=0,r12=0,r13=0,r14=0,r15=0,r16=0;
double s1=0,s2=0,s3=0,s4=0,s5=0,s6=0,s7=0,s8=0,s9=0,s10=0,s11=0,s12=0,s13=0,s14=0,s15=0,s16=0;
double R;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//----
//---- indicators
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//---- TODO: add your code here
if (Fibs)
{ObjectDelete("FibR1 Label");
ObjectDelete("FibR1 Line");
ObjectDelete("FibR2 Label");
ObjectDelete("FibR2 Line");
ObjectDelete("FibR3 Label");
ObjectDelete("FibR3 Line");
ObjectDelete("FibR4 Label");
ObjectDelete("FibR4 Line");
ObjectDelete("FibR5 Label");
ObjectDelete("FibR5 Line");
ObjectDelete("FibR6 Label");
ObjectDelete("FibR6 Line");
ObjectDelete("FibR7 Label");
ObjectDelete("FibR7 Line");
ObjectDelete("FibR8 Label");
ObjectDelete("FibR8 Line");
ObjectDelete("FibR9 Label");
ObjectDelete("FibR9 Line");
ObjectDelete("FibR10 Label");
ObjectDelete("FibR10 Line");
ObjectDelete("FibR11 Label");
ObjectDelete("FibR11 Line");
ObjectDelete("FibR12 Label");
ObjectDelete("FibR12 Line");
ObjectDelete("FibR13 Label");
ObjectDelete("FibR13 Line");
ObjectDelete("FibR14 Label");
ObjectDelete("FibR14 Line");
ObjectDelete("FibR15 Label");
ObjectDelete("FibR15 Line");
ObjectDelete("FibR16 Label");
ObjectDelete("FibR16 Line");
ObjectDelete("FibS1 Label");
ObjectDelete("FibS1 Line");
ObjectDelete("FibS2 Label");
ObjectDelete("FibS2 Line");
ObjectDelete("FibS3 Label");
ObjectDelete("FibS3 Line");
ObjectDelete("FibS4 Label");
ObjectDelete("FibS4 Line");
ObjectDelete("FibS5 Label");
ObjectDelete("FibS5 Line");
ObjectDelete("FibS6 Label");
ObjectDelete("FibS6 Line");
ObjectDelete("FibS7 Label");
ObjectDelete("FibS7 Line");
ObjectDelete("FibS8 Label");
ObjectDelete("FibS8 Line");
ObjectDelete("FibS9 Label");
ObjectDelete("FibS9 Line");
ObjectDelete("FibS10 Label");
ObjectDelete("FibS10 Line");
ObjectDelete("FibS11 Label");
ObjectDelete("FibS11 Line");
ObjectDelete("FibS12 Label");
ObjectDelete("FibS12 Line");
ObjectDelete("FibS13 Label");
ObjectDelete("FibS13 Line");
ObjectDelete("FibS14 Label");
ObjectDelete("FibS14 Line");
ObjectDelete("FibS15 Label");
ObjectDelete("FibS15 Line");
ObjectDelete("FibS16 Label");
ObjectDelete("FibS16 Line");
}
if (Pivot)
{
ObjectDelete("P Label");
ObjectDelete("P Line");
}
if (CamTargets)
{
ObjectDelete("H5 Label");
ObjectDelete("H5 Line");
ObjectDelete("H4 Label");
ObjectDelete("H4 Line");
ObjectDelete("H3 Label");
ObjectDelete("H3 Line");
ObjectDelete("L3 Label");
ObjectDelete("L3 Line");
ObjectDelete("L4 Label");
ObjectDelete("L4 Line");
ObjectDelete("L5 Label");
ObjectDelete("L5 Line");
}
//----
if (StandardPivots)
{
ObjectDelete("R1 Label");
ObjectDelete("R1 Line");
ObjectDelete("R2 Label");
ObjectDelete("R2 Line");
ObjectDelete("R3 Label");
ObjectDelete("R3 Line");
ObjectDelete("R4 Label");
ObjectDelete("R4 Line");
ObjectDelete("R5 Label");
ObjectDelete("R5 Line");
ObjectDelete("S1 Label");
ObjectDelete("S1 Line");
ObjectDelete("S2 Label");
ObjectDelete("S2 Line");
ObjectDelete("S3 Label");
ObjectDelete("S3 Line");
ObjectDelete("S4 Label");
ObjectDelete("S4 Line");
ObjectDelete("S5 Label");
ObjectDelete("S5 Line");
}
if (MidPivots)
{
ObjectDelete("M5 Label");
ObjectDelete("M5 Line");
ObjectDelete("M4 Label");
ObjectDelete("M4 Line");
ObjectDelete("M3 Label");
ObjectDelete("M3 Line");
ObjectDelete("M2 Label");
ObjectDelete("M2 Line");
ObjectDelete("M1 Label");
ObjectDelete("M1 Line");
ObjectDelete("M0 Label");
ObjectDelete("M0 Line");
}
return(0);
}
int DoAlerts()
{
double DifAboveL3,PipsLimit;
double DifBelowH3;
DifBelowH3 = H3 - Close[0];
DifAboveL3 = Close[0] - L3;
PipsLimit = PipDistance*Point;
if (DifBelowH3 > PipsLimit) firstH3 = true;
if (DifBelowH3 <= PipsLimit && DifBelowH3 > 0)
{
if (firstH3)
{
Alert("Below Cam H3 Line by ",DifBelowH3, " for ", Symbol(),"-",Period());
PlaySound("alert.wav");
firstH3=false;
}
}
if (DifAboveL3 > PipsLimit) firstL3 = true;
if (DifAboveL3 <= PipsLimit && DifAboveL3 > 0)
{
if (firstL3)
{
Alert("Above Cam L3 Line by ",DifAboveL3," for ", Symbol(),"-",Period());
Sleep(2000);
PlaySound("timeout.wav");
firstL3=false;
}
}
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars=IndicatorCounted();
//---- TODO: add your code here
double day_high=0;
double day_low=0;
double yesterday_open=0;
double today_open=0;
double Q=0,S=0,R=0,M2=0,M3=0,S1=0,R1=0,M1=0,M4=0,S2=0,R2=0,M0=0,M5=0,S3=0,R3=0,nQ=0,nD=0,D=0,R4=0,S4=0,R5=0,S5=0;
double shift_corrected;
int cnt=720;
double cur_day=0;
double prev_day=0;
double rates_d1[2][6];
//---- exit if period is greater than daily charts
if(Period() > 1440)
{
Print("Error - Chart period is greater than 1 day.");
return(-1); // then exit
}
//---- Get new daily prices & calculate pivots
if (DayOfWeek()==1) shift_corrected=GMTshiftSun;
else if ((DayOfWeek()==2) && (Minute() >= 5)) shift_corrected=GMTshift;
//else if ((DayOfWeek()==2) && (Hour() > GMTshift)) shift_corrected=GMTshift;
else shift_corrected=GMTshift;
while (cnt!= 0)
{
cur_day = TimeDay(Time[cnt]- (shift_corrected*3600));
if (prev_day != cur_day)
{
yesterday_close = Close[cnt+1];
today_open = Open[cnt];
yesterday_high = day_high;
yesterday_low = day_low;
day_high = High[cnt];
day_low = Low[cnt];
prev_day = cur_day;
}
if (High[cnt]>day_high)
{
day_high = High[cnt];
}
if (Low[cnt]<day_low)
{
day_low = Low[cnt];
}
cnt--;
}
D = (day_high - day_low);
Q = (yesterday_high - yesterday_low);
//------ Pivot Points ------
P = (yesterday_high + yesterday_low + yesterday_close)/3;//Pivot
//---- To display all 8 Camarilla pivots remove comment symbols below and
// add the appropriate object functions below
H5 = (yesterday_high/yesterday_low)*yesterday_close;
H4 = ((yesterday_high - yesterday_low)* D4) + yesterday_close;
H3 = ((yesterday_high - yesterday_low)* D3) + yesterday_close;
//H2 = ((yesterday_high - yesterday_low) * D2) + yesterday_close;
//H1 = ((yesterday_high - yesterday_low) * D1) + yesterday_close;
//L1 = yesterday_close - ((yesterday_high - yesterday_low)*(D1));
//L2 = yesterday_close - ((yesterday_high - yesterday_low)*(D2));
L3 = yesterday_close - ((yesterday_high - yesterday_low)*(D3));
L4 = yesterday_close - ((yesterday_high - yesterday_low)*(D4));
L5 = yesterday_close - (H5 - yesterday_close);
if (Fibs)
{
R = yesterday_high - yesterday_low;//range
p = (yesterday_high + yesterday_low + yesterday_close)/3;// Standard Pivot
if (DisplayFibLevels_1_3){
r1 = p + (R * FibLevel1);
r2 = p + (R * FibLevel2);
r3 = p + (R * FibLevel3);
s1 = p - (R * FibLevel1);
s2 = p - (R * FibLevel2);
s3 = p - (R * FibLevel3);}
if (DisplayFibLevels_4_6){
r4 = p + (R * FibLevel4);
r5 = p + (R * FibLevel5);
r6 = p + (R * FibLevel6);
s4 = p - (R * FibLevel4);
s5 = p - (R * FibLevel5);
s6 = p - (R * FibLevel6);}
if (DisplayFibLevels_7_16){
r7 = p + (R * FibLevel7);
r8 = p + (R * FibLevel8);
r9 = p + (R * FibLevel9);
r10 = p + (R * FibLevel10);
r11 = p + (R * FibLevel11);
r12 = p + (R * FibLevel12);
r13 = p + (R * FibLevel13);
r14 = p + (R * FibLevel14);
r15 = p + (R * FibLevel15);
r16 = p + (R * FibLevel16);
s7 = p - (R * FibLevel7);
s8 = p - (R * FibLevel8);
s9 = p - (R * FibLevel9);
s10 = p - (R * FibLevel10);
s11 = p - (R * FibLevel11);
s12 = p - (R * FibLevel12);
s13 = p - (R * FibLevel13);
s14 = p - (R * FibLevel14);
s15 = p - (R * FibLevel15);
s16 = p - (R * FibLevel16);}
}
if (StandardPivots)
{
R1 = (2*P)-yesterday_low;
S1 = (2*P)-yesterday_high;
R2 = P-S1+R1;
S2 = P-R1+S1;
R3 = (2*P)+(yesterday_high-(2*yesterday_low));
S3 = (2*P)-((2* yesterday_high)-yesterday_low);
R4 = (3*P)+(yesterday_high-(3*yesterday_low));
S4 = (3*P)-((3* yesterday_high)-yesterday_low);
R5 = (4*P)+(yesterday_high-(4*yesterday_low));
S5 = (4*P)-((4* yesterday_high)-yesterday_low);
}
if (MidPivots)
{
M0 = (S2+S3)/2;
M1 = (S1+S2)/2;
M2 = (P+S1)/2;
M3 = (P+R1)/2;
M4 = (R1+R2)/2;
M5 = (R2+R3)/2;
}
//comment on OHLC and daily range
if (Q > 5)
{
nQ = Q;
}
else
{
nQ = Q*10000;
}
if (D > 5)
{
nD = D;
}
else
{
nD = D*10000;
}
if (StringSubstr(Symbol(),3,3)=="JPY")
{
nQ=nQ/100;
nD=nD/100;
}
if ((CamTargets) && (ListCamTargets) && (StandardPivots) && (ListStandardPivots))
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,"\nLow= ",yesterday_low," Current Days Range= ",nD,"\nClose= ",yesterday_close,
"\n\nH5 ",H5,"\nH4 ",H4,"\nH3 ",H3,"\n\nL3 ",L3,"\nL4 ",L4,"\nL5 ",L5,
"\n\n\n\nR5 ",R5,"\nR4 ", R4,"\nR3 ", R3,"\nR2 ", R2,"\nR1 ", R1,"\nPivot ", P,"\nS1 ", S1,"\nS2 ", S2,"\nS3 ", S3,"\nS4 ", S4,"\nS5 ",S5);
}
else if ((CamTargets) && (ListCamTargets) && (StandardPivots) && !(ListStandardPivots))
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,"\nLow= ",yesterday_low," Current Days Range= ",nD,"\nClose= ",yesterday_close,
"\n\nH5 ",H5,"\nH4 ",H4,"\nH3 ",H3,"\n\nL3 ",L3,"\nL4 ",L4,"\nL5 ",L5);
}
else if ((CamTargets) && (ListCamTargets) && !(StandardPivots))
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,"\nLow= ",yesterday_low," Current Days Range= ",nD,"\nClose= ",yesterday_close,
"\n\nH5 ",H5,"\nH4 ",H4,"\nH3 ",H3,"\n\nL3 ",L3,"\nL4 ",L4,"\nL5 ",L5);
}
else if (!(CamTargets) && (StandardPivots) && (ListStandardPivots))
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,"\nLow= ",yesterday_low," Current Days Range= ",nD,"\nClose= ",yesterday_close,
"\n\nR5 ",R5,"\nR4 ", R4,"\nR3 ", R3,"\nR2 ", R2,"\nR1 ", R1,"\nPivot ", P,"\nS1 ", S1,"\nS2 ", S2,"\nS3 ", S3,"\nS4 ", S4,"\nS5 ",S5);
}
else
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,"\nLow= ",yesterday_low," Current Days Range= ",nD,"\nClose= ",yesterday_close);
}
//---- Set line labels on chart window
if (Pivot)
{
if(ObjectFind("P label") != 0)
{
ObjectCreate("P label", OBJ_TEXT, 0, Time[0], P);
ObjectSetText("P label", "Pivot", PivotFontSize, "Arial", PivotFontColor);
}
else
{
ObjectMove("P label", 0, Time[0], P);
}
//--- Draw Pivot lines on chart
if(ObjectFind("P line") != 0)
{
ObjectCreate("P line", OBJ_HLINE, 0, Time[40], P);
ObjectSet("P line", OBJPROP_STYLE, STYLE_DASH);
ObjectSet("P line", OBJPROP_COLOR, PivotColor);
}
else
{
ObjectMove("P line", 0, Time[40], P);
}
}
if (StandardPivots)
{
if(ObjectFind("R1 label") != 0)
{
ObjectCreate("R1 label", OBJ_TEXT, 0, Time[20], R1);
ObjectSetText("R1 label", " R1", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R1 label", 0, Time[20], R1);
}
if(ObjectFind("R2 label") != 0)
{
ObjectCreate("R2 label", OBJ_TEXT, 0, Time[20], R2);
ObjectSetText("R2 label", " R2", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R2 label", 0, Time[20], R2);
}
if(ObjectFind("R3 label") != 0)
{
ObjectCreate("R3 label", OBJ_TEXT, 0, Time[20], R3);
ObjectSetText("R3 label", " R3", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R3 label", 0, Time[20], R3);
}
if(ObjectFind("R4 label") != 0)
{
ObjectCreate("R4 label", OBJ_TEXT, 0, Time[20], R4);
ObjectSetText("R4 label", " R4", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R4 label", 0, Time[20], R4);
}
if(ObjectFind("R5 label") != 0)
{
ObjectCreate("R5 label", OBJ_TEXT, 0, Time[20], R5);
ObjectSetText("R5 label", " R5", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R5 label", 0, Time[20], R5);
}
if(ObjectFind("S1 label") != 0)
{
ObjectCreate("S1 label", OBJ_TEXT, 0, Time[20], S1);
ObjectSetText("S1 label", "S1", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S1 label", 0, Time[20], S1);
}
if(ObjectFind("S2 label") != 0)
{
ObjectCreate("S2 label", OBJ_TEXT, 0, Time[20], S2);
ObjectSetText("S2 label", "S2", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S2 label", 0, Time[20], S2);
}
if(ObjectFind("S3 label") != 0)
{
ObjectCreate("S3 label", OBJ_TEXT, 0, Time[20], S3);
ObjectSetText("S3 label", "S3", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S3 label", 0, Time[20], S3);
}
if(ObjectFind("S4 label") != 0)
{
ObjectCreate("S4 label", OBJ_TEXT, 0, Time[20], S4);
ObjectSetText("S4 label", "S4", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S4 label", 0, Time[20], S4);
}
if(ObjectFind("S5 label") != 0)
{
ObjectCreate("S5 label", OBJ_TEXT, 0, Time[20], S5);
ObjectSetText("S5 label", "S5", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S5 label", 0, Time[20], S5);
}
//--- Draw Pivot lines on chart
if(ObjectFind("S1 line") != 0)
{
ObjectCreate("S1 line", OBJ_HLINE, 0, Time[40], S1);
ObjectSet("S1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S1 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S1 line", 0, Time[40], S1);
}
if(ObjectFind("S2 line") != 0)
{
ObjectCreate("S2 line", OBJ_HLINE, 0, Time[40], S2);
ObjectSet("S2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S2 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S2 line", 0, Time[40], S2);
}
if(ObjectFind("S3 line") != 0)
{
ObjectCreate("S3 line", OBJ_HLINE, 0, Time[40], S3);
ObjectSet("S3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S3 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S3 line", 0, Time[40], S3);
}
if(ObjectFind("S4 line") != 0)
{
ObjectCreate("S4 line", OBJ_HLINE, 0, Time[40], S4);
ObjectSet("S4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S4 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S4 line", 0, Time[40], S4);
}
if(ObjectFind("S5 line") != 0)
{
ObjectCreate("S5 line", OBJ_HLINE, 0, Time[40], S5);
ObjectSet("S5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S5 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S5 line", 0, Time[40], S5);
}
if(ObjectFind("R1 line") != 0)
{
ObjectCreate("R1 line", OBJ_HLINE, 0, Time[40], R1);
ObjectSet("R1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R1 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R1 line", 0, Time[40], R1);
}
if(ObjectFind("R2 line") != 0)
{
ObjectCreate("R2 line", OBJ_HLINE, 0, Time[40], R2);
ObjectSet("R2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R2 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R2 line", 0, Time[40], R2);
}
if(ObjectFind("R3 line") != 0)
{
ObjectCreate("R3 line", OBJ_HLINE, 0, Time[40], R3);
ObjectSet("R3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R3 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R3 line", 0, Time[40], R3);
}
if(ObjectFind("R4 line") != 0)
{
ObjectCreate("R4 line", OBJ_HLINE, 0, Time[40], R4);
ObjectSet("R4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R4 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R4 line", 0, Time[40], R4);
}
if(ObjectFind("R5 line") != 0)
{
ObjectCreate("R5 line", OBJ_HLINE, 0, Time[40], R5);
ObjectSet("R5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R5 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R5 line", 0, Time[40], R5);
}
}
if (MidPivots)
{
if(ObjectFind("M5 label") != 0)
{
ObjectCreate("M5 label", OBJ_TEXT, 0, Time[20], M5);
ObjectSetText("M5 label", " M5", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M5 label", 0, Time[20], M5);
}
if(ObjectFind("M4 label") != 0)
{
ObjectCreate("M4 label", OBJ_TEXT, 0, Time[20], M4);
ObjectSetText("M4 label", " M4", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M4 label", 0, Time[20], M4);
}
if(ObjectFind("M3 label") != 0)
{
ObjectCreate("M3 label", OBJ_TEXT, 0, Time[20], M3);
ObjectSetText("M3 label", " M3", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M3 label", 0, Time[20], M3);
}
if(ObjectFind("M2 label") != 0)
{
ObjectCreate("M2 label", OBJ_TEXT, 0, Time[20], M2);
ObjectSetText("M2 label", " M2", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M2 label", 0, Time[20], M2);
}
if(ObjectFind("M1 label") != 0)
{
ObjectCreate("M1 label", OBJ_TEXT, 0, Time[20], M1);
ObjectSetText("M1 label", " M1", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M1 label", 0, Time[20], M1);
}
if(ObjectFind("M0 label") != 0)
{
ObjectCreate("M0 label", OBJ_TEXT, 0, Time[20], M0);
ObjectSetText("M0 label", " M0", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M0 label", 0, Time[20], M0);
}
if(ObjectFind("M5 line") != 0)
{
ObjectCreate("M5 line", OBJ_HLINE, 0, Time[40], M5);
ObjectSet("M5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M5 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M5 line", 0, Time[40], M5);
}
if(ObjectFind("M4 line") != 0)
{
ObjectCreate("M4 line", OBJ_HLINE, 0, Time[40], M4);
ObjectSet("M4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M4 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M4 line", 0, Time[40], M4);
}
if(ObjectFind("M3 line") != 0)
{
ObjectCreate("M3 line", OBJ_HLINE, 0, Time[40], M3);
ObjectSet("M3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M3 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M3 line", 0, Time[40], M3);
}
if(ObjectFind("M2 line") != 0)
{
ObjectCreate("M2 line", OBJ_HLINE, 0, Time[40], M2);
ObjectSet("M2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M2 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M2 line", 0, Time[40], M2);
}
if(ObjectFind("M1 line") != 0)
{
ObjectCreate("M1 line", OBJ_HLINE, 0, Time[40], M1);
ObjectSet("M1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M1 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M1 line", 0, Time[40], M1);
}
if(ObjectFind("M0 line") != 0)
{
ObjectCreate("M0 line", OBJ_HLINE, 0, Time[40], M0);
ObjectSet("M0 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M0 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M0 line", 0, Time[40], M0);
}
}
if (Fibs)
{
// Fibs 1-3
if (DisplayFibLevels_1_3)
{
if(ObjectFind("FibR1 label") != 0)
{
ObjectCreate("FibR1 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR1 label", "Fib R1", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR1 label", 0, Time[0], r1);
}
if(ObjectFind("FibR2 label") != 0)
{
ObjectCreate("FibR2 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR2 label", "Fib R2", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR2 label", 0, Time[0], r2);
}
if(ObjectFind("FibR3 label") != 0)
{
ObjectCreate("FibR3 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR3 label", "Fib R3", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR3 label", 0, Time[0], r3);
}
if(ObjectFind("FibS1 label") != 0)
{
ObjectCreate("FibS1 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS1 label", "Fib S1", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS1 label", 0, Time[0], s1);
}
if(ObjectFind("FibS2 label") != 0)
{
ObjectCreate("FibS2 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS2 label", "Fib S2", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS2 label", 0, Time[0], s2);
}
if(ObjectFind("FibS3 label") != 0)
{
ObjectCreate("FibS3 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS3 label", "Fib S3", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS3 label", 0, Time[0], s3);
}
}
// Fibs 4-6
if (DisplayFibLevels_4_6)
{
if(ObjectFind("FibR4 label") != 0)
{
ObjectCreate("FibR4 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR4 label", "Fib R4", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR4 label", 0, Time[0], r4);
}
if(ObjectFind("FibR5 label") != 0)
{
ObjectCreate("FibR5 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR5 label", "Fib R5", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR5 label", 0, Time[0], r5);
}
if(ObjectFind("FibR6 label") != 0)
{
ObjectCreate("FibR6 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR6 label", "Fib R6", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR6 label", 0, Time[0], r6);
}
if(ObjectFind("FibS4 label") != 0)
{
ObjectCreate("FibS4 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS4 label", "Fib S4", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS4 label", 0, Time[0], s4);
}
if(ObjectFind("FibS5 label") != 0)
{
ObjectCreate("FibS5 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS5 label", "Fib S5", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS5 label", 0, Time[0], s5);
}
if(ObjectFind("FibS6 label") != 0)
{
ObjectCreate("FibS6 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS6 label", "Fib S6", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS6 label", 0, Time[0], s6);
}
}
if (DisplayFibLevels_7_16)
{
if(ObjectFind("FibR7 label") != 0)
{
ObjectCreate("FibR7 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR7 label", "Fib R7", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR7 label", 0, Time[0], r7);
}
if(ObjectFind("FibR8 label") != 0)
{
ObjectCreate("FibR8 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR8 label", "Fib R8", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR8 label", 0, Time[0], r8);
}
if(ObjectFind("FibR9 label") != 0)
{
ObjectCreate("FibR9 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR9 label", "Fib R9", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR9 label", 0, Time[0], r9);
}
if(ObjectFind("FibR10 label") != 0)
{
ObjectCreate("FibR10 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR10 label", "Fib R10", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR10 label", 0, Time[0], r10);
}
if(ObjectFind("FibR11 label") != 0)
{
ObjectCreate("FibR11 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR11 label", "Fib R11", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR11 label", 0, Time[0], r11);
}
if(ObjectFind("FibR12 label") != 0)
{
ObjectCreate("FibR12 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR12 label", "Fib R12", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR12 label", 0, Time[0], r12);
}
if(ObjectFind("FibR13 label") != 0)
{
ObjectCreate("FibR13 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR13 label", "Fib R13", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR13 label", 0, Time[0], r13);
}
if(ObjectFind("FibR14 label") != 0)
{
ObjectCreate("FibR14 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR14 label", "Fib R14", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR14 label", 0, Time[0], r14);
}
if(ObjectFind("FibR15 label") != 0)
{
ObjectCreate("FibR15 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR15 label", "Fib R15", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR15 label", 0, Time[0], r15);
}
if(ObjectFind("FibR16 label") != 0)
{
ObjectCreate("FibR16 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR16 label", "Fib R16", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR16 label", 0, Time[0], r16);
}
if(ObjectFind("FibS7 label") != 0)
{
ObjectCreate("FibS7 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS7 label", "Fib S7", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS7 label", 0, Time[0], s7);
}
if(ObjectFind("FibS8 label") != 0)
{
ObjectCreate("FibS8 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS8 label", "Fib S8", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS8 label", 0, Time[0], s8);
}
if(ObjectFind("FibS9 label") != 0)
{
ObjectCreate("FibS9 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS9 label", "Fib S9", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS9 label", 0, Time[0], s9);
}
if(ObjectFind("FibS10 label") != 0)
{
ObjectCreate("FibS10 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS10 label", "Fib S10", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS10 label", 0, Time[0], s10);
}
if(ObjectFind("FibS11 label") != 0)
{
ObjectCreate("FibS11 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS11 label", "Fib S11", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS11 label", 0, Time[0], s11);
}
if(ObjectFind("FibS12 label") != 0)
{
ObjectCreate("FibS12 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS12 label", "Fib S12", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS12 label", 0, Time[0], s12);
}
if(ObjectFind("FibS13 label") != 0)
{
ObjectCreate("FibS13 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS13 label", "Fib S13", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS13 label", 0, Time[0], s13);
}
if(ObjectFind("FibS14 label") != 0)
{
ObjectCreate("FibS14 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS14 label", "Fib S14", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS14 label", 0, Time[0], s14);
}
if(ObjectFind("FibS15 label") != 0)
{
ObjectCreate("FibS15 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS15 label", "Fib S15", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS15 label", 0, Time[0], s15);
}
if(ObjectFind("FibS16 label") != 0)
{
ObjectCreate("FibS16 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS16 label", "Fib S16", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS16 label", 0, Time[0], s16);
}
}
//---- Set lines on chart window for Fibs
// Fibs 1-3
if (DisplayFibLevels_1_3)
{
if(ObjectFind("FibR1 line") != 0)
{
ObjectCreate("FibR1 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR1 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR1 line", 0, Time[0], r1);
}
if(ObjectFind("FibR2 line") != 0)
{
ObjectCreate("FibR2 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR2 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR2 line", 0, Time[0], r2);
}
if(ObjectFind("FibR3 line") != 0)
{
ObjectCreate("FibR3 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR3 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR3 line", 0, Time[0], r3);
}
if(ObjectFind("FibS1 line") != 0)
{
ObjectCreate("FibS1 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS1 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS1 line", 0, Time[0], s1);
}
if(ObjectFind("FibS2 line") != 0)
{
ObjectCreate("FibS2 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS2 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS2 line", 0, Time[0], s2);
}
if(ObjectFind("FibS3 line") != 0)
{
ObjectCreate("FibS3 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS3 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS3 line", 0, Time[0], s3);
}
}
// Fibs 4-6
if (DisplayFibLevels_4_6)
{
if(ObjectFind("FibR4 line") != 0)
{
ObjectCreate("FibR4 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR4 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR4 line", 0, Time[0], r4);
}
if(ObjectFind("FibR5 line") != 0)
{
ObjectCreate("FibR5 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR5 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR5 line", 0, Time[0], r5);
}
if(ObjectFind("FibR6 line") != 0)
{
ObjectCreate("FibR6 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR6 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR6 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR6 line", 0, Time[0], r6);
}
if(ObjectFind("FibS4 line") != 0)
{
ObjectCreate("FibS4 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS4 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS4 line", 0, Time[0], s4);
}
if(ObjectFind("FibS5 line") != 0)
{
ObjectCreate("FibS5 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS5 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS5 line", 0, Time[0], s5);
}
if(ObjectFind("FibS6 line") != 0)
{
ObjectCreate("FibS6 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS6 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS6 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS6 line", 0, Time[0], s6);
}
}
// Fibs 7-16
if (DisplayFibLevels_7_16)
{
if(ObjectFind("FibR7 line") != 0)
{
ObjectCreate("FibR7 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR7 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR7 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR7 line", 0, Time[0], r7);
}
if(ObjectFind("FibR8 line") != 0)
{
ObjectCreate("FibR8 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR8 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR8 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR8 line", 0, Time[0], r8);
}
if(ObjectFind("FibR9 line") != 0)
{
ObjectCreate("FibR9 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR9 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR9 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR9 line", 0, Time[0], r9);
}
if(ObjectFind("FibR10 line") != 0)
{
ObjectCreate("FibR10 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR10 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR10 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR10 line", 0, Time[0], r10);
}
if(ObjectFind("FibR11 line") != 0)
{
ObjectCreate("FibR11 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR11 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR11 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR11 line", 0, Time[0], r11);
}
if(ObjectFind("FibR12 line") != 0)
{
ObjectCreate("FibR12 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR12 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR12 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR12 line", 0, Time[0], r12);
}
if(ObjectFind("FibR13 line") != 0)
{
ObjectCreate("FibR13 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR13 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR13 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR13 line", 0, Time[0], r13);
}
if(ObjectFind("FibR14 line") != 0)
{
ObjectCreate("FibR14 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR14 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR14 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR14 line", 0, Time[0], r14);
}
if(ObjectFind("FibR15 line") != 0)
{
ObjectCreate("FibR15 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR15 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR15 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR15 line", 0, Time[0], r15);
}
if(ObjectFind("FibR16 line") != 0)
{
ObjectCreate("FibR16 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR16 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR16 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR16 line", 0, Time[0], r16);
}
if(ObjectFind("FibS7 line") != 0)
{
ObjectCreate("FibS7 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS7 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS7 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS7 line", 0, Time[0], s7);
}
if(ObjectFind("FibS8 line") != 0)
{
ObjectCreate("FibS8 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS8 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS8 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS8 line", 0, Time[0], s8);
}
if(ObjectFind("FibS9 line") != 0)
{
ObjectCreate("FibS9 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS9 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS9 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS9 line", 0, Time[0], s9);
}
if(ObjectFind("FibS10 line") != 0)
{
ObjectCreate("FibS10 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS10 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS10 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS10 line", 0, Time[0], s10);
}
if(ObjectFind("FibS11 line") != 0)
{
ObjectCreate("FibS11 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS11 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS11 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS11 line", 0, Time[0], s11);
}
if(ObjectFind("FibS12 line") != 0)
{
ObjectCreate("FibS12 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS12 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS12 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS12 line", 0, Time[0], s12);
}
if(ObjectFind("FibS13 line") != 0)
{
ObjectCreate("FibS13 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS13 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS13 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS13 line", 0, Time[0], s13);
}
if(ObjectFind("FibS13 line") != 0)
{
ObjectCreate("FibS13 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS13 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS13 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS14 line", 0, Time[0], s14);
}
if(ObjectFind("FibS15 line") != 0)
{
ObjectCreate("FibS15 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS15 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS15 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS15 line", 0, Time[0], s15);
}
if(ObjectFind("FibS16 line") != 0)
{
ObjectCreate("FibS16 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS16 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS16 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS16 line", 0, Time[0], s16);
}
}
}
// --- THE CAMARILLA ---
if (CamTargets)
{
if(ObjectFind("H5 label") != 0)
{
ObjectCreate("H5 label", OBJ_TEXT, 0, Time[20], H5);
ObjectSetText("H5 label", " H5 LB TARGET", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("H5 label", 0, Time[20], H5);
}
if(ObjectFind("H4 label") != 0)
{
ObjectCreate("H4 label", OBJ_TEXT, 0, Time[20], H4);
ObjectSetText("H4 label", " H4 LONG BREAKOUT", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("H4 label", 0, Time[20], H4);
}
if(ObjectFind("H3 label") != 0)
{
ObjectCreate("H3 label", OBJ_TEXT, 0, Time[20], H3);
ObjectSetText("H3 label", " H3 SHORT", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("H3 label", 0, Time[20], H3);
}
if(ObjectFind("L3 label") != 0)
{
ObjectCreate("L3 label", OBJ_TEXT, 0, Time[20], L3);
ObjectSetText("L3 label", " L3 LONG", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("L3 label", 0, Time[20], L3);
}
if(ObjectFind("L4 label") != 0)
{
ObjectCreate("L4 label", OBJ_TEXT, 0, Time[20], L4);
ObjectSetText("L4 label", " L4 SHORT BREAKOUT", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("L4 label", 0, Time[20], L4);
}
if(ObjectFind("L5 label") != 0)
{
ObjectCreate("L5 label", OBJ_TEXT, 0, Time[20], L5);
ObjectSetText("L5 label", " L5 SB TARGET", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("L5 label", 0, Time[20], L5);
}
//---- Draw Camarilla lines on Chart
if(ObjectFind("H5 line") != 0)
{
ObjectCreate("H5 line", OBJ_HLINE, 0, Time[40], H5);
ObjectSet("H5 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("H5 line", OBJPROP_COLOR, SpringGreen);
ObjectSet("H5 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("H5 line", 0, Time[40], H5);
}
if(ObjectFind("H4 line") != 0)
{
ObjectCreate("H4 line", OBJ_HLINE, 0, Time[40], H4);
ObjectSet("H4 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("H4 line", OBJPROP_COLOR, SpringGreen);
ObjectSet("H4 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("H4 line", 0, Time[40], H4);
}
if(ObjectFind("H3 line") != 0)
{
ObjectCreate("H3 line", OBJ_HLINE, 0, Time[40], H3);
ObjectSet("H3 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("H3 line", OBJPROP_COLOR, SpringGreen);
ObjectSet("H3 line", OBJPROP_WIDTH, 2);
}
else
{
ObjectMove("H3 line", 0, Time[40], H3);
}
if(ObjectFind("L3 line") != 0)
{
ObjectCreate("L3 line", OBJ_HLINE, 0, Time[40], L3);
ObjectSet("L3 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("L3 line", OBJPROP_COLOR, Red);
ObjectSet("L3 line", OBJPROP_WIDTH, 2);
}
else
{
ObjectMove("L3 line", 0, Time[40], L3);
}
if(ObjectFind("L4 line") != 0)
{
ObjectCreate("L4 line", OBJ_HLINE, 0, Time[40], L4);
ObjectSet("L4 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("L4 line", OBJPROP_COLOR, Red);
ObjectSet("L4 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("L4 line", 0, Time[40], L4);
}
if(ObjectFind("L5 line") != 0)
{
ObjectCreate("L5 line", OBJ_HLINE, 0, Time[40], L5);
ObjectSet("L5 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("L5 line", OBJPROP_COLOR, Red);
ObjectSet("L5 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("L5 line", 0, Time[40], L5);
}
}
//---- done
// Now check for Alert
if (Alerts) DoAlerts();
//----
return(0);
}
//+------------------------------------------------------------------+
Comments
