nmaMM

Download script
Author: Copyright � 2007, MetaQuotes Software Corp.
nmaMM

This indicator is designed to analyze price movements by focusing on the mathematical relationship between price changes and their relative volatility. Instead of simply looking at where the price goes, it evaluates how "aggressive" or "stable" those moves are over a specific window of time.

Core Logic Overview

The script operates by processing a sequence of historical price data to determine the underlying momentum and variance of the asset. Here is the step-by-step breakdown of how it processes this information:

1. Logarithmic Price Analysis Rather than using raw price points, the script converts prices into logarithmic values. This is a common professional technique used to normalize data, ensuring that a percentage move in a low-priced asset is treated with the same significance as a percentage move in a high-priced asset. It then calculates the absolute difference between these logs across multiple consecutive bars.

2. Weighting and Normalization The script applies two distinct types of mathematical "weighting" to these price differences:

  • Standardized Differences: It calculates a series of values where each price change is divided by its square root (relative to its position in time). This helps identify how much of a move is actually significant versus what might be routine "noise."
  • Square Root Variance: It creates a secondary set of values by multiplying the price differences by the difference between consecutive square roots. This specific calculation is often used to smooth out erratic spikes while preserving the overall trend of the data.

3. Average and Ratio Calculation The indicator compiles these weighted results into two primary figures:

  • A Volume-like Average: It calculates an average based on the standardized differences across a 40-period window.
  • A Smoothing Ratio: It compares the sum of the "Square Root Variance" against the total magnitude of the price movement to create a ratio. This ratio acts as a multiplier that determines how much influence new data should have on the final output.

4. Dynamic Smoothing (EMA) The script uses an Exponential Moving Average (EMA) logic, but it is "dynamic." Instead of using a fixed speed for the average, it uses the previously mentioned Ratio to decide how fast the average should react. If the market is moving in a specific, consistent way, the ratio adjusts the smoothness of the lines; if the market becomes erratic, the ratio helps dampen the reaction.

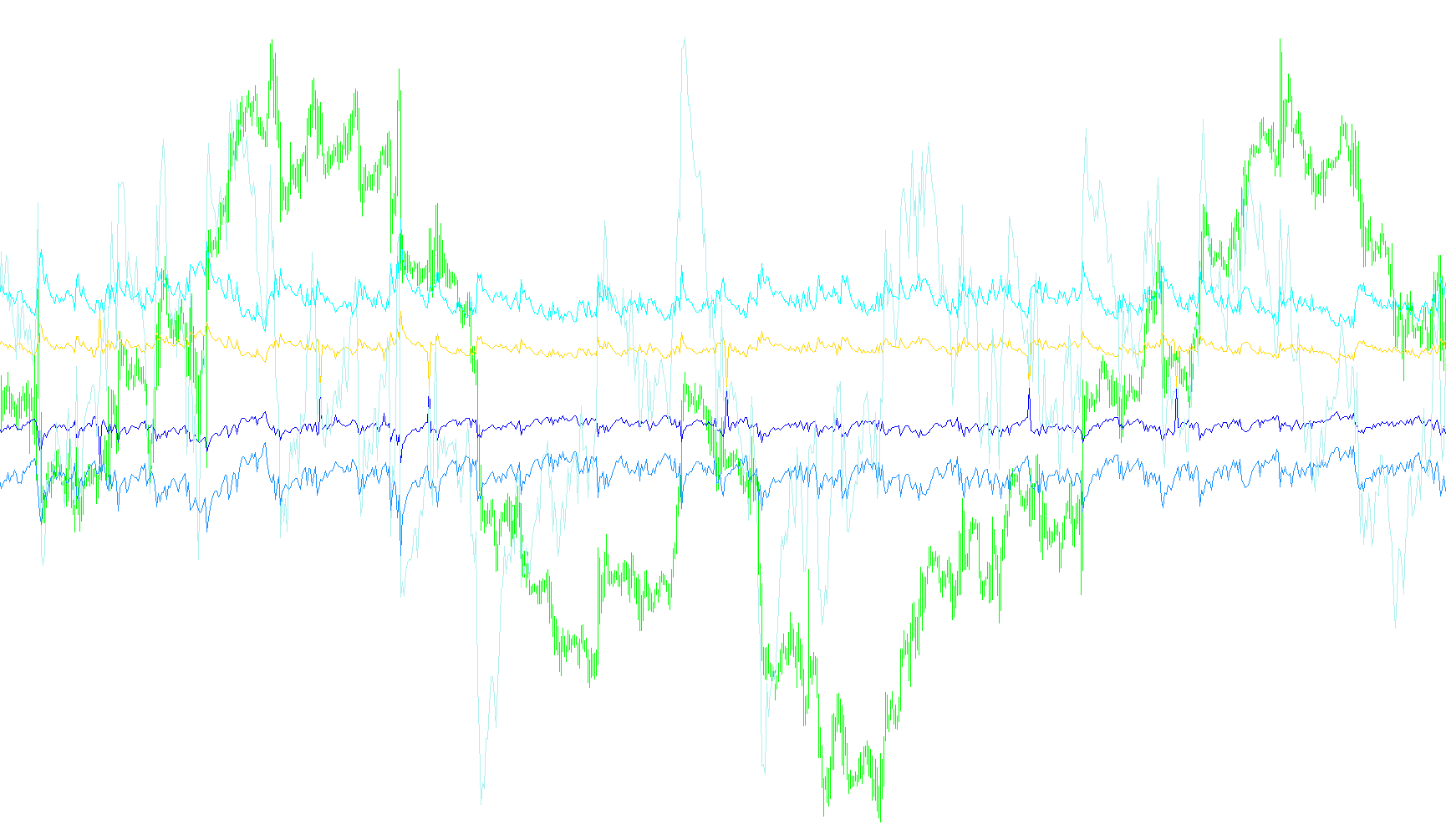

Visual Output

The script produces five distinct data streams (buffers) on your chart:

  • Primary Momentum (Line 1 & 2): A smoothed representation of the volatility-adjusted movement and its opposite (negative) reflection.
  • Secondary Trend (Line 3 & 4): A secondary smoothed average based on the ratio and its opposite reflection.
  • Volatility Magnitude (Line 5): A direct calculation of the square root of the momentum, providing a clearer look at the "intensity" of current price action.
16 Views
0 Downloads
0 Favorites
nmaMM
//+------------------------------------------------------------------+
//|                                                          nmm.mq4 |
//|                      Copyright © 2007, MetaQuotes Software Corp. |
//|                                        http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2007, MetaQuotes Software Corp."
#property link      "http://www.metaquotes.net"
#property indicator_buffers 5
#property indicator_separate_window
double extmapbuffer1[];
double extmapbuffer2[];
double extmapbuffer3[];
double extmapbuffer4[];
double extmapbuffer5[];

#property indicator_color1 Yellow
#property indicator_color2 Yellow
#property indicator_color3 White
#property indicator_color4 Green
#property indicator_color5 Green
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
  SetIndexStyle (0,DRAW_LINE);
  SetIndexStyle (1,DRAW_LINE);
  SetIndexStyle (2,DRAW_LINE);
  SetIndexStyle (3, DRAW_LINE);
  SetIndexStyle (4, DRAW_LINE);
  SetIndexStyle (5, DRAW_LINE);

  SetIndexBuffer (0, extmapbuffer1);
  SetIndexBuffer (1, extmapbuffer2);
  SetIndexBuffer (2, extmapbuffer3);
  SetIndexBuffer (3, extmapbuffer4);
  SetIndexBuffer (4, extmapbuffer5);
  string short_name = "NMAmr";
  IndicatorShortName (short_name);
//---- indicators
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int counted_bars=IndicatorCounted();
   double t1,t2,t3,t4,t5,t6,t7,t8,t9,t10,t11,t12,t13,t14,t15,t16,t17,t18,t19,t20,t21,t22,t23,t24,t25,t26,t27,t28,t29,t30,t31,t32,t33,t34,t35,t36,t37,t38,t39,t40;
   double a1,a2,a3,a4,a5,a6,a7,a8,a9,a10,a11,a12,a13,a14,a15,a16,a17,a18,a19,a20,a21,a22,a23,a24,a25,a26,a27,a28,a29,a30,a31,a32,a33,a34,a35,a36,a37,a38,a39,a40;
   double s1,s2,s3,s4,s5,s6,s7,s8,s9,s10,s11,s12,s13,s14,s15,s16,s17,s18,s19,s20,s21,s22,s23,s24,s25,s26,s27,s28,s29,s30,s31,s32,s33,s34,s35,s36,s37,s38,s39,s40;
   double  ave, badif0,badif1,badif2,badif3,badif4,badif5,badif6,badif7,badif8,badif9,badif10,badif11,badif12,badif13,badif14,badif15,badif16,badif17,badif18,badif19,badif20,badif21,badif22,badif23,badif24,badif25,badif26,badif27,badif28,badif29,badif30,badif31,badif32,badif33,badif34,badif35,badif36,badif37,badif38,badif39,badif40;
   double sum,sum2, ratio, dif0,dif1,dif2,dif3,dif4,dif5,dif6,dif7,dif8,dif9,dif10,dif11,dif12,dif13,dif14,dif15,dif16,dif17,dif18,dif19,dif20,dif21,dif22,dif23,dif24,dif25,dif26,dif27,dif28,dif29,dif30,dif31,dif32,dif33,dif34,dif35,dif36,dif37,dif38,dif39,dif40;
   double  adif0,adif1,adif2,adif3,adif4,adif5,adif6,adif7,adif8,adif9,adif10,adif11,adif12,adif13,adif14,adif15,adif16,adif17,adif18,adif19,adif20,adif21,adif22,adif23,adif24,adif25,adif26,adif27,adif28,adif29,adif30,adif31,adif32,adif33,adif34,adif35,adif36,adif37,adif38,adif39,adif40;
   int pos = Bars - counted_bars;
   while (pos>=0)
   {
   if (counted_bars<0) return (-1);
   if (counted_bars>0) counted_bars--;
   dif0 = MathAbs((MathLog(Close[pos])*100000) - (MathLog(Close [pos+1])*100000));
   dif1 = MathAbs((MathLog(Close[pos+1])*100000) - (MathLog(Close [pos+2])*100000));
   dif2 = MathAbs((MathLog(Close[pos+2])*100000) - (MathLog(Close [pos+3])*100000)) ;
   dif3 = MathAbs((MathLog(Close[pos+3])*100000) - (MathLog(Close [pos+4])*100000)) ;
   dif4 = MathAbs((MathLog(Close[pos+4])*100000) - (MathLog(Close [pos+5])*100000)) ;
   dif5 = MathAbs((MathLog(Close[pos+5])*100000) - (MathLog(Close [pos+6])*100000)) ;
   dif6 = MathAbs((MathLog(Close[pos+6])*100000) -  (MathLog(Close [pos+7])*100000)) ;
   dif7 = MathAbs((MathLog(Close[pos+7])*100000) -  (MathLog(Close [pos+8])*100000)) ;
   dif8 = MathAbs((MathLog(Close[pos+8])*100000) -  (MathLog(Close [pos+9])*100000)) ;
   dif9 = MathAbs((MathLog(Close[pos+9])*100000) -  (MathLog(Close [pos+10])*100000)) ;
   dif10 =MathAbs((MathLog(Close[pos+10])*100000) - (MathLog(Close [pos+11])*100000));
   dif11 =MathAbs((MathLog(Close[pos+11])*100000) - (MathLog(Close [pos+12])*100000)) ;
   dif12 =MathAbs((MathLog(Close[pos+12])*100000) - (MathLog(Close [pos+13])*100000)) ;
   dif14 =MathAbs((MathLog(Close[pos+13])*100000) - (MathLog(Close [pos+14])*100000)) ;
   dif15 =MathAbs((MathLog(Close[pos+14])*100000) - (MathLog(Close [pos+15])*100000)) ;
   dif16 =MathAbs((MathLog(Close[pos+15])*100000) - (MathLog(Close [pos+16])*100000));
   dif17 =MathAbs((MathLog(Close[pos+16])*100000) - (MathLog(Close [pos+17])*100000)) ;
   dif18 =MathAbs((MathLog(Close[pos+17])*100000) - (MathLog(Close [pos+18])*100000)) ;
   dif19 =MathAbs((MathLog(Close[pos+18])*100000) - (MathLog(Close [pos+19])*100000));
   dif20 =MathAbs((MathLog(Close[pos+19])*100000) - (MathLog(Close [pos+20])*100000));

   adif0 = MathAbs(MathLog(Close[pos])*100000 - MathLog(Close [pos+1])*100000);
   adif1 = MathAbs(MathLog(Close[pos+1])*100000 - MathLog(Close [pos+2])*100000) * (MathSqrt(2)-MathSqrt(1));
   adif2 = MathAbs(MathLog(Close[pos+2])*100000 - MathLog(Close [pos+3])*100000) * (MathSqrt(3)-MathSqrt(2));
   adif3 = MathAbs(MathLog(Close[pos+3])*100000 - MathLog(Close [pos+4])*100000) * (MathSqrt(4)-MathSqrt(3));
   adif4 = MathAbs(MathLog(Close[pos+4])*100000 - MathLog(Close [pos+5])*100000) * (MathSqrt(5)-MathSqrt(4));
   adif5 = MathAbs(MathLog(Close[pos+5])*100000 - MathLog(Close [pos+6])*100000)* (MathSqrt(6)-MathSqrt(5));
   adif6 = MathAbs(MathLog(Close[pos+6])*100000 - MathLog(Close [pos+7])*100000) * (MathSqrt(7)-MathSqrt(6));
   adif7 = MathAbs(MathLog(Close[pos+7])*100000 - MathLog(Close [pos+8])*100000) * (MathSqrt(8)-MathSqrt(7));
   adif8 = MathAbs(MathLog(Close[pos+8])*100000 - MathLog(Close [pos+9])*100000) * (MathSqrt(9)-MathSqrt(8));
   adif9 = MathAbs(MathLog(Close[pos+9])*100000 - MathLog(Close [pos+10])*100000) * (MathSqrt(10)-MathSqrt(9));
   adif10 =MathAbs (MathLog(Close[pos+10])*100000 - MathLog(Close [pos+11])*100000) * (MathSqrt(11)-MathSqrt(10));
   adif11 =MathAbs (MathLog(Close[pos+11])*100000 - MathLog(Close [pos+12])*100000) * (MathSqrt(12)-MathSqrt(11));
   adif12 =MathAbs (MathLog(Close[pos+12])*100000 - MathLog(Close [pos+13])*100000) * (MathSqrt(13)-MathSqrt(12));
   adif14 =MathAbs (MathLog(Close[pos+13])*100000 - MathLog(Close [pos+14])*100000) * (MathSqrt(14)-MathSqrt(13));
   adif15 =MathAbs (MathLog(Close[pos+14])*100000 - MathLog(Close [pos+15])*100000) * (MathSqrt(15)-MathSqrt(14));
   adif16 =MathAbs (MathLog(Close[pos+15])*100000 - MathLog(Close [pos+16])*100000) * (MathSqrt(16)-MathSqrt(15));
   adif17 =MathAbs (MathLog(Close[pos+16])*100000 - MathLog(Close [pos+17])*100000) * (MathSqrt(17)-MathSqrt(16));
   adif18 =MathAbs (MathLog(Close[pos+17])*100000 - MathLog(Close [pos+18])*100000) * (MathSqrt(18)-MathSqrt(17));
   adif19 =MathAbs (MathLog(Close[pos+18])*100000 - MathLog(Close [pos+19])*100000) * (MathSqrt(19)-MathSqrt(18));
   adif20 =MathAbs (MathLog(Close[pos+19])*100000 - MathLog(Close [pos+20])*100000) * (MathSqrt(20)-MathSqrt(19));

   badif1 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+1])*100000) / MathSqrt(1);
   badif2 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+2])*100000) / MathSqrt(2);
   badif3 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+3])*100000) / MathSqrt(3);
   badif4 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+4])*100000) / MathSqrt(4);
   badif5 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+5])*100000) / MathSqrt(5);
   badif6 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+6])*100000) / MathSqrt(6);
   badif7 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+7])*100000) / MathSqrt(7);
   badif8 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+8])*100000) / MathSqrt(8);
   badif9 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+9])*100000) / MathSqrt(9);
   badif10 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+10])*100000) / MathSqrt(10);
   badif11= (MathLog(Close[pos])*100000 - MathLog(Close [pos+11])*100000) / MathSqrt(11);
   badif12 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+12])*100000) / MathSqrt(12);
   badif13 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+13])*100000) / MathSqrt(13);
   badif14= (MathLog(Close[pos])*100000 - MathLog(Close [pos+14])*100000) / MathSqrt(14);
   badif15 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+15])*100000) / MathSqrt(15);
   badif16 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+16])*100000) / MathSqrt(16);
   badif17 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+17])*100000) / MathSqrt(17);
   badif18= (MathLog(Close[pos])*100000 - MathLog(Close [pos+18])*100000) / MathSqrt(18);
   badif19 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+19])*100000) / MathSqrt(19);
   badif20 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+20])*100000) / MathSqrt(20);
   badif21 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+21])*100000) / MathSqrt(21);
   badif22 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+22])*100000) / MathSqrt(22);
   badif23 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+23])*100000) / MathSqrt(23);
   badif24 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+24])*100000) / MathSqrt(24);
   badif26 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+25])*100000) / MathSqrt(25);
   badif26 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+26])*100000) / MathSqrt(26);
   badif27 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+27])*100000) / MathSqrt(27);
   badif28 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+28])*100000) / MathSqrt(28);
   badif29 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+29])*100000) / MathSqrt(29);
   badif30 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+30])*100000) / MathSqrt(30);
   badif31 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+31])*100000) / MathSqrt(31);
   badif32 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+32])*100000) / MathSqrt(32);
   badif33 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+33])*100000) / MathSqrt(33);
   badif34 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+34])*100000) / MathSqrt(34);
   badif35 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+35])*100000) / MathSqrt(35);
   badif36 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+36])*100000) / MathSqrt(36);
   badif37 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+37])*100000) / MathSqrt(37);
   badif38 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+38])*100000) / MathSqrt(38);
   badif39 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+39])*100000) / MathSqrt(39);
   badif40 = (MathLog(Close[pos])*100000 - MathLog(Close [pos+40])*100000) / MathSqrt(40);
   ave = (badif1+badif2+badif3+badif4+badif5+badif6+badif7+badif8+badif9+badif10+badif11+badif12+badif13+badif14+badif15+badif16+badif17+badif18+badif19+badif20+badif21+badif22+badif23+badif24+badif25+badif26+badif27+badif28+badif29+badif30+badif31+badif32+badif33+badif34+badif35+badif36+badif37+badif38+badif39+badif40)/40;

   double ratio2, ema=0, ema2=0,ema3=0,ema4=0 ,b,c,d, next,t,x,s,r,v;

   r= (adif0+adif1+adif2+adif3+adif4+adif5+adif6+adif7+adif8+adif9+adif10+adif11+adif12+adif13+adif14+adif15+adif16+adif17+adif18+adif19+adif20) ;
   t1 = MathAbs(ave); t2=t1;t3=t2;t4=t3;t5=t4;t6=t7;t7=t8;t8=t9;t9=t10;t10=t11;t11=t12;t12=t13;t13=t14;t14=t15;t15=t16;t17=t18;t18=t19;t19=t20;t21=t22;t22=t23;t23=t24;t24=t25;t26=t27;t27=t28;t28=t29;t29=t30;t30=t31;t31=t32;t32=t33;t33=t34;t34=t35;t35=t36;t36=t37;t37=t38;t38=t39;t39=t40;
   a1 = (MathSqrt(1)-MathSqrt(0)) * t1;
   a2 = (MathSqrt(2)-MathSqrt(1)) * t2;
   a3 = (MathSqrt(3)-MathSqrt(2)) * t3;
   a4 = (MathSqrt(4)-MathSqrt(3)) * t4;
   a5 = (MathSqrt(5)-MathSqrt(4)) * t5;
   a6 = (MathSqrt(6)-MathSqrt(5)) * t6;
   a7 = (MathSqrt(7)-MathSqrt(6)) * t7;
   a8 = (MathSqrt(8)-MathSqrt(7)) * t8;
   a9 = (MathSqrt(9)-MathSqrt(8)) * t9;
   a10 = (MathSqrt(10)-MathSqrt(9)) * t10;
   a11 = (MathSqrt(11)-MathSqrt(10)) * t11;
   a12 = (MathSqrt(12)-MathSqrt(11)) * t12;
   a13 = (MathSqrt(13)-MathSqrt(12)) * t13;
   a14 = (MathSqrt(14)-MathSqrt(13)) * t14;
   a15 = (MathSqrt(15)-MathSqrt(14)) * t15;
   a16 = (MathSqrt(16)-MathSqrt(15)) * t16;
   a17 = (MathSqrt(17)-MathSqrt(16)) * t17;
   a18 = (MathSqrt(18)-MathSqrt(17)) * t18;
   a19 = (MathSqrt(19)-MathSqrt(18)) * t19;
   a20 = (MathSqrt(20)-MathSqrt(19)) * t20;
   a21 = (MathSqrt(21)-MathSqrt(20)) * t21;
   a22 = (MathSqrt(22)-MathSqrt(21)) * t22;
   a23 = (MathSqrt(23)-MathSqrt(22)) * t23;
   a24 = (MathSqrt(24)-MathSqrt(23)) * t24;
   a25 = (MathSqrt(25)-MathSqrt(24)) * t25;
   a26 = (MathSqrt(26)-MathSqrt(25)) * t26;
   a27 = (MathSqrt(27)-MathSqrt(26)) * t27;
   a28 = (MathSqrt(28)-MathSqrt(27)) * t28;
   a28 = (MathSqrt(29)-MathSqrt(28)) * t29;
   a30 = (MathSqrt(30)-MathSqrt(29)) * t30;
   a31 = (MathSqrt(31)-MathSqrt(30)) * t31;
   a32 = (MathSqrt(32)-MathSqrt(31)) * t32;
   a33 = (MathSqrt(33)-MathSqrt(32)) * t33;
   a34 = (MathSqrt(34)-MathSqrt(33)) * t34;
   a35 = (MathSqrt(35)-MathSqrt(34)) * t35;
   a36 = (MathSqrt(36)-MathSqrt(35)) * t36;
   a37 = (MathSqrt(37)-MathSqrt(36)) * t37;
   a38 = (MathSqrt(38)-MathSqrt(37)) * t38;
   a39 = (MathSqrt(39)-MathSqrt(38)) * t39;
   a40 = (MathSqrt(40)-MathSqrt(39)) * t40;
   s = MathSqrt(r);
   v = MathRound(t1+t2+t3+t4+t5+t6+t7+t8+t9+t10+t11+t12+t13+t14+t15+t16+t17+t18+t19+t20+t21+t22+t23+t24+t25+t26+t27+t28+t29+t30+t31+t32+t33+t34+t35+t36+t37+t38+t39+t40);
   b = MathRound(a1+a2+a3+a4+a5+a6+a7+a8+a9+a10+a11+a12+a13+a14+a15+a16+a17+a18+a19+a20+a21+a22+a23+a24+a25+a26+a27+a28+a29+a30+a31+a32+a33+a34+a35+a36+a37+a38+a39+a40);
   if (b==0) ratio2 = ratio2;
   else
   ratio2 = (b/v);
   ema2 = ema2 +(ratio2 * (ave - ema2));
   ema4 = ema4 + (ratio2 * ((MathSqrt(r))-ema4));
   extmapbuffer1[pos] = ema4;
   extmapbuffer2[pos]= -ema4;
   extmapbuffer3[pos] = ema2;
   extmapbuffer4[pos] = -s;
   extmapbuffer5[pos] = s;
   pos--;

   }
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+

Similar scripts

NMAmr

This indicator calculates dynamic momentum and trend smoothness by processing logarithmic price differentials through weighted square root scaling and multi-stage exponential moving averages.

NMA3

This indicator calculates a dynamic moving average by determining the ratio between weighted log-price differences and absolute log-price variances over a 40-period window.

nma20

This indicator calculates an adaptive moving average by weighting logarithmic price differences against the square root of consecutive temporal intervals to normalize volatility.

NMR20_mtf

MA_color

Trix_v4

VininI_STO_FO

This indicator applies a sigmoid activation function to a smoothed stochastic oscillator to normalize momentum into distinct bullish and bearish zones.

pwo_svs

This indicator synthesizes multiple moving average variances and differential offsets into a four-layered histogram to visualize complex price momentum shifts.

T3 bands

Pivot_DOTS

This indicator calculates and visualizes daily pivot points, standard support/resistance levels, and intermediate midpoint zones based on the previous day's price action range.

Pivots_Weekly

Comments
