Murrey_Math_Modified1_v2
Download scriptOverview of Script Logic
This script is a specialized financial analysis tool designed to identify and visualize significant price levels on a trading chart. It uses a sophisticated mathematical approach to break down market price action into manageable, "human-readable" zones, helping traders understand the structural boundaries of the current market trend.
Core Mechanics
1. Market Range Identification The script begins by analyzing a specific window of recent history (defined by the user) to find the absolute highest and lowest prices reached. By calculating this "range," the tool establishes the boundaries of the current price environment.
2. Fractal Scale Analysis To ensure the tool works accurately across different types of assets (such as high-value currencies, low-value commodities, or stocks), it uses a dynamic "fractal" scaling system. It automatically detects the magnitude of the asset's price and adjusts its internal calculations accordingly. This allows the logic to remain consistent whether you are trading a penny stock or a major forex pair.
3. Structural Point Detection (The "X" Factors) Rather than just marking the top and bottom, the script searches for specific structural points within the price range. It calculates six distinct "anchor points" based on mathematical symmetry. This logic mimics how a human might look at a chart to find the most significant "pivots" or turning points where the market showed strength or weakness.
4. Dynamic Support and Resistance Mapping Once the key structural points are identified, the script builds a multi-layered grid:
- Core Balance: It establishes a primary baseline (the 0/8 level).
- Symmetry Intervals: It projects a series of levels above and below this baseline in equal increments.
- Visual Grid: The tool calculates 13 distinct price levels, ranging from -2/8 to +2/8. These represent "fractal" zones that indicate potential areas of support or resistance where the price might react.

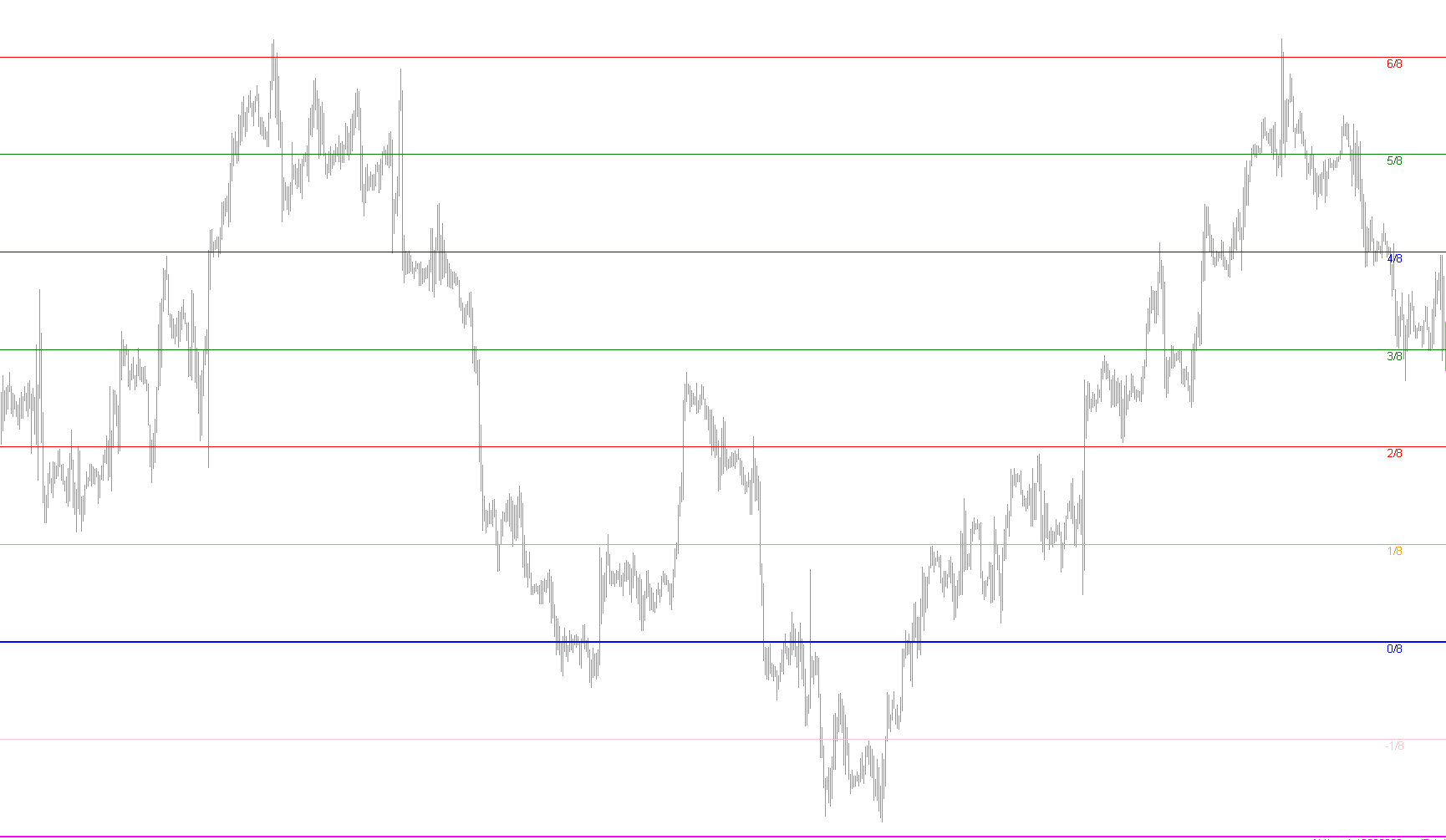

Visual Output
The script translates these complex calculations into a clear visual interface on your chart:
- Horizontal Lines: It draws a series of colored horizontal lines across the screen. Each line represents a specific mathematical fraction of the market's current structure.
- Color Coding: Different levels are assigned unique colors to help the trader quickly distinguish between "major" structural boundaries and "minor" transitional zones.
- Text Labels: To provide immediate clarity, the script places text labels on the chart (e.g., "1/8", "2/8", etc.). These labels tell you exactly which mathematical zone you are looking at relative to the market's current structure.
Summary for the Trader
In simple terms, this tool takes a messy range of price action and "quadratizes" it. It tells you where the market is currently balanced and provides a roadmap of levels that signify structural shifts. By looking at these lines, you can more easily identify where the market is "stretched" and where it might be likely to find a floor or a ceiling.
//+------------------------------------------------------------------+
//| Murrey_Math_Modified.mq4 |
//| rewritten by CrazyChart |
//| |
//+------------------------------------------------------------------+
#property copyright "Murrey_Math_Modified. MetaTrader4 conversion created by CrazyChart"
#property link "mailto:newcomer2003@yandex.ru"
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 MediumBlue
#property indicator_color2 Red
//---- input parameters
extern int beginer = 200;
extern int periodtotake = 200;
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
//----
int shift, i2, WorkTime, Periods;
double sum, v1, v2, fractal;
double v45, mml00, mml0, mml1, mml2, mml3, mml4, mml5, mml6, mml7, mml8, mml9, mml98, mml99;
double range, octave, mn, mx, price;
double finalH, finalL;
double x1, x2, x3, x4, x5, x6, y1, y2, y3, y4, y5, y6;
//----
string textArray[13] = {"mm11_txt", "mm12_txt", "mm1_txt", "mm2_txt", "mm3_txt", "mm4_txt",
"mm5_txt", "mm6_txt", "mm7_txt", "mm8_txt", "mm9_txt", "mm-1_txt",
"mm-2_txt"};
string lineArray[13] = {"mm11", "mm12", "mm1", "mm2", "mm3", "mm4", "mm5", "mm6", "mm7",
"mm8", "mm9", "mm-1", "mm-2"};
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
IndicatorBuffers(2);
SetIndexStyle(0, DRAW_LINE);
SetIndexBuffer(0, ExtMapBuffer1);
SetIndexStyle(1, DRAW_LINE);
SetIndexBuffer(1, ExtMapBuffer2);
//----
int CountBars;
if(CountBars >= Bars)
CountBars = Bars;
SetIndexDrawBegin(0,Bars-CountBars);
SetIndexDrawBegin(1,Bars-CountBars);
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
ObjectsDeleteAll(0, OBJ_HLINE);
int count = ArraySize(textArray);
for(int ch = 0; ch < count; ch++)
{
ObjectDelete(textArray[ch]);
ObjectDelete(lineArray[ch]);
}
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars = IndicatorCounted();
//----
if((WorkTime != Time[0]) || (Periods != Period()))
{
//price
v1 = (Low[Lowest(NULL, 0, MODE_LOW, periodtotake, 0)]);
v2 = (High[Highest(NULL, 0, MODE_HIGH, periodtotake, 0)]);
//determine fractal.....
if(v2 <= 250000 && v2 > 25000)
{
fractal = 100000;
}
else
if(v2 <= 25000 && v2 > 2500)
{
fractal = 10000;
}
else
if(v2 <= 2500 && v2 > 250)
{
fractal = 1000;
}
else
if(v2 <= 250 && v2 > 25)
{
fractal = 100;
}
else
if(v2 <= 25 && v2 > 12.5)
{
fractal = 12.5;
}
else
if(v2 <= 12.5 && v2 > 6.25)
{
fractal = 12.5;
}
else
if(v2 <= 6.25 && v2 > 3.125)
{
fractal = 6.25;
}
else
if(v2 <= 3.125 && v2 > 1.5625)
{
fractal = 3.125;
}
else
if(v2 <= 1.5625 && v2 > 0.390625)
{
fractal = 1.5625;
}
else
if(v2 <= 0.390625 && v2 > 0)
{
fractal = 0.1953125;
}
range = (v2 - v1);
sum = MathFloor(MathLog(fractal / range) / MathLog(2));
octave = fractal*(MathPow(0.5, sum));
mn = MathFloor(v1 / octave)*octave;
//----
if((mn + octave) > v2)
{
mx = mn + octave;
}
else
{
mx = mn + (2*octave);
}
// calculating xx
//x2
if((v1 >= 3 / 16*(mx - mn) + mn) && (v2 <= 9 / 16*(mx - mn) + mn))
{
x2 = mn + (mx - mn) / 2;
}
else
{
x2 = 0;
}
//x1
if((v1 >= mn - (mx - mn) / 8) && (v2 <= 5 / 8*(mx - mn) + mn) && x2 == 0)
{
x1 = mn + (mx - mn) / 2;
}
else
{
x1 = 0;
}
//x4
if((v1 >= mn + 7*(mx - mn) / 16) && (v2 <= 13 / 16*(mx - mn) + mn))
{
x4 = mn + 3*(mx - mn) / 4;
}
else
{
x4 = 0;
}
//x5
if((v1 >= mn + 3*(mx - mn) / 8) && (v2 <= 9 / 8*(mx - mn) + mn) && x4 == 0)
{
x5 = mx;
}
else
{
x5 = 0;
}
//x3
if((v1 >= mn + (mx - mn) / 8)&& (v2 <= 7 / 8*(mx - mn) + mn) && x1 == 0 && x2 == 0 &&
x4 == 0 && x5 == 0)
{
x3 = mn + 3*(mx - mn) / 4;
}
else
{
x3 = 0;
}
//x6
if((x1 + x2 + x3 + x4 + x5) == 0)
{
x6 = mx;
}
else
{
x6 = 0;
}
finalH = x1 + x2 + x3 + x4 + x5 + x6;
// calculating yy
//y1
if(x1 > 0)
{
y1 = mn;
}
else
{
y1 = 0;
}
//y2
if(x2 > 0)
{
y2 = mn + (mx - mn) / 4;
}
else
{
y2 = 0;
}
//y3
if(x3 > 0)
{
y3 = mn + (mx - mn) / 4;
}
else
{
y3 = 0;
}
//y4
if(x4 > 0)
{
y4 = mn + (mx - mn) / 2;
}
else
{
y4 = 0;
}
//y5
if(x5 > 0)
{
y5 = mn + (mx - mn) / 2;
}
else
{
y5 = 0;
}
//y6
if((finalH > 0) && (y1 + y2 + y3 + y4 + y5 == 0))
{
y6 = mn;
}
else
{
y6 = 0;
}
finalL = y1 + y2 + y3 + y4 + y5 + y6;
v45 = (finalH - finalL) / 8;
mml00 = (finalL - v45*2); //-2/8
mml0 = (finalL - v45); //-1/8
mml1 = (finalL);// 0/8
mml2 = (finalL + v45);// 1/8
mml3 = (finalL + 2*v45); // 2/8
mml4 = (finalL + 3*v45); // 3/8
mml5 = (finalL + 4*v45); // 4/8
mml6 = (finalL + 5*v45); // 5/8
mml7 = (finalL + 6*v45); // 6/8
mml8 = (finalL + 7*v45);// 7/8
mml9 = (finalL + 8*v45);// 8/8
mml99 = (finalL + 9*v45);// +1/8
mml98 = (finalL + 10*v45);// +2/8
//----
ObjectsRedraw() ;
ObjectCreate("mm11_txt", OBJ_TEXT, 0, Time[30], mml00, Time[30], mml00); //òàéì 30-2/8
ObjectSetText("mm11_txt", "_ôèíàë ë" + finalH + "mml7 " + mml7,10, "Arial", Magenta);
//----
ObjectCreate("mm12_txt", OBJ_TEXT, 0, Time[30], mml0, Time[30], mml0);
ObjectSetText("mm12_txt", "-1/8 ", 10, "Arial", Pink);
//----
ObjectCreate("mm1_txt", OBJ_TEXT, 0, Time[30], mml1, Time[30], mml1);
ObjectSetText("mm1_txt", "0/8 ", 10, "Arial", Blue);
//----
ObjectCreate("mm2_txt", OBJ_TEXT, 0, Time[30], mml2, Time[30], mml2);
ObjectSetText("mm2_txt", "1/8 ", 10, "Arial", Orange);
//----
ObjectCreate("mm3_txt", OBJ_TEXT, 0, Time[30], mml3, Time[30], mml3);
ObjectSetText("mm3_txt", "2/8 ", 10, "Arial", Red);
//----
ObjectCreate("mm4_txt", OBJ_TEXT, 0, Time[30], mml4, Time[30], mml4);
ObjectSetText("mm4_txt", "3/8 ", 10, "Arial", Green);
//----
ObjectCreate("mm5_txt", OBJ_TEXT, 0, Time[30], mml5, Time[30], mml5);
ObjectSetText("mm5_txt", "4/8 ", 10, "Arial", Blue);
//----
ObjectCreate("mm6_txt", OBJ_TEXT, 0, Time[30], mml6, Time[30], mml6);
ObjectSetText("mm6_txt", "5/8 ", 10, "Arial", Green);
//----
ObjectCreate("mm7_txt", OBJ_TEXT, 0, Time[30], mml7, Time[30], mml7);
ObjectSetText("mm7_txt", "6/8 ", 10, "Arial", Red);
//----
ObjectCreate("mm8_txt", OBJ_TEXT, 0, Time[30], mml8, Time[30], mml8);
ObjectSetText("mm8_txt", "7/8 ", 10, "Arial", Orange);
//----
ObjectCreate("mm9_txt", OBJ_TEXT, 0, Time[30], mml9, Time[30], mml9);
ObjectSetText("mm9_txt", "8/8 ", 10, "Arial", Blue);
//----
ObjectCreate("mm-1_txt", OBJ_TEXT, 0, Time[30], mml99, Time[30], mml99);
ObjectSetText("mm-1_txt", "+1/8 ", 10, "Arial", Pink);
//----
ObjectCreate("mm-2_txt", OBJ_TEXT, 0, Time[30], mml98, Time[30], mml98);
ObjectSetText("mm-2_txt", "+2/8 ", 10, "Arial", Magenta);
ObjectCreate("mm11", OBJ_HLINE, 0, Time[0], mml00, Time[0], mml00);
ObjectMove("MyTrend", 1, Time[0], mml00);
ObjectSet("mm11", OBJPROP_COLOR, Magenta);
ObjectSet("mm11", OBJPROP_WIDTH, 2);
ObjectSet("mm11", OBJPROP_STYLE, STYLE_SOLID);
// -2/8
ObjectCreate("mm12", OBJ_HLINE, 0, Time[0], mml0, Time[0], mml0);
ObjectSet("mm12", OBJPROP_COLOR, Pink);
ObjectSet("mm12", OBJPROP_WIDTH, 1);
ObjectSet("mm12", OBJPROP_STYLE, STYLE_SOLID);
// -1/8
ObjectCreate("mm1", OBJ_HLINE, 0, Time[0], mml1, Time[0], mml1);
ObjectSet("mm1", OBJPROP_COLOR, Blue);
ObjectSet("mm1", OBJPROP_WIDTH, 2);
ObjectSet("mm1", OBJPROP_STYLE, STYLE_SOLID);
// 0/8
ObjectCreate("mm2", OBJ_HLINE, 0, Time[0], mml2, Time[0], mml2);
ObjectSet("mm2", OBJPROP_COLOR, Orange);
ObjectSet("mm2", OBJPROP_WIDTH, 1);
ObjectSet("mm2", OBJPROP_STYLE, STYLE_SOLID);
// 1/8
ObjectCreate("mm3", OBJ_HLINE, 0, Time[0], mml3, Time[0], mml3);
ObjectSet("mm3", OBJPROP_COLOR, Red);
ObjectSet("mm3", OBJPROP_WIDTH, 1);
ObjectSet("mm3", OBJPROP_STYLE, STYLE_SOLID);
// 2/8
ObjectCreate("mm4", OBJ_HLINE, 0, Time[0], mml4, Time[0], mml4);
ObjectSet("mm4", OBJPROP_COLOR, Green);
ObjectSet("mm4", OBJPROP_WIDTH, 1);
ObjectSet("mm4", OBJPROP_STYLE, STYLE_SOLID);
// 3/8
ObjectCreate("mm5", OBJ_HLINE, 0, Time[0], mml5, Time[0], mml5);
ObjectSet("mm5", OBJPROP_COLOR, Blue);
ObjectSet("mm5", OBJPROP_WIDTH, 1);
ObjectSet("mm5", OBJPROP_STYLE, STYLE_SOLID);
// 4/8
ObjectCreate("mm6", OBJ_HLINE, 0, Time[0], mml6, Time[0], mml6);
ObjectSet("mm6", OBJPROP_COLOR, Green);
ObjectSet("mm6", OBJPROP_WIDTH, 1);
ObjectSet("mm6", OBJPROP_STYLE, STYLE_SOLID);
// 5/8
ObjectCreate("mm7", OBJ_HLINE, 0, Time[0], mml7, Time[0], mml7);
ObjectSet("mm7", OBJPROP_COLOR, Red);
ObjectSet("mm7", OBJPROP_WIDTH, 1);
ObjectSet("mm7", OBJPROP_STYLE, STYLE_SOLID);
// 6/8
ObjectCreate("mm8", OBJ_HLINE, 0, Time[0], mml8, Time[0], mml8);
ObjectSet("mm8", OBJPROP_COLOR, Orange);
ObjectSet("mm8", OBJPROP_WIDTH, 1);
ObjectSet("mm8", OBJPROP_STYLE, STYLE_SOLID);
// 7/8
ObjectCreate("mm9", OBJ_HLINE, 0, Time[0], mml9, Time[0], mml9);
ObjectSet("mm9", OBJPROP_COLOR, Red);
ObjectSet("mm9", OBJPROP_WIDTH, 2);
ObjectSet("mm9", OBJPROP_STYLE, STYLE_SOLID);
// 0/8
ObjectCreate("mm-1", OBJ_HLINE, 0, Time[0], mml99, Time[0], mml99);
ObjectSet("mm-1", OBJPROP_COLOR, Pink);
ObjectSet("mm-1", OBJPROP_WIDTH, 1);
ObjectSet("mm-1", OBJPROP_STYLE, STYLE_SOLID);
// +2/8
ObjectCreate("mm-2", OBJ_HLINE, 0, Time[0], mml98, Time[0], mml98);
ObjectSet("mm-2", OBJPROP_COLOR, Magenta);
ObjectSet("mm-2", OBJPROP_WIDTH, 2);
ObjectSet("mm-2", OBJPROP_STYLE, STYLE_SOLID);
WorkTime = Time[0];
Periods= Period();
}
//----
return(0);
}
