MTF_Ichimoku_v1

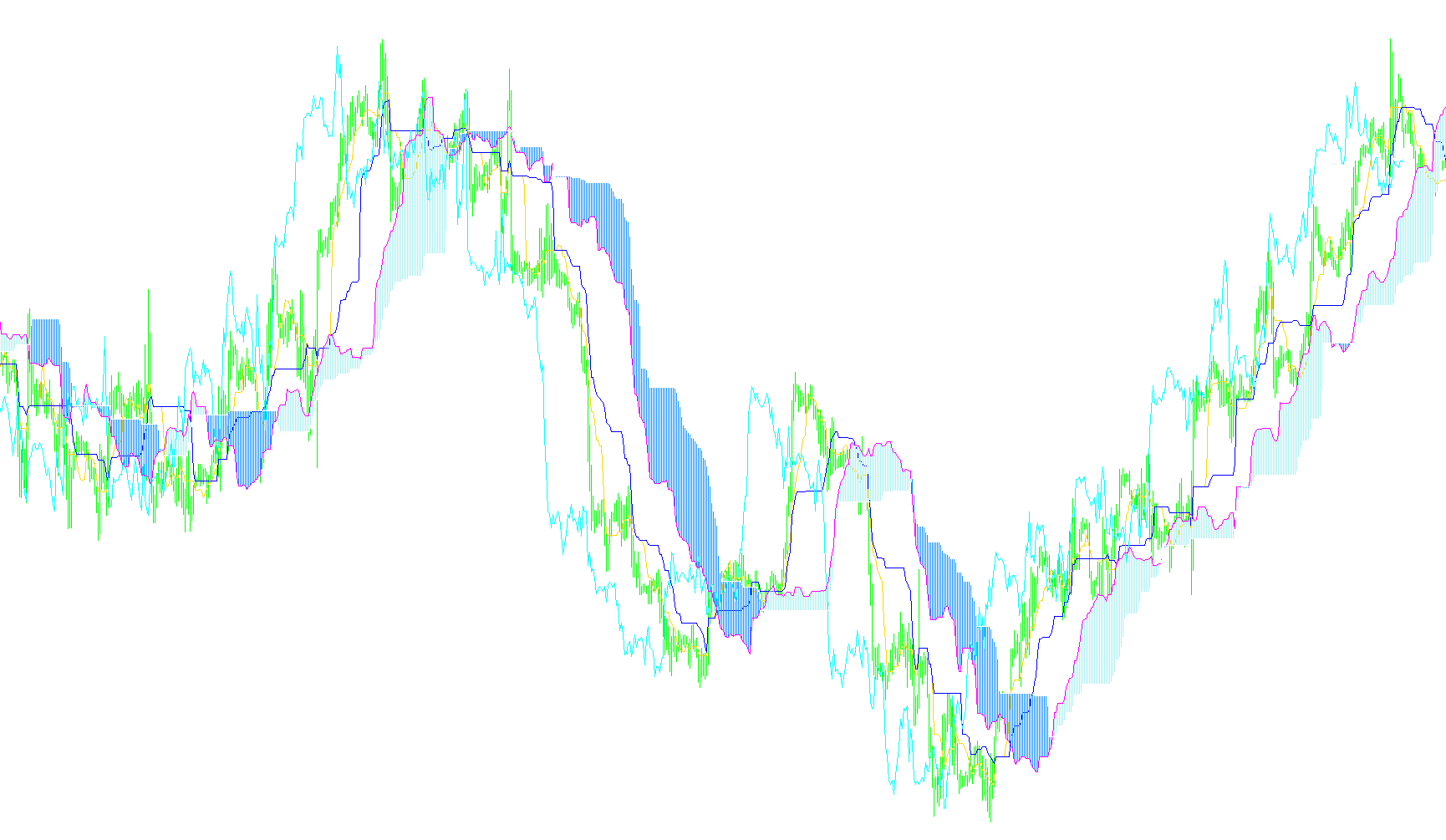

Download scriptThis script is a specialized financial analysis tool designed to project the Ichimoku Cloud (also known as Ichimoku Kinko Hyo) across different timeframes simultaneously. For traders, this provides a multi-layered view of market trends without needing to constantly switch between different chart views.
Core Logic and Functionality
The primary purpose of this script is to bridge the gap between short-term price action and long-term trends. It achieves this by performing three main technical operations:
1. Multi-Timeframe Synchronization The tool is unique because it can calculate data from a higher timeframe (e.g., a 4-hour chart) while you are viewing a lower timeframe (e.g., a 15-minute chart). It automatically aligns the larger trend data with your current screen, allowing you to see the "big picture" while making precise entries on smaller timeframes.
2. Component Calculation The script calculates the five standard pillars of the Ichimoku system:
- Tenkan Sen (Conversion Line): A fast-moving average that tracks short-term momentum by finding the midpoint between the highest highs and lowest lows over a set period.
- Kijun Sen (Base Line): A slower-moving average that identifies the medium-term trend.
- Senkou Span A & B (The Cloud/Kumo): These are used to define support and resistance zones. The script calculates these by averaging previous price points and projecting them forward into the future.
- Chinkou Span (Lagging Span): This represents the current price shifted back in time, helping to identify historical price relationships.
3. Visual Representation The script handles the complex math required to display these lines correctly on your screen:
- It distinguishes between lines and histograms to ensure the visual layout remains clean and readable.
- It automatically applies "shifts" (offsets). In many Ichimoku setups, components are projected forward or backward; this script handles that positioning automatically so the cloud appears in its correct relative position.
How it benefits the user
Instead of manually trying to figure out if a 15-minute trade aligns with the daily trend, this script overlays that information for you. It provides a comprehensive visual "map" of the market's strength, identifying potential breakout zones and support levels by blending different time horizons into a single, cohesive chart.
//+------------------------------------------------------------------+
//| MTF_Ichimoku_v1.mq4 |
//| Copyright © 2007, Forex-TSD.com |
//| Written by IgorAD,igorad2003@yahoo.co.uk |
//| http://finance.groups.yahoo.com/group/TrendLaboratory |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2007, Forex-TSD.com "
#property link "http://www.forex-tsd.com/"
#property indicator_chart_window
#property indicator_buffers 7
#property indicator_color1 Red
#property indicator_color2 Blue
#property indicator_color3 SandyBrown
#property indicator_color4 Thistle
#property indicator_color5 Lime
#property indicator_color6 SandyBrown
#property indicator_color7 Thistle
#property indicator_width1 2
#property indicator_width2 2
#property indicator_style3 2
#property indicator_style4 2
#property indicator_style6 1
#property indicator_style7 1
//---- input parameters
extern int TimeFrame=0;
extern int Tenkan=9;
extern int Kijun=26;
extern int Senkou=52;
//---- buffers
double Tenkan_Buffer[];
double Kijun_Buffer[];
double SpanA_Buffer[];
double SpanB_Buffer[];
double Chinkou_Buffer[];
double SpanA2_Buffer[];
double SpanB2_Buffer[];
int a_begin;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//----
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(0,Tenkan_Buffer);
SetIndexDrawBegin(0,Tenkan-1);
SetIndexLabel(0,"Tenkan Sen");
//----
SetIndexStyle(1,DRAW_LINE);
SetIndexBuffer(1,Kijun_Buffer);
SetIndexDrawBegin(1,Kijun-1);
SetIndexLabel(1,"Kijun Sen");
//----
a_begin=Kijun; if(a_begin<Tenkan) a_begin=Tenkan;
SetIndexStyle(2,DRAW_HISTOGRAM);
SetIndexBuffer(2,SpanA_Buffer);
SetIndexDrawBegin(2,Kijun+a_begin-1);
if(TimeFrame==0) TimeFrame = Period();
SetIndexShift(2,Kijun*TimeFrame/Period());
SetIndexLabel(2,NULL);
SetIndexStyle(5,DRAW_LINE);
SetIndexBuffer(5,SpanA2_Buffer);
SetIndexDrawBegin(5,Kijun+a_begin-1);
SetIndexShift(5,Kijun*TimeFrame/Period());
SetIndexLabel(5,"Senkou Span A");
//----
SetIndexStyle(3,DRAW_HISTOGRAM);
SetIndexBuffer(3,SpanB_Buffer);
SetIndexDrawBegin(3,Kijun+Senkou-1);
SetIndexShift(3,Kijun*TimeFrame/Period());
SetIndexLabel(3,NULL);
SetIndexStyle(6,DRAW_LINE);
SetIndexBuffer(6,SpanB2_Buffer);
SetIndexDrawBegin(6,Kijun+Senkou-1);
SetIndexShift(6,Kijun*TimeFrame/Period());
SetIndexLabel(6,"Senkou Span B");
//----
SetIndexStyle(4,DRAW_LINE);
SetIndexBuffer(4,Chinkou_Buffer);
SetIndexShift(4,-Kijun*TimeFrame/Period());
SetIndexLabel(4,"Chinkou Span");
IndicatorShortName("MTF_Ichimoku_v1");
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
datetime TimeArray[];
int i,limit,y=0,counted_bars=IndicatorCounted();
ArrayCopySeries(TimeArray,MODE_TIME,Symbol(),TimeFrame);
limit=Bars-counted_bars+TimeFrame/Period();
for(i=0,y=0;i<limit;i++)
{
if (Time[i]<TimeArray[y]) y++;
double UpTenkan = iHigh(NULL,TimeFrame,iHighest(NULL,TimeFrame,MODE_HIGH,Tenkan,y));
double DnTenkan = iLow(NULL,TimeFrame, iLowest(NULL,TimeFrame,MODE_LOW ,Tenkan,y));
Tenkan_Buffer[i] = 0.5*(UpTenkan + DnTenkan);
double UpKijun = iHigh(NULL,TimeFrame,iHighest(NULL,TimeFrame,MODE_HIGH,Kijun,y));
double DnKijun = iLow(NULL,TimeFrame, iLowest(NULL,TimeFrame,MODE_LOW ,Kijun,y));
Kijun_Buffer[i] = 0.5*(UpKijun + DnKijun);
double UpSenkou = iHigh(NULL,TimeFrame,iHighest(NULL,TimeFrame,MODE_HIGH,Senkou,y));
double DnSenkou = iLow(NULL,TimeFrame, iLowest(NULL,TimeFrame,MODE_LOW ,Senkou,y));
SpanA_Buffer[i]= 0.5*(Kijun_Buffer[i]+Tenkan_Buffer[i]);
SpanB_Buffer[i]= 0.5*(UpSenkou + DnSenkou);
double chinko=iClose(NULL,TimeFrame,y);
if(chinko>0) Chinkou_Buffer[i]=chinko;
SpanA2_Buffer[i]= SpanA_Buffer[i];
SpanB2_Buffer[i]= SpanB_Buffer[i];
}
return(0);
}
