Author: MaksiGen
MaksiGen_KaHaJI_CkaJIneP

This script is a specialized technical analysis tool designed to identify specific trading zones on a chart based on time-defined price extremes. Instead of reacting to every single market movement, it focuses on identifying the "highs" and "lows" of predefined sessions to establish clear boundaries for potential trades.

Core Functionality

Session-Based Analysis The tool allows you to define two specific time windows during the trading day. It monitors the price action exclusively during these periods. For example, if you set a morning session and an afternoon session, the script will ignore all activity occurring outside of those hours, filtering out "noise" from non-active market times.

Dynamic Price Range Identification At the exact start of each designated time window, the script scans back to determine the highest and lowest prices reached during the preceding period. It captures these two critical points:

  • The High Point: The maximum price reached.
  • The Low Point: The minimum price reached.

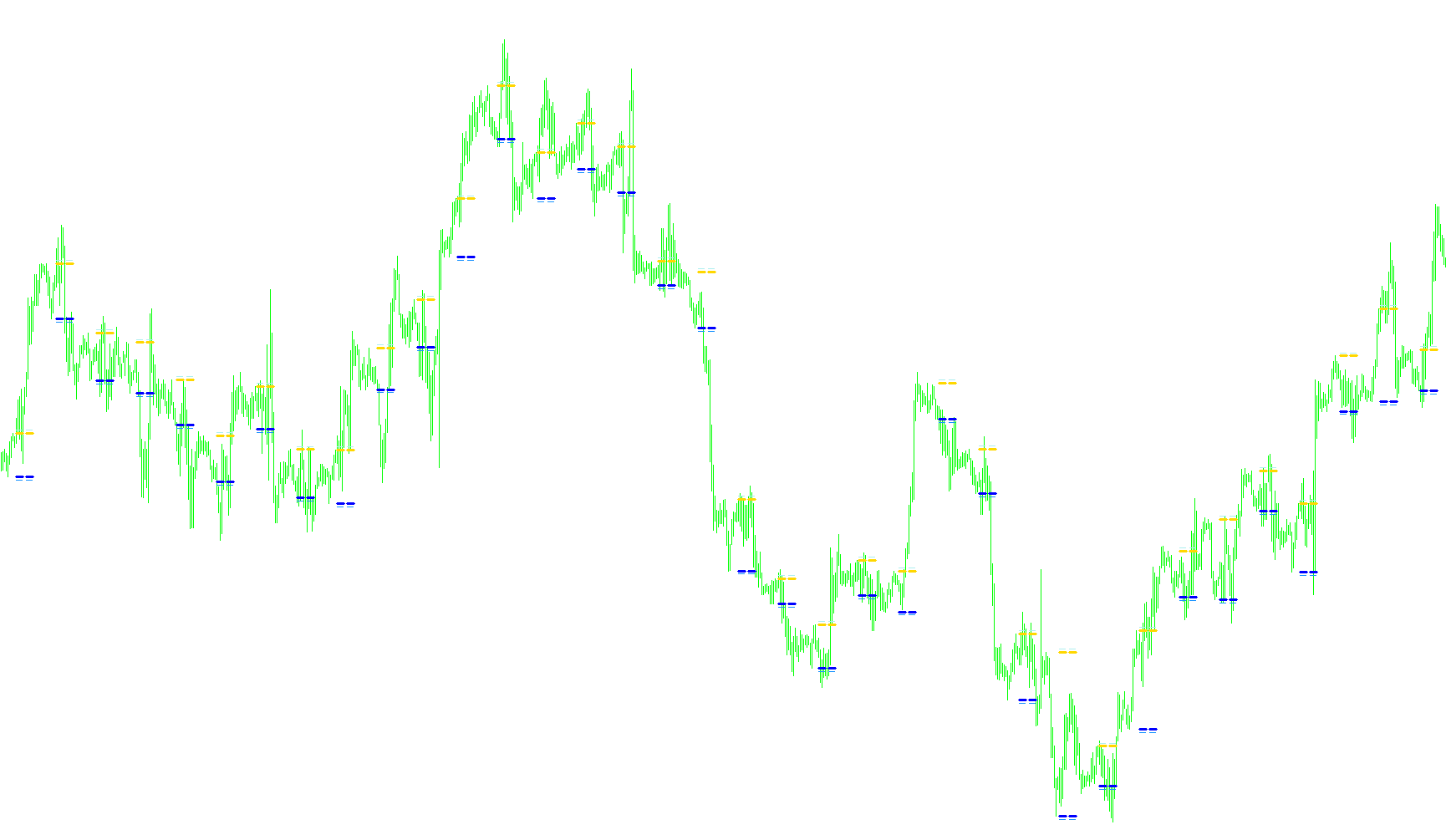

Visual Mapping and Trade Boundaries Once these high and low points are identified, the script projects them onto your chart as visual boundaries (lines).

  • It creates a "channel" or zone based on these extremes.
  • It adds a small buffer (a tiny offset) to these lines to ensure they clearly represent the edges of the price range.

Trading Logic and Filtering The script doesn't just show these lines; it actively evaluates whether the current market movement is significant enough to warrant attention. It calculates the "width" of the channel (the distance between the high and low points):

  • Trade Signal: If the distance between the high and low points exceeds a specific threshold (which you can customize), the script provides a clear notification on your screen, suggesting a "Buy" level at the bottom of the range and a "Sell" level at the top.
  • No-Trade Filter: If the price movement within the session is too small (less than your specified width), the script will notify you that there is no trading opportunity, helping to prevent entries into stagnant or low-volatility markets.

Summary for the User

Essentially, this tool acts as a "session mapper." It identifies the extreme boundaries of specific trading blocks and tells you exactly where the "ceiling" and "floor" are. If the market moves far enough within those bounds, it highlights the levels where you should consider entering a trade; if the movement is minor, it warns you to stay sidelined.

Miscellaneous
Implements a curve of type %1
13 Views
0 Downloads
0 Favorites
MaksiGen_KaHaJI_CkaJIneP
//+------------------------------------------------------------------+
//|                                     MaksiGen_KaHaJI_CkaJIneP.mq4 |
//|                                                         MaksiGen |
//|                                                          http:// |
//+------------------------------------------------------------------+
#property copyright "MaksiGen"
#property link      "http://"

#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Aqua
#property indicator_color2 Violet
#property indicator_color3 DarkTurquoise
#property indicator_color4 Magenta
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
extern string Time_Start_1="08.15";
extern string Time_End_1="11.30";
extern string Time_Start_2="14.00";
extern string Time_End_2="17.30";
extern int MuH_IIIuPuHa_KaHaJIa=25;
double val_1[],val_2[],val_3[],val_4[],HighKaHaJI,LowKaHaJI;
string TextHour_Start_1,TextMinute_Start_1,TextHour_End_1,TextMinute_End_1;
string TextHour_Start_2,TextMinute_Start_2,TextHour_End_2,TextMinute_End_2;
string BbIBog;
int Hour_Start_1,Minute_Start_1,Hour_End_1,Minute_End_1;
int Hour_Start_2,Minute_Start_2,Hour_End_2,Minute_End_2;
int IIIuPuHa_KaHaJIa;
bool on_off_trade;
//datetime DateTime_Start_1,DateTime_Start_2,DateTime_End_1,DateTime_End_2;

int init()
{
//---- indicators
IndicatorBuffers(4);
SetIndexStyle(0,DRAW_LINE,1,3);
SetIndexStyle(1,DRAW_LINE,1,3);
SetIndexStyle(2,DRAW_LINE);
SetIndexStyle(3,DRAW_LINE);
SetIndexBuffer(0,val_1);
SetIndexBuffer(1,val_2);
SetIndexBuffer(2,val_3);
SetIndexBuffer(3,val_4);
//---- Time
TextHour_Start_1=StringSubstr(Time_Start_1,0,2);Hour_Start_1=StrToInteger(TextHour_Start_1);
TextMinute_Start_1=StringSubstr(Time_Start_1,3,2);Minute_Start_1=StrToInteger(TextMinute_Start_1);

TextHour_End_1=StringSubstr(Time_End_1,0,2);Hour_End_1=StrToInteger(TextHour_End_1);
TextMinute_End_1=StringSubstr(Time_End_1,3,2);Minute_End_1=StrToInteger(TextMinute_End_1);

TextHour_Start_2=StringSubstr(Time_Start_2,0,2);Hour_Start_2=StrToInteger(TextHour_Start_2);
TextMinute_Start_2=StringSubstr(Time_Start_2,3,2);Minute_Start_2=StrToInteger(TextMinute_Start_2);

TextHour_End_2=StringSubstr(Time_End_2,0,2);Hour_End_2=StrToInteger(TextHour_End_2);
TextMinute_End_2=StringSubstr(Time_End_2,3,2);Minute_End_2=StrToInteger(TextMinute_End_2);

// Setting MSK time (Moscow time)to Alpari server's time
//Hour_Start_1=Hour_Start_1-2;Hour_End_1=Hour_End_1-2;
//Hour_Start_2=Hour_Start_2-2;Hour_End_1=Hour_End_2-2;
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
int shift,i,ii;
int Counted_Bars=IndicatorCounted();

if (Period()>30)
{
if (Minute_Start_1!=0) {Minute_Start_1=0;}
if (Minute_End_1!=0) {Hour_End_1++;Minute_End_1=0;}
if (Minute_Start_2!=0) {Minute_Start_2=0;}
if (Minute_End_2!=0) {Hour_End_2++;Minute_End_2=0;}
}

//----
if (Counted_Bars>=Bars) Counted_Bars=Bars;
if(Counted_Bars<0) return(-1);//---- checking for possible errors

for (shift=Counted_Bars+10;shift>0;shift--)
  {
  on_off_trade=false;//-estimate trading time
  if (TimeHour(Time[shift])>Hour_Start_1 && TimeHour(Time[shift])<Hour_End_1) on_off_trade=true;
  if (TimeHour(Time[shift])==Hour_Start_1 && TimeMinute(Time[shift])>=Minute_Start_1) on_off_trade=true;
  if (TimeHour(Time[shift])==Hour_End_1 && TimeMinute(Time[shift])<=Minute_End_1) on_off_trade=true;

  if (TimeHour(Time[shift])>Hour_Start_2 && TimeHour(Time[shift])<Hour_End_2) on_off_trade=true;
  if (TimeHour(Time[shift])==Hour_Start_2 && TimeMinute(Time[shift])>=Minute_Start_2) on_off_trade=true;
  if (TimeHour(Time[shift])==Hour_End_2 && TimeMinute(Time[shift])<=Minute_End_2) on_off_trade=true;

  //---
  if (TimeHour(Time[shift])==Hour_Start_1 && TimeMinute(Time[shift])==Minute_Start_1)
   {
   HighKaHaJI=0;
   LowKaHaJI=10000;

   for (i=shift+MathRound((Hour_Start_1*60+Minute_Start_1)/Period());i>shift;i--)
     {
     if (High[i]>HighKaHaJI) HighKaHaJI=High[i];
     if (Low[i]<LowKaHaJI) LowKaHaJI=Low[i];
     }
   }
  //---


  if (on_off_trade)
    {
    val_1[shift]=HighKaHaJI;
    val_3[shift]=HighKaHaJI+10*Point;
    val_2[shift]=LowKaHaJI;
    val_4[shift]=LowKaHaJI-10*Point;
    }
  IIIuPuHa_KaHaJIa=(HighKaHaJI-LowKaHaJI)/Point;
}
if (IIIuPuHa_KaHaJIa>MuH_IIIuPuHa_KaHaJIa)
     {BbIBog=", Buy from "+DoubleToStr(HighKaHaJI,4)+", Sell from "+DoubleToStr(LowKaHaJI,4);}
else {BbIBog=", not trading";}
Comment("\n","\n","Working server's time: since ",TextHour_Start_1,":",TextMinute_Start_1," till ",TextHour_End_1,":",TextMinute_End_1,
" and since ",TextHour_Start_2,":",TextMinute_Start_2," äî ",TextHour_End_2,":",TextMinute_End_2,
"\n","Width of the channel: ",IIIuPuHa_KaHaJIa,BbIBog);
//----
   return(0);
}
//+------------------------------------------------------------------+
