MA_MTF_MovingAverage_v1.1_HrzLn1.1
Download scriptThis tool is designed to help traders visualize market trends by combining information from different timeframes into a single view. In standard trading, you might have to switch between charts—for example, moving from a 15-minute chart to a 4-hour chart—to see the "big picture." This script solves that problem by projecting a Moving Average from a higher timeframe directly onto your current, smaller timeframe chart.
Core Functionality
The primary logic of this script revolves around "Multi-Timeframe" (MTF) analysis. It calculates a moving average based on a different time period than the one you are currently viewing. For instance, if you are looking at a 5-minute chart, you can use this tool to see a smoothed average from the Daily or Hourly timeframe. This allows you to identify long-term trends without constantly navigating away from your active trading screen.
Key Features and Customization
The script offers several layers of flexibility to ensure it fits specific trading styles:
- Timeframe Selection: Users can choose which specific timeframe they want to pull data from (ranging from 1-minute increments up to monthly views). If no specific timeframe is selected, the tool defaults to the current chart's timeframe.
- Calculation Methods: The script supports various types of Moving Averages, including Simple (SMA), Exponential (EMA), Smoothed (SMMA), and Linear Weighted (LWMA). This allows users to choose how much weight to give to recent price action versus older data.
- Price Source Variety: Instead of just looking at the closing price, the logic can be adjusted to calculate averages based on various price points, such as the High, Low, Open, or even "Typical" and "Weighted" prices.
- Visual Adjustments:
- The Moving Average Line: You can choose whether to display the moving average line on your chart.

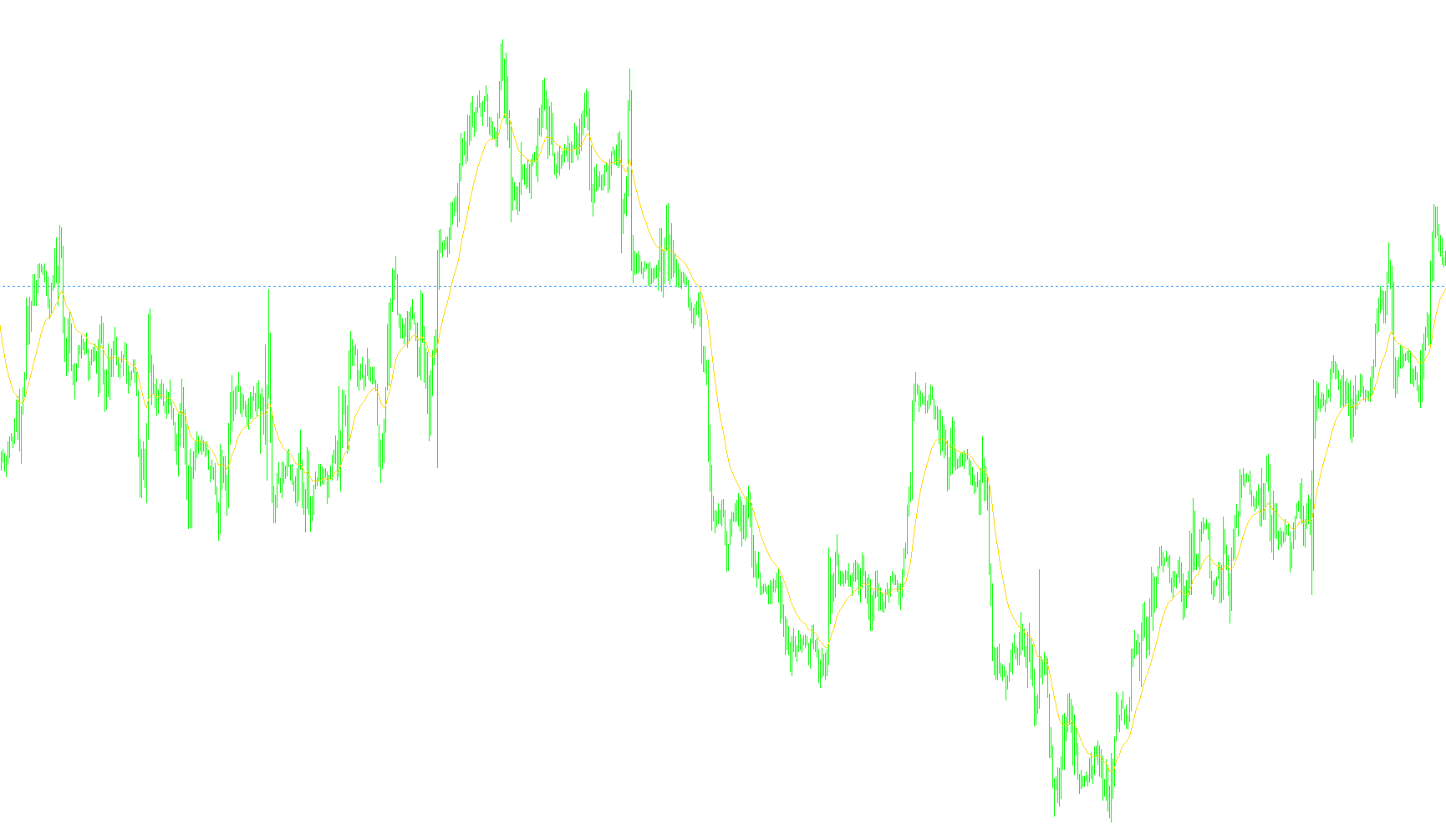

- Horizontal Reference Line: The tool includes a unique feature that can draw a horizontal line based on the current value of the calculation. This serves as a visual anchor, helping traders identify key price levels where the higher timeframe average is currently sitting.
How the Logic Works Behind the Scenes
The script performs a synchronization process. It looks at the history of the selected "Higher Timeframe," identifies the corresponding data points that align with your current chart's timeline, and then calculates the moving average value for every bar on your screen. By doing this calculation automatically, it ensures that the line you see is perfectly synchronized with the broader market trend, regardless of how zoomed-in your current chart is.
//+------------------------------------------------------------------+
//| MTF_MovingAverage.mq4 |
//| Copyright © 2006, Keris2112 |
//| |
//+------------------------------------------------------------------+
//mod2009fxtsd +hrzline
#property copyright "Copyright © 2006, Keris2112"
#property link "http://www.forex-tsd.com"
#property indicator_chart_window
#property indicator_buffers 1
#property indicator_color1 Blue
#property indicator_width1 2
//---- input parameters
/*************************************************************************
PERIOD_M1 1
PERIOD_M5 5
PERIOD_M15 15
PERIOD_M30 30
PERIOD_H1 60
PERIOD_H4 240
PERIOD_D1 1440
PERIOD_W1 10080
PERIOD_MN1 43200
You must use the numeric value of the timeframe that you want to use
when you set the TimeFrame' value with the indicator inputs.
---------------------------------------
PRICE_CLOSE 0 Close price.
PRICE_OPEN 1 Open price.
PRICE_HIGH 2 High price.
PRICE_LOW 3 Low price.
PRICE_MEDIAN 4 Median price, (high+low)/2.
PRICE_TYPICAL 5 Typical price, (high+low+close)/3.
PRICE_WEIGHTED 6 Weighted close price, (high+low+close+close)/4.
You must use the numeric value of the Applied Price that you want to use
when you set the 'applied_price' value with the indicator inputs.
---------------------------------------
MODE_SMA 0 Simple moving average,
MODE_EMA 1 Exponential moving average,
MODE_SMMA 2 Smoothed moving average,
MODE_LWMA 3 Linear weighted moving average.
You must use the numeric value of the MA Method that you want to use
when you set the 'ma_method' value with the indicator inputs.
**************************************************************************/
extern int TimeFrame=0;
extern int MAPeriod=21;
extern int ma_shift=0;
extern int ma_method=1;
extern int applied_price=0;
extern bool DrawMALine =true;
extern bool DrawHrzLine=true;
extern color HrzLineColor=DodgerBlue;
extern int HrzLineStyle=2;
extern int HrzLineWidth=1;
extern int HrzLineOnBar=0;
extern bool HrzLineOnBackground=true;
extern string note_Price = "0C 1O 2H 3L 4Md 5Tp 6WghC: Md(HL/2)4,Tp(HLC/3)5,Wgh(HLCC/4)6";
extern string _MA_Method = "SMA0 EMA1 SMMA2 LWMA3";
extern string TimeFrames = "M1;5,15,30,60H1;240H4;1440D1;10080W1;43200MN";
string short_name;
string shortname;
double ExtMapBuffer1[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
// string short_name;
//---- indicator line
SetIndexBuffer(0,ExtMapBuffer1);
if (DrawMALine)
SetIndexStyle(0,DRAW_LINE);
else
SetIndexStyle(0,DRAW_NONE);
if(TimeFrame==0) TimeFrame = Period();
SetIndexShift(0,ma_shift*TimeFrame/Period());
//---- name for DataWindow and indicator subwindow label
switch(ma_method)
{
case 1 : short_name="MTF_EMA("; break;
case 2 : short_name="MTF_SMMA("; break;
case 3 : short_name="MTF_LWMA("; break;
default : short_name="MTF_SMA(";
}
switch(TimeFrame)
{
case 1 : string TimeFrameStr="M1"; break;
case 5 : TimeFrameStr="M5"; break;
case 15 : TimeFrameStr="M15"; break;
case 30 : TimeFrameStr="M30"; break;
case 60 : TimeFrameStr="H1"; break;
case 240 : TimeFrameStr="H4"; break;
case 1440 : TimeFrameStr="D1"; break;
case 10080 : TimeFrameStr="W1"; break;
case 43200 : TimeFrameStr="MN1"; break;
default : TimeFrameStr="TF0";
}
TimeFrame = MathMax(TimeFrame, Period());
shortname= short_name +MAPeriod+") TF"+TimeFrame;
IndicatorShortName (shortname);
return(0);
}
//----
int deinit()
{
ObjectDelete(shortname);
return(0);
}
//+------------------------------------------------------------------+
//| MTF Moving Average
//+------------------------------------------------------------------+
int start()
{
datetime TimeArray[];
int i,y,limit,counted_bars=IndicatorCounted();
if(counted_bars<0) return(-1);
if(counted_bars>0) counted_bars--;
ArrayCopySeries(TimeArray,MODE_TIME,Symbol(),TimeFrame);
limit=Bars-counted_bars;
limit=MathMax(limit,TimeFrame/Period());
for(i=0,y=0;i<limit;i++)
{
if (Time[i]<iTime(NULL,TimeFrame,y)) y++;
ExtMapBuffer1[i]=iMA(NULL,TimeFrame,MAPeriod,0,ma_method,applied_price,y) ;
//
if (DrawHrzLine)
if (ObjectFind(shortname)==-1) CreateLine();
ObjectSet (shortname,OBJPROP_TIME1,Time[0]);
ObjectSet (shortname,OBJPROP_PRICE1,ExtMapBuffer1[0]);
}
return(0);
}
//+------------------------------------------------------------------+
void CreateLine()
{
SetIndexBuffer(0,ExtMapBuffer1);
ObjectCreate (shortname,OBJ_HLINE,0,0,0,0,0);
ObjectSet (shortname,OBJPROP_COLOR,HrzLineColor);
ObjectSet (shortname,OBJPROP_WIDTH,HrzLineWidth);
ObjectSet (shortname,OBJPROP_STYLE,HrzLineStyle);
ObjectSet (shortname,OBJPROP_BACK, HrzLineOnBackground);
}
