MA-ATR_v3

This script is designed for the MetaTrader 4 platform to provide traders with a dynamic visual aid on their price charts. It functions by combining two distinct types of market analysis: trend direction (Moving Averages) and volatility boundaries (ATR Envelopes).

Core Functionality

The primary purpose of this tool is to create a "channel" or "envelope" around the current price action. By analyzing both the average price and the recent market volatility, it helps traders identify whether the price is moving within a normal range or if it is stretching toward an extreme.

How the Logic Works

1. Trend Analysis (Moving Averages) First, the script calculates a Moving Average (MA) based on the closing prices of the assets. It offers four different types of averages so users can choose how "smooth" they want their trend line to appear:

  • Simple (SMA): A standard average of the price over a set period.
  • Exponential (EMA): Gives more weight to recent price action.
  • Smoothed (SMMA): Provides a slower, more rounded transition.
  • Linear Weighted (LWMA): Places progressively more importance on the very latest prices.

2. Volatility Measurement (ATR) Simultaneously, the script calculates the Average True Range (ATR). This is a measurement of "market noise" or how much the price typically swings up and down in a given timeframe. It determines the "thickness" of the market movement.

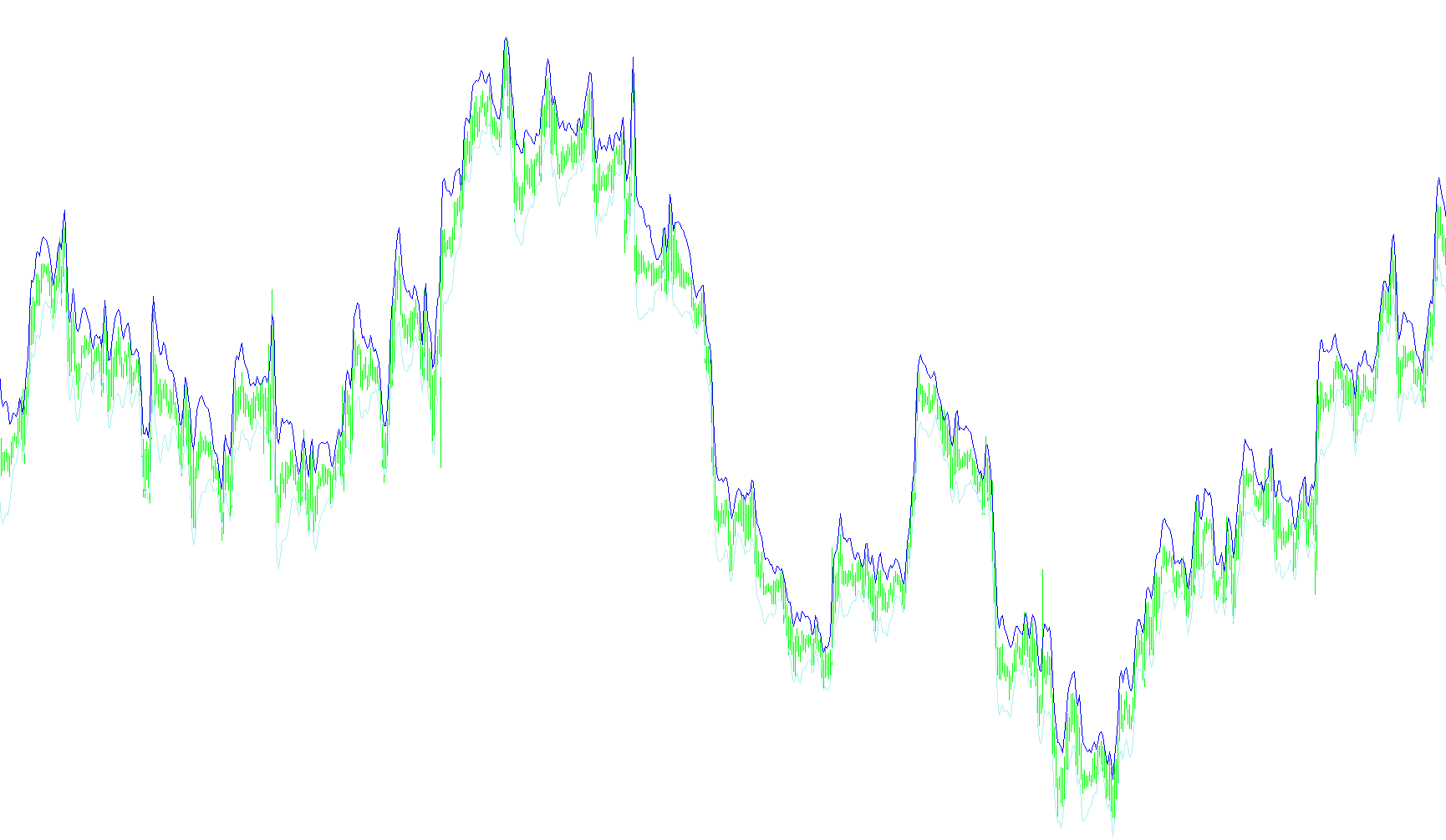

3. Envelope Construction The script then combines these two pieces of data to draw a visual boundary on your chart:

  • Upper Boundary: It takes the Moving Average and adds a multiplier of the ATR to it. This represents the "ceiling."
  • Lower Boundary: It takes the Moving Average and subtracts that same ATR multiplier. This represents the "floor."

Practical Use for Traders

By visualizing these boundaries, the script creates a corridor for the price to live in. When the price stays within these lines, it suggests the market is following its current trend with standard volatility. If the price pushes outside of these lines, it may indicate an overextended move, a potential reversal point, or a significant breakout, depending on the trader's specific strategy.

Indicators Used
Indicator of the average true rangeMoving average indicator
Miscellaneous
Implements a curve of type %1
11 Views
0 Downloads
0 Favorites
MA-ATR_v3
//+------------------------------------------------------------------+
//|                                                       MA-ATR.mq4 |
//|                         Copyright © 2006, Balidev Software Corp. |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, Balidev Software Corp."
#property link      "http://www.balidev.com/"

#property indicator_chart_window
#property indicator_buffers 5
#property indicator_color1 Red
#property indicator_color2 SlateGray
#property indicator_color3 SlateGray
#property indicator_color4 Aqua
#property indicator_color5 Aqua

//---- indicator parameters
extern int MA_Period=2;
extern int MA_Shift=0;
extern int MA_Method=0;
extern int ATR_Period=12;
extern double ATR_Factor=1;
extern int ATR_Shift=0;
extern bool ATR_UseMAOnArray=false;
extern int ATR_MAOnArrayPeriod=3;
extern int ATR_MAOnArrayMethod=MODE_EMA;
extern int ATR_MAOnArrayShift=0;
extern int MaxBar=1000;

//---- indicator buffers
double MA_Val[];
double MTR_Top_Val[];
double MTR_Btm_Val[];
double MTR_AvgTop_Val[];
double MTR_AvgBtm_Val[];
int myBar;

//----
int ExtCountedBars=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   int    draw_begin;
   string short_name;
//---- drawing settings
   SetIndexStyle(0,DRAW_NONE);
   SetIndexShift(0,MA_Shift);
   if (!ATR_UseMAOnArray) {
      SetIndexStyle(1,DRAW_LINE);
      SetIndexShift(1,MA_Shift);
      SetIndexStyle(2,DRAW_LINE);
      SetIndexShift(2,MA_Shift);
      SetIndexStyle(3,DRAW_NONE);
      SetIndexStyle(4,DRAW_NONE);
   } else {
      SetIndexStyle(3,DRAW_LINE);
      SetIndexShift(3,MA_Shift);
      SetIndexStyle(4,DRAW_LINE);
      SetIndexShift(4,MA_Shift);
      SetIndexStyle(1,DRAW_NONE);
      SetIndexStyle(2,DRAW_NONE);
   }
   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
   if(MA_Period<2) MA_Period=13;
   draw_begin=MA_Period-1;
//---- indicator short name
   switch(MA_Method)
     {
      case 1 : short_name="EMA(";  draw_begin=0; break;
      case 2 : short_name="SMMA("; break;
      case 3 : short_name="LWMA("; break;
      default :
         MA_Method=0;
         short_name="SMA(";
     }
   IndicatorShortName(short_name+MA_Period+")");
   SetIndexDrawBegin(0,draw_begin);
   SetIndexDrawBegin(1,draw_begin);
   SetIndexDrawBegin(2,draw_begin);
   SetIndexDrawBegin(3,draw_begin);
   SetIndexDrawBegin(4,draw_begin);
//---- indicator buffers mapping
   SetIndexBuffer(0,MA_Val);
   SetIndexBuffer(1,MTR_Top_Val);
   SetIndexBuffer(2,MTR_Btm_Val);
   SetIndexBuffer(3,MTR_AvgTop_Val);
   SetIndexBuffer(4,MTR_AvgBtm_Val);

//---- initialization done
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
   myBar = MaxBar;
   if (myBar > Bars)
   {
      myBar = Bars;
   }

   if(myBar<=MA_Period) return(0);
   ExtCountedBars=IndicatorCounted();
//---- check for possible errors
   if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
   if (ExtCountedBars>0) ExtCountedBars--;
//----
   switch(MA_Method)
     {
      case 0 : sma();  break;
      case 1 : ema();  break;
      case 2 : smma(); break;
      case 3 : lwma();
     }
//---- done
   /* calculate the atr envelope */
   for (int i = 0; i < myBar - (ATR_Period + ATR_Shift); i++)
   {
     double spread = (Ask-Bid);
     double atr = iATR(NULL, 0, ATR_Period, ATR_Shift + i);
     MTR_Top_Val[i] = MA_Val[i] + (atr * ATR_Factor);
     MTR_Btm_Val[i] = MA_Val[i] - (atr * ATR_Factor);
   }

   /*if (ATR_UseMAOnArray) {
      for (i = 0; i < myBar - (ATR_Period + ATR_Shift + ATR_MAOnArrayPeriod + ATR_MAOnArrayShift); i++) {
        MTR_AvgTop_Val[i] = iMAOnArray(MTR_Top_Val, ATR_MAOnArrayPeriod + i, ATR_MAOnArrayPeriod, i, ATR_MAOnArrayMethod, ATR_MAOnArrayShift);
        MTR_AvgBtm_Val[i] = iMAOnArray(MTR_Btm_Val, ATR_MAOnArrayPeriod + i, ATR_MAOnArrayPeriod, i, ATR_MAOnArrayMethod, ATR_MAOnArrayShift);
      }
   }*/

   return(0);
  }


//+------------------------------------------------------------------+
//| Simple Moving Average                                            |
//+------------------------------------------------------------------+
void sma()
  {
   double sum=0;
   int    i,pos=myBar-ExtCountedBars-1;
//---- initial accumulation
   if(pos<MA_Period) pos=MA_Period;
   for(i=1;i<MA_Period;i++,pos--)
      sum+=Close[pos];
//---- main calculation loop
   while(pos>=0)
     {
      sum+=Close[pos];
      MA_Val[pos]=sum/MA_Period;
	   sum-=Close[pos+MA_Period-1];
 	   pos--;
     }
//---- zero initial bars
   if(ExtCountedBars<1)
      for(i=1;i<MA_Period;i++) MA_Val[myBar-i]=0;
  }
//+------------------------------------------------------------------+
//| Exponential Moving Average                                       |
//+------------------------------------------------------------------+
void ema()
  {
   double pr=2.0/(MA_Period+1);
   int    pos=myBar-2;
   if(ExtCountedBars>2) pos=myBar-ExtCountedBars-1;
//---- main calculation loop
   while(pos>=0)
     {
      if(pos==myBar-2) MA_Val[pos+1]=Close[pos+1];
      MA_Val[pos]=Close[pos]*pr+MA_Val[pos+1]*(1-pr);
 	   pos--;
     }
  }
//+------------------------------------------------------------------+
//| Smoothed Moving Average                                          |
//+------------------------------------------------------------------+
void smma()
  {
   double sum=0;
   int    i,k,pos=myBar-ExtCountedBars+1;
//---- main calculation loop
   pos=myBar-MA_Period;
   if(pos>myBar-ExtCountedBars) pos=myBar-ExtCountedBars;
   while(pos>=0)
     {
      if(pos==myBar-MA_Period)
        {
         //---- initial accumulation
         for(i=0,k=pos;i<MA_Period;i++,k++)
           {
            sum+=Close[k];
            //---- zero initial bars
            MA_Val[k]=0;
           }
        }
      else sum=MA_Val[pos+1]*(MA_Period-1)+Close[pos];
      MA_Val[pos]=sum/MA_Period;
 	   pos--;
     }
  }
//+------------------------------------------------------------------+
//| Linear Weighted Moving Average                                   |
//+------------------------------------------------------------------+
void lwma()
  {
   double sum=0.0,lsum=0.0;
   double price;
   int    i,weight=0,pos=myBar-ExtCountedBars-1;
//---- initial accumulation
   if(pos<MA_Period) pos=MA_Period;
   for(i=1;i<=MA_Period;i++,pos--)
     {
      price=Close[pos];
      sum+=price*i;
      lsum+=price;
      weight+=i;
     }
//---- main calculation loop
   pos++;
   i=pos+MA_Period;
   while(pos>=0)
     {
      MA_Val[pos]=sum/weight;
      if(pos==0) break;
      pos--;
      i--;
      price=Close[pos];
      sum=sum-lsum+price*MA_Period;
      lsum-=Close[i];
      lsum+=price;
     }
//---- zero initial bars
   if(ExtCountedBars<1)
      for(i=1;i<MA_Period;i++) MA_Val[myBar-i]=0;
  }
//+------------------------------------------------------------------+
