MA-ATR_v2

This tool is a technical analysis indicator designed to help traders visualize price trends and volatility on a trading chart. It combines two fundamental financial concepts—Moving Averages and Average True Range (ATR)—to create a dynamic "envelope" or channel around the current price action.

Core Functionality

1. Trend Identification (The Moving Average) The script first calculates a central trend line based on historical price data. It offers four different methods to determine this average, allowing you to choose the one that best fits your trading style:

  • Simple Moving Average (SMA): A standard average where every price point in the period carries equal weight.
  • Exponential Moving Average (EMA): Gives more importance to recent price data, making it more responsive to sudden changes.
  • Smoothed Moving Average (SMMA): A slower, more stable trend line that filters out minor "noise."
  • Linear Weighted Moving Average (LWMA): Weights the most recent prices more heavily than older ones in a linear fashion.

2. Volatility Measurement (The ATR Envelope) Once the central trend is established, the script calculates the volatility of the market using the Average True Range (ATR). Instead of just showing a single line, it uses this volatility data to project a "buffer zone" above and below the Moving Average.

The logic works as follows:

  • It takes the current moving average value.
  • It identifies the current market volatility (the "spread").
  • It creates an upper and lower boundary by adding or subtracting that volatility from the central trend line based on a customizable factor.

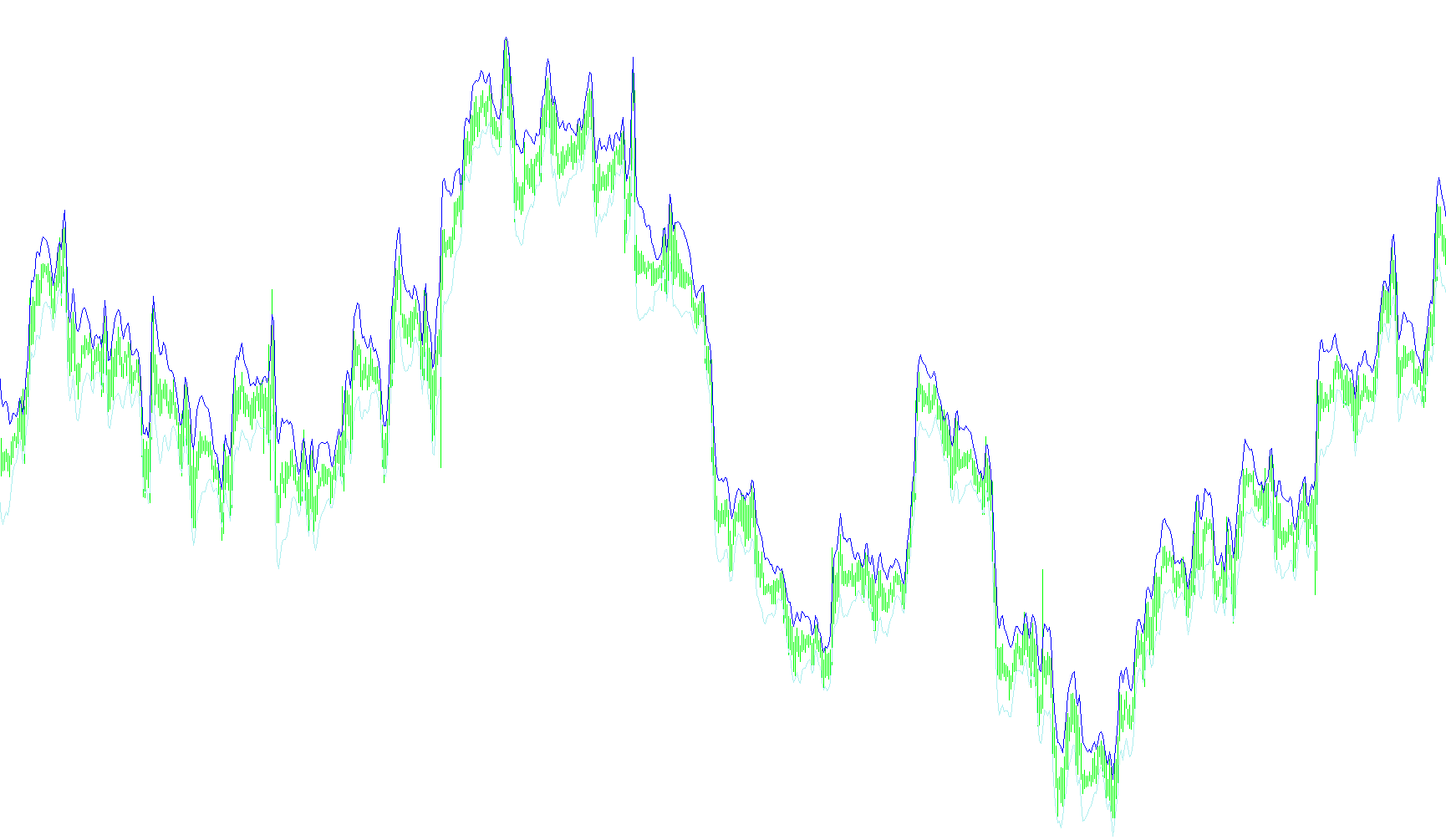

Visual Results

Depending on your settings, the indicator will primarily display these boundaries as lines on your chart. This creates a visual channel that expands when the market is highly volatile (making the "tunnel" wider) and contracts when the market is calm (making the "tunnel" narrower).

Practical Application

For a trader, this logic helps in two main ways:

  • Identifying Overextended Moves: When the price pushes significantly outside of these calculated boundaries, it may indicate that the asset is overbought or oversold relative to its recent volatility.
  • Dynamic Support and Resistance: The boundaries act as a floating "zone" of support and resistance that adjusts automatically as market conditions change, providing a clearer picture of where the price might react compared to a static horizontal line.
Indicators Used
Indicator of the average true rangeMoving average indicator
Miscellaneous
Implements a curve of type %1
17 Views
0 Downloads
0 Favorites
MA-ATR_v2
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//|                                                       MA-ATR.mq4 |
//|                         Copyright © 2006, Balidev Software Corp. |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, Balidev Software Corp."
#property link      "http://www.balidev.com/"

#property indicator_chart_window
#property indicator_buffers 5
#property indicator_color1 Red
#property indicator_color2 SlateGray
#property indicator_color3 SlateGray
#property indicator_color4 Aqua
#property indicator_color5 Aqua

//---- indicator parameters
extern int MA_Period=2;
extern int MA_Shift=0;
extern int MA_Method=0;
extern int ATR_Period=12;
extern double ATR_Factor=1;
extern int ATR_Shift=0;
extern bool ATR_UseMAOnArray=false;
extern int ATR_MAOnArrayPeriod=3;
extern int ATR_MAOnArrayMethod=MODE_EMA;
extern int ATR_MAOnArrayShift=0;
extern int MaxBar=1000;

//---- indicator buffers
double MA_Val[];
double MTR_Top_Val[];
double MTR_Btm_Val[];
double MTR_AvgTop_Val[];
double MTR_AvgBtm_Val[];
int myBar;

//----
int ExtCountedBars=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   int    draw_begin;
   string short_name;
//---- drawing settings
   SetIndexStyle(0,DRAW_NONE);
   SetIndexShift(0,MA_Shift);
   if (!ATR_UseMAOnArray) {
      SetIndexStyle(1,DRAW_LINE);
      SetIndexShift(1,MA_Shift);
      SetIndexStyle(2,DRAW_LINE);
      SetIndexShift(2,MA_Shift);
      SetIndexStyle(3,DRAW_NONE);
      SetIndexStyle(4,DRAW_NONE);
   } else {
      SetIndexStyle(3,DRAW_LINE);
      SetIndexShift(3,MA_Shift);
      SetIndexStyle(4,DRAW_LINE);
      SetIndexShift(4,MA_Shift);
      SetIndexStyle(1,DRAW_NONE);
      SetIndexStyle(2,DRAW_NONE);
   }
   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
   if(MA_Period<2) MA_Period=13;
   draw_begin=MA_Period-1;
//---- indicator short name
   switch(MA_Method)
     {
      case 1 : short_name="EMA(";  draw_begin=0; break;
      case 2 : short_name="SMMA("; break;
      case 3 : short_name="LWMA("; break;
      default :
         MA_Method=0;
         short_name="SMA(";
     }
   IndicatorShortName(short_name+MA_Period+")");
   SetIndexDrawBegin(0,draw_begin);
   SetIndexDrawBegin(1,draw_begin);
   SetIndexDrawBegin(2,draw_begin);
   SetIndexDrawBegin(3,draw_begin);
   SetIndexDrawBegin(4,draw_begin);
//---- indicator buffers mapping
   SetIndexBuffer(0,MA_Val);
   SetIndexBuffer(1,MTR_Top_Val);
   SetIndexBuffer(2,MTR_Btm_Val);
   SetIndexBuffer(3,MTR_AvgTop_Val);
   SetIndexBuffer(4,MTR_AvgBtm_Val);

//---- initialization done
   return(0);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
   myBar = MaxBar;
   if (myBar > Bars)
   {
      myBar = Bars;
   }

   if(myBar<=MA_Period) return(0);
   ExtCountedBars=IndicatorCounted();
//---- check for possible errors
   if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
   if (ExtCountedBars>0) ExtCountedBars--;
//----
   switch(MA_Method)
     {
      case 0 : sma();  break;
      case 1 : ema();  break;
      case 2 : smma(); break;
      case 3 : lwma();
     }
//---- done
   /* calculate the atr envelope */
   for (int i = 0; i < myBar - (ATR_Period + ATR_Shift); i++)
   {
     double spread = (Ask-Bid);
     double atr = iATR(NULL, 0, ATR_Period, ATR_Shift + i);
     MTR_Top_Val[i] = MA_Val[i] + (atr * ATR_Factor);
     MTR_Btm_Val[i] = MA_Val[i] - (atr * ATR_Factor);
   }

   /*if (ATR_UseMAOnArray) {
      for (i = 0; i < myBar - (ATR_Period + ATR_Shift + ATR_MAOnArrayPeriod + ATR_MAOnArrayShift); i++) {
        MTR_AvgTop_Val[i] = iMAOnArray(MTR_Top_Val, ATR_MAOnArrayPeriod + i, ATR_MAOnArrayPeriod, i, ATR_MAOnArrayMethod, ATR_MAOnArrayShift);
        MTR_AvgBtm_Val[i] = iMAOnArray(MTR_Btm_Val, ATR_MAOnArrayPeriod + i, ATR_MAOnArrayPeriod, i, ATR_MAOnArrayMethod, ATR_MAOnArrayShift);
      }
   }*/

   return(0);
  }


//+------------------------------------------------------------------+
//| Simple Moving Average                                            |
//+------------------------------------------------------------------+
void sma()
  {
   double sum=0;
   int    i,pos=myBar-ExtCountedBars-1;
//---- initial accumulation
   if(pos<MA_Period) pos=MA_Period;
   for(i=1;i<MA_Period;i++,pos--)
      sum+=Close[pos];
//---- main calculation loop
   while(pos>=0)
     {
      sum+=Close[pos];
      MA_Val[pos]=sum/MA_Period;
	   sum-=Close[pos+MA_Period-1];
 	   pos--;
     }
//---- zero initial bars
   if(ExtCountedBars<1)
      for(i=1;i<MA_Period;i++) MA_Val[myBar-i]=0;
  }
//+------------------------------------------------------------------+
//| Exponential Moving Average                                       |
//+------------------------------------------------------------------+
void ema()
  {
   double pr=2.0/(MA_Period+1);
   int    pos=myBar-2;
   if(ExtCountedBars>2) pos=myBar-ExtCountedBars-1;
//---- main calculation loop
   while(pos>=0)
     {
      if(pos==myBar-2) MA_Val[pos+1]=Close[pos+1];
      MA_Val[pos]=Close[pos]*pr+MA_Val[pos+1]*(1-pr);
 	   pos--;
     }
  }
//+------------------------------------------------------------------+
//| Smoothed Moving Average                                          |
//+------------------------------------------------------------------+
void smma()
  {
   double sum=0;
   int    i,k,pos=myBar-ExtCountedBars+1;
//---- main calculation loop
   pos=myBar-MA_Period;
   if(pos>myBar-ExtCountedBars) pos=myBar-ExtCountedBars;
   while(pos>=0)
     {
      if(pos==myBar-MA_Period)
        {
         //---- initial accumulation
         for(i=0,k=pos;i<MA_Period;i++,k++)
           {
            sum+=Close[k];
            //---- zero initial bars
            MA_Val[k]=0;
           }
        }
      else sum=MA_Val[pos+1]*(MA_Period-1)+Close[pos];
      MA_Val[pos]=sum/MA_Period;
 	   pos--;
     }
  }
//+------------------------------------------------------------------+
//| Linear Weighted Moving Average                                   |
//+------------------------------------------------------------------+
void lwma()
  {
   double sum=0.0,lsum=0.0;
   double price;
   int    i,weight=0,pos=myBar-ExtCountedBars-1;
//---- initial accumulation
   if(pos<MA_Period) pos=MA_Period;
   for(i=1;i<=MA_Period;i++,pos--)
     {
      price=Close[pos];
      sum+=price*i;
      lsum+=price;
      weight+=i;
     }
//---- main calculation loop
   pos++;
   i=pos+MA_Period;
   while(pos>=0)
     {
      MA_Val[pos]=sum/weight;
      if(pos==0) break;
      pos--;
      i--;
      price=Close[pos];
      sum=sum-lsum+price*MA_Period;
      lsum-=Close[i];
      lsum+=price;
     }
//---- zero initial bars
   if(ExtCountedBars<1)
      for(i=1;i<MA_Period;i++) MA_Val[myBar-i]=0;
  }
//+------------------------------------------------------------------+
