JR_Trend_Indicator_v1
Download scriptThe 4Hour Vegas Model - Weekly Chart Direction Calculator is a technical analysis tool designed to help traders visualize the momentum and direction of market trends by analyzing moving averages. Instead of looking at price alone, this script measures the "gap" between two different types of averages to determine how quickly the market is shifting.
Core Logic & Methodology
The script operates based on the relationship between two specific mathematical indicators:
- The Short-Term Average (SMA5): This reacts more quickly to recent price changes.
- The Medium-Term Average (EMA21): This provides a smoother look at the broader trend over a longer period.
By subtracting the medium-term average from the short-term average, the tool calculates a "distance" value. The primary goal of this script is to monitor how this distance changes from one moment to the next.
How it Identifies Direction
The logic follows a simple three-step process to interpret market behavior:
- Momentum Detection: The script compares the current difference between the averages to the difference found in the previous period.
- Trend Identification:
- If the gap is expanding in a positive way (the short-term average is pulling away upward faster than before), it identifies an "UP" direction.
- If the gap is expanding in a negative way (the short-term average is dropping faster than before), it identifies a "DOWN" direction.

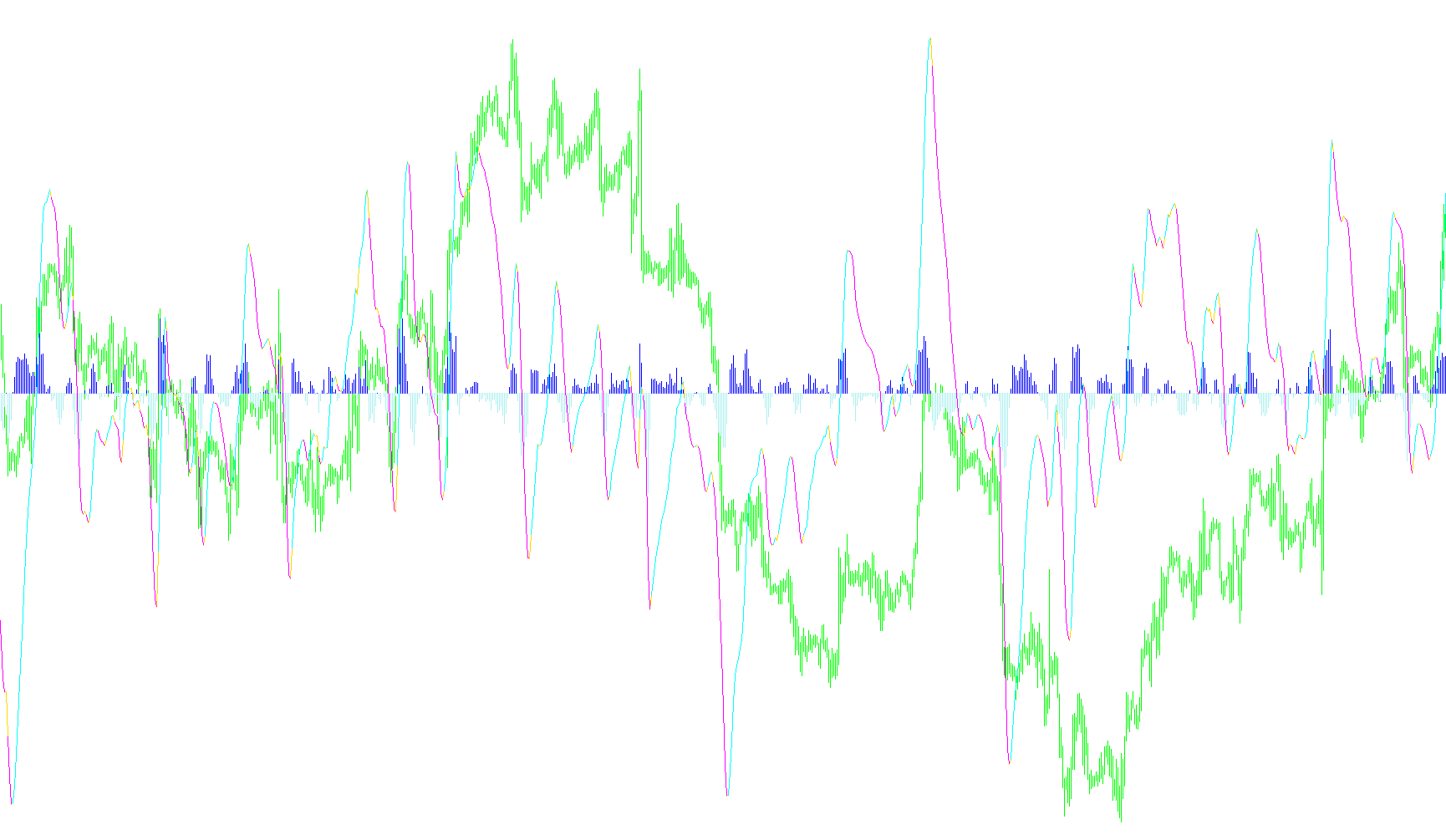

- Visual Representation: The tool translates these calculations into visual elements on your chart:
- Lines: Display the raw difference between the two averages.
- Histograms: These highlight the rate of change. They grow taller when momentum is increasing, allowing you to see not just which way the market is going, but how much "power" is behind that move.
- Directional Markers: The script uses specific markers to clearly distinguish between bullish (upward) and bearish (downward) shifts, helping to filter out noise from the price action.
Key Features for the Trader
- Weekly Consistency: While the name suggests a 4-hour timeframe, it is specifically engineered to calculate direction on a weekly basis, helping traders stay aligned with the larger market structure.
- Trend Velocity: Because the tool highlights the difference between "Now" and "Previous," it excels at showing when a trend is accelerating or losing steam, providing an early signal of potential reversals.
- Automated Tracking: The script automatically records these directional values into the system's memory for the current week, ensuring that the data remains consistent across different sessions.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| 4Hour Vegas Model - Weekly Chart Direction Calculator |
//| Spiggy |
//| |
//+------------------------------------------------------------------+
#property copyright "Jrich3"
#property link ""
#property indicator_separate_window
//#property indicator_buffers 4
#property indicator_buffers 6
#property indicator_color1 Yellow
#property indicator_color2 DarkGreen
#property indicator_color3 Maroon
//#property indicator_color4 Red
#property indicator_color5 Lime
#property indicator_color6 Red
//---- input parameters
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
double ExtMapBuffer4[];
double ExtMapBuffer5[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(0,ExtMapBuffer1);
SetIndexStyle(1,DRAW_HISTOGRAM);
SetIndexBuffer(1,ExtMapBuffer2);
SetIndexStyle(2,DRAW_HISTOGRAM);
SetIndexBuffer(2,ExtMapBuffer3);
SetIndexStyle(4,DRAW_LINE);
//SetIndexStyle(4,DRAW_ARROW,STYLE_SOLID,1);
SetIndexBuffer(4,ExtMapBuffer4);
SetIndexArrow(4,159);
SetIndexStyle(5,DRAW_LINE);
//SetIndexStyle(5,DRAW_ARROW,STYLE_SOLID,1);
SetIndexBuffer(5,ExtMapBuffer5);
SetIndexArrow(5,159);
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//----
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int limit;
int i;
int counted_bars=IndicatorCounted();
double EMA21;
double SMA5;
double EMA21Prev;
double SMA5Prev;
string ValueIndex;
string Direction;
string KeyValue;
// Always prepare all of the information for the other indicators
if(counted_bars<0) return(-1);
if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars;
//---- main loop
for(i=limit; i>=0; i--)
{
//---- Calculate the current weekly trend
EMA21=iMA(NULL,0,21,0,MODE_EMA,PRICE_MEDIAN,i);
SMA5 =iMA(NULL,0,5,0,MODE_SMA,PRICE_MEDIAN,i);
//---- Calculate the previous weekly trend
EMA21Prev=iMA(NULL,0,21,0,MODE_EMA,PRICE_MEDIAN,i+1);
SMA5Prev =iMA(NULL,0,5,0,MODE_SMA,PRICE_MEDIAN,i+1);
// Calculate the difference of the MAs
ExtMapBuffer1[i] = SMA5-EMA21;
// Calculate the difference of the MAs
if (((SMA5-EMA21) - (SMA5Prev-EMA21Prev)) > 0.0 )
{
ExtMapBuffer2[i] = (SMA5-EMA21) - (SMA5Prev-EMA21Prev);
ExtMapBuffer3[i] = 0.0;
Direction = "UP";
}
if (((SMA5-EMA21) - (SMA5Prev-EMA21Prev)) < 0.0 )
{
ExtMapBuffer2[i] = 0.0;
ExtMapBuffer3[i] = (SMA5-EMA21) - (SMA5Prev-EMA21Prev);
Direction = "DOWN";
}
// Calculate the start of the week and publish the value in a global variable
// Publish this with the previous Sunday as the index
ValueIndex = TimeToStr(Time[i]-TimeDayOfWeek(Time[i]),TIME_DATE);
KeyValue = Symbol() + "-ThisWeekDirection-" + ValueIndex;
if (! GlobalVariableCheck(KeyValue))
GlobalVariableSet(KeyValue, ((SMA5-EMA21) - (SMA5Prev-EMA21Prev)));
Print("Key: " + KeyValue + " = " + DoubleToStr(((SMA5-EMA21) - (SMA5Prev-EMA21Prev)),4));
customMethod(SMA5, EMA21, i, Direction );
}
// Comment("Line = SMA5-EMA21","\n","Histogram = Now - Previous");
return(0);
}
void customMethod(double SMA5, double EMA21, int index, string Direction)
{
double difference = SMA5-EMA21;
if (Direction == "DOWN")
{
ExtMapBuffer4[index] = EMPTY_VALUE;
ExtMapBuffer5[index] = difference;
}
if (Direction == "UP")
{
ExtMapBuffer4[index] = difference;
ExtMapBuffer5[index] = EMPTY_VALUE;
}
//EMPTY_VALUE
}
//+------------------------------------------------------------------+
