fibocalc_v32

This script is an automated charting tool designed to analyze historical price data and project potential trading levels based on the previous day's market activity. It primarily uses "Fibonacci" logic—a mathematical sequence often used by traders to identify key support and resistance zones—to suggest where a trade might be entered, where risk should be managed (Stop Loss), and where profit goals should be set (Take Profit).

Core Functionality

1. Historical Data Tracking The tool constantly monitors the price action of the market. It specifically looks for the "High," "Low," "Open," and "Close" prices from the previous trading day. By identifying these boundaries, the script establishes the range of the preceding day's volatility.

2. Dynamic Level Calculation Once the previous day's high and low points are established, the script performs a series of calculations to project new price levels for the current session:

  • Entry Levels: It calculates specific "Buy" or "Sell" zones based on the range of the previous day.
  • Risk Management (Stop Loss): It automatically identifies a "Safety Zone" where the trade should be closed if the market moves against the predicted direction.
  • Profit Targets: The script projects three distinct profit targets (TP1, TP2, and TP3) based on varying mathematical multipliers.

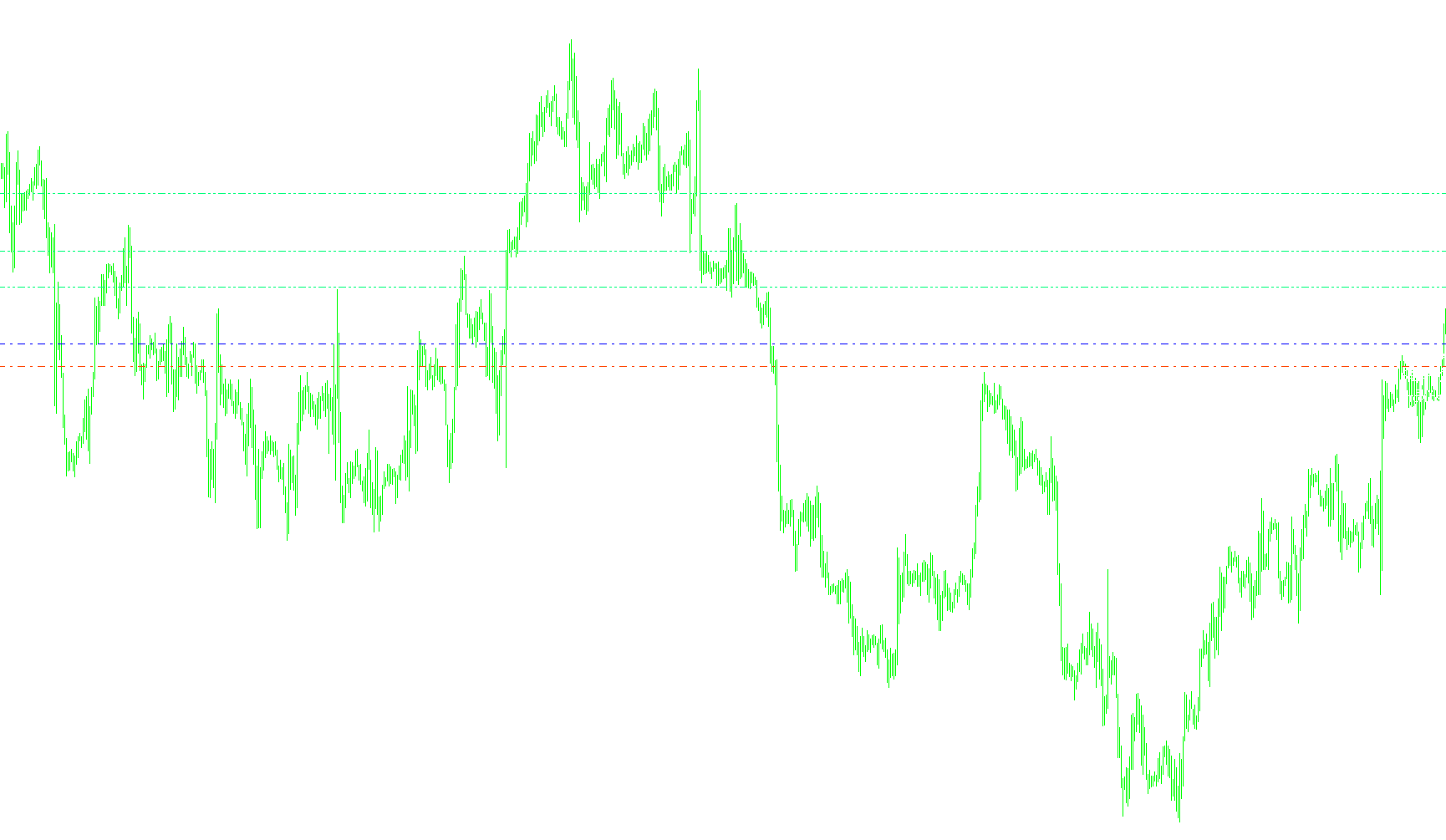

3. Automated Visual Aids To make this data useful for a human trader, the script translates these complex calculations into visual elements directly on the trading chart:

  • Horizontal Lines: It draws dashed lines at the calculated entry points, stop loss levels, and profit targets.
  • Color Coding: To ensure quick identification, it uses different colors (such as Blue for Buy levels, Red for Sell levels, and Spring Green for Profit targets).
  • Text Labels: It places clear text labels on these lines (e.g., "BUY LEVEL," "STOP LOSS LEVEL") so the user can immediately see what each line represents without needing to check the underlying data.

Execution Logic

The script operates based on the current market price relative to the previous day's closing price:

  • Bullish Scenario: If the current price is trading above the previous day’s close, the script calculates "Buy" levels and associated profit targets.
  • Bearish Scenario: If the current price is trading below the previous day’s close, the script calculates "Sell" levels and associated profit targets.

In summary, this tool serves as a visual roadmap for traders. It takes the "memory" of yesterday's price movement and automatically plots out a structured plan for today's potential trades, highlighting exactly where to get in, where to stay safe, and where to take profits.

Miscellaneous
Implements a curve of type %1
10 Views
0 Downloads
0 Favorites
fibocalc_v32
/*+------------------------------------------------------------------+
 |                                                         FiboCalc  |
 |                                         Author: Copyright © 2006, |
 |                                                                   |
 |                                                                   |
 +------------------------------------------------------------------+*/
#property copyright "Copyright © 2006,"
#property link      "http://www.metaquotes.net"

#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Blue
#property indicator_color2 Red
#property indicator_color3 ForestGreen
#property indicator_color4 HotPink
//---- buffers
double PrevDayHiBuffer[];
double PrevDayLoBuffer[];
double PrevDayOpenBuffer[];
double PrevDayCloseBuffer[];
//----
int fontsize = 8;
double PrevDayHi, PrevDayLo, PrevDayOpen , PrevDayClose, fb, fs, fe, tp1, tp2, tp3;
double LastHigh, LastLow, LastOpen, LastClose, x;
double ri, re1, re2, re3, ra1, ra2, ra3;
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
   ObjectDelete("PrevDayHi");
   ObjectDelete("PrevDayLo");
   ObjectDelete("PrevDayOpen");
   ObjectDelete("PrevDayClose");
   ObjectDelete("fe");
   ObjectDelete("fe Line");
   ObjectDelete("fs");
   ObjectDelete("fs Line");
   ObjectDelete("tp3");
   ObjectDelete("tp3 Line");
   ObjectDelete("tp2");
   ObjectDelete("tp2 Line");
   ObjectDelete("tp1");
   ObjectDelete("tp1 Line");
   ObjectDelete("fb");
   ObjectDelete("fb Line");
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   string short_name;
//---- indicator line
   SetIndexStyle(0,DRAW_NONE);
   SetIndexStyle(1,DRAW_NONE);
   SetIndexStyle(2,DRAW_NONE);
   SetIndexStyle(3,DRAW_NONE);
//----
   SetIndexBuffer(0, PrevDayHiBuffer);
   SetIndexBuffer(1, PrevDayLoBuffer);
   SetIndexBuffer(2, PrevDayOpenBuffer);
   SetIndexBuffer(3, PrevDayCloseBuffer);
//---- name for DataWindow and indicator subwindow label
   short_name="Prev Hi-Lo levels";
   IndicatorShortName(short_name);
   SetIndexLabel(0, short_name);
   SetIndexLabel(1, "Red");
   SetIndexLabel(2, "ForestGreen");
   SetIndexLabel(3, "HotPink");
//----
   SetIndexDrawBegin(0,1);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int counted_bars = IndicatorCounted();
   int limit, i;
//---- indicator calculation
   if(counted_bars == 0)
     {
       x = Period();
       if(x > 240)
           return(-1);
     }
   limit = (Bars - counted_bars) - 1;
//----
   for(i = limit; i >= 0; i--)
     {
       LastHigh = High[Highest(NULL, 0, MODE_HIGH, i + 1)];
       LastLow = Low[Lowest(NULL, 0, MODE_LOW, i + 1)];
       if(Open[i+1] > LastOpen)
           LastOpen = Open[i+1];
       //----
       if(TimeDay(Time[i]) != TimeDay(Time[i+1]))
         {
           PrevDayHi = LastHigh;
           PrevDayLo = LastLow;
           PrevDayOpen = LastClose;
           PrevDayClose = Open[i];
           //----
           LastLow = Open[i];
           LastHigh = Open[i];
           LastOpen = Open[i];
           LastClose = Open[i];
           //----========================            Previous HIGH and Previous LOW =========================
         /*  if(ObjectFind("PrevDayHi") != 0)
             {
               ObjectCreate("PrevDayHi", OBJ_TEXT, 0, 0, 0);
               ObjectSetText("PrevDayHi", "           Day High", fontsize, "Arial");
               ObjectSet("PrevDayHi", OBJPROP_COLOR, Yellow);
               ObjectSet("PrevDayHi", OBJPROP_WIDTH,5);
             }
           else
             {
               ObjectMove("PrevDayHi", 0, Time[i], PrevDayHi);

             }
           //..............................................................
           if(ObjectFind("PrevDayLo") != 0)
             {
               ObjectCreate("PrevDayLo", OBJ_TEXT, 0, 0, 0);
               ObjectSetText("PrevDayLo", "           Day Low", fontsize, "Arial");
               ObjectSet("PrevDayLo", OBJPROP_COLOR, Yellow);
               ObjectSet("PrevDayLo", OBJPROP_WIDTH,5);

                            }
           else
             {
               ObjectMove("PrevDayLo", 0, Time[i], PrevDayLo);
             }
           //----........................................................
           if(ObjectFind("PrevDayOpen") != 0)
             {
               ObjectCreate("PrevDayOpen", OBJ_TEXT, 0, 0, 0);
               ObjectSetText("PrevDayOpen", "   Prev. Day Open", fontsize,
                             "Arial", White);
             }
           else
             {
               ObjectMove("PrevDayOpen", 0, Time[i], PrevDayOpen);
             }
           //----.......................................................
           if(ObjectFind("PrevDayClose") != 0)
             {
               ObjectCreate("PrevDayClose", OBJ_TEXT, 0, 0, 0);
               ObjectSetText("PrevDayClose", "   Prev. Day Close", fontsize,
                             "Arial", White);
             }
           else
             {
               ObjectMove("PrevDayClose", 0, Time[i], PrevDayClose);
             }*/

         }
       PrevDayHiBuffer[i] = PrevDayHi;
       PrevDayLoBuffer[i] = PrevDayLo;
       PrevDayOpenBuffer[i] = PrevDayOpen;
       PrevDayCloseBuffer[i] = PrevDayClose;
     }
// -------------------------------------------------BUY
   if(Ask > LastClose)
     {
       fb = PrevDayHi - (PrevDayHi - PrevDayLo)*0.382;
       fe = PrevDayHi - (PrevDayHi - PrevDayLo)*0.618;
       tp1 = ((PrevDayHi - PrevDayLo)*0.618) + fb;
       tp2 = (PrevDayHi - PrevDayLo) + fb;
       tp3 = 1.618*(PrevDayHi - PrevDayLo) + fb;
       ri = MathRound((fb - fe)*10000) / 10000;
       re1=MathRound((tp1 - fb)*10000) / 10000;
       re2=MathRound((tp2 - fb)*10000) / 10000;
       re3=MathRound((tp3 - fb)*10000) / 10000;
       ra1=MathRound((re1 / ri)*10) / 10;
       ra2=MathRound((re2 / ri)*10) / 10;
       ra3=MathRound((re3 / ri)*10) / 10;
       //----
       if(ObjectFind("fb") != 0)
         {
           ObjectCreate("fb", OBJ_TEXT, 0, Time[0], fb);
           ObjectSetText("fb", " BUY LEVEL", 8, "Arial", EMPTY);
         }
       else
         {
           ObjectMove("fb",fb, Time[0], fb);
         }
       //----
       if(ObjectFind("fb Line") != 0)
         {
           ObjectCreate("fb Line", OBJ_HLINE, 0, Time[0],fb);
           ObjectSet("fb Line", OBJPROP_STYLE, STYLE_DASHDOT);
           ObjectSet("fb Line", OBJPROP_COLOR, Blue);
         }
       else
         {
           ObjectMove("fb Line",0, Time[0], fb);
         }
       //----
      /* if((ra1 > 2) && (ra2 > 2) && (ra3 > 2))
           Comment("Owner : ", AccountName()," Account number : ", AccountNumber(),
           "\n\nPrevDayHi ",PrevDayHi,"\nPrevDayLo ", PrevDayLo,"\nTrend was UP ",
           "\nBUY @ ",fb ,"\nStopLoss ",fe,"\nTakeProit 1 ",tp1 ,
           " Risk/Reward Ratio : ", ra1 ," OK Trade ","\nTakeProit 2 ",tp2 ,
           " Risk/Reward Ratio : ", ra2 ," OK Trade ","\nTakeProit 3 ",tp3,
           " Risk/Reward Ratio : ", ra3 ," OK Trade ");
       else
           Comment("Owner : ", AccountName()," Account number : ", AccountNumber(),
           "\n\nPrevDayHi ",PrevDayHi,"\nPrevDayLo ", PrevDayLo,"\nTrend was UP ",
           "\nBUY @ ",fb ,"\nStopLoss ",fe,"\nTakeProit 1 ",tp1 ,
           " Risk/Reward Ratio : ", ra1 ," NO TRADE ","\nTakeProit 2 ",tp2 ,
           " Risk/Reward Ratio : ", ra2 ," NO TRADE ","\nTakeProit 3 ",tp3,
           " Risk/Reward Ratio : ", ra3 ," NO TRADE ");*/

     }
// SELL
   if(Bid < LastClose)
     {
       fs = (PrevDayHi - PrevDayLo)*0.382 + (PrevDayLo);
       fe = (PrevDayHi - PrevDayLo)*0.618 + (PrevDayLo);
       tp1 = ((PrevDayLo - PrevDayHi)*0.618) + fs;
       tp2 = (PrevDayLo - PrevDayHi) + fs;
       tp3 = 1.618*(PrevDayLo - PrevDayHi) + fs;
       ri = MathRound((fs - fe)*10000) / 10000;
       re1 = MathRound((tp1 - fs)*10000) / 10000;
       re2 = MathRound((tp2 - fs)*10000) / 10000;
       re3 = MathRound((tp3 - fs)*10000) / 10000;
       ra1 = MathRound((re1 / ri)*10) / 10;
       ra2 = MathRound((re2 / ri)*10) / 10;
       ra3 = ((re3 / ri)*10) / 10;
       //----
       if(ObjectFind("fs") != 0)
         {
           ObjectCreate("fs", OBJ_TEXT, 0, Time[0], fs);
           ObjectSetText("fs", " SELL LEVEL", 8, "Arial", EMPTY);
         }
       else
         {
           ObjectMove("fs",fs, Time[0], fs);
         }
       //----
       if(ObjectFind("fs Line") != 0)
         {
           ObjectCreate("fs Line", OBJ_HLINE, 0, Time[0],fs);
           ObjectSet("fs Line", OBJPROP_STYLE, STYLE_DASHDOT);
           ObjectSet("fs Line", OBJPROP_COLOR, Red);
         }
       else
         {
           ObjectMove("fs Line",0, Time[0], fs);
         }
       //----
     /*    if((ra1 > 2) && (ra2 > 2) && (ra3 > 2))
         Comment("Owner : ", AccountName(),"Account number : ", AccountNumber(),
           "\n\nPrevDayHi ",PrevDayHi,"\nPrevDayLo ", PrevDayLo,"\nTrend was Down ",
           "\nSELL @ ",fs ,"\nStopLoss ",fe,"\nTakeProit 1 ",tp1 ,
           " Risk/Reward Ratio : ", ra1 ," OK Trade ","\nTakeProit 2 ",tp2 ,
           " Risk/Reward Ratio : ", ra2 ," OK Trade ","\nTakeProit 3 ",tp3,
           " Risk/Reward Ratio : ", ra3 ," OK Trade ");
       else
           Comment("Owner : ", AccountName(),"Account number : ", AccountNumber(),
           "\n\nPrevDayHi ",PrevDayHi,"\nPrevDayLo ", PrevDayLo,"\nTrend was Down ",
           "\nSELL @ ",fs ,"\nStopLoss ",fe,"\nTakeProit 1 ",tp1 ,
           " Risk/Reward Ratio : ", ra1 ," NO TRADE ","\nTakeProit 2 ",tp2 ,
           " Risk/Reward Ratio : ", ra2 ," NO TRADE ","\nTakeProit 3 ",tp3,
           " Risk/Reward Ratio : ", ra3 ," NO TRADE ");*/
     }
//----
   if(ObjectFind("fe") != 0)
     {
       ObjectCreate("fe", OBJ_TEXT, 0, Time[0], fe);
       ObjectSetText("fe", " STOPLOSS LEVEL", 8, "Arial", EMPTY);
     }
   else
     {
       ObjectMove("fe",fe, Time[0], fe);
     }
//----
   if(ObjectFind("fe Line") != 0)
     {
       ObjectCreate("fe Line", OBJ_HLINE, 0, Time[0],fe);
       ObjectSet("fe Line", OBJPROP_STYLE, STYLE_DASHDOT);
       ObjectSet("fe Line", OBJPROP_COLOR, OrangeRed );
     }
   else
     {
       ObjectMove("fe Line",0, Time[0], fe);
     }
//----
   if(ObjectFind("tp1") != 0)
     {
       ObjectCreate("tp1", OBJ_TEXT, 0, Time[0], tp1);
       ObjectSetText("tp1", " PROFIT TARGET 1", 8, "Arial", EMPTY);
     }
   else
     {
       ObjectMove("tp1",tp1, Time[0],tp1 );
     }
//----
   if(ObjectFind("tp1 Line") != 0)
     {
       ObjectCreate("tp1 Line", OBJ_HLINE, 0, Time[0],tp1);
       ObjectSet("tp1 Line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
       ObjectSet("tp1 Line", OBJPROP_COLOR, SpringGreen );
     }
   else
     {
       ObjectMove("tp1 Line",0, Time[0],tp1 );
     }
//----
   if(ObjectFind("tp2") != 0)
     {
       ObjectCreate("tp2", OBJ_TEXT, 0, Time[0], tp2);
       ObjectSetText("tp2", " PROFIT TARGET 2", 8, "Arial", EMPTY);
     }
   else
     {
       ObjectMove("tp2",tp2, Time[0],tp2);
     }
   if(ObjectFind("tp2 Line") != 0)
     {
       ObjectCreate("tp2 Line", OBJ_HLINE, 0, Time[0],tp2);
       ObjectSet("tp2 Line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
       ObjectSet("tp2 Line", OBJPROP_COLOR, SpringGreen );
     }
   else
     {
        ObjectMove("tp2 Line",0, Time[0],tp2);
     }
//----
   if(ObjectFind("tp3") != 0)
     {
       ObjectCreate("tp3", OBJ_TEXT, 0, Time[0], tp3);
       ObjectSetText("tp3", " PROFIT TARGET 3", 8, "Arial", EMPTY);
     }
   else
     {
       ObjectMove("tp3",tp3, Time[0], tp3);
     }
//----
   if(ObjectFind("tp3 Line") != 0)
     {
       ObjectCreate("tp3 Line", OBJ_HLINE, 0, Time[0],tp3);
       ObjectSet("tp3 Line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
       ObjectSet("tp3 Line", OBJPROP_COLOR, SpringGreen );
     }
   else
     {
       ObjectMove("tp3 Line",0, Time[0],tp3);
     }
//----
   return(0);
  }
//+------------------------------------------------------------------+
