Eng_Bassam_Day_Trader_Market_In_Profile

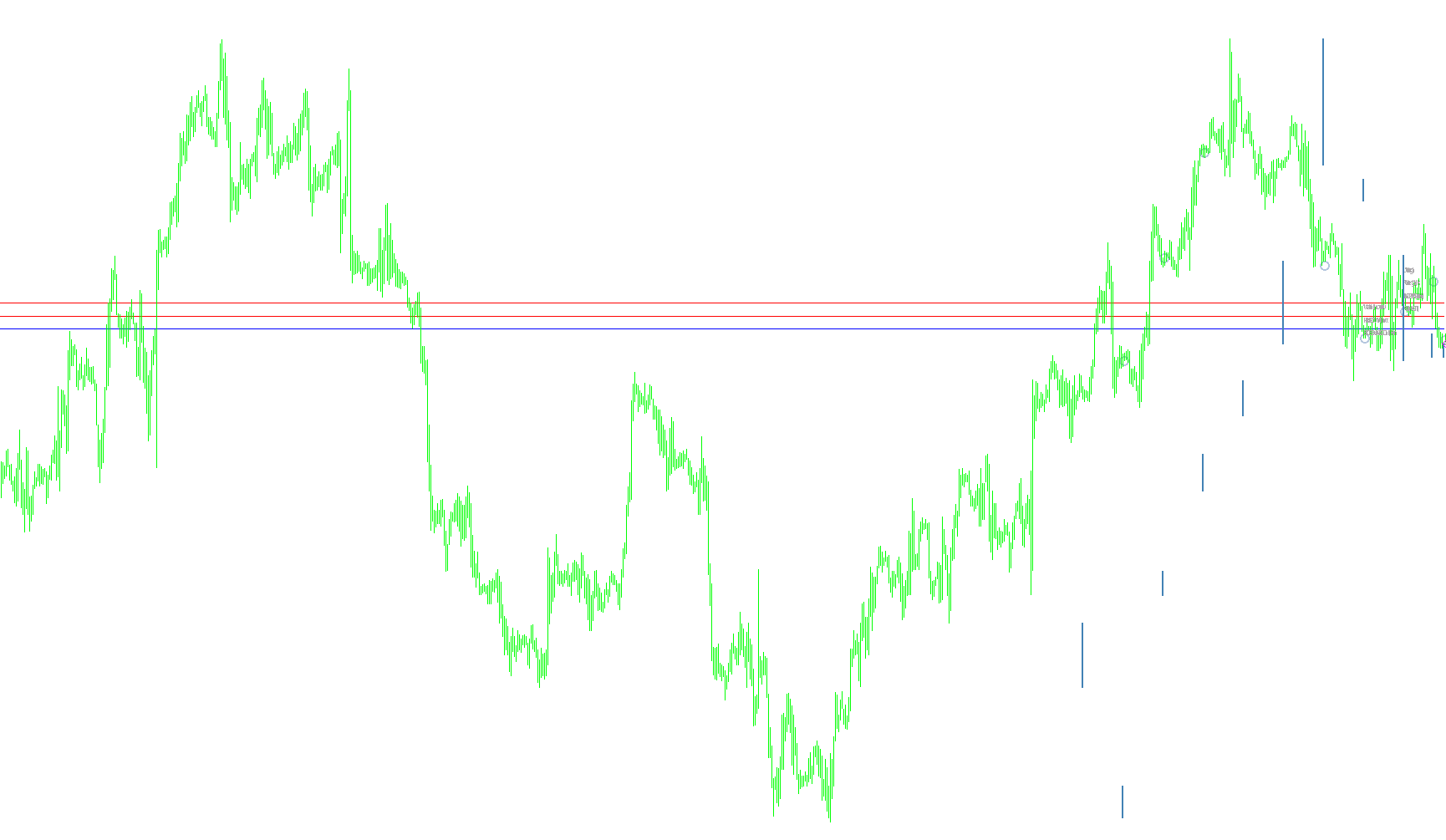

This tool is designed to provide traders with a visual map of historical price activity, specifically focusing on the "Market Profile." Unlike standard charts that only show the movement of price over time, this script highlights where price spent the most time and volume, helping traders identify significant zones of interest.

Core Logic and Visual Elements

1. Time & Session Organization The script organizes market data into manageable segments based on user-defined session lengths (e.g., 48-hour blocks). It automatically calculates these windows to ensure the visual profile remains consistent regardless of how much time has passed. It is configured to look back over a specific number of days to provide historical context.

2. TPO (Time Price Opportunity) Mapping The foundation of this tool is the "TPO" count. The logic scans price action to see how many times the market visited a specific price level within a given time frame.

  • Visual Representation: It can display these as letters (A, B, C...) or simple symbols.
  • Density: Areas with a higher concentration of letters indicate "high-activity" zones where heavy trading occurred.

3. Key Market Metrics The script automatically calculates and draws several critical technical markers:

  • POC (Point of Control): This identifies the single price level that saw the highest amount of activity during the period. It is drawn as a horizontal line to show the "fair value" or the most contested price.
  • Value Area: This represents a specific percentage of the total market activity (customizable by the user). It outlines the range where the majority of trading took place, helping traders distinguish between "balanced" and "imbalanced" markets.
  • Initial Balance (IB): The logic identifies the price range established at the very beginning of a session, which often serves as a baseline for the rest of the day's movement.

4. Real-Time Tracking & Data Overlay To keep the user updated on current conditions, the script includes:

  • Current Pointer: A dynamic marker that tracks the live price relative to the historical profile created for that day.
  • Information Text: An on-screen display that calculates and shows the total price range (in pips), the size of the Value Area, and the Tick Volume.
  • Range Lines: Visual indicators that show the absolute high and low boundaries reached during the session.

Summary for the User

In simple terms, this script takes a "messy" chart and distills it into a structured profile. It tells you where the "crowd" is trading most heavily (POC), where the majority of the action happens (Value Area), and how far the market has stretched from its starting point (Initial Balance). It allows you to see the "shape" of the market's behavior rather than just the sequence of price changes.

Price Data Components
Series array that contains tick volumes of each bar Series array that contains open time of each barSeries array that contains open prices of each barSeries array that contains the highest prices of each barSeries array that contains the lowest prices of each bar
15 Views
0 Downloads
0 Favorites
Eng_Bassam_Day_Trader_Market_In_Profile
//+------------------------------------------------------------------+
//|                                 Day Trader Market In Profile.mq4 |
//|                      Copyright © 2010, MetaQuotes Software Corp. |
//|                                        http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2010, Eng\Bassam El-Faramawi."
#property link      "bmaamoon@yahoo.com"


#property indicator_chart_window
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
extern int Step = 4;
extern int NumberOfDays = 10;
extern int SessionHalfHours = 48;

extern bool ViewTPOs = true;
extern bool TPOs_as_Letters = true;
extern int TPOs_Shift = 0;
extern int Letter_Size = 6;
extern color TPO_Color =DarkGray;

extern bool ViewOpenFlag = true;
extern color OpenColor=LightSteelBlue;
extern int OpenFlagShift = 0;

extern bool View_Pointer = true;
extern color PointerColor = Magenta;
extern int PointerShift = 2;

extern bool ViewrangeLine = false;
extern color RangeLineColor = LightSteelBlue;
extern int rangeLine_Shift = 1;

extern bool ViewInitialBalanceLine = True;
extern color IBLineColor = SteelBlue;
extern int IBLineWidth = 2;
extern int IBLine_Shift = 1;

extern bool ViewValueArea = true;
extern double Persent_Of_TPO_ValueArea = 0.7;
extern int ValueArea_Shift = 1;
extern color TopLine_Color = Red;
extern int TopLine_Width = 1;
extern int TopLine_Start = 1;
extern int TopLine_End = 1;
extern color BottomLine_Color = Red;
extern int BottomLine_Width = 1;
extern int BottomLine_Start = 1;
extern int BottomLine_End = 1;

extern bool ViewPocLine = true;
extern int PocLine_shift = 1;
extern color PocColor =Blue;
extern int PocLine_Start = 1;
extern int PocLine_Width = 1;
extern int PocLine_End = 1;


extern bool ViewInformationText = false;
extern int InformationTextSize = 7;
extern color InformationTextColor = DarkTurquoise;
extern int InformationTextShift = 12;


string Text[50];


int init()
  {
  DeleteAllObjects(NumberOfDays);
//---- indicators
Text[1]="A";      Text[2]="B";      Text[3]="C";      Text[4]="D";      Text[5]="E";
Text[6]="F";      Text[7]="G";      Text[8]="H";      Text[9]="I";      Text[10]="J";
Text[11]="K";     Text[12]="L";     Text[13]="M";     Text[14]="N";     Text[15]="O";
Text[16]="P";     Text[17]="Q";     Text[18]="R";     Text[19]="S";     Text[20]="T";
Text[21]="U";     Text[22]="V";     Text[23]="W";     Text[24]="X";     Text[25]="a";
Text[26]="b";     Text[27]="c";     Text[28]="d";     Text[29]="e";     Text[30]="f";
Text[31]="g";     Text[32]="h";     Text[33]="i";     Text[34]="j";     Text[35]="k";
Text[36]="l";     Text[37]="m";     Text[38]="n";     Text[39]="o";     Text[40]="p";
Text[41]="q";     Text[42]="r";     Text[43]="s";     Text[44]="t";     Text[45]="u";
Text[46]="v";     Text[47]="w";     Text[48]="x";
//----
Createobjects();
Comment("");
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
  DeleteAllObjects(NumberOfDays);
  Comment("");
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
 Comment(" ","\n","Eng.Bassam Market Profile V1.0","\n"," ","\n","By : Eng\ Bassam El-Faramawi","\n"," ","\n","bmaamoon@yahoo.com");

int    counted_bars=IndicatorCounted();
int    m,H,t,n,i,Ymax,Ymin;
double h, TickVolume;
datetime dt = TimeCurrent(),t0;

//----
t = 48/SessionHalfHours;
if (MathMod(48,SessionHalfHours)>0) t++;
if (MathMod(SessionHalfHours,2)>0) m=1;

//----
t0=StrToTime(TimeYear(dt)+"."+TimeMonth(dt)+"."+TimeDay(dt)+" "+"00"+":"+"00");
Ymax = iBarShift(NULL, 30, t0);
TickVolume = iVolume(NULL, 1440, 0);
for(n=1; n<=t; n++)
{
h= ((TimeHour(dt)*2)+m)/SessionHalfHours;
if (h<n-1)
continue;

Ymin = Ymax-SessionHalfHours+1;

drawobjects(Ymax,Ymin,TickVolume);
Ymax=Ymax-SessionHalfHours;
}
//----
   return(0);
  }



//+----------------------//|------------------|\\----------------------+
//+---------------------///|                  |\\\---------------------+
//+---------------------\**| Custom Functions |**/---------------------+
//+----------------------\\|                  |//----------------------+
//+-----------------------\|------------------|/-----------------------+


void Createobjects()
{
int    m,H,t,n,i,y0,Ymax,Ymin;

double h,TickVolume;

t = 48/SessionHalfHours;
if (MathMod(48,SessionHalfHours)>0) t++;
if (MathMod(SessionHalfHours,2)>0) m=1;

datetime dt = TimeCurrent(),t0;
t0=StrToTime(TimeYear(dt)+"."+TimeMonth(dt)+"."+TimeDay(dt)+" "+"00"+":"+"00");
y0=iBarShift(NULL,0,t0);

//----
for(i=1; i<NumberOfDays; i++)
{
dt=iTime(NULL,0,y0+1);
t0=StrToTime(TimeYear(dt)+"."+TimeMonth(dt)+"."+TimeDay(dt)+" "+"00"+":"+"00");
TickVolume = iVolume(NULL, 1440, i);
Ymax = iBarShift(NULL, 30, t0);
for(n=1; n<=t; n++)
{
Ymin = Ymax-SessionHalfHours+1;

if (n==t)
Ymin=iBarShift(NULL, 30, StrToTime(TimeYear(dt)+"."+TimeMonth(dt)+"."+TimeDay(dt)+" "+"23"+":"+"30"));

drawobjects(Ymax,Ymin,TickVolume);
Ymax=Ymax-SessionHalfHours;
}
y0=iBarShift(NULL,0,t0);
}
}
//+------------------------------------------------------------------+
void drawobjects(int Ymax,int Ymin ,double TickVolume)
{
int    u,s,fac,y,Yt,Space,POC,AllTicks,ValueArea,i,imax,imin,ValueRange,TPOs[1000];
double x,Mid,PocTick;

if (Digits == 2 || Digits == 4) fac = 1;
if (Digits == 3 || Digits == 5) fac = 10;

double Max= High[iHighest(NULL,30,MODE_HIGH,(Ymax-Ymin+1),Ymin)],
       Min= Low[iLowest(NULL,30,MODE_LOW,(Ymax-Ymin+1),Ymin)],
       IBmax= High[iHighest(NULL,30,MODE_HIGH,2,Ymax-1)],
       IBmin= Low[iLowest(NULL,30,MODE_LOW,2,Ymax-1)],
       STEP=Step*fac*Point;
       Mid= (Max-Min)*0.5 +Min;
       Yt = iBarShift(NULL,0,iTime(NULL,30,Ymax),false);
       u=0;

for( y=Ymax; y>=Ymin; y--)
  {
  for( s=1; s<=(Max-Min)/STEP; s++)
    {
     ObjectDelete(TimeToStr(iTime(NULL,0,y+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES) +"  "+ DoubleToStr(s,0));
     }
   }

for(x=Max; x>=Min; x=x-STEP)
  {

   Space = 0;
   i=(Max-x)/STEP;
   u++;
   for( y=Ymax; y>=Ymin; y--)
    {

    double opentick = iOpen(Symbol(),30,Ymax),
           Maximum= iHigh(Symbol(),30,y),
           Minimum= iLow(Symbol(),30,y);
    if (Maximum <x || Minimum >x)
    continue;
    Space++;
//-------------
    string TPOName = TimeToStr(iTime(NULL,0,Ymax-Space+1+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES) +"  "+ DoubleToStr(u,0);
    if (ViewTPOs)
    {
     if(TPOs_as_Letters == true)
      {
      ObjectDelete(TPOName);
      ObjectCreate(TPOName, OBJ_TEXT, 0, iTime(NULL,0,Yt-Space+1+(TPOs_Shift*SessionHalfHours)), x);
      ObjectSetText(TPOName,Text[Ymax-y+1], Letter_Size, "Arial", TPO_Color);
      }
     else
      {
      ObjectDelete(TPOName);
      ObjectCreate(TPOName, OBJ_ARROW, 0, iTime(NULL,0,Yt-Space+1+(TPOs_Shift*SessionHalfHours)), x);
      ObjectSet(TPOName,OBJPROP_ARROWCODE,167);
      ObjectSet(TPOName,OBJPROP_COLOR,TPO_Color);
      ObjectSet(TPOName, OBJPROP_BACK, True);
      }
    }

   }
//--------------



    string open = "open  "+TimeToStr(iTime(NULL,0,Ymax+OpenFlagShift+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES);

    if(ViewOpenFlag)
    {
    ObjectDelete(open);
    ObjectCreate(open, OBJ_ARROW, 0, iTime(NULL,0,Yt+OpenFlagShift+(TPOs_Shift*SessionHalfHours)), opentick);
    ObjectSet(open,OBJPROP_ARROWCODE,161);
    ObjectSet(open,OBJPROP_COLOR,OpenColor);
    ObjectSet(open, OBJPROP_BACK, True);
    }

//--------------

  double POCShift = MathAbs(PocTick-Mid),
         SpaceShift=MathAbs(x-Mid);


    if (Space > POC)
    {
     POC = Space;
     PocTick = x;
     }

    if (Space == POC && SpaceShift < POCShift)
    PocTick = x;

//--------------

  string Poc = "POC  "+TimeToStr(iTime(NULL,0,Ymax+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES);

  int Poc_start =Yt+PocLine_Start-(PocLine_shift*SessionHalfHours)+(TPOs_Shift*SessionHalfHours) ,
      Poc_end = Yt-POC+PocLine_End-(PocLine_shift*SessionHalfHours)+(TPOs_Shift*SessionHalfHours);


  if(ViewPocLine)
  {
  ObjectDelete(Poc);
  ObjectCreate(Poc, OBJ_TREND, 0, iTime(NULL,0,Poc_start), PocTick ,iTime(NULL,0,Poc_end),PocTick );
  ObjectSet(Poc,OBJPROP_COLOR,PocColor);
  ObjectSet(Poc, OBJPROP_WIDTH,PocLine_Width);
  ObjectSet(Poc, OBJPROP_RAY, false);
  ObjectSet(Poc, OBJPROP_BACK, True);
  }



//--------------
 AllTicks=AllTicks+Space;
 TPOs[i]=Space;
}
ValueArea=AllTicks*Persent_Of_TPO_ValueArea;
imax=(Max-PocTick)/STEP;
imin=imax;
ValueRange=TPOs[imax];


 while(ValueRange < ValueArea)
 {

  if(TPOs[imax-1] == TPOs[imin+1])
    {
     ValueRange = ValueRange+(2*TPOs[imax-1]);
     imax--;
     imin++;
     }

 if(TPOs[imax-1] > TPOs[imin+1])
   {
    ValueRange = ValueRange+TPOs[imax-1];
    imax--;
    }

 if(TPOs[imax-1] < TPOs[imin+1])
    {
     ValueRange = ValueRange+TPOs[imin+1];
     imin++;
     }



  }

string Range = "Range  "+TimeToStr(iTime(NULL,0,Ymax+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES),
       ValueAreaRange = "ValueAreaRange  "+TimeToStr(iTime(NULL,0,Ymax+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES),
       TVolume = "TVolume "+TimeToStr(iTime(NULL,0,Ymax+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES),
       ValueTop = "ValueTop  "+TimeToStr(iTime(NULL,0,Ymax+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES),
       ValueBottom = "ValueBottom  "+TimeToStr(iTime(NULL,0,Ymax+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES),
       RangeLine = "RangeLine  "+TimeToStr(iTime(NULL,0,Ymax+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES),
       IBLine = "IBLine  "+TimeToStr(iTime(NULL,0,Ymax+(TPOs_Shift*SessionHalfHours)),TIME_DATE|TIME_MINUTES);


       int Yvt_start= Yt+TopLine_Start-(ValueArea_Shift*SessionHalfHours)+(TPOs_Shift*SessionHalfHours),
           Yvt_end= Yt-TPOs[imax]+TopLine_End-(ValueArea_Shift*SessionHalfHours)+(TPOs_Shift*SessionHalfHours),
           Yvb_start= Yt+BottomLine_Start-(ValueArea_Shift*SessionHalfHours)+(TPOs_Shift*SessionHalfHours),
           Yvb_end= Yt-TPOs[imin]+BottomLine_End-(ValueArea_Shift*SessionHalfHours)+(TPOs_Shift*SessionHalfHours);


if(ViewValueArea)
  {
  ObjectDelete(ValueTop);
  ObjectCreate(ValueTop, OBJ_TREND,0,iTime(NULL,0,Yvt_start),Max-(imax*STEP), iTime(NULL,0,Yvt_end),Max-(imax*STEP));
  ObjectSet(ValueTop, OBJPROP_COLOR, TopLine_Color);
  ObjectSet(ValueTop, OBJPROP_WIDTH,TopLine_Width);
  ObjectSet(ValueTop, OBJPROP_RAY, false);
  ObjectSet(ValueTop, OBJPROP_BACK, True);

  ObjectDelete(ValueBottom);
  ObjectCreate(ValueBottom, OBJ_TREND,0,iTime(NULL,0,Yvb_start),Max-(imin*STEP),iTime(NULL,0,Yvb_end),Max-(imin*STEP));
  ObjectSet(ValueBottom, OBJPROP_COLOR, BottomLine_Color);
  ObjectSet(ValueBottom, OBJPROP_WIDTH,BottomLine_Width);
  ObjectSet(ValueBottom, OBJPROP_RAY, false);
  ObjectSet(ValueBottom, OBJPROP_BACK, True);
  }

if(ViewInformationText)
  {
  ObjectDelete(Range);
  ObjectCreate(Range, OBJ_TEXT, 0,iTime(NULL,0,Yt-SessionHalfHours+InformationTextShift+(TPOs_Shift*SessionHalfHours)), PocTick);
  ObjectSetText(Range, "Range= "+DoubleToStr((Max-Min),4)+" Pip", InformationTextSize, "Arial",InformationTextColor);

  ObjectDelete(ValueAreaRange);
  ObjectCreate(ValueAreaRange, OBJ_TEXT, 0,iTime(NULL,0,Yt-SessionHalfHours+InformationTextShift+(TPOs_Shift*SessionHalfHours)), PocTick-(2*STEP));
  ObjectSetText(ValueAreaRange, "TPO ValueArea= "+DoubleToStr((imin-imax)*STEP,4)+" Pip", InformationTextSize, "Arial",InformationTextColor);


  ObjectDelete(TVolume);
  ObjectCreate(TVolume, OBJ_TEXT, 0,iTime(NULL,0,Yt-SessionHalfHours+InformationTextShift+(TPOs_Shift*SessionHalfHours)), PocTick-(4*STEP));
  ObjectSetText(TVolume, "Tick Volume= "+DoubleToStr(TickVolume,0), InformationTextSize, "Arial",InformationTextColor);
  }

if(ViewrangeLine)
  {
  ObjectDelete(RangeLine);
  ObjectCreate(RangeLine, OBJ_TREND,0,iTime(NULL,0,Yt-(rangeLine_Shift*SessionHalfHours)+1+(TPOs_Shift*SessionHalfHours)),Max, iTime(NULL,0,Yt-(rangeLine_Shift*SessionHalfHours)+1+(TPOs_Shift*SessionHalfHours)),Min);
  ObjectSet(RangeLine, OBJPROP_COLOR, RangeLineColor);
  ObjectSet(RangeLine, OBJPROP_STYLE,STYLE_DOT);
  ObjectSet(RangeLine, OBJPROP_RAY, false);
  }

if (ViewInitialBalanceLine)
   {
   ObjectDelete(IBLine);
   ObjectCreate(IBLine, OBJ_TREND,0,iTime(NULL,0,Yt+IBLine_Shift+(TPOs_Shift*SessionHalfHours)),IBmax, iTime(NULL,0,Yt+IBLine_Shift+(TPOs_Shift*SessionHalfHours)),IBmin);
   ObjectSet(IBLine, OBJPROP_COLOR, IBLineColor);
   ObjectSet(IBLine, OBJPROP_STYLE,STYLE_SOLID);
   ObjectSet(IBLine, OBJPROP_WIDTH,IBLineWidth);
   ObjectSet(IBLine, OBJPROP_RAY, false);
   }

if(View_Pointer)
  {

  int Pointer= (Max-Close[0])/STEP;

  if ( Max-(Pointer*STEP)-Close[0]  > Close[0]-Max+((Pointer+1)*STEP) )
      Pointer++;
  int Pointr =Yt-TPOs[Pointer]-PointerShift;
  if (Pointr < 0)
  Pointr =0;
  ObjectDelete("Pointer");

  if(ObjectFind("Pointer") != 0)
    {
    ObjectCreate("Pointer", OBJ_ARROW, 0, iTime(NULL,0,Pointr+(TPOs_Shift*SessionHalfHours)), Close[0]+STEP);
    ObjectSet("Pointer", OBJPROP_ARROWCODE,239);
    ObjectSet("Pointer",OBJPROP_COLOR,PointerColor);
    ObjectSet("Pointer", OBJPROP_BACK, false);
     }
  else
    {
   ObjectMove("Pointer", 0, iTime(NULL,0,Pointr+(TPOs_Shift*SessionHalfHours)), Close[0]+STEP);
    }

    }

}





//+------------------------------------------------------------------+

void DeleteAllObjects(int NumberOfDays)
{
datetime dt,t0;
int y,u,Ymax;
string TPOName;

dt =iTime(NULL,0,0);
t0=StrToTime(TimeYear(dt)+"."+TimeMonth(dt)+"."+TimeDay(dt)+" "+"00"+":"+"00");
Ymax=iBarShift(NULL,0,t0);

for (y=0; y<=NumberOfDays+6; y++)
{
dt=iTime(NULL,0,Ymax+1);
t0=StrToTime(TimeYear(dt)+"."+TimeMonth(dt)+"."+TimeDay(dt)+" "+"00"+":"+"00");
Ymax=iBarShift(NULL,0,t0);
}

for (y=0; y<=Ymax; y++)
{
 TPOName = TimeToStr(iTime(NULL,0,y),TIME_DATE|TIME_MINUTES);
 if(ObjectFind("open  "+TPOName)==0)
    ObjectDelete("open  "+TPOName);

 if(ObjectFind("Pointer")==0)
    ObjectDelete("Pointer");

 if(ObjectFind("POC  "+TPOName)==0)
    ObjectDelete("POC  "+TPOName);

 if(ObjectFind("ValueTop  "+TPOName)==0)
    ObjectDelete("ValueTop  "+TPOName);

 if(ObjectFind("ValueBottom  "+TPOName)==0)
    ObjectDelete("ValueBottom  "+TPOName);

 if(ObjectFind("Range  "+TPOName)==0)
    ObjectDelete("Range  "+TPOName);

 if(ObjectFind("ValueAreaRange  "+TPOName)==0)
    ObjectDelete("ValueAreaRange  "+TPOName);

 if(ObjectFind("TVolume "+TPOName)==0)
    ObjectDelete("TVolume "+TPOName);

 if(ObjectFind("RangeLine  "+TPOName)==0)
    ObjectDelete("RangeLine  "+TPOName);

 if(ObjectFind("IBLine  "+TPOName)==0)
    ObjectDelete("IBLine  "+TPOName);



 for (u=0; u<=1000; u++)
 {
 if(ObjectFind(TPOName+"  "+DoubleToStr(u,0))==0)
 ObjectDelete(TPOName+"  "+DoubleToStr(u,0));
 }

}

}
//+------------------------------------------------------------------+

Similar scripts

AutoNK_v2

DeleteAllObject

Trend-Table-1v1

A comprehensive dashboard that visualizes concurrent trend strength and momentum signals across nine timeframes using Moving Average crossovers, Williams Percent Range extremes, and Parabolic SAR positionings.

DeleteObjectsByType

6Monitor_v0

Range_v6

simple_levels

Float_v2

Float_v1

Smart-Calculator

Range_v3

This indicator visualizes the expansion or contraction of price range magnitude by comparing the current candle's high-low spread against its immediate predecessor.

Comments
