EMA-cross_Signal

Download script
Author: Copyright � 2005, Jason Robinson (jnrtrading)
EMA-cross_Signal

This tool is designed to simplify trend identification by highlighting the exact moments when two different moving averages intersect on your trading chart. Specifically, it focuses on "Exponential Moving Averages" (EMAs), which are popular indicators used to smooth out price action and reveal the underlying direction of the market.

How It Works

The script monitors two distinct EMAs simultaneously: a "faster" average (which reacts quickly to recent price changes) and a "slower" average (which represents the broader, long-term trend).

The core logic follows these steps:

  • Intersection Detection: The tool constantly scans the historical data to find points where the faster moving average crosses over or under the slower one.

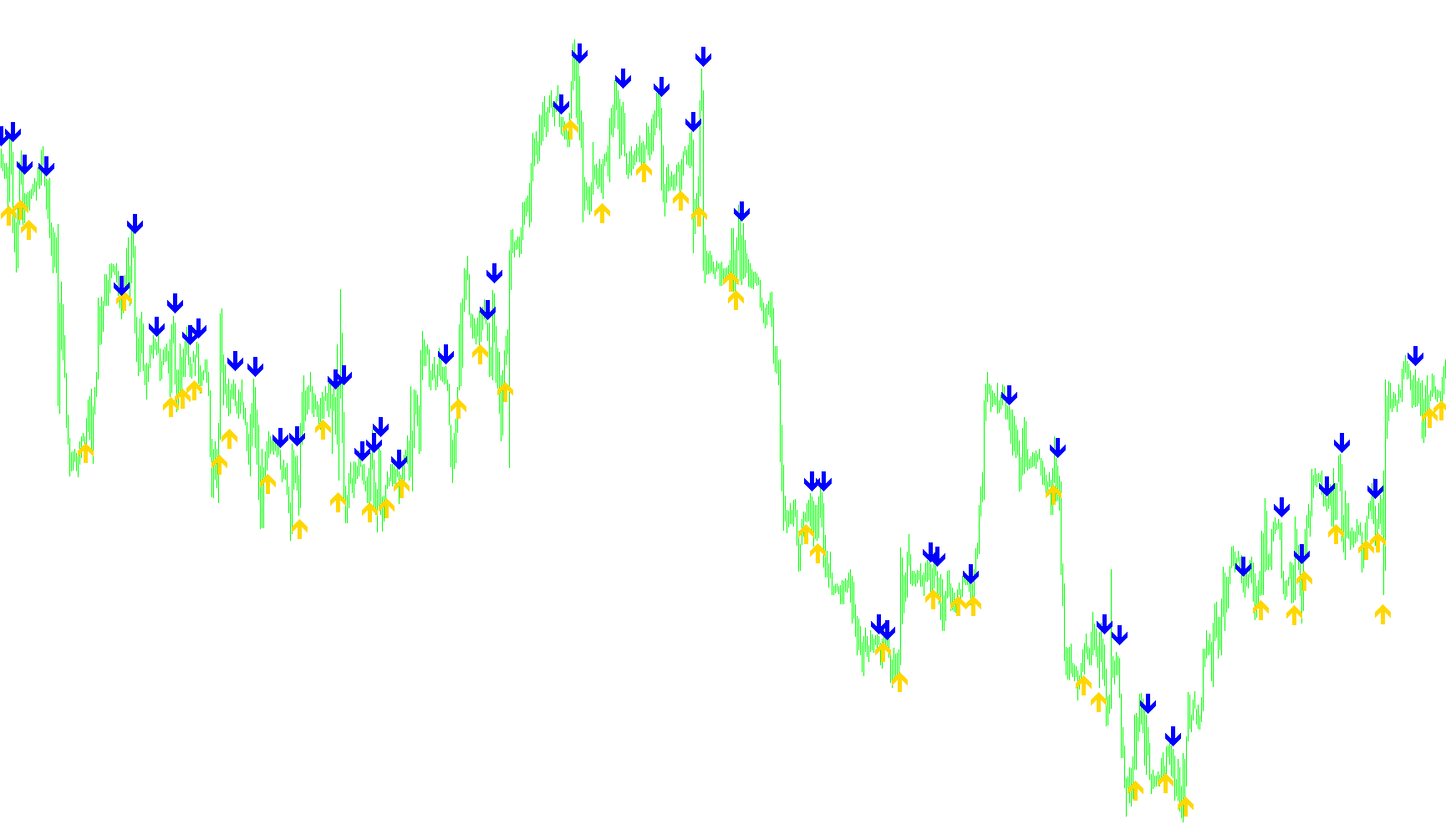

  • Visual Signaling: Instead of forcing you to squint at overlapping lines—which can become difficult to see when zoomed out or during volatile price swings—the script places clear visual markers (arrows) on your chart at the precise moment of the crossover.
    • An upward trend signal appears when the faster average moves above the slower one.
    • A downward trend signal appears when the faster average drops below the slower one.
  • Dynamic Positioning: To ensure these markers don't clutter the actual price bars, the script calculates the recent volatility (the range between highs and lows) and places the arrows just far enough away from the candles to remain visible but not intrusive.

Alerts and Notifications

Beyond just visual cues, the script includes an optional notification system. If enabled, it will trigger an audible alert whenever a new crossover occurs in real-time. It is programmed with a "smart" filter to ensure that you only receive one alert per candle, preventing repetitive noise if the price fluctuates rapidly within a single bar.

Key Benefits

  • Clarity: It highlights specific entry/exit signals that might be obscured by busy candlesticks.
  • Customization: You can adjust the periods for both the faster and slower averages to suit different trading styles (e.g., scalping vs. swing trading).
  • Efficiency: It automates the "watchary" of moving averages, allowing you to react immediately to trend shifts without needing to manually monitor every line movement.
Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
11 Views
0 Downloads
0 Favorites
EMA-cross_Signal
//+------------------------------------------------------------------+
//|                                         EMA-Crossover_Signal.mq4 |
//|         Copyright © 2005, Jason Robinson (jnrtrading)            |
//|                   http://www.jnrtading.co.uk                     |
//+------------------------------------------------------------------+

/*
  +------------------------------------------------------------------+
  | Allows you to enter two ema periods and it will then show you at |
  | Which point they crossed over. It is more usful on the shorter   |
  | periods that get obscured by the bars / candlesticks and when    |
  | the zoom level is out. Also allows you then to remove the emas   |
  | from the chart. (emas are initially set at 5 and 6)              |
  +------------------------------------------------------------------+
*/
#property copyright "Copyright © 2005, Jason Robinson (jnrtrading)"
#property link      "http://www.jnrtrading.co.uk"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 SeaGreen
#property indicator_color2 Red

double CrossUp[];
double CrossDown[];
extern int FasterEMA = 4;
extern int SlowerEMA = 8;
extern bool SoundON=true;
double alertTag;
 double control=2147483647;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0, DRAW_ARROW, EMPTY,3);
   SetIndexArrow(0, 233);
   SetIndexBuffer(0, CrossUp);
   SetIndexStyle(1, DRAW_ARROW, EMPTY,3);
   SetIndexArrow(1, 234);
   SetIndexBuffer(1, CrossDown);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start() {
   int limit, i, counter;
   double fasterEMAnow, slowerEMAnow, fasterEMAprevious, slowerEMAprevious, fasterEMAafter, slowerEMAafter;
   double Range, AvgRange;
   int counted_bars=IndicatorCounted();
//---- check for possible errors
   if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
   if(counted_bars>0) counted_bars--;

   limit=Bars-counted_bars;

   for(i = 0; i <= limit; i++) {

      counter=i;
      Range=0;
      AvgRange=0;
      for (counter=i ;counter<=i+9;counter++)
      {
         AvgRange=AvgRange+MathAbs(High[counter]-Low[counter]);
      }
      Range=AvgRange/10;

      fasterEMAnow = iMA(NULL, 0, FasterEMA, 0, MODE_EMA, PRICE_CLOSE, i);
      fasterEMAprevious = iMA(NULL, 0, FasterEMA, 0, MODE_EMA, PRICE_CLOSE, i+1);
      fasterEMAafter = iMA(NULL, 0, FasterEMA, 0, MODE_EMA, PRICE_CLOSE, i-1);

      slowerEMAnow = iMA(NULL, 0, SlowerEMA, 0, MODE_EMA, PRICE_CLOSE, i);
      slowerEMAprevious = iMA(NULL, 0, SlowerEMA, 0, MODE_EMA, PRICE_CLOSE, i+1);
      slowerEMAafter = iMA(NULL, 0, SlowerEMA, 0, MODE_EMA, PRICE_CLOSE, i-1);

      if ((fasterEMAnow > slowerEMAnow) && (fasterEMAprevious < slowerEMAprevious) && (fasterEMAafter > slowerEMAafter)) {
         CrossUp[i] = Low[i] - Range*0.5;
      }
      else if ((fasterEMAnow < slowerEMAnow) && (fasterEMAprevious > slowerEMAprevious) && (fasterEMAafter < slowerEMAafter)) {
          CrossDown[i] = High[i] + Range*0.5;
      }
        if (SoundON==true && i==1 && CrossUp[i] > CrossDown[i] && alertTag!=Time[0]){
         Alert("EMA Cross Trend going Down on ",Symbol()," ",Period());
        alertTag = Time[0];
      }
        if (SoundON==true && i==1 && CrossUp[i] < CrossDown[i] && alertTag!=Time[0]){
       Alert("EMA Cross Trend going Up on ",Symbol()," ",Period());
        alertTag = Time[0];
        }
  }
   return(0);
}
