This script is a comprehensive technical analysis tool designed for traders who use specific mathematical "levels" to identify potential price movement areas. It automates the calculation and visual display of several popular trading methodologies—specifically Camarilla, Fibonacci, and Pivot Point systems—directly onto your trading chart.
Core Functionality Overview

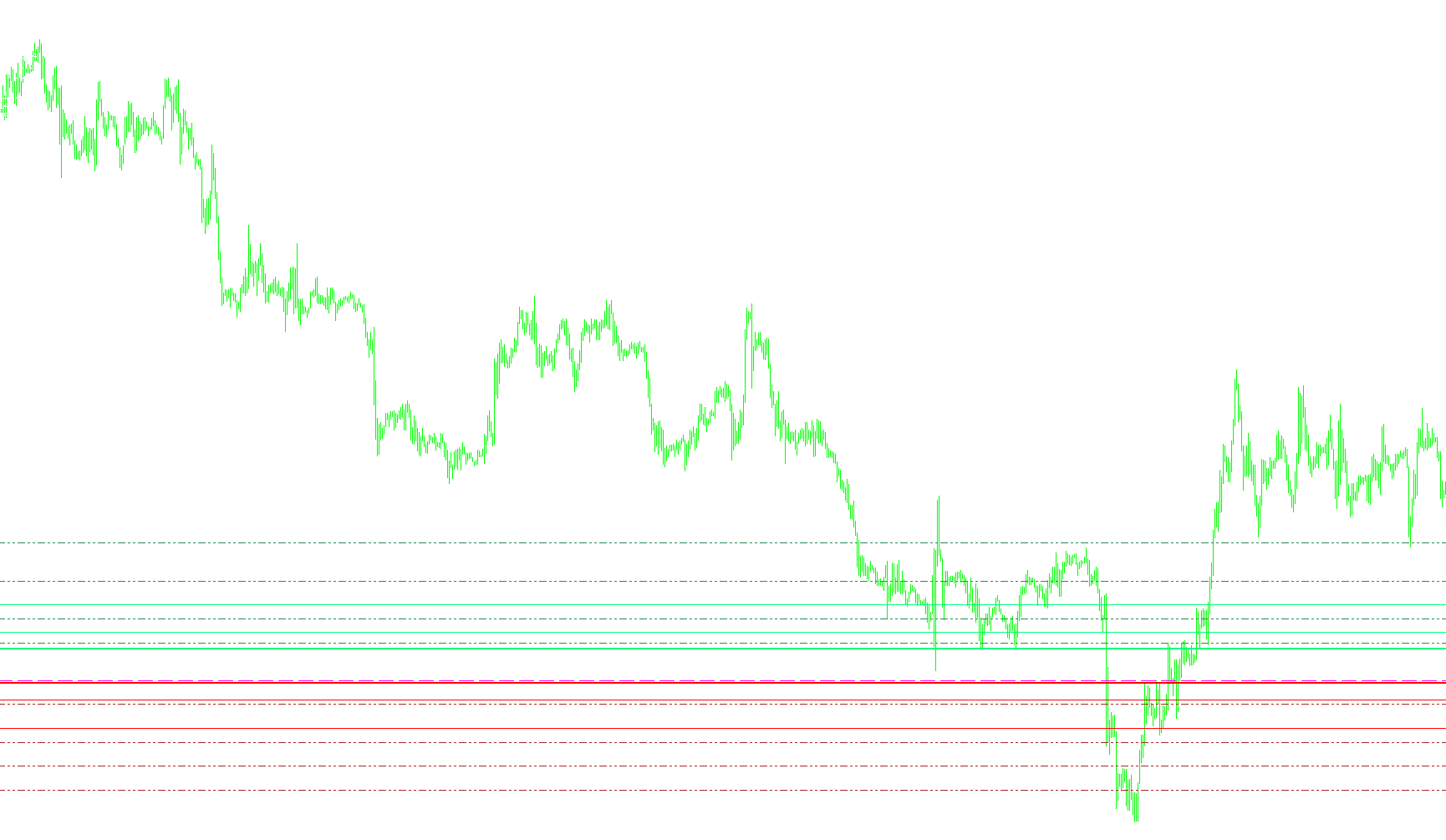

The script acts as a dynamic overlay. Instead of you having to manually calculate complex formulas based on yesterday's market activity (highs, lows, and closing prices), the tool automatically retrieves that data and draws various horizontal support and resistance lines.
Key Systems Included:
1. Camarilla Pivot Levels This is the primary focus of the script. It identifies specific price points (H3, H4, L3, L4, etc.) used to predict market breakouts or reversals.
- Long/Short Targets: It labels specific lines as "Long" or "Short" targets, helping traders identify where a price might move toward after a breakout.
- Visual Clarity: The tool distinguishes between these levels using different colors and line thicknesses (e.g., H3 and L3 are often highlighted more prominently).
2. Fibonacci Levels The script can project a wide range of Fibonacci retracement levels. These are based on the "range" of previous price action. It allows you to toggle multiple sets of these levels (from 1 through 16), providing a dense map of potential "pullback" zones where the market might pause or change direction.
3. Pivot Point Systems The tool includes three different types of standard pivot calculations:
- Standard Pivots: Traditional R1-R4 and S1-S4 levels.
- Mid-Pivots: Intermediate points (M0-M5) for more granular analysis.
- Main Pivot: A central "balance" point (P) calculated from the previous day’s data.
Smart Features & User Experience
- Automated Alerts: The script can monitor the current price relative to the Camarilla H3 and L3 levels. If the price gets within a specific distance (defined by you in the settings), it will trigger a sound alert and a pop-up notification on your screen.
- Dynamic Data Display: In the corner of your chart, the tool provides a text summary of "raw data," including yesterday's high/low, today's current range, and the exact numerical values for all active levels. This allows you to see the underlying math at a glance.
- Customizable Visuals: Every component—from colors (like SeaGreen or Magenta) to font sizes and line styles (solid vs. dashed)—can be adjusted in the settings to match your personal trading style.
- Automatic Cleanup: When you remove the tool from your chart, it is programmed to "clean up" after itself by deleting all the lines and labels it created, ensuring your chart stays tidy.
Summary for the Trader
Essentially, this script transforms your chart into a high-density "road map." It takes the historical data of the previous day and projects a series of mathematical boundaries for the current day, helping you visualize exactly where "resistance" ends and "support" begins without ever needing to pull out a calculator.
Miscellaneous
10
Views
0
Downloads
0
Favorites
camarilladt7v1_v1
//+------------------------------------------------------------------+
//| Camarilladt.mq4 |
//| Copyright © 2005, MetaQuotes Software Corp. |
//| http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link "http://www.metaquotes.net"
#property indicator_chart_window
//---- input parameters
extern bool Alerts = false;
extern double GMTshiftSun = 1; // sun into mon cams use this corrected
extern double GMTshift = 0; // value for fri data
extern bool Pivot = true;
extern bool CamTargets = true;
extern bool ListCamTargets = true;
extern color PivotColor = Magenta;
extern color PivotFontColor = White;
extern int PivotFontSize = 8;
extern int PivotWidth = 1;
extern int PipDistance = 20;
extern color CamFontColor = Gray;
extern int CamFontSize = 10;
extern bool Fibs = false;
extern color FibColorRes = SeaGreen;
extern color FibColorSup = Brown;
extern color FibFontColor = Gray;
extern int FibFontSize = 8;
extern bool DisplayFibLevels_1_3 = true;
extern double FibLevel1 = 0.236;
extern double FibLevel2 = 0.382;
extern double FibLevel3 = 0.50;
extern bool DisplayFibLevels_4_6 = true;
extern double FibLevel4 = 0.618;
extern double FibLevel5 = 0.764;
extern double FibLevel6 = 0.99;
extern bool DisplayFibLevels_7_16 = true;
extern double FibLevel7 = 1.27;
extern double FibLevel8 = 1.618;
extern double FibLevel9 = 1.99;
extern double FibLevel10 = 2.236;
extern double FibLevel11 = 2.618;
extern double FibLevel12 = 2.99;
extern double FibLevel13 = 3.236;
extern double FibLevel14 = 3.618;
extern double FibLevel15 = 3.99;
extern double FibLevel16 = 4.236;
extern bool StandardPivots = true;
extern bool ListStandardPivots = true;
extern color StandardFontColor = Gray;
extern int StandardFontSize = 8;
extern color SupportColor = Brown;
extern color ResistanceColor = SeaGreen;
extern bool MidPivots = false;
extern color MidPivotColor = DarkGray;
extern int MidFontSize = 8;
//----
double P, H3, H4, H5;
double L3, L4, L5;
double LastHigh, LastLow, x;
bool firstL3 = true;
bool firstH3 = true;
//----
double D1 = 0.091667;
double D2 = 0.183333;
double D3 = 0.2750;
double D4 = 0.55;
// Fib variables
double yesterday_high = 0;
double yesterday_low = 0;
double yesterday_close = 0;
double p = 0;
double r1 = 0, r2 = 0, r3 = 0, r4 = 0, r5 = 0, r6 = 0, r7 = 0, r8 = 0, r9 = 0;
double r10 = 0, r11 = 0, r12 = 0, r13 = 0, r14 = 0, r15 = 0, r16 = 0;
double s1 = 0, s2 = 0, s3 = 0, s4 = 0, s5 = 0, s6 = 0, s7 = 0, s8 = 0, s9 = 0;
double s10 = 0, s11 = 0, s12 = 0, s13 = 0, s14 = 0, s15 = 0, s16 = 0;
double R;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
//---- TODO: add your code here
if(Fibs)
{
ObjectDelete("FibR1 Label");
ObjectDelete("FibR1 Line");
ObjectDelete("FibR2 Label");
ObjectDelete("FibR2 Line");
ObjectDelete("FibR3 Label");
ObjectDelete("FibR3 Line");
ObjectDelete("FibR4 Label");
ObjectDelete("FibR4 Line");
ObjectDelete("FibR5 Label");
ObjectDelete("FibR5 Line");
ObjectDelete("FibR6 Label");
ObjectDelete("FibR6 Line");
ObjectDelete("FibR7 Label");
ObjectDelete("FibR7 Line");
ObjectDelete("FibR8 Label");
ObjectDelete("FibR8 Line");
ObjectDelete("FibR9 Label");
ObjectDelete("FibR9 Line");
ObjectDelete("FibR10 Label");
ObjectDelete("FibR10 Line");
ObjectDelete("FibR11 Label");
ObjectDelete("FibR11 Line");
ObjectDelete("FibR12 Label");
ObjectDelete("FibR12 Line");
ObjectDelete("FibR13 Label");
ObjectDelete("FibR13 Line");
ObjectDelete("FibR14 Label");
ObjectDelete("FibR14 Line");
ObjectDelete("FibR15 Label");
ObjectDelete("FibR15 Line");
ObjectDelete("FibR16 Label");
ObjectDelete("FibR16 Line");
ObjectDelete("FibS1 Label");
ObjectDelete("FibS1 Line");
ObjectDelete("FibS2 Label");
ObjectDelete("FibS2 Line");
ObjectDelete("FibS3 Label");
ObjectDelete("FibS3 Line");
ObjectDelete("FibS4 Label");
ObjectDelete("FibS4 Line");
ObjectDelete("FibS5 Label");
ObjectDelete("FibS5 Line");
ObjectDelete("FibS6 Label");
ObjectDelete("FibS6 Line");
ObjectDelete("FibS7 Label");
ObjectDelete("FibS7 Line");
ObjectDelete("FibS8 Label");
ObjectDelete("FibS8 Line");
ObjectDelete("FibS9 Label");
ObjectDelete("FibS9 Line");
ObjectDelete("FibS10 Label");
ObjectDelete("FibS10 Line");
ObjectDelete("FibS11 Label");
ObjectDelete("FibS11 Line");
ObjectDelete("FibS12 Label");
ObjectDelete("FibS12 Line");
ObjectDelete("FibS13 Label");
ObjectDelete("FibS13 Line");
ObjectDelete("FibS14 Label");
ObjectDelete("FibS14 Line");
ObjectDelete("FibS15 Label");
ObjectDelete("FibS15 Line");
ObjectDelete("FibS16 Label");
ObjectDelete("FibS16 Line");
}
if(Pivot)
{
ObjectDelete("P Label");
ObjectDelete("P Line");
}
if(CamTargets)
{
ObjectDelete("H5 Label");
ObjectDelete("H5 Line");
ObjectDelete("H4 Label");
ObjectDelete("H4 Line");
ObjectDelete("H3 Label");
ObjectDelete("H3 Line");
ObjectDelete("L3 Label");
ObjectDelete("L3 Line");
ObjectDelete("L4 Label");
ObjectDelete("L4 Line");
ObjectDelete("L5 Label");
ObjectDelete("L5 Line");
}
//----
if(StandardPivots)
{
ObjectDelete("R1 Label");
ObjectDelete("R1 Line");
ObjectDelete("R2 Label");
ObjectDelete("R2 Line");
ObjectDelete("R3 Label");
ObjectDelete("R3 Line");
ObjectDelete("R4 Label");
ObjectDelete("R4 Line");
ObjectDelete("S1 Label");
ObjectDelete("S1 Line");
ObjectDelete("S2 Label");
ObjectDelete("S2 Line");
ObjectDelete("S3 Label");
ObjectDelete("S3 Line");
ObjectDelete("S4 Label");
ObjectDelete("S4 Line");
}
if(MidPivots)
{
ObjectDelete("M5 Label");
ObjectDelete("M5 Line");
ObjectDelete("M4 Label");
ObjectDelete("M4 Line");
ObjectDelete("M3 Label");
ObjectDelete("M3 Line");
ObjectDelete("M2 Label");
ObjectDelete("M2 Line");
ObjectDelete("M1 Label");
ObjectDelete("M1 Line");
ObjectDelete("M0 Label");
ObjectDelete("M0 Line");
}
//----
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void DoAlerts()
{
double DifAboveL3, PipsLimit;
double DifBelowH3;
//----
DifBelowH3 = H3 - Close[0];
DifAboveL3 = Close[0] - L3;
PipsLimit = PipDistance*Point;
//----
if(DifBelowH3 > PipsLimit)
firstH3 = true;
if(DifBelowH3 <= PipsLimit && DifBelowH3 > 0)
{
if(firstH3)
{
Alert("Below Cam H3 Line by ", DifBelowH3, " for ", Symbol(), "-", Period());
PlaySound("alert.wav");
firstH3 = false;
}
}
//----
if(DifAboveL3 > PipsLimit)
firstL3 = true;
if(DifAboveL3 <= PipsLimit && DifAboveL3 > 0)
{
if(firstL3)
{
Alert("Above Cam L3 Line by ",DifAboveL3," for ", Symbol(),"-",Period());
Sleep(2000);
PlaySound("timeout.wav");
firstL3=false;
}
}
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars = IndicatorCounted();
//---- TODO: add your code here
double day_high = 0;
double day_low = 0;
double yesterday_open = 0;
double today_open = 0;
double Q = 0, S = 0, R = 0, M2 = 0, M3 = 0, S1 = 0, R1 = 0, M1 = 0, M4 = 0;
double S2 = 0, R2 = 0, M0 = 0, M5 = 0, S3 = 0, R3 = 0, nQ = 0, nD = 0;
double D = 0, R4 = 0, S4 = 0;
double shift_corrected;
int cnt = 720;
double cur_day = 0;
double prev_day = 0;
//----
double rates_d1[2][6];
//---- exit if period is greater than daily charts
if(Period() > 1440)
{
Print("Error - Chart period is greater than 1 day.");
return(-1); // then exit
}
//---- Get new daily prices & calculate pivots
if(DayOfWeek() == 1)
shift_corrected = GMTshiftSun;
else
if((DayOfWeek() == 2) && (Minute() >= 5))
shift_corrected = GMTshift;
//else if ((DayOfWeek()==2) && (Hour() > GMTshift)) shift_corrected=GMTshift;
else
shift_corrected=GMTshift;
//----
while(cnt != 0)
{
cur_day = TimeDay(Time[cnt]- (shift_corrected*3600));
if(prev_day != cur_day)
{
yesterday_close = Close[cnt+1];
today_open = Open[cnt];
yesterday_high = day_high;
yesterday_low = day_low;
//----
day_high = High[cnt];
day_low = Low[cnt];
prev_day = cur_day;
}
if(High[cnt] > day_high)
{
day_high = High[cnt];
}
if(Low[cnt] < day_low)
{
day_low = Low[cnt];
}
cnt--;
}
//----
D = (day_high - day_low);
Q = (yesterday_high - yesterday_low);
//------ Pivot Points ------
P = (yesterday_high + yesterday_low + yesterday_close)/3;//Pivot
//---- To display all 8 Camarilla pivots remove comment symbols below and
// add the appropriate object functions below
H5 = (yesterday_high/yesterday_low)*yesterday_close;
H4 = ((yesterday_high - yesterday_low)* D4) + yesterday_close;
H3 = ((yesterday_high - yesterday_low)* D3) + yesterday_close;
//H2 = ((yesterday_high - yesterday_low) * D2) + yesterday_close;
//H1 = ((yesterday_high - yesterday_low) * D1) + yesterday_close;
//L1 = yesterday_close - ((yesterday_high - yesterday_low)*(D1));
//L2 = yesterday_close - ((yesterday_high - yesterday_low)*(D2));
L3 = yesterday_close - ((yesterday_high - yesterday_low)*(D3));
L4 = yesterday_close - ((yesterday_high - yesterday_low)*(D4));
L5 = yesterday_close - (H5 - yesterday_close);
//----
if(Fibs)
{
R = yesterday_high - yesterday_low;//range
p = (yesterday_high + yesterday_low + yesterday_close)/3;// Standard Pivot
if(DisplayFibLevels_1_3)
{
r1 = p + (R * FibLevel1);
r2 = p + (R * FibLevel2);
r3 = p + (R * FibLevel3);
s1 = p - (R * FibLevel1);
s2 = p - (R * FibLevel2);
s3 = p - (R * FibLevel3);
}
if(DisplayFibLevels_4_6)
{
r4 = p + (R * FibLevel4);
r5 = p + (R * FibLevel5);
r6 = p + (R * FibLevel6);
s4 = p - (R * FibLevel4);
s5 = p - (R * FibLevel5);
s6 = p - (R * FibLevel6);
}
if(DisplayFibLevels_7_16)
{
r7 = p + (R * FibLevel7);
r8 = p + (R * FibLevel8);
r9 = p + (R * FibLevel9);
r10 = p + (R * FibLevel10);
r11 = p + (R * FibLevel11);
r12 = p + (R * FibLevel12);
r13 = p + (R * FibLevel13);
r14 = p + (R * FibLevel14);
r15 = p + (R * FibLevel15);
r16 = p + (R * FibLevel16);
s7 = p - (R * FibLevel7);
s8 = p - (R * FibLevel8);
s9 = p - (R * FibLevel9);
s10 = p - (R * FibLevel10);
s11 = p - (R * FibLevel11);
s12 = p - (R * FibLevel12);
s13 = p - (R * FibLevel13);
s14 = p - (R * FibLevel14);
s15 = p - (R * FibLevel15);
s16 = p - (R * FibLevel16);
}
}
//----
if(StandardPivots)
{
R1 = (2*P) - yesterday_low;
S1 = (2*P) - yesterday_high;
R2 = P - S1 + R1;
S2 = P - R1 + S1;
R3 = (2*P) + (yesterday_high - (2*yesterday_low));
S3 = (2*P) - ((2* yesterday_high) - yesterday_low);
R4 = (3*P) + (yesterday_high - (3*yesterday_low));
S4 = (3*P) - ((3* yesterday_high) - yesterday_low);
}
if(MidPivots)
{
M0 = (S2+S3) / 2;
M1 = (S1+S2) / 2;
M2 = (P+S1) / 2;
M3 = (P+R1) / 2;
M4 = (R1+R2) / 2;
M5 = (R2+R3) / 2;
}
//comment on OHLC and daily range
if(Q > 5)
{
nQ = Q;
}
else
{
nQ = Q*10000;
}
//----
if(D > 5)
{
nD = D;
}
else
{
nD = D*10000;
}
if(StringSubstr(Symbol(), 3, 3) == "JPY")
{
nQ = nQ / 100;
nD = nD / 100;
}
if((CamTargets) && (ListCamTargets) && (StandardPivots) && (ListStandardPivots))
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,"\nLow= ",
yesterday_low," Current Days Range= ",nD,"\nClose= ",yesterday_close,
"\n\nH5 ",H5,"\nH4 ",H4,"\nH3 ",H3,"\n\nL3 ",L3,"\nL4 ",L4,"\nL5 ",L5,
"\n\n\n\nR4 ", R4,"\nR3 ", R3,"\nR2 ", R2,"\nR1 ", R1,"\nPivot ", P,
"\nS1 ", S1,"\nS2 ", S2,"\nS3 ", S3,"\nS4 ", S4);
}
else
if((CamTargets) && (ListCamTargets) && (StandardPivots) && !(ListStandardPivots))
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,"\nLow= ",
yesterday_low," Current Days Range= ",nD,"\nClose= ",yesterday_close,
"\n\nH5 ",H5,"\nH4 ",H4,"\nH3 ",H3,"\n\nL3 ",L3,"\nL4 ",L4,"\nL5 ",L5);
}
else
if((CamTargets) && (ListCamTargets) && !(StandardPivots))
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,
"\nLow= ",yesterday_low," Current Days Range= ",nD,"\nClose= ",
yesterday_close, "\n\nH5 ",H5,"\nH4 ",H4,"\nH3 ",H3,"\n\nL3 ",L3,
"\nL4 ",L4,"\nL5 ",L5);
}
else
if(!(CamTargets) && (StandardPivots) && (ListStandardPivots))
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,
"\nLow= ",yesterday_low," Current Days Range= ",nD,"\nClose= ",
yesterday_close, "\n\nR4 ", R4,"\nR3 ", R3,"\nR2 ", R2,"\nR1 ",
R1,"\nPivot ", P,"\nS1 ", S1,"\nS2 ", S2,"\nS3 ", S3,"\nS4 ", S4);
}
else
{
Comment("High= ",yesterday_high," Previous Days Range= ",nQ,
"\nLow= ",yesterday_low," Current Days Range= ",nD,"\nClose= ",
yesterday_close);
}
//---- Set line labels on chart window
if(Pivot)
{
if(ObjectFind("P label") != 0)
{
ObjectCreate("P label", OBJ_TEXT, 0, Time[0], P);
ObjectSetText("P label", "Pivot", PivotFontSize, "Arial", PivotFontColor);
}
else
{
ObjectMove("P label", 0, Time[0], P);
}
//--- Draw Pivot lines on chart
if(ObjectFind("P line") != 0)
{
ObjectCreate("P line", OBJ_HLINE, 0, Time[40], P);
ObjectSet("P line", OBJPROP_STYLE, STYLE_DASH);
ObjectSet("P line", OBJPROP_COLOR, PivotColor);
}
else
{
ObjectMove("P line", 0, Time[40], P);
}
}
//----
if(StandardPivots)
{
if(ObjectFind("R1 label") != 0)
{
ObjectCreate("R1 label", OBJ_TEXT, 0, Time[20], R1);
ObjectSetText("R1 label", " R1", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R1 label", 0, Time[20], R1);
}
//----
if(ObjectFind("R2 label") != 0)
{
ObjectCreate("R2 label", OBJ_TEXT, 0, Time[20], R2);
ObjectSetText("R2 label", " R2", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R2 label", 0, Time[20], R2);
}
//----
if(ObjectFind("R3 label") != 0)
{
ObjectCreate("R3 label", OBJ_TEXT, 0, Time[20], R3);
ObjectSetText("R3 label", " R3", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R3 label", 0, Time[20], R3);
}
//----
if(ObjectFind("R4 label") != 0)
{
ObjectCreate("R4 label", OBJ_TEXT, 0, Time[20], R4);
ObjectSetText("R4 label", " R4", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("R4 label", 0, Time[20], R4);
}
//----
if(ObjectFind("S1 label") != 0)
{
ObjectCreate("S1 label", OBJ_TEXT, 0, Time[20], S1);
ObjectSetText("S1 label", "S1", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S1 label", 0, Time[20], S1);
}
//----
if(ObjectFind("S2 label") != 0)
{
ObjectCreate("S2 label", OBJ_TEXT, 0, Time[20], S2);
ObjectSetText("S2 label", "S2", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S2 label", 0, Time[20], S2);
}
//----
if(ObjectFind("S3 label") != 0)
{
ObjectCreate("S3 label", OBJ_TEXT, 0, Time[20], S3);
ObjectSetText("S3 label", "S3", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S3 label", 0, Time[20], S3);
}
//----
if(ObjectFind("S4 label") != 0)
{
ObjectCreate("S4 label", OBJ_TEXT, 0, Time[20], S4);
ObjectSetText("S4 label", "S4", StandardFontSize, "Arial", StandardFontColor);
}
else
{
ObjectMove("S4 label", 0, Time[20], S4);
}
//--- Draw Pivot lines on chart
if(ObjectFind("S1 line") != 0)
{
ObjectCreate("S1 line", OBJ_HLINE, 0, Time[40], S1);
ObjectSet("S1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S1 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S1 line", 0, Time[40], S1);
}
//----
if(ObjectFind("S2 line") != 0)
{
ObjectCreate("S2 line", OBJ_HLINE, 0, Time[40], S2);
ObjectSet("S2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S2 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S2 line", 0, Time[40], S2);
}
//----
if(ObjectFind("S3 line") != 0)
{
ObjectCreate("S3 line", OBJ_HLINE, 0, Time[40], S3);
ObjectSet("S3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S3 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S3 line", 0, Time[40], S3);
}
//----
if(ObjectFind("S4 line") != 0)
{
ObjectCreate("S4 line", OBJ_HLINE, 0, Time[40], S4);
ObjectSet("S4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("S4 line", OBJPROP_COLOR, SupportColor);
}
else
{
ObjectMove("S4 line", 0, Time[40], S4);
}
//----
if(ObjectFind("R1 line") != 0)
{
ObjectCreate("R1 line", OBJ_HLINE, 0, Time[40], R1);
ObjectSet("R1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R1 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R1 line", 0, Time[40], R1);
}
if(ObjectFind("R2 line") != 0)
{
ObjectCreate("R2 line", OBJ_HLINE, 0, Time[40], R2);
ObjectSet("R2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R2 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R2 line", 0, Time[40], R2);
}
//----
if(ObjectFind("R3 line") != 0)
{
ObjectCreate("R3 line", OBJ_HLINE, 0, Time[40], R3);
ObjectSet("R3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R3 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R3 line", 0, Time[40], R3);
}
//----
if(ObjectFind("R4 line") != 0)
{
ObjectCreate("R4 line", OBJ_HLINE, 0, Time[40], R4);
ObjectSet("R4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("R4 line", OBJPROP_COLOR, ResistanceColor);
}
else
{
ObjectMove("R4 line", 0, Time[40], R4);
}
}
//----
if(MidPivots)
{
if(ObjectFind("M5 label") != 0)
{
ObjectCreate("M5 label", OBJ_TEXT, 0, Time[20], M5);
ObjectSetText("M5 label", " M5", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M5 label", 0, Time[20], M5);
}
//----
if(ObjectFind("M4 label") != 0)
{
ObjectCreate("M4 label", OBJ_TEXT, 0, Time[20], M4);
ObjectSetText("M4 label", " M4", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M4 label", 0, Time[20], M4);
}
//----
if(ObjectFind("M3 label") != 0)
{
ObjectCreate("M3 label", OBJ_TEXT, 0, Time[20], M3);
ObjectSetText("M3 label", " M3", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M3 label", 0, Time[20], M3);
}
//----
if(ObjectFind("M2 label") != 0)
{
ObjectCreate("M2 label", OBJ_TEXT, 0, Time[20], M2);
ObjectSetText("M2 label", " M2", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M2 label", 0, Time[20], M2);
}
//----
if(ObjectFind("M1 label") != 0)
{
ObjectCreate("M1 label", OBJ_TEXT, 0, Time[20], M1);
ObjectSetText("M1 label", " M1", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M1 label", 0, Time[20], M1);
}
//----
if(ObjectFind("M0 label") != 0)
{
ObjectCreate("M0 label", OBJ_TEXT, 0, Time[20], M0);
ObjectSetText("M0 label", " M0", MidFontSize, "Arial", MidPivotColor);
}
else
{
ObjectMove("M0 label", 0, Time[20], M0);
}
//----
if(ObjectFind("M5 line") != 0)
{
ObjectCreate("M5 line", OBJ_HLINE, 0, Time[40], M5);
ObjectSet("M5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M5 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M5 line", 0, Time[40], M5);
}
//----
if(ObjectFind("M4 line") != 0)
{
ObjectCreate("M4 line", OBJ_HLINE, 0, Time[40], M4);
ObjectSet("M4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M4 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M4 line", 0, Time[40], M4);
}
//----
if(ObjectFind("M3 line") != 0)
{
ObjectCreate("M3 line", OBJ_HLINE, 0, Time[40], M3);
ObjectSet("M3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M3 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M3 line", 0, Time[40], M3);
}
//----
if(ObjectFind("M2 line") != 0)
{
ObjectCreate("M2 line", OBJ_HLINE, 0, Time[40], M2);
ObjectSet("M2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M2 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M2 line", 0, Time[40], M2);
}
//----
if(ObjectFind("M1 line") != 0)
{
ObjectCreate("M1 line", OBJ_HLINE, 0, Time[40], M1);
ObjectSet("M1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M1 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M1 line", 0, Time[40], M1);
}
//----
if(ObjectFind("M0 line") != 0)
{
ObjectCreate("M0 line", OBJ_HLINE, 0, Time[40], M0);
ObjectSet("M0 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("M0 line", OBJPROP_COLOR, MidPivotColor);
}
else
{
ObjectMove("M0 line", 0, Time[40], M0);
}
}
//----
if(Fibs)
{
// Fibs 1-3
if(DisplayFibLevels_1_3)
{
if(ObjectFind("FibR1 label") != 0)
{
ObjectCreate("FibR1 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR1 label", "Fib R1", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR1 label", 0, Time[0], r1);
}
//----
if(ObjectFind("FibR2 label") != 0)
{
ObjectCreate("FibR2 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR2 label", "Fib R2", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR2 label", 0, Time[0], r2);
}
//----
if(ObjectFind("FibR3 label") != 0)
{
ObjectCreate("FibR3 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR3 label", "Fib R3", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR3 label", 0, Time[0], r3);
}
//----
if(ObjectFind("FibS1 label") != 0)
{
ObjectCreate("FibS1 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS1 label", "Fib S1", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS1 label", 0, Time[0], s1);
}
//----
if(ObjectFind("FibS2 label") != 0)
{
ObjectCreate("FibS2 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS2 label", "Fib S2", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS2 label", 0, Time[0], s2);
}
//----
if(ObjectFind("FibS3 label") != 0)
{
ObjectCreate("FibS3 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS3 label", "Fib S3", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS3 label", 0, Time[0], s3);
}
}
// Fibs 4-6
if(DisplayFibLevels_4_6)
{
if(ObjectFind("FibR4 label") != 0)
{
ObjectCreate("FibR4 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR4 label", "Fib R4", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR4 label", 0, Time[0], r4);
}
if(ObjectFind("FibR5 label") != 0)
{
ObjectCreate("FibR5 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR5 label", "Fib R5", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR5 label", 0, Time[0], r5);
}
if(ObjectFind("FibR6 label") != 0)
{
ObjectCreate("FibR6 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR6 label", "Fib R6", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR6 label", 0, Time[0], r6);
}
if(ObjectFind("FibS4 label") != 0)
{
ObjectCreate("FibS4 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS4 label", "Fib S4", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS4 label", 0, Time[0], s4);
}
if(ObjectFind("FibS5 label") != 0)
{
ObjectCreate("FibS5 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS5 label", "Fib S5", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS5 label", 0, Time[0], s5);
}
if(ObjectFind("FibS6 label") != 0)
{
ObjectCreate("FibS6 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS6 label", "Fib S6", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS6 label", 0, Time[0], s6);
}
}
//----
if(DisplayFibLevels_7_16)
{
if(ObjectFind("FibR7 label") != 0)
{
ObjectCreate("FibR7 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR7 label", "Fib R7", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR7 label", 0, Time[0], r7);
}
//----
if(ObjectFind("FibR8 label") != 0)
{
ObjectCreate("FibR8 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR8 label", "Fib R8", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR8 label", 0, Time[0], r8);
}
//----
if(ObjectFind("FibR9 label") != 0)
{
ObjectCreate("FibR9 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR9 label", "Fib R9", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR9 label", 0, Time[0], r9);
}
//----
if(ObjectFind("FibR10 label") != 0)
{
ObjectCreate("FibR10 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR10 label", "Fib R10", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR10 label", 0, Time[0], r10);
}
//----
if(ObjectFind("FibR11 label") != 0)
{
ObjectCreate("FibR11 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR11 label", "Fib R11", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR11 label", 0, Time[0], r11);
}
//----
if(ObjectFind("FibR12 label") != 0)
{
ObjectCreate("FibR12 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR12 label", "Fib R12", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR12 label", 0, Time[0], r12);
}
//----
if(ObjectFind("FibR13 label") != 0)
{
ObjectCreate("FibR13 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR13 label", "Fib R13", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR13 label", 0, Time[0], r13);
}
//----
if(ObjectFind("FibR14 label") != 0)
{
ObjectCreate("FibR14 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR14 label", "Fib R14", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR14 label", 0, Time[0], r14);
}
//----
if(ObjectFind("FibR15 label") != 0)
{
ObjectCreate("FibR15 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR15 label", "Fib R15", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR15 label", 0, Time[0], r15);
}
//----
if(ObjectFind("FibR16 label") != 0)
{
ObjectCreate("FibR16 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibR16 label", "Fib R16", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibR16 label", 0, Time[0], r16);
}
//----
if(ObjectFind("FibS7 label") != 0)
{
ObjectCreate("FibS7 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS7 label", "Fib S7", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS7 label", 0, Time[0], s7);
}
//----
if(ObjectFind("FibS8 label") != 0)
{
ObjectCreate("FibS8 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS8 label", "Fib S8", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS8 label", 0, Time[0], s8);
}
//----
if(ObjectFind("FibS9 label") != 0)
{
ObjectCreate("FibS9 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS9 label", "Fib S9", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS9 label", 0, Time[0], s9);
}
//----
if(ObjectFind("FibS10 label") != 0)
{
ObjectCreate("FibS10 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS10 label", "Fib S10", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS10 label", 0, Time[0], s10);
}
//----
if(ObjectFind("FibS11 label") != 0)
{
ObjectCreate("FibS11 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS11 label", "Fib S11", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS11 label", 0, Time[0], s11);
}
//----
if(ObjectFind("FibS12 label") != 0)
{
ObjectCreate("FibS12 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS12 label", "Fib S10", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS12 label", 0, Time[0], s12);
}
//----
if(ObjectFind("FibS13 label") != 0)
{
ObjectCreate("FibS13 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS13 label", "Fib S13", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS13 label", 0, Time[0], s13);
}
//----
if(ObjectFind("FibS14 label") != 0)
{
ObjectCreate("FibS14 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS14 label", "Fib S14", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS14 label", 0, Time[0], s14);
}
//----
if(ObjectFind("FibS15 label") != 0)
{
ObjectCreate("FibS15 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS15 label", "Fib S15", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS15 label", 0, Time[0], s15);
}
//----
if(ObjectFind("FibS16 label") != 0)
{
ObjectCreate("FibS16 label", OBJ_TEXT, 0, 0, 0);
ObjectSetText("FibS16 label", "Fib S16", FibFontSize, "Arial", FibFontColor);
}
else
{
ObjectMove("FibS16 label", 0, Time[0], s16);
}
}
//---- Set lines on chart window for Fibs
// Fibs 1-3
if(DisplayFibLevels_1_3)
{
if(ObjectFind("FibR1 line") != 0)
{
ObjectCreate("FibR1 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR1 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR1 line", 0, Time[0], r1);
}
//----
if(ObjectFind("FibR2 line") != 0)
{
ObjectCreate("FibR2 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR2 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR2 line", 0, Time[0], r2);
}
//----
if(ObjectFind("FibR3 line") != 0)
{
ObjectCreate("FibR3 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR3 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR3 line", 0, Time[0], r3);
}
//----
if(ObjectFind("FibS1 line") != 0)
{
ObjectCreate("FibS1 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS1 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS1 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS1 line", 0, Time[0], s1);
}
//----
if(ObjectFind("FibS2 line") != 0)
{
ObjectCreate("FibS2 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS2 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS2 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS2 line", 0, Time[0], s2);
}
//----
if(ObjectFind("FibS3 line") != 0)
{
ObjectCreate("FibS3 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS3 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS3 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS3 line", 0, Time[0], s3);
}
}
// Fibs 4-6
if(DisplayFibLevels_4_6)
{
if(ObjectFind("FibR4 line") != 0)
{
ObjectCreate("FibR4 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR4 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR4 line", 0, Time[0], r4);
}
//----
if(ObjectFind("FibR5 line") != 0)
{
ObjectCreate("FibR5 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR5 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR5 line", 0, Time[0], r5);
}
//----
if(ObjectFind("FibR6 line") != 0)
{
ObjectCreate("FibR6 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR6 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR6 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR6 line", 0, Time[0], r6);
}
//----
if(ObjectFind("FibS4 line") != 0)
{
ObjectCreate("FibS4 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS4 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS4 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS4 line", 0, Time[0], s4);
}
//----
if(ObjectFind("FibS5 line") != 0)
{
ObjectCreate("FibS5 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS5 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS5 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS5 line", 0, Time[0], s5);
}
//----
if(ObjectFind("FibS6 line") != 0)
{
ObjectCreate("FibS6 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS6 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS6 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS6 line", 0, Time[0], s6);
}
}
// Fibs 7-16
if(DisplayFibLevels_7_16)
{
if(ObjectFind("FibR7 line") != 0)
{
ObjectCreate("FibR7 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR7 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR7 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR7 line", 0, Time[0], r7);
}
//----
if(ObjectFind("FibR8 line") != 0)
{
ObjectCreate("FibR8 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR8 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR8 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR8 line", 0, Time[0], r8);
}
//----
if(ObjectFind("FibR9 line") != 0)
{
ObjectCreate("FibR9 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR9 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR9 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR9 line", 0, Time[0], r9);
}
//----
if(ObjectFind("FibR10 line") != 0)
{
ObjectCreate("FibR10 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR10 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR10 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR10 line", 0, Time[0], r10);
}
//----
if(ObjectFind("FibR11 line") != 0)
{
ObjectCreate("FibR11 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR11 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR11 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR11 line", 0, Time[0], r11);
}
//----
if(ObjectFind("FibR12 line") != 0)
{
ObjectCreate("FibR12 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR12 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR12 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR12 line", 0, Time[0], r12);
}
//----
if(ObjectFind("FibR13 line") != 0)
{
ObjectCreate("FibR13 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR13 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR13 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR13 line", 0, Time[0], r13);
}
//----
if(ObjectFind("FibR14 line") != 0)
{
ObjectCreate("FibR14 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR14 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR14 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR14 line", 0, Time[0], r14);
}
//----
if(ObjectFind("FibR15 line") != 0)
{
ObjectCreate("FibR15 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR15 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR15 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR15 line", 0, Time[0], r15);
}
//----
if(ObjectFind("FibR16 line") != 0)
{
ObjectCreate("FibR16 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibR16 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibR16 line", OBJPROP_COLOR, FibColorRes);
}
else
{
ObjectMove("FibR16 line", 0, Time[0], r16);
}
//----
if(ObjectFind("FibS7 line") != 0)
{
ObjectCreate("FibS7 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS7 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS7 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS7 line", 0, Time[0], s7);
}
//----
if(ObjectFind("FibS8 line") != 0)
{
ObjectCreate("FibS8 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS8 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS8 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS8 line", 0, Time[0], s8);
}
//----
if(ObjectFind("FibS9 line") != 0)
{
ObjectCreate("FibS9 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS9 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS9 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS9 line", 0, Time[0], s9);
}
//----
if(ObjectFind("FibS10 line") != 0)
{
ObjectCreate("FibS10 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS10 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS10 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS10 line", 0, Time[0], s10);
}
//----
if(ObjectFind("FibS11 line") != 0)
{
ObjectCreate("FibS11 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS11 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS11 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS11 line", 0, Time[0], s11);
}
//----
if(ObjectFind("FibS12 line") != 0)
{
ObjectCreate("FibS12 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS12 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS12 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS12 line", 0, Time[0], s12);
}
//----
if(ObjectFind("FibS13 line") != 0)
{
ObjectCreate("FibS13 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS13 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS13 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS13 line", 0, Time[0], s13);
}
//----
if(ObjectFind("FibS13 line") != 0)
{
ObjectCreate("FibS13 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS13 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS13 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS14 line", 0, Time[0], s14);
}
//----
if(ObjectFind("FibS15 line") != 0)
{
ObjectCreate("FibS15 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS15 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS15 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS15 line", 0, Time[0], s15);
}
//----
if(ObjectFind("FibS16 line") != 0)
{
ObjectCreate("FibS16 line", OBJ_HLINE, 0, 0, 0);
ObjectSet("FibS16 line", OBJPROP_STYLE, STYLE_DASHDOTDOT);
ObjectSet("FibS16 line", OBJPROP_COLOR, FibColorSup);
}
else
{
ObjectMove("FibS16 line", 0, Time[0], s16);
}
}
}
// --- THE CAMARILLA ---
if(CamTargets)
{
if(ObjectFind("H5 label") != 0)
{
ObjectCreate("H5 label", OBJ_TEXT, 0, Time[20], H5);
ObjectSetText("H5 label", " H5 LB TARGET", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("H5 label", 0, Time[20], H5);
}
//----
if(ObjectFind("H4 label") != 0)
{
ObjectCreate("H4 label", OBJ_TEXT, 0, Time[20], H4);
ObjectSetText("H4 label", " H4 LONG BREAKOUT", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("H4 label", 0, Time[20], H4);
}
//----
if(ObjectFind("H3 label") != 0)
{
ObjectCreate("H3 label", OBJ_TEXT, 0, Time[20], H3);
ObjectSetText("H3 label", " H3 SHORT", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("H3 label", 0, Time[20], H3);
}
//----
if(ObjectFind("L3 label") != 0)
{
ObjectCreate("L3 label", OBJ_TEXT, 0, Time[20], L3);
ObjectSetText("L3 label", " L3 LONG", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("L3 label", 0, Time[20], L3);
}
//----
if(ObjectFind("L4 label") != 0)
{
ObjectCreate("L4 label", OBJ_TEXT, 0, Time[20], L4);
ObjectSetText("L4 label", " L4 SHORT BREAKOUT", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("L4 label", 0, Time[20], L4);
}
//----
if(ObjectFind("L5 label") != 0)
{
ObjectCreate("L5 label", OBJ_TEXT, 0, Time[20], L5);
ObjectSetText("L5 label", " L5 SB TARGET", CamFontSize, "Arial", CamFontColor);
}
else
{
ObjectMove("L5 label", 0, Time[20], L5);
}
//---- Draw Camarilla lines on Chart
if(ObjectFind("H5 line") != 0)
{
ObjectCreate("H5 line", OBJ_HLINE, 0, Time[40], H5);
ObjectSet("H5 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("H5 line", OBJPROP_COLOR, SpringGreen);
ObjectSet("H5 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("H5 line", 0, Time[40], H5);
}
//----
if(ObjectFind("H4 line") != 0)
{
ObjectCreate("H4 line", OBJ_HLINE, 0, Time[40], H4);
ObjectSet("H4 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("H4 line", OBJPROP_COLOR, SpringGreen);
ObjectSet("H4 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("H4 line", 0, Time[40], H4);
}
//----
if(ObjectFind("H3 line") != 0)
{
ObjectCreate("H3 line", OBJ_HLINE, 0, Time[40], H3);
ObjectSet("H3 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("H3 line", OBJPROP_COLOR, SpringGreen);
ObjectSet("H3 line", OBJPROP_WIDTH, 2);
}
else
{
ObjectMove("H3 line", 0, Time[40], H3);
}
//----
if(ObjectFind("L3 line") != 0)
{
ObjectCreate("L3 line", OBJ_HLINE, 0, Time[40], L3);
ObjectSet("L3 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("L3 line", OBJPROP_COLOR, Red);
ObjectSet("L3 line", OBJPROP_WIDTH, 2);
}
else
{
ObjectMove("L3 line", 0, Time[40], L3);
}
//----
if(ObjectFind("L4 line") != 0)
{
ObjectCreate("L4 line", OBJ_HLINE, 0, Time[40], L4);
ObjectSet("L4 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("L4 line", OBJPROP_COLOR, Red);
ObjectSet("L4 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("L4 line", 0, Time[40], L4);
}
//----
if(ObjectFind("L5 line") != 0)
{
ObjectCreate("L5 line", OBJ_HLINE, 0, Time[40], L5);
ObjectSet("L5 line", OBJPROP_STYLE, STYLE_SOLID);
ObjectSet("L5 line", OBJPROP_COLOR, Red);
ObjectSet("L5 line", OBJPROP_WIDTH, 1);
}
else
{
ObjectMove("L5 line", 0, Time[40], L5);
}
}
//---- done
// Now check for Alert
if(Alerts) DoAlerts();
//----
return(0);
}
//+------------------------------------------------------------------+
Comments
