3MA02IND_v1

Download script
Author: Ron T
3MA02IND_v1

This technical indicator is designed to identify specific momentum shifts and trend crossovers on a price chart. It operates by analyzing two different moving averages to spot when the market transitions from one state to another.

Core Trading Logic

The script focuses on the relationship between two specific types of moving averages: a fast-moving average (set to 5 periods) and a slower-moving average (set to 25 periods). Both use a "Linear Weighted" calculation, which gives more importance to recent price action.

The indicator monitors these two lines simultaneously to identify "crossovers," which are often viewed by traders as signals for potential changes in market direction:

  • Bullish Momentum (Rising): The script looks for the moment the fast moving average moves from below the slow moving average to above it. When this occurs, the indicator places a specific visual marker on the chart. This suggests that short-term price momentum is accelerating upward faster than the long-term trend.
  • Bearish Momentum (Falling): Conversely, the script identifies when the fast moving average moves from above the slow moving average to below it. This triggers a different visual marker on the chart, indicating that short-term downward pressure is beginning to outweigh the longer-term trend.

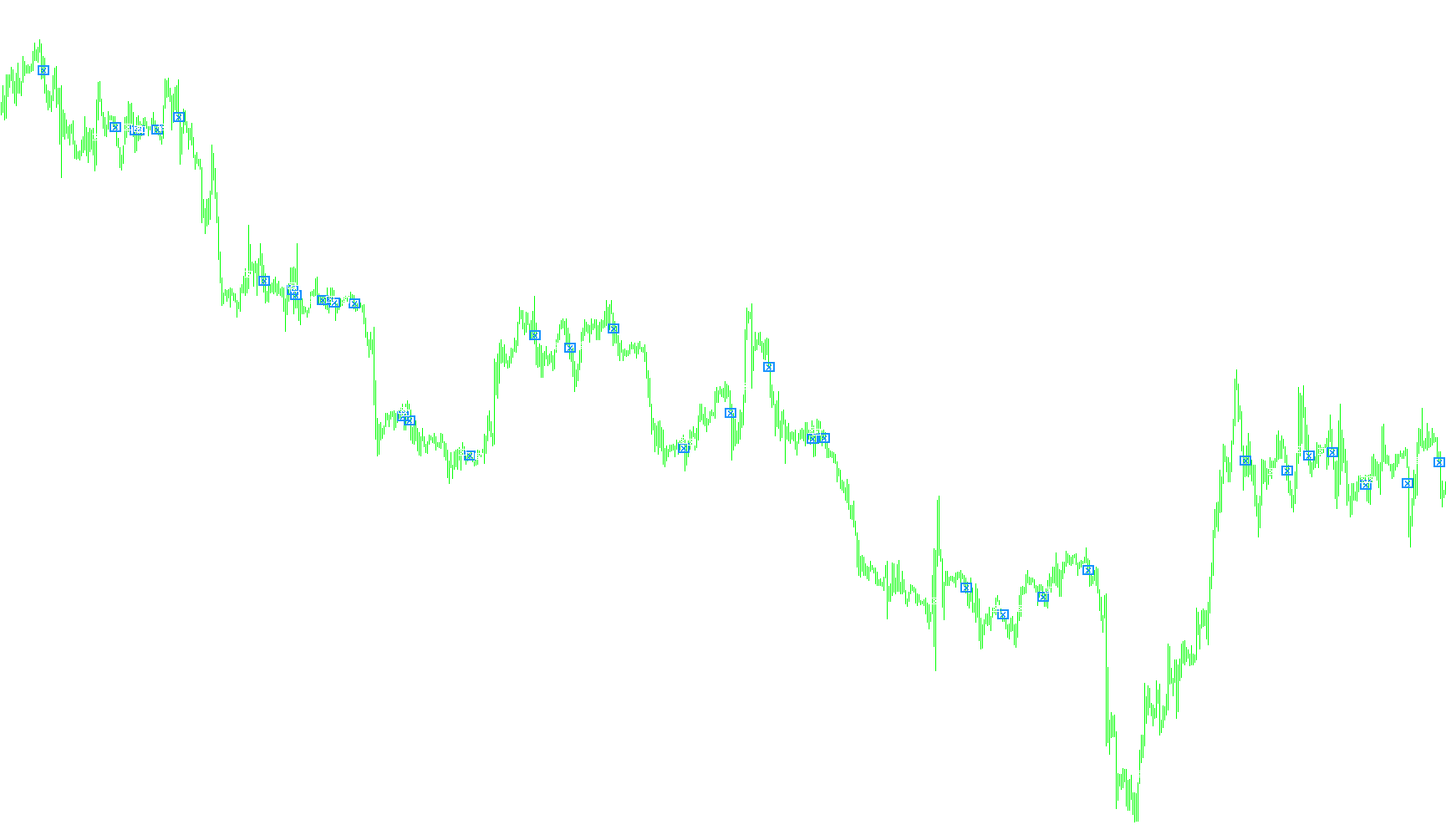

Visual Representation

Instead of drawing continuous lines that might clutter the workspace, this script is designed to be "clean." It acts as a signal generator by placing distinct geometric shapes (arrows and boxes) directly on the price candles.

These markers serve as immediate visual cues for the user:

  1. Trend Entry Points: They highlight exactly where the crossover happened in real-time.
  2. Historical Analysis: Because the script calculates these points across historical data, a trader can scroll back through past charts to see how frequently these crossovers aligned with significant price moves.

Summary for the User

In simple terms, this tool filters out the "noise" of daily price fluctuations and alerts you only when there is a confirmed shift in speed between short-term and long-term price averages. It transforms complex mathematical moving averages into simple, actionable visual signals on your trading screen.

Price Data Components
Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1
17 Views
0 Downloads
0 Favorites
3MA02IND_v1
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//| 5 Min RSI 12-period qual INDICATOR                               |
//+------------------------------------------------------------------+
#property copyright "Ron T"
#property link      "http://www.lightpatch.com"

#property indicator_chart_window
#property indicator_buffers 8

#property indicator_color1 Red
#property indicator_color2 HotPink
#property indicator_color3 DarkGray
#property indicator_color4 Red

#property indicator_color5 White
#property indicator_color6 LightGray
#property indicator_color7 DarkGray
#property indicator_color8 White


//---- buffers
double Buffer1[];
double Buffer2[];
double Buffer3[];
double Buffer4[];
double Buffer5[];
double Buffer6[];
double Buffer7[];
double Buffer8[];


// User Input


//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//|------------------------------------------------------------------|

int init()
  {

   // 233 up arrow
   // 234 down arrow
   // 159 big dot
   // 158 little dot
   // 168 open square
   // 120 box with X

   SetIndexStyle(0,DRAW_ARROW);
   SetIndexBuffer(0, Buffer1);
   SetIndexArrow(0,159);  //up

   SetIndexStyle(1,DRAW_ARROW);
   SetIndexBuffer(1, Buffer2);
   SetIndexArrow(1,159);  //down

   SetIndexStyle(2,DRAW_ARROW);
   SetIndexBuffer(2, Buffer3);
   SetIndexArrow(2,112);

   SetIndexStyle(3,DRAW_ARROW);
   SetIndexBuffer(3, Buffer4);
   SetIndexArrow(3,120);

   SetIndexStyle(4,DRAW_ARROW);
   SetIndexBuffer(4, Buffer5);
   SetIndexArrow(4,159);

   SetIndexStyle(5,DRAW_ARROW);
   SetIndexBuffer(5, Buffer6);
   SetIndexArrow(5,159);

   SetIndexStyle(6,DRAW_ARROW);
   SetIndexBuffer(6, Buffer7);
   SetIndexArrow(6,112);

   SetIndexStyle(7,DRAW_ARROW);
   SetIndexBuffer(7, Buffer8);
   SetIndexArrow(7,120);

   return(0);
  }


//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
   int i;

   for( i=0; i<Bars; i++ ) Buffer1[i]=0;
   for( i=0; i<Bars; i++ ) Buffer2[i]=0;
   for( i=0; i<Bars; i++ ) Buffer3[i]=0;
   for( i=0; i<Bars; i++ ) Buffer4[i]=0;
   for( i=0; i<Bars; i++ ) Buffer5[i]=0;
   for( i=0; i<Bars; i++ ) Buffer6[i]=0;
   for( i=0; i<Bars; i++ ) Buffer7[i]=0;
   for( i=0; i<Bars; i++ ) Buffer8[i]=0;

   return(0);
  }


//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+

// Current position if 55/45 or over/under. Does any of
// the previous 'qual' period ever fall below55/above45? (last11)
//
// If qual*2 periods have been above55/below45
// then lets not try to transact any more (last22)


int start()
  {
   int      pos=Bars-100; // leave room for moving average periods

   double   cMAfst=0, pMAfst=0;
   double   cMAslo=0, pMAslo=0;
   double   MA100=0;

   double p=Point();

   while(pos>=1)
     {

      cMAfst=iMA(Symbol(),0,5,0,MODE_LWMA,PRICE_CLOSE, pos);
      pMAfst=iMA(Symbol(),0,5,0,MODE_LWMA,PRICE_CLOSE, pos+1);

      cMAslo=iMA(Symbol(),0,25,0,MODE_LWMA,PRICE_CLOSE, pos);
      pMAslo=iMA(Symbol(),0,25,0,MODE_LWMA,PRICE_CLOSE, pos+1);

      // rising
      if (pMAfst<=pMAslo && cMAfst>=cMAslo)
        {
         Buffer8[pos]=cMAfst;
        }

      //falling
      if (pMAfst>=pMAslo && cMAfst<=cMAslo)
        {
         Buffer4[pos]=cMAfst;
        }

 	   pos--;
     }

   return(0);
  }
//+------------------------------------------------------------------+
