ytg_SS

Author: Yuriy Tokman

This script is a specialized technical analysis tool designed for the MetaTrader 4 trading platform. Its primary purpose is to identify specific price action patterns—specifically "breakout" structures—and notify the user instantly when these conditions are met.

Core Functionality

The tool monitors the price history of a currency pair or asset to detect two distinct types of movements:

Upward Breakouts: The script looks for instances where the highest price of a current candle is greater than the highs of the previous 24 candles. When this occurs, it marks the point on your chart with a specific visual arrow (colored Lime).
Downward Breakouts: Conversely, it monitors for instances where the lowest price of a current candle is lower than the lows of the previous 24 candles. When this happens, it marks the point with a different arrow (colored Red).

User Notifications and Alerts

The script features a customizable notification system. It allows you to toggle three different types of alerts directly from your trading screen:

Visual Alerts: Pop-up windows on your trading terminal indicating whether an "Up" or "Down" breakout has been detected, along with the specific symbol and timeframe.
Audio Alerts: The script can trigger specific sound files (e.g., "news.wav" or "alert2.wav") to provide an immediate audible cue when a pattern is identified.
Email Notifications: If enabled, the tool will automatically send an email summary to your registered account details as soon as a breakout occurs.

Interactive Interface

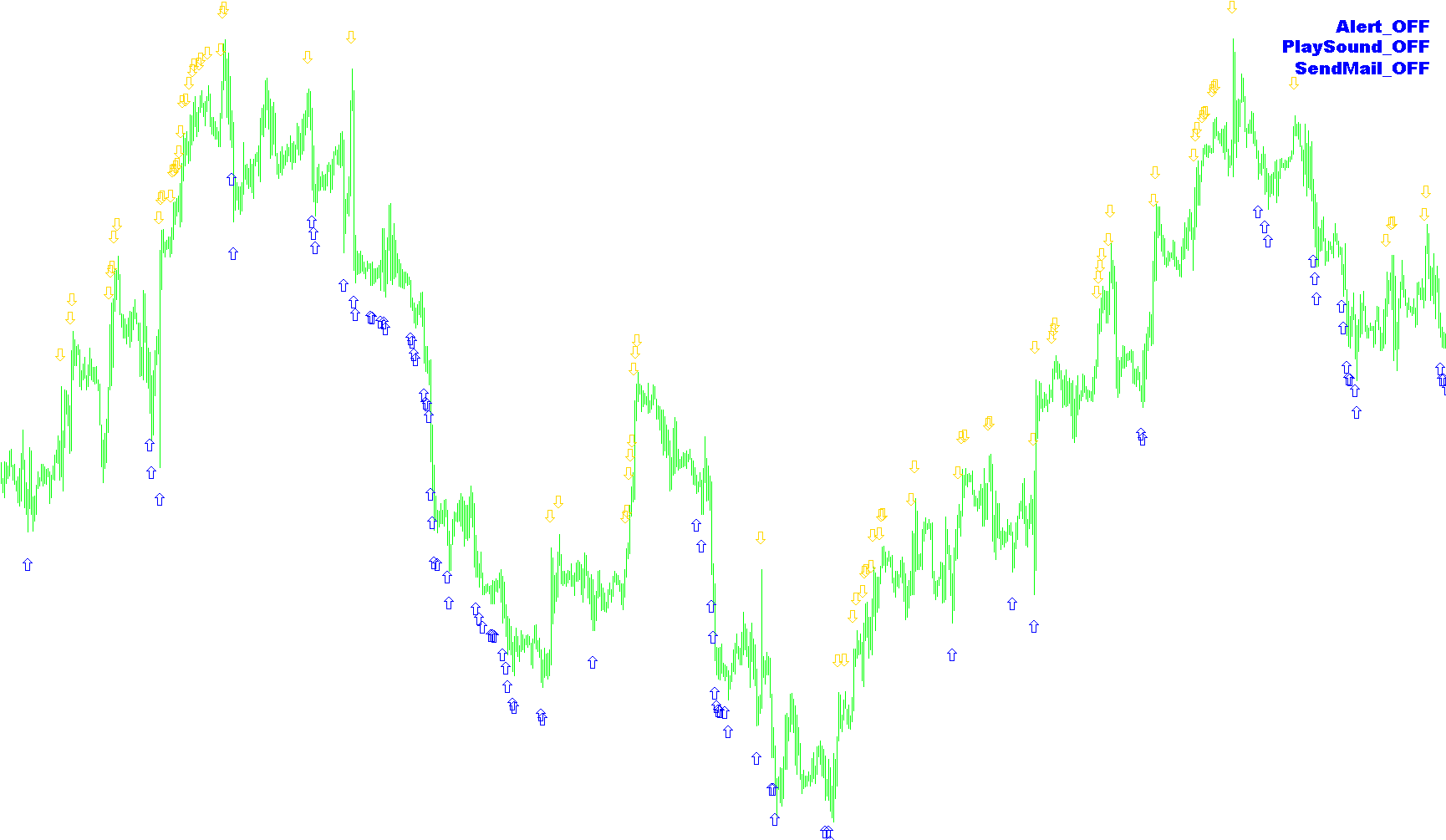

The script includes an on-screen dashboard (labels) that displays the current status of these alerts. It uses a "Global Variable" system, which means that if you turn an alert on or off in one window, the setting is saved by the software. The colors of these labels change dynamically (e.g., turning Green/Lime when active and Red when inactive) to ensure you can see your settings at a glance.

Smart Adjustments

To ensure accuracy across different types of financial markets, the script includes logic to automatically detect the "pip" size of the asset you are trading. It recognizes differences between standard currencies (like those ending in JPY) and other pairs, ensuring that the visual markers on the chart are placed at the mathematically correct distance from the price.

Miscellaneous

12 Views

0 Downloads

0 Favorites

ytg_SS

//+------------------------------------------------------------------+
//|                                                       ytg_SS.mq4 |
//|                                                     Yuriy Tokman |
//|                                            yuriytokman@gmail.com |
//+------------------------------------------------------------------+
#property copyright "Yuriy Tokman"
#property link      "yuriytokman@gmail.com"

#property indicator_chart_window

#property indicator_buffers 2
#property indicator_color1 Red
#property indicator_width1 2
#property indicator_color2 Lime
#property indicator_width2 2

extern string UpSoundFileName     = "news.wav";
extern string DownSoundFileName   = "alert2.wav";
extern int arows_1_code           = 242;
extern int arows_2_code           = 241;
extern int arows_1_width          = 2;
extern int arows_2_width          = 2;
extern int font_size              = 16;
extern string font_name           = "Arial Black";
extern color color_on             = Lime;//öâåò ïðè âêëþ÷åííîì
extern color color_off            = Red;//öâåò ïðè âûêëþ÷åííîì

double buf_0[];
double buf_1[];

int vX = 25;

string text_1 = "Alert_OFF";//íà÷àëüíûé òåêñò
string text_2 = "PlaySound_OFF";
string text_3 = "SendMail_OFF";

color colir_1   = Blue;
color colir_2   = Blue;
color colir_3   = Blue;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators

      SetIndexStyle(0,DRAW_ARROW,STYLE_SOLID,arows_1_width);
      SetIndexArrow(0,arows_1_code);
      SetIndexBuffer(0,buf_0);

      SetIndexStyle(1,DRAW_ARROW,STYLE_SOLID,arows_2_width);
      SetIndexArrow(1,arows_2_code);
      SetIndexBuffer(1,buf_1);
//----
      if(GlobalVariableCheck("name_1"))//ïîâåðÿåì íàëè÷åå ãëîáàëüíîé ïåðåìåííîé
       {
        if(GlobalVariableGet("name_1")>0)//ïðîâåðÿåì çíà÷åíèå ãëîáàëüíîé ïåðåìåííîé
         {text_1 = "Alert_ON";colir_1=color_on;}//èçìåíÿåì çíà÷åíèå
        else {text_1 = "Alert_OFF";colir_1=color_off;}//èçìåíÿåì çíà÷åíèå
       }

      if(GlobalVariableCheck("name_2"))
       {
        if(GlobalVariableGet("name_2")>0)
         {text_2 = "PlaySound_ON";colir_2=color_on;}
        else {text_2 = "PlaySound_OFF";colir_2=color_off;}
       }

      if(GlobalVariableCheck("name_3"))
       {
        if(GlobalVariableGet("name_3")>0)
         {text_3 = "SendMail_ON";colir_3=color_on;}
        else {text_3 = "SendMail_OFF";colir_3=color_off;}
       }

      ObjectCreate("text_1",OBJ_LABEL,0,0,0,0,0);
      ObjectSet("text_1",OBJPROP_CORNER,1);
      ObjectSet("text_1",OBJPROP_XDISTANCE,vX);
      ObjectSet("text_1",OBJPROP_YDISTANCE,18);
      ObjectSetText("text_1",text_1,font_size,font_name,colir_1);

      ObjectCreate("text_2",OBJ_LABEL,0,0,0,0,0);
      ObjectSet("text_2",OBJPROP_CORNER,1);
      ObjectSet("text_2",OBJPROP_XDISTANCE,vX);
      ObjectSet("text_2",OBJPROP_YDISTANCE,42);
      ObjectSetText("text_2",text_2,font_size,font_name,colir_2);

      ObjectCreate("text_3",OBJ_LABEL,0,0,0,0,0);
      ObjectSet("text_3",OBJPROP_CORNER,1);
      ObjectSet("text_3",OBJPROP_XDISTANCE,vX);
      ObjectSet("text_3",OBJPROP_YDISTANCE,68);
      ObjectSetText("text_3",text_3,font_size,font_name,colir_3);

      Comment("yuriytokman@gmail.com");
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
     ObjectDelete ("text_1");
     ObjectDelete ("text_2");
     ObjectDelete ("text_3");
     Comment("");
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
//----

//----
   int limit,k;
   int counted_bars=IndicatorCounted();

   if(counted_bars<0) return(-1);

   if(counted_bars>0) counted_bars--;
   limit=Bars-counted_bars;

   if (limit>2) ShowHistory(limit);
   else ShowRealTime(0);
//----
   int newX_1 = ObjectGet( "text_1",OBJPROP_XDISTANCE);
   int newX_2 = ObjectGet( "text_2",OBJPROP_XDISTANCE);
   int newX_3 = ObjectGet( "text_3",OBJPROP_XDISTANCE);

   if(newX_1 != vX)
     {
      if(ObjectDescription("text_1") == "Alert_OFF")
        {
         text_1 = "Alert_ON";
         colir_1  = color_on;
         GlobalVariableSet( "name_1", 1);
        }
      else{ text_1 = "Alert_OFF"; colir_1  = color_off;GlobalVariableSet( "name_1", 0);}
     }
//------
   if(newX_2 != vX)
     {
      if(ObjectDescription("text_2") == "PlaySound_OFF")
        {
         text_2 = "PlaySound_ON";
         colir_2  = color_on;
         GlobalVariableSet( "name_2", 1);
        }
      else{ text_2 = "PlaySound_OFF"; colir_2  = color_off;GlobalVariableSet( "name_2",0);}
     }
//------
   if(newX_3 != vX)
     {
      if(ObjectDescription("text_3") == "SendMail_OFF")
        {
         text_3 = "SendMail_ON";
         colir_3  = color_on;
         GlobalVariableSet( "name_3", 1);
        }
      else{ text_3 = "SendMail_OFF"; colir_3  = color_off;GlobalVariableSet( "name_3",0);}
     }
//--------
   if (ObjectFind("text_1")!=-1) ObjectDelete("text_1");
      ObjectCreate("text_1",OBJ_LABEL,0,0,0,0,0);
      ObjectSet("text_1",OBJPROP_CORNER,1);
      ObjectSet("text_1",OBJPROP_XDISTANCE,vX);
      ObjectSet("text_1",OBJPROP_YDISTANCE,18);
      ObjectSetText("text_1",text_1,font_size,font_name,colir_1);

   if (ObjectFind("text_2")!=-1) ObjectDelete("text_2");
      ObjectCreate("text_2",OBJ_LABEL,0,0,0,0,0);
      ObjectSet("text_2",OBJPROP_CORNER,1);
      ObjectSet("text_2",OBJPROP_XDISTANCE,vX);
      ObjectSet("text_2",OBJPROP_YDISTANCE,42);
      ObjectSetText("text_2",text_2,font_size,font_name,colir_2);

   if (ObjectFind("text_3")!=-1) ObjectDelete("text_3");
      ObjectCreate("text_3",OBJ_LABEL,0,0,0,0,0);
      ObjectSet("text_3",OBJPROP_CORNER,1);
      ObjectSet("text_3",OBJPROP_XDISTANCE,vX);
      ObjectSet("text_3",OBJPROP_YDISTANCE,68);
      ObjectSetText("text_3",text_3,font_size,font_name,colir_3);

//----
   return(0);
  }
//+------------------------------------------------------------------+

void ShowHistory(int limit)
   {
    for(int i=limit; i>=0; i--)
   {
//=====================================================================================
     if(High[i]>High[i+1]  &&High[i]>High[i+2]  &&High[i]>High[i+3]  &&High[i]>High[i+4]
      &&High[i]>High[i+5]  &&High[i]>High[i+6]  &&High[i]>High[i+7]  &&High[i]>High[i+8]
      &&High[i]>High[i+9]  &&High[i]>High[i+10] &&High[i]>High[i+11] &&High[i]>High[i+12]
      &&High[i]>High[i+13] &&High[i]>High[i+14] &&High[i]>High[i+15] &&High[i]>High[i+16]
      &&High[i]>High[i+17] &&High[i]>High[i+18] &&High[i]>High[i+19] &&High[i]>High[i+20]
      &&High[i]>High[i+21] &&High[i]>High[i+22] &&High[i]>High[i+23] &&High[i]>High[i+24])

     buf_0[i]= High[i] + GetDeltaTF(Period()) * GetPoint();
     else buf_0[i] = 0;
//=====================================================================================
     if(Low[i]<Low[i+1] &&Low[i]<Low[i+2]  &&Low[i]<Low[i+3]  &&Low[i]<Low[i+4]
      &&Low[i]<Low[i+5] &&Low[i]<Low[i+6]  &&Low[i]<Low[i+7]  &&Low[i]<Low[i+8]
      &&Low[i]<Low[i+9] &&Low[i]<Low[i+10] &&Low[i]<Low[i+11] &&Low[i]<Low[i+12]
      &&Low[i]<Low[i+13]&&Low[i]<Low[i+14] &&Low[i]<Low[i+15] &&Low[i]<Low[i+16]
      &&Low[i]<Low[i+17]&&Low[i]<Low[i+18] &&Low[i]<Low[i+19] &&Low[i]<Low[i+20]
      &&Low[i]<Low[i+21]&&Low[i]<Low[i+22] &&Low[i]<Low[i+23] &&Low[i]<Low[i+24])

     buf_1[i]= Low[i] - GetDeltaTF(Period()) * GetPoint();
     else buf_1[i] = 0;
     }
     }
//========================================================================================
void ShowRealTime(int limit)
   {
   for(int i=limit; i>=0; i--)
   {
//=====================================================================================
     if(High[i+1]>High[i+2]  &&High[i+1]>High[i+3]  &&High[i+1]>High[i+4]
      &&High[i+1]>High[i+5]  &&High[i+1]>High[i+6]  &&High[i+1]>High[i+7]  &&High[i+1]>High[i+8]
      &&High[i+1]>High[i+9]  &&High[i+1]>High[i+10] &&High[i+1]>High[i+11] &&High[i+1]>High[i+12]
      &&High[i+1]>High[i+13] &&High[i+1]>High[i+14] &&High[i+1]>High[i+15] &&High[i+1]>High[i+16]
      &&High[i+1]>High[i+17] &&High[i+1]>High[i+18] &&High[i+1]>High[i+19] &&High[i+1]>High[i+20]
      &&High[i+1]>High[i+21] &&High[i+1]>High[i+22] &&High[i+1]>High[i+23] &&High[i+1]>High[i+24])
     {
     if(NevBar())
     {
     if(ObjectDescription("text_1") == "Alert_ON")Alert("SS Up; Symbol =",Symbol(),"; Time Frame =",GetNameTF());
     if(ObjectDescription("text_2") == "PlaySound_ON")PlaySound(DownSoundFileName);
     if(ObjectDescription("text_3") == "SendMail_ON")SendMail("ytg_SS ","SS Up; Symbol ="+Symbol()+"; Time Frame ="+GetNameTF());
     }
     }
//=====================================================================================
     if(Low[i+1]<Low[i+2] &&Low[i+1]<Low[i+3]  &&Low[i+1]<Low[i+4]
      &&Low[i+1]<Low[i+5] &&Low[i+1]<Low[i+6]  &&Low[i+1]<Low[i+7]  &&Low[i+1]<Low[i+8]
      &&Low[i+1]<Low[i+9] &&Low[i+1]<Low[i+10] &&Low[i+1]<Low[i+11] &&Low[i+1]<Low[i+12]
      &&Low[i+1]<Low[i+13]&&Low[i+1]<Low[i+14] &&Low[i+1]<Low[i+15] &&Low[i+1]<Low[i+16]
      &&Low[i+1]<Low[i+17]&&Low[i+1]<Low[i+18] &&Low[i+1]<Low[i+19] &&Low[i+1]<Low[i+20]
      &&Low[i+1]<Low[i+21]&&Low[i+1]<Low[i+22] &&Low[i+1]<Low[i+23] &&Low[i+1]<Low[i+24])
     {
     if(NevBar()){
     if(ObjectDescription("text_1") == "Alert_ON")Alert("SS Down; Symbol =",Symbol(),"; Time Frame =",GetNameTF());
     if(ObjectDescription("text_2") == "PlaySound_ON")PlaySound(UpSoundFileName);}
     if(ObjectDescription("text_3") == "SendMail_ON")SendMail("ytg_SS ","SS Down; Symbol ="+Symbol()+"; Time Frame ="+GetNameTF());
     }
     }
   }
//==============================================================================
double GetPoint()
{
 // Ò.ê. ðàáîòàåì òîëüêî ñ ôîðåêñîì, áàíàëüíî èùåì éåíó.
 //ò.ê. òîëüêî îíà èìååò 0.01 ïóíêò. îñòàëüíûå âàëþòû 0.0001
 int vres = StringFind(Symbol(),"JPY");
 if (vres == -1) return(0.0001);
 return(0.01);
}
//+----------------------------------------------------------------------------+
// Ôóíêöèÿ êîíòðîëÿ íîâîãî áàðà                                                |
//-----------------------------------------------------------------------------+
bool NevBar(){
   static int PrevTime=0;
   if (PrevTime==Time[0]) return(false);
   PrevTime=Time[0];
   return(true);}
//+----------------------------------------------------------------------------+
//|  Âåðñèÿ   : 01.09.2005                                                     |
//|  Îïèñàíèå : Âîçâðàùàåò íàèìåíîâàíèå òàéìôðåéìà                             |
//+----------------------------------------------------------------------------+
//|  Ïàðàìåòðû:                                                                |
//|    TimeFrame - òàéìôðåéì (êîëè÷åñòâî ñåêóíä)      (0 - òåêóùèé ÒÔ)         |
//+----------------------------------------------------------------------------+
string GetNameTF(int TimeFrame=0) {
  if (TimeFrame==0) TimeFrame=Period();
  switch (TimeFrame) {
    case PERIOD_M1:  return("M1");
    case PERIOD_M5:  return("M5");
    case PERIOD_M15: return("M15");
    case PERIOD_M30: return("M30");
    case PERIOD_H1:  return("H1");
    case PERIOD_H4:  return("H4");
    case PERIOD_D1:  return("Daily");
    case PERIOD_W1:  return("Weekly");
    case PERIOD_MN1: return("Monthly");
    default:         return("UnknownPeriod");
  }
}
//=====================================
int GetDeltaTF(int TimeFrame=0) {
  if (TimeFrame==0) TimeFrame=Period();
  switch (TimeFrame) {
    case PERIOD_M1:  return(2);
    case PERIOD_M5:  return(3);
    case PERIOD_M15: return(5);
    case PERIOD_M30: return(8);
    case PERIOD_H1:  return(10);
    case PERIOD_H4:  return(20);
    case PERIOD_D1:  return(30);
    case PERIOD_W1:  return(80);
    case PERIOD_MN1: return(150);
    default:         return(100);
  }
}
//======================================
