Author: Denis Orlov
XPeriod

This script is designed for traders who need to see multiple timeframes simultaneously on a single chart. Instead of switching back and forth between different tabs (like moving from a 1-hour chart to a 4-hour chart), this tool allows you to visualize the price action of one specific timeframe directly over your current active chart.

Core Functionality

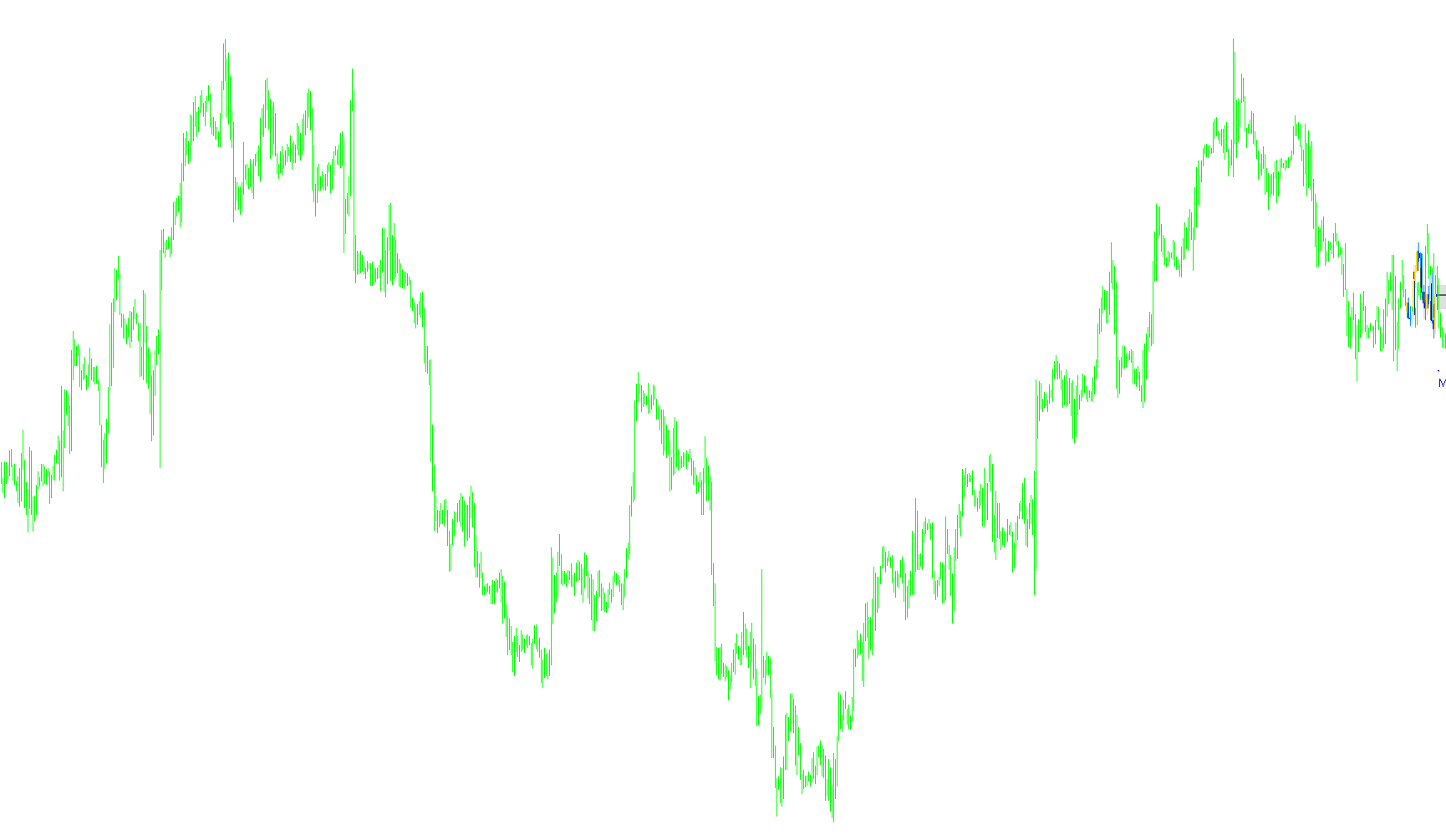

The primary purpose of the script is Multi-Timeframe Visualization. It identifies price candles from a larger (or smaller) timeframe and draws them onto your current screen. This helps traders identify higher-level trends, support/resistance levels, and structural shifts without losing sight of their immediate price action.

How it Works

The logic follows these key steps to create the visual experience:

  • Timeframe Selection: The script allows you to choose a target timeframe (such as H1, H4, or Daily). It then automatically calculates how those larger periods align with your current viewing window.
  • Dynamic Drawing: Rather than just showing a simple line, the script draws actual Rectangles. These rectangles represent the "bodies" and "shadows" (wicks) of the candles from the selected timeframe.
    • Bullish Candles are colored differently than Bearish Candles, allowing for quick visual recognition of momentum.
    • The colors can be customized to suit your preference, ensuring the information is easy to read at a glance.
  • Visual Alignment: The script includes a "Vertical Shift" feature. This ensures that the multi-timeframe candles appear clearly on your screen without overlapping the standard price bars too much, keeping the chart organized and readable.
  • Smart Scaling: Whether you are looking at a very small timeframe (like 1 minute) or a very large one (like Monthly), the script automatically calculates the correct proportions. It handles two scenarios:
    1. If your current chart is smaller than the target, it draws out the larger blocks of data.
    2. If your current chart is larger than the target, it "zooms in" to show the smaller movements within that period.
  • Interactive Labels: The script places a small text label on the chart to clearly identify which timeframe you are currently looking at, making it easy to manage if you have multiple layers of data active.

Key Benefits for Traders

  • Contextual Awareness: You can see "the big picture" while executing trades on "the small picture."
  • Reduced Clicks: Eliminates the need to constantly toggle between different windows or timeframes.
  • Clean Visualization: By using outlines and specific body colors, it provides a professional look that highlights important price movements without cluttering the workspace.
Price Data Components
Series array that contains the lowest prices of each barSeries array that contains the highest prices of each barSeries array that contains open prices of each barSeries array that contains close prices for each bar
Miscellaneous
Implements a curve of type %1
4 Views
0 Downloads
0 Favorites
XPeriod
//+------------------------------------------------------------------+
//|                                                      XPeriod.mq4 |
//|                                                      Denis Orlov |
//|                                    http://denis-or-love.narod.ru |
/*
Èíäèêàòîð ïîçâîëÿåò îòîáðàæàòü ñâå÷íûå ãðàôèêè ðàçíûõ âðåìåííûõ ïåðèîäîâ â îäíîì îêíå.
Ïîäðîáíî:
http://codebase.mql4.com/ru/6014

The indicator allows to display candle schedules of the different time periods in one window.
In detail:
http://codebase.mql4.com/6072

***
Âñå ìîè èíäèêàòîðû:
http://codebase.mql4.com/ru/author/denis_orlov
***
ÏÎËÜÇÓÉÒÅÑÜ È ÏÐÎÖÂÅÒÀÉÒÅ!
***
All my indicators:

http://codebase.mql4.com/author/denis_orlov
***
USE AND PROSPER!

*/
//+------------------------------------------------------------------+
#property copyright "Denis Orlov"
#property link      "http://denis-or-love.narod.ru"

//#include <Trend.mqh>
//#include <DrawObjects.mqh>

//#property indicator_separate_window
#property indicator_chart_window

#property indicator_buffers 4

#property indicator_color1 DarkTurquoise
#property indicator_color2 DarkBlue
#property indicator_color3 DarkTurquoise
#property indicator_color4 DarkBlue


double Line1[], Line2[], Line3[], Line4[];
//#property indicator_maximum 100
//#property indicator_minimum 0
extern bool TesterMode=false;
extern int TimeFrame=0;
extern int History=10;
extern int Vertical_Shift=-60;
extern bool DoubleLong=false;
extern bool OutlineCandles=true;
extern color ColorBullShadow=BlanchedAlmond;
extern color ColorBullBody=NavajoWhite;
extern color ColorBearShadow=Gainsboro;
extern color ColorBearBody=Gray;
extern bool BackRoundCandles=True;
extern int OutlineWidth=3;
extern color LabelColor=Blue;


string pr="XPeriod ";
int per,per1;
bool redraw=false;
int bar0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
      if(TimeFrame==0)
     switch(Period())                 // Ðàñ÷¸ò êîýôôèöèåíòîâ äëÿ..
      {                              // .. ðàçëè÷íûõ ÒÔ
      case     1: TimeFrame=1; break;// Òàéìôðåéì Ì1
      case     5: TimeFrame=1; break;// Òàéìôðåéì Ì5
      case    15: TimeFrame=5; break;// Òàéìôðåéì Ì15
      case    30: TimeFrame=15; break;// Òàéìôðåéì Ì30
      case    60: TimeFrame=30; break;// Òàéìôðåéì H1
      case   240: TimeFrame=60; break;// Òàéìôðåéì H4
      case  1440: TimeFrame=240; break;// Òàéìôðåéì D1
      case 10080: TimeFrame=1440; break;// Òàéìôðåéì W1
      case 43200: TimeFrame=10080; break;// Òàéìôðåéì ÌN
      }


      //IndicatorBuffers(4);


   SetIndexStyle(0,DRAW_HISTOGRAM,0,3);
   SetIndexBuffer(0,Line1);

   SetIndexStyle(1,DRAW_HISTOGRAM,0,3);
   SetIndexBuffer(1,Line2);

   SetIndexStyle(2,DRAW_HISTOGRAM,0,1);
   SetIndexBuffer(2,Line3);

   SetIndexStyle(3,DRAW_HISTOGRAM,0,1);
   SetIndexBuffer(3,Line4);


//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
      Delete_My_Obj(pr+PeriodToStr(TimeFrame));
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {

      string TF=PeriodToStr(TimeFrame);
      IndicatorShortName(pr+TF);

      double TesterTimeCurrent=GlobalVariableGet( "TesterTimeCurrent");
       //if( TesterTimeCurrent==0) return;

      // bar0=TimeToBarPeriod(TesterTimeCurrent, TimeFrame);
      if(TesterMode) bar0=iBarShift(NULL,TimeFrame,TesterTimeCurrent);
         else bar0=0;



       DrawText( pr+TF+" label", Time[0]+Period()*90 , iLow(NULL,TimeFrame,bar0)+Vertical_Shift*Point,
         TF//TimeToStr(Time[0],TIME_SECONDS)+"; "+ TimeToStr(TesterTimeCurrent,TIME_SECONDS)//
          ,LabelColor);

      //if(ObjectFind(pr+TF+" label")>-1)
       //{
         double lp=ObjectGet(pr+TF+" label",OBJPROP_PRICE1);
         if(lp!=iLow(NULL,TimeFrame,bar0)+Vertical_Shift*Point)
            {
               Vertical_Shift=(lp- iLow(NULL,TimeFrame,bar0))/Point;
               redraw=True;
            }

      //}

         Chart( bar0,bar0);///ðèñóåì ãðàôèê - òîëüêî ïîñëåäíèé áàð
     // Comment(Vertical_Shift);

         if(TimeFrame<Period())
            int   canF=iBarShift(NULL,TimeFrame,Time[History]);
            else
               {
               if(!TesterMode)canF=History;
               else
                  canF=iBarShift(NULL,TimeFrame,TesterTimeCurrent)+History;
                }



     if (per1 != iTime(NULL,TimeFrame, 0) || per!= Time[0] || redraw)  // îäèí ðàç â áàð èëè ïðè ïåðåðèñîâêå
      {
         per = Time[0];
         per1= iTime(NULL,TimeFrame, bar0);
         redraw=False;

            ArrayInitialize( Line1, 0);
            ArrayInitialize( Line2, 0);
            ArrayInitialize( Line3, 0);
            ArrayInitialize( Line4, 0);
         Chart( canF,bar0);///ðèñóåì âåñü ãðàôèê

         if(!OutlineCandles)return(0);


         if(TimeFrame<Period())
            {
               //canF=TimeToBarPeriod(Time[History], TimeFrame);
               canF=iBarShift(NULL,TimeFrame,Time[History]);
               int K=MathRound(Period()/TimeFrame),  cnt2=History+1;
               for( int i=canF;i>=bar0;i=i-K)
                  {
                     cnt2--;
                     datetime t1=Time[i-bar0];
                     int t_2=i-K+1-bar0;
                     if(t_2<0) datetime t2=Time[0];
                        else
                         t2=Time[t_2];
                         //if(cnt2==1)Alert(canF+";"+bar0+";"+i+";"+K+";"+(i-K+1-bar0));

                     if(DoubleLong)
                      double p1=High[cnt2]*2-Low[cnt2]+Vertical_Shift*Point;
                        else p1=High[cnt2]+Vertical_Shift*Point;
                      double p2=Low[cnt2]+Vertical_Shift*Point;



                     double op=Open[cnt2], cl=Close[cnt2];
                     if(op<cl) color clr=ColorBullShadow; else clr=ColorBearShadow;

               string name=pr+TF+" Candle Shadows "+cnt2;//+" "+TimeToStr(t1,TIME_DATE|TIME_MINUTES);
               DrawRect(name, t1, p1, t2, p2, clr, OutlineWidth, "", BackRoundCandles,  0);

               if(op!=cl)//BODY
                    {
                        if(op<cl)
                     {
                         if(DoubleLong)
                           {
                           p1=cl*2-Low[cnt2]+Vertical_Shift*Point;
                           p2=op*2-Low[cnt2]+Vertical_Shift*Point;
                           }
                           else
                           {
                           p1=cl+Vertical_Shift*Point;
                           p2=op+Vertical_Shift*Point;
                           }
                         clr=ColorBullBody;
                     }
                     else
                     {
                         if(DoubleLong)
                           {
                           p1=op*2-Low[cnt2]+Vertical_Shift*Point;
                           p2=cl*2-Low[cnt2]+Vertical_Shift*Point;
                           }
                           else
                           {
                           p1=op+Vertical_Shift*Point;
                           p2=cl+Vertical_Shift*Point;
                           }

                         clr=ColorBearBody;
                     }
                     name=pr+TF+" Candle Body "+cnt2;//+" "+TimeToStr(t1,TIME_DATE|TIME_MINUTES);

                  DrawRect(name, t1, p1, t2, p2, clr, OutlineWidth, "", BackRoundCandles,  0);
                    }//if(op!=cl)

                   }//for
            }
            else
            {
               Delete_My_Obj(pr+TF+" Candle ");

               K=MathRound(TimeFrame/Period());
              // canF=TimeToBarPeriod(iTime(NULL,TimeFrame, History), Period());

             cnt2=canF+1; // cnt2=History+1
             canF=iBarShift(NULL,Period(),iTime(NULL,TimeFrame, canF));
               for( i=canF;i>=0;i=i-K)
                  {
                       cnt2--;
                       t1=Time[i];
                       t_2=i-K+1;
                        if(t_2<0)  t2=Time[0];
                           else
                            t2=Time[t_2];
                        //Alert(canF+";"+cnt2);

                         p1=iHigh(NULL,TimeFrame,cnt2);
                         p2=iLow(NULL,TimeFrame,cnt2);

                         op=iOpen(NULL,TimeFrame,cnt2); cl=iClose(NULL,TimeFrame,cnt2);
                         if(op<cl) clr=ColorBullShadow; else clr=ColorBearShadow;

                   name=pr+TF+" Candle Shadows "+cnt2;//+" "+TimeToStr(t1,TIME_DATE|TIME_MINUTES);
                  DrawRect(name, t1, p1, t2, p2, clr, OutlineWidth, "", BackRoundCandles,  0);

                if(op!=cl) //BODY
                  {
                   if(op<cl)
                     {
                         p1=cl;
                         p2=op;
                         clr=ColorBullBody;
                     }
                     else
                     {
                         p1=op;
                         p2=cl;
                         clr=ColorBearBody;
                     }
                     name=pr+TF+" Candle Body "+cnt2;//+" "+TimeToStr(t1,TIME_DATE|TIME_MINUTES);

                  DrawRect(name, t1, p1, t2, p2, clr, OutlineWidth, "", BackRoundCandles,  0);
                  }//if(op!=cl)

                 }//for

            }//else

      }// if (per != Time[0])  // îäèí ðàç â áàð


//----
   return(0);
  }
//+------------------------------------------------------------------+

void Chart(int from, int to)
   {
     // if(TimeFrame<Period())
      int b0=bar0;
        // else b0=0;


      for(int i=from;i>=to;i--)
         {
          double p_1=iOpen(NULL,TimeFrame,i), p_2=iClose(NULL,TimeFrame,i);


                  if(p_1<p_2)//UP
              {
                 if(DoubleLong)
                 Line3[i-b0]=iHigh(NULL,TimeFrame,i)*2-iLow(NULL,TimeFrame,i)+Vertical_Shift*Point;
                 else
                 Line3[i-b0]=iHigh(NULL,TimeFrame,i)+Vertical_Shift*Point;
                 Line4[i-b0]=iLow(NULL,TimeFrame,i)+Vertical_Shift*Point;

                 if(DoubleLong)
                  {
                    Line1[i-b0]=iClose(NULL,TimeFrame,i)*2-iLow(NULL,TimeFrame,i)+Vertical_Shift*Point;
                    Line2[i-b0]=iOpen(NULL,TimeFrame,i)*2-iLow(NULL,TimeFrame,i)+Vertical_Shift*Point;
                  }
                  else
                  {
                    Line1[i-b0]=iClose(NULL,TimeFrame,i)+Vertical_Shift*Point;
                    Line2[i-b0]=iOpen(NULL,TimeFrame,i)+Vertical_Shift*Point;
                  }

              }
              else
              {
                  if(p_1>p_2)
                     {
                        if(DoubleLong)
                           {
                              Line2[i-b0]=iOpen(NULL,TimeFrame,i)*2-iLow(NULL,TimeFrame,i)+Vertical_Shift*Point;
                              Line1[i-b0]=iClose(NULL,TimeFrame,i)*2-iLow(NULL,TimeFrame,i)+Vertical_Shift*Point;
                           }
                           else
                           {
                              Line2[i-b0]=iOpen(NULL,TimeFrame,i)+Vertical_Shift*Point;
                              Line1[i-b0]=iClose(NULL,TimeFrame,i)+Vertical_Shift*Point;
                           }
                     }
                     else
                   if(p_1==p_2)//dodge
                     {

                        if(DoubleLong)
                              {
                                 Line2[i-b0]=iOpen(NULL,TimeFrame,i)*2-iLow(NULL,TimeFrame,i)+(Vertical_Shift+0.01)*Point;
                                 Line1[i-b0]=iClose(NULL,TimeFrame,i)*2-iLow(NULL,TimeFrame,i)+Vertical_Shift*Point;
                              }
                              else
                              {
                                 Line2[i-b0]=iOpen(NULL,TimeFrame,i)+(Vertical_Shift+0.01)*Point;
                                 Line1[i-b0]=iClose(NULL,TimeFrame,i)+Vertical_Shift*Point;
                              }

                     }

                    if(DoubleLong)
                    Line4[i-b0]=iHigh(NULL,TimeFrame,i)*2-iLow(NULL,TimeFrame,i)+Vertical_Shift*Point;
                    else
                    Line4[i-b0]=iHigh(NULL,TimeFrame,i)+Vertical_Shift*Point;
                    Line3[i-b0]=iLow(NULL,TimeFrame,i)+Vertical_Shift*Point;
              }
           }
   }
 //----------------------
void Delete_My_Obj(string Prefix)
   {//Alert(ObjectsTotal());
   for(int k=ObjectsTotal()-1; k>=0; k--)  // Ïî êîëè÷åñòâó âñåõ îáúåêòîâ
     {
      string Obj_Name=ObjectName(k);   // Çàïðàøèâàåì èìÿ îáúåêòà
      string Head=StringSubstr(Obj_Name,0,StringLen(Prefix));// Èçâëåêàåì ïåðâûå ñèì

      if (Head==Prefix)// Íàéäåí îáúåêò, ..
         {
         ObjectDelete(Obj_Name);
         //Alert(Head+";"+Prefix);
         }

     }
   }
 //----------------------
string PeriodToStr(int Per)
   {
      switch(Per)                 // Ðàñ÷¸ò  äëÿ..
      {                              // .. ðàçëè÷íûõ ÒÔ
      case     1: return("M1"); break;// Òàéìôðåéì Ì1
      case     5: return("M5"); break;// Òàéìôðåéì Ì5
      case    15: return("M15"); break;// Òàéìôðåéì Ì15
      case    30: return("M30"); break;// Òàéìôðåéì Ì30
      case    60: return("H1"); break;// Òàéìôðåéì H1
      case   240: return("H4"); break;// Òàéìôðåéì H4
      case  1440: return("D1"); break;// Òàéìôðåéì D1
      case 10080: return("W1"); break;// Òàéìôðåéì W1
      case 43200: return("ÌN"); break;// Òàéìôðåéì ÌN
      }
   }
   //----------------------
int DrawText( string name, datetime T, double P, string Text, color Clr=Green, int Win=0, int Fsize=10)
   {
      if (name=="") name="Text_"+T;

      int Error=ObjectFind(name);// Çàïðîñ
   if (Error!=Win)// Åñëè îáúåêòà â óê. îêíå íåò :(
    {
      ObjectCreate(name, OBJ_TEXT, Win, T, P);
      }

      ObjectSet(name, OBJPROP_TIME1, T);
      ObjectSet(name, OBJPROP_PRICE1, P);
      ObjectSetText(name, Text ,Fsize,"Arial",Clr);
   }
 //----------------------
int DrawRect(string name, datetime T1, double P1, datetime T2, double P2, color Clr, int W=1, string Text="", bool BACK=false, int Win=0)
   {
     int Error=ObjectFind(name);// Çàïðîñ
   if (Error!=Win)// Åñëè îáúåêòà â óê. îêíå íåò :(
    {
      ObjectCreate(name, OBJ_RECTANGLE, Win,T1,P1,T2,P2);//ñîçäàíèå òðåíäîâîé ëèíèè
    }

    ObjectSet(name, OBJPROP_TIME1 ,T1);
    ObjectSet(name, OBJPROP_PRICE1,P1);
    ObjectSet(name, OBJPROP_TIME2 ,T2);
    ObjectSet(name, OBJPROP_PRICE2,P2);
    ObjectSet(name,OBJPROP_BACK, BACK);
    ObjectSet(name,OBJPROP_STYLE,0);
    ObjectSet(name, OBJPROP_COLOR , Clr);
    ObjectSet(name, OBJPROP_WIDTH , W);
    ObjectSetText(name,Text);
   // WindowRedraw();
   }

Comments
