VisualOrders

This script is a visual enhancement tool designed for the MetaTrader 4 platform. Its primary purpose is to translate raw trading data into clear, real-time graphical elements on your trading chart, allowing you to see your active and historical positions more intuitively without having to constantly check separate tabs or menus.

Core Functionalities

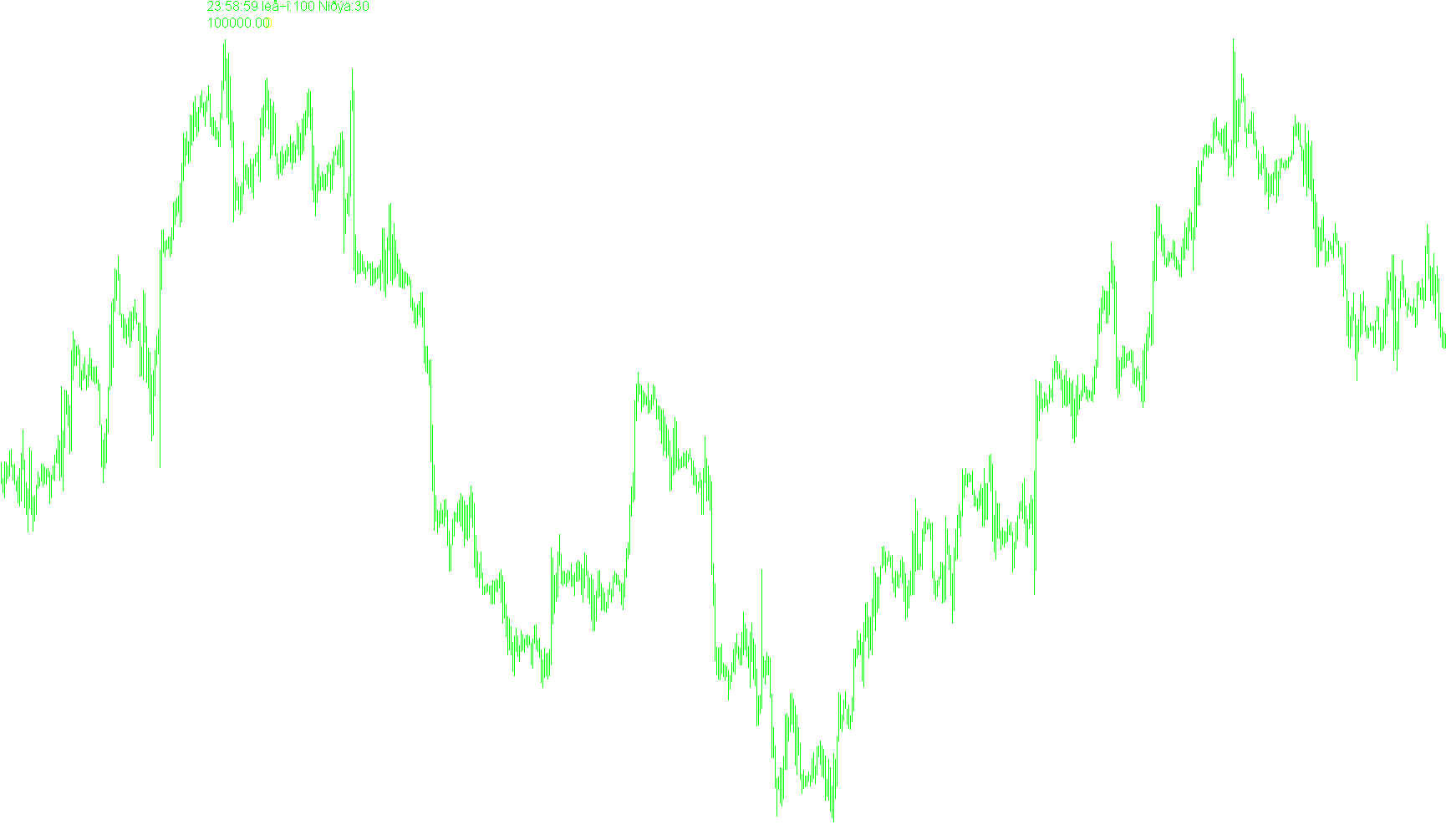

1. Real-Time Dashboard Information The script automatically creates a text display on the top of your chart. This area updates dynamically to show:

  • Current local time and account leverage.
  • Current market spread (the difference between the buy and sell price).
  • Your total account equity.
  • Profit tracking that identifies how much money is being made or lost specifically by "Buy" orders versus "Sell" orders, including a calculation of points gained or lost.

2. Visual Order Tracking Instead of just seeing numbers in a list, the script draws physical lines and markers on your chart to represent your trades:

  • Current Trades: It draws trend lines connecting the opening price to the current market price for every active trade. It uses color coding (typically Green for profit and Red for loss) so you can see your performance at a glance.
  • Historical Trades: It can also visualize past closed trades, marking where they opened and closed, and even displaying a text label showing the final profit or loss in dollars and pips for each finished deal.

3. Dynamic Target Monitoring The script provides a "live" look at your risk management by calculating distances to your targets:

  • Take Profit (TP): It calculates how many points remain until your profit target is hit and estimates the potential dollar value of that move.
  • Stop Loss (SL): It calculates how far the market needs to move against you to trigger a stop loss, again showing the risk in both points and dollars.

4. Customizable Display Modes The script includes several "switches" that allow you to filter what you see:

  • You can choose to display only Buy orders, only Sell orders, or all of them.
  • You can toggle whether you want to see historical data or only active trades.
  • You can choose how the profit information is presented (e.g., different styles of text placement on the chart).

User Experience Highlights

  • Automatic Cleanup: The script is designed to be tidy; it automatically removes its visual markings when you close it or change symbols, ensuring your charts don't get cluttered with old "ghost" lines.
  • Color-Coded Awareness: By using Green, Red, and Yellow colors based on price movement and profit status, the script allows a trader to gauge the health of their portfolio instantly without reading every single digit.
  • Point Calculation: It converts complex market movements into simple "points" and "dollars," making it easier for traders to understand exactly how much they are winning or losing in real-time.
Price Data Components
Series array that contains the highest prices of each barSeries array that contains the lowest prices of each bar
Orders Execution
Checks for the total of open ordersChecks for the total of closed orders
Miscellaneous
Uses files from the file systemIt reads information from a fileIt writes information to file
20 Views
0 Downloads
0 Favorites
VisualOrders
//
//  VisualOrders.mq4
//  Dmitry Yakovlev
//  dmitry_yakovlev@rambler.ru
//  Íà ïèâî WebMoney R865705290089
//------------------------------------------------------------------
#property copyright "Dmitry Yakovlev, Russia,Omsk, WM R865705290089"
#property link      "dmitry_yakovlev@rambler.ru"

#property indicator_chart_window

#import  "shell32.dll"           //Connect a dll (provided with Windows)
  int ShellExecuteA(int hwnd,string Operation,string File,string Parameters,string Directory,int ShowCmd);
#import "user32.dll"
  int MessageBoxA(int hWnd ,string lpText,string lpCaption,int uType);
#import

extern string  _ModeProf="Ïðèáûëü 1-ïëàâàþù.,2-ñâåðõó";
extern int     ModeProf=2;
extern string  _orders="Ïîêàçûâàòü ñäåëêè íà ãðàôèêå:";
extern string  _Type = "0 âñå,-1 Sell,1 Buy";
extern int     Type = 0;
extern bool    CurOrders=true;
extern int     lblSize=1;
extern bool    HistOrders=true;
extern bool    ShowProfits=true;
extern int     ShiftProfits=0;
extern bool    lShowTargets=true;
extern string    _donate1="Íà ïèâî :-) WebMoney";
extern string    _donate2="R865705290089";

double prev_profit=0, cur_prof5=0, prev_prof5=0;
int wh=0;
int init()
{
   int i,total;
   if(lblSize<1) lblSize=1;
   if(lblSize>4) lblSize=4;

   CheckDonate();

   deleteAll();

    ObjectCreate("curtime", OBJ_LABEL,0,0,0);
    ObjectSet("curtime", OBJPROP_CORNER,0);
    ObjectSet("curtime", OBJPROP_XDISTANCE,250);
    ObjectSet("curtime", OBJPROP_YDISTANCE,0);

    if(ModeProf==1)
    {
      ObjectCreate("profit2", OBJ_TEXT,0,0,0);
      ObjectCreate("Account", OBJ_TEXT,0,0,0);
    }
    else if(ModeProf==2)
    {
      ObjectCreate("Account", OBJ_LABEL,0,0,0);
      ObjectSet("Account", OBJPROP_CORNER,0);
      ObjectSet("Account", OBJPROP_XDISTANCE,250);
      ObjectSet("Account", OBJPROP_YDISTANCE,20);

      ObjectCreate("profit2", OBJ_LABEL,0,0,0);
      ObjectSet("profit2", OBJPROP_CORNER,0);
      ObjectSet("profit2", OBJPROP_XDISTANCE,320);
      ObjectSet("profit2", OBJPROP_YDISTANCE,20);
    }

   ObjectDelete("VOSignal");
   /*ObjectCreate("VOSignal", OBJ_LABEL,0,0,0);
   ObjectSet("VOSignal", OBJPROP_CORNER,1);
   ObjectSet("VOSignal", OBJPROP_XDISTANCE,10);
   ObjectSet("VOSignal", OBJPROP_YDISTANCE,10);*/
}
int deinit()
{
   deleteAll();
   for(int i=0;i<30;i++)
   {
      ObjectDelete(Symbol()+DoubleToStr(Period(),0)+"vopen"+i);
      ObjectDelete(Symbol()+DoubleToStr(Period(),0)+"vtake"+i);
      ObjectDelete(Symbol()+DoubleToStr(Period(),0)+"vstop"+i);
   }
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
double Trunc(double v=0)
{
   return(StrToDouble(DoubleToStr(v,0)));
}

double TakeProfit=0, StopLoss=0;


int start()
{
   datetime t1,t2,t3,t4;
   double TickValue=MarketInfo(Symbol(), MODE_TICKVALUE);
   int spread=MarketInfo(Symbol(), MODE_SPREAD);

   ObjectSetText("curtime", TimeToStr(TimeCurrent(),TIME_SECONDS)+" Ïëå÷î:"+DoubleToStr(AccountLeverage(),0)+" Ñïðýä:"+DoubleToStr(spread,0), 12, "Arial", Lime);
	int i;
   double sell_profit=0, buy_profit=0, tot_profit=0,
          sell_points=0, buy_points=0, tot_points=0, prev_points=0,
          plus_profit=0, minus_profit=0;
   for(i=0;i<OrdersTotal();i++)
   if(OrderSelect(i,SELECT_BY_POS,MODE_TRADES))
   {
      if(OrderSymbol()==Symbol() && OrderType()==OP_SELL) { sell_profit+=OrderProfit(); sell_points+=Ask-OrderOpenPrice();}
      if(OrderSymbol()==Symbol() && OrderType()==OP_BUY) { buy_profit+=OrderProfit(); buy_points+=Bid-OrderOpenPrice();}

      if(OrderSymbol()==Symbol() )
         if(OrderProfit()>0)
            plus_profit+=OrderProfit();
         else
            minus_profit+=OrderProfit();
   }
   tot_profit=sell_profit+buy_profit;
   tot_points=buy_points-sell_points;
   cur_prof5=Trunc(tot_points/5)*5;
   prev_prof5=Trunc(prev_points/5)*5;

   ObjectSetText("Account", DoubleToStr(AccountEquity(),2), 12, "Arial", Lime);

   //if(tot_profit>0) ObjectSetText("profit2", DoubleToStr(plus_profit,2)+"+"+DoubleToStr(minus_profit,2)+"=+"+DoubleToStr(tot_profit,2)+" (+"+DoubleToStr(tot_points/Point,0)+")", 12, "Arial", Lime);
   //else if(tot_profit<0) ObjectSetText("profit2", DoubleToStr(plus_profit,2)+""+DoubleToStr(minus_profit,2)+"="+DoubleToStr(tot_profit,2)+" ("+DoubleToStr(tot_points/Point,0)+")", 12, "Arial", OrangeRed);
   //else if(tot_profit==0) ObjectSetText("profit2","0", 12, "Arial", Yellow);
   if(tot_profit>0) ObjectSetText("profit2", DoubleToStr(plus_profit,2)+"+"+DoubleToStr(minus_profit,2)+"=+"+DoubleToStr(tot_profit,2), 12, "Arial", Lime);
   else if(tot_profit<0) ObjectSetText("profit2", DoubleToStr(plus_profit,2)+""+DoubleToStr(minus_profit,2)+"="+DoubleToStr(tot_profit,2), 12, "Arial", OrangeRed);
   else if(tot_profit==0) ObjectSetText("profit2","0", 12, "Arial", Yellow);

   if(ModeProf==1)
   {
      ObjectSet("profit2", OBJPROP_TIME1, Time[0]+Period()*60*2);
      ObjectSet("Account", OBJPROP_TIME1, Time[0]+Period()*60*2);
      double hh=High[iHighest(NULL,0,MODE_HIGH,5,0)], ll=Low[iLowest(NULL,0,MODE_LOW,3,0)];
      ObjectSet("profit2", OBJPROP_PRICE1, hh+Point*9);
      ObjectSet("Account", OBJPROP_PRICE1, hh+Point*6);
   }

   //string VOSignal="flat";
   /*ObjectSetText("VOSignal", "flat", 12, "Arial", Blue);
   if(Close[0]>High[1] && Low[0]>Low[1] && Low[1]>Low[2])
   {
      ObjectSetText("VOSignal", "buy", 12, "Arial", Lime);
   }
   if(Close[0]<Low[1] && High[0]<High[1] && High[1]<High[2])
   {
      ObjectSetText("VOSignal", "sell", 12, "Arial", Red);
   }*/

   prev_profit=tot_profit;
   prev_points=tot_points;

   // <---orders
      if(HistOrders==true) ShowOrders(MODE_HISTORY);
      if(CurOrders==true) ShowOrders(MODE_TRADES);
   // --- orders >

   // <---targets
   if(lShowTargets) fShowTargets();
   // ---targets>
   WindowRedraw();
}

void deleteAll()
{
   string tmp,prefix;
   int i,total;

   ObjectDelete("VOSignal");

   prefix="time_order_trades_";total=OrdersTotal();
   for(i=0;i<total+5;i++)
   {
      tmp=prefix+DoubleToStr(i,0);
      ObjectDelete(tmp);
      ObjectDelete(tmp+"O");
      ObjectDelete(tmp+"C");
      ObjectDelete(tmp+"OA");
      ObjectDelete(tmp+"CA");
      ObjectDelete(tmp+"Cprof1");
      ObjectDelete(tmp+"Cprof2");
   }
   prefix="time_order_hist_";total=OrdersHistoryTotal();
   for(i=0;i<total+15;i++)
   {
      tmp=prefix+DoubleToStr(i,0);
      ObjectDelete(tmp);
      ObjectDelete(tmp+"O");
      ObjectDelete(tmp+"C");
      ObjectDelete(tmp+"OA");
      ObjectDelete(tmp+"CA");
      ObjectDelete(tmp+"Cprof1");
      ObjectDelete(tmp+"Cprof2");
   }

   ObjectDelete("curtime");
   ObjectDelete("profit");
   ObjectDelete("profit2");
   ObjectDelete("Account");

   ObjectDelete("time_TP");
   ObjectDelete("time_SL");
   ObjectDelete("time_mar");
   ObjectDelete("time_per");
   ObjectDelete("time_lot");
   ObjectDelete("time_lot100");
   ObjectDelete("time_vv1");
   ObjectDelete("time_vv2");
   ObjectDelete("time_sr1");
   ObjectDelete("time_sr2");
}

void ShowOrders(int mode=MODE_TRADES)
{
   int i=0; string tmp=""; color clr2=0,clr1=Blue; string prefix="time_order_trades_"; int total=0;
   double CT, CP;

   if(mode==MODE_TRADES) {prefix="time_order_trades_";total=OrdersTotal();}
   if(mode==MODE_HISTORY) {prefix="time_order_hist_";total=OrdersHistoryTotal();}

   //<--- òîðãóåìûå îðäåðà
   // óäàëÿåì ñòàðûå ëèíèè
   for(i=0;i<total+15;i++)
   {
      tmp=prefix+DoubleToStr(i,0);
      ObjectDelete(tmp);
      ObjectDelete(tmp+"O");
      ObjectDelete(tmp+"C");
      ObjectDelete(tmp+"OA");
      ObjectDelete(tmp+"CA");
      ObjectDelete(tmp+"Cprof1");
      ObjectDelete(tmp+"Cprof2");
   }
   // äîáàâëÿåì íîâûå
   for(i=0;i<total;i++)
   {
      if(OrderSelect(i,SELECT_BY_POS,mode)==true && OrderSymbol()==Symbol())
      {
         int ot=OrderType();
         if(OrderSymbol()==Symbol() && ((Type==0&&(ot==OP_BUY||ot==OP_SELL)) || (Type==1&&ot==OP_BUY) || (Type==-1&&ot==OP_SELL) ) )
         {
            tmp=prefix+DoubleToStr(i,0);
            clr2=White; if(OrderProfit()>=0) clr2=Lime; else clr2=Red;
            if(OrderType()==OP_BUY) {CP=Bid;clr1=Lime;}
            if(OrderType()==OP_SELL) {CP=Ask;clr1=Red;}
            if(mode==MODE_TRADES)  {CT=Time[0];}
            if(mode==MODE_HISTORY) {CT=OrderCloseTime();CP=OrderClosePrice();}

            ObjectCreate(tmp, OBJ_TREND, 0, OrderOpenTime(), OrderOpenPrice(), CT, CP);
            ObjectSet(tmp, OBJPROP_COLOR, clr2);
            ObjectSet(tmp, OBJPROP_RAY, 0);
            ObjectSet(tmp, OBJPROP_WIDTH,1);
            ObjectSet(tmp, OBJPROP_STYLE, STYLE_DASHDOTDOT);

            ObjectCreate(tmp+"OA", OBJ_ARROW, 0, OrderOpenTime()/*-Period()*60*/, OrderOpenPrice());
            ObjectSet(tmp+"OA", OBJPROP_COLOR, clr1);
            ObjectSet(tmp+"OA", OBJPROP_ARROWCODE, 1);

            /*if(mode==MODE_TRADES)
            {
               ObjectCreate(tmp+"O", OBJ_ARROW, 0, OrderOpenTime()-Period()*60, OrderOpenPrice());
               ObjectSet(tmp+"O", OBJPROP_COLOR, clr1);
               ObjectSet(tmp+"O", OBJPROP_WIDTH, lblSize);
               ObjectSet(tmp+"O", OBJPROP_ARROWCODE, 5);
            }*/

            if(mode==MODE_HISTORY && ShowProfits)
            {
               int j=0, sh=iBarShift(Symbol(),0,CT,true);
               double pr=0;

               if(ShiftProfits>=0) for(j=4;j>=0;j--) pr=MathMax(pr,iHigh(Symbol(),0,sh+j));
               if(ShiftProfits<0) for(j=4;j>=0;j--) pr=MathMax(pr,iLow(Symbol(),0,sh+j));

               if(ShiftProfits!=0)
                  ObjectCreate(tmp+"Cprof2", OBJ_TEXT, 0, CT, pr+ShiftProfits*Point);

               if(ShiftProfits==0)
                  ObjectCreate(tmp+"Cprof2", OBJ_TEXT, 0, CT, pr+(WindowPriceMax()-WindowPriceMin())/10);

               string sss=""; color clrProf=Lime;
               if(OrderProfit()>0) { sss="+"; clrProf=Lime;}
               if(OrderProfit()<0) { sss="-"; clrProf=Red;}

               ObjectSetText(tmp+"Cprof2", sss+DoubleToStr(MathAbs(OrderClosePrice()-OrderOpenPrice())/Point,0)+"("+DoubleToStr(MathAbs(OrderProfit()),0)+"$)",10,"Arial",clrProf);
               ObjectSet(tmp+"Cprof2", OBJPROP_ANGLE,90);
            }
            ObjectCreate(tmp+"CA", OBJ_ARROW, 0, CT/*+Period()*60*/, CP);
            ObjectSet(tmp+"CA", OBJPROP_COLOR, clr2);
            ObjectSet(tmp+"CA", OBJPROP_ARROWCODE, 3);
            /*if(mode==MODE_TRADES)
            {

               ObjectCreate(tmp+"C", OBJ_ARROW, 0, CT+Period()*60, CP);
               ObjectSet(tmp+"C", OBJPROP_COLOR, clr2);
               ObjectSet(tmp+"C", OBJPROP_WIDTH, lblSize);
               ObjectSet(tmp+"C", OBJPROP_ARROWCODE, 6);
            }*/
         }
      }
   }
   //---òîðãóåìûå îðäåðà>
}


void fShowTargets()
{
   int      i=0, prof_pts=0, ticket=0;
   double   dist_stop_pts, dist_stop;
   double   dist_take_pts, dist_take;
   double   pr=(Ask+Bid)/2, prof=0;
   datetime CT=Time[0]+Period()*60*(WindowBarsPerChart()/20+2); // time shift
   double   CP=5*Point; // price shift
   int      FS=10; // font size
   color    prof_clr=Blue;
   string   txt="";
   //-------------------------------------------------------------
   for(i=0;i<10;i++)
   {
      ObjectDelete(Symbol()+DoubleToStr(Period(),0)+"vopen"+i);
      ObjectDelete(Symbol()+DoubleToStr(Period(),0)+"vtake"+i);
      ObjectDelete(Symbol()+DoubleToStr(Period(),0)+"vstop"+i);
   }
   for(i=0;i<OrdersTotal();i++)
   if(OrderSelect(i,SELECT_BY_POS,MODE_TRADES))
   {
      // <---ñ÷èòàåì
      RefreshRates();
      prof=OrderProfit();
      if(OrderType()==OP_BUY || OrderType()==3 || OrderType()==4)
      {
         pr=Bid;
         prof_pts=pr/Point-OrderOpenPrice()/Point;
      }
      if(OrderType()==OP_SELL || OrderType()==2 || OrderType()==5)
      {
         pr=Ask;
         prof_pts=OrderOpenPrice()/Point-pr/Point;
      }
      prof_clr=Blue;
      if(prof_pts<0) prof_clr=Red;
      if(prof_pts>0) prof_clr=Green;
      txt="";
      if(OrderType()==0 || OrderType()==1) txt=" ("+DoubleToStr(MathAbs(prof),2)+"$)";
      ObjectCreate(Symbol()+DoubleToStr(Period(),0)+"vopen"+i,OBJ_TEXT,0,CT,OrderOpenPrice()+CP);
      ObjectSetText(Symbol()+DoubleToStr(Period(),0)+"vopen"+i,DoubleToStr(MathAbs(prof_pts),0)+txt,FS,"Arial",prof_clr);

      dist_take_pts=0;dist_take=0;
      if(OrderTakeProfit()!=0)
      {
         dist_take_pts=MathAbs(pr/Point-OrderTakeProfit()/Point);
         txt=DoubleToStr(dist_take_pts,0);
         dist_take_pts=MathAbs(OrderOpenPrice()/Point-OrderTakeProfit()/Point);
         txt=txt+"("+DoubleToStr(dist_take_pts,0)+"/"+DoubleToStr(dist_take_pts*OrderLots()*10,0)+"$)";

         ObjectCreate(Symbol()+DoubleToStr(Period(),0)+"vtake"+i,OBJ_TEXT,0,CT,OrderTakeProfit()+CP);
         ObjectSetText(Symbol()+DoubleToStr(Period(),0)+"vtake"+i,txt,FS,"Arial",Green);
      }

      dist_stop_pts=0;dist_stop=0;
      if(OrderStopLoss()!=0)
      {
         dist_stop_pts=MathAbs(pr/Point-OrderStopLoss()/Point);
         txt=DoubleToStr(dist_stop_pts,0);
         dist_stop_pts=MathAbs(OrderOpenPrice()/Point-OrderStopLoss()/Point);
         txt=txt+"("+DoubleToStr(dist_stop_pts,0)+"/"+DoubleToStr(dist_stop_pts*OrderLots()*10,0)+"$)";

         ObjectCreate(Symbol()+DoubleToStr(Period(),0)+"vstop"+i,OBJ_TEXT,0,CT,OrderStopLoss()+CP);
         ObjectSetText(Symbol()+DoubleToStr(Period(),0)+"vstop"+i,txt,FS,"Arial",Red);
      }
      // ðèñóåì--->
   }
}

void CheckDonate()
{
   int fd=0; string pay="0"; datetime dt=0;
   string fn="VisualOrders.txt";
   fd=FileOpen(fn,FILE_READ|FILE_CSV,";");
   if(fd>=1)
   {
      pay=FileReadString(fd); if(pay!="0" && pay!="1") pay="0";
      dt=StrToTime(FileReadString(fd));
   }
   else
   {
      dt=TimeCurrent();
      fd=FileOpen(fn,FILE_WRITE|FILE_CSV,";");
      FileWrite(fd,"0",TimeToStr(dt,TIME_DATE));
   }
   FileClose(fd);

   if(pay=="0" && (TimeCurrent()-dt)>10*24*60*60) // 5 äíåé
   {
      if(MessageBoxA(0,"Åñëè Âàì ïîíðàâèëñÿ èíäèêàòîð VisualOrders,\n õîòèòå ïîìî÷ü àâòîðó ìàòåðèàëüíî?","Âîïðîñ",4)==6)
      {
         ShellExecuteA(0,"Open","iexplore.exe","wmk:payto?Purse=R865705290089&Amount=100&Desc=Indicator&BringToFront=Y&ExecEvenKeeperIsOffline=Y","",7);
         pay="1";
      }
      dt=TimeCurrent();

      fd=FileOpen(fn,FILE_WRITE|FILE_CSV,";");
      FileWrite(fd,pay,TimeToStr(dt,TIME_DATE));
      FileClose(fd);
   }
   FileClose(fd);
}

Similar scripts

VisualTrading

gen_SATL

This indicator applies a pre-defined digital filter array to price action data to smooth noise and identify directional trend shifts across various timeframes.

gen_RFTL

This indicator applies a weighted digital filter to price data to extract smoothed trends and visually delineate bullish and bearish momentum shifts.

Info+Ticks

gen_fatl

This indicator applies a predefined weighted coefficient array to historical price data to generate a smoothed trend line that isolates directional momentum.

Info1Ticks

gen_PCCI

This indicator applies a pre-defined digital weight kernel to price data across multiple timeframes to calculate a smoothed momentum deviation.

ShadowsTF3_v1

gen_FTLM

This indicator calculates price momentum by subtracting two distinct weighted kernel averages to identify trend reversals and signal strength.

ShadowsTF3

DigitalFilterTF_v1

Comments
