VininI_Cyber_Cycle_V2_My4[1]
Download scriptThis tool is designed to analyze price movements by identifying underlying cycles and normalizing them into a readable visual format. Instead of simply looking at raw price action, the script processes market data through several layers of mathematical refinement to highlight trends and potential turning points.
Data Smoothing
The first step the script takes is "smoothing" the price data. It calculates a moving average based on a weighted combination of the current and previous bars. By giving more importance to certain recent prices, it filters out minor market noise, creating a cleaner foundation for further analysis.
Cycle Calculation
Once the price is smoothed, the logic applies a complex calculation to determine the "Cycle." This part of the process looks at how the smoothed data fluctuates over time. It uses specific coefficients (parameters) to weigh current data against past data, allowing the script to detect the rhythm or momentum of the market.
Normalization and Scaling
To make the information easy for a human to interpret, the script performs a "normalization" process. Because raw market prices can vary wildly, the script:
- Identifies the highest and lowest points of the cycle within a specific lookback window (e.g., the last 1,000 bars).
- Rescales those extreme values into a standardized range.
- Maps this data onto a specific target scale, ensuring that the indicator remains consistent regardless of whether the asset is very expensive or very cheap.
Signal Conversion and Visuals

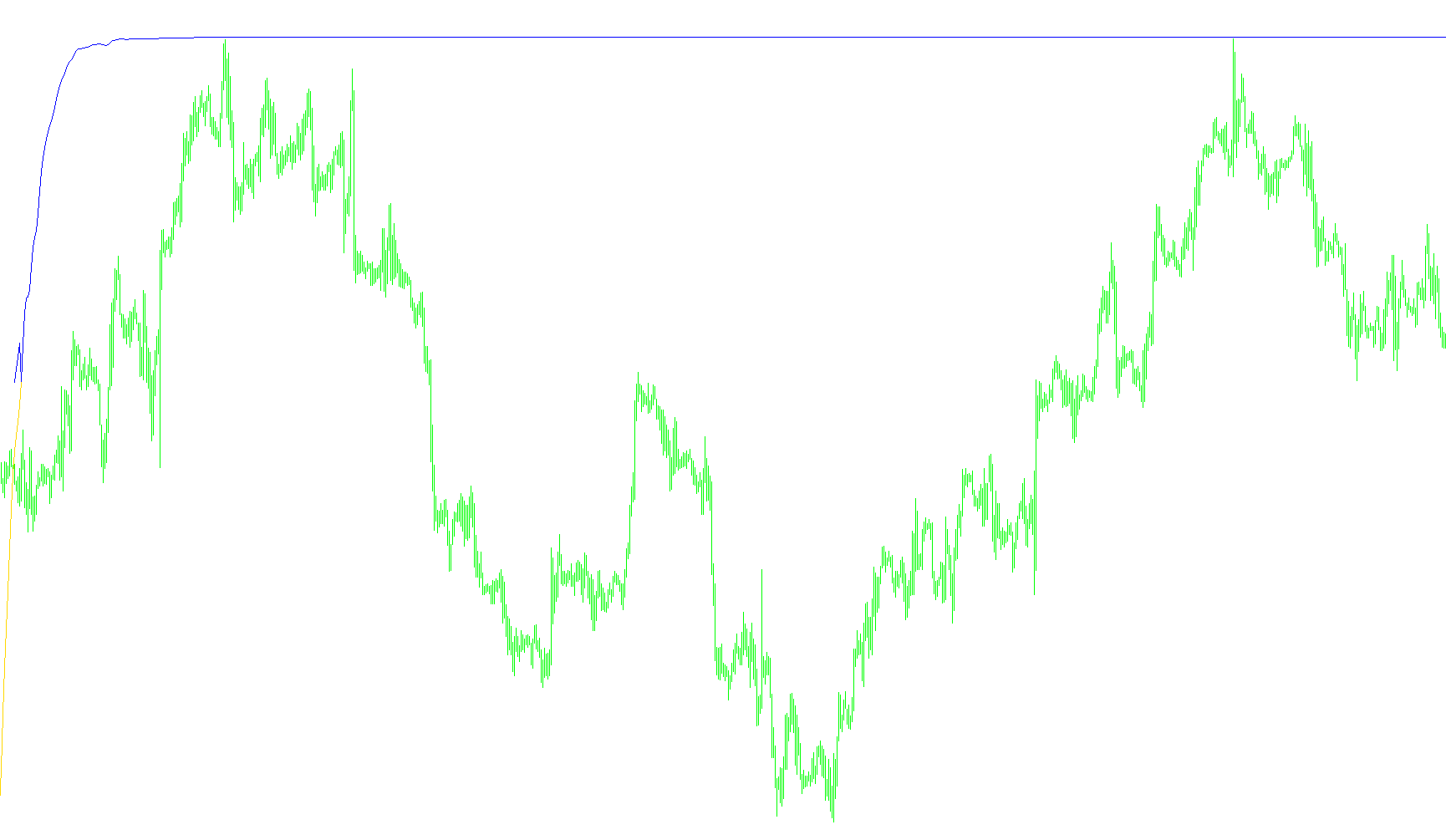

Finally, the script converts the normalized cycle into a "Sigmoid" style curve. This produces a smooth, S-shaped output that clearly defines different market states:
- Buy Signals: When the indicator moves significantly toward the upper threshold (+0.5), it identifies areas of positive momentum.
- Sell Signals: When the indicator moves toward the lower threshold (-0.5), it highlights areas of negative momentum.
By using this multi-step approach—smoothing, cycle detection, normalization, and finally curve conversion—the tool provides a visual representation of market momentum that is stripped of distracting volatility.
//+------------------------------------------------------------------+
//| VininI_Cyber |
//| Copyright © 2009, Victor Nicolaev |
//| e-mail: vinin@mail.ru |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2008, Victor Nicolaev"
#property link "e-mail: vinin@mail.ru"
#property indicator_separate_window
#property indicator_buffers 3
#property indicator_color1 Yellow
#property indicator_color2 Green
#property indicator_color3 Red
#property indicator_level1 -0.5
#property indicator_level2 0
#property indicator_level3 0.5
#property indicator_minimum -1.05
#property indicator_maximum 1.05
//---- input parameters
extern double alpha=0.01;
extern double betta=1.0;
extern int price_mode=4;
extern double NormalizeTarget=7.5; // èíòåðâàë [-NormalizeTarget,+NormalizeTarget]
// íà êîòîðûé íîðìèðóåòñÿ çíà÷åíèå èíäèêàòîðà
extern int BarInWindow=1000; // øèðèíà îêíà äëÿ íîðìèðîâêè â áàðàõ
extern bool prn=false; // âêëþ÷èò ïå÷àòü â æóðíàë
//---- buffers
double Cycle[];
double Smonth[];
double iCycle[];
double Buy[];
double Sell[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init() {
IndicatorBuffers(5);
SetIndexBuffer(0, iCycle);
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(1, Buy);
SetIndexStyle(1,DRAW_LINE);
SetIndexBuffer(2, Sell);
SetIndexStyle(2,DRAW_LINE);
SetIndexBuffer(3, Smonth);
SetIndexBuffer(4, Cycle);
IndicatorShortName("VininI_Cyber_Cycle_Norm_Sym");
return(0);
}
int deinit() { return(0); }
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start() {
//---------çàäàåòñÿ øèðèíà îêíà ïî óìîë÷àíèþ 1000
if( BarInWindow <= 0 )BarInWindow=1000;
int counted_bars = IndicatorCounted();
if (counted_bars < 0) return(-1);
if (counted_bars > 0) counted_bars--;
int limit=Bars - counted_bars;
for(int i = limit; i >= 0; i--) {
Smonth[i]=(Price(i)+2.0*Price(i+1)+2.0*Price(i+2)+Price(i+3))/6.0;
}
for(i = limit; i >= 0; i--)
{
//===!!!===Çäåñü ìîæíî âñòàâèòü âû÷èñëåíèå ëþáîãî èíäèêàòîðà, åñëè óäàëüèòü ïðåäûäóùèé öèêë
Cycle[i]=betta*((1.0-0.5*alpha)*(1.0-0.5*alpha)*(Smonth[i]-2.0*Smonth[i+1]+Smonth[i+2])+2.0*(1.0-alpha)*Cycle[i+1]-(1.0-alpha)*(1.0-alpha)*Cycle[i+2]);
//------êîíòðîëüíàÿ ïå÷àòü
if( prn && i<2 )Print("j=",i," cycle ",Cycle[i]);
}
//------- Âû÷èñë. äèàïàçîí èçìåíåíèé èíäèêàòîðà â îêíå áàð [1,BarInWindow]
int iMax = ArrayMaximum(Cycle,BarInWindow,0);double Max=Cycle[iMax];
int iMin = ArrayMinimum(Cycle,BarInWindow,0);double Min=Cycle[iMin];
//--------Êîíòðîëüíàÿ ïå÷àòü
if( prn)Print( "Min ",Min," Max ",Max);
//------ïðîâåðêà äåëåíèÿ íà íîëü
if( Max == Min ) bool NoZerodevide = false; else NoZerodevide = true;
for(i = limit; i >= 0; i--) {
//-------ïðåîáðàçîâàíèå [Min,Max] -> [0,1] y=(x-a)/(b-a)
if( NoZerodevide )double NCycle2 = (Cycle[i]-Min)/(Max-Min);
//--------êîíòðîëüíàÿ ïå÷àòü
if(prn && i<2 ) Print("i=",i,"[a,b]-> [0,1] ",Cycle[i]," ",NCycle2);
//-------ïðåîáðàçîâàíèå [0,1] -> [-NormalizeTarget,+NormalizeTarget] y = (b-a)x+a;
double NCycle = 2*NormalizeTarget*NCycle2-NormalizeTarget;
//--------êîíòðîëüíàÿ ïå÷àòü
if(prn && i< 2 ) Print("i=",i,"[0,1]-> [-N,N] ",NCycle2," ",NCycle);
//---------îáð. ïðåîáð.Ôèøåðà
iCycle[i]=(MathExp(2.0*NCycle)-1.0)/(MathExp(2.0*NCycle)+1.0);
//--------êîíòðîëüíàÿ ïå÷àòü
if(prn && i< 2 ) Print("i=",i," [-N,N]->Ôèøåð ",NCycle," ",iCycle[i]);
if (iCycle[i]>= 0.5) {Buy[i]=iCycle[i];Buy[i+1]=iCycle[i+1];}
if (iCycle[i]<=-0.5) {Sell[i]=iCycle[i];Sell[i+1]=iCycle[i+1];}
}
return(0);
}
//+------------------------------------------------------------------+
double Price(int pos){
switch (price_mode){
case PRICE_CLOSE: return(Close[pos]);
case PRICE_OPEN: return(Open[pos]);
case PRICE_HIGH: return(High[pos]);
case PRICE_LOW: return(Low[pos]);
case PRICE_MEDIAN: return((High[pos]+Low[pos])/2.0);
case PRICE_TYPICAL: return((High[pos]+Low[pos]+Close[pos])/3.0);
case PRICE_WEIGHTED: return((High[pos]+Low[pos]+Close[pos]+Close[pos])/4.0);
}
}
