valasholic13 BreakOutch
Download scriptThis technical indicator is designed to automate the identification of key market levels, specifically focusing on Pivot Points, Breakout Zones, and Target Levels. It serves as a visual roadmap for traders to identify potential entry points (Buy/Sell areas) and exit targets based on historical price action.
Core Logic & Mechanics
1. Data Tracking The script constantly monitors the "High" and "Low" price points of the market. It specifically tracks the highest peak and lowest valley reached during a preceding period to establish a baseline for the current trading session.
2. Daily Pivot Calculation Every time the day changes, the script performs a calculation to find the "Pivot Point." This is essentially the equilibrium price of the previous period. It determines this by taking the average of the previous High, the previous Low, and the closing price.
3. Dynamic Zone Creation Once the Pivot Point is established, the script automatically generates several horizontal levels:
- Primary Zones (Buy/Sell Areas): These are calculated as small offsets from the Pivot Point. They represent immediate areas of interest where price might react or break out.
- Breakout Levels: These are wider offsets that represent "Break High" and "Break Low" markers. They signal significant structural shifts in the market.
- Target Levels: The script calculates further distant levels to act as "Targets," helping traders visualize where a move might potentially conclude after a breakout.

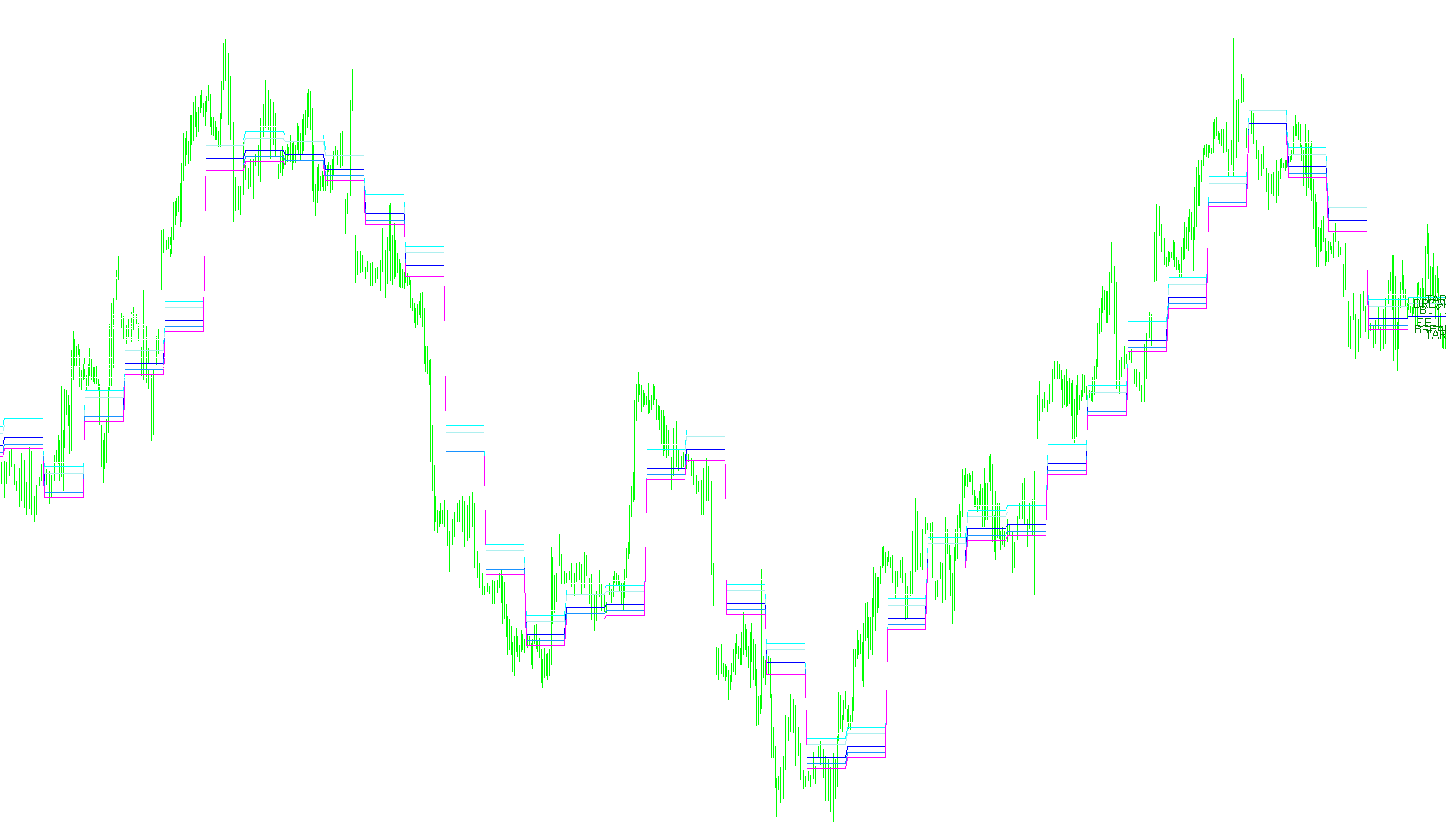

4. Visual Representation & User Guidance The script is designed to be highly communicative. It performs three main visual tasks:
- Dynamic Drawing: It draws and moves horizontal lines on the chart in real-time as new price data arrives.
- On-Screen Labeling: It places text labels directly on the chart (e.g., "BUY AREA," "BREAK LOW," "TARGET") so the user knows exactly what each line represents without having to guess.
- Information Dashboard: The script generates a comprehensive text commentary on the screen. This dashboard provides specific instructions for different market scenarios, such as:
- Breakout Strategies: Suggesting exact prices for "Buy Stop" or "Sell Stop" orders along with corresponding Take Profit (TP) and Stop Loss (SL) levels.
- Correction Strategies: Providing guidance on how to trade if the price retreats (corrects) after an initial move.
Summary for the User
In simple terms, this tool looks at yesterday's price extremes to draw a "map" for today. It tells you where the middle ground is (Pivot), where the strong resistance/support lies (Breakout levels), and provides specific instructions on where to enter and exit trades based on how the price interacts with those lines.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| valasholic13 v2.5.mq4 |
//| Copyright © 2006, CT-Valas Software Corp. |
//| valasholic@yahoo.com |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, CT-Valas Software Corp."
#property link "valasholic@yahoo.com"
#property indicator_chart_window
//#property indicator_separate_window
#property indicator_buffers 7
#property indicator_color1 Snow
#property indicator_width1 0
#property indicator_color2 Red
#property indicator_width2 5
#property indicator_color3 Blue
#property indicator_width3 5
#property indicator_color4 Pink
#property indicator_width4 5
#property indicator_color5 LightBlue
#property indicator_width5 5
#property indicator_color6 Lime
#property indicator_width6 5
#property indicator_color7 Lime
#property indicator_width7 5
//---- input parameters
//---- buffers
double PBuffer[];
double J1Buffer[];
double B1Buffer[];
double J2Buffer[];
double B2Buffer[];
double J3Buffer[];
double B3Buffer[];
string Pivot = "Pivot Point", Jual1 = "S 1", Beli1 = "R 1";
string Jual2="S 2", Beli2="R 2", Jual3="S 3", Beli3="R 3";
int fontsize = 10;
double P, J1, B1, J2, B2, J3, B3;
double LastHigh, LastLow, x;
double D4=0.55;
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function |
//+------------------------------------------------------------------+
int deinit()
{
// ObjectDelete("Pivot");
ObjectDelete("Jual1");
ObjectDelete("Beli1");
ObjectDelete("Jual2");
ObjectDelete("Beli2");
ObjectDelete("Jual3");
ObjectDelete("Beli3");
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- indicator line
SetIndexStyle(0, DRAW_NONE);
SetIndexStyle(1, DRAW_LINE);
SetIndexStyle(2, DRAW_LINE);
SetIndexStyle(3, DRAW_LINE);
SetIndexStyle(4, DRAW_LINE);
SetIndexStyle(5, DRAW_LINE);
SetIndexStyle(6, DRAW_LINE);
SetIndexBuffer(0, PBuffer);
SetIndexBuffer(1, J1Buffer);
SetIndexBuffer(2, B1Buffer);
SetIndexBuffer(3, J2Buffer);
SetIndexBuffer(4, B2Buffer);
SetIndexBuffer(5, J3Buffer);
SetIndexBuffer(6, B3Buffer);
//---- name for DataWindow and indicator subwindow label
//IndicatorShortName("Pivot Point");
//SetIndexLabel(0, "Pivot Point");
//----
SetIndexDrawBegin(0,1);
IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int start()
{
int counted_bars = IndicatorCounted();
int limit, i;
Print(DoubleToStr(Close[i], Digits));
Print(DoubleToStr(Close[0], Digits));
Print(DoubleToStr(Close[0], Digits));
//---- indicator calculation
if(counted_bars == 0)
{
x = Period();
if(x > 240)
return(-1);
/////////// MEMBUAT TULISAN PADA GARIS JUAL / BELI \\\\\\\\\\\\\
//ObjectCreate("Pivot", OBJ_TEXT, 0, 0, 0);
//ObjectSetText("Pivot", " PIVOT", fontsize, "Arial", Black);
ObjectCreate("Jual1", OBJ_TEXT, 0, 0, 0);
ObjectSetText("Jual1", " SELL AREA", fontsize, "Arial", Green);
ObjectCreate("Beli1", OBJ_TEXT, 0, 0, 0);
ObjectSetText("Beli1", " BUY AREA", fontsize, "Arial", Green);
ObjectCreate("Jual2", OBJ_TEXT, 0, 0, 0);
ObjectSetText("Jual2", " BREAK LOW", fontsize, "Arial", Green);
ObjectCreate("Beli2", OBJ_TEXT, 0, 0, 0);
ObjectSetText("Beli2", " BREAK HIGH", fontsize, "Arial", Green);
ObjectCreate("Jual3", OBJ_TEXT, 0, 0, 0);
ObjectSetText("Jual3", " TARGET", fontsize, "Arial", Green);
ObjectCreate("Beli3", OBJ_TEXT, 0, 0, 0);
ObjectSetText("Beli3", " TARGET", fontsize, "Arial", Green);
}
if(counted_bars < 0)
return(-1);
//---- last counted bar will be recounted
// if(counted_bars>0) counted_bars--;
limit = (Bars - counted_bars) - 1;
//----
for(i = limit; i >= 0; i--)
{
if(High[i+1] > LastHigh)
LastHigh = High[i+1];
//----
if(Low[i+1] < LastLow)
LastLow=Low[i+1];
if(TimeDay(Time[i]) != TimeDay(Time[i+1]))
{
Print(DoubleToStr(Close[i], Digits));
Print(DoubleToStr(High[0], Digits));
Print(DoubleToStr(Low[0], Digits));
//////////// RUMUS UNTUK MENENTUKAN BREAK \\\\\\\\\\\\\\\\\\\\\
P = (LastHigh + LastLow + Close[i+1]) / 3; // RUMUS UTK MENENTUKAN PIVOT
B1 = P + 20*Point; // PENENTUAN MASUK BUY AREA (BOLEH DIGANTI SESUAI ANALISA ANDA)
J1 = P - 20*Point; // PENENTUAN MASUK SELL AREA (BOLEH DIGANTI SESUAI ANALISA ANDA)
B2 = P + 40*Point; // PENENTUAN NILAI BREAK HIGH (BOLEH DIGANTI SESUAI ANALISA ANDA)
J2 = P - 40*Point; // PENENTUAN NIAI BREAK LOW (BOLEH DIGANTI SESUAI ANALISA ANDA)
B3 = P + 55*Point; // GARIS TARGET HIGH (BOLEH DIGANTI SESUAI ANALISA ANDA)
J3 = P - 55*Point; // GARIS TARGET LOW (BOLEH DIGANTI SESUAI ANALISA ANDA)
//Re2 = P + (LastHigh - LastLow); //ini adalah rumus dari Resistance 2
//Su2 = P - (LastHigh - LastLow); // ini adalah rumus dari Support 2
//Re3 = (2*P) + (LastHigh - (2*LastLow)); // ini adalah rumus dari resistance 3
//Su3 = (2*P) - ((2* LastHigh) - LastLow); //ni adalah rumus dari Support 3
LastLow = Open[i];
LastHigh = Open[i];
//----
//ObjectMove("Pivot", 0, Time[i], P);
ObjectMove("Jual1", 0, Time[i], J1);
ObjectMove("Beli1", 0, Time[i], B1);
ObjectMove("Jual2", 0, Time[i], J2);
ObjectMove("Beli2", 0, Time[i], B2);
ObjectMove("Jual3", 0, Time[i], J3);
ObjectMove("Beli3", 0, Time[i], B3);
}
PBuffer[i] = P;
J1Buffer[i] = J1;
B1Buffer[i] = B1;
J2Buffer[i] = J2;
B2Buffer[i] = B2;
J3Buffer[i] = J3;
B3Buffer[i] = B3;
Comment ("\n VALASHOLIC13 v2.5 ( BREAKOUT STRATEGY ) \n Registered to: Latihan Bikin \n"
+"\n Copyright © 2006,CT-Valas Software Corp.\n contact support:valasholic@yahoo.com"
+"\n \n -------------------------------------------------------------------"
+"\n :::::::::::: SAAT DIANTARA 2 BREAK ::::::::::::"
+"\n -------------------------------------------------------------------"
+"\n BUY AREA (break) :"
+"\n # BUY STOP1 "+Symbol()+" pada "+(DoubleToStr (B1Buffer[i],Digits))
+"\n dengan TP "+(DoubleToStr (B2Buffer[i],Digits))+" dan SL pada "+(DoubleToStr(J1Buffer[i],Digits))
+"\n # BUY STOP2 "+Symbol()+" pada "+(DoubleToStr(B2Buffer[i],Digits))
+"\n dengan TP "+(DoubleToStr ((B2Buffer[i]+(10*Point)),Digits))+" dan SL pada "+(DoubleToStr (B1Buffer[i],Digits))
+"\n \n SELL AREA (break) :"
+"\n # SELL STOP "+Symbol()+" pada "+(DoubleToStr (J1Buffer[i],Digits))
+"\n dengan TP "+(DoubleToStr (J2Buffer[i],Digits))+" dan SL pada "+(DoubleToStr (B1Buffer[i],Digits))
+"\n # SELL STOP "+Symbol()+" pada "+(DoubleToStr (J2Buffer[i],Digits))
+"\n dengan TP "+(DoubleToStr ((J2Buffer[i]-(10*Point)),Digits))+" dan SL pada "+(DoubleToStr(J1Buffer[i],Digits))
+"\n \n -------------------------------------------------------------------"
+"\n :::::::::::: SAAT MELEWATI KOREKSI ::::::::::::"
+"\n -------------------------------------------------------------------"
+"\n KOREKSI BAWAH :"
+"\n # BUY STOP "+Symbol()+" pada "+(DoubleToStr(J2Buffer[i],Digits))
+"\n dengan TP "+(DoubleToStr(B1Buffer[i],Digits))+" dan SL pada "+(DoubleToStr(J3Buffer[i],Digits))
+"\n \n KOREKSI ATAS :"
+"\n # SELL STOP "+Symbol()+" pada "+(DoubleToStr(B2Buffer[i],Digits))
+"\n dengan TP "+(DoubleToStr(J1Buffer[i],Digits))+" dan SL pada "+(DoubleToStr(B3Buffer[i],Digits))
+"\n -------------------------------------------------------------------"
+"\n \n -------------------------------------------------------------------"
+"\n :::::: SUPPORT & RESISTANCE HARI INI :::::"
+"\n -------------------------------------------------------------------");
//Bagaimana caranya menampilkan nilai Support dan Resistance?
//Kita tunggu TIPs berikutnya
}
//----
return(0);
}
//+------------------------------------------------------------------+
