Up_Down

Download script
Author:
Up_Down

This script is designed as a specialized technical indicator for the MetaTrader 4 platform. Its primary purpose is to identify and plot specific price levels—specifically highs and lows—based on historical market data across various timeframes.

Core Logic Overview

The indicator works by scanning through historical price bars to find significant "peaks" (Highs) and "troughs" (Lows). Instead of just looking at the most recent price, it calculates average levels based on a user-defined period of these past extremes.

The script is highly "context-aware," meaning it changes its mathematical behavior depending on the specific timeframe you are viewing (e.g., 5 minutes, 1 hour, daily, etc.). This ensures that the "High" and "Low" levels remain relevant to the scale of the chart.

Key Functional Components

1. Timeframe-Specific Detection The script contains unique logic for several specific timeframes:

  • Short-term (5 & 15 Minutes): Focuses on hour-by-hour changes to identify local price action.
  • Medium-term (30 & 60 Minutes): Looks for specific hourly intervals (e.g., every 4 hours) to find significant structural points.
  • Long-term (Daily, Weekly, Monthly): Switches logic to recognize day changes, weekly transitions, and monthly roll-overs.

2. High/Low Identification & Averaging For every relevant time period identified above, the script:

  • Locates the highest high and lowest low within a specific window of bars.
  • Collects these values over a set number of occurrences (defined by the HL_period).
  • Calculates an average "High" level and an average "Low" level.

3. Price Relationship & Signal Logic Once these average levels are calculated, the script compares the current closing price (adjusted for the "Spread"—the difference between buying and selling prices) against these averages:

  • Bullish Context: If the price closes above the calculated Average High, it identifies a specific state.
  • Bearish Context: If the price closes below the calculated Average Low, it identifies the opposite state.

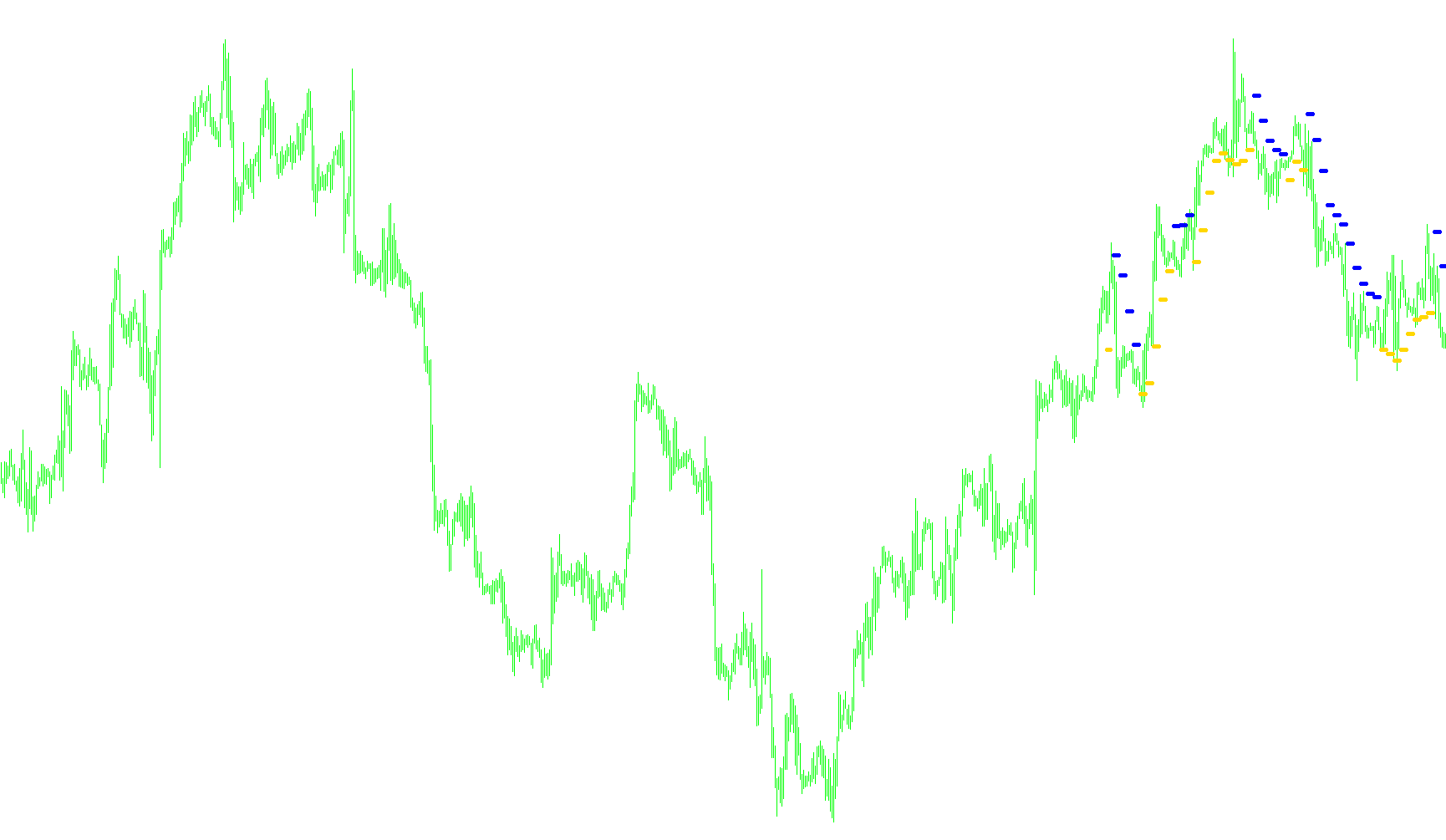

4. Visual Representation The script uses two different visual buffers to display these results on your chart:

  • It highlights specific "Upper" or "Lower" price levels using colored arrows (Lime for one condition, Tomato for the other).
  • It dynamically clears and plots these values so that the most relevant trend signal is visible to the user without cluttering the screen with unnecessary data points.

Summary for the User

In simple terms, this script acts as a "smart" historical anchor. It looks back at where the market has historically hit its highest and lowest points during specific cycles (hours, days, or months) and calculates an average for those points. It then tells you—via visual markers on your chart—when the current price action is interacting with those significant historical boundaries.

Miscellaneous
Implements a curve of type %1
14 Views
0 Downloads
0 Favorites
Up_Down
//+------------------------------------------------------------------+
//|                                                      Up&Down.mq4 |
//|                                                                  |
//|                                                                  |
//+------------------------------------------------------------------+
#property copyright ""
#property link      ""

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Lime
#property indicator_color2 Tomato
//---- input parameters
extern int       HL_period=3;
extern int       NumBars=200;
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
//------
double ur[][2];
int h1[];
int l1[];

int hh=0;
int ll=0;

double spread;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
{
//---- indicators
   SetIndexStyle(0,DRAW_ARROW);
   SetIndexArrow(0,159);
   SetIndexBuffer(0,ExtMapBuffer1);
   SetIndexEmptyValue(0,0.0);
   SetIndexStyle(1,DRAW_ARROW);
   SetIndexArrow(1,159);
   SetIndexBuffer(1,ExtMapBuffer2);
   SetIndexEmptyValue(1,0.0);
//----
   ArrayResize(ur,NumBars+1);
   ArrayResize(h1,HL_period);
   ArrayResize(l1,HL_period);

   spread = Ask-Bid;
   return(0);
}
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
{
  int   n,shift,Nbar,k,mm;
  double MaH,MaL;

//----
  if( Period() == 5 )
  {
    ArrayInitialize(ur,0);
    ArrayInitialize(h1,0);
    ArrayInitialize(l1,0);
    for( shift = NumBars; shift>=0; shift-- )
    {
      if( TimeHour(Time[shift + 1]) != TimeHour(Time[shift]) )
      {
        Nbar = -1;
        k = 0;
        mm = 0;
        n = shift - 15;
        while( n <= shift + HL_period * 12 + 5 )
        {
          if( n < 0 )
          {
            n = 1;
            Nbar = 0;
          }
          if( TimeHour(Time[n + 1]) != TimeHour(Time[n]) && Nbar == -1 )
          {
            Nbar = n;
            mm = n;
            n++;
            continue;
          }
          if( TimeHour(Time[n + 1]) != TimeHour(Time[n]) && Nbar != -1 )
          {
            h1[k] = Highest(NULL,0,MODE_HIGH,n - Nbar,n-(n-Nbar)+1);
            l1[k] = Lowest(NULL,0,MODE_LOW,n - Nbar,n-(n-Nbar)+1);
            k++;
            Nbar = n;
          }
          n++;
        }
        MaH = 0;
        MaL = 0;
        for( n = 0; n<HL_period; n++ )
        {
          MaH = MaH + High[h1[n]]+spread;
          MaL = MaL + Low[l1[n]];
        }
        MaH = MaH / HL_period;
        MaL = MaL / HL_period;
        ur[shift][0] = MaH;
        ur[shift][1] = MaL;
        if( Close[mm + 1]+spread/2 >= MaH ) { ll = 1; hh = 0; }
        if( Close[mm + 1]+spread/2 <= MaL ) { hh = 1; ll = 0; }
      }
      if( ur[shift,1] == 0 )
      {
        ur[shift][0] = ur[shift + 1][0];
        ur[shift][1] = ur[shift + 1][1];
      }
      if( ll == 1 )
      {
        ExtMapBuffer2[shift]=0;
        ExtMapBuffer1[shift]=ur[shift][1];
      }
      if( hh == 1 )
      {
        ExtMapBuffer1[shift]=0;
        ExtMapBuffer2[shift]=ur[shift][0];
      }
    }
    return(0);
  }
//-----------------------------
  if( Period() == 15 )
  {
    ArrayInitialize(ur,0);
    ArrayInitialize(h1,0);
    ArrayInitialize(l1,0);
    for( shift = NumBars; shift>=0; shift-- )
    {
      if( TimeHour(Time[shift + 1]) != TimeHour(Time[shift]) )
      {
        Nbar = -1;
        k = 0;
        mm = 0;
        n = shift - 5;
        while( n <= shift + HL_period * 4 + 2 )
        {
          if( n < 0 )
          {
            n = 1;
            Nbar = 0;
          }
          if( TimeHour(Time[n + 1]) != TimeHour(Time[n]) && Nbar == -1 )
          {
            Nbar = n;
            mm = n;
            n++;
            continue;
          }
          if( TimeHour(Time[n + 1]) != TimeHour(Time[n]) && Nbar != -1 )
          {
            h1[k] = Highest(NULL,0,MODE_HIGH,n - Nbar,n-(n-Nbar)+1);
            l1[k] = Lowest(NULL,0,MODE_LOW,n - Nbar,n-(n-Nbar)+1);
            k++;
            Nbar = n;
          }
          n++;
        }
        MaH = 0;
        MaL = 0;
        for( n = 0; n<HL_period; n++ )
        {
          MaH = MaH + High[h1[n]]+spread;
          MaL = MaL + Low[l1[n]];
        }
        MaH = MaH / HL_period;
        MaL = MaL / HL_period;
        ur[shift][0] = MaH;
        ur[shift][1] = MaL;
        if( Close[mm + 1]+spread/2 >= MaH ) { ll = 1; hh = 0; }
        if( Close[mm + 1]+spread/2 <= MaL ) { hh = 1; ll = 0; }
      }
      if( ur[shift,1] == 0 )
      {
        ur[shift][0] = ur[shift + 1][0];
        ur[shift][1] = ur[shift + 1][1];
      }
      if( ll == 1 )
      {
        ExtMapBuffer2[shift]=0;
        ExtMapBuffer1[shift]=ur[shift][1];
      }
      if( hh == 1 )
      {
        ExtMapBuffer1[shift]=0;
        ExtMapBuffer2[shift]=ur[shift][0];
      }
    }
    return(0);
  }
//-------------------------
  if( Period() == 30 )
  {
    ArrayInitialize(ur,0);
    ArrayInitialize(h1,0);
    ArrayInitialize(l1,0);
    for( shift = NumBars; shift>=0; shift-- )
    {
      if( TimeMinute(Time[shift])==0 && (TimeHour(Time[shift])==0 || TimeHour(Time[shift])==4 || TimeHour(Time[shift])==8 || TimeHour(Time[shift])==12 || TimeHour(Time[shift])==16 || TimeHour(Time[shift])==20) )
      {
        Nbar = -1;
        k = 0;
        mm = 0;
        n = shift - 10;
        while( n <= shift + HL_period * 8 + 5 )
        {
          if( n < 0 )
          {
            n = 1;
            Nbar = 0;
          }
          if( TimeMinute(Time[n])==0 && (TimeHour(Time[n])==0 || TimeHour(Time[n])==4 || TimeHour(Time[n])==8 || TimeHour(Time[n])==12 || TimeHour(Time[n])==16 || TimeHour(Time[n])==20) && Nbar == -1 )
          {
            Nbar = n;
            mm = n;
            n++;
            continue;
          }
          if( TimeMinute(Time[n])==0 && (TimeHour(Time[n])==0 || TimeHour(Time[n])==4 || TimeHour(Time[n])==8 || TimeHour(Time[n])==12 || TimeHour(Time[n])==16 || TimeHour(Time[n])==20) && Nbar != -1 )
          {
            h1[k] = Highest(NULL,0,MODE_HIGH,n - Nbar,n-(n-Nbar)+1);
            l1[k] = Lowest(NULL,0,MODE_LOW,n - Nbar,n-(n-Nbar)+1);
            k++;
            Nbar = n;
          }
          n++;
        }
        MaH = 0;
        MaL = 0;
        for( n = 0; n<HL_period; n++ )
        {
          MaH = MaH + High[h1[n]]+spread;
          MaL = MaL + Low[l1[n]];
        }
        MaH = MaH / HL_period;
        MaL = MaL / HL_period;
        ur[shift][0] = MaH;
        ur[shift][1] = MaL;
        if( Close[mm + 1]+spread/2 >= MaH ) { ll = 1; hh = 0; }
        if( Close[mm + 1]+spread/2 <= MaL ) { hh = 1; ll = 0; }
      }
      if( ur[shift,1] == 0 )
      {
        ur[shift][0] = ur[shift + 1][0];
        ur[shift][1] = ur[shift + 1][1];
      }
      if( ll == 1 )
      {
        ExtMapBuffer2[shift]=0;
        ExtMapBuffer1[shift]=ur[shift][1];
      }
      if( hh == 1 )
      {
        ExtMapBuffer1[shift]=0;
        ExtMapBuffer2[shift]=ur[shift][0];
      }
    }
    return(0);
  }
//----
  if( Period() == 60 )
  {
    ArrayInitialize(ur,0);
    ArrayInitialize(h1,0);
    ArrayInitialize(l1,0);
    for( shift = NumBars; shift>=0; shift-- )
    {
      if( TimeMinute(Time[shift])==0 && (TimeHour(Time[shift])==0 || TimeHour(Time[shift])==4 || TimeHour(Time[shift])==8 || TimeHour(Time[shift])==12 || TimeHour(Time[shift])==16 || TimeHour(Time[shift])==20) )
      {
        Nbar = -1;
        k = 0;
        mm = 0;
        n = shift - 6;
        while( n <= shift + HL_period * 4 + 3 )
        {
          if( n < 0 )
          {
            Nbar = 0;
            n = 1;
          }
          if( TimeMinute(Time[n])==0 && (TimeHour(Time[n])==0 || TimeHour(Time[n])==4 || TimeHour(Time[n])==8 || TimeHour(Time[n])==12 || TimeHour(Time[n])==16 || TimeHour(Time[n])==20) && Nbar == -1 )
          {
            Nbar = n;
            mm = n;
            n++;
            continue;
          }
          if( TimeMinute(Time[n])==0 && (TimeHour(Time[n])==0 || TimeHour(Time[n])==4 || TimeHour(Time[n])==8 || TimeHour(Time[n])==12 || TimeHour(Time[n])==16 || TimeHour(Time[n])==20) && Nbar != -1 )
          {
            h1[k] = Highest(NULL,0,MODE_HIGH,n - Nbar,n-(n-Nbar)+1);
            l1[k] = Lowest(NULL,0,MODE_LOW,n - Nbar,n-(n-Nbar)+1);
            k++;
            Nbar = n;
          }
          n++;
        }
        MaH = 0;
        MaL = 0;
        for( n = 0; n<HL_period; n++ )
        {
          MaH = MaH + High[h1[n]]+spread;
          MaL = MaL + Low[l1[n]];
        }
        MaH = MaH / HL_period;
        MaL = MaL / HL_period;
        ur[shift][0] = MaH;
        ur[shift][1] = MaL;
        if( Close[mm + 1]+spread/2 >= MaH ) { ll = 1; hh = 0; }
        if( Close[mm + 1]+spread/2 <= MaL ) { hh = 1; ll = 0; }
      }
      if( ur[shift,1] == 0 )
      {
        ur[shift][0] = ur[shift + 1][0];
        ur[shift][1] = ur[shift + 1][1];
      }
      if( ll == 1 )
      {
        ExtMapBuffer2[shift]=0;
        ExtMapBuffer1[shift]=ur[shift][1];
      }
      if( hh == 1 )
      {
        ExtMapBuffer1[shift]=0;
        ExtMapBuffer2[shift]=ur[shift][0];
      }
    }
    return(0);
  }
//--------------
  if( Period() == 240 )
  {
    ArrayInitialize(ur,0);
    ArrayInitialize(h1,0);
    ArrayInitialize(l1,0);
    for( shift = NumBars; shift>=0; shift-- )
    {
      if( TimeDay(Time[shift + 1]) != TimeDay(Time[shift]) )
      {
        Nbar = -1;
        k = 0;
        mm = 0;
        n = shift - 8;
        while( n <= shift + HL_period * 8 + 4 )
        {
          if( n < 0 )
          {
            Nbar = 0;
            n = 1;
          }
          if( TimeDay(Time[n + 1]) != TimeDay(Time[n]) && Nbar == -1 )
          {
            Nbar = n;
            mm = n;
            n++;
            continue;
          }
          if( TimeDay(Time[n + 1]) != TimeDay(Time[n]) && Nbar != -1 )
          {
            h1[k] = Highest(NULL,0,MODE_HIGH,n - Nbar,n-(n-Nbar)+1);
            l1[k] = Lowest(NULL,0,MODE_LOW,n - Nbar,n-(n-Nbar)+1);
            k++;
            Nbar = n;
          }
          n++;
        }
        MaH = 0;
        MaL = 0;
        for( n = 0; n<HL_period; n++ )
        {
          MaH = MaH + High[h1[n]]+spread;
          MaL = MaL + Low[l1[n]];
        }
        MaH = MaH / HL_period;
        MaL = MaL / HL_period;
        ur[shift][0] = MaH;
        ur[shift][1] = MaL;
        if( Close[mm + 1]+spread/2 >= MaH ) { ll = 1; hh = 0; }
        if( Close[mm + 1]+spread/2 <= MaL ) { hh = 1; ll = 0; }
      }
      if( ur[shift,1] == 0 )
      {
        ur[shift][0] = ur[shift + 1][0];
        ur[shift][1] = ur[shift + 1][1];
      }
      if( ll == 1 )
      {
        ExtMapBuffer2[shift]=0;
        ExtMapBuffer1[shift]=ur[shift][1];
      }
      if( hh == 1 )
      {
        ExtMapBuffer1[shift]=0;
        ExtMapBuffer2[shift]=ur[shift][0];
      }
    }
    return(0);
  }
//----
  if( Period() == 1440 )
  {
    ArrayInitialize(ur,0);
    ArrayInitialize(h1,0);
    ArrayInitialize(l1,0);
    for( shift = NumBars; shift>=0; shift-- )
    {
      if( TimeDayOfWeek(Time[shift + 1]) == 5 && TimeDayOfWeek(Time[shift]) == 1 )
      {
        Nbar = -1;
        k = 0;
        mm = 0;
        n = shift - 6;
        while( n <= shift + HL_period * 5 + 3 )
        {
          if( n < 0 )
          {
            Nbar = 0;
            n = 1;
          }
          if( TimeDayOfWeek(Time[n + 1])==5 && TimeDayOfWeek(Time[n])==1 && Nbar == -1 )
          {
            Nbar = n;
            mm = n;
            n++;
            continue;
          }
          if( TimeDayOfWeek(Time[n + 1])==5 && TimeDayOfWeek(Time[n])==1 && Nbar != -1 )
          {
            h1[k] = Highest(NULL,0,MODE_HIGH,n - Nbar,n-(n-Nbar)+1);
            l1[k] = Lowest(NULL,0,MODE_LOW,n - Nbar,n-(n-Nbar)+1);
            k++;
            Nbar = n;
          }
          n++;
        }
        MaH = 0;
        MaL = 0;
        for( n = 0; n<HL_period; n++ )
        {
          MaH = MaH + High[h1[n]]+spread;
          MaL = MaL + Low[l1[n]];
        }
        MaH = MaH / HL_period;
        MaL = MaL / HL_period;
        ur[shift][0] = MaH;
        ur[shift][1] = MaL;
        if( Close[mm + 1]+spread/2 >= MaH ) { ll = 1; hh = 0; }
        if( Close[mm + 1]+spread/2 <= MaL ) { hh = 1; ll = 0; }
      }
      if( ur[shift,1] == 0 )
      {
        ur[shift][0] = ur[shift + 1][0];
        ur[shift][1] = ur[shift + 1][1];
      }
      if( ll == 1 )
      {
        ExtMapBuffer2[shift]=0;
        ExtMapBuffer1[shift]=ur[shift][1];
      }
      if( hh == 1 )
      {
        ExtMapBuffer1[shift]=0;
        ExtMapBuffer2[shift]=ur[shift][0];
      }
    }
    return(0);
  }
//----
  if( Period() == 10080 )
  {
    ArrayInitialize(ur,0);
    ArrayInitialize(h1,0);
    ArrayInitialize(l1,0);
    for( shift = NumBars; shift>=0; shift-- )
    {
      if( TimeMonth(Time[shift + 1]+1440*60) != TimeMonth(Time[shift]+1440*60) )
      {
        Nbar = -1;
        k = 0;
        mm = 0;
        n = shift - 8;
        while( n <= shift + HL_period * 8 + 4 )
        {
          if( n < 0 )
          {
            Nbar = 0;
            n = 1;
          }
          if( TimeMonth(Time[n + 1]+1440*60) != TimeMonth(Time[n]+1440*60) && Nbar == -1 )
          {
            Nbar = n;
            mm = n;
            if( n>NumBars-18 ) Print(TimeToStr(Time[n]));
            n++;
            continue;
          }
          if( TimeMonth(Time[n + 1]+1440*60) != TimeMonth(Time[n]+1440*60) && Nbar != -1 )
          {
            h1[k] = Highest(NULL,0,MODE_HIGH,n - Nbar,n-(n-Nbar)+1);
            l1[k] = Lowest(NULL,0,MODE_LOW,n - Nbar,n-(n-Nbar)+1);
            k++;
            Nbar = n;
          }
          n++;
        }
        MaH = 0;
        MaL = 0;
        for( n = 0; n<HL_period; n++ )
        {
          MaH = MaH + High[h1[n]]+spread;
          MaL = MaL + Low[l1[n]];
        }
        MaH = MaH / HL_period;
        MaL = MaL / HL_period;
        ur[shift][0] = MaH;
        ur[shift][1] = MaL;
        if( Close[mm + 1]+spread/2 >= MaH ) { ll = 1; hh = 0; }
        if( Close[mm + 1]+spread/2 <= MaL ) { hh = 1; ll = 0; }
      }
      if( ur[shift,1] == 0 )
      {
        ur[shift][0] = ur[shift + 1][0];
        ur[shift][1] = ur[shift + 1][1];
      }
      if( ll == 1 )
      {
        ExtMapBuffer2[shift]=0;
        ExtMapBuffer1[shift]=ur[shift][1];
      }
      if( hh == 1 )
      {
        ExtMapBuffer1[shift]=0;
        ExtMapBuffer2[shift]=ur[shift][0];
      }
    }
    return(0);
  }
//----
  return(0);
}
//+------------------------------------------------------------------+

Similar scripts

UP&Down

This indicator identifies structural support and resistance levels by calculating the moving average of historical highs and lows across specific timeframes like hourly, daily, and monthly transitions.

Up_Down_v3

This indicator identifies directional shifts by calculating the average high and low levels across specific chronological anchor points such as hourly, daily, and monthly boundaries.

Up_Down_v1

This indicator identifies structural pivot points by calculating the arithmetic mean of extreme price highs and lows across specific chronological sessions.

BrainTrend1StopLine

BrainTrend1StopLine C

ZZ_pS_v[1].0.4

This indicator identifies structural trend shifts and price pivot points by analyzing the interplay between historical ZigZag extremes and immediate price action to project directional signals.

HL_Activator_NEXT

This indicator identifies significant price breakouts by calculating the rolling average of historical high and low extremes across specific time intervals (hourly, daily, weekly, and monthly) and plotting visual signals when the close price pierces these levels.

BrainTrend1StopLine_v1

BrainTrend1StopLine C_v1

Sem BearsBulls

This indicator identifies structural trend shifts by synchronizing the directional slope of moving averages with the relative power fluctuations of bullish and bearish momentum oscillators.

up_down_alert

This indicator identifies directional shift alerts by calculating localized high and low pivot averages across specific timeframes and triggering signals when price closes outside these calculated bounds.

Comments
