Turbo_JRSX_wAppliedPrice
Download script
This script is a technical analysis tool designed to provide visual insights into market momentum and price velocity. It functions as an oscillator, meaning it moves within a specific range (0 to 100) to help traders identify the strength of current trends and potential turning points.
Core Functionality
The primary goal of this logic is to measure how quickly price is moving relative to its recent history. Rather than just looking at where the price is currently, it calculates a series of complex "weighted" averages. By comparing the current price movements against these historical averages, the script determines whether the market is accelerating or decelerating.
Key Features and Logic
1. Customizable Price Sensitivity One of the most important features of this tool is its flexibility regarding data input. Instead of being locked into using only the "Closing" price, users can choose which type of price data the script should analyze. This allows for a more nuanced view of the market depending on the trading style:
- Standard Options: Close, Open, High, or Low prices.
- Calculated Averages: It can also use the Median (average of High and Low), the Typical Price (average of High, Low, and Close), or a Weighted Price (which gives more importance to the closing price).
2. Dynamic Smoothing and Velocity Tracking The script processes historical data over a user-defined period (the "Length"). It performs several layers of internal calculations to smooth out market "noise." By doing this, it ensures that small, insignificant price flickers don't trigger false signals, while still remaining responsive enough to capture meaningful trend shifts.

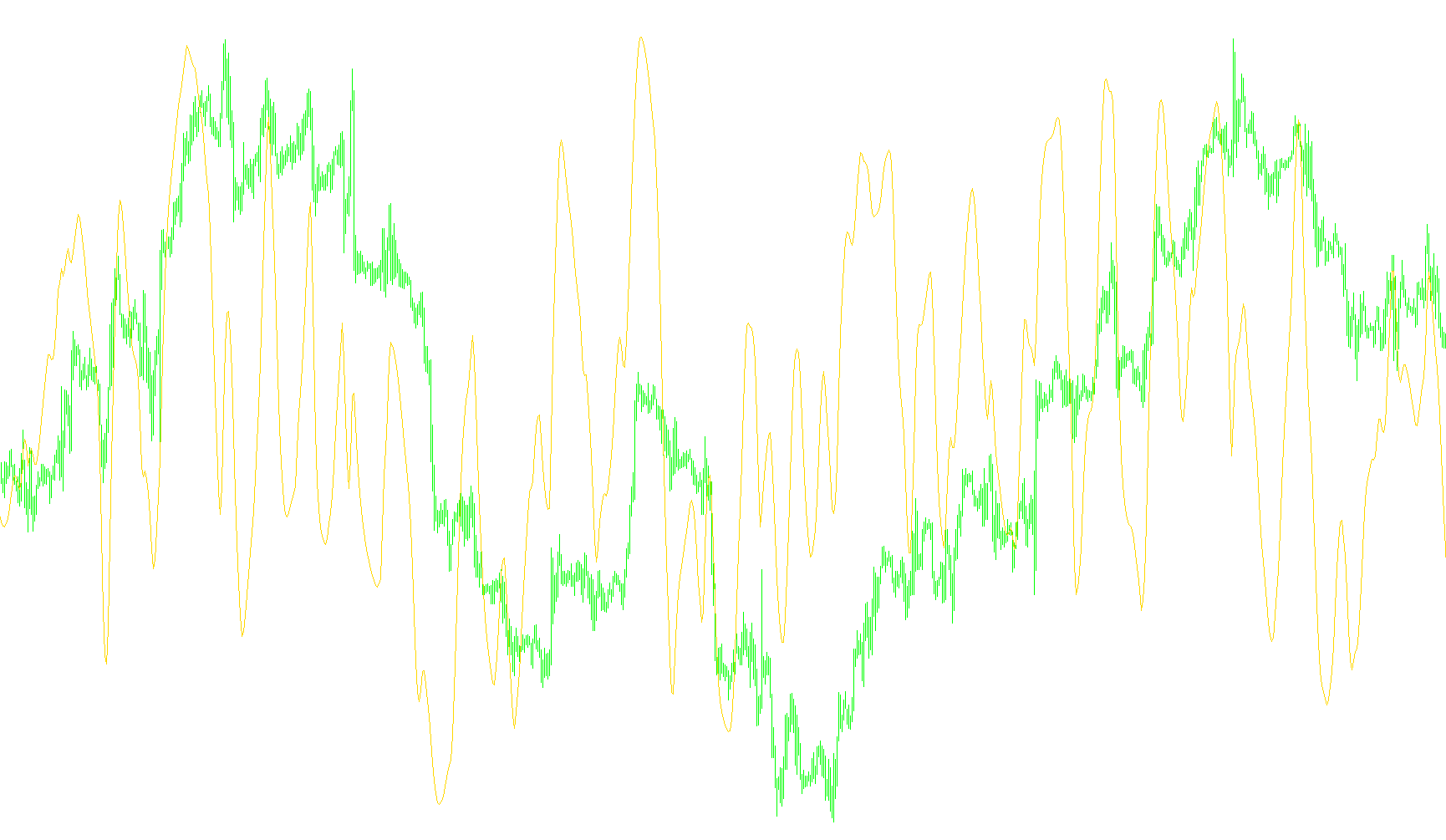

3. Momentum Visualization The final output is a line that fluctuates between 0 and 100. The logic works as follows:
- When the market shows strong momentum in a specific direction, the indicator moves toward the extremes (0 or 100).
- When the momentum loses steam or the price stabilizes, the indicator pulls back toward the 50-level midline.
Summary for the User
Essentially, this tool acts as a "speedometer" for the market. By allowing you to pick your preferred price type and providing a smoothed look at market velocity, it helps you visualize whether the current trend has enough "fuel" to continue or if it is beginning to exhaust itself.
// modified to make price mode selectable by user
#property copyright "strategybuilderfx.com - modified by bluto to use typical price (HLC/3)"
#property link "finger"
#property indicator_separate_window
#property indicator_buffers 1
#property indicator_color1 Magenta
#property indicator_level1 70
#property indicator_level2 30
#property indicator_level3 50
#property indicator_maximum 100
#property indicator_minimum 0
//---- input parameters
extern int Len=14; //---- buffers
extern string p = "--Applied Price Types--";
extern string p0 = " 0 = close";
extern string p1 = " 1 = open";
extern string p2 = " 2 = high";
extern string p3 = " 3 = low";
extern string p4 = " 4 = median(high+low)/2";
extern string p5 = " 5 = typical(high+low+close)/3";
extern string p6 = " 6 = weighted(high+low+close+close)/4";
extern int PriceMode = 5;
double rsx[];
int init() {
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(0,rsx);
IndicatorShortName("Turbo_JRSX");
return(0);
}
int deinit()
{
return(0);
}
int start()
{
double tempPrice;
double f88, f90;
double f0, v4, v8, vC, v10, v14, v18, v20;
double f8, f10, f18, f20, f28, f30, f38, f48, v1C;
double f50, f58, f60, f68, f70, f78, f80, f40;
//int counted_bars = IndicatorCounted(),limit,shift;
//if (counted_bars<0) return(-1);
//if (counted_bars>0) counted_bars--;
double limit=Bars-(Len)-1;
//if(counted_bars>Len) limit=Bars-counted_bars-1;
for (int shift=limit;shift>=0;shift--) {
tempPrice = GetPrice(PriceMode, shift); // Get the price based on mode entered
if (f90 == 0.0) {
f90 = 1.0;
f0 = 0.0;
if (Len-1 >= 5) f88 = Len-1.0; else f88 = 5.0;
// f8 = 100.0*(Close[shift]);
//
// Modified for median price
// Modified for any price based on PriceMode input
// default input is typical price
//
// f8 = 100.0*((High[shift]+Low[shift]+Close[shift])/3);
f8 = 100.0 * tempPrice;
f18 = 3.0 / (Len + 2.0);
f20 = 1.0 - f18;
} else{
if (f88 <= f90) f90 = f88 + 1; else f90 = f90 + 1;
f10 = f8;
// f8 = 100*Close[shift];
// f8 = 100.0*((High[shift]+Low[shift]+Close[shift])/3);
f8 = 100 * tempPrice;
v8 = f8 - f10;
f28 = f20 * f28 + f18 * v8;
f30 = f18 * f28 + f20 * f30;
vC = f28 * 1.5 - f30 * 0.5;
f38 = f20 * f38 + f18 * vC;
f40 = f18 * f38 + f20 * f40;
v10 = f38 * 1.5 - f40 * 0.5;
f48 = f20 * f48 + f18 * v10;
f50 = f18 * f48 + f20 * f50;
v14 = f48 * 1.5 - f50 * 0.5;
f58 = f20 * f58 + f18 * MathAbs(v8);
f60 = f18 * f58 + f20 * f60;
v18 = f58 * 1.5 - f60 * 0.5;
f68 = f20 * f68 + f18 * v18;
f70 = f18 * f68 + f20 * f70;
v1C = f68 * 1.5 - f70 * 0.5;
f78 = f20 * f78 + f18 * v1C;
f80 = f18 * f78 + f20 * f80;
v20 = f78 * 1.5 - f80 * 0.5;
if ((f88 >= f90) && (f8 != f10)) f0 = 1.0;
if ((f88 == f90) && (f0 == 0.0)) f90 = 0.0;
}
if ((f88 < f90) && (v20 > 0.0000000001)) {
v4 = (v14 / v20 + 1.0) * 50.0;
if (v4 > 100.0) v4 = 100.0;
if (v4 < 0.0) v4 = 0.0;
} else {
v4 = 50.0;
}
rsx[shift]=v4;
}
return(0);
}
// Applied Price enumerations
// 0=close, 1=open, 2=high, 3=low, 4=median((h+l/2)), 5=typical((h+l+c)/3), 6=weighted((h+l+c+c)/4)
double GetPrice(int pMode, int mShift)
{
double price;
switch(pMode)
{
case 0: price = Close[mShift];
break;
case 1: price = Open[mShift];
break;
case 2: price = High[mShift];
break;
case 3: price = Low[mShift];
break;
case 4: price = (High[mShift] + Low[mShift])/2.0;
break;
case 5: price = (High[mShift] + Low[mShift] + Close[mShift])/3.0;
break;
case 6: price = (High[mShift] + Low[mShift] + 2.0*Close[mShift])/4;
break;
}
return (price);
}
