Author: Mr.Bah
tunnel_v2

The Vegas indicator is a specialized technical analysis tool designed to help traders visualize price momentum and identify key "risk zones" on a trading chart. It works by calculating a series of dynamic moving averages and creating a structured framework of support and resistance levels based on the market's current trend.

Core Methodology

The foundation of this script relies on two primary Exponential Moving Averages (EMAs). By tracking the 144-period and 169-period averages, the tool establishes a baseline for the market's "average" price over time. These lines serve as the primary reference points for determining whether the market is in an uptrend, downtrend, or moving sideways.

The Risk Model System

What sets this indicator apart is its "Risk Model" feature. Depending on which model the user selects, the script automatically projects a series of specific price boundaries above and below the 169-period EMA. These boundaries are calculated using different numerical offsets:

  • Model 1: Uses smaller increments (34, 55, and 89).
  • Model 2: Uses medium increments (55, 89, and 144).
  • Model 3: Uses large increments (89, 144, and 233).
  • Model 4: Uses maximum increments (144, 233, and 377).

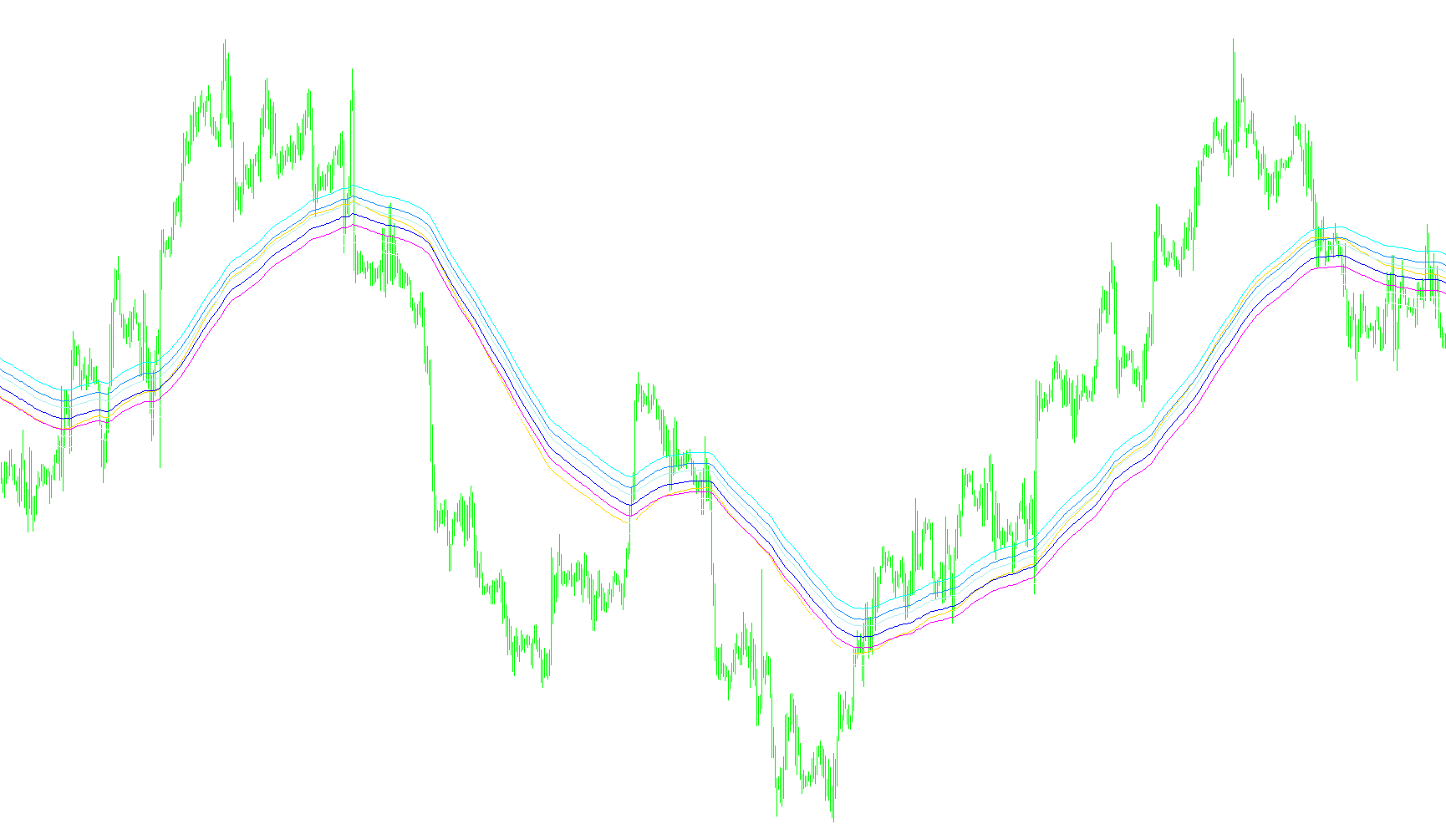

Each model provides a different "tightness" of risk. By projecting these lines both above (positive) and below (negative) the baseline, the indicator creates a multi-layered map. This allows traders to see not just where the price is now, but where specific "danger zones" or targets lie based on their preferred trading style.

Real-Time Information and Alerts

To keep the trader informed without constant manual scanning, the script provides two automated features:

  1. Dynamic On-Screen Data: The tool constantly updates a text summary on the chart. This display shows the exact current values for all moving averages and all projected risk levels (labeled as F+1 through F-3), giving you precise price targets at a glance.
  2. Audio Notifications: If the user enables alerts, the script monitors the current price in real-time. If the market price touches any of the primary moving averages or any of the projected risk boundaries, the system will trigger an audible alert.

Summary for the User

In essence, this tool acts as a sophisticated "navigation map" for your charts. It transforms complex mathematical averages into visible boundaries, allowing you to stay aware of key price levels and receive instant notifications when the market reaches significant zones of interest.

Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1It plays sound alerts
12 Views
0 Downloads
0 Favorites
tunnel_v2
//+------------------------------------------------------------------+
//|                                                        Vegas.mq4 |
//|                                                           Mr.Bah |
//|                                                                  |
//+------------------------------------------------------------------+
#property copyright "Mr.Bah"
#property link      ""
#property indicator_chart_window
#property indicator_buffers 8
#property indicator_color1 Green
#property indicator_color2 Blue
#property indicator_color3 Red
#property indicator_color4 Red
#property indicator_color5 Red
#property indicator_color6 Red
#property indicator_color7 Red
#property indicator_color8 Red
//---- input parameters
extern bool      Alerts=true;
extern int       RiskModel=1;
extern int       MA1=144;
extern int       MA2=169;
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
double ExtMapBuffer4[];
double ExtMapBuffer5[];
double ExtMapBuffer6[];
double ExtMapBuffer7[];
double ExtMapBuffer8[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexStyle(0,DRAW_LINE);
   SetIndexBuffer(0,ExtMapBuffer1);
   SetIndexStyle(1,DRAW_LINE);
   SetIndexBuffer(1,ExtMapBuffer2);
   SetIndexStyle(2,DRAW_LINE);
   SetIndexBuffer(2,ExtMapBuffer3);
   SetIndexStyle(3,DRAW_LINE);
   SetIndexBuffer(3,ExtMapBuffer4);
   SetIndexStyle(4,DRAW_LINE);
   SetIndexBuffer(4,ExtMapBuffer5);
   SetIndexStyle(5,DRAW_LINE);
   SetIndexBuffer(5,ExtMapBuffer6);
   SetIndexStyle(6,DRAW_LINE);
   SetIndexBuffer(6,ExtMapBuffer7);
   SetIndexStyle(7,DRAW_LINE);
   SetIndexBuffer(7,ExtMapBuffer8);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
int limit;
int counted_bars=IndicatorCounted();
//---- check for possible errors
   if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
   if(counted_bars>0) counted_bars--;
   limit=Bars-counted_bars;
//---- main loop
   for(int i=0; i<limit; i++)
     {
      //---- ma_shift set to 0 because SetIndexShift called abowe
      ExtMapBuffer1[i]=iMA(NULL,0,144,0,MODE_EMA,PRICE_CLOSE,i);
      ExtMapBuffer2[i]=iMA(NULL,0,169,0,MODE_EMA,PRICE_CLOSE,i);
      //Model #1 34,55,89
      if(RiskModel==1)
        {
         ExtMapBuffer3[i]=ExtMapBuffer2[i]+34*Point;
         ExtMapBuffer4[i]=ExtMapBuffer2[i]+55*Point;
         ExtMapBuffer5[i]=ExtMapBuffer2[i]+89*Point;
         ExtMapBuffer6[i]=ExtMapBuffer2[i]-34*Point;
         ExtMapBuffer7[i]=ExtMapBuffer2[i]-55*Point;
         ExtMapBuffer8[i]=ExtMapBuffer2[i]-89*Point;
        }
      //Model #2 55,89,144
      if(RiskModel==2)
        {
         ExtMapBuffer3[i]=ExtMapBuffer2[i]+55*Point;
         ExtMapBuffer4[i]=ExtMapBuffer2[i]+89*Point;
         ExtMapBuffer5[i]=ExtMapBuffer2[i]+144*Point;
         ExtMapBuffer6[i]=ExtMapBuffer2[i]-55*Point;
         ExtMapBuffer7[i]=ExtMapBuffer2[i]-88*Point;
         ExtMapBuffer8[i]=ExtMapBuffer2[i]-144*Point;
        }
      //Model #3 89,144,233
      if(RiskModel==3)
        {
         ExtMapBuffer3[i]=ExtMapBuffer2[i]+89*Point;
         ExtMapBuffer4[i]=ExtMapBuffer2[i]+144*Point;
         ExtMapBuffer5[i]=ExtMapBuffer2[i]+233*Point;
         ExtMapBuffer6[i]=ExtMapBuffer2[i]-89*Point;
         ExtMapBuffer7[i]=ExtMapBuffer2[i]-144*Point;
         ExtMapBuffer8[i]=ExtMapBuffer2[i]-233*Point;
        }
      //Model #4 144,233,377
      if(RiskModel==4)
        {
         ExtMapBuffer3[i]=ExtMapBuffer2[i]+144*Point;
         ExtMapBuffer4[i]=ExtMapBuffer2[i]+233*Point;
         ExtMapBuffer5[i]=ExtMapBuffer2[i]+377*Point;
         ExtMapBuffer6[i]=ExtMapBuffer2[i]-144*Point;
         ExtMapBuffer7[i]=ExtMapBuffer2[i]-233*Point;
         ExtMapBuffer8[i]=ExtMapBuffer2[i]-377*Point;
        }
      Comment("\nRISK MODEL #",RiskModel," (1-4)\n\nEMA144 - ",ExtMapBuffer1[limit],"\nEMA169 - ",ExtMapBuffer2[limit],
      "\n\nF+1 - ",ExtMapBuffer3[limit],"\nF+2 - ",ExtMapBuffer4[limit],
      "\nF+3 - ",ExtMapBuffer5[limit],"\n\nF-1 - ",ExtMapBuffer6[limit],
      "\nF-2 - ",ExtMapBuffer7[limit],"\nF-3 - ",ExtMapBuffer8[limit]);
     }
   //+--------------------------------------------------------------------------+
   //-                          ALERTS    PlaySound("alert.wav");               -
   //+--------------------------------------------------------------------------+
   if(Alerts)
     {
      if(Close[i]==ExtMapBuffer1[i] || Close[i]==ExtMapBuffer2[i])
        {
         PlaySound("alert.wav");
        }
      if(Close[i]==ExtMapBuffer3[i] || Close[i]==ExtMapBuffer4[i] || Close[i]==ExtMapBuffer5[i])
        {
         PlaySound("alert.wav");
        }
      if(Close[i]==ExtMapBuffer6[i] || Close[i]==ExtMapBuffer7[i] || Close[i]==ExtMapBuffer8[i])
        {
         PlaySound("alert.wav");
        }
     }
//---- done
//----
//----
   return(0);
  }
//+------------------------------------------------------------------+
