Today Trend last_v1

Download script
Author: Copyright � 2006, Jason Rivera
Today Trend last_v1

This script is designed as a trading indicator for MetaTrader that identifies potential market trends based on the previous day's price action. It specifically analyzes the relationship between the previous day's High, Low, and Close prices to project potential "Buy" and "Sell" zones for the current trading day.

Core Logic and Methodology

The script operates by looking at the completed data from the previous daily candle to establish a mathematical framework for today's price movement. Here is how it breaks down the logic:

1. Price Reference Points Instead of just looking at where the price ended, the script calculates a "Pivot" point (an average of the previous day's High, Low, and Close). From this Pivot, it derives several specific levels:

  • Resistance Levels: Areas where the price might face selling pressure.
  • Support Levels: Areas where the price might find buying interest.
  • Secondary Levels: Refined boundaries used to calculate risk and profit targets more precisely.

2. Entry Signal Logic The script evaluates three different "Actions" simultaneously to determine the most significant trend for the day. These actions are based on where the current day's opening price sits relative to yesterday's boundaries:

  • Action 1 (Standard Range): Checks if the price opened within a specific range between the High and Support/Resistance levels.
  • Action 2 (Proximity Bias): Looks at how close the opening price is to the Resistance or Support lines to determine if it is likely to "rebound" or "break out."
  • Action 3 (Breakout): Identifies significant moves where the price opens outside of yesterday's High or Low.

The script prioritizes these actions sequentially to decide whether to display a Buy signal (represented by an upward arrow) or a Sell signal (represented by a downward arrow).

3. Dynamic Targets and Reversals For every signal generated, the script calculates two visual aids on the chart:

  • Profit Target: Based on a user-defined profit goal, it projects a line indicating where the price should ideally reach to hit the target.
  • Reversal Line: This identifies a "safety" or "reversal" point. If the market moves against the primary trend, this line represents a key level where the trend might flip or where the trade setup is no longer valid.

User Interface & Display

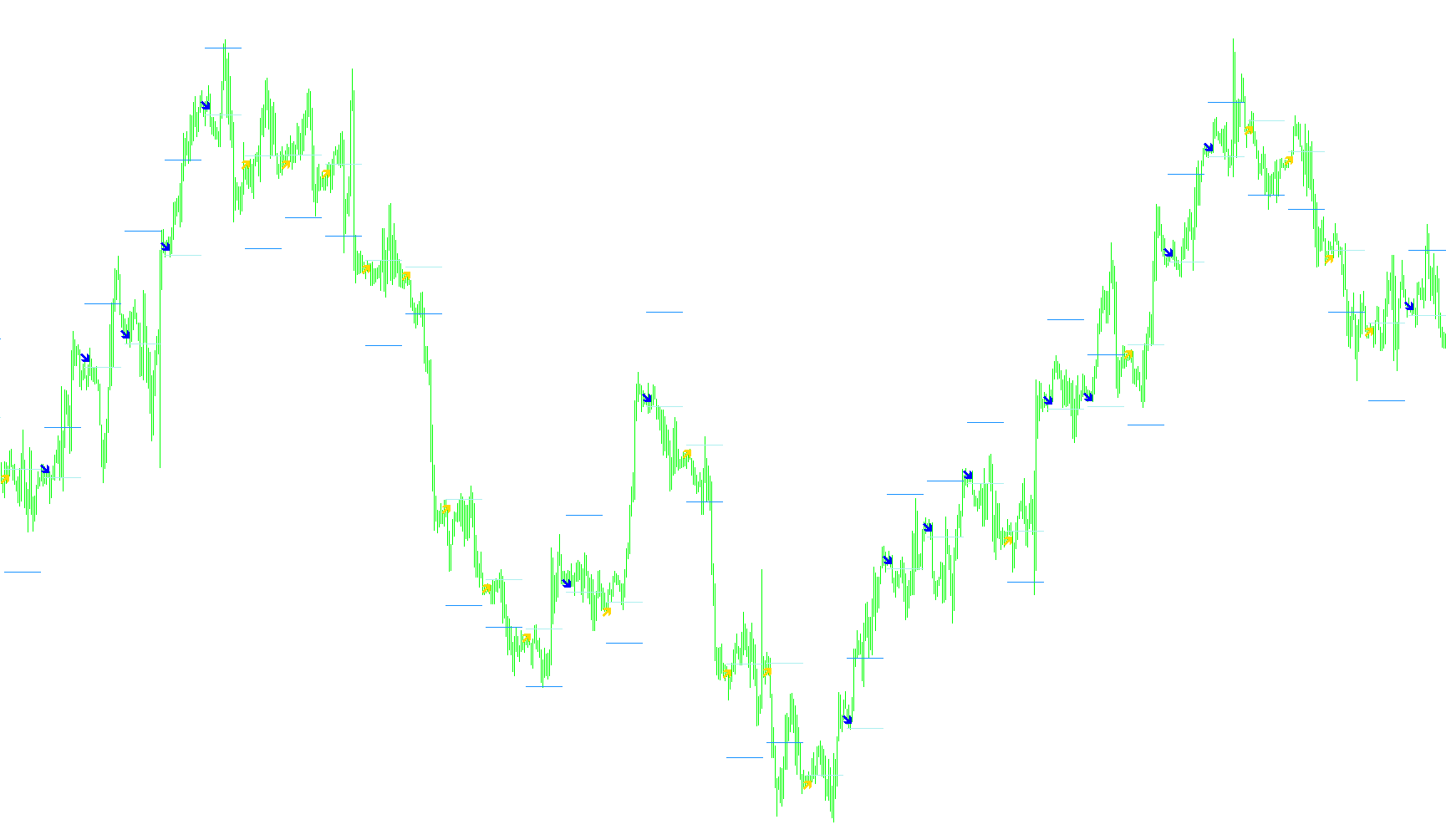

  • Visual Indicators: The script places arrows on the chart at the exact moment of the daily open to signal the direction of the trend.
  • Reference Lines: It draws horizontal lines for the Profit Target and the Reversal levels, allowing traders to see their "exit" points clearly.
  • Status Text: A text label appears on the chart showing the current state (Buy, Sell, or No Action) along with the current price.

Technical Requirements

The logic is specifically designed to work on a Daily Chart or lower (such as 1-hour or 15-minute charts). It automatically syncs the data so that even if you are looking at a small timeframe, it correctly references the high/low values of the previous full day.

Price Data Components
Series array that contains open time of each barSeries array that contains the highest prices of each barSeries array that contains the lowest prices of each barSeries array that contains close prices for each bar
Miscellaneous
Implements a curve of type %1
5 Views
0 Downloads
0 Favorites
Today Trend last_v1
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//|                                                  Today Trend.mq4 |
//|                                   Copyright © 2006, Jason Rivera |
//|                                      http://www.jasonerivera.com |
//+------------------------------------------------------------------+
//|
//|   Based on an excel spreadsheet posted by toro55 @
//|   http://www.strategybuilderfx.com/forums/showthread.php?s=&threadid=16130
//|
//|   Posted for the benefit of those at the StrategyBuilder
//|   community.
//|
//+------------------------------------------------------------------+
#property copyright "Copyright © 2006, Jason Rivera"
#property link      "http://www.jasonerivera.com"

#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Blue
#property indicator_color2 Red
#property indicator_color3 YellowGreen
#property indicator_color4 Red

//----External Variables
extern int PROFIT_TARGET = 30;
extern bool SHOW_TARGET = true;
extern bool SHOW_REVERSAL = true;

//---- buffers
double UpBuffer[];
double DownBuffer[];
double TargetBuffer[];
double ReversalBuffer[];

//----variables
double H=0, L=0, O=0, C=0, R=0, S=0, Pivot=0, Spread=0, RevRate=0, MaxLoss=0, max=0, draw=0;
double S2,R2;
int action=0, action1=0, action2=0, action3=0;
int Under_Resistance=0;
string res="";

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
   SetIndexLabel(0,"Go Long");
   SetIndexLabel(1,"Go Short");
   SetIndexLabel(2,"Profit Target Line");
   SetIndexLabel(3,"Stop/Reversal Line");
   SetIndexStyle(0,DRAW_ARROW,STYLE_SOLID,1);
   SetIndexBuffer(0,UpBuffer);
   SetIndexStyle(1,DRAW_ARROW,STYLE_SOLID,1);
   SetIndexBuffer(1,DownBuffer);
   SetIndexStyle(2,DRAW_LINE,STYLE_SOLID,1);
   SetIndexBuffer(2,TargetBuffer);
   SetIndexStyle(3,DRAW_LINE,STYLE_SOLID,1);
   SetIndexBuffer(3,ReversalBuffer);

   SetIndexEmptyValue(0,0);
   SetIndexEmptyValue(1,0);
   SetIndexEmptyValue(2,0);
   SetIndexEmptyValue(3,0);

   SetIndexArrow(0,236);
   SetIndexArrow(1,238);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int    counted_bars=IndicatorCounted();
   int pos =0;

   int m = 0;
   int d = 0;
   int y = 0;
   string dt = "";
   datetime some_time = 0;
   int shift = 0;
   int tc = 1440;
   int min = 0;
   int hr = 0;

   int thour=0, tmin=0;
//----
   //script can only be run on daily chart or lower timeframe
   if(Period() > 1440)
   {
      Print("Indicator must be run on Daily chart or lesser timeframe");
      return(0);
   }

   //---- check for possible errors
   if(counted_bars<0) return(-1);
   //---- last counted bar will be recounted
   if(counted_bars>0) counted_bars--;

   pos = Bars-counted_bars;

   while(pos>=0)
   {
      m=TimeMonth(Time[pos]);
      d=TimeDay(Time[pos]);
      y=TimeYear(Time[pos]);
      min = TimeMinute(Time[pos]);
      hr = TimeHour(Time[pos]);
      dt = y + "." + m + "." + d + " " + hr + ":" + min;
      some_time = StrToTime(dt);

      //find the proper shift of the daily bar having the same date as this timeframe's bar having the current shift
      //we must do this in order to be able to run the indicator on smaller time frames in light of a bigger one
      shift = iBarShift(NULL,tc,some_time); //returns the correct shift of the current daily bar

      thour = TimeHour(iTime(NULL,60,iBarShift(NULL,60,some_time)));
      tmin = TimeMinute(iTime(NULL,Period(),pos));

      //create price reference lines
      if(SHOW_REVERSAL == true) {ReversalBuffer[pos] = ReversalBuffer[pos+1];}
      if(SHOW_TARGET == true) {TargetBuffer[pos] = TargetBuffer[pos+1];}

      //only trade on Open of Day; check for hour 0 && minute 0 for intraday timeframes
      if(thour == 0 && tmin == 0)
      {
         H = iHigh(NULL,tc,shift+1);   //previous daily bar's high
         L = iLow(NULL,tc,shift+1);    //previous daily bar's low
         C = iClose(NULL,tc,shift+1);  //previous daily bar's close
         O = Open[pos];                //current Period() bar's open

         Spread = H - L;
/*
         Pivot = (Spread*2)/5;
         R = H - Pivot;
         S = L + Pivot;
*/

         Pivot = (H + L + C)/3;
         R = 2*Pivot - L;
         S = 2*Pivot - H;
         S2 = Pivot - (R - S);
         R2 = Pivot + (R-S);
         //reset Buy/Sell actions
         action1 = 0;
         action2 = 0;
         action3 = 0;
         Under_Resistance = 0;

         if(O < R)
         {
            Under_Resistance = 1;
         }else{
            Under_Resistance = -1;
         }

         //Calculate the 1st action
         if(O < H && O > R) action1 = -1;  //"Sell"
         if(O > L && O < S) action1 = 1;   //"Buy"

         //Calculate the 2nd action
         if(Under_Resistance == 1 && (R-O) < (O-S)) action2 = -1;   //"Sell"
         if(Under_Resistance == 1 && (R-O) >= (O-S)) action2 = 1;   //"Buy"

         //Calculate the 3rd action
         if(O <= L) action3 = -1;  //"Sell"
         if(O >= H) action3 = 1;   //"Buy"

         //Calculate the Reversal Rate
/*
         if(action2 == 1) RevRate = L;
         if(action2 == -1) RevRate = H;
         if(action1 == -1) RevRate = H;
         if(action1 == 1) RevRate = L;
         if(action3 == 1) RevRate = H;
         if(action3 == -1) RevRate = L;
*/
         if(action2 == 1) RevRate = S;
         if(action2 == -1) RevRate = R;
         if(action1 == -1) RevRate = R2;
         if(action1 == 1) RevRate = S2;
         if(action3 == 1)
         {
            if(O <= R2) RevRate = H;
            if(O > R2) RevRate = R2;
         }
         if(action3 == -1)
         {
            if(O >= S2) RevRate = L;
            if(O < S2) RevRate = S2;
         }

         //Calculate the Max Loss
         if(action2 == 1) MaxLoss = O - S;
         if(action2 == -1) MaxLoss = R - O;
         if(action1 == -1) MaxLoss = R2 - O;
         if(action1 == 1) MaxLoss = O - S2;
         if(action3 == 1)
         {
            if(O <= R2) MaxLoss = O - H;
            if(O > R2) MaxLoss = O - R2;

         }
         if(action3 == -1)
         {
            if(O <= R2) MaxLoss = L - O;
            if(O > R2) MaxLoss = S2 - O;

         }
/*
         if(action2 == 1) MaxLoss = O - L;
         if(action2 == -1) MaxLoss = H - O;
         if(action1 == -1) MaxLoss = H - O;
         if(action1 == 1) MaxLoss = O - L;
         if(action3 == 1) MaxLoss = O - H;
         if(action3 == -1) MaxLoss = L - O;
*/
         if(action1 != 0)  action = action1;
         if(action2 != 0)  action = action2;
         if(action3 != 0)  action = action3;


         if(action == 1)//buy
         {
            UpBuffer[pos] = O;

            if(SHOW_TARGET == true)
            {
               TargetBuffer[pos+1] = 0;  //keep line from warping to next value; comment line to see on daily timeframe
               TargetBuffer[pos] = O + (PROFIT_TARGET*Point);
            }

            if(SHOW_REVERSAL == true)
            {
               ReversalBuffer[pos+1] = 0;   //keep line from warping to next value; comment line to see on daily timeframe
               ReversalBuffer[pos] = RevRate;
            }
         }

         if(action == -1)//sell
         {
            DownBuffer[pos] = O;

            if(SHOW_TARGET == true)
            {
               TargetBuffer[pos+1] = 0;  //keep line from warping to next value; comment line to see on daily timeframe
               TargetBuffer[pos] = O - (PROFIT_TARGET*Point);
            }

            if(SHOW_REVERSAL == true)
            {
               ReversalBuffer[pos+1] = 0;   //keep line from warping to next value; comment line to see on daily timeframe
               ReversalBuffer[pos] = RevRate;
            }
         }
      }

      pos--;
   }

   Comment(ToString(action), " @ ", O);

//----
   return(0);
  }
//+------------------------------------------------------------------+

string ToString(int action)
{
   if(action == 1) return("Buy");
   if(action == -1) return("Sell");
   if(action == 0) return("No Action");
}
