STLM_hist

This script functions as a custom technical analysis indicator designed to visualize specific market momentum patterns through a dual-color histogram. Rather than relying on simple moving averages, it uses a complex weighted calculation to identify shifts in price dynamics.

Core Logic Overview

The script analyzes historical price data by applying two distinct, highly specific mathematical formulas to the closing prices of the asset. These formulas act as "detectors."

Each formula assigns a unique weight (a positive or negative decimal) to various past price points. By summing these weighted values together, the script produces two primary results:

  1. The Primary Signal: A calculation based on the immediate trend.
  2. The Secondary Signal: A comparison calculation based on a slightly offset timeframe.

How it Works

The tool constantly compares these two signals against one another to determine the "strength" and "direction" of the market movement:

  • Bullish Detection (Green): If the primary signal is greater than the secondary signal, the script identifies this as an upward momentum state. It then draws a Green histogram on your chart to represent this growth.
  • Bearish Detection (Red): If the secondary signal is greater than the primary signal, the script identifies this as downward momentum. It responds by drawing a Red histogram.

Key Visual Features

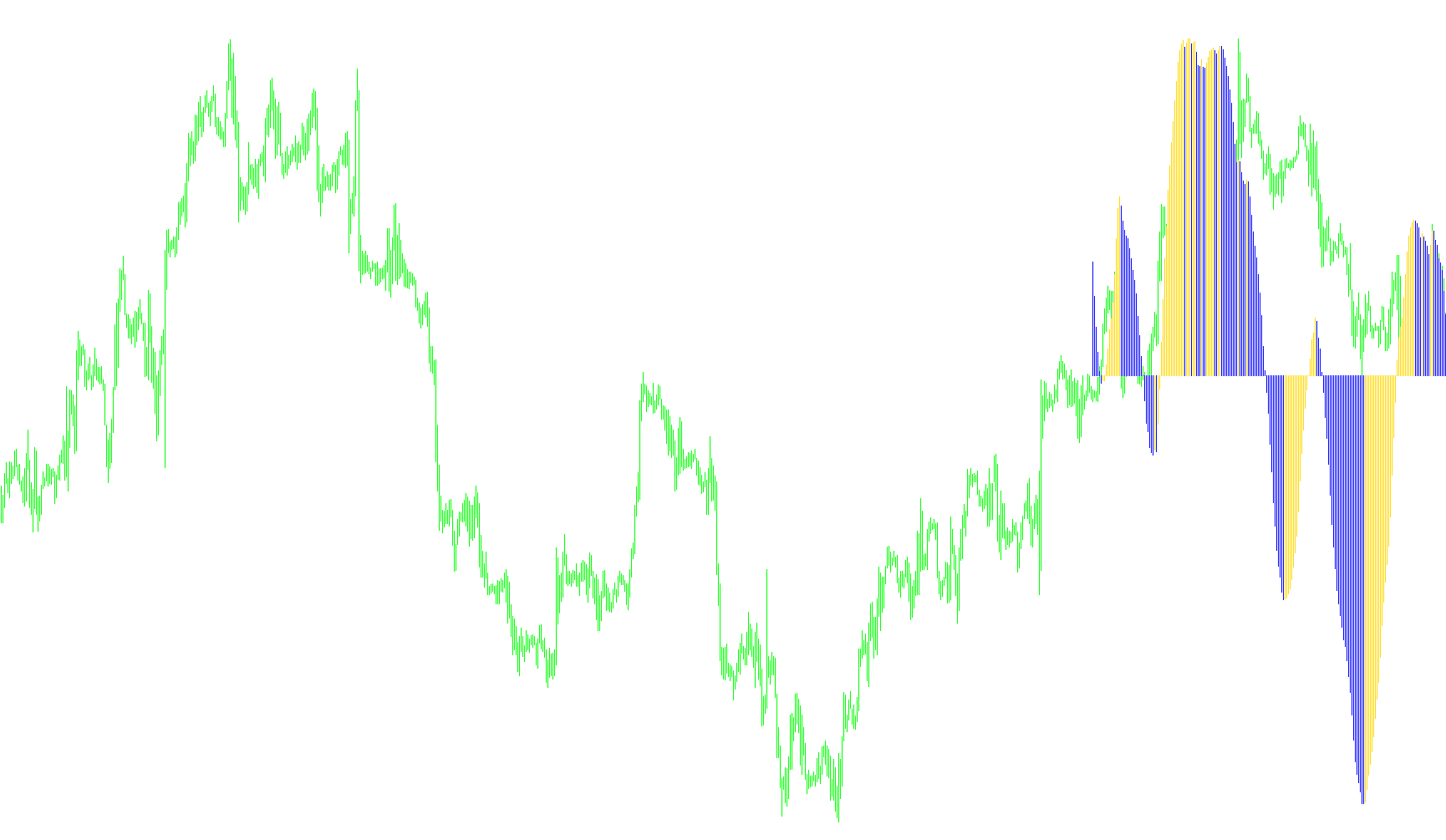

  • Histogram Display: Instead of a single line, the indicator provides a clear visual "fence" where the height of the bars shows the magnitude of the momentum.
  • Dynamic Filtering: The script is designed to look back across a specific number of historical bars (defaulting to 300) to ensure that the data it uses is relevant to the current market environment.
  • Offset Sensitivity: By using shifted calculations (comparing different "snapshots" of weighted data), the tool attempts to filter out noise and highlight meaningful transitions between buying and selling pressure.

Summary for the User

In simple terms, this script acts as a momentum filter. It looks at a complex web of past prices, calculates two different "scores" for the current market, and pits them against each other. You see the result as a visual map: Green shows where the primary momentum is winning, and Red shows where the opposing momentum is taking control.

Miscellaneous
Implements a curve of type %1
15 Views
0 Downloads
0 Favorites
STLM_hist
//+------------------------------------------------------------------+
//|                                                   STLM_hist.mq4  |
//|                                       Ramdass - Conversion only  |
//+------------------------------------------------------------------+

#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Green
#property indicator_color2 Red
//----
extern int CountBars = 300;
//---- buffers
double Up[];
double Down[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   string short_name;
//---- indicator line
   IndicatorBuffers(2);
   SetIndexStyle(0, DRAW_HISTOGRAM);
   SetIndexBuffer(0, Up);
   SetIndexStyle(1, DRAW_HISTOGRAM);
   SetIndexBuffer(1, Down);
//----
   SetIndexDrawBegin(0, Bars - CountBars + 90);
   SetIndexDrawBegin(1, Bars - CountBars + 90);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| STLM                                                             |
//+------------------------------------------------------------------+
int start()
  {
   int i, i2, counted_bars = IndicatorCounted();
   double STLM, STLM1, value1, value2, value3, value4;
//----
   if(Bars <= 90)
       return(0);
//---- initial zero
   if(counted_bars < 90)
     {
       for(i = 1; i <= 0; i++)
           Up[CountBars-i] = 0.0;
       for(i = 1; i <= 0; i++)
           Down[CountBars-i] = 0.0;
     }
//----
   i = CountBars - 90 - 1;
//----
   while(i>=0)
     {
       value1 =
       0.0982862174*Close[i+0]
       +0.0975682269*Close[i+1]
       +0.0961401078*Close[i+2]
       +0.0940230544*Close[i+3]
       +0.0912437090*Close[i+4]
       +0.0878391006*Close[i+5]
       +0.0838544303*Close[i+6]
       +0.0793406350*Close[i+7]
       +0.0743569346*Close[i+8]
       +0.0689666682*Close[i+9]
       +0.0632381578*Close[i+10]
       +0.0572428925*Close[i+11]
       +0.0510534242*Close[i+12]
       +0.0447468229*Close[i+13]
       +0.0383959950*Close[i+14]
       +0.0320735368*Close[i+15]
       +0.0258537721*Close[i+16]
       +0.0198005183*Close[i+17]
       +0.0139807863*Close[i+18]
       +0.0084512448*Close[i+19]
       +0.0032639979*Close[i+20]
       -0.0015350359*Close[i+21]
       -0.0059060082*Close[i+22]
       -0.0098190256*Close[i+23]
       -0.0132507215*Close[i+24]
       -0.0161875265*Close[i+25]
       -0.0186164872*Close[i+26]
       -0.0205446727*Close[i+27]
       -0.0219739146*Close[i+28]
       -0.0229204861*Close[i+29]
       -0.0234080863*Close[i+30]
       -0.0234566315*Close[i+31]
       -0.0231017777*Close[i+32]
       -0.0223796900*Close[i+33]
       -0.0213300463*Close[i+34]
       -0.0199924534*Close[i+35]
       -0.0184126992*Close[i+36]
       -0.0166377699*Close[i+37]
       -0.0147139428*Close[i+38]
       -0.0126796776*Close[i+39]
       -0.0105938331*Close[i+40]
       -0.0084736770*Close[i+41]
       -0.0063841850*Close[i+42]
       -0.0043466731*Close[i+43]
       -0.0023956944*Close[i+44]
       -0.0005535180*Close[i+45]
       +0.0011421469*Close[i+46]
       +0.0026845693*Close[i+47]
       +0.0040471369*Close[i+48]
       +0.0052380201*Close[i+49]
       +0.0062194591*Close[i+50]
       +0.0070340085*Close[i+51]
       +0.0076266453*Close[i+52]
       +0.0080376628*Close[i+53]
       +0.0083037666*Close[i+54]
       +0.0083694798*Close[i+55]
       +0.0082901022*Close[i+56]
       +0.0080741359*Close[i+57]
       +0.0077543820*Close[i+58]
       +0.0073260526*Close[i+59]
       +0.0068163569*Close[i+60]
       +0.0062325477*Close[i+61]
       +0.0056078229*Close[i+62]
       +0.0049516078*Close[i+63]
       +0.0161380976*Close[i+64];
       //----
       value2 =
       -0.0074151919*Close[i+0]
       -0.0060698985*Close[i+1]
       -0.0044979052*Close[i+2]
       -0.0027054278*Close[i+3]
       -0.0007031702*Close[i+4]
       +0.0014951741*Close[i+5]
       +0.0038713513*Close[i+6]
       +0.0064043271*Close[i+7]
       +0.0090702334*Close[i+8]
       +0.0118431116*Close[i+9]
       +0.0146922652*Close[i+10]
       +0.0175884606*Close[i+11]
       +0.0204976517*Close[i+12]
       +0.0233865835*Close[i+13]
       +0.0262218588*Close[i+14]
       +0.0289681736*Close[i+15]
       +0.0315922931*Close[i+16]
       +0.0340614696*Close[i+17]
       +0.0363444061*Close[i+18]
       +0.0384120882*Close[i+19]
       +0.0402373884*Close[i+20]
       +0.0417969735*Close[i+21]
       +0.0430701377*Close[i+22]
       +0.0440399188*Close[i+23]
       +0.0446941124*Close[i+24]
       +0.0450230100*Close[i+25]
       +0.0450230100*Close[i+26]
       +0.0446941124*Close[i+27]
       +0.0440399188*Close[i+28]
       +0.0430701377*Close[i+29]
       +0.0417969735*Close[i+30]
       +0.0402373884*Close[i+31]
       +0.0384120882*Close[i+32]
       +0.0363444061*Close[i+33]
       +0.0340614696*Close[i+34]
       +0.0315922931*Close[i+35]
       +0.0289681736*Close[i+36]
       +0.0262218588*Close[i+37]
       +0.0233865835*Close[i+38]
       +0.0204976517*Close[i+39]
       +0.0175884606*Close[i+40]
       +0.0146922652*Close[i+41]
       +0.0118431116*Close[i+42]
       +0.0090702334*Close[i+43]
       +0.0064043271*Close[i+44]
       +0.0038713513*Close[i+45]
       +0.0014951741*Close[i+46]
       -0.0007031702*Close[i+47]
       -0.0027054278*Close[i+48]
       -0.0044979052*Close[i+49]
       -0.0060698985*Close[i+50]
       -0.0074151919*Close[i+51]
       -0.0085278517*Close[i+52]
       -0.0094111161*Close[i+53]
       -0.0100658241*Close[i+54]
       -0.0104994302*Close[i+55]
       -0.0107227904*Close[i+56]
       -0.0107450280*Close[i+57]
       -0.0105824763*Close[i+58]
       -0.0102517019*Close[i+59]
       -0.0097708805*Close[i+60]
       -0.0091581551*Close[i+61]
       -0.0084345004*Close[i+62]
       -0.0076214397*Close[i+63]
       -0.0067401718*Close[i+64]
       -0.0058083144*Close[i+65]
       -0.0048528295*Close[i+66]
       -0.0038816271*Close[i+67]
       -0.0029244713*Close[i+68]
       -0.0019911267*Close[i+69]
       -0.0010974211*Close[i+70]
       -0.0002535559*Close[i+71]
       +0.0005231953*Close[i+72]
       +0.0012297491*Close[i+73]
       +0.0018539149*Close[i+74]
       +0.0023994354*Close[i+75]
       +0.0028490136*Close[i+76]
       +0.0032221429*Close[i+77]
       +0.0034936183*Close[i+78]
       +0.0036818974*Close[i+79]
       +0.0038037944*Close[i+80]
       +0.0038338964*Close[i+81]
       +0.0037975350*Close[i+82]
       +0.0036986051*Close[i+83]
       +0.0035521320*Close[i+84]
       +0.0033559226*Close[i+85]
       +0.0031224409*Close[i+86]
       +0.0028550092*Close[i+87]
       +0.0025688349*Close[i+88]
       +0.0022682355*Close[i+89]
       +0.0073925495*Close[i+90];
       //----
       value3 =
       0.0982862174*Close[i+0+1]
       +0.0975682269*Close[i+1+1]
       +0.0961401078*Close[i+2+1]
       +0.0940230544*Close[i+3+1]
       +0.0912437090*Close[i+4+1]
       +0.0878391006*Close[i+5+1]
       +0.0838544303*Close[i+6+1]
       +0.0793406350*Close[i+7+1]
       +0.0743569346*Close[i+8+1]
       +0.0689666682*Close[i+9+1]
       +0.0632381578*Close[i+10+1]
       +0.0572428925*Close[i+11+1]
       +0.0510534242*Close[i+12+1]
       +0.0447468229*Close[i+13+1]
       +0.0383959950*Close[i+14+1]
       +0.0320735368*Close[i+15+1]
       +0.0258537721*Close[i+16+1]
       +0.0198005183*Close[i+17+1]
       +0.0139807863*Close[i+18+1]
       +0.0084512448*Close[i+19+1]
       +0.0032639979*Close[i+20+1]
       -0.0015350359*Close[i+21+1]
       -0.0059060082*Close[i+22+1]
       -0.0098190256*Close[i+23+1]
       -0.0132507215*Close[i+24+1]
       -0.0161875265*Close[i+25+1]
       -0.0186164872*Close[i+26+1]
       -0.0205446727*Close[i+27+1]
       -0.0219739146*Close[i+28+1]
       -0.0229204861*Close[i+29+1]
       -0.0234080863*Close[i+30+1]
       -0.0234566315*Close[i+31+1]
       -0.0231017777*Close[i+32+1]
       -0.0223796900*Close[i+33+1]
       -0.0213300463*Close[i+34+1]
       -0.0199924534*Close[i+35+1]
       -0.0184126992*Close[i+36+1]
       -0.0166377699*Close[i+37+1]
       -0.0147139428*Close[i+38+1]
       -0.0126796776*Close[i+39+1]
       -0.0105938331*Close[i+40+1]
       -0.0084736770*Close[i+41+1]
       -0.0063841850*Close[i+42+1]
       -0.0043466731*Close[i+43+1]
       -0.0023956944*Close[i+44+1]
       -0.0005535180*Close[i+45+1]
       +0.0011421469*Close[i+46+1]
       +0.0026845693*Close[i+47+1]
       +0.0040471369*Close[i+48+1]
       +0.0052380201*Close[i+49+1]
       +0.0062194591*Close[i+50+1]
       +0.0070340085*Close[i+51+1]
       +0.0076266453*Close[i+52+1]
       +0.0080376628*Close[i+53+1]
       +0.0083037666*Close[i+54+1]
       +0.0083694798*Close[i+55+1]
       +0.0082901022*Close[i+56+1]
       +0.0080741359*Close[i+57+1]
       +0.0077543820*Close[i+58+1]
       +0.0073260526*Close[i+59+1]
       +0.0068163569*Close[i+60+1]
       +0.0062325477*Close[i+61+1]
       +0.0056078229*Close[i+62+1]
       +0.0049516078*Close[i+63+1]
       +0.0161380976*Close[i+64+1];
       //----
       value4 =
       -0.0074151919*Close[i+0+1]
       -0.0060698985*Close[i+1+1]
       -0.0044979052*Close[i+2+1]
       -0.0027054278*Close[i+3+1]
       -0.0007031702*Close[i+4+1]
       +0.0014951741*Close[i+5+1]
       +0.0038713513*Close[i+6+1]
       +0.0064043271*Close[i+7+1]
       +0.0090702334*Close[i+8+1]
       +0.0118431116*Close[i+9+1]
       +0.0146922652*Close[i+10+1]
       +0.0175884606*Close[i+11+1]
       +0.0204976517*Close[i+12+1]
       +0.0233865835*Close[i+13+1]
       +0.0262218588*Close[i+14+1]
       +0.0289681736*Close[i+15+1]
       +0.0315922931*Close[i+16+1]
       +0.0340614696*Close[i+17+1]
       +0.0363444061*Close[i+18+1]
       +0.0384120882*Close[i+19+1]
       +0.0402373884*Close[i+20+1]
       +0.0417969735*Close[i+21+1]
       +0.0430701377*Close[i+22+1]
       +0.0440399188*Close[i+23+1]
       +0.0446941124*Close[i+24+1]
       +0.0450230100*Close[i+25+1]
       +0.0450230100*Close[i+26+1]
       +0.0446941124*Close[i+27+1]
       +0.0440399188*Close[i+28+1]
       +0.0430701377*Close[i+29+1]
       +0.0417969735*Close[i+30+1]
       +0.0402373884*Close[i+31+1]
       +0.0384120882*Close[i+32+1]
       +0.0363444061*Close[i+33+1]
       +0.0340614696*Close[i+34+1]
       +0.0315922931*Close[i+35+1]
       +0.0289681736*Close[i+36+1]
       +0.0262218588*Close[i+37+1]
       +0.0233865835*Close[i+38+1]
       +0.0204976517*Close[i+39+1]
       +0.0175884606*Close[i+40+1]
       +0.0146922652*Close[i+41+1]
       +0.0118431116*Close[i+42+1]
       +0.0090702334*Close[i+43+1]
       +0.0064043271*Close[i+44+1]
       +0.0038713513*Close[i+45+1]
       +0.0014951741*Close[i+46+1]
       -0.0007031702*Close[i+47+1]
       -0.0027054278*Close[i+48+1]
       -0.0044979052*Close[i+49+1]
       -0.0060698985*Close[i+50+1]
       -0.0074151919*Close[i+51+1]
       -0.0085278517*Close[i+52+1]
       -0.0094111161*Close[i+53+1]
       -0.0100658241*Close[i+54+1]
       -0.0104994302*Close[i+55+1]
       -0.0107227904*Close[i+56+1]
       -0.0107450280*Close[i+57+1]
       -0.0105824763*Close[i+58+1]
       -0.0102517019*Close[i+59+1]
       -0.0097708805*Close[i+60+1]
       -0.0091581551*Close[i+61+1]
       -0.0084345004*Close[i+62+1]
       -0.0076214397*Close[i+63+1]
       -0.0067401718*Close[i+64+1]
       -0.0058083144*Close[i+65+1]
       -0.0048528295*Close[i+66+1]
       -0.0038816271*Close[i+67+1]
       -0.0029244713*Close[i+68+1]
       -0.0019911267*Close[i+69+1]
       -0.0010974211*Close[i+70+1]
       -0.0002535559*Close[i+71+1]
       +0.0005231953*Close[i+72+1]
       +0.0012297491*Close[i+73+1]
       +0.0018539149*Close[i+74+1]
       +0.0023994354*Close[i+75+1]
       +0.0028490136*Close[i+76+1]
       +0.0032221429*Close[i+77+1]
       +0.0034936183*Close[i+78+1]
       +0.0036818974*Close[i+79+1]
       +0.0038037944*Close[i+80+1]
       +0.0038338964*Close[i+81+1]
       +0.0037975350*Close[i+82+1]
       +0.0036986051*Close[i+83+1]
       +0.0035521320*Close[i+84+1]
       +0.0033559226*Close[i+85+1]
       +0.0031224409*Close[i+86+1]
       +0.0028550092*Close[i+87+1]
       +0.0025688349*Close[i+88+1]
       +0.0022682355*Close[i+89+1]
       +0.0073925495*Close[i+90+1];
       //----
       STLM = value1 - value2;
       STLM1 = value3 - value4;
       //----
       if(STLM > STLM1)
         {
           Up[i] = STLM;
           Down[i] = 0.0;
         }
       else
         {
           Down[i] = STLM;
           Up[i] = 0.0;
         }
       i--;
     }
   return(0);
  }
//+------------------------------------------------------------------+

Similar scripts

STLM2_002

The indicator calculates two distinct weighted moving averages using fixed coefficients to determine momentum direction and intensity via a histogram.

STLM2_v1

This indicator calculates the delta between two distinct weighted price summations over a 90-bar period to identify directional momentum shifts.

STLM2

This indicator calculates the difference between two distinct multi-period weighted price sums to identify directional momentum shifts via a histogram.

STLM_hist_v1

This indicator calculates momentum by applying a multi-period linear weighting coefficient to historical close prices to determine directional trend strength.

STLM_hist_v2

This indicator utilizes a complex weighted summation of historical closing prices to calculate and visualize momentum shifts through a dual-histogram comparison.

STLM2_v2

This indicator calculates a directional bias by comparing two distinct weighted moving averages of historical closing prices to identify bullish and bearish momentum shifts.

FTLM-STLM_v3

This indicator utilizes four distinct weighted linear combinations of historical closing prices to calculate and visualize dual momentum shifts.

FTLM_hist

This indicator calculates and compares two distinct weighted moving averages based on 44-period price coefficients to identify directional momentum shifts via a histogram.

FTLM_STLM

This indicator calculates and visualizes the differential between two multi-coefficient weighted price models to highlight underlying momentum shifts.

FTLM-STLM_v1

This indicator calculates two distinct smoothed price series using complex fixed-coefficient linear regressions to identify momentum divergence and trend shifts.

FTLM_001

This indicator calculates two distinct multi-period price momentum signals by applying specific weighted coefficients to historical closing prices and measuring the differential between their respective results.

Comments
