Speed_Kharko
Download script
This script functions as a momentum and trend analysis tool designed to measure the "speed" of price movements on a trading chart. Rather than simply showing where the price is, it focuses on how aggressively the price is moving over a specific period, helping traders identify acceleration or deceleration in market trends.
Core Logic & Functionality
1. Price Source Customization The tool allows users to define exactly which price data point should be used to calculate "speed." You can choose from various common metrics, including:
- Opening and Closing prices.
- High and Low extremes.
- Mathematical averages of the bar (such as the midpoint or the average of all four price points).
2. Velocity Calculation (The "Speed") The indicator takes the chosen price value from the current moment and compares it against a price value from a set number of bars back (defined by the user). By calculating this difference, the tool reveals whether the market is gaining momentum or losing steam.

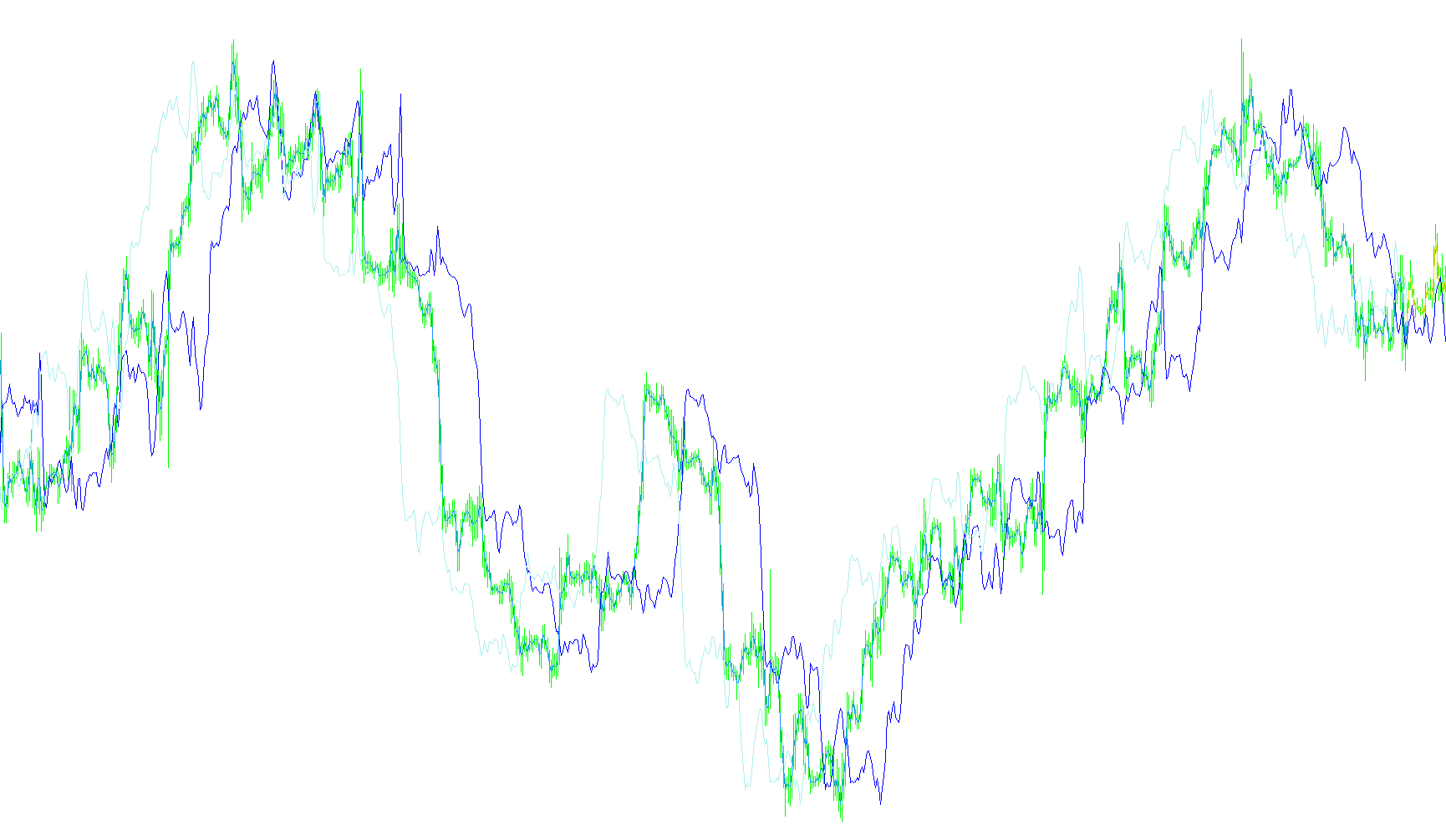

3. Visual Representation and Offsets The script produces two distinct visual outputs to provide a comprehensive view of market dynamics:
- Standard Speed: A direct representation of the current momentum.
- Offset Speed: A "shifted" version of the speed graph that compares the current data against a historical point even further back in time.
Key Features for Traders
- Trend Identification: By observing the lines, traders can see if the price is moving faster or slower than it was previously.
- Customizable Sensitivity: Users can adjust the "Bar" setting to change the look-back period, allowing the tool to be tuned for different timeframes (e.g., short-term scalping vs. long-term swing trading).
- Visibility Toggles: The script includes built-in options to turn specific lines on or off, allowing you to declutter your chart and focus only on the data most relevant to your strategy.
In summary, this tool acts like a speedometer for the financial markets, translating raw price action into a readable visual of how fast the market is moving in a given direction.
//+------------------------------------------------------------------+
//| Speed_Kharko.mq4 |
//| Copyright © 2005, MetaQuotes Software Corp. |
//| http://www.metaquotes.net/ |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2007, Kharko"
//---- indicator settings
#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Yellow
#property indicator_color2 Yellow
#property indicator_style2 STYLE_DOT
#property indicator_color3 Aqua
#property indicator_color4 Aqua
#property indicator_style4 STYLE_DOT
//---- indicator parameters
extern int Bar = 24; // Ïåðèîä
extern int Cena = 0; // Öåíà: 1 - îòêðûòèÿ; 2 - çàêðûòèÿ; 3 - ìàêñèìóì; 4 - ìèíèìóì;
// 5 - (H + L)/2; 6 - (H+L+C)/3; 7 - (H+L+C+O)/4;
// 0 - (H+L+C+O)/4
extern bool Sp_vis = true; // ïîêàçàòü/ñïðÿòàòü ãðàôèê ñêîðîñòè
extern bool SpOf_vis = true; // ïîêàçàòü/ñïðÿòàòü ãðàôèê ñêîðîñòè ñî ñäâèãîì âíóòðü èñòîðèè
//---- indicator buffers
double ExtBuffer0[];
double ExtBuffer1[];
double ExtBuffer2[];
double ExtBuffer3[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- drawing settings
SetIndexStyle(0,DRAW_LINE);
SetIndexStyle(1,DRAW_LINE);
SetIndexStyle(2,DRAW_LINE);
SetIndexStyle(3,DRAW_LINE);
//---- 4 indicator buffers mapping
SetIndexBuffer(0,ExtBuffer0);
SetIndexBuffer(1,ExtBuffer1);
SetIndexBuffer(2,ExtBuffer2);
SetIndexBuffer(3,ExtBuffer3);
//---- name for DataWindow and indicator subwindow label
IndicatorShortName("Speed");
SetIndexLabel(0,"Speed");
SetIndexLabel(1,"SpeedNULL");
SetIndexLabel(2,"Speed+Offset");
SetIndexLabel(3,"SpeedNULL+Offset");
//---- initialization done
return(0);
}
//+------------------------------------------------------------------+
//| Accelerator/Decelerator Oscillator |
//+------------------------------------------------------------------+
int start()
{
int limit,Error;
//---- last counted bar will be recounted
int counted_bars=IndicatorCounted();
if(counted_bars>0) counted_bars--;
limit=Bars-counted_bars-Bar;
if(limit<1)limit=1;
//----
if(ExtBuffer0[0]!=0)ExtBuffer0[0]=0;
if(ExtBuffer2[Bar]!=0)ExtBuffer2[Bar]=0;
for(int i=0; i<limit; i++)
{
ExtBuffer0[i]=value(i);
ExtBuffer1[i]=value(i+Bar);
ExtBuffer2[i+Bar]=ExtBuffer0[i];
ExtBuffer3[i+Bar]=value(i+Bar);
}
if(!Sp_vis)
{
ArrayInitialize(ExtBuffer0,0);
ArrayInitialize(ExtBuffer1,0);
}
if(!SpOf_vis)
{
ArrayInitialize(ExtBuffer2,0);
ArrayInitialize(ExtBuffer3,0);
}
Error=GetLastError();
if(Error!=0 && Error!=1) {Print("Error START : ",Error);RefreshRates();}
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
double value(int i)
{
switch(Cena)
{
case 1:
return(Open[i]);
case 2:
return(Close[i]);
case 3:
return(High[i]);
case 4:
return(Low[i]);
case 5:
return((High[i]+Low[i])/2);
case 6:
return((High[i]+Low[i]+Close[i])/3);
case 7:
return((High[i]+Low[i]+Close[i]+Open[i])/4);
default:
return((High[i]+Low[i]+Close[i]+Open[i])/4);
}
}
