SilverTrend_Signal With Alert v3

Download script
Author: SilverTrend rewritten by CrazyChart
SilverTrend_Signal With Alert v3

This script functions as a technical analysis tool designed to identify directional shifts in the market by monitoring price extremes and volatility. It automatically analyzes historical price data to detect when the market transitions from a downward trend to an upward one, or vice versa, providing visual signals and real-time alerts for traders.

Core Operational Logic

1. Volatility and Range Analysis The tool begins by measuring the "Average Range" of the market over a specific window of recent price bars. By calculating the distance between the highest highs and lowest lows during this period, it establishes a baseline for how much the asset typically fluctuates. This information is used to determine the precise positioning of its visual signals on the chart.

2. Dynamic Support and Resistance Identification Instead of using fixed price levels, the script identifies "swing" points by looking at the highest and lowest prices reached over a set timeframe. It then calculates specific threshold values based on these extremes:

  • A calculated Minimum Threshold (Lower Bound)
  • A calculated Maximum Threshold (Upper Bound)

These thresholds act as boundaries. The script tracks whether the current closing price is breaking above the upper bound or dropping below the lower bound, which indicates a significant shift in market momentum.

3. Trend Detection and State Switching The script maintains a memory of the "current state" of the market (whether it was trending up or down in the previous calculation). It looks for specific "breakout" events:

  • Bullish Shift: If the price closes above the calculated upper boundary, the tool recognizes an upward trend.
  • Bearish Shift: If the price closes below the calculated lower boundary, the tool recognizes a downward trend.

4. Signal Generation and Alerts When the script detects a change in the market state (e.g., switching from down to up), it triggers two actions:

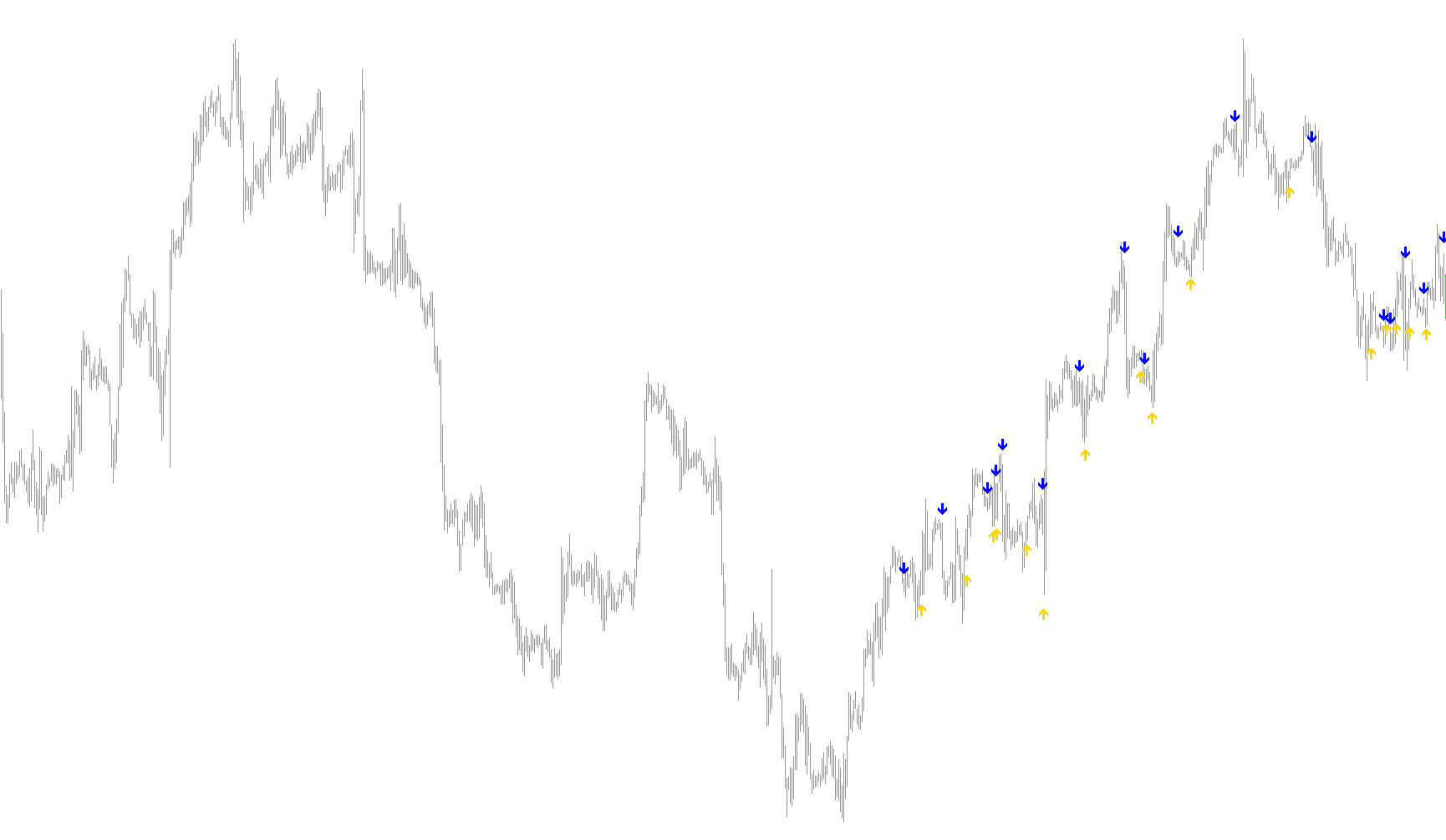

  • Visual Markers: It places an arrow on the chart at the point of the breakout. The position of these arrows is automatically adjusted based on the volatility range calculated in step one, ensuring they appear clearly above or below the price candles without cluttering the screen.
  • Automated Notifications: If the trend change happens on the current live candle, the script generates a "BUY" or "SELL" alert. This includes a built-in delay mechanism to ensure that traders are not overwhelmed by multiple notifications for the same move, providing a filtered stream of high-relevance signals.

Summary for the User

Essentially, this tool filters out minor market noise by looking for confirmed breakthroughs of recent price extremes. It tells you when the momentum has officially shifted in a new direction, helping you identify potential entry points while providing visual confirmation directly on your trading platform.

Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
21 Views
0 Downloads
0 Favorites
SilverTrend_Signal With Alert v3
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//| SilverTrend_Signal.mq4
//| Ramdass - Conversion only
//+------------------------------------------------------------------+
#property copyright "SilverTrend  rewritten by CrazyChart"
#property link      "http://viac.ru/"

#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 DodgerBlue
#property indicator_color2 Magenta

//---- input parameters
extern int RISK=3;
extern int CountBars=350;
extern int Alert_Delay_In_Seconds=60;
int SSP=9;
int PrevAlertTime=0;
//---- buffers
double val1[];
double val2[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   string short_name;
//---- indicator line
   IndicatorBuffers(2);
   SetIndexStyle(0,DRAW_ARROW);
   SetIndexArrow(0,233);
   SetIndexStyle(1,DRAW_ARROW);
   SetIndexArrow(1,234);
   SetIndexBuffer(0,val1);
   SetIndexBuffer(1,val2);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| SilverTrend_Signal                                               |
//+------------------------------------------------------------------+
int start()
  {
   if (CountBars>=Bars) CountBars=Bars;
   SetIndexDrawBegin(0,Bars-CountBars+SSP);
   SetIndexDrawBegin(1,Bars-CountBars+SSP);
   int i,shift,counted_bars=IndicatorCounted();
   int i1,i2,K;
   double Range,AvgRange,smin,smax,SsMax,SsMin,price;
   bool uptrend,old;
//----

   if(Bars<=SSP+1) return(0);
//---- initial zero
   if(counted_bars<SSP+1)
   {
      for(i=1;i<=SSP;i++) val1[CountBars-i]=0.0;
      for(i=1;i<=SSP;i++) val2[CountBars-i]=0.0;
   }
//----

K=33-RISK;
for (shift = CountBars-SSP; shift>=0; shift--)
{

	Range=0;
	AvgRange=0;
	for (i1=shift; i1<=shift+SSP; i1++)
		{AvgRange=AvgRange+MathAbs(High[i1]-Low[i1]);
		}
	Range=AvgRange/(SSP+1);

SsMax=High[shift]; SsMin=Low[shift];
   for (i2=shift;i2<=shift+SSP-1;i2++)
        {
         price=High[i2];
         if(SsMax<price) SsMax=price;
         price=Low[i2];
         if(SsMin>=price)  SsMin=price;
        }

smin = SsMin+(SsMax-SsMin)*K/100;
smax = SsMax-(SsMax-SsMin)*K/100;
	val1[shift]=0;
	val2[shift]=0;
	if (Close[shift]<smin)
		{
		uptrend = false;
		}
	if (Close[shift]>smax)
		{
		uptrend = true;
		}
   if (uptrend!=old && uptrend==true)
   {
   val1[shift]=Low[shift]-Range*0.5;

   if (shift==0 &&   (CurTime() - PrevAlertTime > Period()*Alert_Delay_In_Seconds))
   {
   Alert("Silver Trend ",Period()," ",Symbol()," BUY");
    PrevAlertTime = CurTime();
   }
   }
   if (uptrend!=old && uptrend==false)
   {

   val2[shift]=High[shift]+Range*0.5;
   if (shift==0 && (CurTime() - PrevAlertTime > Period()*Alert_Delay_In_Seconds))
   {
   Alert("Silver Trend ",Period()," ",Symbol()," SELL");
    PrevAlertTime = CurTime();

   }
   }
   Comment(shift);
   old=uptrend;

}
   return(0);
  }
//+------------------------------------------------------------------+
