Signal_Bars_v8

This script is a comprehensive market analysis dashboard designed for the MetaTrader platform. It provides traders with a real-time visual summary of various technical indicators across multiple timeframes simultaneously, allowing for a "bird's-eye view" of the market without having to switch between different charts manually.

Core Functionality and Logic

The logic of the script can be broken down into three primary analytical layers:

1. Multi-Timeframe Trend Analysis (MACD)

The script continuously monitors the Moving Average Convergence Divergence (MACD) indicator across seven different timeframes: 1 Minute, 5 Minutes, 15 Minutes, 30 Minutes, 1 Hour, 4 Hours, and Daily (D1).

  • Visual Logic: It assigns specific colors to these trends based on the relationship between the MACD main line and its signal line. For example, it distinguishes between basic bullish/bearish movements (Green/Tomato) and stronger momentum signals (Lime/Red) by checking if the values are above or below the zero axis.

2. Composite Momentum Signals (RSI, Stochastic, and CCI)

The script performs a "triple-check" logic using three different oscillators: Relative Strength Index (RSI), Stochastic Oscillator, and Commodity Channel Index (CCI).

  • Bullish Alignment: If all three indicators meet specific positive thresholds on a timeframe, the dashboard displays a bullish signal.
  • Bearish Alignment: Conversely, if they meet specific negative thresholds, it displays a bearish signal.
  • Conflict Identification (Orange Signals): One of the most advanced features of this logic is its ability to detect "conflicting" data. If the indicators show opposing directions (e.g., RSI suggests one way while the Stochastic suggests another), the script highlights these as Orange signals, alerting the trader to market indecision or potential volatility.

3. Moving Average (EMA) Confirmation

In addition to the momentum oscillators, the script calculates Exponential Moving Averages (EMA) for several timeframes. It compares a "Fast" EMA against a "Slow" EMA to determine the immediate trend direction. If the Fast EMA is above the Slow EMA, it highlights a bullish trend (Lime); if it is below, it indicates a bearish trend (Red).

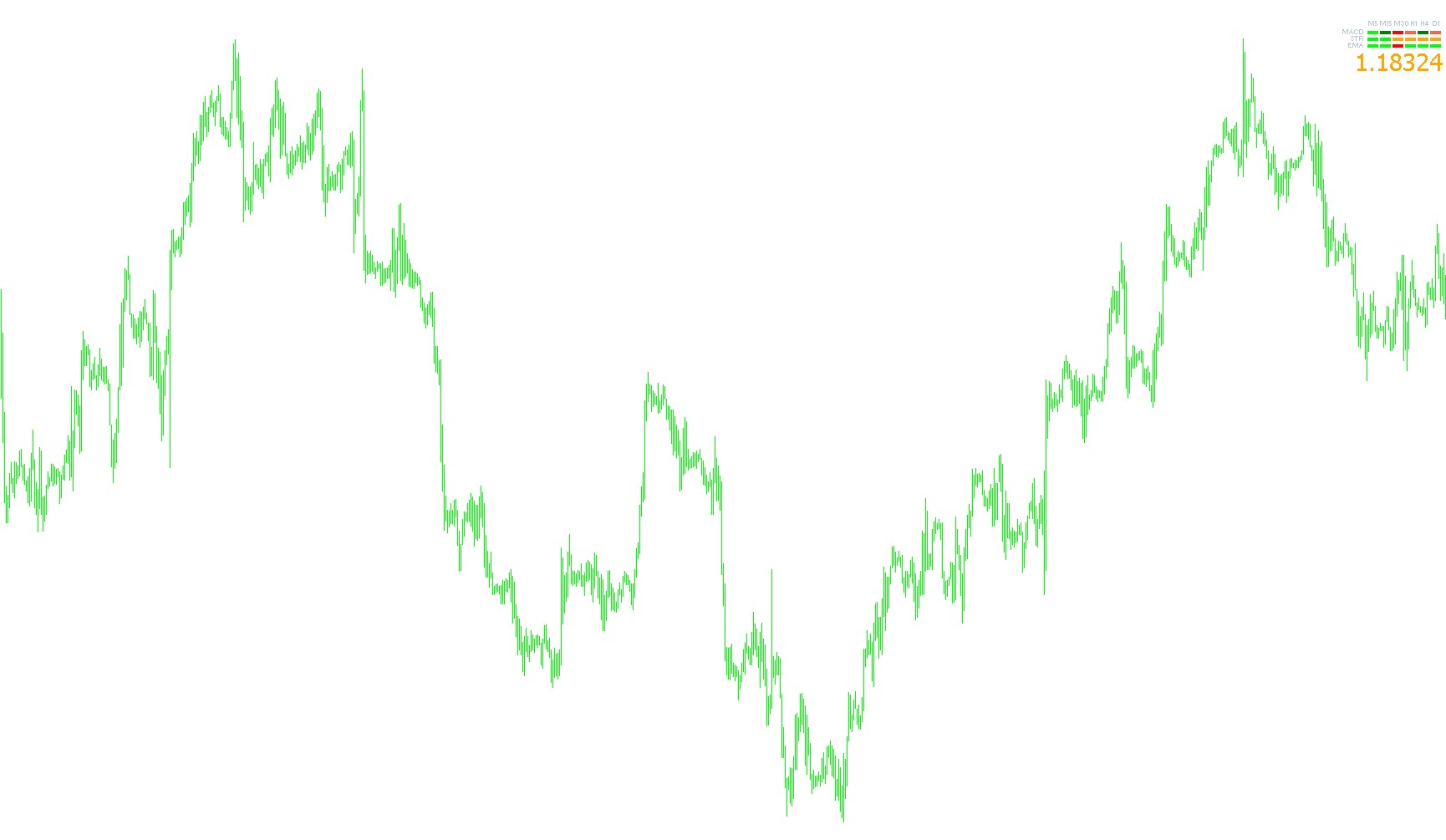

On-Screen Dashboard Features

The script organizes all this data into a clean, customizable display in the corner of your trading chart:

  • Dynamic Timeframe Labels: It displays clearly which timeframe corresponds to which signal so you can track trends from M1 all the way to D1 at a glance.
  • Live Price Tracking: It provides the current market price on the chart with adjustable text sizes.
  • Extra Market Details: When enabled, the script calculates and displays several critical trading statistics in real-time:
    • Spread: The current difference between the buy and sell price.
    • Pips to Open: How many pips the price has moved since the daily open.
    • High to Low: The total range of price movement for the day.
    • Daily Average: A calculation comparing today's average volatility (based on historical high/low ranges) against yesterday’s movement, helping you gauge if the current market is more or less active than usual.

Summary for the User

Essentially, this script acts as a Market Intelligence Hub. Instead of looking at seven different charts to see if the 1-hour trend matches the 5-minute momentum, the script processes all that data in the background and presents you with a color-coded dashboard. It tells you instantly whether the market is trending up, down, or in a state of conflict across almost every major timeframe.

Price Data Components
Series array that contains the highest prices of each barSeries array that contains the lowest prices of each barSeries array that contains open prices of each barSeries array that contains close prices for each barSeries array that contains the highest prices of each barSeries array that contains the lowest prices of each bar
Indicators Used
MACD HistogramRelative strength indexStochastic oscillatorCommodity channel indexMoving average indicator
14 Views
0 Downloads
0 Favorites
Signal_Bars_v8
//+------------------------------------------------------------------+
//|                                               Signal_Bars_v8.mq4 |
//|                                                 Developed by CJA |
//|                                                 Modified by Kris |
//+------------------------------------------------------------------+
#property indicator_chart_window

extern bool Corner_of_Chart_RIGHT_TOP  = true;
extern bool Show_Price                 = true;
extern bool Show_Xtra_Details          = false;
extern bool Show_Smaller_Size          = false;
extern int Shift_UP_DN                 = 0;
extern int Adjust_Side_to_side         = 0;
extern color BarLabel_color            = LightSteelBlue;
extern color CommentLabel_color        = LightSteelBlue;


//****************************************
extern int MACD_Fast       = 8;
extern int MACD_Slow       = 21;
extern int MACD_Signal     = 8;
extern int MACD_PRICE_TYPE = 0;

extern int RSI_Period      = 8;
extern int RSI_PRICE_TYPE  = 0;

extern int CCI_Period      = 13;
extern int CCI_PRICE_TYPE  = 0;

extern int STOCH_K_Period  = 5;
extern int STOCH_D_Period  = 3;
extern int STOCH_Slowing   = 3;
extern int STOCH_MA_MODE   = 1;

extern int MA_Fast         = 5;
extern int MA_Slow         = 7;
extern int MA_MODE         = 1;
extern int MA_PRICE_TYPE   = 0;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
   ObjectsDeleteAll(0,OBJ_LABEL);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   //***********************************************************************************************************************
   //MACD Signals
   int    counted_bars=IndicatorCounted();
//----
      string SSignalMACDD1="",SSignalMACDH1="",SSignalMACDH4="",SSignalMACDM1="", SSignalMACDM5="",SSignalMACDM15="",SSignalMACDM30="";
      color  colMACDD1,colMACDH1,colMACDH4,colMACDM1,colMACDM5,colMACDM15,colMACDM30;

      double MACDM1=iMACD(NULL,1,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_MAIN,0);
      double MACD_SIGM1=iMACD(NULL,1,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_SIGNAL,0);
      double MACDM5=iMACD(NULL,5,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_MAIN,0);
      double MACD_SIGM5=iMACD(NULL,5,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_SIGNAL,0);
      double MACDM15=iMACD(NULL,15,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_MAIN,0);
      double MACD_SIGM15=iMACD(NULL,15,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_SIGNAL,0);
      double MACDM30=iMACD(NULL,30,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_MAIN,0);
      double MACD_SIGM30=iMACD(NULL,30,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_SIGNAL,0);
      double MACDH1=iMACD(NULL,60,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_MAIN,0);
      double MACD_SIGH1=iMACD(NULL,60,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_SIGNAL,0);
      double MACDH4=iMACD(NULL,240,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_MAIN,0);
      double MACD_SIGH4=iMACD(NULL,240,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_SIGNAL,0);
      double MACDD1=iMACD(NULL,1440,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_MAIN,0);
      double MACD_SIGD1=iMACD(NULL,1440,MACD_Fast,MACD_Slow,MACD_Signal,MACD_PRICE_TYPE,MODE_SIGNAL,0);

      if (MACDM1>MACD_SIGM1){SSignalMACDM1 = "-"; colMACDM1 = Green;}
      if (MACDM1<=MACD_SIGM1){SSignalMACDM1 = "-"; colMACDM1 = Tomato;}
      if ((MACDM1>MACD_SIGM1)&&(MACDM1>0)){SSignalMACDM1 = "-"; colMACDM1 = Lime;}
      if ((MACDM1<=MACD_SIGM1)&&(MACDM1<0)){SSignalMACDM1 = "-"; colMACDM1 = Red;}

      if (MACDM5>MACD_SIGM5){SSignalMACDM5 = "-"; colMACDM5 = Green;}
      if (MACDM5<=MACD_SIGM5){SSignalMACDM5 = "-"; colMACDM5 = Tomato;}
      if ((MACDM5>MACD_SIGM5)&&(MACDM5>0)){SSignalMACDM5 = "-"; colMACDM5 = Lime;}
      if ((MACDM5<=MACD_SIGM5)&&(MACDM5<0)){SSignalMACDM5 = "-"; colMACDM5 = Red;}

      if (MACDM15>MACD_SIGM15){SSignalMACDM15 = "-"; colMACDM15 = Green;}
      if (MACDM15<=MACD_SIGM15){SSignalMACDM15 = "-"; colMACDM15 = Tomato;}
      if ((MACDM15>MACD_SIGM15)&&(MACDM15>0)){SSignalMACDM15 = "-"; colMACDM15 = Lime;}
      if ((MACDM15<=MACD_SIGM15)&&(MACDM15<0)){SSignalMACDM15 = "-"; colMACDM15 = Red;}

      if (MACDM30>MACD_SIGM30){SSignalMACDM30 = "-"; colMACDM30 = Green;}
      if (MACDM30<=MACD_SIGM30){SSignalMACDM30 = "-"; colMACDM30 = Tomato;}
      if ((MACDM30>MACD_SIGM30)&&(MACDM30>0)){SSignalMACDM30 = "-"; colMACDM30 = Lime;}
      if ((MACDM30<=MACD_SIGM30)&&(MACDM30<0)){SSignalMACDM30 = "-"; colMACDM30 = Red;}

      if (MACDH1>MACD_SIGH1){SSignalMACDH1 = "-"; colMACDH1 = Green;}
      if (MACDH1<=MACD_SIGH1){SSignalMACDH1 = "-"; colMACDH1 = Tomato;}
      if ((MACDH1>MACD_SIGH1)&&(MACDH1>0)){SSignalMACDH1 = "-"; colMACDH1 = Lime;}
      if ((MACDH1<=MACD_SIGH1)&&(MACDH1<0)){SSignalMACDH1 = "-"; colMACDH1 = Red;}

      if (MACDH4>MACD_SIGH4){SSignalMACDH4 = "-"; colMACDH4 = Green;}
      if (MACDH4<=MACD_SIGH4){SSignalMACDH4 = "-"; colMACDH4 = Tomato;}
      if ((MACDH4>MACD_SIGH4)&&(MACDH4>0)){SSignalMACDH4 = "-"; colMACDH4 = Lime;}
      if ((MACDH4<=MACD_SIGH4)&&(MACDH4<0)){SSignalMACDH4 = "-"; colMACDH4 = Red;}

      if (MACDD1>MACD_SIGD1){SSignalMACDD1 = "-"; colMACDD1 = Green;}
      if (MACDD1<=MACD_SIGD1){SSignalMACDD1 = "-"; colMACDD1 = Tomato;}
      if ((MACDD1>MACD_SIGD1)&&(MACDD1>0)){SSignalMACDD1 = "-"; colMACDD1 = Lime;}
      if ((MACDD1<=MACD_SIGD1)&&(MACDD1<0)){SSignalMACDD1 = "-"; colMACDD1 = Red;}


    if (Corner_of_Chart_RIGHT_TOP == true)
    {
           ObjectCreate("Numbers", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("Numbers", "M5 M15 M30 H1  H4  D1", 6, "Tahoma Narrow", BarLabel_color);
   ObjectSet("Numbers", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("Numbers", OBJPROP_XDISTANCE, 14+Adjust_Side_to_side);
   ObjectSet("Numbers", OBJPROP_YDISTANCE, 25+Shift_UP_DN);
   }
    if (Corner_of_Chart_RIGHT_TOP == false)
    {
           ObjectCreate("Numbers", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("Numbers", "D1  H4  H1 M30 M15 M5", 6, "Tahoma Narrow", BarLabel_color);
   ObjectSet("Numbers", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("Numbers", OBJPROP_XDISTANCE, 15+Adjust_Side_to_side);
   ObjectSet("Numbers", OBJPROP_YDISTANCE, 25+Shift_UP_DN);
    }
           ObjectCreate("SSignalMACDM1t", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SSignalMACDM1t", "MACD", 6, "Tahoma Narrow", BarLabel_color);
   ObjectSet("SSignalMACDM1t", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SSignalMACDM1t", OBJPROP_XDISTANCE, 105+Adjust_Side_to_side);
   ObjectSet("SSignalMACDM1t", OBJPROP_YDISTANCE, 35+Shift_UP_DN);

//           ObjectCreate("SSignalMACDM1", OBJ_LABEL, 0, 0, 0);
//   ObjectSetText("SSignalMACDM1", SSignalMACDM1, 35, "Tahoma Narrow", colMACDM1);
//   ObjectSet("SSignalMACDM1", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
//   ObjectSet("SSignalMACDM1", OBJPROP_XDISTANCE, 100+Adjust_Side_to_side);
//   ObjectSet("SSignalMACDM1", OBJPROP_YDISTANCE, 10+Shift_UP_DN);

           ObjectCreate("SSignalMACDM5", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SSignalMACDM5", SSignalMACDM5, 35, "Tahoma Narrow", colMACDM5);
   ObjectSet("SSignalMACDM5", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SSignalMACDM5", OBJPROP_XDISTANCE, 85+Adjust_Side_to_side);
   ObjectSet("SSignalMACDM5", OBJPROP_YDISTANCE, 10+Shift_UP_DN);

           ObjectCreate("SSignalMACDM15", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SSignalMACDM15", SSignalMACDM15, 35, "Tahoma Narrow", colMACDM15);
   ObjectSet("SSignalMACDM15", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SSignalMACDM15", OBJPROP_XDISTANCE, 70+Adjust_Side_to_side);
   ObjectSet("SSignalMACDM15", OBJPROP_YDISTANCE, 10+Shift_UP_DN);

           ObjectCreate("SSignalMACDM30", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SSignalMACDM30", SSignalMACDM30, 35, "Tahoma Narrow", colMACDM30);
   ObjectSet("SSignalMACDM30", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SSignalMACDM30", OBJPROP_XDISTANCE, 55+Adjust_Side_to_side);
   ObjectSet("SSignalMACDM30", OBJPROP_YDISTANCE, 10+Shift_UP_DN);

          ObjectCreate("SSignalMACDH1", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SSignalMACDH1", SSignalMACDH1, 35, "Tahoma Narrow", colMACDH1);
   ObjectSet("SSignalMACDH1", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SSignalMACDH1", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("SSignalMACDH1", OBJPROP_YDISTANCE, 10+Shift_UP_DN);

            ObjectCreate("SSignalMACDH4", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SSignalMACDH4", SSignalMACDH4, 35, "Tahoma Narrow", colMACDH4);
   ObjectSet("SSignalMACDH4", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SSignalMACDH4", OBJPROP_XDISTANCE, 25+Adjust_Side_to_side);
   ObjectSet("SSignalMACDH4", OBJPROP_YDISTANCE, 10+Shift_UP_DN);

             ObjectCreate("SSignalMACDD1", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SSignalMACDD1", SSignalMACDD1, 35, "Tahoma Narrow", colMACDD1);
   ObjectSet("SSignalMACDD1", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SSignalMACDD1", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("SSignalMACDD1", OBJPROP_YDISTANCE, 10+Shift_UP_DN);

   //***************************************************************************************************************
   //STR Signals
   double rsi_d1  = iRSI(NULL, PERIOD_D1,  RSI_Period , RSI_PRICE_TYPE, 0);
   double rsi_h4  = iRSI(NULL, PERIOD_H4,  RSI_Period , RSI_PRICE_TYPE, 0);
   double rsi_h1  = iRSI(NULL, PERIOD_H1,  RSI_Period , RSI_PRICE_TYPE, 0);
   double rsi_m30 = iRSI(NULL, PERIOD_M30, RSI_Period , RSI_PRICE_TYPE, 0);
   double rsi_m15 = iRSI(NULL, PERIOD_M15, RSI_Period , RSI_PRICE_TYPE, 0);
   double rsi_m5  = iRSI(NULL, PERIOD_M5,  RSI_Period , RSI_PRICE_TYPE, 0);
   double rsi_m1  = iRSI(NULL, PERIOD_M1,  RSI_Period , RSI_PRICE_TYPE, 0);

   double stoc_D1  = iStochastic(NULL, PERIOD_D1,  STOCH_K_Period,STOCH_D_Period,STOCH_Slowing, STOCH_MA_MODE, 0, MODE_MAIN, 0);
   double stoc_H4  = iStochastic(NULL, PERIOD_H4,  STOCH_K_Period,STOCH_D_Period,STOCH_Slowing, STOCH_MA_MODE, 0, MODE_MAIN, 0);
   double stoc_H1  = iStochastic(NULL, PERIOD_H1,  STOCH_K_Period,STOCH_D_Period,STOCH_Slowing, STOCH_MA_MODE, 0, MODE_MAIN, 0);
   double stoc_M30 = iStochastic(NULL, PERIOD_M30, STOCH_K_Period,STOCH_D_Period,STOCH_Slowing, STOCH_MA_MODE, 0, MODE_MAIN, 0);
   double stoc_M15 = iStochastic(NULL, PERIOD_M15, STOCH_K_Period,STOCH_D_Period,STOCH_Slowing, STOCH_MA_MODE, 0, MODE_MAIN, 0);//sto was 15,5,5
   double stoc_M5  = iStochastic(NULL, PERIOD_M5,  STOCH_K_Period,STOCH_D_Period,STOCH_Slowing, STOCH_MA_MODE, 0, MODE_MAIN, 0);
   double stoc_M1  = iStochastic(NULL, PERIOD_M1,  STOCH_K_Period,STOCH_D_Period,STOCH_Slowing, STOCH_MA_MODE, 0, MODE_MAIN, 0);// was mode signal now gets value off main line

   double cci_DD1  = iCCI(NULL, PERIOD_D1,CCI_Period ,  CCI_PRICE_TYPE, 0);
   double cci_HH4  = iCCI(NULL, PERIOD_H4,CCI_Period ,  CCI_PRICE_TYPE, 0);
   double cci_HH1  = iCCI(NULL, PERIOD_H1,CCI_Period ,  CCI_PRICE_TYPE, 0);
   double cci_MM30 = iCCI(NULL, PERIOD_M30,CCI_Period , CCI_PRICE_TYPE, 0);
   double cci_MM15 = iCCI(NULL, PERIOD_M15,CCI_Period , CCI_PRICE_TYPE, 0);
   double cci_MM5  = iCCI(NULL, PERIOD_M5,CCI_Period ,  CCI_PRICE_TYPE, 0);
   double cci_MM1  = iCCI(NULL, PERIOD_M1,CCI_Period ,  CCI_PRICE_TYPE, 0);


   string STR_h1 = "", STR_m15 = "", STR_m5 = "", STR_m1 = "", STR_h4 ="",STR_m30= "",STR_d1= "",STR_w1= "";

   color  color_signal,color_m1,color_m5,color_m15,color_m30,color_m60,color_m240,color_m1440;

   if ((rsi_d1 > 50) && (stoc_D1 > 40) && (cci_DD1 > 0)) { STR_d1 = "-";color_m1440 = Lime;}
   if ((rsi_h4 > 50) && (stoc_H4 > 40) && (cci_HH4 > 0)) { STR_h4 = "-";color_m240 = Lime;}
   if ((rsi_h1 > 50) && (stoc_H1 > 40) && (cci_HH1 > 0)) { STR_h1 = "-";color_m60 = Lime;}
   if ((rsi_m30 > 50) && (stoc_M30 > 40) && (cci_MM30 > 0)) { STR_m30 = "-";color_m30 = Lime; }
   if ((rsi_m15 > 50) && (stoc_M15 > 40) && (cci_MM15 > 0)) { STR_m15 = "-";color_m15 = Lime; }
   if ((rsi_m5 > 50) && (stoc_M5 > 40) && (cci_MM5 > 0)) { STR_m5 = "-"; color_m5 = Lime;}
   if ((rsi_m1 > 50) && (stoc_M1 > 40) && (cci_MM1 > 0)) { STR_m1 = "-";  color_m1 = Lime;}


   if ((rsi_d1 < 50) && (stoc_D1 < 60) && (cci_DD1 < 0)) { STR_d1 = "-";color_m1440 = Red;}
   if ((rsi_h4 < 50) && (stoc_H4 < 60) && (cci_HH4 < 0)) { STR_h4 = "-";color_m240 = Red;}
   if ((rsi_h1 < 50) && (stoc_H1 < 60) && (cci_HH1 < 0)) { STR_h1 = "-";color_m60 = Red;}
   if ((rsi_m30 < 50) && (stoc_M30 < 60) && (cci_MM30 < 0)) { STR_m30 = "-";color_m30 = Red;}
   if ((rsi_m15 < 50) && (stoc_M15 < 60) && (cci_MM15 < 0)) { STR_m15 = "-";color_m15 = Red;}
   if ((rsi_m5 < 50) && (stoc_M5 < 60) && (cci_MM5 < 0)) { STR_m5 = "-";color_m5 = Red;}
   if ((rsi_m1 < 50) && (stoc_M1 < 60) && (cci_MM1 < 0)) { STR_m1 = "-"; color_m1 = Red;}


   if ((rsi_m1 < 50) && (stoc_M1 > 40) && (cci_MM1 > 0)) { STR_m1 = "-";  color_m1 = Orange;}
   if ((rsi_m1 > 50) && (stoc_M1 < 60) && (cci_MM1 < 0)) { STR_m1 = "-";  color_m1 = Orange;}
   if ((rsi_m1 < 50) && (stoc_M1 > 40) && (cci_MM1 < 0)) { STR_m1 = "-";  color_m1 = Orange;}
   if ((rsi_m1 > 50) && (stoc_M1 < 60) && (cci_MM1 > 0)) { STR_m1 = "-";  color_m1 = Orange;}
   if ((rsi_m1 > 50) && (stoc_M1 > 40) && (cci_MM1 < 0)) { STR_m1 = "-";  color_m1 = Orange;}
   if ((rsi_m1 > 50) && (stoc_M1 < 60) && (cci_MM1 < 0)) { STR_m1 = "-";  color_m1 = Orange;}


   if ((rsi_m5 < 50) && (stoc_M5 > 40) && (cci_MM5 > 0)) { STR_m5 = "-";  color_m5 = Orange;}
   if ((rsi_m5 > 50) && (stoc_M5 < 60) && (cci_MM5 < 0)) { STR_m5 = "-";  color_m5 = Orange;}
   if ((rsi_m5 < 50) && (stoc_M5 > 40) && (cci_MM5 < 0)) { STR_m5 = "-";  color_m5 = Orange;}
   if ((rsi_m5 > 50) && (stoc_M5 < 60) && (cci_MM5 > 0)) { STR_m5 = "-";  color_m5 = Orange;}
   if ((rsi_m5 > 50) && (stoc_M5 > 40) && (cci_MM5 < 0)) { STR_m5 = "-";  color_m5 = Orange;}
   if ((rsi_m5 > 50) && (stoc_M5 < 60) && (cci_MM5 < 0)) { STR_m5 = "-";  color_m5 = Orange;}

   if ((rsi_m15 < 50) && (stoc_M15 > 40) && (cci_MM15 > 0)) { STR_m15 = "-";  color_m15 = Orange;}
   if ((rsi_m15 > 50) && (stoc_M15 < 60) && (cci_MM15 < 0)) { STR_m15 = "-";  color_m15 = Orange;}
   if ((rsi_m15 < 50) && (stoc_M15 > 40) && (cci_MM15 < 0)) { STR_m15 = "-";  color_m15 = Orange;}
   if ((rsi_m15 > 50) && (stoc_M15 < 60) && (cci_MM15 > 0)) { STR_m15 = "-";  color_m15 = Orange;}
   if ((rsi_m15 > 50) && (stoc_M15 > 40) && (cci_MM15 < 0)) { STR_m15 = "-";  color_m15 = Orange;}
   if ((rsi_m15 > 50) && (stoc_M15 < 60) && (cci_MM15 < 0)) { STR_m15 = "-";  color_m15 = Orange;}

   if ((rsi_m30 < 50) && (stoc_M30 > 40) && (cci_MM30 > 0)) { STR_m30 = "-";  color_m30 = Orange;}
   if ((rsi_m30 > 50) && (stoc_M30 < 60) && (cci_MM30 < 0)) { STR_m30 = "-";  color_m30 = Orange;}
   if ((rsi_m30 < 50) && (stoc_M30 > 40) && (cci_MM30 < 0)) { STR_m30 = "-";  color_m30 = Orange;}
   if ((rsi_m30 > 50) && (stoc_M30 < 60) && (cci_MM30 > 0)) { STR_m30 = "-";  color_m30 = Orange;}
   if ((rsi_m30 > 50) && (stoc_M30 > 40) && (cci_MM30 < 0)) { STR_m30 = "-";  color_m30 = Orange;}
   if ((rsi_m30 > 50) && (stoc_M30 < 60) && (cci_MM30 < 0)) { STR_m30 = "-";  color_m30 = Orange;}

   if ((rsi_h1 < 50) && (stoc_H1 > 40) && (cci_HH1 > 0)) { STR_h1 = "-";  color_m60 = Orange;}
   if ((rsi_h1 > 50) && (stoc_H1 < 60) && (cci_HH1 < 0)) { STR_h1 = "-";  color_m60 = Orange;}
   if ((rsi_h1 < 50) && (stoc_H1 > 40) && (cci_HH1 < 0)) { STR_h1 = "-";  color_m60 = Orange;}
   if ((rsi_h1 > 50) && (stoc_H1 < 60) && (cci_HH1 > 0)) { STR_h1 = "-";  color_m60 = Orange;}
   if ((rsi_h1 > 50) && (stoc_H1 > 40) && (cci_HH1 < 0)) { STR_h1 = "-";  color_m60 = Orange;}
   if ((rsi_h1 > 50) && (stoc_H1 < 60) && (cci_HH1 < 0)) { STR_h1 = "-";  color_m60 = Orange;}

   if ((rsi_h4 < 50) && (stoc_H4 > 40) && (cci_HH4 > 0)) { STR_h4 = "-";  color_m240 = Orange;}
   if ((rsi_h4 > 50) && (stoc_H4 < 60) && (cci_HH4 < 0)) { STR_h4 = "-";  color_m240 = Orange;}
   if ((rsi_h4 < 50) && (stoc_H4 > 40) && (cci_HH4 < 0)) { STR_h4 = "-";  color_m240 = Orange;}
   if ((rsi_h4 > 50) && (stoc_H4 < 60) && (cci_HH4 > 0)) { STR_h4 = "-";  color_m240 = Orange;}
   if ((rsi_h4 > 50) && (stoc_H4 > 40) && (cci_HH4 < 0)) { STR_h4 = "-";  color_m240 = Orange;}
   if ((rsi_h4 > 50) && (stoc_H4 < 60) && (cci_HH4 < 0)) { STR_h4 = "-";  color_m240 = Orange;}

   if ((rsi_d1 < 50) && (stoc_D1 > 40) && (cci_DD1 > 0)) { STR_d1 = "-";  color_m1440 = Orange;}
   if ((rsi_d1 > 50) && (stoc_D1 < 60) && (cci_DD1 < 0)) { STR_d1 = "-";  color_m1440 = Orange;}
   if ((rsi_d1 < 50) && (stoc_D1 > 40) && (cci_DD1 < 0)) { STR_d1 = "-";  color_m1440 = Orange;}
   if ((rsi_d1 > 50) && (stoc_D1 < 60) && (cci_DD1 > 0)) { STR_d1 = "-";  color_m1440 = Orange;}
   if ((rsi_d1 > 50) && (stoc_D1 > 40) && (cci_DD1 < 0)) { STR_d1 = "-";  color_m1440 = Orange;}
   if ((rsi_d1 > 50) && (stoc_D1 < 60) && (cci_DD1 < 0)) { STR_d1 = "-";  color_m1440 = Orange;}



           ObjectCreate("SignalSTRM1t", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalSTRM1t","STR", 6, "Tahoma Narrow",  BarLabel_color);
   ObjectSet("SignalSTRM1t", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalSTRM1t", OBJPROP_XDISTANCE, 105+Adjust_Side_to_side);
   ObjectSet("SignalSTRM1t", OBJPROP_YDISTANCE, 43+Shift_UP_DN);

//           ObjectCreate("SignalSTRM1", OBJ_LABEL, 0, 0, 0);
//   ObjectSetText("SignalSTRM1", STR_m1, 35, "Tahoma Narrow",  color_m1);
//   ObjectSet("SignalSTRM1", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
//   ObjectSet("SignalSTRM1", OBJPROP_XDISTANCE, 100+Adjust_Side_to_side);
//   ObjectSet("SignalSTRM1", OBJPROP_YDISTANCE, 10+Shift_UP_DN);

           ObjectCreate("SignalSTRM5", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalSTRM5", STR_m5, 35, "Tahoma Narrow",  color_m5);
   ObjectSet("SignalSTRM5", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalSTRM5", OBJPROP_XDISTANCE, 85+Adjust_Side_to_side);
   ObjectSet("SignalSTRM5", OBJPROP_YDISTANCE, 18+Shift_UP_DN);

           ObjectCreate("SignalSTRM15", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalSTRM15", STR_m15, 35, "Tahoma Narrow",  color_m15);
   ObjectSet("SignalSTRM15", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalSTRM15", OBJPROP_XDISTANCE, 70+Adjust_Side_to_side);
   ObjectSet("SignalSTRM15", OBJPROP_YDISTANCE, 18+Shift_UP_DN);

           ObjectCreate("SignalSTRM30", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalSTRM30", STR_m30, 35, "Tahoma Narrow",  color_m30);
   ObjectSet("SignalSTRM30", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalSTRM30", OBJPROP_XDISTANCE, 55+Adjust_Side_to_side);
   ObjectSet("SignalSTRM30", OBJPROP_YDISTANCE, 18+Shift_UP_DN);

           ObjectCreate("SignalSTRM60", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalSTRM60", STR_h1, 35, "Tahoma Narrow",  color_m60);
   ObjectSet("SignalSTRM60", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalSTRM60", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("SignalSTRM60", OBJPROP_YDISTANCE, 18+Shift_UP_DN);

           ObjectCreate("SignalSTRM240", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalSTRM240", STR_h4, 35, "Tahoma Narrow",  color_m240);
   ObjectSet("SignalSTRM240", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalSTRM240", OBJPROP_XDISTANCE, 25+Adjust_Side_to_side);
   ObjectSet("SignalSTRM240", OBJPROP_YDISTANCE, 18+Shift_UP_DN);

            ObjectCreate("SignalSTRM1440", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalSTRM1440", STR_d1, 35, "Tahoma Narrow",  color_m1440);
   ObjectSet("SignalSTRM1440", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalSTRM1440", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("SignalSTRM1440", OBJPROP_YDISTANCE, 18+Shift_UP_DN);

   //******************************************************************************************************************
   //EMA Signals

    double EMA_M1 = iMA(Symbol(),1,MA_Fast,0,MA_MODE,MA_PRICE_TYPE,0);
    double ema_m1 = iMA(Symbol(),1,MA_Slow,0,MA_MODE,MA_PRICE_TYPE,0);
    double EMA_M5 = iMA(Symbol(),5,MA_Fast,0,MA_MODE,MA_PRICE_TYPE,0);
    double ema_m5 = iMA(Symbol(),5,MA_Slow,0,MA_MODE,MA_PRICE_TYPE,0);
    double EMA_M15 = iMA(Symbol(),15,MA_Fast,0,MA_MODE,MA_PRICE_TYPE,0);
    double ema_m15 = iMA(Symbol(),15,MA_Slow,0,MA_MODE,MA_PRICE_TYPE,0);
    double EMA_M30 = iMA(Symbol(),30,MA_Fast,0,MA_MODE,MA_PRICE_TYPE,0);
    double ema_m30 = iMA(Symbol(),30,MA_Slow,0,MA_MODE,MA_PRICE_TYPE,0);
    double EMA_H1 = iMA(Symbol(),60,MA_Fast,0,MA_MODE,MA_PRICE_TYPE,0);
    double ema_h1 = iMA(Symbol(),60,MA_Slow,0,MA_MODE,MA_PRICE_TYPE,0);
    double EMA_H4 = iMA(Symbol(),240,MA_Fast,0,MA_MODE,MA_PRICE_TYPE,0);
    double ema_h4 = iMA(Symbol(),240,MA_Slow,0,MA_MODE,MA_PRICE_TYPE,0);
    double EMA_D1 = iMA(Symbol(),1440,MA_Fast,0,MA_MODE,MA_PRICE_TYPE,0);
    double ema_d1 = iMA(Symbol(),1440,MA_Slow,0,MA_MODE,MA_PRICE_TYPE,0);
   // double EMA_W1 = iMA(Symbol(),10080,MA_Fast,0,MA_MODE,MA_PRICE_TYPE,0);
   // double ema_w1 = iMA(Symbol(),10080,MA_Slow,0,MA_MODE,MA_PRICE_TYPE,0);

    string M1_EMA= "",M5_EMA= "", M15_EMA= "", M30_EMA= "", H1_EMA= "", H4_EMA= "", D1_EMA= "",PRC1;
    color  color_EMAm1,color_EMAm5,color_EMAm15,color_EMAm30,color_EMAm60,color_EMAm240,color_EMAm1440;


    if (EMA_M1 > ema_m1) {M1_EMA= "-";color_EMAm1 = Lime; }
    if (EMA_M1 <= ema_m1) {M1_EMA= "-";color_EMAm1 = Red; }

    if (EMA_M5 > ema_m5) {M5_EMA= "-";color_EMAm5 = Lime; }
    if (EMA_M5 <= ema_m5) {M5_EMA= "-";color_EMAm5 = Red; }

    if (EMA_M15 > ema_m15) {M15_EMA= "-";color_EMAm15 = Lime; }
    if (EMA_M15 <= ema_m15) {M15_EMA= "-";color_EMAm15 = Red; }

    if (EMA_M30 > ema_m30) {M30_EMA= "-";color_EMAm30 = Lime; }
    if (EMA_M30 <= ema_m30) {M30_EMA= "-";color_EMAm30 = Red; }

    if (EMA_H1 > ema_h1) {H1_EMA= "-";color_EMAm60 = Lime; }
    if (EMA_H1 <= ema_h1) {H1_EMA= "-";color_EMAm60 = Red; }

    if (EMA_H4 > ema_h4) {H4_EMA= "-";color_EMAm240 = Lime; }
    if (EMA_H4 <= ema_h4) {H4_EMA= "-";color_EMAm240 = Red; }

    if (EMA_D1 > ema_d1) {D1_EMA= "-";color_EMAm1440 = Lime; }
    if (EMA_D1 <= ema_d1) {D1_EMA= "-";color_EMAm1440 = Red; }


           ObjectCreate("SignalEMAM1t", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalEMAM1t","EMA", 6, "Tahoma Narrow",  BarLabel_color);
   ObjectSet("SignalEMAM1t", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalEMAM1t", OBJPROP_XDISTANCE, 105+Adjust_Side_to_side);
   ObjectSet("SignalEMAM1t", OBJPROP_YDISTANCE, 51+Shift_UP_DN);

//           ObjectCreate("SignalEMAM1", OBJ_LABEL, 0, 0, 0);
//   ObjectSetText("SignalEMAM1", M1_EMA, 35, "Tahoma Narrow",  color_EMAm1);
//   ObjectSet("SignalEMAM1", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
//   ObjectSet("SignalEMAM1", OBJPROP_XDISTANCE, 100+Adjust_Side_to_side);
//   ObjectSet("SignalEMAM1", OBJPROP_YDISTANCE, 26+Shift_UP_DN);

           ObjectCreate("SignalEMAM5", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalEMAM5", M5_EMA, 35, "Tahoma Narrow",  color_EMAm5);
   ObjectSet("SignalEMAM5", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalEMAM5", OBJPROP_XDISTANCE, 85+Adjust_Side_to_side);
   ObjectSet("SignalEMAM5", OBJPROP_YDISTANCE, 26+Shift_UP_DN);

           ObjectCreate("SignalEMAM15", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalEMAM15", M15_EMA, 35, "Tahoma Narrow",  color_EMAm15);
   ObjectSet("SignalEMAM15", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalEMAM15", OBJPROP_XDISTANCE, 70+Adjust_Side_to_side);
   ObjectSet("SignalEMAM15", OBJPROP_YDISTANCE, 26+Shift_UP_DN);

           ObjectCreate("SignalEMAM30", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalEMAM30", M30_EMA, 35, "Tahoma Narrow",  color_EMAm30);
   ObjectSet("SignalEMAM30", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalEMAM30", OBJPROP_XDISTANCE, 55+Adjust_Side_to_side);
   ObjectSet("SignalEMAM30", OBJPROP_YDISTANCE, 26+Shift_UP_DN);

           ObjectCreate("SignalEMAM60", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalEMAM60", H1_EMA, 35, "Tahoma Narrow",  color_EMAm60);
   ObjectSet("SignalEMAM60", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalEMAM60", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("SignalEMAM60", OBJPROP_YDISTANCE, 26+Shift_UP_DN);

           ObjectCreate("SignalEMAM240", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalEMAM240", H4_EMA, 35, "Tahoma Narrow",  color_EMAm240);
   ObjectSet("SignalEMAM240", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalEMAM240", OBJPROP_XDISTANCE, 25+Adjust_Side_to_side);
   ObjectSet("SignalEMAM240", OBJPROP_YDISTANCE, 26+Shift_UP_DN);

           ObjectCreate("SignalEMAM1440", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("SignalEMAM1440", D1_EMA, 35, "Tahoma Narrow",  color_EMAm1440);
   ObjectSet("SignalEMAM1440", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("SignalEMAM1440", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("SignalEMAM1440", OBJPROP_YDISTANCE, 26+Shift_UP_DN);

   //*****************************************************************************************************
   //Info

   double Price1 = iMA(Symbol(),0,1,0,MODE_EMA,PRICE_CLOSE,0);
    PRC1 = DoubleToStr(Price1,Digits);


    if (Show_Smaller_Size  == false)
    {

    if (Show_Price  == true)
    {
           ObjectCreate("Signalprice", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("Signalprice",""+PRC1+"", 22, "Tahoma",  color_m30);
   ObjectSet("Signalprice", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("Signalprice", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("Signalprice", OBJPROP_YDISTANCE, 58+Shift_UP_DN);
   }}

    if (Show_Smaller_Size  == true)
    {
     if (Show_Price  == true)
    {
           ObjectCreate("Signalprice", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("Signalprice",""+PRC1+"", 15, "Tahoma",  color_m30);
   ObjectSet("Signalprice", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("Signalprice", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("Signalprice", OBJPROP_YDISTANCE, 60+Shift_UP_DN);
   }}
   int R1=0,R5=0,R10=0,R20=0,RAvg=0,i=0;
   R1 =  (iHigh(NULL,PERIOD_D1,1)-iLow(NULL,PERIOD_D1,1))/Point;
   for(i=1;i<=5;i++)
      R5    =    R5  +  (iHigh(NULL,PERIOD_D1,i)-iLow(NULL,PERIOD_D1,i))/Point;
   for(i=1;i<=10;i++)
      R10   =    R10 +  (iHigh(NULL,PERIOD_D1,i)-iLow(NULL,PERIOD_D1,i))/Point;
   for(i=1;i<=20;i++)
      R20   =    R20 +  (iHigh(NULL,PERIOD_D1,i)-iLow(NULL,PERIOD_D1,i))/Point;

   R5 = R5/5;
   R10 = R10/10;
   R20 = R20/20;
   RAvg  =  (R1+R5+R10+R20)/4;

   string HI="",LO="",SPREAD="",PIPS="",DAV="",HILO="",PRC,Pips="",Av="",AV_Yest="";
   color color_pip,color_av;
   double OPEN = iOpen(NULL,1440,0);
   double CLOSE = iClose(NULL,1440,0);
   double SPRD = (Ask - Bid)/Point;
   double High_Today = iHigh(NULL,1440,0);
   double Low_Today = iLow(NULL,1440,0);
   PIPS =  DoubleToStr((CLOSE-OPEN)/Point,0);
   SPREAD = (DoubleToStr(SPRD,Digits-4));
   DAV = (DoubleToStr(RAvg,Digits-4));
   AV_Yest =  (iHigh(NULL,PERIOD_D1,1)-iLow(NULL,PERIOD_D1,1))/Point;
   HILO = DoubleToStr((High_Today-Low_Today)/Point,0);

     if (CLOSE >= OPEN) {Pips= "-";color_pip = Lime; }
     if (CLOSE < OPEN) {Pips= "-";color_pip = OrangeRed; }
      if (DAV > AV_Yest) {Av= "-";color_av = Lime; }
     if (DAV < AV_Yest) {Av= "-";color_av = OrangeRed; }


    if (Show_Smaller_Size  == false)
    {
    if (Show_Xtra_Details == true)
    {
     if (Show_Price  == true)
    {

                ObjectCreate("MMLEVELS7", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS7","Spread", 10, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS7", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS7", OBJPROP_XDISTANCE, 45+Adjust_Side_to_side);
   ObjectSet("MMLEVELS7", OBJPROP_YDISTANCE, 100+Shift_UP_DN);

               ObjectCreate("MMLEVELS8", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS8",""+SPREAD+"", 10, "Arial Bold", Gold);
   ObjectSet("MMLEVELS8", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS8", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS8", OBJPROP_YDISTANCE, 100+Shift_UP_DN);


                ObjectCreate("MMLEVELS9", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS9","Pips to Open", 10, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS9", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS9", OBJPROP_XDISTANCE, 45+Adjust_Side_to_side);
   ObjectSet("MMLEVELS9", OBJPROP_YDISTANCE, 115+Shift_UP_DN);

               ObjectCreate("MMLEVELS10", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS10",""+PIPS+"", 10, "Arial Bold", color_pip);
   ObjectSet("MMLEVELS10", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS10", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS10", OBJPROP_YDISTANCE, 115+Shift_UP_DN);

                ObjectCreate("MMLEVELS11", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS11","Hi to Low", 10, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS11", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS11", OBJPROP_XDISTANCE, 45+Adjust_Side_to_side);
   ObjectSet("MMLEVELS11", OBJPROP_YDISTANCE, 130+Shift_UP_DN);

               ObjectCreate("MMLEVELS12", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS12",""+HILO+"", 10, "Arial Bold", Gold);
   ObjectSet("MMLEVELS12", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS12", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS12", OBJPROP_YDISTANCE, 130+Shift_UP_DN);

                 ObjectCreate("MMLEVELS13", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS13","Daily Av", 10, "Arial",CommentLabel_color);
   ObjectSet("MMLEVELS13", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS13", OBJPROP_XDISTANCE, 45+Adjust_Side_to_side);
   ObjectSet("MMLEVELS13", OBJPROP_YDISTANCE, 145+Shift_UP_DN);

               ObjectCreate("MMLEVELS14", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS14",""+DAV+"", 10, "Arial Bold", color_av);
   ObjectSet("MMLEVELS14", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS14", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS14", OBJPROP_YDISTANCE, 145+Shift_UP_DN);
 }}}
 //*****************************************************************
 //Shift if price not wanted
  if (Show_Smaller_Size  == false)
    {
    if (Show_Xtra_Details == true)
    {
     if (Show_Price  == false)
    {

                ObjectCreate("MMLEVELS7", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS7","Spread", 10, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS7", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS7", OBJPROP_XDISTANCE, 45+Adjust_Side_to_side);
   ObjectSet("MMLEVELS7", OBJPROP_YDISTANCE, 60+Shift_UP_DN);

               ObjectCreate("MMLEVELS8", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS8",""+SPREAD+"", 10, "Arial Bold", Gold);
   ObjectSet("MMLEVELS8", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS8", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS8", OBJPROP_YDISTANCE, 60+Shift_UP_DN);


                ObjectCreate("MMLEVELS9", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS9","Pips to Open", 10, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS9", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS9", OBJPROP_XDISTANCE, 45+Adjust_Side_to_side);
   ObjectSet("MMLEVELS9", OBJPROP_YDISTANCE, 75+Shift_UP_DN);

               ObjectCreate("MMLEVELS10", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS10",""+PIPS+"", 10, "Arial Bold", color_pip);
   ObjectSet("MMLEVELS10", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS10", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS10", OBJPROP_YDISTANCE, 75+Shift_UP_DN);

                ObjectCreate("MMLEVELS11", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS11","Hi to Low", 10, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS11", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS11", OBJPROP_XDISTANCE, 45+Adjust_Side_to_side);
   ObjectSet("MMLEVELS11", OBJPROP_YDISTANCE, 90+Shift_UP_DN);

               ObjectCreate("MMLEVELS12", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS12",""+HILO+"", 10, "Arial Bold", Gold);
   ObjectSet("MMLEVELS12", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS12", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS12", OBJPROP_YDISTANCE, 90+Shift_UP_DN);

                 ObjectCreate("MMLEVELS13", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS13","Daily Av", 10, "Arial",CommentLabel_color);
   ObjectSet("MMLEVELS13", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS13", OBJPROP_XDISTANCE, 45+Adjust_Side_to_side);
   ObjectSet("MMLEVELS13", OBJPROP_YDISTANCE, 105+Shift_UP_DN);

               ObjectCreate("MMLEVELS14", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS14",""+DAV+"", 10, "Arial Bold", color_av);
   ObjectSet("MMLEVELS14", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS14", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS14", OBJPROP_YDISTANCE, 105+Shift_UP_DN);
 }}}

  //***********************************************************************
  //Smaller type option
    if (Show_Smaller_Size  == true)
    {
    if (Show_Xtra_Details == true)
    {
     if (Show_Price  == true)
    {

                ObjectCreate("MMLEVELS7", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS7","Spread", 8, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS7", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS7", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("MMLEVELS7", OBJPROP_YDISTANCE, 80+Shift_UP_DN);

               ObjectCreate("MMLEVELS8", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS8",""+SPREAD+"", 8, "Arial Bold", Gold);
   ObjectSet("MMLEVELS8", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS8", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS8", OBJPROP_YDISTANCE, 80+Shift_UP_DN);


                ObjectCreate("MMLEVELS9", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS9","Pips to Open", 8, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS9", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS9", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("MMLEVELS9", OBJPROP_YDISTANCE, 95+Shift_UP_DN);

               ObjectCreate("MMLEVELS10", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS10",""+PIPS+"", 8, "Arial Bold", color_pip);
   ObjectSet("MMLEVELS10", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS10", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS10", OBJPROP_YDISTANCE, 95+Shift_UP_DN);

                ObjectCreate("MMLEVELS11", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS11","Hi to Low", 8, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS11", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS11", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("MMLEVELS11", OBJPROP_YDISTANCE, 110+Shift_UP_DN);

               ObjectCreate("MMLEVELS12", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS12",""+HILO+"", 8, "Arial Bold", Gold);
   ObjectSet("MMLEVELS12", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS12", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS12", OBJPROP_YDISTANCE, 110+Shift_UP_DN);

                 ObjectCreate("MMLEVELS13", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS13","Daily Av", 8, "Arial",CommentLabel_color);
   ObjectSet("MMLEVELS13", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS13", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("MMLEVELS13", OBJPROP_YDISTANCE, 125+Shift_UP_DN);

               ObjectCreate("MMLEVELS14", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS14",""+DAV+"", 8, "Arial Bold", color_av);
   ObjectSet("MMLEVELS14", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS14", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS14", OBJPROP_YDISTANCE, 125+Shift_UP_DN);
 }}}

 //****************************************************************
 // Shift if Price not needed
  if (Show_Smaller_Size  == true)
    {
    if (Show_Xtra_Details == true)
    {
     if (Show_Price  == false)
    {

                ObjectCreate("MMLEVELS7", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS7","Spread", 8, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS7", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS7", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("MMLEVELS7", OBJPROP_YDISTANCE, 60+Shift_UP_DN);

               ObjectCreate("MMLEVELS8", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS8",""+SPREAD+"", 8, "Arial Bold", Gold);
   ObjectSet("MMLEVELS8", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS8", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS8", OBJPROP_YDISTANCE, 60+Shift_UP_DN);


                ObjectCreate("MMLEVELS9", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS9","Pips to Open", 8, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS9", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS9", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("MMLEVELS9", OBJPROP_YDISTANCE, 75+Shift_UP_DN);

               ObjectCreate("MMLEVELS10", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS10",""+PIPS+"", 8, "Arial Bold", color_pip);
   ObjectSet("MMLEVELS10", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS10", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS10", OBJPROP_YDISTANCE, 75+Shift_UP_DN);

                ObjectCreate("MMLEVELS11", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS11","Hi to Low", 8, "Arial", CommentLabel_color);
   ObjectSet("MMLEVELS11", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS11", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("MMLEVELS11", OBJPROP_YDISTANCE, 90+Shift_UP_DN);

               ObjectCreate("MMLEVELS12", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS12",""+HILO+"", 8, "Arial Bold", Gold);
   ObjectSet("MMLEVELS12", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS12", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS12", OBJPROP_YDISTANCE, 90+Shift_UP_DN);

                 ObjectCreate("MMLEVELS13", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS13","Daily Av", 8, "Arial",CommentLabel_color);
   ObjectSet("MMLEVELS13", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS13", OBJPROP_XDISTANCE, 40+Adjust_Side_to_side);
   ObjectSet("MMLEVELS13", OBJPROP_YDISTANCE, 105+Shift_UP_DN);

               ObjectCreate("MMLEVELS14", OBJ_LABEL, 0, 0, 0);
   ObjectSetText("MMLEVELS14",""+DAV+"", 8, "Arial Bold", color_av);
   ObjectSet("MMLEVELS14", OBJPROP_CORNER, Corner_of_Chart_RIGHT_TOP);
   ObjectSet("MMLEVELS14", OBJPROP_XDISTANCE, 10+Adjust_Side_to_side);
   ObjectSet("MMLEVELS14", OBJPROP_YDISTANCE, 105+Shift_UP_DN);
 }}}
 //----
   return(0);
  }
//+------------------------------------------------------------------+

Similar scripts

_Signal_Bars_v3_Daily

This indicator synchronizes and visualizes real-time trend signals across multiple timeframes using a concurrent analysis of MACD, RSI, Stochastic, CCI, and EMA data.

Signal_Bars_v3_Daily

Signal_Bars_Muk

This indicator aggregates synchronized trend signals from MACD, RSI, Stochastic, CCI, and EMA across multiple timeframes into a single visual dashboard for real-time market sentiment analysis.

Price range information

This indicator aggregates real-time data from multiple timeframes to provide a visual dashboard of MACD, RSI, Stochastic, CCI, and EMA trends simultaneously.

Information_5_deci_MTF

This indicator aggregates real-time MACD, RSI, Stochastic, CCI, and EMA signals across nine distinct timeframes to provide a synchronized visual overview of trend momentum and market volatility.

Information_5_deci

This indicator synchronizes MACD, RSI, Stochastic, CCI, and EMA metrics across multiple timeframes to provide a unified visual heatmap of trend direction and price volatility.

Information

This indicator aggregates synchronized momentum, trend, and volatility data across multiple timeframes into a single visual dashboard to identify high-probability trade bias.

_Signal_Bars_MFI_001

_Signal_Bars_MFI

This indicator aggregates and visualizes real-time trend data by synchronizing MFI, RVI, CCI, Momentum, and EMA signals across multiple timeframes into a single unified display.

_Signal_Bars_MFI_v1

This indicator creates a customizable dashboard displaying Money Flow Index (MFI), a signal based on Relative Volatility Index (RVI), Momentum, Commodity Channel Index (CCI) and Exponential Moving Average (EMA) conditions across multiple timeframes, along with daily price range data.

_Signal_Bars_v1

A comprehensive visual dashboard that aggregates real-time signal data from multiple timeframes, combining MACD crossovers, RSI/Stochastic/CCI momentum filters, and EMA trend alignments.

Comments
