rvmFractalsLevel_v1

Download script
Author: Copyright � 2005, Profi_R
rvmFractalsLevel_v1

This script is a technical analysis tool designed to identify key price structures and automated support/resistance levels on a trading chart. It combines advanced "fractal" logic with automated Fibonacci projections to give traders a visual map of market trends.

Here is a detailed breakdown of the logic used by this script:

1. Dynamic Support and Resistance Identification

The core functionality revolves around detecting significant price peaks (highs) and valleys (lows). Unlike basic indicators that look at just one candle at a time, this script uses a "fractal" approach:

  • Contextual Awareness: It looks at a specific number of candles to the left and right of a point to determine if it is a true local high or low.
  • Filtering: It includes a built-in filter that helps smooth out minor price fluctuations, ensuring that only significant structural shifts are captured as "levels."
  • Level Persistence: Once a primary high or low is established, the script treats this as a horizontal level. If the price continues to move but stays below (or above) these identified levels without breaking them, the script maintains those levels on your chart for easy monitoring.

2. Zone and Multi-Level Mapping

Once the primary "Up Level" (Resistance) and "Down Level" (Support) are identified, the script does not just stop there. It automatically calculates a series of sub-levels between these two extremes.

  • Intermediate Tiers: It divides the space between the high and low into fractional segments (specifically 1/6th, 1/3rd, 1/2, 2/3rds, and 5/6ths).
  • Visual Guidance: These provide a "roadmap" of potential areas where price might slow down, consolidate, or react before reaching the next major structural boundary.

3. Automated Fibonacci Projections

The script features an automated system for drawing Fibonacci Fans. Instead of requiring the user to manually click and drag lines, the logic performs the following automatically:

  • Swing Point Detection: It scans historical data to find the most significant recent swing highs and lows.
  • Dynamic Drawing: It identifies these "anchor points" and automatically draws two distinct Fibonacci Fans on the chart.
    • Fan 1: Based on the primary price action detected by the fractal logic.
    • Fan 2: A secondary fan that uses additional data to provide a more comprehensive view of potential retracement levels.

4. Summary of User Experience

For a non-programmer, this script acts as an automated "chart architect." It continuously scans the market to:

  1. Identify where the "ceiling" and "floor" are based on historical peaks and valleys.
  2. Subdivide the space between those boundaries into smaller zones.
  3. Automatically draw Fibonacci projection tools that update as new significant price movements occur.

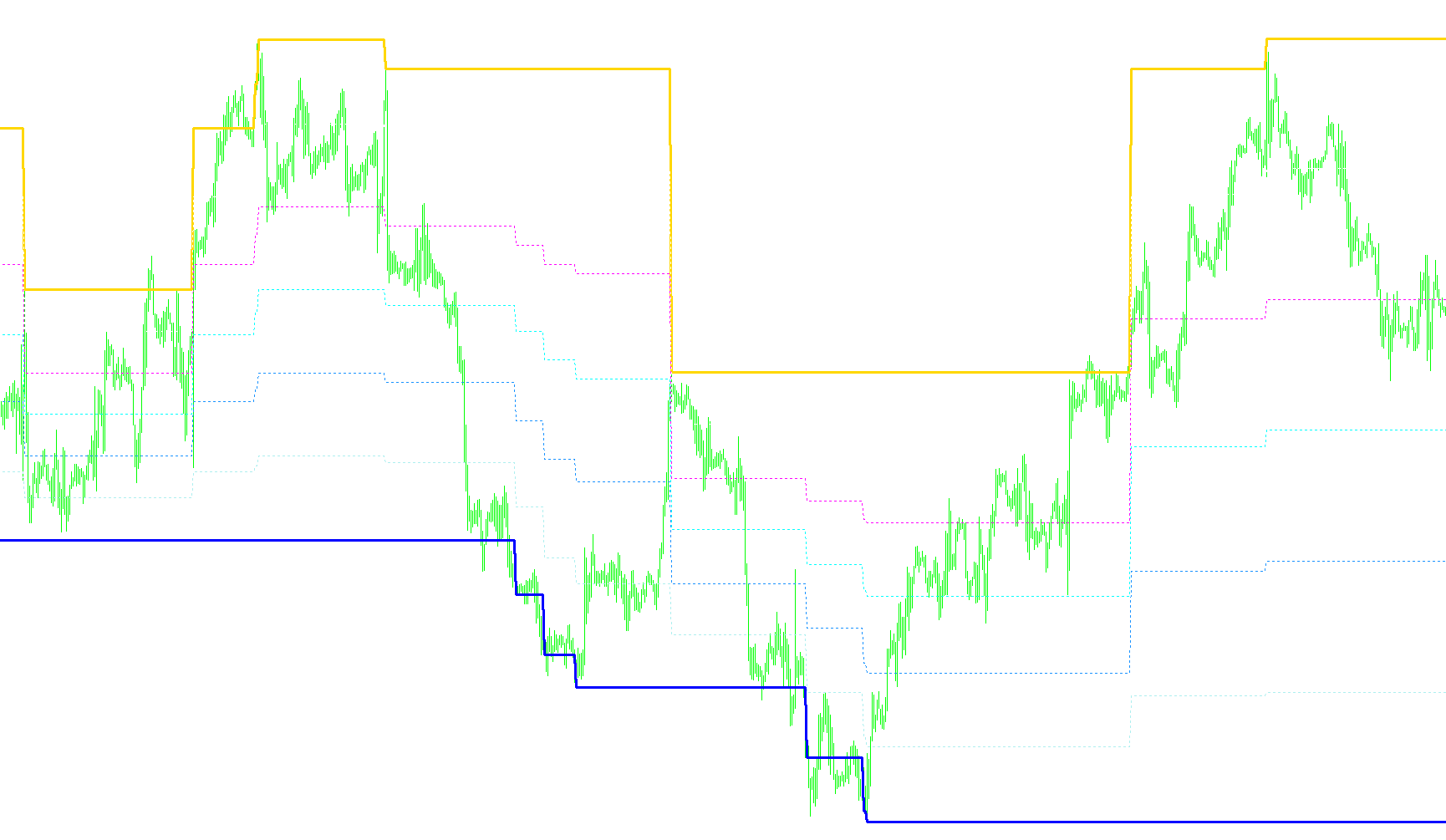

The result is a chart populated with structural levels and geometric projections that highlight where the market is likely to react, reducing the need for manual drawing and subjective guesswork.

Miscellaneous
Implements a curve of type %1
12 Views
0 Downloads
0 Favorites
rvmFractalsLevel_v1
/*-----------------------------+
|			       |
| Shared by www.Aptrafx.com    |
|			       |
+------------------------------*/

//+------------------------------------------------------------------+
//|                                             rvmFractalsLevel.mq4 |
//|                                        Copyright © 2005, Profi_R |
//|                                               rvm_fam@fromru.com |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, Profi_R"
#property link      "rvm_fam@fromru.com"

#property indicator_chart_window
#property indicator_buffers 7
#property indicator_color1 DeepSkyBlue
#property indicator_color2 DeepSkyBlue
#property indicator_color3 Black
#property indicator_color4 Black
#property indicator_color5 Black
#property indicator_color6 Black
#property indicator_color7 Black
#property indicator_color8 Black
//---- input parameters
extern int nLeft=50;
extern int nRight=50;
extern int filter=10;
//---- buffers
double UpBuffer[];
double DnBuffer[];
double f_2[];
double f_3[];
double f_4[];
double f_5[];
double f_6[];

//----
int draw_begin1=0, draw_begin2=0, d_b3=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   double nfUp;
//---- indicators
   IndicatorBuffers(8);
   SetIndexStyle(0,DRAW_LINE,0,3);
   SetIndexStyle(1,DRAW_LINE,0,3);
   SetIndexStyle(2,DRAW_LINE,2);
   SetIndexStyle(3,DRAW_LINE,2);
   SetIndexStyle(4,DRAW_LINE,2);
   SetIndexStyle(5,DRAW_LINE,2);
   SetIndexStyle(6,DRAW_LINE,2);
   SetIndexBuffer(0,UpBuffer);
   SetIndexBuffer(1,DnBuffer);
   SetIndexBuffer(2,f_2);
   SetIndexBuffer(3,f_3);
   SetIndexBuffer(4,f_4);
   SetIndexBuffer(5,f_5);
   SetIndexBuffer(6,f_6);

//---- name for DataWindow and indicator subwindow label
   string short_name; //îáÿâëåíèå ïåðåìåííîé short_name òèïà "ñòðîêîâûé"
   //ïåðåìåííîé short_name ïðèñâàèâàåì ñòðîêîâîå çíà÷åíèå ðàâíîå âûðàæåíèþ
   short_name="rvmFractalsLevel("+nLeft+","+nRight+","+filter+")";
   IndicatorShortName(short_name); //äëÿ îòîáðàæåíèÿ íà ãðàôèêå ïðèñâîèì èíäèêàòîðó êðàòêîå
                                   //íàèìåíîâàíèå
   //äëÿ îòîáðàæåíèÿ íà ãðàôèêå ïðèñâîèì ìåòêå îòîáðàæàþùåé çíà÷åíèÿ 0 áóôåðà èìÿ Up Channel
   SetIndexLabel(0,"Up Level ("+nLeft+","+nRight+","+filter+")");
   //äëÿ îòîáðàæåíèÿ íà ãðàôèêå ïðèñâîèì ìåòêå îòîáðàæàþùåé çíà÷åíèÿ 1 áóôåðà èìÿ Down Channel
   SetIndexLabel(1,"Down Level ("+nLeft+","+nRight+","+filter+")");
   SetIndexLabel(2,"f_2 ("+nLeft+","+nRight+","+filter+")");
   SetIndexLabel(3,"f_3 ("+nLeft+","+nRight+","+filter+")");
   SetIndexLabel(4,"f_4 ("+nLeft+","+nRight+","+filter+")");
   SetIndexLabel(5,"f_5 ("+nLeft+","+nRight+","+filter+")");
   SetIndexLabel(6,"f_6 ("+nLeft+","+nRight+","+filter+")");

//---- Çäåñü îïðåäåëèì íà÷àëüíûå òî÷êè äëÿ ïðîðèñîâêè èíäèêàòîðà
   int n,k,i,Range=nLeft+nRight+1;
   //ïåðåáåðåì ñâå÷êè îò (âñåãî ñâå÷åê ìèíóñ ìèíèìóì ñâå÷åê ñëåâà) äî (ìèíèìóì ñâå÷åê ñïðàâà)
   for(n=Bars-1-nLeft;n>=nRight;n--)
   {
      //âåðõíèå ôðàêòàëû
      //åñëè íà÷àëî îòðèñîâêè âåðõíåãî óðîâíÿ íå îïðåäåëåíî
      if(draw_begin1==0)
      {
      //òåêóùàÿ ñâå÷à ìàêñèìóì íà ëîêàëüíîì ïðîìåæóòêå?
      if(High[n]>=High[Highest(NULL,0,MODE_HIGH,Range,n-nRight)])
      {
         int fRange=nvnLeft(n,nLeft)+nvnRight(n,nRight)+1;
         //åñëè îíà æå - ôðàêòàë
         if(High[n]>=High[Highest(NULL,0,MODE_HIGH,fRange,n-nvnRight(n,nRight))])
         {
            draw_begin1=Bars-n;//íà÷àëî îòðèñîâêè âåðõíåãî óðîâíÿ îïðåäåëåíî
            for(i=Bars-1;i>draw_begin1;i--)
            {
               UpBuffer[i]=High[Bars-draw_begin1];
            }
         }
      }//êîíåö äåéñòâèé åñëè if(High[n]>=High[Highest(NULL,0,MODE_HIGH,Range,n-nRight)]=èñòèíà
      }//êîíåö óñëîâèÿ if(draw_begin1==0)

      //íèæíèå ôðàêòàëû
      //åñëè íà÷àëî îòðèñîâêè íèæíåãî óðîâíÿ íå îïðåäåëåíî
      if(draw_begin2==0)
      {
      //òåêóùàÿ ñâå÷à ìèíèìóì íà ëîêàëüíîì ïðîìåæóòêå?
      if(Low[n]<=Low[Lowest(NULL,0,MODE_LOW,Range,n-nRight)])
      {
         fRange=nvnLeft(n,nLeft)+nvnRight(n,nRight)+1;
         //åñëè îíà æå - ôðàêòàë
         if(Low[n]<=Low[Lowest(NULL,0,MODE_HIGH,fRange,n-nvnRight(n,nRight))])
         {
            draw_begin2=Bars-n;//íà÷àëî îòðèñîâêè íèæíåãî óðîâíÿ îïðåäåëåíî
            for(i=Bars-1;i>draw_begin2;i--)
            {
               DnBuffer[i]=Low[Bars-draw_begin2];
            }
         }
      }//êîíåö óñëîâèÿ if(Low[n]<=Low[Lowest(NULL,0,MODE_LOW,Range,n-nRight)])=true
      }//êîíåö óñëîâèÿ if(draw_begin2==0)

      //åñëè îáà íà÷àëà îòðèñîâêè óðîâíåé îïðåäåëåíû, âûõîäèì èç öèêëà for(n=Bars-1-nLeft;n>=nRight;n--)
      if(draw_begin1>0&&draw_begin2>0) break;
   }//êîíåö öèêëà for(n=Bars-1-nLeft;n>=nRight;n--)
//----
   if(draw_begin1>draw_begin2)
   {
      d_b3=draw_begin1;
   }
   else
   {
      d_b3=draw_begin2;
   }
   SetIndexDrawBegin(0,draw_begin1); //óñòàíîâêà íà÷àëüíîé òî÷êè ïðîðèñîâêè äëÿ 0 áóôåðà
   SetIndexDrawBegin(1,draw_begin2); //óñòàíîâêà íà÷àëüíîé òî÷êè ïðîðèñîâêè äëÿ 1 áóôåðà
   SetIndexDrawBegin(2,d_b3);
   SetIndexDrawBegin(3,d_b3);
   SetIndexDrawBegin(4,d_b3);
   SetIndexDrawBegin(5,d_b3);
   SetIndexDrawBegin(6,d_b3);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   double UpStage=0.0,DnStage=0.0;
   int i,j,fRange,Range=nLeft+nRight+1;
   int counted_bars=IndicatorCounted();
//----
   //ïåðåáèðàåì ñâå÷êè îò (Bars-counted_bars-nLeft) äî (nRight) âêëþ÷èòåëüíî
   for(i=Bars-1-counted_bars-nLeft;i>=nRight;i--)
   {
      //åñëè ñâå÷à ëîêàëüíûé ìàêñèìóì
      if(High[i]>=High[Highest(NULL,0,MODE_HIGH,Range,i-nRight)])
      {
         //Print(TimeToStr(Time[i]), "******Ëîêàëüíûé ìàêñèìóì");
         fRange=nvnLeft(i,nLeft)+nvnRight(i,nRight)+1;
         //åñëè îíà æå - ôðàêòàë
         if(High[i]>=High[Highest(NULL,0,MODE_HIGH,fRange,i-nvnRight(i,nRight))])
         {
            UpStage=High[i];
            //Print("    îíà æå ôðàêòàë");
         }
         else
         {
            if(High[i]<=UpBuffer[i+1])
            {
               UpStage=UpBuffer[i+1];
               //Print("    íå ôðàêòàë, íî íèæå ïðåäûäóùåãî óðîâíÿ");
            }
            else
            {
               UpStage=nfUp(i);
               //Print("    íå ôðàêòàë, âûøå ïðåäûäóùåãî óðîâíÿ");
            }
         }
      }
      else
      {
         //Print(TimeToStr(Time[i]), "******íå ëîêàëüíûé ìàêñèìóì");
         if(High[i]<=UpBuffer[i+1])
         {
            UpStage=UpBuffer[i+1];
            //Print("    íèæå ïðåäûäóùåãî óðîâíÿ");
         }
         else
         {
            UpStage=nfUp(i);
            //Print("    âûøå ïðåäûäóùåãî óðîâíÿ");
         }
      }

      //åñëè ñâå÷à ëîêàëüíûé ìèíèìóì
      if(Low[i]<=Low[Lowest(NULL,0,MODE_LOW,Range,i-nRight)])
      {
         fRange=nvnLeft(i,nLeft)+nvnRight(i,nRight)+1;
         //Print(TimeToStr(Time[i])," ",nvnLeft(i,nLeft)," ",nvnRight(i,nRight)+1);
         //åñëè îíà æå - ôðàêòàë
         if(Low[i]<=Low[Lowest(NULL,0,MODE_HIGH,fRange,i-nvnRight(i,nRight))])
         {
            DnStage=Low[i];
         }
         else
         {
            if(Low[i]>=DnBuffer[i+1])
            {
               DnStage=DnBuffer[i+1];
            }
            else
            {
               DnStage=nfDn(i);
            }
         }
      }
      else
      {
         if(Low[i]>=DnBuffer[i+1])
         {
            DnStage=DnBuffer[i+1];
         }
         else
         {
            DnStage=nfDn(i);
         }
      }
      UpBuffer[i]=UpStage;
      DnBuffer[i]=DnStage;
//---- ðàñ÷åò îñòàëüíûõ áóôåðîâ
      f_2[i]=NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])/6,4);
      f_3[i]=NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])/3,4);
      f_4[i]=NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])/2,4);
      f_5[i]=NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])*2/3,4);
      f_6[i]=NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])*5/6,4);

   }//êîíåö öèêëà for(i=Bars-counted_bars-nLeft;i>=nRight;i--)
   for(i=nRight-1;i>=0;i--)
   {
      if(High[i]<=UpBuffer[i+1])
      {
         UpStage=UpBuffer[i+1];
      }
      else
      {
         UpStage=nfUp(i);
      }
      if(Low[i]>=DnBuffer[i+1])
      {
         DnStage=DnBuffer[i+1];
      }
      else
      {
         DnStage=nfDn(i);
      }
      UpBuffer[i]=UpStage;
      DnBuffer[i]=DnStage;
//---- ðàñ÷åò îñòàëüíûõ áóôåðîâ
      f_2[i] =NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])/6,4);
      f_3[i] =NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])/3,4);
      f_4[i] =NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])/2,4);
      f_5[i] =NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])*2/3,4);
      f_6[i] =NormalizeDouble(DnBuffer[i]+(UpBuffer[i]-DnBuffer[i])*5/6,4);

   }
//---- ïîñòðîåíèå âååðà Ôèáîíà÷÷è
   double LastUp, LastDn, st_h, st_l, st_3, y1, y2, y3;
   int tmp, x1=0, x2=0, x3=0, cb, dn_x, up_x;
   string fibo="Fibo 1", fibo2="Fibo 2";
   LastDn=DnBuffer[0];
   for(cb=1;cb<=Bars-1;cb++)
   {
      if(tmp!=1 && LastDn>DnBuffer[cb])
      {
         tmp=1;
         continue;
      }
      if(tmp==1 && DnBuffer[cb]>DnBuffer[cb-1])
      {
         tmp=0;
         dn_x=cb-1;
         break;
      }
   }
   LastUp=UpBuffer[0];
   for(cb=1;cb<=Bars-1;cb++)
   {
      if(tmp!=1 && LastUp<UpBuffer[cb])
      {
         tmp=1;
         continue;
      }
      if(tmp==1 && UpBuffer[cb]<UpBuffer[cb-1])
      {
         tmp=0;
         up_x=cb-1;
         break;
      }
   }
   st_h=High[Highest(NULL,0,MODE_HIGH,MathMax(dn_x,up_x),0)];
   st_l=Low[Lowest(NULL,0,MODE_LOW,MathMax(dn_x,up_x),0)];
   //y1=MathMin(Open[x1],Close[x1]);
   //y1=MathMax(Open[x1],Close[x1]);
   for(cb=MathMax(dn_x,up_x)-1;cb>=0;cb--)
   {
      if(High[cb]==st_h || Low[cb]==st_l)
      {
         if(High[cb]==st_h && (x1==0 || x2==0) )
         {
            if(x1==0)
            {
               x1=cb;
               y1=High[x1];
               continue;
            }
            else
            {
               x2=cb;
               y2=High[x2];
               break;
            }
         }
         else
         {
            if(x1==0)
            {
               x1=cb;
               y1=Low[x1];
               continue;
            }
            else
            {
               x2=cb;
               y2=Low[x2];
               break;
            }
         }
      }
   }
   //Print("x1="+x1+" y1="+y1+" x2="+x2+" y2="+y2);
   if( ObjectFind(fibo)!=-1 )
   {
      ObjectSet(fibo,OBJPROP_TIME1,Time[x1]);
      ObjectSet(fibo,OBJPROP_PRICE1,y1);
      ObjectSet(fibo,OBJPROP_TIME2,Time[x2]);
      ObjectSet(fibo,OBJPROP_PRICE2,y2);
   }
   else
   {
      ObjectCreate(fibo,OBJ_FIBOFAN,0,Time[x1],y1,Time[x2],y2);
      ObjectSet(fibo,OBJPROP_COLOR,DodgerBlue);
      ObjectSet(fibo,OBJPROP_STYLE,STYLE_DOT);
   }
//----- à ýòî îòðèñîâêà âñïîìîãàòåëüíîãî âååðà ôèáîíà÷÷è
   if(y2>y1)
   {
      st_3=Low[Lowest(NULL,0,MODE_LOW,x2,0)];
   }
   else
   {
      st_3=High[Highest(NULL,0,MODE_HIGH,x2,0)];
   }

   for(cb=0;cb<x2;cb++)
   {
      if(y2>y1 && Low[cb]==st_3)
      {
         x3=cb;
         y3=Low[cb];
         break;
      }
      else
      {
         if(y2<y1 && High[cb]==st_3)
         {
            x3=cb;
            y3=High[cb];
            break;
         }
      }
   }
   if( ObjectFind(fibo2)!=-1 )
   {
      ObjectSet(fibo2,OBJPROP_TIME1,Time[x2]);
      ObjectSet(fibo2,OBJPROP_PRICE1,y2);
      ObjectSet(fibo2,OBJPROP_TIME2,Time[x3]);
      ObjectSet(fibo2,OBJPROP_PRICE2,y3);
   }
   else
   {
      ObjectCreate(fibo2,OBJ_FIBOFAN,0,Time[x2],y2,Time[x3],y3);
      ObjectSet(fibo2,OBJPROP_COLOR,Yellow);
      ObjectSet(fibo2,OBJPROP_STYLE,STYLE_DOT);
   }

//----
   return(0);
}
//+------------------------------------------------------------------+

//****************************************************************************//
// Ôóíêöèÿ nfUp âîçâðàùàåò áëèæàéøåå ñëåâà ê ïåðåäàííîé ñâå÷å çíà÷åíèå áóôåðà //
// èíäèêàòîðà, áîëüøåå èëè ðàâíîå çíà÷åíèþ High(Close) äëÿ ïåðåäàííîé ñâå÷è   //
//****************************************************************************//
double nfUp(int i)
   {
   int l,flag=0;
   double Price=0.0;
//----------
   for(l=i+1;l<Bars-draw_begin1-1;l++)
   {
      if(filter>0)
      {
         if(Close[i]<=UpBuffer[l]+(UpBuffer[l]-DnBuffer[l])*filter/100)
         {
            Price=UpBuffer[l];
            flag=1;
            //Print(TimeToStr(Time[i])," ",l," ",Bars," ",Price," ",UpBuffer[l]);
         }
      }
      else
      {
         if(High[i]<=UpBuffer[l])
         {
            Price=UpBuffer[l];
            flag=1;
         }
      }
      if(Price>0) break;
   }
   if(flag==0) Price=High[i];
//----------
   return(Price);
   }
//+------------------------------------------------------------------+

//****************************************************************************//
// Ôóíêöèÿ nfDn âîçâðàùàåò áëèæàéøåå ñëåâà ê ïåðåäàííîé ñâå÷å çíà÷åíèå áóôåðà //
// èíäèêàòîðà, ìåíüøåå èëè ðàâíîå çíà÷åíèþ Low(Close) äëÿ ïåðåäàííîé ñâå÷è    //
//****************************************************************************//
double nfDn(int i)
   {
   int l,flag=0;
   double Price=0.0;
//----------
   for(l=i+1;l<Bars-draw_begin2-1;l++)
   {
      if(filter>0)
      {
         if(Close[i]>=DnBuffer[l]-(UpBuffer[l]-DnBuffer[l])*filter/100)
         {
            Price=DnBuffer[l];
            flag=1;
         }
      }
      else
      {
         if(Low[i]>=DnBuffer[l])
         {
            Price=DnBuffer[l];
            flag=1;
         }
      }
      if(Price>0) break;
   }
   if(flag==0) Price=Low[i];
//----------
   return(Price);
   }
//+------------------------------------------------------------------+

//*****************************************************************************************//
// Ôóíêöèÿ âîçâðàùàåò äëÿ ïåðåäàííîé åé ñâå÷è, ìèíèìàëüíîå êîëè÷åñòâî ñâå÷åé ñëåâà         //
// âêëþ÷àÿ "âíóòðåííèå", äëÿ òîãî, ÷òîáû ÷èñëî íå âíóòðåííèõ ñâå÷åé â ïîëó÷åííîì äèàïàçîíå //
// áûëî íå ìåíüøå, ÷åì óêàçàíî âî âòîðîì ïàðàìåòðå                                         //
//*****************************************************************************************//
int nvnLeft(int i,int n)
   {
   int k=0,l;
   for(l=i+1;l<=Bars-1;l++)
   {
      if(High[l]<High[l+1]&&Low[l]>Low[l+1]) continue;
      k++;
      if(k==n)
      {
         k=l-i;
         break;
      }
   }
//----------
   return(k);
   }
//+------------------------------------------------------------------+

//*****************************************************************************************//
// Ôóíêöèÿ âîçâðàùàåò äëÿ ïåðåäàííîé åé ñâå÷è, ìèíèìàëüíîå êîëè÷åñòâî ñâå÷åé ñïðàâà        //
// âêëþ÷àÿ "âíóòðåííèå", äëÿ òîãî, ÷òîáû ÷èñëî íå âíóòðåííèõ ñâå÷åé â ïîëó÷åííîì äèàïàçîíå //
// áûëî íå ìåíüøå, ÷åì óêàçàíî âî âòîðîì ïàðàìåòðå                                         //
//*****************************************************************************************//
int nvnRight(int i,int n)
   {
   int k=0,l;
   for(l=i-1;l>=0;l--)
   {
      if(High[l]<High[l+1]&&Low[l]>Low[l+1]) continue;
      k++;
      if(k==n)
      {
         k=i-l;
         break;
      }
   }
//----------
   return(k);
   }

//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
   string fibo="Fibo 1", fibo2="Fibo 2";
   ObjectDelete(fibo);
   ObjectDelete(fibo2);
//----
   return(0);
  }

Similar scripts

FiboRetracement3_v1

This indicator identifies local structural extremes using fractal logic to dynamically plot overlapping Fibonacci retracement zones and multiple price level offsets.

FiboRetracement3

This indicator automatically identifies significant structural pivot points and plots dynamic Fibonacci retracement zones based on multi-fractal price extremes.

rvmFractalsLevel_v3

This indicator identifies structural high and low fractal levels to project dynamic support/resistance zones and automatically plots synchronized Fibonacci fans based on price extremes.

rvmFractalsLevel_v2

This indicator dynamically projects multi-level Fibonacci projection fans by identifying local fractal extremes and calculating harmonic price subdivisions.

FiboRetracement3_v2

This indicator identifies significant local extrema via fractal logic to automatically project multi-layered Fibonacci retracement levels based on dynamic price action pivots.

FiboRetracement3_002

This indicator identifies local price extremes using fractal logic to dynamically plot and update multi-stage Fibonacci retracement levels and support zones.

FIBONACCI RETRACMENT

The indicator identifies local price extremes using a fractal detection algorithm to dynamically project nested Fibonacci retracement zones and multi-stage price buffers.

rvmFractalsLevel

This indicator identifies structural price extremes via recursive fractal analysis and automatically projects nested Fibonacci fans based on the most recent significant trend expansion.

FiboRetracement3_003

This indicator identifies local structural peaks and troughs to automatically project multi-stage Fibonacci retracement levels on the chart.

Fib Retracements

This indicator identifies local fractal peaks and troughs to automatically plot dual Fibonacci retracement levels based on significant structural swing points.

FibMark

The algorithm identifies nested structural extremes using high-low fractal scanning to dynamically plot multi-stage Fibonacci retracement zones based on successive price pivots.

Comments
