Overview
The "Reversal Navi" script is a technical analysis tool designed to identify potential price reversals in the financial markets. It functions by scanning historical price data to pinpoint specific structural patterns—specifically peaks and valleys—and then projects potential entry levels for traders looking to capture a change in market direction.
Core Logic and Functionality
1. Range Identification (Highs and Lows) The tool begins by analyzing the market movement over a user-defined period (the "High Low Period"). It constantly scans this window to determine the highest and lowest price points reached. By establishing these boundaries, the script can distinguish between standard market noise and significant structural shifts.
2. Peak and Valley Detection The logic seeks out specific "turning points" in the price action:
- For Sell Signals: It identifies a "Top" where the price reaches a peak and then plateaus or stabilizes before beginning to move lower.
- For Buy Signals: It identifies a "Bottom" where the price reaches a low point and remains steady before potential upward movement.
The script is programmed to recognize when a previous high/low level has been established, creating a reference point for future analysis.
3. Entry Point Projection (Navigation Lines) Once a significant top or bottom is identified, the script calculates an "Entry Point." It does this by looking at the price range between the identified peak/valley and the most recent price action. It then calculates the midpoint of that specific range. This midpoint is plotted on your chart as a horizontal line, serving as a visual guide for where a reversal might be confirmed or where a trader might consider entering a position.
4. Signal Validation (Standby Logic) To filter out "false" signals and prevent constant jumping of indicators, the script uses a "Standby" mechanism:
- Timing Constraints: It monitors how much time has passed since a peak or bottom was first detected. If the price action takes too long to react (exceeding the "Standby Bars" limit), the script considers the old signal obsolete and resets.
- Price Confirmation: The script looks for specific price movements—such as the current low being lower than the previous several bars (for buys) or the current high being higher (for sells)—to confirm that a new structural point is forming.

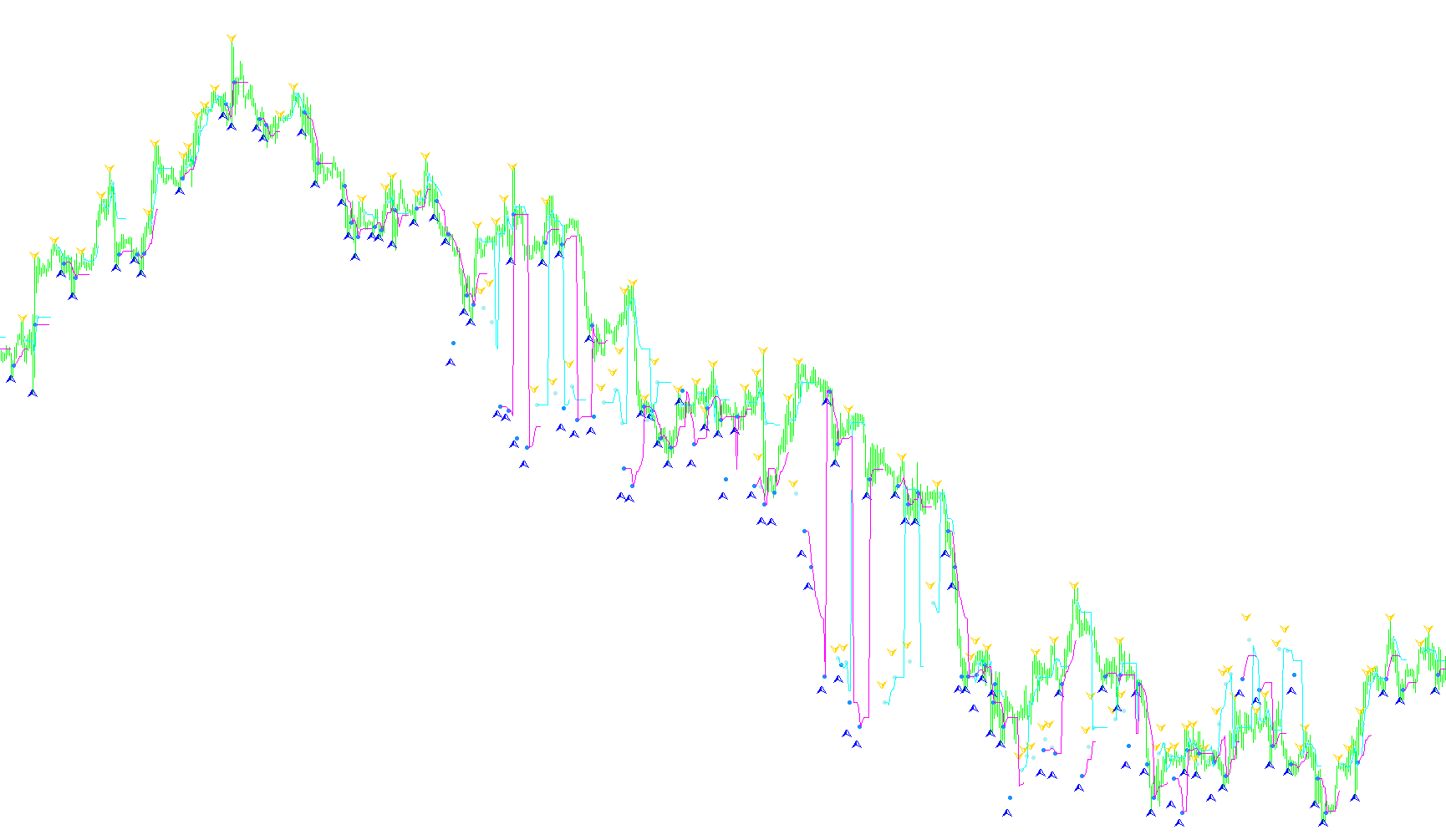

Visual Output on Chart
The script provides three main types of visual feedback:
- Arrows: These indicate the specific "Top" and "Bottom" locations where the logic has identified a significant turning point in the market structure.
- Horizontal Lines: These project the calculated midpoint (the "Navi" line), showing the target level for a potential reversal based on the current price range.
- Dynamic Tracking: The lines and arrows update in real-time as new price data arrives, allowing the user to see how the projected reversal point shifts as the market moves.
Miscellaneous
4
Views
0
Downloads
0
Favorites
reversalnavi
//+------------------------------------------------------------------+
//| reversalnavi.mq4 |
//| Copyright 2015, fxborg. |
//| http://blog.livedoor.jp/fxborg/ |
//+------------------------------------------------------------------+
#property copyright "2015, fxborg"
#property link "http://blog.livedoor.jp/fxborg/"
#property description "Reversal Navi"
#property strict
//---
#property indicator_chart_window
#property indicator_buffers 6
#property indicator_color1 clrRed
#property indicator_color2 clrBlue
#property indicator_color3 clrRed
#property indicator_width3 2
#property indicator_color4 clrBlue
#property indicator_width4 2
#property indicator_color5 clrRed
#property indicator_color6 clrBlue
//#property indicator_color7 clrLightGray
//#property indicator_color8 clrLightGray
//--- input parameters
input int InpHiLoPeriod=8; // High Low Period
input int InpStanbyBars=8; // Stanby Bars
int CalcBarCount=4; // Calc Bar Count
//--- buffers
double ExtTopBuffer[];
double ExtBtmBuffer[];
double ExtSellStandbyBuffer[];
double ExtBuyStandbyBuffer[];
double ExtSellLineBuffer[];
double ExtBuyLineBuffer[];
//---- for calc
double ExtHighesBuffer[];
double ExtLowesBuffer[];
//---
int draw_begin1=0;
bool EnableBuy=true;
bool EnableSell=true;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int OnInit(void)
{
string short_name;
if(InpHiLoPeriod<2)
{
Alert("InpHiLoPeriod is too small.");
return(INIT_FAILED);
}
//--- 2 additional buffers are used for counting.
IndicatorBuffers(8);
SetIndexBuffer(6,ExtHighesBuffer);
SetIndexBuffer(7,ExtLowesBuffer);
//--- indicator buffers mapping
SetIndexBuffer(0,ExtTopBuffer);
SetIndexStyle(0,DRAW_ARROW);
SetIndexArrow(0,218);
//---
SetIndexBuffer(1,ExtBtmBuffer);
SetIndexStyle(1,DRAW_ARROW);
SetIndexArrow(1,217);
//---
SetIndexBuffer(2,ExtSellStandbyBuffer);
SetIndexStyle(2,DRAW_ARROW);
SetIndexArrow(2,159);
//---
SetIndexBuffer(3,ExtBuyStandbyBuffer);
SetIndexStyle(3,DRAW_ARROW);
SetIndexArrow(3,159);
//---
SetIndexBuffer(4,ExtSellLineBuffer);
SetIndexStyle(4,DRAW_LINE);
//---
SetIndexBuffer(5,ExtBuyLineBuffer);
SetIndexStyle(5,DRAW_LINE);
//--- name for DataWindow and indicator subwindow label
//---
draw_begin1=InpHiLoPeriod+CalcBarCount;
SetIndexDrawBegin(0,draw_begin1);
SetIndexDrawBegin(1,draw_begin1);
SetIndexDrawBegin(2,draw_begin1);
SetIndexDrawBegin(3,draw_begin1);
//---
short_name="Reversal Navi("+IntegerToString(InpHiLoPeriod)+","+IntegerToString(InpStanbyBars)+")";
IndicatorShortName(short_name);
//--- initialization done
return(INIT_SUCCEEDED);
}
//+------------------------------------------------------------------+
//| BSI caluclate |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
const int prev_calculated,
const datetime &time[],
const double &open[],
const double &high[],
const double &low[],
const double &close[],
const long &tick_volume[],
const long &volume[],
const int &spread[])
{
int i,k,pos;
//--- check for bars count
if(rates_total<=InpHiLoPeriod+0+CalcBarCount)
return(0);
//--- counting from 0 to rates_total
ArraySetAsSeries(ExtHighesBuffer,false);
ArraySetAsSeries(ExtLowesBuffer,false);
//---
ArraySetAsSeries(ExtTopBuffer,false);
ArraySetAsSeries(ExtBtmBuffer,false);
//---
ArraySetAsSeries(ExtSellStandbyBuffer,false);
ArraySetAsSeries(ExtBuyStandbyBuffer,false);
//---
ArraySetAsSeries(ExtSellLineBuffer,false);
ArraySetAsSeries(ExtBuyLineBuffer,false);
//---
ArraySetAsSeries(open,false);
ArraySetAsSeries(low,false);
ArraySetAsSeries(high,false);
ArraySetAsSeries(close,false);
//---
pos=InpHiLoPeriod-1;
//---
if(pos+1<prev_calculated)
pos=prev_calculated-2;
else
{
for(i=0; i<pos; i++)
{
ExtLowesBuffer[i]=0.0;
ExtHighesBuffer[i]=0.0;
}
}
//--- calculate HighesBuffer[] and ExtHighesBuffer[]
for(i=pos; i<rates_total && !IsStopped(); i++)
{
//--- calculate range spread
double dmin=1000000.0;
double dmax=-1000000.0;
for(k=i-InpHiLoPeriod+1; k<=i; k++)
{
if(dmin>low[k])
dmin=low[k];
if(dmax<high[k])
dmax=high[k];
}
ExtLowesBuffer[i]=dmin;
ExtHighesBuffer[i]=dmax;
}
//--- line
pos=InpHiLoPeriod-1+CalcBarCount-1;
if(pos+1<prev_calculated)
pos=prev_calculated-2;
//--- main cycle
for(i=pos; i<rates_total && !IsStopped(); i++)
{
if(EnableBuy)
{
//--- buy
int btm_pos=i-1;
for(int j=i-1;j>1;j--)
{
if(ExtLowesBuffer[j-2]>ExtLowesBuffer[j-1]
&& ExtLowesBuffer[j-1]==ExtLowesBuffer[j])
{
btm_pos=j-1;
break;
}
}
int setup=NULL;
for(int j=btm_pos; j<=i-1;j++)
{
if(ExtBuyStandbyBuffer[j]!=EMPTY_VALUE)
{
setup=j;
break;
}
}
//--- entry line
double entry_point=NULL;
double range_lo=1000000.0;
double range_hi=-1000000.0;
if(setup==NULL || (i-setup)<=InpStanbyBars)
{
for(int j=btm_pos; j<=i-1;j++)
{
if(range_hi<high[j])range_hi=high[j];
if(range_lo>low[j])range_lo=low[j];
}
//---
entry_point=((range_hi+range_lo)/2);
ExtBuyLineBuffer[i]=entry_point;
}
//---
if(MathMin(low[i-4],MathMin(low[i-3],low[i-2]))<low[i-1])
{
if(setup==NULL)
{
ExtBtmBuffer[btm_pos]=low[btm_pos]-5*Point;
ExtBuyStandbyBuffer[i]=entry_point;
}
}
}
//--- sell
if(EnableSell)
{
int top_pos=i-1;
for(int j=i-1;j>1;j--)
{
if(ExtHighesBuffer[j-2]<ExtHighesBuffer[j-1]
&& ExtHighesBuffer[j-1]==ExtHighesBuffer[j])
{
top_pos=j-1;
break;
}
}
int setup=NULL;
for(int j=top_pos; j<=i-1;j++)
{
if(ExtSellStandbyBuffer[j]!=EMPTY_VALUE)
{
setup=j;
break;
}
}
//--- entry line
double entry_point=NULL;
double range_lo=1000000.0;
double range_hi=-1000000.0;
if(setup==NULL || (i-setup)<=InpStanbyBars)
{
//---
for(int j=top_pos; j<=i-1;j++)
{
if(range_hi<high[j])range_hi=high[j];
if(range_lo>low[j])range_lo=low[j];
}
entry_point=((range_hi+range_lo)/2);
ExtSellLineBuffer[i]=entry_point;
}
if(MathMax(high[i-4],MathMax(high[i-3],high[i-2]))>high[i-1])
{
if(setup==NULL)
{
ExtTopBuffer[top_pos]=high[top_pos]+5*Point;
ExtSellStandbyBuffer[i]=entry_point;
}
}
}
}
//--- OnCalculate done. Return new prev_calculated.
return(rates_total);
}
//+------------------------------------------------------------------+
