Pivot_Mid_Resistance_Historical

Download script
Author: Copyright � 2005, MetaQuotes Software Corp.
Pivot_Mid_Resistance_Historical

This script is designed to automatically calculate and display specific price levels on your trading chart to help identify potential areas of resistance. It utilizes a variation of the "Camarilla" pivot system, which is a common method used by traders to determine where the market might face difficulty moving higher based on the previous day's price action.

Core Logic and Functionality

Daily Data Tracking The script works by constantly monitoring the high, low, and closing prices of the trading session. It identifies when a new day begins (accounting for specific time zone offsets) and stores the data from the preceding day to use as the foundation for its calculations.

Pivot Point Calculations Once the previous day's data is collected, the script generates several key price levels:

  • The Pivot: This is the central baseline calculated by averaging the previous day's high, low, and closing prices.
  • Resistance Levels (R1, R2, R3): The script uses the Camarilla formula to project three distinct resistance levels above the pivot point. These represent areas where the price might encounter selling pressure.

Mid Pivot Resistance (MR) The unique feature of this specific script is that it doesn't just show the standard resistance levels; it calculates "Mid Pivot" points. It takes the averages between the primary resistance levels to create three distinct lines:

  • MR1: The midpoint between the Pivot and Resistance 1.
  • MR2: The midpoint between Resistance 1 and Resistance 2.
  • MR3: The midpoint between Resistance 2 and Resistance 3.

Visual Presentation

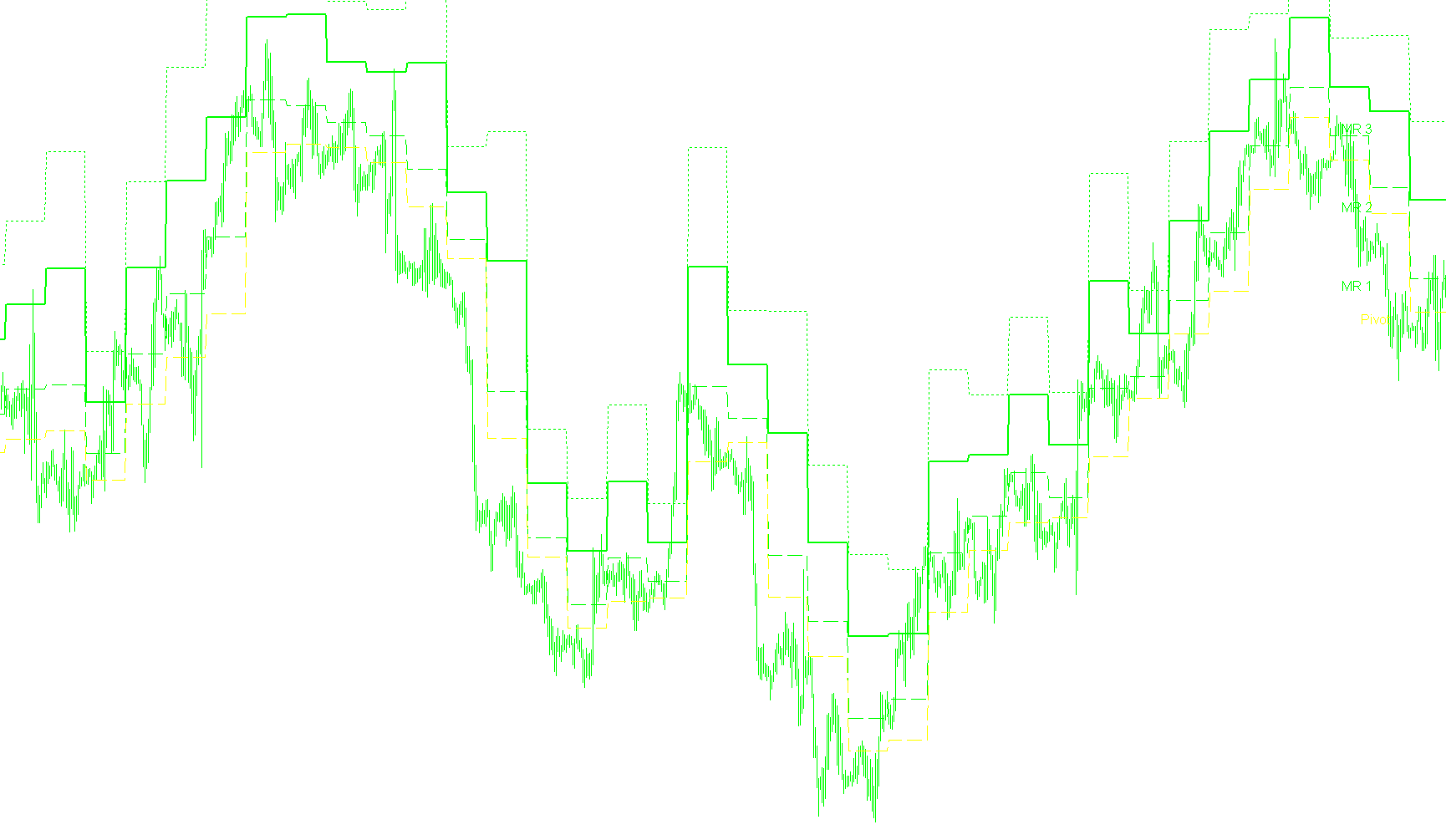

The script renders these calculations directly onto your chart as historical lines, allowing you to see how these levels behaved in the past. It uses different line styles (dotted, solid, and dashed) and colors (Lime and Yellow) to distinguish between the primary Pivot and the three Mid Pivot Resistance levels. To ensure clarity, the script also places text labels on the chart so you can easily identify which line corresponds to which level.

Usage Requirements

To ensure accuracy, the script includes a built-in check for your chart's timeframe. It is designed to work on charts that are 4 hours or shorter; if a larger timeframe (like a daily chart) is used, the script will alert the user as the price data would be too compressed to display the levels correctly.

Price Data Components
Series array that contains open time of each bar
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
13 Views
0 Downloads
0 Favorites
Pivot_Mid_Resistance_Historical
//+----------------------------------------------------------------------+
//|                           Mid Pivot Resistance Historical_V1.mq4     |
//|                      Copyright © 2005, MetaQuotes Software Corp.     |
//|                                        http://www.metaquotes.net     |
//| Modified to chart historical camarilla pivots by MrPip               |
//| 3/28/06 Fixed problem of Sunday/Monday pivots                        |
//|         and added some ideas from goodtiding5 (Kenneth Z.)           |
//| Modified 4/14/07 to chart historical Mid Pivot resistance by Traden4x|
//+----------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link      "http://www.metaquotes.net"

#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Lime
#property indicator_color2 Lime
#property indicator_color3 Lime
#property indicator_color4 Yellow
#property indicator_width1 1
#property indicator_width2 1
#property indicator_width3 2
#property indicator_width4 1

//---- input parameters

extern int  GMTshift=0;
extern color PivotNameColor = Yellow;
extern color HColor = Lime;
extern int fontsize=12;
extern int LabelShift=20;

double MR3Buffer[];
double MR2Buffer[];
double MR1Buffer[];
double PivotBuffer[];

double P, MR1, MR2, MR3, R1, R2, R3;

double prev_high=0;
double prev_low=0;
double prev_close=0;
double cur_day=0;
double prev_day=0;
double day_high=0;
double day_low=0;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   IndicatorBuffers(4);
//---- indicators
   SetIndexStyle(0,DRAW_LINE, STYLE_DOT,1,Lime);
   SetIndexBuffer(0,MR3Buffer);
   SetIndexStyle(1,DRAW_LINE, 0,2,Lime);
   SetIndexBuffer(1,MR2Buffer);
   SetIndexStyle(2,DRAW_LINE,STYLE_DASH,1,Lime);
   SetIndexBuffer(2,MR1Buffer);
   SetIndexStyle(3,DRAW_LINE, 1,1, Yellow);
   SetIndexBuffer(3,PivotBuffer);

   SetIndexLabel(0,"MR3");
   SetIndexLabel(1,"MR2");
   SetIndexLabel(2,"MR1");
   SetIndexLabel(3,"Pivot");


//----
//   IndicatorShortName("Resistance Pivots");
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//---- TODO: add your code here
   ObjectDelete("CamPivot");
   ObjectDelete("ResMR1");
   ObjectDelete("ResMR2");
   ObjectDelete("ResMR3");
//----
   return(0);
  }

//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int    counted_bars=IndicatorCounted();
   int cnt, limit;

//---- exit if period is greater than 4 hr charts
   if(Period() > 240)
   {
      Alert("Error - Chart period is greater than 4 Hr.");
      return(-1); // then exit
   }
   if(counted_bars<0) return(-1);

//---- last counted bar will be recounted
//   if(counted_bars>0) counted_bars--;

//   limit=(Bars-counted_bars)-1;
   limit=counted_bars;

//---- Get new daily prices & calculate pivots

   for (cnt=limit;cnt >=0;cnt--)
   {
   	if (TimeDayOfWeek(Time[cnt]) == 0)
	   {
        cur_day = prev_day;
	   }
	   else
	   {
        cur_day = TimeDay(Time[cnt]- (GMTshift*3600));
	   }

   	if (prev_day != cur_day)
   	{
	   	prev_close = Close[cnt+1];
		   prev_high = day_high;
		   prev_low = day_low;

	      day_high = High[cnt];
 	      day_low  = Low[cnt];

P = (prev_high + prev_low + prev_close)/3;//Pivot
//---- To display all 8 Camarilla pivots remove comment symbols below and
// add the appropriate object functions below
R1 = (2*P)-prev_low;
R2 = P+(prev_high-prev_low);
R3 = (2*P)+(prev_high-(2*prev_low));
MR1 = (P+R1)/2;
MR2 = (R1+R2)/2;
MR3 = (R2+R3)/2;


		   prev_day = cur_day;
	   }
      if (High[cnt]>day_high)
      {
         day_high = High[cnt];
      }
      if (Low[cnt]<day_low)
      {
         day_low = Low[cnt];
      }



//         day_low=Open[cnt]; day_high=Open[cnt];



//---  Draw  Pivot lines on chart

      PivotBuffer[cnt]=P;
      MR3Buffer[cnt]=MR3;
      MR2Buffer[cnt]=MR2;
      MR1Buffer[cnt]=MR1;

   }

   if (cur_day == TimeDay(CurTime()))   DisplayLabels();
//----
   return(0);
  }

void DisplayLabels()
{
      if(ObjectFind("CamPivot") != 0)
      {
        ObjectCreate("CamPivot", OBJ_TEXT, 0, 0,0);
        ObjectSetText("CamPivot", "                 Pivot",fontsize,"Arial",PivotNameColor);
      }
      else
      {
        ObjectMove("CamPivot", 0, Time[60],P);
      }

      if(ObjectFind("ResMR1") != 0)
      {
      ObjectCreate("ResMR1", OBJ_TEXT, 0, 0, 0);
      ObjectSetText("ResMR1", "      MR 1",fontsize,"Arial",HColor);
      }
      else
      {
         ObjectMove("ResMR1", 0, Time[60],MR1);
      }

      if(ObjectFind("ResMR2") != 0)
      {
      ObjectCreate("ResMR2", OBJ_TEXT, 0, 0, 0);
      ObjectSetText("ResMR2", "      MR 2",fontsize,"Arial",HColor);
      }
      else
      {
         ObjectMove("ResMR2", 0, Time[60],MR2);
      }

      if(ObjectFind("ResMR3") != 0)
      {
      ObjectCreate("ResMR3", OBJ_TEXT, 0, 0, 0);
      ObjectSetText("ResMR3", "      MR 3",fontsize,"Arial",HColor);
      }
      else
      {
         ObjectMove("ResMR3", 0, Time[60],MR3);
      }

}
//+------------------------------------------------------------------+
