OverLayChart-MA

Download script
Author: Copyright� 2006 S.B.T.
OverLayChart-MA

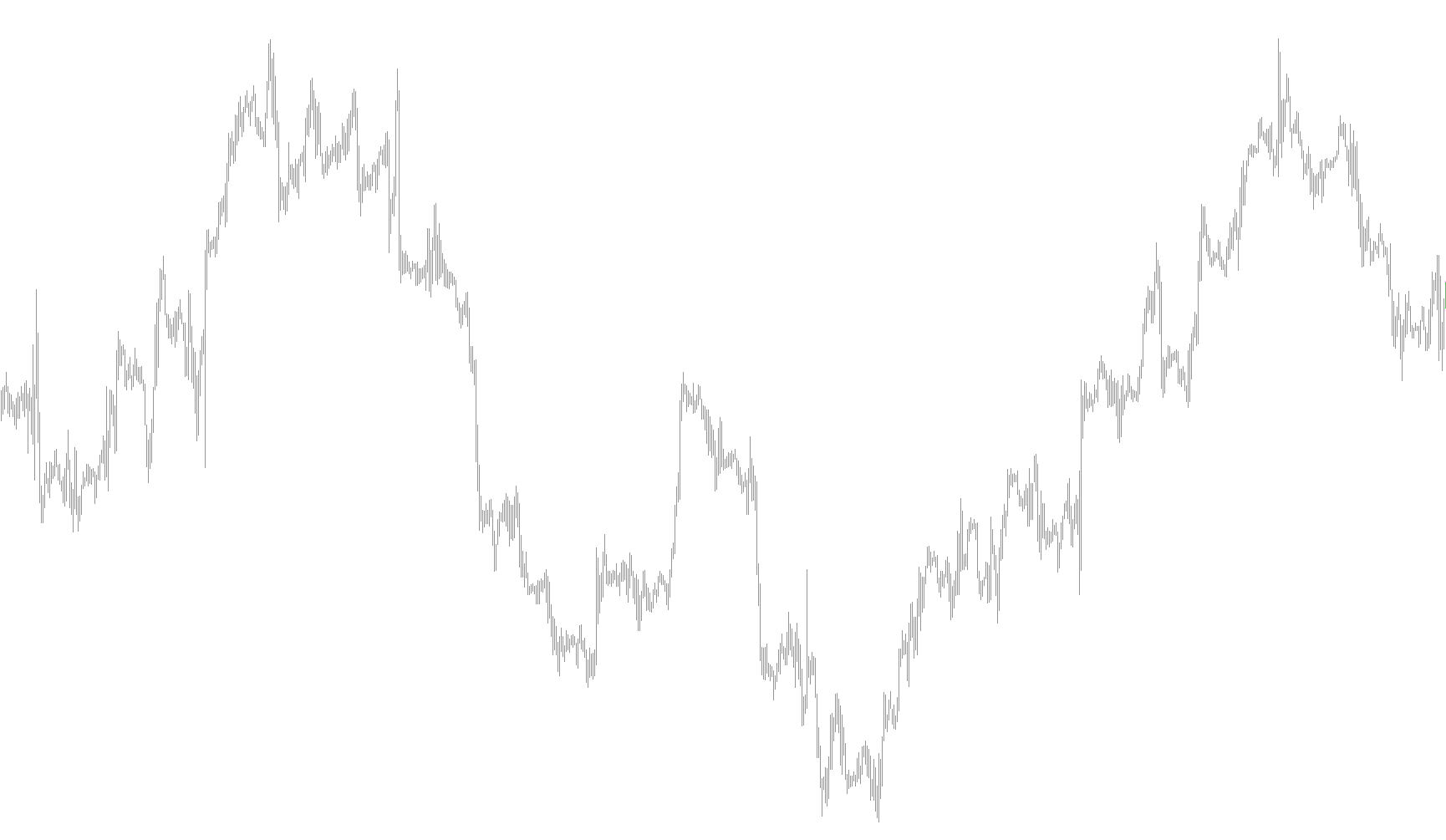

Overview of the OverLay Chart Logic

This script is designed to allow traders to visualize a secondary financial instrument directly on top of their primary trading chart. Instead of switching back and forth between different windows, this tool mathematically "scales" and "projects" the price action of a chosen sub-symbol onto your current screen.

Core Functionality

1. Dynamic Scaling and Projection The primary logic of this script involves mathematical normalization. Because two different assets (for example, Gold vs. EURUSD) have vastly different price values, the script calculates the "High" and "Low" price ranges for both the main chart and the sub-symbol currently visible on your screen. It then creates a proportional ratio. This allows the sub-symbol's movements to be stretched or compressed so that they fit perfectly within the boundaries of your current view.

2. Visual Representation (Candlesticks and Moving Averages) Once the scaling is calculated, the script draws the following elements:

  • Custom Candles: It renders the price bars of the secondary asset using specific colors (Green for bullish movements and Orange for bearish movements).
  • Moving Average (MA): Users can choose to display a moving average line based on the Open, High, Low, or Close prices of the sub-symbol.
  • Mirroring Option: The script includes a toggle that allows you to flip the visual representation of the secondary asset, which is useful for analyzing inverse correlations between different markets.

3. Automated Grid and Price Labels To make the secondary data readable, the script automatically generates a horizontal grid system.

  • It calculates specific price intervals based on the sub-symbol's range.
  • It draws dotted lines across the chart to represent these levels.
  • It places text labels on the left side of the chart so you can identify the exact price of the secondary asset at any given point, even though it is overlaid on a different currency or commodity.

4. Real-Time Information Dashboard The script provides an on-screen status label that updates dynamically. This displays the real-time Open, High, Low, and Close prices of the sub-symbol in a clear, readable format in the corner of your trading window.

Summary for the User

Essentially, this tool acts as a "lens." It takes the data from a second market, shrinks or expands it to fit your current screen, and draws it over your main chart. This allows you to observe how two different markets are moving in relation to one another in real-time, facilitating easier correlation analysis and multi-asset trading strategies.

Price Data Components
Series array that contains the lowest prices of each barSeries array that contains the highest prices of each barSeries array that contains open prices of each barSeries array that contains close prices for each bar
Miscellaneous
Implements a curve of type %1
12 Views
0 Downloads
0 Favorites
OverLayChart-MA
//+------------------------------------------------------------------+
//|                                       OverLay Chart.mq4 Ver.1.10 |
//|                                      Copyright© 2006-2007 S.B.T. |
//|                                     http://sufx.core.t3-ism.net/ |
//+------------------- DO NOT REMOVE THIS HEADER --------------------+
//|  This script is free to use/distribute/modify and re-distribute. |
//|                                  (Limited to noncommercial use.) |
//+------------------------------------------------------------------+

//Indicator Properties
#property copyright "Copyright© 2006 S.B.T."
#property link      "http://sufx.core.t3-ism.net/"
#property indicator_chart_window
#property indicator_buffers 5


//Indicator Parameters
extern string SubSymbol = "USDCHFm";
extern color BullBarColor = MediumSeaGreen;
extern color BearBarColor = Orange;
extern color GridColor = Black;
extern bool Mirroring = false;

extern bool ShowCandles = true;
extern bool ShowMA = true;

extern color MA_color = CornflowerBlue;
extern int MA_line_height = 2;
extern string MA_price = "Close";

//Global Variables
string Prefix; //Indicator Prefix
int Grid = 10; //Grid Lines
int SnapPips = 10;  //Snap Pips For Grid Lines


//Indicator Buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
double ExtMapBuffer4[];
double MA[];


//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init() {

   //Initialize Indexes
   Prefix = "OverLayChart" + SubSymbol;

   IndicatorShortName( "OverLay Chart( " + SubSymbol + " )" );

   SetIndexBuffer( 0, ExtMapBuffer1 );
   SetIndexBuffer( 1, ExtMapBuffer2 );
   SetIndexBuffer( 2, ExtMapBuffer3 );
   SetIndexBuffer( 3, ExtMapBuffer4 );
   SetIndexBuffer(4,MA);

   if (ShowCandles == true) {
      SetIndexStyle( 0, DRAW_HISTOGRAM, DRAW_LINE, 1, BullBarColor );
      SetIndexStyle( 1, DRAW_HISTOGRAM, DRAW_LINE, 1, BearBarColor );
      SetIndexStyle ( 2, DRAW_HISTOGRAM, DRAW_LINE, 3, BullBarColor );
      SetIndexStyle( 3, DRAW_HISTOGRAM, DRAW_LINE, 3, BearBarColor );
   } else {
      SetIndexStyle( 0, DRAW_NONE, DRAW_NONE, 1, BullBarColor );
      SetIndexStyle( 1, DRAW_NONE, DRAW_NONE, 1, BearBarColor );
      SetIndexStyle ( 2, DRAW_NONE, DRAW_NONE, 3, BullBarColor );
      SetIndexStyle( 3, DRAW_NONE, DRAW_NONE, 3, BearBarColor );
   }
   if (ShowMA == true) {
      SetIndexStyle( 4, DRAW_LINE, DRAW_LINE, MA_line_height, MA_color );
   } else {
      SetIndexStyle( 4, DRAW_NONE, DRAW_NONE, MA_line_height, MA_color );
   }

   SetIndexEmptyValue( 0, 0.0 );
   SetIndexEmptyValue( 1, 0.0 );
   SetIndexEmptyValue( 2, 0.0 );
   SetIndexEmptyValue( 3, 0.0 );
   SetIndexEmptyValue(4,0.0);


   return( 0 );
}



//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit() {
   int _i;



   //Delete Objects
	ObjectDelete( Prefix + "Status" );
	ObjectDelete( Prefix + "Copyright" );

	for ( _i = 1; _i <= Grid ; _i ++ ) {
   	ObjectDelete( Prefix + "Grid" + _i );
   	ObjectDelete( Prefix + "Price" + _i );
   }


   return( 0 );
}



//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start() {
   int _BarsCount;
   double _CurRangeHigh, _CurRangeLow, _CurRangeCenter;
   double _SubRangeHigh, _SubRangeLow, _SubRangeCenter;
   double _SubPoint, _SubDigit;
   double _SubOpen, _SubHigh, _SubLow, _SubClose;
   double _PipsRatio;
   double _GridPips, _GridPrice;
   int _i;



   //Initialize Buffers
	RefreshRates();

   ArrayInitialize( ExtMapBuffer1, 0.0 );
   ArrayInitialize( ExtMapBuffer2, 0.0 );
   ArrayInitialize( ExtMapBuffer3, 0.0 );
   ArrayInitialize( ExtMapBuffer4, 0.0 );
   ArrayInitialize(MA,0.0);


   //Calculate Visible Bars
   _BarsCount = BarsPerWindow() + 1;
   int _FirstBar = FirstVisibleBar();
   int _LastBar = _FirstBar - _BarsCount + 1;
   if ( _LastBar < 0 ) {
      _LastBar = 0;
      _BarsCount = _FirstBar + 1;
   }


   //Calculate Chart Ratio
   _CurRangeHigh = High[Highest(NULL, 0, MODE_HIGH, _BarsCount, _LastBar)];
   _CurRangeLow = Low[Lowest(NULL, 0, MODE_LOW, _BarsCount, _LastBar)];
   _CurRangeCenter = ( _CurRangeHigh + _CurRangeLow ) / 2;

   if ( Mirroring ) {
      _SubRangeHigh = iLow( SubSymbol, 0, Lowest( SubSymbol, 0, MODE_LOW, _BarsCount, _LastBar ) );
      _SubRangeLow = iHigh( SubSymbol, 0, Highest( SubSymbol, 0, MODE_HIGH, _BarsCount, _LastBar ) );
   } else {
      _SubRangeHigh = iHigh( SubSymbol, 0, Highest( SubSymbol, 0, MODE_HIGH, _BarsCount, _LastBar ) );
      _SubRangeLow = iLow( SubSymbol, 0, Lowest( SubSymbol, 0, MODE_LOW, _BarsCount, _LastBar ) );
   }

   _SubRangeCenter = ( _SubRangeHigh + _SubRangeLow ) / 2;
   _SubPoint = MarketInfo( SubSymbol, MODE_POINT );
   _SubDigit = MarketInfo( SubSymbol, MODE_DIGITS );

   _PipsRatio = ( _CurRangeHigh - _CurRangeLow )  / ( _SubRangeHigh - _SubRangeLow );

   _GridPips = ( _SubRangeHigh - _SubRangeLow ) / Grid;
   _GridPips = MathRound( ( _SubRangeHigh - _SubRangeLow ) / Grid / ( _SubPoint * SnapPips ) ) * ( _SubPoint * SnapPips );


   //Draw Candlesticks
	for ( _i = _LastBar; _i < _LastBar + _BarsCount; _i ++ ) {
      _SubOpen = iOpen( SubSymbol, 0, _i ) - _SubRangeCenter;
      _SubHigh = iHigh( SubSymbol, 0, _i ) - _SubRangeCenter;
      _SubLow = iLow( SubSymbol, 0, _i ) - _SubRangeCenter;
      _SubClose = iClose( SubSymbol, 0, _i ) - _SubRangeCenter;

      if ( Mirroring ) {
         if ( _SubOpen < _SubClose ) {
            ExtMapBuffer2[_i] = _CurRangeCenter + _SubHigh * _PipsRatio;
            ExtMapBuffer1[_i] = _CurRangeCenter + _SubLow * _PipsRatio;
         } else {
            ExtMapBuffer2[_i] = _CurRangeCenter + _SubLow * _PipsRatio;
            ExtMapBuffer1[_i] = _CurRangeCenter + _SubHigh * _PipsRatio;
         }

         ExtMapBuffer4[_i] = _CurRangeCenter + _SubClose * _PipsRatio;
         ExtMapBuffer3[_i] = _CurRangeCenter + _SubOpen * _PipsRatio;
      } else {
         if ( _SubOpen < _SubClose ) {
            ExtMapBuffer1[_i] = _CurRangeCenter + _SubHigh * _PipsRatio;
            ExtMapBuffer2[_i] = _CurRangeCenter + _SubLow * _PipsRatio;
         } else {
            ExtMapBuffer1[_i] = _CurRangeCenter + _SubLow * _PipsRatio;
            ExtMapBuffer2[_i] = _CurRangeCenter + _SubHigh * _PipsRatio;
         }
         ExtMapBuffer3[_i] = _CurRangeCenter + _SubClose * _PipsRatio;
         ExtMapBuffer4[_i] = _CurRangeCenter + _SubOpen * _PipsRatio;
      }

      if (StringChangeToUpperCase(MA_price) == "CLOSE") {
         MA[_i] = _CurRangeCenter + _SubClose * _PipsRatio;
      } else if (StringChangeToUpperCase(MA_price) == "OPEN") {
         MA[_i] = _CurRangeCenter + _SubOpen * _PipsRatio;
      } else if (StringChangeToUpperCase(MA_price) == "HIGH") {
         MA[_i] = _CurRangeCenter + _SubHigh * _PipsRatio;
      } else {
         MA[_i] = _CurRangeCenter + _SubLow * _PipsRatio;
      }
   }


   //Draw Objects
   ObjectCreate( Prefix + "Copyright", OBJ_LABEL, 0, 0, 0 );
	ObjectSet( Prefix + "Copyright", OBJPROP_COLOR, GridColor );
   ObjectSet( Prefix + "Copyright", OBJPROP_CORNER, 3 );
   ObjectSet( Prefix + "Copyright", OBJPROP_XDISTANCE, 4 );
   ObjectSet( Prefix + "Copyright", OBJPROP_YDISTANCE, 4 );
   ObjectSetText( Prefix + "Copyright", "OverLay Chart by S.B.T./MA by LEGRUPO", 8 );

   ObjectCreate( Prefix + "Status", OBJ_LABEL, 0, 0, 0 );
	ObjectSet( Prefix + "Status", OBJPROP_COLOR, GridColor );
   ObjectSet( Prefix + "Status", OBJPROP_CORNER, 0 );
   ObjectSet( Prefix + "Status", OBJPROP_XDISTANCE, 4 );
   ObjectSet( Prefix + "Status", OBJPROP_YDISTANCE, 16 );
   ObjectSetText( Prefix + "Status",
                  SubSymbol + " O = " + DoubleToStr( iOpen( SubSymbol, 0, _LastBar ), _SubDigit ) +
                  ", H = " + DoubleToStr( iHigh( SubSymbol, 0, _LastBar ), _SubDigit ) +
                  ", L = " + DoubleToStr( iLow( SubSymbol, 0, _LastBar ), _SubDigit ) +
                  ", C = " + DoubleToStr( iClose( SubSymbol, 0, _LastBar ), _SubDigit ),
                  8 );

	for ( _i = 1; _i <= Grid ; _i ++ ) {
      _GridPrice = MathRound( _SubRangeCenter / ( _SubPoint * SnapPips ) ) * ( _SubPoint * SnapPips );
      _GridPrice = ( ( _GridPrice + _GridPips / 2 ) + _GridPips * ( Grid / 2 - 1 ) ) - ( _GridPips * ( _i - 1 ) );

		ObjectCreate( Prefix + "Grid" + _i, OBJ_TREND, 0, 0, 0 );
      ObjectSet( Prefix + "Grid" + _i, OBJPROP_TIME1, Time[_FirstBar] );
      ObjectSet( Prefix + "Grid" + _i, OBJPROP_PRICE1, _CurRangeCenter + ( _GridPrice - _SubRangeCenter ) * _PipsRatio );
      ObjectSet( Prefix + "Grid" + _i, OBJPROP_TIME2, Time[_LastBar] );
      ObjectSet( Prefix + "Grid" + _i, OBJPROP_PRICE2, _CurRangeCenter + ( _GridPrice - _SubRangeCenter ) * _PipsRatio );
		ObjectSet( Prefix + "Grid" + _i, OBJPROP_COLOR, GridColor );
		ObjectSet( Prefix + "Grid" + _i, OBJPROP_STYLE, STYLE_DOT );
		ObjectSet( Prefix + "Grid" + _i, OBJPROP_WIDTH, 1 );
		ObjectSet( Prefix + "Grid" + _i, OBJPROP_RAY, true );

		ObjectCreate( Prefix + "Price" + _i, OBJ_TEXT, 0, 0, 0 );
      ObjectSet( Prefix + "Price" + _i, OBJPROP_TIME1, Time[_FirstBar - _BarsCount / 10] );
      ObjectSet( Prefix + "Price" + _i, OBJPROP_PRICE1, _CurRangeCenter + ( _GridPrice - _SubRangeCenter ) * _PipsRatio );
		ObjectSet( Prefix + "Price" + _i, OBJPROP_COLOR, GridColor );
      ObjectSetText( Prefix + "Price" + _i, DoubleToStr( _GridPrice, _SubDigit ), 8 );
   }


   return( 0 );
}
//+------------------------------------------------------------------+
//+------------------------------------------------------------------+
//| Function..: StringChangeToUpperCase                              |
//| Example...: StringChangeToUpperCase("oNe mAn"); // ONE MAN       |
//+------------------------------------------------------------------+
string StringChangeToUpperCase(string sText) {
  int iLen=StringLen(sText), i, iChar;

  for(i=0; i < iLen; i++) {
    iChar=StringGetChar(sText, i);
    if(iChar >= 97 && iChar <= 122) sText=StringSetChar(sText, i, iChar-32);
  }
  return(sText);
}
//+------------------------------------------------------------------+
