iVeryCoolSpectrometr

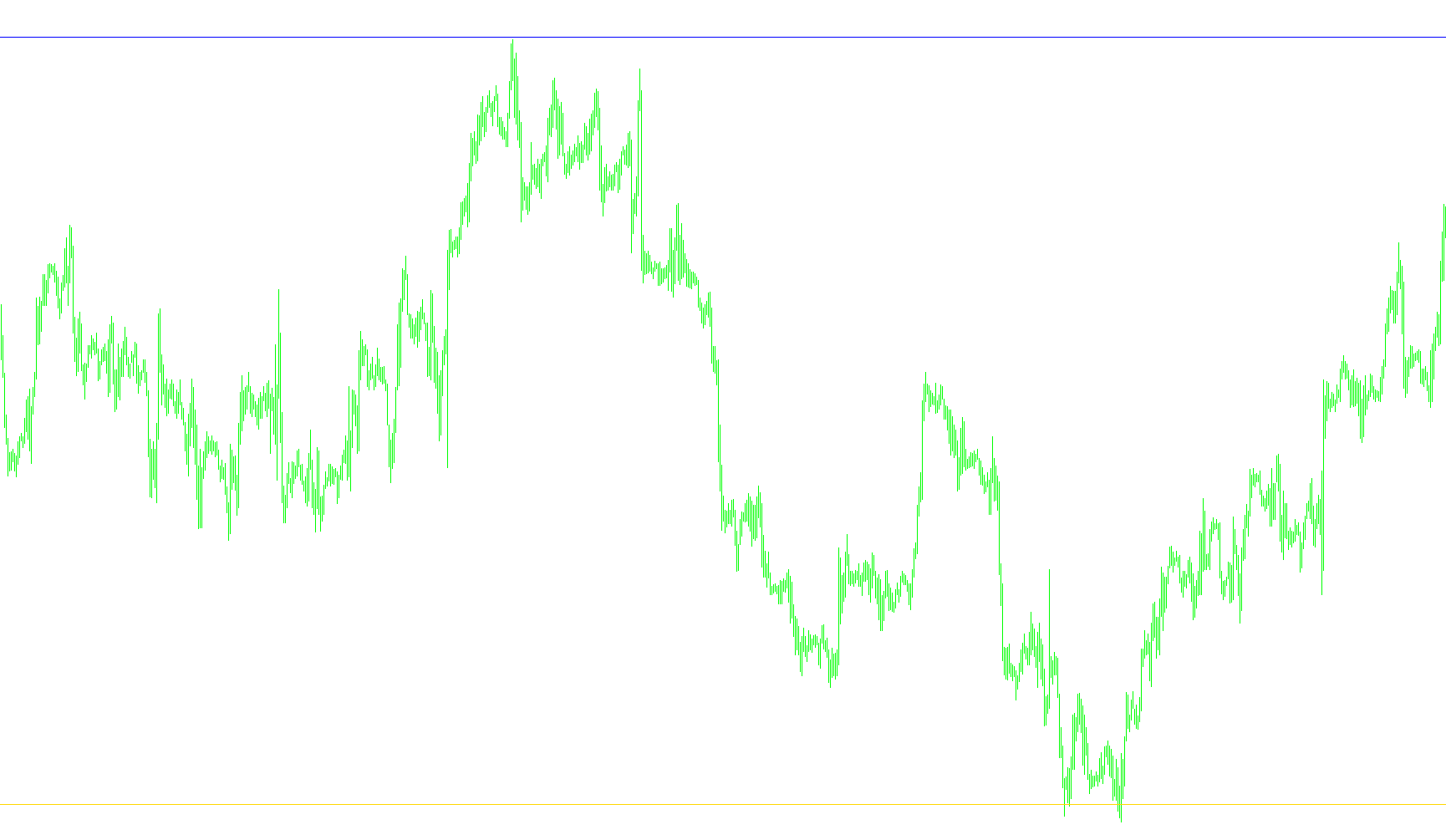

This script is designed to perform complex frequency analysis on financial market data. Rather than looking at simple price movements, it treats the price action as a wave-like signal to identify underlying cycles and repeating patterns.

Core Methodology

The script utilizes a mathematical process known as Fast Fourier Transform (FFT). In professional terms, this is a method used to decompose a complex, messy signal (like a volatile stock or currency price) into its individual frequency components. It effectively "breaks down" the market noise into distinct cycles, similar to how a prism breaks white light into a spectrum of colors.

How the Logic Works

  1. Data Collection: The script looks back at a specific number of historical price bars (defined by the user) to gather enough information to establish a pattern.
  2. Signal Processing: It captures the closing prices and processes them through the FFT algorithm. This allows the tool to identify which frequencies are strongest within that data set.
  3. Frequency Mapping: Once the frequencies are identified, the script focuses on a specific range—from a minimum period to a maximum period defined by the user.
  4. Visual Representation: Instead of just giving a single number, the script draws a series of horizontal lines in a separate window. Each line represents a different cycle detected in the market:
    • Amplitude and Color: The "strength" or magnitude of each cycle is visualized through color transitions. Cycles with higher amplitudes are highlighted differently (switching between Navy and Yellow) to help the user distinguish between dominant trends and minor fluctuations.
    • Dynamic Labeling: Each line is labeled with a numerical value representing the specific period (cycle length) it corresponds to.

Key Features for the User

  • Cycle Identification: It helps traders see "hidden" cycles that aren't obvious to the naked eye on a standard price chart.
  • Customizable Range: Users can define exactly which periods they want to monitor, allowing for a customized view of the market's rhythmic behavior.
  • Visual Spectrum: By providing a spectrum of lines, it allows you to see at a glance if the market is being driven by one dominant cycle or multiple overlapping cycles of varying lengths.

In summary, this script transforms raw price history into a frequency map, allowing you to see the "rhythm" of the market cycles as a visual spectrum of lines and colors.

Miscellaneous
Implements a curve of type %1
10 Views
0 Downloads
0 Favorites
iVeryCoolSpectrometr
#property copyright "http://dmffx.com"
#property link      "http://dmffx.com"

#property indicator_separate_window




#property indicator_buffers 2
#property indicator_color1 Gray
#property indicator_color2 Gray



//---- input parameters
extern int FFTPower=8;  // Ðàçìåð àíàëèçèðóåìîãî îêíà ñòåïåíü äâîéêè. Ïðè çíà÷åíèè 8 àíàëèçèðóåòñÿ 256 áàðîâ.
extern int ShowBars=500;   // Êîëè÷åñòâî áàðîâ äëÿ êîòîðûõ âûïîëíÿåòñÿ àíàëèç.
extern int Shift=1;  // Ñäâèã áàðîâ äëÿ êîòîðûõ âûïîëíÿåòñÿ àíàëèç
extern int From_T=4; // Ìèíèìàëüíûé îòîáðàæàåìûé ïåðèîä (çíà÷åíèå ïåðèîäà íà íèæíåé ãðàíèöå äèàãðàììû)
extern int To_T=50;  // Ìàêñèìàëüíûé îòîáðàæàåìûé ïåðèîä (çíà÷åíèå ïåðèîäà íà âåðõíåé ãðàíèöå äèàãðàììû)
extern color MaxColor=Yellow; // Öâåò ìàêñèìàëüíîé àìïëèòóäû
extern color MinColor=Navy;   // Öâåò ìèíèìàëüíîé àìïëèòóäû

//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
double ExtMapBuffer3[];
double ExtMapBuffer4[];
double ExtMapBuffer5[];
double ExtMapBuffer6[];
double Counter[];
double Signal[];

#define Pi 3.14159265358979323846
#define TwoPi 6.28318530717958647692

int FFTPeriod;
double FFTTmpOutput_1[];
double FFTSpectr[][3];
double FFTTmpOutput_2[];
double FFTPprocessedData[];
double FFTDC,FFTStartVShift;

double FFTFilterK[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+



int init(){

   fFFTInit(FFTPower,FFTPeriod,FFTTmpOutput_1,FFTSpectr,FFTTmpOutput_2,FFTPprocessedData);



//---- indicators

   IndicatorBuffers(8);

   SetIndexStyle(0,DRAW_LINE);
   SetIndexBuffer(0,ExtMapBuffer1);
   SetIndexStyle(1,DRAW_LINE);
   SetIndexBuffer(1,ExtMapBuffer2);

   SetIndexBuffer(2,Counter);
   SetIndexBuffer(3,Signal);

   SetIndexEmptyValue(2,0);



   IndicatorDigits(0);

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
   fObjDeleteByPrefix(WindowExpertName());
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start(){
            int limit=Bars-IndicatorCounted()-1;
               for(int i=limit;i>=0;i--){
                  Signal[i]=Close[i];
                  Counter[i]=Counter[i+1]+1;
                  ExtMapBuffer1[i]=From_T-2;
                  ExtMapBuffer2[i]=MathMin(FFTPeriod/2-1,To_T)+2;
               }
            limit=MathMin(limit,ShowBars-1);
            limit+=Shift;
               for(i=limit;i>=Shift;i--){
                  fFFTDirectMain(Signal,i,FFTPeriod,FFTTmpOutput_1);
                  fFFTDirectConvertToSpectr(FFTTmpOutput_1,FFTPeriod,FFTSpectr,FFTDC,FFTStartVShift);
                  double Max=0;
                     for(int j=From_T;j<=MathMin(FFTPeriod/2-1,To_T);j++){
                        Max=MathMax(Max,FFTSpectr[j][0]);
                     }
                     for(j=From_T;j<=MathMin(FFTPeriod/2-1,To_T);j++){
                        string ObjName=WindowExpertName()+"_"+fInt(Counter[i])+"_"+j;
                        fObjTrendLine(ObjName,Time[i],j,Time[i+1],j,false,GetColor(FFTSpectr[j][0]/Max,MinColor,MaxColor),2,WindowFind(WindowExpertName()),0,false);
                        ObjectSetText(ObjName,""+DoubleToStr(1.0*FFTPeriod/j,1));
                     }
               }


   return(0);
  }
//+------------------------------------------------------------------+

void fObjTrendLine(
   string aObjectName,  // 1 èìÿ
   datetime aTime_1,    // 2 âðåìÿ 1
   double aPrice_1,     // 3 öåíà 1
   datetime aTime_2,    // 4 âðåìÿ 2
   double aPrice_2,     // 5 öåíà 2
   bool aRay=false,     // 6 ëó÷
   color aColor=Red,    // 7 öâåò
   int aWidth=1,        // 8 òîëùèíà
   int aWindowNumber=0, // 9 îêíî
   int aStyle=0,        // 10 0-STYLE_SOLID, 1-STYLE_DASH, 2-STYLE_DOT, 3-STYLE_DASHDOT, 4-STYLE_DASHDOTDOT
   bool aBack=false     // 11 ôîí
   ){
      if(ObjectFind(aObjectName)!=aWindowNumber){
         ObjectCreate(aObjectName,OBJ_TREND,aWindowNumber,aTime_1,aPrice_1,aTime_2,aPrice_2);
      }
   ObjectSet(aObjectName,OBJPROP_TIME1,aTime_1);
   ObjectSet(aObjectName,OBJPROP_PRICE1,aPrice_1);
   ObjectSet(aObjectName,OBJPROP_TIME2,aTime_2);
   ObjectSet(aObjectName,OBJPROP_PRICE2,aPrice_2);
   ObjectSet(aObjectName,OBJPROP_RAY,aRay);
   ObjectSet(aObjectName,OBJPROP_COLOR,aColor);
   ObjectSet(aObjectName,OBJPROP_WIDTH,aWidth);
   ObjectSet(aObjectName,OBJPROP_BACK,aBack);
   ObjectSet(aObjectName,OBJPROP_STYLE,aStyle);
}


int fInt(double aArg){
   return(aArg);
}



void fObjDeleteByPrefix(string aPrefix){

   //fObjDeleteByPrefix("");

   for(int i=ObjectsTotal()-1;i>=0;i--){
      if(StringFind(ObjectName(i),aPrefix,0)==0){
         ObjectDelete(ObjectName(i));
      }
   }
}




color GetColor(double aK,int Col1,double Col2){
   int R1,G1,B1,R2,G2,B2;
   fGetRGB(R1,G1,B1,Col1);
   fGetRGB(R2,G2,B2,Col2);
   return(fRGB(R1+aK*(R2-R1),G1+aK*(G2-G1),B1+aK*(B2-B1)));
}

void fGetRGB(int & aR,int & aG,int & aB,int aCol){
   aB=aCol/65536;
   aCol-=aB*65536;
   aG=aCol/256;
   aCol-=aG*256;
   aR=aCol;
}

color fRGB(int aR,int aG, int aB){
   return(aR+256*aG+65536*aB);
}



void fFFTInit(int aFFTPower,int & aPeriod,double & aTmpOutput_1[],double & aSpectr[][2],double & aTmpOutput_2[],double & aFFTPprocessedData[]){
   aPeriod=MathPow(2,FFTPower);
   ArrayResize(aTmpOutput_1,aPeriod);
   ArrayResize(aSpectr,aPeriod/2);
   ArrayResize(aTmpOutput_2,aPeriod);
   ArrayResize(FFTPprocessedData,aPeriod);
}

void fFFTDirectMain(double aInput[],int aInputStart,int aPeriod,double & aTmpOutput[]){

   double twr; double twi; double twpr; double twpi; double twtemp; double ttheta; int i; int i1; int i2; int i3; int i4;
   double c1; double c2; double h1r; double h1i; double h2r; double h2i; double wrs; double wis; int HalfPeriod; int ii;
   int jj; int n; int mmax; int m; int j; int istep; int isign; double wtemp; double wr; double wpr; double wpi; double wi;
   double theta; double tempr; double tempi;

   ttheta=2.0*Pi/aPeriod;
   c1=0.5;
   c2=-0.5;
   isign=1;
   n=aPeriod;
   HalfPeriod=aPeriod/2;
   j=1;
   ArrayCopy(aTmpOutput,aInput,0,aInputStart,aPeriod);
      for(ii=1;ii<=HalfPeriod;ii++){
        i=2*ii-1;
            if(j>i){
               tempr=aTmpOutput[j-1];
               tempi=aTmpOutput[j];
               aTmpOutput[j-1]=aTmpOutput[i-1];
               aTmpOutput[j]=aTmpOutput[i];
               aTmpOutput[i-1]=tempr;
               aTmpOutput[i]=tempi;
            }
         m=n/2;
            while(m>=2 && j>m){
               j=j-m;
               m=m/2;
            }
         j=j+m;
      }
    mmax = 2;
      while(n>mmax){
        istep=2*mmax;
        theta=2.0*Pi/(isign*mmax);
        wpr=-2.0*MathPow(MathSin(0.5*theta),2);
        wpi=MathSin(theta);
        wr=1.0;
        wi=0.0;
            for(ii=1;ii<=mmax/2;ii++){
               m=2*ii-1;
                  for(jj=0;jj<=(n-m)/istep;jj++){
                     i=m+jj*istep;
                     j=i+mmax;
                     tempr=wr*aTmpOutput[j-1]-wi*aTmpOutput[j];
                     tempi=wr*aTmpOutput[j]+wi*aTmpOutput[j-1];
                     aTmpOutput[j-1]=aTmpOutput[i-1]-tempr;
                     aTmpOutput[j]=aTmpOutput[i]-tempi;
                     aTmpOutput[i-1]=aTmpOutput[i-1]+tempr;
                     aTmpOutput[i]=aTmpOutput[i]+tempi;
                  }
               wtemp=wr;
               wr=wr*wpr-wi*wpi+wr;
               wi=wi*wpr+wtemp*wpi+wi;
            }
        mmax = istep;
      }
   twpr=-2.0*MathPow(MathSin(0.5*ttheta),2);
   twpi=MathSin(ttheta);
   twr=1.0+twpr;
   twi=twpi;
        for(i=2;i<=aPeriod/4+1;i++){
            i1=i+i-2;
            i2=i1+1;
            i3=aPeriod+1-i2;
            i4=i3+1;
            wrs=twr;
            wis=twi;
            h1r=c1*(aTmpOutput[i1]+aTmpOutput[i3]);
            h1i=c1*(aTmpOutput[i2]-aTmpOutput[i4]);
            h2r=-c2*(aTmpOutput[i2]+aTmpOutput[i4]);
            h2i=c2*(aTmpOutput[i1]-aTmpOutput[i3]);
            aTmpOutput[i1]=h1r+wrs*h2r-wis*h2i;
            aTmpOutput[i2]=h1i+wrs*h2i+wis*h2r;
            aTmpOutput[i3]=h1r-wrs*h2r+wis*h2i;
            aTmpOutput[i4]=-h1i+wrs*h2i+wis*h2r;
            twtemp=twr;
            twr=twr*twpr-twi*twpi+twr;
            twi=twi*twpr+twtemp*twpi+twi;
        }
   h1r=aTmpOutput[0];
   aTmpOutput[0]=h1r+aTmpOutput[1];
   aTmpOutput[1]=h1r-aTmpOutput[1];
   return;
}

void fFFTDirectConvertToSpectr(double aInput[],int aPeriod,double & aOutput[][2],double & aDCValue,double & aStartVShift){
   int i,j,HalfPeriod;
   HalfPeriod=aPeriod/2;
      for(i=2,j=1;i<aPeriod;i+=2,j++){
         aOutput[j][0]=MathSqrt(aInput[i]*aInput[i]+aInput[i+1]*aInput[i+1])/HalfPeriod;
         aOutput[j][1]=fMyArcTan2(aInput[i+1],aInput[i]);
      }
   aDCValue=aInput[0]/aPeriod;
   aStartVShift=aInput[1];
}



double fMyArcTan2(double aY,double aX){ // â îáå ñòîðîíû
   if(aY==0){
      if(aX==0){
         return(0);
      }
      if(aX>0){
         return(0);
      }
      if(aX<0){
         return(MathArctan(1)*4);
      }
   }
   if(aX==0){
      if(aY>0){
         return(MathArctan(1)*2);
      }
      else{
         if(aY<0){
            return(-MathArctan(1)*2);
         }
      }
   }
   else{
      if(aY>0){
         if(aX>0){
            return(MathArctan(aY/aX));
         }
         else{
            return(MathArctan(aY/aX)+MathArctan(1)*4);
         }
      }
      else{
         if(aX>0){
            return(MathArctan(aY/aX));
         }
         else{
            return(MathArctan(aY/aX)-MathArctan(1)*4);
         }
      }
   }
}
