Ind-TD-DeMark-3-1-new
Download scriptThis script is designed to automate the identification and visualization of specific price action points on a trading chart. It primarily focuses on identifying significant highs and lows based on either standard "TD" (Tom DeMark) logic or traditional fractal patterns, then uses that data to project trend lines and potential profit targets.
Core Logic Overview
1. Identification of Key Points The script scans the price history to find "turning points." It does this in two different ways depending on your settings:
- Standard Mode: It looks for specific candle patterns where a high or low point is higher (or lower) than the candles immediately surrounding it, and also compares it against the closing price of preceding candles.
- Fractal Mode: If enabled, the script switches its logic to identify "Fractals"—specific geometric structures in the price action that represent local peaks and valleys.
2. Trend Detection and Line Drawing Once the script identifies a recent high point and the previous significant high point, it automatically connects them with a Trend Line. It performs the same logic for low points to create downward-sloping or upward-sloping trend lines. These visual aids help traders see the current direction of the market at a glance.
3. Horizontal Support and Resistance For the most recent primary data point, the script can project horizontal lines. These serve as immediate visual markers for the current significant price level being established by the market.
4. Automated Target Calculation (Take Profit) One of the more complex parts of this logic is how it predicts future targets. Based on the angle and distance between two identified highs (or lows), the script calculates three potential "Take Profit" levels:
- It determines the slope of the current trend.
- It searches for the "lowest low" or "highest high" within a specific recent range.
- It projects three distinct targets based on these geometric calculations, appearing as lines extending forward on your chart. This is intended to give traders a mathematical suggestion of where a price move might exhaust itself.

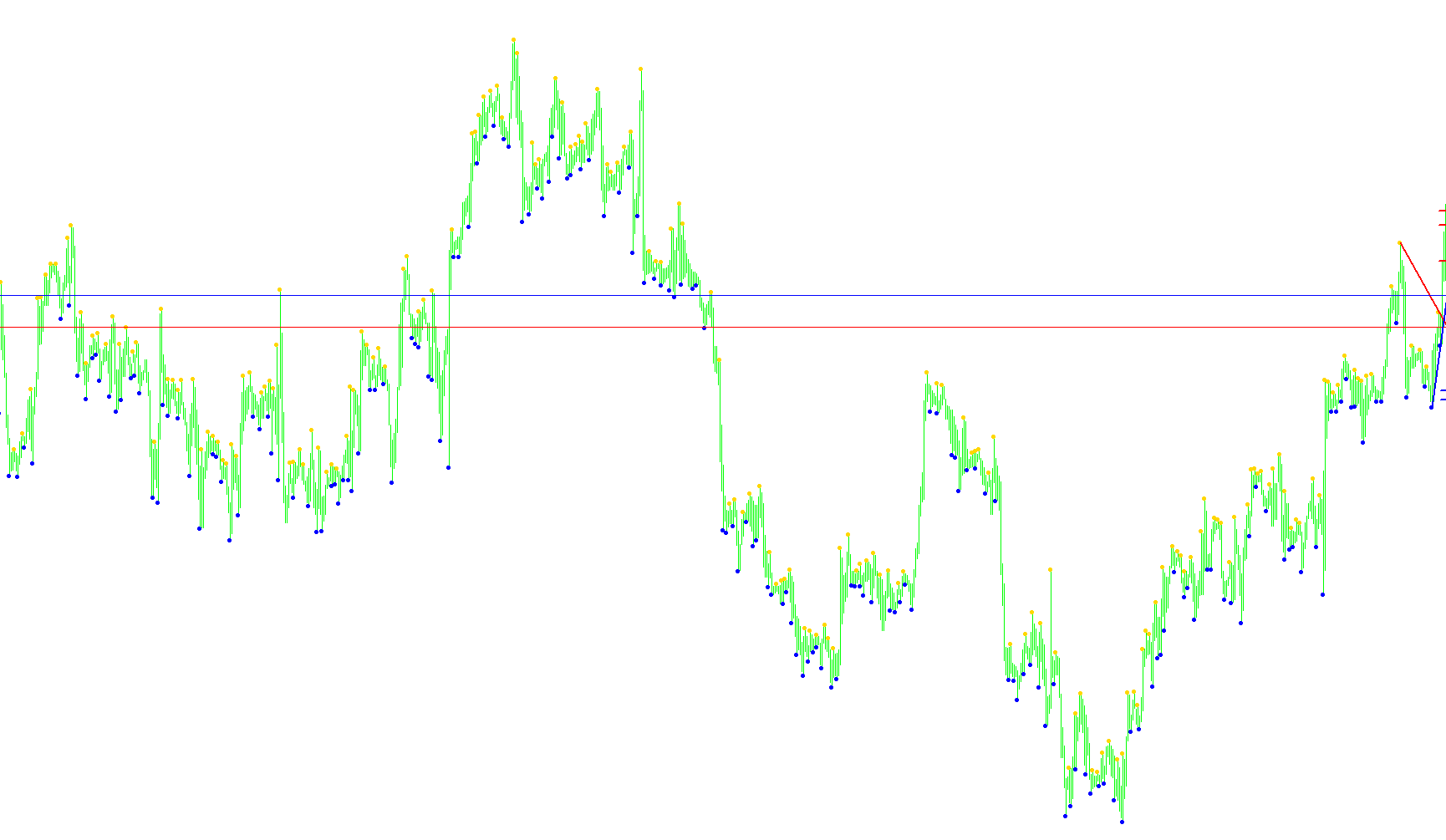

5. On-Screen Reporting The script provides a text summary in the corner of the trading screen. It lists the coordinates of the current trend points (Highs and Lows) and updates this information in real-time as new price data arrives.
Summary of User Controls
- Steps: Allows you to choose how many historical "levels" or trend lines you want to see on the screen at once.
- Fractal Toggle: Switches between standard DeMark turning points and geometric Fractals.
- Visual Toggles: You can independently turn on or off the Trend Lines, Horizontal Lines, and the Take Profit projections to keep your chart as clean as you prefer.
//+------------------------------------------------------------------+
//| Ind-TD-DeMark-3-1.mq4 |
//| Copyright © 2005, Kara Software Corp. |
//| |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, Kara Software Corp."
#property link ""
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 White
#property indicator_color2 White
//---- input parameters
extern int BackSteps=0;
extern int ShowingSteps=1;
extern bool FractalAsTD=false;
extern bool Commen=true;
extern bool TD=true;
extern bool TrendLine=true;
extern bool HorizontLine=true;
extern bool TakeProf=true;
//---- buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
//====================================================================
int init()
{
SetIndexStyle(0,DRAW_ARROW);
SetIndexArrow(0,159);
SetIndexBuffer(0,ExtMapBuffer1);
SetIndexEmptyValue(0,0.0);
SetIndexStyle(1,DRAW_ARROW);
SetIndexArrow(1,159);
SetIndexBuffer(1,ExtMapBuffer2);
SetIndexEmptyValue(1,0.0);
for (int i=1;i<=10;i++)
{
ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
ObjectDelete("HC1_"+i);
ObjectDelete("HC2_"+i);
ObjectDelete("HC3_"+i);
ObjectDelete("LC1_"+i);
ObjectDelete("LC2_"+i);
ObjectDelete("LC3_"+i);
}
Comment("");
return(0);
}
int deinit()
{
for (int i=1;i<=10;i++)
{
ObjectDelete("HHL_"+i);ObjectDelete("HL_"+i);
ObjectDelete("HLL_"+i);ObjectDelete("LL_"+i);
ObjectDelete("HC1_"+i);
ObjectDelete("HC2_"+i);
ObjectDelete("HC3_"+i);
ObjectDelete("LC1_"+i);
ObjectDelete("LC2_"+i);
ObjectDelete("LC3_"+i);
}
Comment("");
return(0);
}
//--------------------------------------------------------------------
int SetTDPoint(int B)
{
int shift;
if (FractalAsTD==false)
{
for (shift=B;shift>1;shift--)
{
if (High[shift+1]<High[shift] && High[shift-1]<High[shift] && Close[shift+2]<High[shift])
ExtMapBuffer1[shift]=High[shift];
else ExtMapBuffer1[shift]=0;
if (Low[shift+1]>Low[shift] && Low[shift-1]>Low[shift] && Close[shift+2]>Low[shift])
ExtMapBuffer2[shift]=Low[shift];
else ExtMapBuffer2[shift]=0;
}
ExtMapBuffer1[0]=0;
ExtMapBuffer2[0]=0;
ExtMapBuffer1[1]=0;
ExtMapBuffer2[1]=0;
}
else
{
for (shift=B;shift>3;shift--)
{
if (High[shift+1]<=High[shift] && High[shift-1]<High[shift] && High[shift+2]<=High[shift] && High[shift-2]<High[shift])
ExtMapBuffer1[shift]=High[shift];
else ExtMapBuffer1[shift]=0;
if (Low[shift+1]>=Low[shift] && Low[shift-1]>Low[shift] && Low[shift+2]>=Low[shift] && Low[shift-2]>Low[shift])
ExtMapBuffer2[shift]=Low[shift];
else ExtMapBuffer2[shift]=0;
}
ExtMapBuffer1[0]=0;
ExtMapBuffer2[0]=0;
ExtMapBuffer1[1]=0;
ExtMapBuffer2[1]=0;
ExtMapBuffer1[2]=0;
ExtMapBuffer2[2]=0;
}
return(0);
}
//--------------------------------------------------------------------
int GetHighTD(int P)
{
int i=0,j=0;
while (j<P)
{
i++;
while(ExtMapBuffer1[i]==0)
{i++;if(i>Bars-2)return(-1);}
j++;
}
return (i);
}
//--------------------------------------------------------------------
int GetNextHighTD(int P)
{
int i=P+1;
while(ExtMapBuffer1[i]<=High[P]){i++;if(i>Bars-2)return(-1);}
return (i);
}
//--------------------------------------------------------------------
int GetLowTD(int P)
{
int i=0,j=0;
while (j<P)
{
i++;
while(ExtMapBuffer2[i]==0)
{i++;if(i>Bars-2)return(-1);}
j++;
}
return (i);
}
//--------------------------------------------------------------------
int GetNextLowTD(int P)
{
int i=P+1;
while(ExtMapBuffer2[i]>=Low[P] || ExtMapBuffer2[i]==0){i++;if(i>Bars-2)return(-1);}
return (i);
}
//--------------------------------------------------------------------
int TrendLineHighTD(int H1,int H2,int Step,int Col)
{
ObjectSet("HL_"+Step,OBJPROP_TIME1,Time[H2]);ObjectSet("HL_"+Step,OBJPROP_TIME2,Time[H1]);
ObjectSet("HL_"+Step,OBJPROP_PRICE1,High[H2]);ObjectSet("HL_"+Step,OBJPROP_PRICE2,High[H1]);
ObjectSet("HL_"+Step,OBJPROP_COLOR,Col);
if (Step==1)ObjectSet("HL_"+Step,OBJPROP_WIDTH,2);
else ObjectSet("HL_"+Step,OBJPROP_WIDTH,1);
return(0);
}
//--------------------------------------------------------------------
int TrendLineLowTD(int L1,int L2,int Step,int Col)
{
ObjectSet("LL_"+Step,OBJPROP_TIME1,Time[L2]);ObjectSet("LL_"+Step,OBJPROP_TIME2,Time[L1]);
ObjectSet("LL_"+Step,OBJPROP_PRICE1,Low[L2]);ObjectSet("LL_"+Step,OBJPROP_PRICE2,Low[L1]);
ObjectSet("LL_"+Step,OBJPROP_COLOR,Col);
if (Step==1)ObjectSet("LL_"+Step,OBJPROP_WIDTH,2);
else ObjectSet("LL_"+Step,OBJPROP_WIDTH,1);
return(0);
}
//--------------------------------------------------------------------
int HorizontLineHighTD(int H1,int H2,int Step,double St,int Col)
{
ObjectSet("HHL_"+Step,OBJPROP_PRICE1,High[H2]-(High[H2]-High[H1])/(H2-H1)*H2);
ObjectSet("HHL_"+Step,OBJPROP_STYLE,St);
ObjectSet("HHL_"+Step,OBJPROP_COLOR,Col);
return(0);
}
//--------------------------------------------------------------------
int HorizontLineLowTD(int L1,int L2,int Step,double St,int Col)
{
ObjectSet("HLL_"+Step,OBJPROP_PRICE1,Low[L2]+(Low[L1]-Low[L2])/(L2-L1)*L2);
ObjectSet("HLL_"+Step,OBJPROP_STYLE,St);
ObjectSet("HLL_"+Step,OBJPROP_COLOR,Col);
return(0);
}
//--------------------------------------------------------------------
string TakeProfitHighTD(int H1,int H2,int Step,int Col)
{
int i,ii,j=0;
string Comm="";
double kH,HC1,HC2,HC3,k,St;
kH=(High[H2]-High[H1])/(H2-H1);
while (NormalizeDouble(Point,j)==0)j++;
k=0;
for(i=H1;i>0;i--)if(Close[i]>High[H2]-kH*(H2-i)){k=High[H2]-kH*(H2-i);break;}
if (k>0)
{
Comm=Comm+"UTD_Line ("+DoubleToStr(High[H2]-kH*H2,j)+") ïðîáèòà â òî÷êå "+DoubleToStr(k,j)+", öåëè ââåðõ:\n";
ii=Lowest(NULL,0,MODE_LOW,H2-i,i);
HC1=High[H2]-kH*(H2-ii)-Low[ii];
HC2=High[H2]-kH*(H2-ii)-Close[ii];
ii=Lowest(NULL,0,MODE_CLOSE,H2-i,i);
HC3=High[H2]-kH*(H2-ii)-Close[ii];
St=STYLE_SOLID;
}
else
{
k=High[H2]-kH*H2;
Comm=Comm+"UTD_Line ("+DoubleToStr(k,j)+"), ïðè ïðîáèòèè ïðåäïîëàãàåìûå öåëè ââåðõó:\n";
ii=Lowest(NULL,0,MODE_LOW,H2,0);
HC1=High[H2]-kH*(H2-ii)-Low[ii];
HC2=High[H2]-kH*(H2-ii)-Close[ii];
ii=Lowest(NULL,0,MODE_CLOSE,H2,0);
HC3=High[H2]-kH*(H2-ii)-Close[ii];
St=STYLE_DASHDOT;
}
ObjectSet("HL_"+Step,OBJPROP_STYLE,St);
Comm=Comm+"Ö1="+DoubleToStr(HC1+k,j)+" ("+DoubleToStr(HC1/Point,0)+"ï.)";
Comm=Comm+" Ö2="+DoubleToStr(HC2+k,j)+" ("+DoubleToStr(HC2/Point,0)+"ï.)";
Comm=Comm+" Ö3="+DoubleToStr(HC3+k,j)+" ("+DoubleToStr(HC3/Point,0)+"ï.)\n";
ObjectSet("HC1_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC1_"+Step,OBJPROP_TIME2,Time[0]);
ObjectSet("HC1_"+Step,OBJPROP_PRICE1,HC1+k);ObjectSet("HC1_"+Step,OBJPROP_PRICE2,HC1+k);
ObjectSet("HC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC1_"+Step,OBJPROP_STYLE,St);
ObjectSet("HC2_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC2_"+Step,OBJPROP_TIME2,Time[0]);
ObjectSet("HC2_"+Step,OBJPROP_PRICE1,HC2+k);ObjectSet("HC2_"+Step,OBJPROP_PRICE2,HC2+k);
ObjectSet("HC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC2_"+Step,OBJPROP_STYLE,St);
ObjectSet("HC3_"+Step,OBJPROP_TIME1,Time[H1]);ObjectSet("HC3_"+Step,OBJPROP_TIME2,Time[0]);
ObjectSet("HC3_"+Step,OBJPROP_PRICE1,HC3+k);ObjectSet("HC3_"+Step,OBJPROP_PRICE2,HC3+k);
ObjectSet("HC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("HC3_"+Step,OBJPROP_STYLE,St);
if (Step==1)
{
ObjectSet("HC1_"+Step,OBJPROP_WIDTH,2);
ObjectSet("HC2_"+Step,OBJPROP_WIDTH,2);
ObjectSet("HC3_"+Step,OBJPROP_WIDTH,2);
}
else
{
ObjectSet("HC1_"+Step,OBJPROP_WIDTH,1);
ObjectSet("HC2_"+Step,OBJPROP_WIDTH,1);
ObjectSet("HC3_"+Step,OBJPROP_WIDTH,1);
}
return(Comm);
}
//--------------------------------------------------------------------
string TakeProfitLowTD(int L1,int L2,int Step,int Col)
{
int i,ii,j=0;
string Comm="";
double kL,LC1,LC2,LC3,k,St;
kL=(Low[L1]-Low[L2])/(L2-L1);
while (NormalizeDouble(Point,j)==0)j++;
k=0;
for(i=L1;i>0;i--)if(Close[i]<Low[L2]+kL*(L2-i)){k=Low[L2]+kL*(L2-i);break;}
if (k>0)
{
Comm=Comm+"LTD_Line ("+DoubleToStr(Low[L2]+kL*L2,j)+") ïðîáèòà â òî÷êå "+DoubleToStr(k,j)+", öåëè âíèç:\n";
ii=Highest(NULL,0,MODE_HIGH,L2-i,i);
LC1=High[ii]-(Low[L2]+kL*(L2-ii));
LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
i=Highest(NULL,0,MODE_CLOSE,L2-i,i);
LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
St=STYLE_SOLID;
}
else
{
k=Low[L2]+kL*L2;
Comm=Comm+"LTD_Line ("+DoubleToStr(k,j)+"), ïðè ïðîáèòèè ïðåäïîëàãàåìûå öåëè âíèçó:\n";
ii=Highest(NULL,0,MODE_HIGH,L2,0);
LC1=High[ii]-(Low[L2]+kL*(L2-ii));
LC2=Close[ii]-(Low[L2]+kL*(L2-ii));
ii=Highest(NULL,0,MODE_CLOSE,L2,0);
LC3=Close[ii]-(Low[L2]+kL*(L2-ii));
St=STYLE_DASHDOT;
}
ObjectSet("LL_"+Step,OBJPROP_STYLE,St);
Comm=Comm+"Ö1="+DoubleToStr(k-LC1,j)+" ("+DoubleToStr(LC1/Point,0)+"ï.)";
Comm=Comm+" Ö2="+DoubleToStr(k-LC2,j)+" ("+DoubleToStr(LC2/Point,0)+"ï.)";
Comm=Comm+" Ö3="+DoubleToStr(k-LC3,j)+" ("+DoubleToStr(LC3/Point,0)+"ï.)\n";
ObjectSet("LC1_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC1_"+Step,OBJPROP_TIME2,Time[0]);
ObjectSet("LC1_"+Step,OBJPROP_PRICE1,k-LC1);ObjectSet("LC1_"+Step,OBJPROP_PRICE2,k-LC1);
ObjectSet("LC1_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC1_"+Step,OBJPROP_STYLE,St);
ObjectSet("LC2_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC2_"+Step,OBJPROP_TIME2,Time[0]);
ObjectSet("LC2_"+Step,OBJPROP_PRICE1,k-LC2);ObjectSet("LC2_"+Step,OBJPROP_PRICE2,k-LC2);
ObjectSet("LC2_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC2_"+Step,OBJPROP_STYLE,St);
ObjectSet("LC3_"+Step,OBJPROP_TIME1,Time[L1]);ObjectSet("LC3_"+Step,OBJPROP_TIME2,Time[0]);
ObjectSet("LC3_"+Step,OBJPROP_PRICE1,k-LC3);ObjectSet("LC3_"+Step,OBJPROP_PRICE2,k-LC3);
ObjectSet("LC3_"+Step,OBJPROP_COLOR,Col);ObjectSet("LC3_"+Step,OBJPROP_STYLE,St);
if (Step==1)
{
ObjectSet("LC1_"+Step,OBJPROP_WIDTH,2);
ObjectSet("LC2_"+Step,OBJPROP_WIDTH,2);
ObjectSet("LC3_"+Step,OBJPROP_WIDTH,2);
}
else
{
ObjectSet("LC1_"+Step,OBJPROP_WIDTH,1);
ObjectSet("LC2_"+Step,OBJPROP_WIDTH,1);
ObjectSet("LC3_"+Step,OBJPROP_WIDTH,1);
}
return(Comm);
}
//--------------------------------------------------------------------
string TDMain(int Step)
{
int H1,H2,L1,L2;
string Comm="--- ØÀÃ "+Step+" --------------------\n";
int i,j; while (NormalizeDouble(Point,j)==0)j++;
double Style;
double Col[20];Col[0]=Red;Col[2]=Magenta;Col[4]=Chocolate;Col[6]=Goldenrod;Col[8]=SlateBlue;
Col[1]=Blue;Col[3]=DeepSkyBlue;Col[5]=Green;Col[7]=MediumOrchid;Col[9]=CornflowerBlue;
Col[10]=Red;Col[12]=Magenta;Col[14]=Chocolate;Col[16]=Goldenrod;Col[18]=SlateBlue;
Col[11]=Blue;Col[13]=DeepSkyBlue;Col[15]=Green;Col[17]=MediumOrchid;Col[19]=CornflowerBlue;
Step=Step+BackSteps;
H1=GetHighTD(Step);
H2=GetNextHighTD(H1);
L1=GetLowTD(Step);
L2=GetNextLowTD(L1);
if (H1<0)Comm=Comm+"UTD íà ãðàôèêå íåò âåðõíåé TD òî÷êè \n";
else
if (H2<0)Comm=Comm+"UTD íà ãðàôèêå íåò TD òî÷êè âûøå ïîñëåäíåé ("+DoubleToStr(High[H1],j)+")\n";
else Comm=Comm+"UTD "+DoubleToStr(High[H2],j)+" "+DoubleToStr(High[H1],j)+"\n";
if (L1<0)Comm=Comm+"LTD íà ãðàôèêå íåò íèæíåé TD òî÷êè \n";
else
if (L2<0)Comm=Comm+"LTD íà ãðàôèêå íåò TD òî÷êè íèæå ïîñëåäíåé ("+DoubleToStr(Low[L1],j)+")\n";
else Comm=Comm+"LTD "+DoubleToStr(Low[L2],j)+" "+DoubleToStr(Low[L1],j)+"\n";
//-----------------------------------------------------------------------------------
if (Step==1)Style=STYLE_SOLID;
else Style=STYLE_DOT;
if (H1>0 && H2>0)
{
if (TrendLine==1)
{
ObjectCreate("HL_"+Step,OBJ_TREND,0,0,0,0,0);
TrendLineHighTD(H1,H2,Step,Col[Step*2-2]);
}
else ObjectDelete("HL_"+Step);
if (HorizontLine==1 && Step==1)
{
ObjectCreate("HHL_"+Step,OBJ_HLINE,0,0,0,0,0);
HorizontLineHighTD(H1,H2,Step,Style,Col[Step*2-2]);
}
else ObjectDelete("HHL_"+Step);
if (TakeProf==1)
{
ObjectCreate("HC1_"+Step,OBJ_TREND,0,0,0,0,0);
ObjectCreate("HC2_"+Step,OBJ_TREND,0,0,0,0,0);
ObjectCreate("HC3_"+Step,OBJ_TREND,0,0,0,0,0);
Comm=Comm+TakeProfitHighTD(H1,H2,Step,Col[Step*2-2]);
}
else
{
ObjectDelete("HC1_"+Step);
ObjectDelete("HC2_"+Step);
ObjectDelete("HC3_"+Step);
}
}
//-----------------------------------------------------------------------------------
if (L1>0 && L2>0)
{
if (TrendLine==1)
{
ObjectCreate("LL_"+Step,OBJ_TREND,0,0,0,0,0);
TrendLineLowTD(L1,L2,Step,Col[Step*2-1]);
}
else ObjectDelete("LL_"+Step);
if (HorizontLine==1 && Step==1)
{
ObjectCreate("HLL_"+Step,OBJ_HLINE,0,0,0,0,0);
HorizontLineLowTD(L1,L2,Step,Style,Col[Step*2-1]);
}
else ObjectDelete("HLL_"+Step);
if (TakeProf==1)
{
ObjectCreate("LC1_"+Step,OBJ_TREND,0,0,0,0,0);
ObjectCreate("LC2_"+Step,OBJ_TREND,0,0,0,0,0);
ObjectCreate("LC3_"+Step,OBJ_TREND,0,0,0,0,0);
Comm=Comm+TakeProfitLowTD(L1,L2,Step,Col[Step*2-1]);
}
else
{
ObjectDelete("LC1_"+Step);
ObjectDelete("LC2_"+Step);
ObjectDelete("LC3_"+Step);
}
}
return(Comm);
}
//--------------------------------------------------------------------
int start()
{
string Comm="";
SetTDPoint(Bars-1);
if (TD==1)
{
SetIndexArrow(0,159);
SetIndexArrow(1,159);
}
else
{
SetIndexArrow(0,160);
SetIndexArrow(1,160);
}
if (ShowingSteps>10)
{
Comment("ShowingSteps çíà÷åíèå 0 - 10");
return(0);
}
for (int i=1;i<=ShowingSteps;i++)Comm=Comm+TDMain(i);
Comm=Comm+"------------------------------------\nShowingSteps="+ShowingSteps+"\nBackSteps="+BackSteps;
if (FractalAsTD==true)Comm=Comm+"\nFractals";
else Comm=Comm+"\nTD point";
if (Commen==1)Comment(Comm);
else Comment("");
return(0);
}
//+------------------------------------------------------------------+
Comments
