IBFXDailyPivots

Download script
Author: Patrick Nouvion
IBFXDailyPivots

This script is designed to automatically calculate and display Daily Pivot Points on your trading charts. Pivot points are technical analysis tools used by traders to identify potential support and resistance levels where the price of an asset mightpauses, reverse, or break out.

Core Logic Overview

The primary purpose of this tool is to take the historical data from the previous trading day and use it to project several "levels" onto the current day's chart. By knowing where these levels sit, traders can better anticipate market behavior.

How the Calculations Work

The script performs the following logical steps:

  1. Data Collection: It automatically retrieves four key price points from the previous day's trading session: the High price, the Low price, the Close price, and the Open price.
  2. Pivot Point Calculation: It establishes a central "Pivot" level. This is calculated as the average of the previous day's High, Low, and Close prices. This acts as the "equilibrium" for the current trading day.
  3. Resistance & Support Levels: Using that central Pivot Point, the script mathematically derives several additional levels:
    • Resistance Levels (R1, R2, R3): These represent areas where the price may face selling pressure.
    • Support Levels (S1, S2, S3): These represent areas where the price may find buying interest and struggle to fall further.
  4. Dynamic Formatting: The script is intelligent enough to detect what type of currency you are trading. It automatically adjusts the decimal precision of the numbers (for example, showing fewer decimals for Japanese Yen pairs compared to other currencies) to ensure the labels remain clean and readable.

Visual Features on the Chart

Instead of just drawing lines, this script provides a comprehensive visual dashboard:

  • Dynamic Plotting: It draws seven distinct horizontal lines across your chart, color-coded to help you quickly distinguish between Resistance (shades of red/maroon) and Support (shades of green).

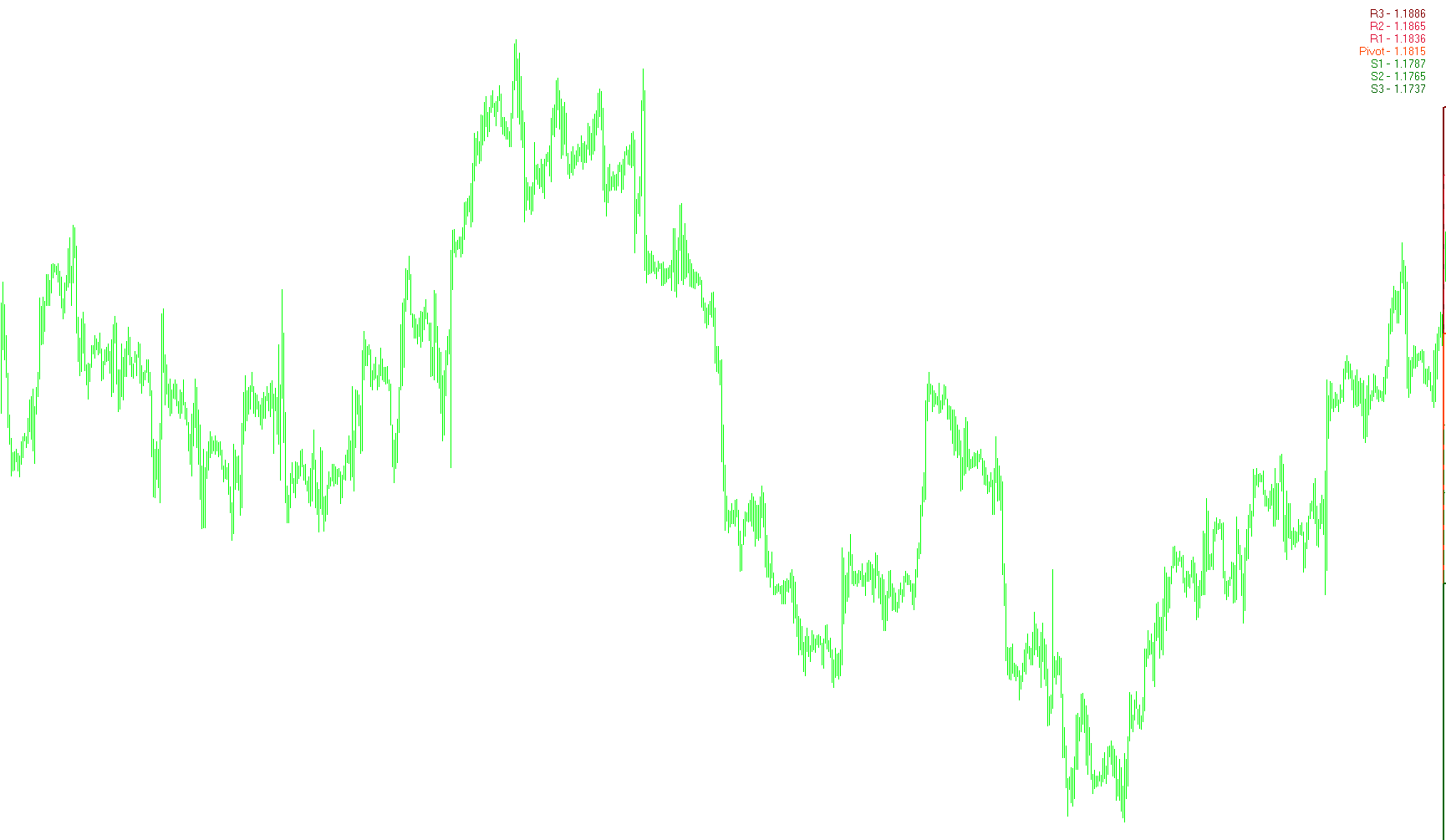

  • Real-Time Labeling: The script places a clear text dashboard on the corner of your screen. This allows you to see the exact numerical value of every level (R1, R2, Pivot, S1, etc.) at a glance without having to hover your mouse over the lines.
  • Automated Cleanup: To ensure your chart remains organized, the script includes a "CleanUp" function that removes old labels and objects when the tool is closed or refreshed, preventing visual clutter.
Miscellaneous
Implements a curve of type %1
9 Views
0 Downloads
0 Favorites
IBFXDailyPivots
//+------------------------------------------------------------------+
//|                                          IBFX - Daily Pivots.mq4 |
//|                                                  Patrick Nouvion |
//|                                       http://www.interbankfx.com |
//+------------------------------------------------------------------+
#property copyright "Patrick Nouvion"
#property link      "http://www.interbankfx.com"

#property indicator_chart_window
#property indicator_buffers 7

#property indicator_color1 Maroon
#property indicator_color2 Crimson
#property indicator_color3 Crimson
#property indicator_color4 OrangeRed
#property indicator_color5 Green
#property indicator_color6 Green
#property indicator_color7 DarkGreen

#property indicator_style1 STYLE_SOLID
#property indicator_style2 STYLE_DASH
#property indicator_style3 STYLE_DASH
#property indicator_style4 STYLE_SOLID
#property indicator_style5 STYLE_DASH
#property indicator_style6 STYLE_DASH
#property indicator_style7 STYLE_SOLID

#property indicator_width1 2
#property indicator_width2 1
#property indicator_width3 1
#property indicator_width4 2
#property indicator_width5 1
#property indicator_width6 1
#property indicator_width7 2

//---- Declare the arrays ...
double R3_0[], R2_0[], R1_0[], R0_5[], Pivot[], S1_0[], S2_0[], S3_0[];

double rates_d1[2][6];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   CleanUp();
   //IndicatorBuffers(13);
   //---- Set Index Buffers / Set Index Labels
   SetIndexBuffer(  0 , R3_0);   SetIndexLabel(  0, "R3" );   SetIndexStyle( 0, DRAW_LINE, STYLE_SOLID, 2, Maroon );
   //SetIndexBuffer(  1 , R2_5);   SetIndexLabel(  1, "R2.5" ); SetIndexStyle( 1, DRAW_LINE, STYLE_DOT, 1, Orchid);
   SetIndexBuffer(  1 , R2_0);   SetIndexLabel(  1, "R2" );   SetIndexStyle( 1, 0, STYLE_DASH, 1, Crimson);
   //SetIndexBuffer(  3 , R1_5);   SetIndexLabel(  3, "R1.5" ); SetIndexStyle( 3, DRAW_LINE, STYLE_DOT, 1, Orchid);
   SetIndexBuffer(  2 , R1_0);   SetIndexLabel(  2, "R1" );   SetIndexStyle( 2, DRAW_LINE, STYLE_DASH, 1, Crimson);
   //SetIndexBuffer(  5 , R0_5);   SetIndexLabel(  5, "R0.5" ); SetIndexStyle( 5, DRAW_LINE, STYLE_DOT, 1, Orchid);
   SetIndexBuffer(  3 , Pivot);  SetIndexLabel(  3, "Pivot" );SetIndexStyle( 3, DRAW_LINE, STYLE_SOLID, 2, OrangeRed);
   //SetIndexBuffer(  7 , S0_5);   SetIndexLabel(  7, "S0.5" ); SetIndexStyle( 7, DRAW_LINE, STYLE_DOT, 1, LawnGreen);
   SetIndexBuffer(  4 , S1_0);   SetIndexLabel(  4, "S1" );   SetIndexStyle( 4, DRAW_LINE, STYLE_DASH, 1, Green);
   //SetIndexBuffer(  9 , S1_5);   SetIndexLabel(  9, "S1.5" ); SetIndexStyle( 9, DRAW_LINE, STYLE_DOT, 1, LawnGreen);
   SetIndexBuffer( 5 , S2_0);   SetIndexLabel( 5, "S2" );   SetIndexStyle( 5, DRAW_LINE, STYLE_DASH, 1, Green);
   //SetIndexBuffer( 11 , S2_5);   SetIndexLabel( 11, "S2.5" ); SetIndexStyle( 11, DRAW_LINE, STYLE_DOT, 1, LawnGreen);
   SetIndexBuffer( 6 , S3_0);   SetIndexLabel( 6, "S3" );   SetIndexStyle( 6, DRAW_LINE, STYLE_SOLID, 2, DarkGreen);

   //----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
   CleanUp();
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {

   ArrayCopyRates(rates_d1, Symbol(), PERIOD_D1);

   int offset = 0;
   if(DayOfWeek()==1) offset=1;

   int Precision = CheckPrecision();

   double yesterday_close = rates_d1[1+offset][4];
   double yesterday_open = rates_d1[1+offset][1];
   double yesterday_high = rates_d1[1+offset][3];
   double yesterday_low = rates_d1[1+offset][2];

   string StrR3Value = "";
   string StrR2Value = "";
   string StrR1Value = "";
   string StrPivotValue = "";
   string StrS1Value = "";
   string StrS2Value = "";
   string StrS3Value = "";

   int counted_bars=IndicatorCounted();
   if(counted_bars<0) { return(-1); }
   if(counted_bars>0) { counted_bars--; }
   int Limit = Bars-counted_bars;

   for( int i = Limit; i > 0; i-- )
   {
      Pivot[i] = ( yesterday_high + yesterday_low + yesterday_close ) / 3.0 ;
       R1_0[i] = ( 2.0 * Pivot[i] ) - yesterday_low;
       S1_0[i] = ( 2.0 * Pivot[i] ) - yesterday_high;
       R2_0[i] = Pivot[i] + ( R1_0[i] - S1_0[i] );
       S2_0[i] = Pivot[i] - ( R1_0[i] - S1_0[i] );
       R3_0[i] = ( 2.0 * Pivot[i] ) + ( yesterday_high - ( 2.0 * yesterday_low ) );
       S3_0[i] = ( 2.0 * Pivot[i] ) - ( ( 2.0 * yesterday_high ) - yesterday_low );
       //R0_5[i] = ( Pivot[i] + R1_0[i] ) / 2.0;
       //S0_5[i] = ( Pivot[i] + S1_0[i] ) / 2.0;
       //R1_5[i] = (  R1_0[i] + R2_0[i] ) / 2.0;
       //S1_5[i] = (  S1_0[i] + S2_0[i] ) / 2.0;
       //R2_5[i] = (  R2_0[i] + R3_0[i] ) / 2.0;
       //S2_5[i] = (  S2_0[i] + S3_0[i] ) / 2.0;

       StrR3Value = DoubleToStr( R3_0[i], Precision );
       StrR2Value = DoubleToStr( R2_0[i], Precision );
       StrR1Value = DoubleToStr( R1_0[i], Precision );
       StrPivotValue = DoubleToStr( Pivot[i], Precision );
       StrS1Value = DoubleToStr( S1_0[i], Precision );
       StrS2Value = DoubleToStr( S2_0[i], Precision );
       StrS3Value = DoubleToStr( S3_0[i], Precision );

   }


   ObjectMakeLabel( "R3", 70, 10, 0);
     ObjectSetText( "R3", "R3 - " , 10, "Arial Bold", Maroon);
   ObjectMakeLabel( "R3Value", 30, 10, 0);
     ObjectSetText( "R3Value", StrR3Value , 10, "Arial ", Maroon);

   ObjectMakeLabel( "R2", 70, 25, 0);
     ObjectSetText( "R2", "R2 - " , 10, "Arial Bold", Crimson);
   ObjectMakeLabel( "R2Value", 30, 25, 0);
     ObjectSetText( "R2Value", StrR2Value , 10, "Arial ", Crimson);

   ObjectMakeLabel( "R1", 70, 40 , 0);
     ObjectSetText( "R1", "R1 - " , 10, "Arial Bold", Crimson);
   ObjectMakeLabel( "R1Value", 30, 40, 0);
     ObjectSetText( "R1Value", StrR1Value , 10, "Arial ", Crimson);

   ObjectMakeLabel( "Pivot", 70, 55, 0);
     ObjectSetText( "Pivot", "Pivot - " , 10, "Arial Bold", OrangeRed);
   ObjectMakeLabel( "PivotValue", 30, 55, 0);
     ObjectSetText( "PivotValue", StrPivotValue , 10, "Arial ", OrangeRed);

   ObjectMakeLabel( "S1", 70, 70, 0);
     ObjectSetText( "S1", "S1 - " , 10, "Arial Bold", Green);
   ObjectMakeLabel( "S1Value", 30, 70, 0);
     ObjectSetText( "S1Value", StrS1Value , 10, "Arial ", Green);

   ObjectMakeLabel( "S2", 70, 85, 0);
     ObjectSetText( "S2", "S2 - " , 10, "Arial Bold", Green);
   ObjectMakeLabel( "S2Value", 30, 85, 0);
     ObjectSetText( "S2Value", StrS2Value , 10, "Arial ", Green);

   ObjectMakeLabel( "S3", 70, 100, 0);
     ObjectSetText( "S3", "S3 - " , 10, "Arial Bold", DarkGreen);
   ObjectMakeLabel( "S3Value", 30, 100, 0);
     ObjectSetText( "S3Value", StrS3Value , 10, "Arial ", DarkGreen);

//----
   return(0);
  }
//+------------------------------------------------------------------+

//+------------------------------------------------------------------+
int ObjectMakeLabel( string n, int xoff, int yoff, int WindowToUse ){
   ObjectCreate( n, OBJ_LABEL, WindowToUse, 0, 0 );
   ObjectSet( n, OBJPROP_CORNER, 1 );
   ObjectSet( n, OBJPROP_XDISTANCE, xoff );
   ObjectSet( n, OBJPROP_YDISTANCE, yoff );
   ObjectSet( n, OBJPROP_BACK, true );
}
//+------------------------------------------------------------------+

//+------------------------------------------------------------------+
void CleanUp()
{
   ObjectDelete("R3");
   ObjectDelete("R2");
   ObjectDelete("R1");
   ObjectDelete("Pivot");
   ObjectDelete("S1");
   ObjectDelete("S2");
   ObjectDelete("S3");

   ObjectDelete("R3Value");
   ObjectDelete("R2Value");
   ObjectDelete("R1Value");
   ObjectDelete("PivotValue");
   ObjectDelete("S1Value");
   ObjectDelete("S2Value");
   ObjectDelete("S3Value");
}
//+------------------------------------------------------------------+

//+------------------------------------------------------------------+
int CheckPrecision()
{
   if( StringFind( Symbol(), "JPY", 0) != -1 ) { return(2); }
   else                                        { return(4); }
}
//+------------------------------------------------------------------+
