Higher_TimeFrame_Trend

This script is designed to help traders identify the prevailing market direction by analyzing data from a higher timeframe than the one currently displayed on their chart. By "looking up" at larger timeframes, it helps filter out minor market noise and focuses on the significant overarching trends.

Core Logic Overview

The tool functions by evaluating three distinct market conditions: Trending Up, Trending Down, and Sideways (No Trend). It determines these states using a combination of Moving Averages, Relative Strength Index (RSI) filters, and Price Action components.

How it Determines the Trend

The script uses four different Moving Averages (MAs) calculated based on a higher timeframe. It compares these averages to establish the "health" of the current trend:

  • Trending Up: If all four Moving Averages are stacked in ascending order (the shortest-term average is higher than the next, and so on down to the longest-term), the script identifies an upward trend.
  • Trending Down: If all four Moving Averages are stacked in descending order (the shortest-term average is lower than the next, and so on down to the longest-term), the script identifies a downward trend.
  • Sideways / No Trend: If the averages do not fall into a clear ascending or descending sequence, the script classifies the market as "Sideways," indicating a lack of a strong, clear direction.

Entry Signals and Alerts

Beyond just identifying the trend, the script looks for specific opportunities to enter a trade based on "overextended" price movements:

  1. Overbought/Oversold Detection: It uses the RSI indicator to see if the market is temporarily pushed too far in one direction relative to its recent history.
  2. Visual Indicators: When the market is trending Up and the RSI indicates it is "Oversold" (potentially undervalued), the script places a visual dot on the chart. Conversely, if the market is trending Down and the RSI shows it is "Overbought" (potentially overvalued), another dot appears.
  3. Smart Notifications: The script includes an alert system. It will trigger a notification when these specific conditions are met, but it is designed to be "intelligent"—it tracks whether it has already alerted you for that specific movement to avoid repetitive notifications during the same price cycle.

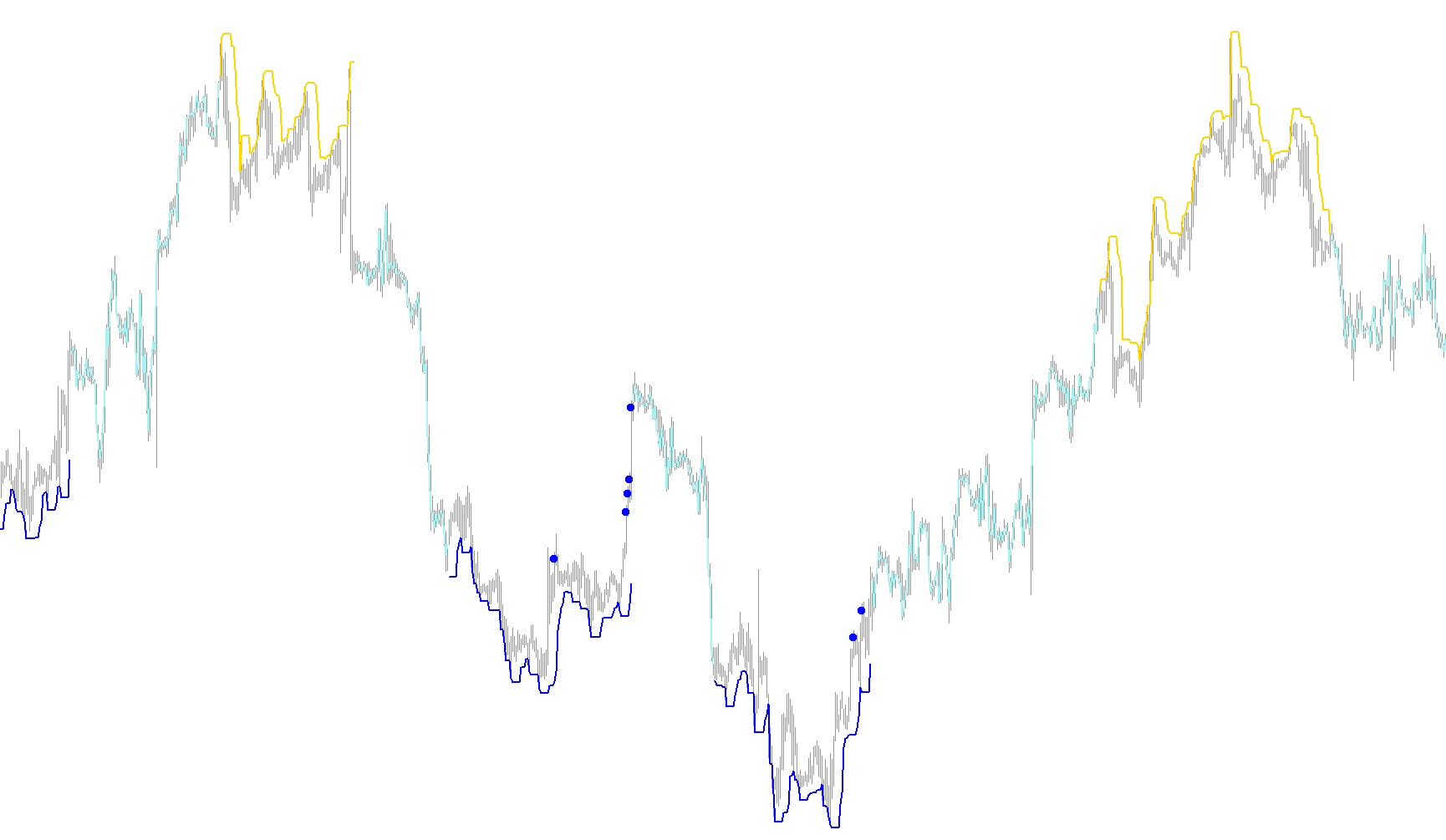

Summary of Visual Output

  • Trend Lines: The script draws lines on your chart representing the current state (Up, Down, or Sideways).
  • Signal Dots: It places dots at specific price levels (calculated using recent high/low price points) to highlight potential areas of interest where a trend might be reaching a temporary peak or valley.
Price Data Components
Series array that contains the highest prices of each barSeries array that contains the lowest prices of each barSeries array that contains the lowest prices of each barSeries array that contains open time of each barSeries array that contains the highest prices of each barSeries array that contains close prices for each bar
Indicators Used
Moving average indicatorRelative strength index
Miscellaneous
Implements a curve of type %1It issuies visual alerts to the screen
12 Views
0 Downloads
0 Favorites
Higher_TimeFrame_Trend
//+------------------------------------------------------------------+
//|                                     Higher_TimeFrame_Trend .mq4  |
//|                                     Copyright © 2010, Des ORegan |
//|                                     mailto:                      |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2010, Des ORegan"
#property link      ""


#property indicator_chart_window

#property indicator_buffers 3
#property indicator_color1 Green
#property indicator_color2 Red
#property indicator_color3 Gray


#property indicator_width1 2
#property indicator_width2 2
#property indicator_width3 2


//---- input parameters
extern int Upper_Timeframe = 240;
extern int Upper_Timeframe_MA_1 = 10;
extern int Upper_Timeframe_MA_2 = 20;
extern int Upper_Timeframe_MA_3 = 50;
extern int Upper_Timeframe_MA_4 = 100;
extern bool RSI_Check_On = true;
extern bool RSI_Alert_On = true;
extern int RSI_Period = 12;
extern int Upper_RSI_Limit = 70;
extern int Lower_RSI_Limit = 30;
extern int PCI_Period = 5;
extern int PCI_Shift = 1;
extern double Entry_Buffer = 0.0002;
extern color Dot_Color = Blue;



int MA_Factor;
bool RSI_OverSold = false;
bool RSI_OverBought = false;
datetime Current_Alert_Time = 0;
bool OB_Alert_Active = false; //OverBought Alert Active
bool OS_Alert_Active = false; //OverSold Alert Active


//---- buffers
double Trend_Up[];
double Trend_Down[];
double Trend_Sideways[];



//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
   {


   //======================
   // Indicator Labels
   //======================
   SetIndexStyle(0,DRAW_LINE,0,2); //,Up_Trend);
   SetIndexBuffer(0,Trend_Up);
   SetIndexEmptyValue(0,0.0);
   SetIndexStyle(1,DRAW_LINE,0,2); //,Down_Trend);
   SetIndexBuffer(1,Trend_Down);
   SetIndexEmptyValue(1,0.0);
   SetIndexStyle(2,DRAW_LINE,0,2); //,No_Trend);
   SetIndexBuffer(2,Trend_Sideways);
   SetIndexEmptyValue(2,0.0);




   //======================
   // Indicator Labels
   //======================
   SetIndexLabel(0,"Trending Up");
   SetIndexLabel(1,"Trending Down");
   SetIndexLabel(2,"No Trend");


   MA_Factor = Upper_Timeframe/Period();




   return(0);
   }




//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
   {

    int Total = ObjectsTotal();
    string String;

    for(int i = Total-1; i >= 0; i--)
        {

        if (StringFind(ObjectName(i), "Higher_TimeFrame_Trend",0) >= 0 ) ObjectDelete(ObjectName(i));
        }



   return(0);
   }



//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {


   //=======================
   // Indicator Optimization
   //=======================
   int counted_bars = IndicatorCounted();
   if(counted_bars < 0) return;
   if(counted_bars > 0) counted_bars--;
   int Limit = Bars - counted_bars;


   //======================
   // Main Indicator Loop
   //======================
   for (int i= Limit; i >= 0; i--) // Main indicator FOR loop
      {


      double  MA_1 = iMA(Symbol(),0,(Upper_Timeframe_MA_1*MA_Factor),0,MODE_EMA,PRICE_CLOSE,i);
      double  MA_2 = iMA(Symbol(),0,(Upper_Timeframe_MA_2*MA_Factor),0,MODE_EMA,PRICE_CLOSE,i);
      double  MA_3 = iMA(Symbol(),0,(Upper_Timeframe_MA_3*MA_Factor),0,MODE_EMA,PRICE_CLOSE,i);
      double  MA_4 = iMA(Symbol(),0,(Upper_Timeframe_MA_4*MA_Factor),0,MODE_EMA,PRICE_CLOSE,i);
      double  RSI  = iRSI(Symbol(),0,RSI_Period,PRICE_CLOSE,i);
      double  Upper_PCI = iHigh(Symbol(),0,iHighest(Symbol(),0, MODE_HIGH, PCI_Period,i+PCI_Shift));
      double  Lower_PCI = iLow(Symbol(),0,iLowest(Symbol(),0, MODE_LOW, PCI_Period,i+PCI_Shift));




      if (MA_1 > MA_2 && MA_2 > MA_3 && MA_3 > MA_4) // Up Trend
         {
         Trend_Up[i] = Upper_PCI+Entry_Buffer;
         Trend_Sideways[i] = 0;
         Trend_Down[i] = 0;
         if (RSI <= Lower_RSI_Limit && RSI_Check_On == true)
            {
            ObjectCreate("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJ_ARROW,0,iTime(0,0,i),iLow(0,0,i));
            ObjectSet("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJPROP_COLOR,Dot_Color);
            ObjectSet("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJPROP_ARROWCODE,108);
            ObjectSet("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJPROP_BACK,false);
            ObjectSet("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJPROP_WIDTH,1);
            if (OS_Alert_Active == false && RSI_Alert_On == true && i == 0 && Current_Alert_Time != iTime(0,0,0))
               {
               Alert("RSI OverSold");
               Current_Alert_Time = iTime(0,0,0);
               OS_Alert_Active = true;
               }
            }
         }
      else if (MA_1 < MA_2 && MA_2 < MA_3 && MA_3 < MA_4) // Down Trend
         {
         Trend_Down[i] = Lower_PCI-Entry_Buffer;
         Trend_Sideways[i] = 0;
         Trend_Up[i] = 0;
         if (RSI >= Upper_RSI_Limit && RSI_Check_On == true)
            {
            ObjectCreate("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJ_ARROW,0,iTime(0,0,i),iHigh(0,0,i));
            ObjectSet("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJPROP_COLOR,Dot_Color);
            ObjectSet("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJPROP_ARROWCODE,108);
            ObjectSet("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJPROP_BACK,false);
            ObjectSet("Higher_TimeFrame_Trend_"+TimeToStr(iTime(Symbol(),0,i)),OBJPROP_WIDTH,1);
            if (OB_Alert_Active == false && RSI_Alert_On == true && i == 0 && Current_Alert_Time != iTime(0,0,0)) //RSI_Alerted(0) == false
               {
               Alert("RSI OverBought");
               Current_Alert_Time = iTime(0,0,0);
               OB_Alert_Active = true;
               }
            }
         }
      else // No Higher TimeFrame Trend
         {
         Trend_Sideways[i] = iClose(Symbol(),0,i);
         Trend_Up[i] = 0;
         Trend_Down[i] = 0;
         }


      if (RSI < 50 && i == 0)
         {
         OB_Alert_Active = false;
         }
      else if (RSI > 50 && i == 0)
         {
         OS_Alert_Active = false;
         }




      } // end of main function loop




   return(0);
  }
