harmonikmanual
Download script
This script is designed to automate the identification and visualization of Harmonic Trading patterns on a financial chart. It acts as a smart overlay that monitors price movements to detect specific geometric structures used by traders to identify potential reversal points.
Core Functionality
1. Automated Pattern Recognition The script scans the current market price action to identify "Harmonic" structures (specifically sequences of price points labeled X, A, B, C, and D). Instead of requiring the user to manually draw every line, the script can automatically detect these shapes based on the relationships between different price peaks and troughs.
2. Dynamic Visual Mapping When the logic identifies a potential pattern, it draws several visual elements on the chart:
- Trend Lines: It creates connected segments (like XA, AB, BC, and CD) to show the "path" the price has taken.
- Support and Resistance: It places horizontal lines at key levels to help the user see where the price might react or stall.
- Vertex Labeling: It places clear text labels (X, A, B, C, D) at each significant turning point of the pattern.
3. Mathematical Validation The script doesn't just draw lines based on any movement; it validates the geometry using specific ratios:
- Ratio Checking: It calculates the proportions between different legs of the move (e.g., how big move AB is compared to move XA).
- Data Comparison: It references an external data file (
harmontrad.csv) containing known "valid" harmonic ranges. It compares the live market's ratios against these stored values to determine if the current price action qualifies as a real pattern. - Dynamic Error Handling: If the price movement doesn't meet the mathematical requirements (for example, if Vertex A is not to the right of X), the script will display an error message on the chart instead of showing an incorrect pattern.

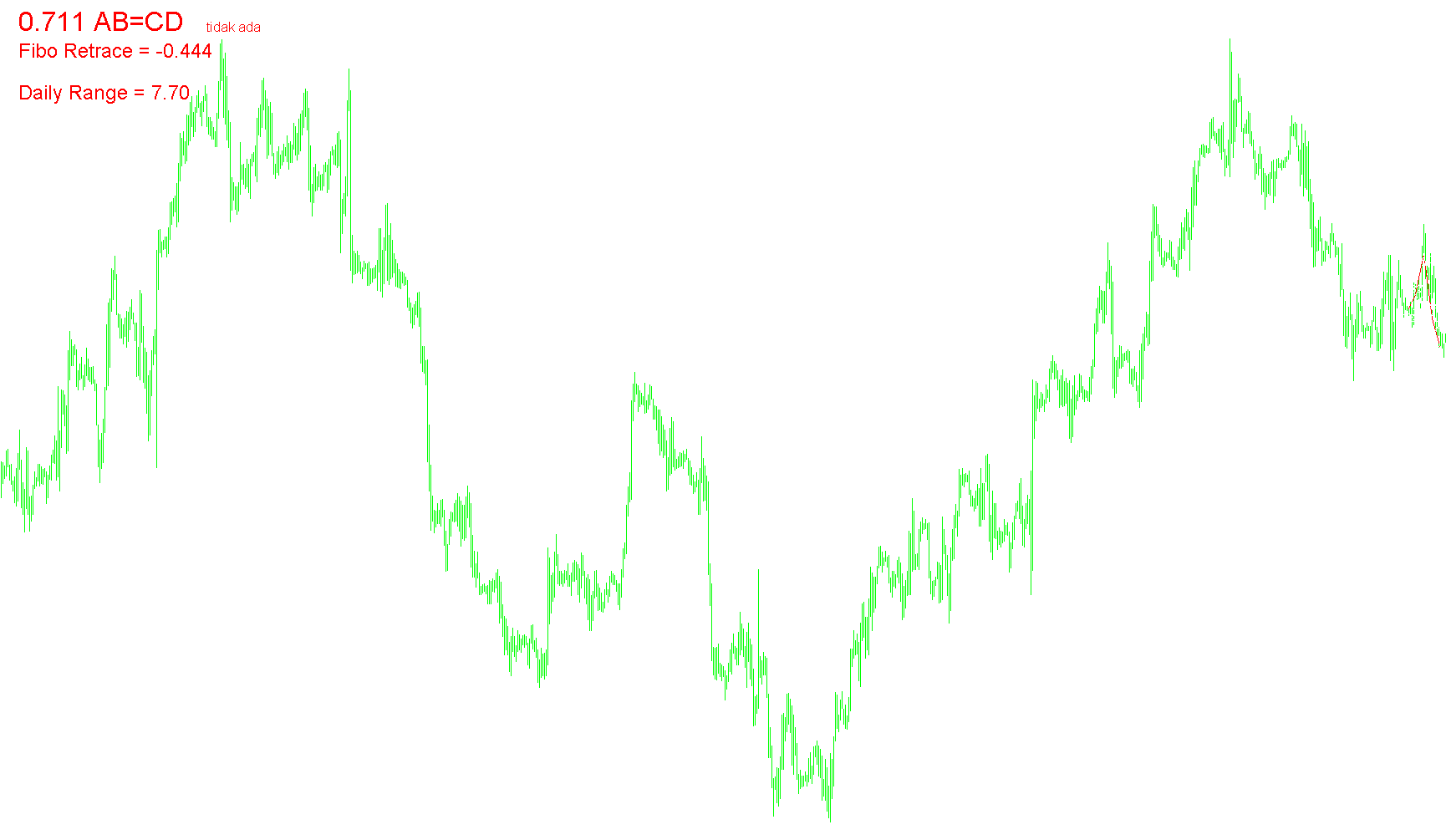

4. Real-Time Analysis Tools In addition to drawing the patterns, the script provides live data calculations directly on the screen:
- Fibonacci Retracement: It automatically calculates the Fibonacci level based on the identified pattern's highest and lowest points.
- Daily Range: It displays the current daily price range in pips/points for context.
- Status Feedback: A dedicated label on the chart tells the user if the indicator is active, if a pattern has been successfully "found," or if the data provided is invalid.
Summary of User Experience
For a visitor using this script, the experience is intended to be "semi-automated." The user interacts with the chart by letting the script handle the heavy lifting of calculating complex ratios and drawing precise trend lines. If the market moves into a valid harmonic shape, the script populates the chart with the necessary geometry and labels, highlights the Fibonacci levels, and confirms the pattern name via an on-screen status message.
Price Data Components
Miscellaneous
4
Views
0
Downloads
0
Favorites
harmonikmanual
//+------------------------------------------------------------------+
//| HarmonikManual.mq4 |
//| Kabul |
//| panji_xx@yahoo.com |
//+------------------------------------------------------------------+
//#property copyright "Kabul"
//#property link "panji_xx@yahoo.com"
//#property version "1.00"
//#property strict
//#property indicator_chart_window
//+------------------------------------------------------------------+
//| Harmonic Ratios.mq4 |
//| |
//| |
//+------------------------------------------------------------------+
#property copyright "all traders"
#property link "www.forexfactory.com"
#define OBJNAME_LABEL "Harmonic Rasio"
#property indicator_chart_window
extern bool Active = True;
extern int Harmonic_Pattern_No= 0;
input string InpFileName="harmontrad.csv"; // file name
//input string InpDirectoryName="Data"; // directory name
input int InpEncodingType=FILE_ANSI;
string hasil;
datetime D_tm,C_tm,B_tm,A_tm,X_tm;
double D_pr,C_pr,B_pr,A_pr,X_pr;
double awal,akhir,res1,res2,resak;
int init() {
createIndicatorLabel(OBJNAME_LABEL);
D_tm=Time[0]; C_tm=Time[0];B_tm=Time[0];A_tm=Time[0];X_tm=Time[0];
D_pr=0.0; C_pr=0.0; B_pr=0.0; A_pr=0.0; X_pr=0.0;
awal=0.0;akhir=0.0;
resak=3.0;res1=0.0;res2=0.0;
return(0);
}
int deinit() {
ObjectDelete(OBJNAME_LABEL);
return(0);
}
//+------------------------------------------------------------------+
//|start function |
//+------------------------------------------------------------------+
int start()
{
// Pencarian otomatis
if (ObjectFind("ON")<0)
{
if (ObjectGet("D",1)>ObjectGet("C",1)) {resak=3.0;}
if (ObjectGet("D",1)<ObjectGet("C",1)) {resak=0.0;}
res1=0.0;res2=0.0;awal=0.0;
}
else {
int hit=StringToInteger(ObjectGetString(0,"ON",OBJPROP_TEXT));
ObjectDelete("Posisi");
double harga_D,harga_C;
datetime waktu_D;
harga_D = ObjectGet("D",1);
harga_C = ObjectGet("C",1);
waktu_D = ObjectGet("D",0);
string nama1;
nama1=ObjectGetString(0,"ketemu",OBJPROP_TEXT);
if ((StringSubstr(nama1,0,5)!="tidak") && (awal==0.0))
{
awal=ObjectGet("D",1);
if ((harga_D>harga_C) && (waktu_D>iTime(NULL,0,0)))
{
ObjectSet("D",1,harga_D+0.0005);
Sleep(500);
}
if ((harga_D<harga_C) && (waktu_D>iTime(NULL,0,0)))
{
ObjectSet("D",1,harga_D-0.0005);
Sleep(400);
}
}
if ((StringSubstr(nama1,0,5)=="tidak") && (awal>0.0))
{
akhir=ObjectGet("D",1);
SetText("Posisi","Awal = "+DoubleToString(awal,4)+" Akhir = "+DoubleToString(akhir,4),25,75,clrRed,18);
ObjectDelete("SL"+IntegerToString(hit));
ObjectCreate("SL"+IntegerToString(hit),OBJ_RECTANGLE,0,waktu_D,awal,waktu_D+(4*Period()*60),akhir);
ObjectSet("SL"+IntegerToString(hit),OBJPROP_COLOR,clrRed);
ObjectDelete("Hor"+IntegerToString(hit));
ObjectCreate("Hor"+IntegerToString(hit),OBJ_HLINE,0,0,awal);
ObjectSet("Hor"+IntegerToString(hit),OBJPROP_COLOR,clrWhite);
ObjectDelete("Hor1"+IntegerToString(hit));
ObjectCreate("Hor1"+IntegerToString(hit),OBJ_HLINE,0,0,akhir);
ObjectSet("Hor1"+IntegerToString(hit),OBJPROP_COLOR,clrWhite);
awal=0;
hit --;
ObjectSetText("ON",IntegerToString(hit));
if (hit==0)
ObjectDelete("ON");
}
if ((harga_D>harga_C) && (waktu_D>iTime(NULL,0,0)))
{
ObjectSet("D",1,harga_D+0.0001);
Sleep(500);
}
if ((harga_D<harga_C) && (waktu_D>iTime(NULL,0,0)))
{
ObjectSet("D",1,harga_D-0.0001);
Sleep(400);
}
}
// end pencarian otomatis
//coba
double top=WindowPriceMax();
double bottom=WindowPriceMin();
datetime left=Time[WindowFirstVisibleBar()];
int right_bound=WindowFirstVisibleBar()-WindowBarsPerChart();
if(right_bound<0) right_bound=0;
datetime right=Time[right_bound]+Period()*60;
//----
// end coba
// Bikin XABCDE, dan trend linenya
if(ObjectFind("X")<0)
{
ObjectCreate("X",OBJ_TEXT,0,Time[23],top-0.001);
ObjectSetText("X","X",18,"TimesNewRoman",White);
}
if(ObjectFind("A")<0)
{
ObjectCreate("A",OBJ_TEXT,0,Time[18],top-0.001);
ObjectSetText("A","A",18,"TimesNewRoman",White);
}
if(ObjectFind("B")<0)
{
ObjectCreate("B",OBJ_TEXT,0,Time[13],top-0.001);
ObjectSetText("B","B",18,"TimesNewRoman",White);
}
if(ObjectFind("C")<0)
{
ObjectCreate("C",OBJ_TEXT,0,Time[8],top-0.001);
ObjectSetText("C","C",18,"TimesNewRoman",White);
}
if(ObjectFind("D")<0)
{
ObjectCreate("D",OBJ_TEXT,0,Time[3],top-0.001);
ObjectSetText("D","D",18,"TimesNewRoman",White);
}
if(ObjectFind("E")>=0) {X_tm=Time[0];return(0);}
else
{
X_tm=Time[0];
for (int jjj=0;jjj<1200;jjj++)
{
if ((iTime(NULL,0,jjj)==ObjectGet("D",0)) && (ObjectGet("D",1)>=iLow(NULL,0,jjj)))
{
D_tm=iTime(NULL,0,jjj);
D_pr=iHigh(NULL,0,jjj);
}
if ((iTime(NULL,0,jjj)==ObjectGet("D",0)) && (ObjectGet("D",1)<=iHigh(NULL,0,jjj)))
{
D_tm=iTime(NULL,0,jjj);
D_pr=iLow(NULL,0,jjj);
}
if (ObjectGet("D",0)>Time[0])
{
D_tm=ObjectGet("D",0);
D_pr=ObjectGet("D",1);
}
if ((iTime(NULL,0,jjj)==ObjectGet("C",0)) && (ObjectGet("C",1)<=iHigh(NULL,0,jjj)))
{
C_tm=iTime(NULL,0,jjj);
C_pr=iLow(NULL,0,jjj);
}
if ((iTime(NULL,0,jjj)==ObjectGet("C",0)) && (ObjectGet("C",1)>=iLow(NULL,0,jjj)))
{
C_tm=iTime(NULL,0,jjj);
C_pr=iHigh(NULL,0,jjj);
}
if ((iTime(NULL,0,jjj)==ObjectGet("B",0)) && (ObjectGet("B",1)<=iHigh(NULL,0,jjj)))
{
B_tm=iTime(NULL,0,jjj);
B_pr=iLow(NULL,0,jjj);
}
if ((iTime(NULL,0,jjj)==ObjectGet("B",0)) && (ObjectGet("B",1)>=iLow(NULL,0,jjj)))
{
B_tm=iTime(NULL,0,jjj);
B_pr=iHigh(NULL,0,jjj);
}
if ((iTime(NULL,0,jjj)==ObjectGet("A",0)) && (ObjectGet("A",1)<=iHigh(NULL,0,jjj)))
{
A_tm=iTime(NULL,0,jjj);
A_pr=iLow(NULL,0,jjj);
}
if ((iTime(NULL,0,jjj)==ObjectGet("A",0)) && (ObjectGet("A",1)>=iLow(NULL,0,jjj)))
{
A_tm=iTime(NULL,0,jjj);
A_pr=iHigh(NULL,0,jjj);
}
if ((iTime(NULL,0,jjj)==ObjectGet("X",0)) && (ObjectGet("X",1)<=iHigh(NULL,0,jjj)))
{
X_tm=iTime(NULL,0,jjj);
X_pr=iLow(NULL,0,jjj);
}
if ((iTime(NULL,0,jjj)==ObjectGet("X",0)) && (ObjectGet("X",1)>=iLow(NULL,0,jjj)))
{
X_tm=iTime(NULL,0,jjj);
X_pr=iHigh(NULL,0,jjj);
}
if (X_tm!=Time[0])
{
break;
}
}
if(ObjectFind("XA_0")<0)
{
ObjectCreate("XA_0",OBJ_TREND,0,X_tm,X_pr,A_tm,A_pr);
ObjectSet("XA_0",OBJPROP_RAY,0);
}
else
{
ObjectSet("XA_0",0,X_tm);
ObjectSet("XA_0",1,X_pr);
ObjectSet("XA_0",2,A_tm);
ObjectSet("XA_0",3,A_pr);
}
if(ObjectFind("AB_0")<0)
{
ObjectCreate("AB_0",OBJ_TREND,0,A_tm,A_pr,B_tm,B_pr);
ObjectSet("AB_0",OBJPROP_RAY,0);
}
else
{
ObjectSet("AB_0",0,A_tm);
ObjectSet("AB_0",1,A_pr);
ObjectSet("AB_0",2,B_tm);
ObjectSet("AB_0",3,B_pr);
}
if(ObjectFind("BC_0")<0)
{
ObjectCreate("BC_0",OBJ_TREND,0,B_tm,B_pr,C_tm,C_pr);
ObjectSet("BC_0",OBJPROP_RAY,0);
}
else
{
ObjectSet("BC_0",0,B_tm);
ObjectSet("BC_0",1,B_pr);
ObjectSet("BC_0",2,C_tm);
ObjectSet("BC_0",3,C_pr);
}
if(ObjectFind("CD_0")<0)
{
ObjectCreate("CD_0",OBJ_TREND,0,C_tm,C_pr,D_tm,D_pr);
ObjectSet("CD_0",OBJPROP_RAY,0);
}
else
{
ObjectSet("CD_0",0,C_tm);
ObjectSet("CD_0",1,C_pr);
ObjectSet("CD_0",2,D_tm);
ObjectSet("CD_0",3,D_pr);
}
} // end else
// End bikin XABCDE
//Check if indicator is active
if (Active==false)
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Rasio: Off ",9,"Arial",White);
return(0);
}
else
ObjectSetText(OBJNAME_LABEL,"Harmonic Rasio: On ",9,"Arial",White);
//Check if input is valid
if (Harmonic_Pattern_No<0)
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Ratios- Error: Invalid Harmonic Pattern No.!",9,"Arial",White);
return(0);
}
//----
//Check if segments exist with Harmonic Pattern No.
bool bXA=False,bAB=False,bBC=False,bCD=False;
string sXA,sAB,sBC,sCD,sDX,sAC,sBD,sXB;
// Iterate over objects on this chart
for (int i=ObjectsTotal()-1;i>=0;i--)
{
string sObjName = ObjectName(i);
if (sObjName==StringConcatenate("XA_",Harmonic_Pattern_No) && ObjectType(sObjName)==OBJ_TREND)
{
bXA=True;
sXA=sObjName;
}
else if (sObjName==StringConcatenate("AB_",Harmonic_Pattern_No) && ObjectType(sObjName)==OBJ_TREND)
{
bAB=True;
sAB=sObjName;
}
else if (sObjName==StringConcatenate("BC_",Harmonic_Pattern_No) && ObjectType(sObjName)==OBJ_TREND)
{
bBC=True;
sBC=sObjName;
}
else if (sObjName==StringConcatenate("CD_",Harmonic_Pattern_No) && ObjectType(sObjName)==OBJ_TREND)
{
bCD=True;
sCD=sObjName;
}
else if (bXA==True && bAB==True && bBC==True && bCD==True)
break;
}
if(bXA==False || bAB==False || bBC==False || bCD==False)
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Ratios- Error: Pattern with specified No. not found!",9,"Arial",White);
return(0);
}
//Check if segments are properly connected
double lXA,lAB,lBC,lCD,lXB,lAC,lXD,lBD;
lXA = MathAbs(ObjectGet(sXA,OBJPROP_PRICE2)-ObjectGet(sXA,OBJPROP_PRICE1));
lAB = MathAbs(ObjectGet(sAB,OBJPROP_PRICE2)-ObjectGet(sAB,OBJPROP_PRICE1));
lBC = MathAbs(ObjectGet(sBC,OBJPROP_PRICE2)-ObjectGet(sBC,OBJPROP_PRICE1));
lCD = MathAbs(ObjectGet(sCD,OBJPROP_PRICE2)-ObjectGet(sCD,OBJPROP_PRICE1));
lXB = MathAbs(ObjectGet(sXA,OBJPROP_PRICE1)-ObjectGet(sAB,OBJPROP_PRICE2));
lAC = MathAbs(ObjectGet(sXA,OBJPROP_PRICE2)-ObjectGet(sCD,OBJPROP_PRICE1));
lXD = MathAbs(ObjectGet(sXA,OBJPROP_PRICE1)-ObjectGet(sCD,OBJPROP_PRICE2));
lBD = MathAbs(ObjectGet(sBC,OBJPROP_PRICE1)-ObjectGet(sCD,OBJPROP_PRICE2));
if(ObjectGet(sXA,OBJPROP_PRICE2)!=ObjectGet(sAB,OBJPROP_PRICE1) || ObjectGet(sXA,OBJPROP_TIME2)!=ObjectGet(sAB,OBJPROP_TIME1))
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Ratios- Error: XA is not properly connected to AB!",9,"Arial",White);
return(0);
}
else if(ObjectGet(sAB,OBJPROP_PRICE2)!=ObjectGet(sBC,OBJPROP_PRICE1) || ObjectGet(sAB,OBJPROP_TIME2)!=ObjectGet(sBC,OBJPROP_TIME1))
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Ratios- Error: AB is not properly connected to BC!",9,"Arial",White);
return(0);
}
else if(ObjectGet(sBC,OBJPROP_PRICE2)!=ObjectGet(sCD,OBJPROP_PRICE1) || ObjectGet(sBC,OBJPROP_TIME2)!=ObjectGet(sCD,OBJPROP_TIME1))
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Ratios- Error: BC is not properly connected to CD!",9,"Arial",White);
return(0);
}
else if(ObjectGet(sXA,OBJPROP_TIME2)<ObjectGet(sXA,OBJPROP_TIME1))
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Ratios- Error: Vertex A must be to the right of X",9,"Arial",White);
return(0);
}
else if(ObjectGet(sAB,OBJPROP_TIME2)<ObjectGet(sAB,OBJPROP_TIME1))
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Ratios- Error: Vertex B must be to the right of A",9,"Arial",White);
return(0);
}
else if(ObjectGet(sBC,OBJPROP_TIME2)<ObjectGet(sBC,OBJPROP_TIME1))
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Ratios- Error: Vertex C must be to the right of B",9,"Arial",White);
return(0);
}
else if(ObjectGet(sCD,OBJPROP_TIME2)<ObjectGet(sCD,OBJPROP_TIME1))
{
ObjectSetText(OBJNAME_LABEL,"Harmonic Ratios- Error: Vertex D must be to the right of C",9,"Arial",White);
return(0);
}
//Label the pattern with letter XABCD
bool bVX=false,bVA=false,bVB=false,bVC=false,bVD=false;
//Only update label positions if already exist
for (int j=ObjectsTotal()-1;j>=0;j--)
{
if (ObjectName(j)==StringConcatenate("X_",Harmonic_Pattern_No) && ObjectType(ObjectName(j))==OBJ_TEXT)
{
ObjectSet(ObjectName(j), OBJPROP_TIME1, ObjectGet(sXA,OBJPROP_TIME1));
ObjectSet(ObjectName(j), OBJPROP_PRICE1, ObjectGet(sXA,OBJPROP_PRICE1));
bVX=true;
}
else if (ObjectName(j)==StringConcatenate("A_",Harmonic_Pattern_No) && ObjectType(ObjectName(j))==OBJ_TEXT)
{
ObjectSet(ObjectName(j), OBJPROP_TIME1, ObjectGet(sAB,OBJPROP_TIME1));
ObjectSet(ObjectName(j), OBJPROP_PRICE1, ObjectGet(sAB,OBJPROP_PRICE1));
bVA=true;
}
else if (ObjectName(j)==StringConcatenate("B_",Harmonic_Pattern_No) && ObjectType(ObjectName(j))==OBJ_TEXT)
{
ObjectSet(ObjectName(j), OBJPROP_TIME1, ObjectGet(sBC,OBJPROP_TIME1));
ObjectSet(ObjectName(j), OBJPROP_PRICE1, ObjectGet(sBC,OBJPROP_PRICE1));
bVB=true;
}
else if (ObjectName(j)==StringConcatenate("C_",Harmonic_Pattern_No) && ObjectType(ObjectName(j))==OBJ_TEXT)
{
ObjectSet(ObjectName(j), OBJPROP_TIME1, ObjectGet(sCD,OBJPROP_TIME1));
ObjectSet(ObjectName(j), OBJPROP_PRICE1, ObjectGet(sCD,OBJPROP_PRICE1));
bVC=true;
}
else if (ObjectName(j)==StringConcatenate("D_",Harmonic_Pattern_No) && ObjectType(ObjectName(j))==OBJ_TEXT)
{
ObjectSet(ObjectName(j), OBJPROP_TIME1, ObjectGet(sCD,OBJPROP_TIME2));
ObjectSet(ObjectName(j), OBJPROP_PRICE1, ObjectGet(sCD,OBJPROP_PRICE2));
bVD=true;
}
else if(bVX==true && bVA==true && bVB==true && bVC==true && bVD==true)
break;
}
//Create vertex labels if not already exist
if (bVX==false)
{
ObjectCreate(StringConcatenate("X_",Harmonic_Pattern_No), OBJ_TEXT, 0, ObjectGet(sXA,OBJPROP_TIME1), ObjectGet(sXA,OBJPROP_PRICE1));
ObjectSetText(StringConcatenate("X_",Harmonic_Pattern_No), StringConcatenate("X_",Harmonic_Pattern_No), 10, "Times New Roman", White);
}
if (bVA==false)
{
ObjectCreate(StringConcatenate("A_",Harmonic_Pattern_No), OBJ_TEXT, 0, ObjectGet(sAB,OBJPROP_TIME1), ObjectGet(sAB,OBJPROP_PRICE1));
ObjectSetText(StringConcatenate("A_",Harmonic_Pattern_No), StringConcatenate("A_",Harmonic_Pattern_No), 10, "Times New Roman", White);
}
if (bVB==false)
{
ObjectCreate(StringConcatenate("B_",Harmonic_Pattern_No), OBJ_TEXT, 0, ObjectGet(sBC,OBJPROP_TIME1), ObjectGet(sBC,OBJPROP_PRICE1));
ObjectSetText(StringConcatenate("B_",Harmonic_Pattern_No), StringConcatenate("B_",Harmonic_Pattern_No), 10, "Times New Roman", White);
}
if (bVC==false)
{
ObjectCreate(StringConcatenate("C_",Harmonic_Pattern_No), OBJ_TEXT, 0, ObjectGet(sCD,OBJPROP_TIME1), ObjectGet(sCD,OBJPROP_PRICE1));
ObjectSetText(StringConcatenate("C_",Harmonic_Pattern_No), StringConcatenate("C_",Harmonic_Pattern_No), 10, "Times New Roman", White);
}
if (bVD==false)
{
ObjectCreate(StringConcatenate("D_",Harmonic_Pattern_No), OBJ_TEXT, 0, ObjectGet(sCD,OBJPROP_TIME2), ObjectGet(sCD,OBJPROP_PRICE2));
ObjectSetText(StringConcatenate("D_",Harmonic_Pattern_No), StringConcatenate("D_",Harmonic_Pattern_No), 10, "Times New Roman", White);
}
//draw dotted lines DX and AC and BD and XB
bool bDX=false,bAC=false,bBD=false,bXB=false;
//Only update dotted lines if already exist
for (int k=ObjectsTotal()-1;k>=0;k--)
{
if (ObjectName(k)==StringConcatenate("DX_",Harmonic_Pattern_No) && ObjectType(ObjectName(k))==OBJ_TREND)
{
ObjectSet(ObjectName(k), OBJPROP_TIME1, ObjectGet(sCD,OBJPROP_TIME2));
ObjectSet(ObjectName(k), OBJPROP_PRICE1, ObjectGet(sCD,OBJPROP_PRICE2));
ObjectSet(ObjectName(k), OBJPROP_TIME2, ObjectGet(sXA,OBJPROP_TIME1));
ObjectSet(ObjectName(k), OBJPROP_PRICE2, ObjectGet(sXA,OBJPROP_PRICE1));
sDX = StringConcatenate("DX_",Harmonic_Pattern_No);
bDX=true;
}
else if (ObjectName(k)==StringConcatenate("AC_",Harmonic_Pattern_No) && ObjectType(ObjectName(k))==OBJ_TREND)
{
ObjectSet(ObjectName(k), OBJPROP_TIME1, ObjectGet(sAB,OBJPROP_TIME1));
ObjectSet(ObjectName(k), OBJPROP_PRICE1, ObjectGet(sAB,OBJPROP_PRICE1));
ObjectSet(ObjectName(k), OBJPROP_TIME2, ObjectGet(sBC,OBJPROP_TIME2));
ObjectSet(ObjectName(k), OBJPROP_PRICE2, ObjectGet(sBC,OBJPROP_PRICE2));
sAC = StringConcatenate("AC_",Harmonic_Pattern_No);
bAC=true;
}
else if (ObjectName(k)==StringConcatenate("BD_",Harmonic_Pattern_No) && ObjectType(ObjectName(k))==OBJ_TREND)
{
ObjectSet(ObjectName(k), OBJPROP_TIME1, ObjectGet(sBC,OBJPROP_TIME1));
ObjectSet(ObjectName(k), OBJPROP_PRICE1, ObjectGet(sBC,OBJPROP_PRICE1));
ObjectSet(ObjectName(k), OBJPROP_TIME2, ObjectGet(sCD,OBJPROP_TIME2));
ObjectSet(ObjectName(k), OBJPROP_PRICE2, ObjectGet(sCD,OBJPROP_PRICE2));
sBD = StringConcatenate("BD_",Harmonic_Pattern_No);
bBD=true;
}
if (ObjectName(k)==StringConcatenate("XB_",Harmonic_Pattern_No) && ObjectType(ObjectName(k))==OBJ_TREND)
{
ObjectSet(ObjectName(k), OBJPROP_TIME1, ObjectGet(sXA,OBJPROP_TIME1));
ObjectSet(ObjectName(k), OBJPROP_PRICE1, ObjectGet(sXA,OBJPROP_PRICE1));
ObjectSet(ObjectName(k), OBJPROP_TIME2, ObjectGet(sAB,OBJPROP_TIME2));
ObjectSet(ObjectName(k), OBJPROP_PRICE2, ObjectGet(sAB,OBJPROP_PRICE2));
sXB = StringConcatenate("XB_",Harmonic_Pattern_No);
bXB=true;
}
else if(bDX==true && bAC==true && bBD==true && bXB==true)
break;
}
//Create dotted lines if not already exist
if (bDX==false)
{
ObjectCreate(StringConcatenate("DX_",Harmonic_Pattern_No), OBJ_TREND, 0, ObjectGet(sCD,OBJPROP_TIME2), ObjectGet(sCD,OBJPROP_PRICE2), ObjectGet(sXA,OBJPROP_TIME1), ObjectGet(sXA,OBJPROP_PRICE1));
ObjectSet(StringConcatenate("DX_",Harmonic_Pattern_No), OBJPROP_STYLE, STYLE_DASH);
ObjectSet(StringConcatenate("DX_",Harmonic_Pattern_No), OBJPROP_RAY, FALSE);
ObjectSet(StringConcatenate("DX_",Harmonic_Pattern_No), OBJPROP_COLOR, clrWhite);
sDX = StringConcatenate("DX_",Harmonic_Pattern_No);
}
if (bAC==false)
{
ObjectCreate(StringConcatenate("AC_",Harmonic_Pattern_No), OBJ_TREND, 0, ObjectGet(sAB,OBJPROP_TIME1), ObjectGet(sAB,OBJPROP_PRICE1), ObjectGet(sBC,OBJPROP_TIME2), ObjectGet(sBC,OBJPROP_PRICE2));
ObjectSet(StringConcatenate("AC_",Harmonic_Pattern_No), OBJPROP_STYLE, STYLE_DASH);
ObjectSet(StringConcatenate("AC_",Harmonic_Pattern_No), OBJPROP_RAY, FALSE);
ObjectSet(StringConcatenate("AC_",Harmonic_Pattern_No), OBJPROP_COLOR, clrWhite);
sAC = StringConcatenate("AC_",Harmonic_Pattern_No);
}
if (bBD==false)
{
ObjectCreate(StringConcatenate("BD_",Harmonic_Pattern_No), OBJ_TREND, 0, ObjectGet(sBC,OBJPROP_TIME1), ObjectGet(sBC,OBJPROP_PRICE1), ObjectGet(sCD,OBJPROP_TIME2), ObjectGet(sCD,OBJPROP_PRICE2));
ObjectSet(StringConcatenate("BD_",Harmonic_Pattern_No), OBJPROP_STYLE, STYLE_DASH);
ObjectSet(StringConcatenate("BD_",Harmonic_Pattern_No), OBJPROP_RAY, FALSE);
ObjectSet(StringConcatenate("BD_",Harmonic_Pattern_No), OBJPROP_COLOR, clrWhite);
sBD = StringConcatenate("BD_",Harmonic_Pattern_No);
}
if (bXB==false)
{
ObjectCreate(StringConcatenate("XB_",Harmonic_Pattern_No), OBJ_TREND, 0, ObjectGet(sXA,OBJPROP_TIME1), ObjectGet(sXA,OBJPROP_PRICE1), ObjectGet(sAB,OBJPROP_TIME2), ObjectGet(sAB,OBJPROP_PRICE2));
ObjectSet(StringConcatenate("XB_",Harmonic_Pattern_No), OBJPROP_STYLE, STYLE_DASH);
ObjectSet(StringConcatenate("XB_",Harmonic_Pattern_No), OBJPROP_RAY, FALSE);
ObjectSet(StringConcatenate("XB_",Harmonic_Pattern_No), OBJPROP_COLOR, clrWhite);
sXB = StringConcatenate("XB_",Harmonic_Pattern_No);
}
//Calculate and label fibo ratios
double rABXA,rBCAB,rCDBC,rCDXA;
//double lXA,lAB,lBC,lCD,lXB,lAC,lXD,lBD;
rABXA = lAB/lXA;
rBCAB = lBC/lAB;
rCDBC = lCD/lBC;
rCDXA = (lAB+lBD)/lXA;
bool bABXA=false,bBCAB=false,bCDBC=false,bCDXA=false;
//Only update label positions if already exist
for (int l=ObjectsTotal()-1;l>=0;l--)
{
if (ObjectName(l)==StringConcatenate("rABXA_",Harmonic_Pattern_No) && ObjectType(ObjectName(l))==OBJ_TEXT)
{
ObjectSet(ObjectName(l), OBJPROP_TIME1, ((ObjectGet(sXA,OBJPROP_TIME1)+ObjectGet(sAB,OBJPROP_TIME2))/2));
ObjectSet(ObjectName(l), OBJPROP_PRICE1, ((ObjectGet(sXA,OBJPROP_PRICE1)+ObjectGet(sAB,OBJPROP_PRICE2))/2));
ObjectSetText(ObjectName(l), DoubleToStr(rABXA,3), 10, "Times New Roman", White);
bABXA=true;
}
else if (ObjectName(l)==StringConcatenate("rBCAB_",Harmonic_Pattern_No) && ObjectType(ObjectName(l))==OBJ_TEXT)
{
ObjectSet(ObjectName(l), OBJPROP_TIME1, (ObjectGet(sAC,OBJPROP_TIME1)+ObjectGet(sAC,OBJPROP_TIME2))/2);
ObjectSet(ObjectName(l), OBJPROP_PRICE1, (ObjectGet(sAC,OBJPROP_PRICE1)+ObjectGet(sAC,OBJPROP_PRICE2))/2);
ObjectSetText(ObjectName(l), DoubleToStr(rBCAB,3), 10, "Times New Roman", White);
bBCAB=true;
}
else if (ObjectName(l)==StringConcatenate("rCDBC_",Harmonic_Pattern_No) && ObjectType(ObjectName(l))==OBJ_TEXT)
{
ObjectSet(ObjectName(l), OBJPROP_TIME1, (ObjectGet(sBD,OBJPROP_TIME1)+ObjectGet(sBD,OBJPROP_TIME2))/2);
ObjectSet(ObjectName(l), OBJPROP_PRICE1, (ObjectGet(sBD,OBJPROP_PRICE1)+ObjectGet(sBD,OBJPROP_PRICE2))/2);
ObjectSetText(ObjectName(l), DoubleToStr(rCDBC,3), 10, "Times New Roman", White);
bCDBC=true;
}
else if (ObjectName(l)==StringConcatenate("rCDXA_",Harmonic_Pattern_No) && ObjectType(ObjectName(l))==OBJ_TEXT)
{
ObjectSet(ObjectName(l), OBJPROP_TIME1, (ObjectGet(sXA,OBJPROP_TIME1)+ObjectGet(sCD,OBJPROP_TIME2))/2);
ObjectSet(ObjectName(l), OBJPROP_PRICE1, (ObjectGet(sXA,OBJPROP_PRICE1)+ObjectGet(sCD,OBJPROP_PRICE2))/2);
ObjectSetText(ObjectName(l), DoubleToStr(rCDXA,3), 10, "Times New Roman", White);
bCDXA=true;
}
else if(bABXA==true && bBCAB==true && bCDBC==true && bCDXA==true)
break;
}
//Create ratio labels if not already exist Perhitungan disini
if (bABXA==false)
{
ObjectCreate(StringConcatenate("rABXA_",Harmonic_Pattern_No), OBJ_TEXT, 0, (ObjectGet(sXA,OBJPROP_TIME1)+ObjectGet(sAB,OBJPROP_TIME2))/2, (ObjectGet(sXA,OBJPROP_PRICE1)+ObjectGet(sAB,OBJPROP_PRICE2))/2);
ObjectSetText(StringConcatenate("rABXA_",Harmonic_Pattern_No), DoubleToStr(rABXA,3), 10, "Times New Roman", White);
}
if (bBCAB==false)
{
ObjectCreate(StringConcatenate("rBCAB_",Harmonic_Pattern_No), OBJ_TEXT, 0, (ObjectGet(sAC,OBJPROP_TIME1)+ObjectGet(sAC,OBJPROP_TIME2))/2, (ObjectGet(sAC,OBJPROP_PRICE1)+ObjectGet(sAC,OBJPROP_PRICE2))/2);
ObjectSetText(StringConcatenate("rBCAB_",Harmonic_Pattern_No), DoubleToStr(rBCAB,3), 10, "Times New Roman", White);
}
if (bCDBC==false)
{
ObjectCreate(StringConcatenate("rCDBC_",Harmonic_Pattern_No), OBJ_TEXT, 0, (ObjectGet(sBD,OBJPROP_TIME1)+ObjectGet(sBD,OBJPROP_TIME2))/2, (ObjectGet(sBD,OBJPROP_PRICE1)+ObjectGet(sBD,OBJPROP_PRICE2))/2);
ObjectSetText(StringConcatenate("rCDBC_",Harmonic_Pattern_No), DoubleToStr(rCDBC,3), 10, "Times New Roman", White);
}
if (bCDXA==false)
{
ObjectCreate(StringConcatenate("rCDXA_",Harmonic_Pattern_No), OBJ_TEXT, 0, (ObjectGet(sXA,OBJPROP_TIME1)+ObjectGet(sCD,OBJPROP_TIME2))/2, (ObjectGet(sXA,OBJPROP_PRICE1)+ObjectGet(sCD,OBJPROP_PRICE2))/2);
ObjectSetText(StringConcatenate("rCDXA_",Harmonic_Pattern_No), DoubleToStr(rCDXA,3), 10, "Times New Roman", White);
}
//----
//Hitung
bool ketemu; ketemu=false;
for (int jkk=1;jkk<84;jkk++)
{
bacadata(jkk);
string sep=","; // A separator as a character
ushort u_sep; // The code of the separator character
string result[]; // An array to get strings
//--- Get the separator code
u_sep=StringGetCharacter(sep,0);
//--- Split the string to substrings
int kjk=StringSplit(hasil,u_sep,result);
string nama,minXB_,maxXB_,minAC_,maxAC_,minBD_,maxBD_,minXD_,maxXD_;
double makBD,makXD,hasmakD1,hasmakD,hasmakD2;
hasmakD=0.0;hasmakD1=0.0;hasmakD2=0.0;
double mikBD,mikXD,hasmikD1,hasmikD,hasmikD2;
hasmikD=0.0;hasmikD1=0.0;hasmikD2=0.0;
nama=result[0];
minXB_=result[1];
maxXB_=result[2];
minAC_=result[3];
maxAC_=result[4];
minBD_=result[5];
maxBD_=result[6];
minXD_=result[7];
maxXD_=result[8];
makBD=StringToDouble(maxBD_);
makXD=StringToDouble(maxXD_);
mikBD=StringToDouble(minBD_);
mikXD=StringToDouble(minXD_);
if ((rABXA>=StringToDouble(minXB_)) && (rABXA<=StringToDouble(maxXB_)) &&
(rBCAB>=StringToDouble(minAC_)) && (rBCAB<=StringToDouble(maxAC_)) &&
(rCDBC>=StringToDouble(minBD_)) && (rCDBC<=StringToDouble(maxBD_)) &&
(rCDXA>=StringToDouble(minXD_)) && (rCDXA<=StringToDouble(maxXD_)))
{
ObjectDelete("nama");
SetText("nama",nama,25,10,clrRed,24);
ketemu=true;
if ((ObjectGet("D",1)>ObjectGet("C",1))&&(awal>0))
{
hasmakD1=(makBD*lBC)+ObjectGet("C_0",OBJPROP_PRICE1);
hasmakD2=(makXD*lXA)+ObjectGet("A_0",OBJPROP_PRICE1);
if (hasmakD1>=hasmakD2) {hasmakD=hasmakD2;}
else {hasmakD=hasmakD1;}
if (ObjectGet("D",1)<hasmakD)
{ObjectSet("D",1,hasmakD);}
}
if ((ObjectGet("D",1)<ObjectGet("C",1))&&(awal>0))
{
hasmakD1=ObjectGet("C_0",OBJPROP_PRICE1)-(makBD*lBC);
hasmakD2=ObjectGet("A_0",OBJPROP_PRICE1)-(makXD*lXA);
if (hasmakD1>=hasmakD2) {hasmakD=hasmakD1;}
else {hasmakD=hasmakD2;}
if (ObjectGet("D",1)>hasmakD)
{ObjectSet("D",1,hasmakD);}
}
break;
}
if ((rABXA>=StringToDouble(minXB_)) && (rABXA<=StringToDouble(maxXB_)) &&
(rBCAB>=StringToDouble(minAC_)) && (rBCAB<=StringToDouble(maxAC_)))
{
if (ObjectGet("D",1)>ObjectGet("C",1))
{
hasmikD1=(mikBD*lBC)+ObjectGet("C_0",OBJPROP_PRICE1);
hasmikD2=(mikXD*lXA)-lAB+ObjectGet("B_0",OBJPROP_PRICE1);
hasmakD1=(makBD*lBC)+ObjectGet("C_0",OBJPROP_PRICE1);
hasmakD2=(makXD*lXA)-lAB+ObjectGet("B_0",OBJPROP_PRICE1);
if ((hasmikD1>=hasmikD2)&&(hasmikD1<=hasmakD2)) {res1=hasmikD1;}
if ((hasmikD2>=hasmikD1)&&(hasmikD2<=hasmakD1)) {res2=hasmikD2;}
if ((res1>0.0)&&(resak>res1)&&(res1>ObjectGet("D",1))) {resak=res1;}
if ((res2>0.0)&&(resak>res2)&&(res2>ObjectGet("D",1))) {resak=res2;}
}
if (ObjectGet("D",1)<ObjectGet("C",1))
{
hasmikD1=ObjectGet("C_0",OBJPROP_PRICE1)-(mikBD*lBC);
hasmikD2=ObjectGet("B_0",OBJPROP_PRICE1)-(mikXD*lXA-lAB);
hasmakD1=ObjectGet("C_0",OBJPROP_PRICE1)-(makBD*lBC);
hasmakD2=ObjectGet("B_0",OBJPROP_PRICE1)-(makXD*lXA-lAB);
if ((hasmikD1>=hasmakD2)&&(hasmikD1<=hasmikD2)) {res1=hasmikD1;}
if ((hasmikD2>=hasmakD1)&&(hasmikD2<=hasmikD1)) {res2=hasmikD2;}
if ((res1>0.0)&&(resak<res1)&&(res1<ObjectGet("D",1))) {resak=res1;}
if ((res2>0.0)&&(resak<res2)&&(res2<ObjectGet("D",1))) {resak=res2;}
}
}
}
if (ketemu==true)
{
ObjectDelete("ketemu");
SetText("ketemu","ada",250,25,clrRed,12);
}
else
{
if ((ObjectFind("ON")>=0)&&(awal==0.0) )
{
if ((ObjectGet("D",1)<ObjectGet("C",1))&&(ObjectGet("D",1)>resak))
{ObjectSet("D",1,resak);}
if ((ObjectGet("D",1)>ObjectGet("C",1))&&(ObjectGet("D",1)<resak))
{ObjectSet("D",1,resak);}
}
double ab_cd;
ab_cd=lCD/lAB;
ObjectDelete("nama");
SetText("nama",DoubleToString(ab_cd,3)+" AB=CD",25,10,clrRed,24);
ObjectDelete("ketemu");
SetText("ketemu","tidak ada",250,25,clrRed,12);
}
double XABCD[4],fibretr; ArrayFill(XABCD,0,4,0.0);
int max,min;
XABCD[0]=X_pr;XABCD[1]=A_pr;XABCD[2]=B_pr;XABCD[3]=C_pr;
max=ArrayMaximum(XABCD);
min=ArrayMinimum(XABCD);
fibretr=(D_pr-XABCD[min])/(XABCD[max]-XABCD[min]);
ObjectDelete("Fib");
SetText("Fib","Fibo Retrace = "+DoubleToString(fibretr,3),25,50,clrRed,18);
ObjectDelete("Day");
SetText("Day","Daily Range = "+DoubleToString((iHigh(NULL,1440,0)-iLow(NULL,1440,0))*10000,2),25,100,clrRed,18);
return(0);
}
//+------------------------------------------------------------------+
void createIndicatorLabel(string sObjName) {
string sObjText;
// Set the text
if(Active==True)
sObjText = "Harmonic Ratios: On";
else
sObjText = "Harmonic Ratios: Off";
// Create and position the label
ObjectCreate(sObjName,OBJ_LABEL,0,0,0);
ObjectSetText(sObjName,sObjText,8,"Arial", White);
ObjectSet(sObjName,OBJPROP_XDISTANCE,5);
ObjectSet(sObjName,OBJPROP_YDISTANCE,5);
ObjectSet(sObjName,OBJPROP_CORNER,1);
}
void GetStringPositions(const int handle,ulong &arr[])
{
//--- default array size
int def_size=127;
//--- allocate memory for the array
ArrayResize(arr,def_size);
//--- string counter
int i=0;
//--- if this is not the file's end, then there is at least one string
if(!FileIsEnding(handle))
{
arr[i]=FileTell(handle);
i++;
}
else
return; // the file is empty, exit
//--- define the shift in bytes depending on encoding
int shift;
if(FileGetInteger(handle,FILE_IS_ANSI))
shift=1;
else
shift=2;
//--- go through the strings in the loop
while(1)
{
//--- read the string
FileReadString(handle);
//--- check for the file end
if(!FileIsEnding(handle))
{
//--- store the next string's position
arr[i]=FileTell(handle)+shift;
i++;
//--- increase the size of the array if it is overflown
if(i==def_size)
{
def_size+=def_size+1;
ArrayResize(arr,def_size);
}
}
else
break; // end of the file, exit
}
//--- define the actual size of the array
ArrayResize(arr,i);
}
string bacadata(int posisi)
{
//--- specify the value of the variable for generating random numbers
_RandomSeed=GetTickCount();
//--- variables for positions of the strings' start points
ulong pos[];
int size;
//--- reset the error value
ResetLastError();
//--- open the file
int file_handle=FileOpen(InpFileName,FILE_READ|FILE_CSV|InpEncodingType);
if(file_handle!=INVALID_HANDLE)
{
// PrintFormat("%s file is available for reading",InpFileName);
//--- receive start position for each string in the file
GetStringPositions(file_handle,pos);
//--- define the number of strings in the file
size=ArraySize(pos);
if(!size)
{
//--- stop if the file does not have strings
// PrintFormat("%s file is empty!",InpFileName);
FileClose(file_handle);
return("");
}
//--- make a random selection of a string number
int ind=posisi;
//--- shift position to the starting point of the string
FileSeek(file_handle,pos[ind],SEEK_SET);
//--- read and print the string with ind number
hasil=FileReadString(file_handle);
FileClose(file_handle);
}
else
PrintFormat("Failed to open %s file, Error code = %d",InpFileName,GetLastError());
return(hasil);
}
void SetText(string name,string text,int x,int y,color colour,int fontsize=12)
{
if(ObjectCreate(0,name,OBJ_LABEL,0,0,0))
{
ObjectSetInteger(0,name,OBJPROP_XDISTANCE,x);
ObjectSetInteger(0,name,OBJPROP_YDISTANCE,y);
ObjectSetInteger(0,name,OBJPROP_COLOR,colour);
ObjectSetInteger(0,name,OBJPROP_FONTSIZE,fontsize);
ObjectSetInteger(0,name,OBJPROP_CORNER,CORNER_LEFT_UPPER);
}
ObjectSetString(0,name,OBJPROP_TEXT,text);
}
Comments
