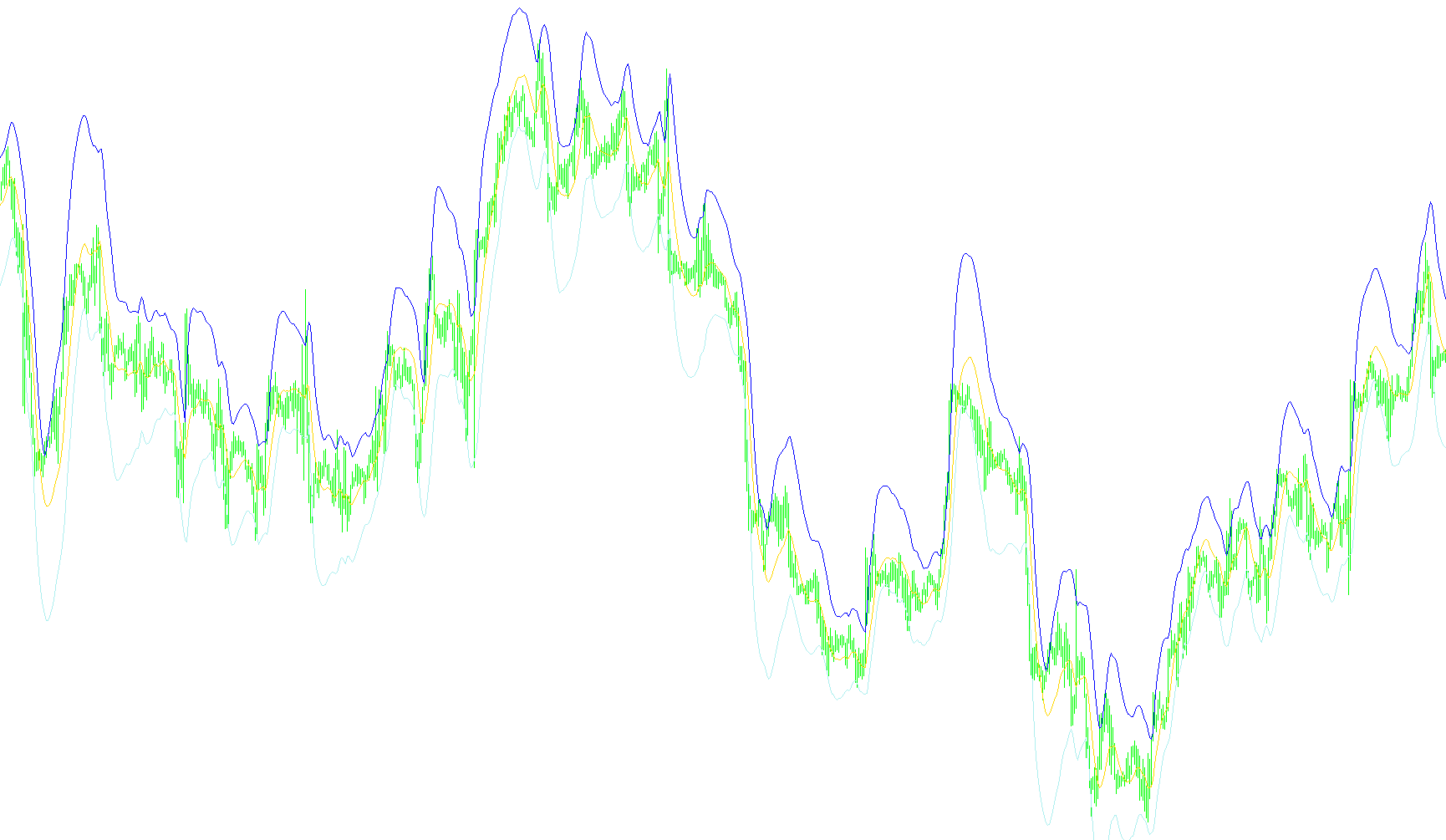

Download scriptThis script is a sophisticated technical analysis tool designed to track and predict price movements in the financial markets. It uses a mathematical framework known as a Kalman Filter, which is an algorithm typically used in engineering and navigation (like GPS tracking) to filter out "noise" from data to find the true underlying trend.
Core Functionality
The primary goal of this script is to distinguish between random market fluctuations (noise) and the actual direction of price movement. It processes historical price data to create a smoothed, "cleaned" representation of the market's trajectory.
Key Components of the Logic:
1. Noise Reduction & Smoothing Unlike simple moving averages that look backward at past prices, this script actively estimates the "state" of the market. It calculates the current price and its velocity (speed) to determine where the price is likely heading. By doing this, it provides a cleaner visual line on your chart than standard indicators.
2. Dynamic Volatility Tracking The script monitors how much the market is swinging. It calculates specific "deviation levels." Based on these deviations, it can plot multiple lines that represent boundaries. These act as visual guides to show you the range of normal price movement versus extreme volatility.
3. Auto-Gain Adaptation One of the more advanced features of this logic is its "Auto Gain" system. The script analyzes the relationship between the current market noise and the actual trend. If the market becomes exceptionally erratic, it adjusts its internal sensitivity (gain) automatically to ensure the indicator remains stable and doesn't become over-responsive or too sluggish.
4. Predictive Modeling The script includes logic capable of projecting data forward. While most indicators only tell you what has happened, this math allows the script to calculate theoretical bounds—essentially creating a "prediction zone" for future bars based on the current speed and momentum of the price.
5. Performance Optimization To ensure smooth performance on your trading platform, the script includes a "warm-up" phase. When first loaded, it runs a brief series of internal trials to calibrate its settings to the specific asset you are viewing before it begins displaying its final calculations.
Summary for the User
In simple terms, this tool acts like a high-tech stabilizer for your chart. It takes the messy, jagged movements of price and smooths them into a coherent path, identifies how much "vibration" is currently in the market, and provides boundaries to help you visualize where the price might stay within based on its current momentum.
#property copyright "Copyleft © 2007, GammaRat Forex"
#property link "http://www.gammarat.com/Forex/"
//#include <GRFMatrixMath.mqh>
#property indicator_chart_window
#property indicator_buffers 7
#property indicator_color1 Orange
#property indicator_color2 Orange
#property indicator_color3 Orange
#property indicator_color4 Red
#property indicator_color5 Red
#property indicator_color6 Red
#property indicator_color7 Red
#property indicator_style1 0
#property indicator_style2 0
#property indicator_style3 0
#property indicator_style4 2
#property indicator_style5 2
#property indicator_style6 0
#property indicator_style7 0
//---- input parameters
extern double Samples=15;
extern double DevLevel1 = 2;
extern double DevLevel2 = 0;
extern double Suppression_dB = 0;
extern double PredictBars1 = 0;
extern double PredictBars2 = 0;
extern bool PrintCurrentState = true;
extern bool AutoGainOn = true;
//---- buffers
double KalmanBuffer[];
double KalmanBufferPlus1[];
double KalmanBufferNeg1[];
double KalmanBufferPlus2[];
double KalmanBufferNeg2[];
double KalmanBufferPlus3[];
double KalmanBufferNeg3[];
double xkk[2][1],xkk1[2][1],xk1k1[2][1],yk[1][1],zk[1][1];
double Pkk[2][2],Pkk1[2][2],Pk1k1[2][2],Pkk_inv[2][2];
double Qkk[2][2],Hk[1][2],Hk_t[2][1],Sk[1][1],Sk_inv[1][1],Rk[1][1],Kk[2][1];
double Fk[2][2],Fk_t[2][2],GGT[2][2];
double Eye[2][2];
double temp22[2][2],temp21[2][1],temp12[1][2],temp11[1][1];
double xp[1][1],xpt[1][1],xpt_t[1][1];
double Phi1[1][2],Phi2[1][2];
double xdel[1][1],xdel_t[1][1];
double LookAhead=0;
static bool initiated=false;
static double c0_above=0, c0_below = 0;
static double c1_above=0, c1_below = 0;
static int last_time=-1;
static int first_time = -1;
static int tick_count=0;
static int counted_bars = -1;
static double TestGain;
static bool PrintOn=false;
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
string shortname;
shortname = "KalmanAGAS "+DoubleToStr(Samples,1)+ " ";
//---- indicators
if(LookAhead <0)LookAhead=0;
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(0,KalmanBuffer);
SetIndexShift(0,LookAhead);
SetIndexDrawBegin(0,LookAhead);
SetIndexLabel(0,shortname);
if(MathAbs(DevLevel1) > 0) {
SetIndexStyle(1,DRAW_LINE);
SetIndexBuffer(1,KalmanBufferPlus1);
SetIndexShift(1,0);
SetIndexDrawBegin(1,1);
SetIndexLabel(1,shortname + DoubleToStr(DevLevel1,1) + " Dev");
SetIndexStyle(2,DRAW_LINE);
SetIndexBuffer(2,KalmanBufferNeg1);
SetIndexShift(2,0);
SetIndexDrawBegin(2,1);
SetIndexLabel(2,shortname + DoubleToStr(-DevLevel1,1) + " Dev");
}
if(MathAbs(DevLevel2) > 0){
SetIndexStyle(3,DRAW_LINE);
SetIndexBuffer(3,KalmanBufferPlus2);
SetIndexShift(3,0);
SetIndexDrawBegin(3,1);
SetIndexLabel(3,shortname + DoubleToStr(DevLevel2,1) + " Dev");
SetIndexStyle(4,DRAW_LINE);
SetIndexBuffer(4,KalmanBufferNeg2);
SetIndexShift(4,0);
SetIndexDrawBegin(4,1);
SetIndexLabel(4,shortname + DoubleToStr(-DevLevel2,1) + " Dev");
SetIndexStyle(5,DRAW_LINE);
SetIndexBuffer(5,KalmanBufferPlus3);
SetIndexShift(5,0);
SetIndexDrawBegin(5,1);
SetIndexLabel(5,shortname + " Highs " + DoubleToStr(DevLevel2,1) + " Dev");
SetIndexStyle(6,DRAW_LINE);
SetIndexBuffer(6,KalmanBufferNeg3);
SetIndexShift(6,0);
SetIndexDrawBegin(6,1);
SetIndexLabel(6,shortname + " Lows " + DoubleToStr(-DevLevel2,1) + " Dev");
}
//----
return(0);
}
//| Point and figure |
//+------------------------------------------------------------------+
int start()
{
int i;
double TestGain_saved;
i=0;
if(counted_bars == -1 && AutoGainOn){
if(Bars<Samples*2)Samples =Bars/4;
//ramp up the gain
//first time through
TestGain=-1;
TestGain_saved = Suppression_dB;
while(true){
PrintOn=false;
initiated = 0;
counted_bars = 0;
last_time=-1;
compute();
//Print("TestGain ",TestGain," trial ", i);
Suppression_dB=TestGain;
if(MathAbs(TestGain-TestGain_saved) < 0.5)break;
TestGain_saved=TestGain;
i++;
if(i>20)break;
}
return;
}
PrintOn=true;
counted_bars=IndicatorCounted();
if( counted_bars<0) counted_bars=0;
compute();
return(0);
}
int compute(){
int i,j;
double g,g1;
double c0;
static double acc_sigma2;
static double z_sigma2;
static double normalization_time;
static double working_samples;
double z,diff;
double ts[3][1];
static double dev_level1,dev_level2;
double temp11a[1][1],temp21a[2][1];
double temp22a[2][2];
static double ZGain = 0;
static double AGain=1;
static double tgain=1;
static double time_last;
static double zk_saved[2][1];
int trial;
//----
//give it some time to warm up
if(Bars<Samples*2)
return(0);
//rewrite the last bar
//if(counted_bars > Bars-2)return(0);
//Print(Time[0]);
if(Time[1] <= last_time) return(0);
Sleep(500);
//tick_count--;
//if(tick_count>0)return(0);
//tick_count=3;
if(counted_bars<0) counted_bars=0;
//if(counted_bars>0)counted_bars--;
//if(counted_bars >2) counted_bars -= 2;
if( !initiated){
Phi1[0][0] = 1;
Phi1[0][1] = PredictBars1;
Phi2[0][0] = 1;
Phi2[0][1] = PredictBars2;
dev_level1 = DevLevel1*MathSqrt(2);
dev_level2 = DevLevel2*MathSqrt(2);
ArrayCopy(KalmanBuffer,High);
xkk1[0][0] = get_avg(Bars-1);
xkk1[1][0] = 0;
//MatrixPrint(xkk);
MatrixEye(Pkk1);
Fk[0][0] = 1;
Fk[0][1]=1;
Fk[1][0]=0;
Fk[1][1] =1;
MatrixTranspose(Fk,Fk_t);
Qkk[0][0] = 1;
Qkk[0][1] = 0;
Qkk[1][0]=0;
Qkk[1][1] = 1;
GGT[0][0]=.25;
GGT[1][0]=.5;
GGT[0][1]=.5;
GGT[1][1]=1;
Hk[0][0] = 1;
Hk[0][1] = 0;
MatrixTranspose(Hk,Hk_t);
Rk[0][0] = .1;
MatrixEye(Eye);
ZGain = 0;
z_sigma2 = MathPow(10,-ZGain);
acc_sigma2 = Point*MathPow(10,-Suppression_dB/20.);//*MathSqrt(0.0001/Point);
MatrixScalarMul(acc_sigma2,Pkk1);
working_samples = Samples;
acc_sigma2 *= acc_sigma2;
Rk[0][0] = z_sigma2;
initiated = true;
MatrixScalarMul(acc_sigma2,Pkk);
//Print(1./MathSqrt(acc_sigma2));
//Print(" ");
AGain=1;
zk_saved[0][0] = get_avg(Bars-1);
zk_saved[1][0] = 0;
//double A1[20][2],A1t[2][20],A11[2][2],A11_inv[2][2],X[2],B[20];
//for(i=0;i<20;i++){
ArrayCopy(xkk1,zk_saved);
}
for(i=Bars-counted_bars-1; i> 0;i--){ //ticks are handled elsewhere
//Start the update procedure
MatrixZero(yk);
zk[0][0] = get_avg(i);
zk[1][0]= zk[0][0]-zk_saved[0][0];
ArrayCopy(zk_saved,zk);
diff = (zk[0][0]*Point-xkk1[0][0]*Point);
if(diff>=0) {
diff = diff*diff;
c0_above = (c0_above*(working_samples-1)+MathPow(get_avg(i)*Point-KalmanBuffer[i],2))/working_samples;
c0_below = c0_below*(working_samples-1)/working_samples;
c1_above = (c1_above*(working_samples-1)+MathPow(High[i]-KalmanBuffer[i],2))/working_samples;
c1_below = c1_below*(working_samples-1)/working_samples;
}else{
diff = diff*diff;
c0_below = (c0_below*(working_samples-1)+MathPow(get_avg(i)*Point-KalmanBuffer[i],2))/working_samples;
c0_above = c0_above*(working_samples-1)/working_samples;
c1_below = (c1_below*(working_samples-1)+MathPow(Low[i]-KalmanBuffer[i],2))/working_samples;
c1_above = c1_above*(working_samples-1)/working_samples;
}
if(MathAbs(DevLevel1)>0){
KalmanBufferPlus1[i-1] = KalmanBuffer[i]+dev_level1*MathSqrt(c0_above);
KalmanBufferNeg1[i-1] = KalmanBuffer[i]-dev_level1*MathSqrt(c0_below);
}
if(MathAbs(DevLevel2)>0){
KalmanBufferPlus2[i-1] = KalmanBuffer[i]+dev_level2*MathSqrt(c0_above);
KalmanBufferNeg2[i-1] = KalmanBuffer[i]-dev_level2*MathSqrt(c0_below);
KalmanBufferPlus3[i-1] = KalmanBuffer[i]+dev_level2*MathSqrt(c1_above);
KalmanBufferNeg3[i-1] = KalmanBuffer[i]-dev_level2*MathSqrt(c1_below);
}
//this is always left alone, for now
ArrayCopy(Qkk,GGT);
// set the auto gain
if(AutoGainOn && MathSqrt((c0_above+c0_below)/2)> Point){
if(c0_below >0 || c0_above>0)
tgain = MathAbs((c0_below)/(c0_below+c0_above));
else tgain = 0.5;
if(tgain< 0.2 || tgain > 0.8)
AGain = AGain*MathPow(10,0.001);
else if(tgain> 0.45 && tgain < 0.55)
AGain=AGain*MathPow(10,-0.001);
}else{
AGain = 1;
}
tgain = AGain*acc_sigma2;
TestGain=-20*MathLog(MathSqrt(tgain)/Point)/MathLog(10.);
MatrixScalarMul(tgain,Qkk);
MatrixMul(Hk,xkk1,temp11);
//MatrixPrint(xkk1);
MatrixAdd(zk,temp11,yk, -1);
MatrixMul(Hk,Pkk1,temp12);
MatrixMul(temp12,Hk_t,temp11);
MatrixAdd(temp11,Rk,Sk,1);
MatrixInvert(Sk,Sk_inv);
MatrixMul(Pkk1,Hk_t,temp21);
MatrixMul(temp21,Sk_inv,Kk);
MatrixMul(Kk,yk,temp21);
MatrixAdd(temp21,xkk1,xkk,1);
MatrixMul(Kk,Hk,temp22);
MatrixAdd(Eye,temp22,temp22a,-1);
MatrixMul(temp22a,Pkk1,Pkk);
//predict cycle
//make copies of the last iteration;
ArrayCopy(Pk1k1,Pkk);
ArrayCopy(xk1k1,xkk);
//g = MathSqrt(MathPow(xkk[0][0]-get_avg(i),2))/Pkk[0][0]*Point;
//g = xkk[1][0];
//predict the state
//Print("Doing Predict");
MatrixMul(Fk,xk1k1,xkk1);
//MatrixPrint(xkk1);
MatrixMul(Fk,Pk1k1,temp22);
MatrixMul(temp22,Fk_t,Pk1k1);
MatrixAdd(Pk1k1,Qkk,Pkk1,1);
//Print("Predict Ended");
KalmanBuffer[i-1] = (xkk1[0][0]*Point);
if(i==1 && PrintOn){
if(PrintCurrentState){
Print("Suppression (dB):", -20*MathLog(MathSqrt(tgain)/Point)/MathLog(10.),"dB; Value:",xkk1[0][0]*Point
,"; Speed (pips/bar):",xkk1[1][0],"; dp/p:"
, xkk1[1][0]/xkk1[0][0]*100.*240.*(24.*60.)/Period()
,"; Line speed "
,(KalmanBuffer[i-1]-KalmanBuffer[i])/KalmanBuffer[i]
*100.*240.*(24.*60.)/Period());
}
if(PredictBars1 > 0){
MatrixMul(Phi1,xkk,xpt);
xp[0][0] = xkk[0][0];
MatrixTranspose(Phi1,temp21);
MatrixMul(Pkk,temp21,temp21a);
MatrixMul(Phi1,temp21a,temp11a);
MatrixInvert(temp11a,temp11);
MatrixAdd(xp,xpt,xdel,-1);
MatrixTranspose(xdel,xdel_t);
MatrixMul(temp11,xdel,temp11a);
MatrixMul(xdel_t,temp11a,temp11);
g1=MathSqrt(temp11[0][0]);
Print(Phi1[0][1], " bar bounds ",(xpt[0][0]-g1)*Point
,",",(xpt[0][0]+g1)*Point);
Print(Phi1[0][1], " bar center, r(t) (in pips) ",(xpt[0][0])*Point
,",",g1);
}
if(PredictBars2 > 0){
MatrixMul(Phi2,xkk,xpt);
xp[0][0] = xkk[0][0];
MatrixTranspose(Phi2,temp21);
MatrixMul(Pkk,temp21,temp21a);
MatrixMul(Phi2,temp21a,temp11a);
MatrixInvert(temp11a,temp11);
MatrixAdd(xp,xpt,xdel,-1);
MatrixTranspose(xdel,xdel_t);
MatrixMul(temp11,xdel,temp11a);
MatrixMul(xdel_t,temp11a,temp11);
g1=MathSqrt(temp11[0][0]);
Print(Phi2[0][1], " bar bounds ",(xpt[0][0]-g1)*Point
,",",(xpt[0][0]+g1)*Point);
Print(Phi2[0][1], " bar center, r(t) (in pips) ",(xpt[0][0])*Point
,",",g1);
}
}else g= -1;
last_time=Time[i];
}
//Print(Pkk1[0][0]/Point," ",Pkk1[1][0]/Point," ",Pkk1[1][1]/Point);
//Print("24 hours:", xpt[0][0]*Point," ,Gate ",g);
//Print ("Gate 2 ", MathSqrt(xdel[0][0]*xdel[0][0]*g)*Point," g1 ",g1);
}
double get_avg(int k){
return(MathPow((High[k]*Low[k]*Close[k]*Close[k]),1/4.)/Point);
}
//+++++++-----------------------------------------------------+
double determinant_fixed(double a[][], int k){
double z;
switch(k){
case 1: return(a[0][0]);
break;
case 2: return( a[0][0]*a[1][1]-a[1][0]*a[0][1]);
break;
case 3:
z = a[0][0]*a[1][1]*a[2][2] + a[0][1]*a[1][2]*a[2][0] +
a[0][2]*a[1][0]*a[2][1] -
(a[2][0]*a[1][1]*a[0][2] + a[1][0]*a[0][1]*a[2][2] +
a[0][0]*a[2][1]*a[1][2]);
return(z);
break;
default:
Print("array_range too large for determinant calculation");
return(0);
}
}
double determinant(double a[][]){
double z;
if(ArrayRange(a,0) != ArrayRange(a,1)){
Print("Non-square array entered into determinant");
return(0);
}
switch(ArrayRange(a,0)){
case 1: return(a[0][0]);
break;
case 2: return( a[0][0]*a[1][1]-a[1][0]*a[0][1]);
break;
case 3:
z = a[0][0]*a[1][1]*a[2][2] + a[0][1]*a[1][2]*a[2][0] +
a[0][2]*a[1][0]*a[2][1] -
(a[2][0]*a[1][1]*a[0][2] + a[1][0]*a[0][1]*a[2][2] +
a[0][0]*a[2][1]*a[1][2]);
return(z);
break;
default:
Print("array_range too large for determinant calculation");
return(0);
}
}
int MatrixAdd(double a[][], double b[][],double & c[][],double w=1){
int i,j;
for(i=0;i<ArrayRange(c,0);i++){
for(j=0;j<ArrayRange(c,1);j++){
c[i][j] = a[i][j]+w*b[i][j];
}
}
return(0);
}
int MatrixMul(double a[][], double b[][],double & c[][]){
int i,j, k;
if(ArrayRange(a,1) != ArrayRange(b,0)){
Print("array Range Mismatch in Matrix Mul");
return(-1);
}
for(i=0;i<ArrayRange(a,0);i++){
for(j=0;j<ArrayRange(b,1);j++){
c[i][j] = 0;
for(k=0;k<ArrayRange(a,1);k++){
c[i][j] += (a[i][k]*b[k][j]);
}
}
}
return(0);
}
int MatrixScalarMul(double b,double & a[][]){
int i,j;
for(i =0;i<ArrayRange(a,0);i++){
for(j=0;j<ArrayRange(a,1);j++){
a[i][j] *= b;
}
}
}
int MatrixInvert(double a[][],double & b[][]){
double d;
double temp1[4][4],temp2[4][4];
int i,j,i1,j1,k;
if(ArrayRange(a,0) != ArrayRange(a,1)){
Print("Matrix Inverse attempted on non square matrix. Not implemented yet");
return(-1);
}
if(ArrayRange(a,1) > 3){
Print("Bugger off, not implemented yet");
return(-1);
}
d = determinant(a);
if(MathAbs(d)<0.000001){
Print("unstable matrix");
d = 1;
}
k = ArrayRange(a,0);
if(k==0){
b[0][0]=1./a[0][0];
return(0);
}
d = determinant(a);
for(i1=0;i1<k;i1++){
for(j1=0;j1<k;j1++){
temp1[i1][j1] = a[i1][j1];
}
}
for(i=0;i<k;i++){
for(j=0;j<k;j++){
//copy the arry. There must be a better way!!
ArrayCopy(temp2,temp1);
for(j1=0;j1<k;j1++){
if(j1==j){
temp2[i][j1] = 1;
}else{
temp2[i][j1] = 0;
}
}
b[i][j]=determinant_fixed(temp2,k)/d;
}
}
}
int MatrixTranspose(double a[][],double & b[][]){
int i,j;
for(i=0;i<ArrayRange(a,0);i++){
for(j=0;j<ArrayRange(a,1);j++){
b[j][i] = a[i][j];
}
}
return(0);
}
int MatrixZero(double & a[][]){
int i,j;
for(i= 0;i<ArrayRange(a,0);i++){
for(j=0;j<ArrayRange(a,1);j++){
a[i][j]=0;
}
}
return(0);
}
int MatrixEye(double & a[][]){
int i,j;
for(i= 0;i<ArrayRange(a,0);i++){
for(j=0;j<ArrayRange(a,1);j++){
a[i][j]=0;
if(i==j)a[i][j]=1;
}
}
return(0);
}
int MatrixPrint(double a[][]){
int i,j;
for(i= 0;i<ArrayRange(a,0);i++){
for(j=0;j<ArrayRange(a,1);j++){
Print(i," ,",j," ,",a[i][j]);
}
}
return(0);
}
//+------------------------------------------------------------------+
Comments
