Goertzel_Cycle_v1

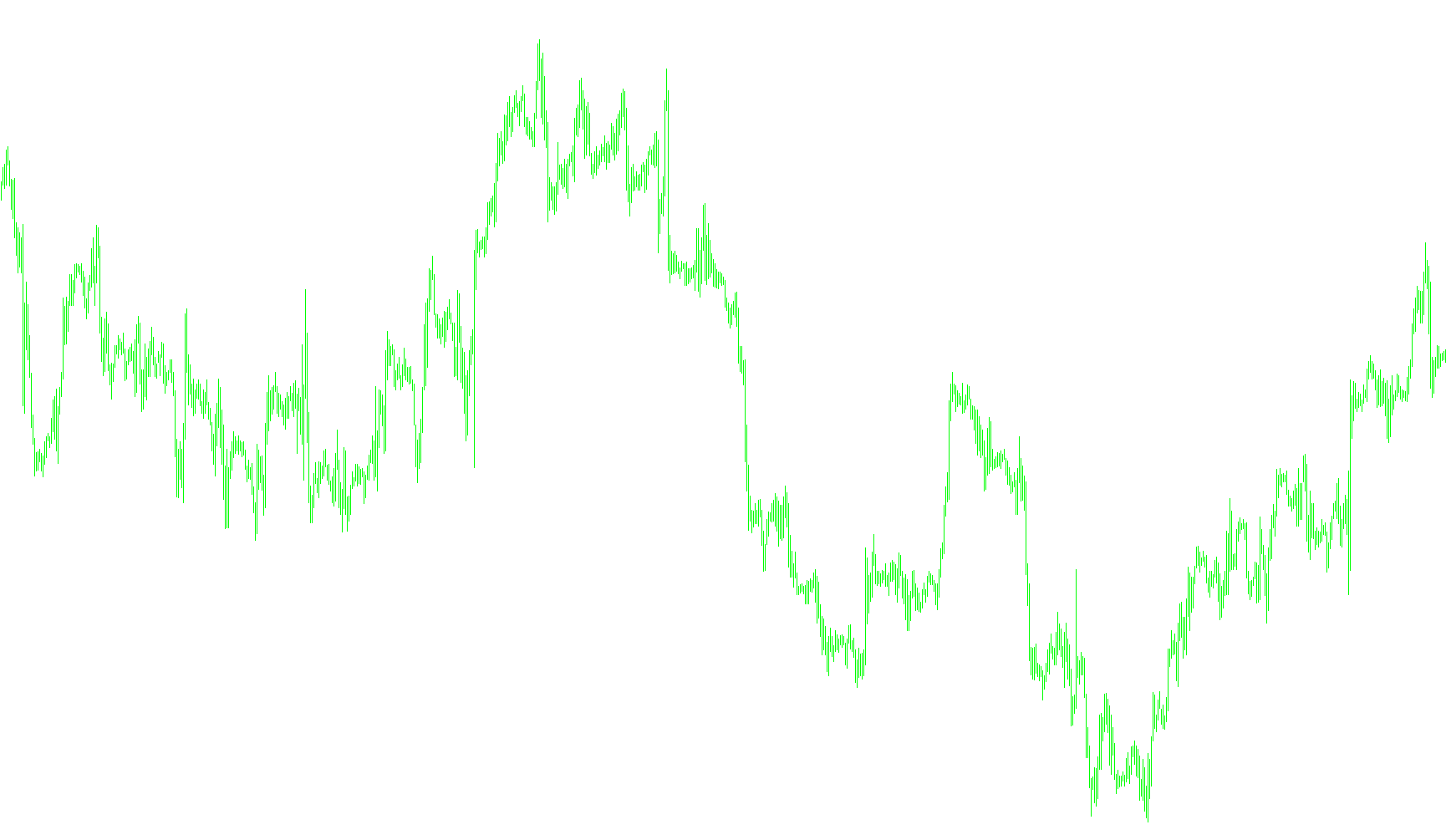

This script is a specialized financial analysis tool designed to identify hidden "cycles" or recurring patterns within market price movements. Rather than just looking at where the price is going, it attempts to break down the price action into its fundamental rhythmic components, much like how a sound engineer might separate different instruments in a complex piece of music.

Core Logic Overview

The tool operates on several sophisticated mathematical layers to provide a clear picture of market rhythm:

1. Market Smoothing and Linear Detrending Before looking for cycles, the script performs a "flattening" process. It identifies the general linear direction of the price (the trend) and removes it from the data. By subtracting this overall trend, the script can isolate the smaller, rhythmic fluctuations—the "waves"—that are often masked by long-term upward or downward movements.

2. The Goertzel Algorithm (Frequency Analysis) The heart of the tool is the Goertzel Algorithm. This is a mathematical method used to detect specific frequencies in a stream of data. The script scans through a range of timeframes (from a minimum period to a maximum period defined by the user) to see which cycles are the strongest.

3. Amplitude and Phase Measurement For every cycle detected, the tool calculates two critical pieces of information:

  • Amplitude: This measures the "strength" or "height" of the cycle. It tells you how significant that specific rhythm is relative to others.
  • Phase: This tracks where we currently are within that cycle (e.g., are we at the peak, the trough, or the midpoint?).

4. Peak Identification To make the data actionable for a trader, the script automatically scans the results to find "Amplitude Peaks." These are the points where a specific cycle is at its most dominant. By highlighting these peaks, the tool helps users visually identify which timeframes are currently exerting the most influence on the market price.

How it Works in Real-Time

The script is designed to be dynamic. It continuously monitors incoming price data and updates its calculations based on a user-defined interval. This ensures that as new candles form, the cycle analysis remains current, allowing for a real-time view of how different rhythmic cycles are interacting with the current market environment.

Summary for the User

In simple terms, this tool acts like a "heart rate monitor" for the financial markets. It strips away the "noise" of the general trend to show you the underlying pulses of the price action, telling you which cycles are currently active, how strong they are, and where we stand within those cycles at any given moment.

5 Views
0 Downloads
0 Favorites
Goertzel_Cycle_v1
//+------------------------------------------------------------------+
//|                                            Goertzel_Cycle_V1.mq4 |
//|                                                       Jojolalpin |
//| Realeased on www.forex-tsd.com                                   |
//| Makes Real Time cycles analysis applying Goertzel Algorithm      |
//|  15-02-2008                                                      |
//+------------------------------------------------------------------+
#property copyright "NONE - made by Jojolalpin"
#property link      "http://www.forex-tsd.com"

#property indicator_separate_window

#property indicator_buffers 3
#property indicator_color1 Red
#property indicator_style1 STYLE_SOLID
#property indicator_width1 2

#property indicator_color2 Orange
#property indicator_style2 STYLE_DOT
#property indicator_width2 1

#property indicator_color3 Blue
#property indicator_style3 STYLE_SOLID
#property indicator_width3 1

extern bool SquaredAmp = true;//To display squared amplitude or just the amplitude
extern int MaxPer = 500;     //Maximal period analysed
extern int MinPer = 1;        //Minimal period analysed
extern int bar2update = 1;    //Nombre de barres entre chaque update

double AmpBuf[];   //Amplitude buffer
double PhaBuf[];   //Phase Buffer
double PicBuf[];   //Amplitude peaks buffer
double FlatBuf[];  //Flattened close price buffer

int LastUpdate=0;
int digs=4;
string ShName="";
double PI=3.1415926535;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
  //Correct if needed MinPer and MaxPer
  if(MinPer<2) MinPer=2;
  if(MaxPer<MinPer) MaxPer=MinPer;
  //Correct if needed Bar2Update
  if(bar2update<0) bar2update=1;

//---- 1 additional buffer
   IndicatorBuffers(4);
   IndicatorDigits(digs);
//---- drawing settings
//---- 4 indicator buffers mapping
   SetIndexBuffer(0,AmpBuf);
   SetIndexBuffer(1,PhaBuf);
   SetIndexBuffer(2,PicBuf);
   SetIndexBuffer(3,FlatBuf);
//---- name for DataWindow and indicator subwindow label
   ShName="Goertzel Cycles("+MinPer+" to "+MaxPer+" Periods)";
   IndicatorShortName(ShName);

   if(SquaredAmp==true)
      SetIndexLabel(0,"PeakPer");
   else
      SetIndexLabel(0,"Amplitude");
      SetIndexLabel(1,"Phase");
      SetIndexLabel(2,"PeakPer"+digs);

   SetIndexEmptyValue(0,0.0);
   SetIndexEmptyValue(1,0.0);
   SetIndexEmptyValue(2,0.0);
   SetIndexEmptyValue(3,0.0);

   SetLevelStyle(STYLE_DOT,1,DarkGreen);
   SetLevelValue(1,PI);
   SetLevelValue(2,2*PI);

//---- initialization done
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {

   //Check Enough Bars
   if(Bars<3*MaxPer)
   {
      Print(" Goertzel Cycle -- Not Enough bars! - you need 3*MaxPer -> " + DoubleToStr(3*MaxPer,0));
      return(0);
   }
   else
      IndicatorShortName(ShName);

   //Check bar2update
   if(bar2update<1) bar2update=1;
   //Check Update needed
   if(Time[0]-LastUpdate>=bar2update*Period()*60)
   {
      LastUpdate=Time[0];
      //----
      SetIndexDrawBegin(0,Bars-MaxPer-bar2update-1);
      SetIndexDrawBegin(1,Bars-MaxPer-bar2update-1);
      SetIndexDrawBegin(2,Bars-MaxPer-bar2update-1);

      //--- Call main function
      ComputeIt(1);
   }


//----
   return(0);
  }
//+------------------------------------------------------------------+
int ComputeIt(int x)
{
   int i;
   int j;
   int k;
   int l;
   double a;
   double b;
   double v0;
   double v1;
   double v2;
   double freq;
   double coeff;
   double real;
   double img;

   //---- Set buffers values to 0
   for(i=0;i<=MaxPer+2;i++)
   {
      AmpBuf[i]=0; PhaBuf[i]=0; PicBuf[i]=0.0;
   }
   //---- Set flatBuf to 0
   for(i=0;i<=3*MaxPer+2;i++)
   {
      FlatBuf[i]=0;
   }

   //Calculate flattened price
   a=Close[x+3*MaxPer-1];
   b=(Close[x]-a)/(x+3*MaxPer-2);
   for(i=3*MaxPer;i>=1;i--)
      FlatBuf[i]=Close[x+i-1]-(a+b*(3*MaxPer-i));

   //For each period we'll compute Amplitude and Phase
   for(i=MinPer; i<=MaxPer; i++)
   {
      v0=0; v1=0; v2=0;
      freq = MathPow(i,-1);
      coeff=2*MathCos(2*PI*freq);
      for(k=3*MaxPer; k>=1; k--)
      {
         v0=coeff*v1-v2+FlatBuf[k];
         v2=v1;
         v1=v0;
      }
      real=v1-v2*0.5*coeff;
      img = v2*MathSin(2*PI*freq);

      if(SquaredAmp==true)
         AmpBuf[i]=MathPow(real,2)+MathPow(img,2);
      else
         AmpBuf[i]=MathSqrt(MathPow(real,2)+MathPow(img,2));

      if(real!=0)
      {   PhaBuf[i]=MathArctan(img/real); }
      else
      {
        real=0.0000001;
        PhaBuf[i]=MathArctan(img/real);
      }
      //Correction of the phase found by arctan(img/real)
      if(real<0)
         PhaBuf[i]=PhaBuf[i]+PI;
      else
      {
         if(real>=0 && img<0)
            PhaBuf[i]=PhaBuf[i]+2*PI;
      }

   }

   //We check for amplitude peaks and tag them
   for(i=MinPer+1; i<MaxPer; i++)
   {
      if(AmpBuf[i]>AmpBuf[i+1] && AmpBuf[i]>AmpBuf[i-1])
         PicBuf[i]=i*MathPow(10,-1*digs);
      else
         PicBuf[i]=0.0;
   }

   return(0);
}
