FXTT_StrategyChecklist

Download script
Author: Copyright 2016, Carlos Oliveira
FXTT_StrategyChecklist

This tool is designed as a functional, interactive checklist for traders using the MetaTrader 4 platform. It provides a visual interface on the trading chart that allows users to manage and save specific strategy requirements or criteria without needing to interact with complex code.

Core Functionality

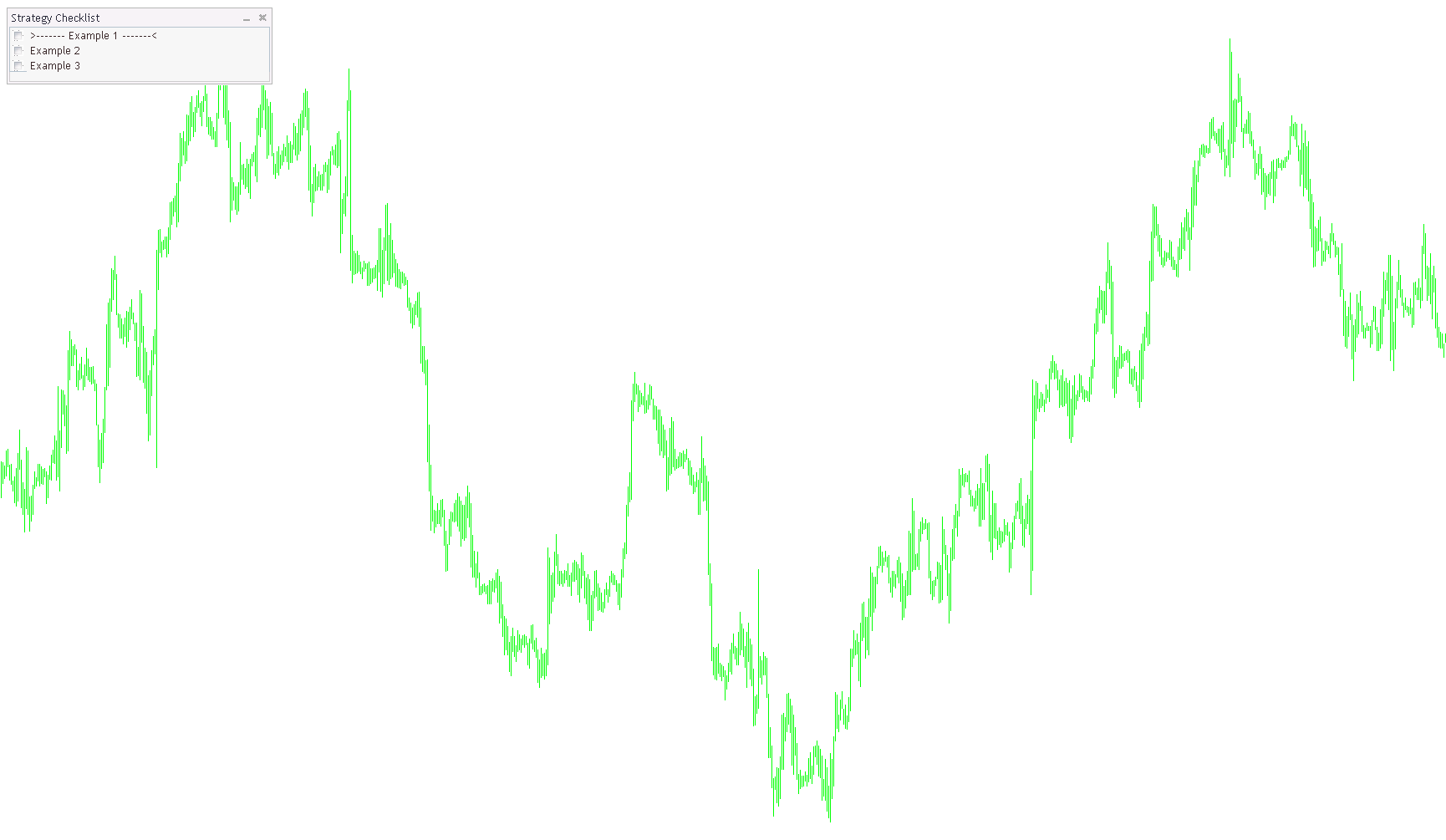

Visual Checklist Interface The script creates a dedicated window on your trading chart titled "Strategy Checklist." This window contains a series of checkboxes (up to 20). You can customize the labels for these checkboxes—such as specific trade rules, risk management steps, or technical analysis requirements—directly within the settings.

Persistent Data Storage One of the primary features of this script is its ability to remember your progress. It automatically saves the state of your checklist (whether a box is checked or unchecked) to a local data file.

  • Auto-Save: When you close the application, it writes the current status of all checkboxes to a binary file specific to the currency symbol you are viewing.
  • Auto-Load: When you reopen the tool or switch back to a chart, it reads that saved data and restores your previous selections.

How it Works for the User

  1. Initialization: Upon launching, the script calculates how many items you have defined and builds a clean, organized list on your screen.
  2. Interaction: As you perform your trading analysis, you can click the checkboxes to mark off completed steps or satisfied conditions.
  3. Dynamic Updates: The tool is programmed to listen for user input; as soon as you click a checkbox, the internal logic updates immediately to reflect that change.
  4. Session Management: Because it handles data reading and writing automatically in the background, the trader does not need to manually "save" their work. The state remains consistent across different trading sessions.

Summary of Benefits

  • Consistency: Helps traders ensure they follow every step of a predefined strategy before entering a trade.
  • Organization: Replaces manual note-taking with an on-screen interactive list.
  • Memory: Ensures that settings are preserved automatically, reducing the need for repetitive data entry every time the platform is restarted.
Miscellaneous
Uses files from the file systemIt writes information to fileIt reads information from a file
5 Views
0 Downloads
0 Favorites
FXTT_StrategyChecklist
//+------------------------------------------------------------------+
//|                                      FXTT_StrategyChecklist.mq4 |
//|                                  Copyright 2016, Carlos Oliveira |
//|                                         http://carlosoliveira.me |
//+------------------------------------------------------------------+
#property copyright "Copyright 2016, Carlos Oliveira"
#property link      "http://forextradingtools.x10host.com/"
#property version   "1.00"
#property strict
#property indicator_chart_window

#include <Controls\Dialog.mqh>
#include <Controls\CheckGroup.mqh>

extern string Check01 = ">------- Example 1 -------<";
extern string Check02 = "Example 2";
extern string Check03 = "Example 3";
extern string Check04 = "";
extern string Check05 = "";
extern string Check06 = "";
extern string Check07 = "";
extern string Check08 = "";
extern string Check09 = "";
extern string Check10 = "";
extern string Check11 = "";
extern string Check12 = "";
extern string Check13 = "";
extern string Check14 = "";
extern string Check15 = "";
extern string Check16 = "";
extern string Check17 = "";
extern string Check18 = "";
extern string Check19 = "";
extern string Check20 = "";


//+------------------------------------------------------------------+
//| defines                                                          |
//+------------------------------------------------------------------+
//--- indents and gaps
#define INDENT_LEFT                         (11)      // indent from left (with allowance for border width)
#define INDENT_TOP                          (11)      // indent from top (with allowance for border width)
#define INDENT_RIGHT                        (11)      // indent from right (with allowance for border width)
#define INDENT_BOTTOM                       (11)      // indent from bottom (with allowance for border width)
#define CONTROLS_GAP_X                      (5)       // gap by X coordinate
#define CONTROLS_GAP_Y                      (5)       // gap by Y coordinate
//--- for group controls
#define GROUP_WIDTH                         (230)     // size by X coordinate
#define GROUP_HEIGHT                        (57)      // size by Y coordinate

string  DataFileName="data.bin";                // File name
string  DataDirectoryName="SChecklist";   // Folder name
//+------------------------------------------------------------------+
//| Class CPanelDialog                                               |
//| Usage: main dialog of the SimplePanel application                |
//+------------------------------------------------------------------+
class CPanelDialog : public CAppDialog
  {
private:
   CCheckGroup       m_check_group;                   // the check box group object
public:
   bool              chk01;
   bool              chk02;
   bool              chk03;
   bool              chk04;
   bool              chk05;
   bool              chk06;
   bool              chk07;
   bool              chk08;
   bool              chk09;
   bool              chk10;

   bool              chk11;
   bool              chk12;
   bool              chk13;
   bool              chk14;
   bool              chk15;
   bool              chk16;
   bool              chk17;
   bool              chk18;
   bool              chk19;
   bool              chk20;

                     CPanelDialog(void);
                    ~CPanelDialog(void);
   //--- create
   virtual bool      Create(const long chart,const string name,const int subwin,const int x1,const int y1,const int x2,const int y2);
   //--- chart event handler
   virtual bool      OnEvent(const int id,const long &lparam,const double &dparam,const string &sparam);
   void              WriteIndicatorsData(void);
   void              ReadIndicatorsData(void);
protected:
   //--- create dependent controls
   bool              CreateCheckGroup(void);
   //--- internal event handlers
   virtual bool      OnResize(void);
   //--- handlers of the dependent controls events
   void              OnChangeCheckGroup(void);
   //-- Draw the text labels
   void              DrawLabels();
   bool              OnDefault(const int id,const long &lparam,const double &dparam,const string &sparam);
  };
//+------------------------------------------------------------------+
//| Event Handling                                                   |
//+------------------------------------------------------------------+
EVENT_MAP_BEGIN(CPanelDialog)
ON_EVENT(ON_CHANGE,m_check_group,OnChangeCheckGroup)
ON_OTHER_EVENTS(OnDefault)
EVENT_MAP_END(CAppDialog)
//+------------------------------------------------------------------+
//| Constructor                                                      |
//+------------------------------------------------------------------+
CPanelDialog::CPanelDialog(void)
  {
  }
//+------------------------------------------------------------------+
//| Destructor                                                       |
//+------------------------------------------------------------------+
CPanelDialog::~CPanelDialog(void)
  {
   WriteIndicatorsData();
  }
//+------------------------------------------------------------------+
//| Create                                                           |
//+------------------------------------------------------------------+
bool CPanelDialog::Create(const long chart,const string name,const int subwin,const int x1,const int y1,const int x2,const int y2)
  {
   if(!CAppDialog::Create(chart,name,subwin,x1,y1,x2,y2))
      return(false);
//--- create dependent controls
   if(!CreateCheckGroup())
      return(false);

   chk01=false;
   chk02=false;
   chk03=false;
   chk04=false;
   chk05=false;
   chk06=false;
   chk07=false;
   chk08=false;
   chk09=false;
   chk10=false;
   chk11=false;
   chk12=false;
   chk13=false;
   chk14=false;
   chk15=false;
   chk16=false;
   chk17=false;
   chk18=false;
   chk19=false;
   chk20=false;

   ReadIndicatorsData();

   m_check_group.Check(0, chk01);
   m_check_group.Check(1, chk02);
   m_check_group.Check(2, chk03);
   m_check_group.Check(3, chk04);
   m_check_group.Check(4, chk05);
   m_check_group.Check(5, chk06);
   m_check_group.Check(6, chk07);
   m_check_group.Check(7, chk08);
   m_check_group.Check(8, chk09);
   m_check_group.Check(9, chk10);
   m_check_group.Check(10, chk11);
   m_check_group.Check(11, chk12);
   m_check_group.Check(12, chk13);
   m_check_group.Check(13, chk14);
   m_check_group.Check(14, chk15);
   m_check_group.Check(15, chk16);
   m_check_group.Check(16, chk17);
   m_check_group.Check(17, chk18);
   m_check_group.Check(18, chk19);
   m_check_group.Check(19, chk20);

//--- succeed
   return(true);
  }
//+------------------------------------------------------------------+
//| Create the "CheckGroup" element                                  |
//+------------------------------------------------------------------+
bool CPanelDialog::CreateCheckGroup(void)
  {
   if(!m_check_group.Create(m_chart_id,m_name+"CheckGroup",m_subwin,0,0,312 , GetNumLines() * 18))
      return(false);
   if(!Add(m_check_group))
      return(false);

   if(StringLen(Check01) > 0 && !m_check_group.AddItem(Check01,1<<0))
      return(false);
   if(StringLen(Check02) > 0 && !m_check_group.AddItem(Check02,1<<1))
      return(false);
   if(StringLen(Check03) > 0 && !m_check_group.AddItem(Check03,1<<2))
      return(false);
   if(StringLen(Check04) > 0 && !m_check_group.AddItem(Check04,1<<3))
      return(false);
   if(StringLen(Check05) > 0 && !m_check_group.AddItem(Check05,1<<4))
      return(false);
   if(StringLen(Check06) > 0 && !m_check_group.AddItem(Check06,1<<5))
      return(false);
   if(StringLen(Check07) > 0 && !m_check_group.AddItem(Check07,1<<6))
      return(false);
   if(StringLen(Check08) > 0 && !m_check_group.AddItem(Check08,1<<7))
      return(false);
   if(StringLen(Check09) > 0 && !m_check_group.AddItem(Check09,1<<8))
      return(false);
   if(StringLen(Check10) > 0 && !m_check_group.AddItem(Check10,1<<9))
      return(false);
   if(StringLen(Check11) > 0 && !m_check_group.AddItem(Check11,1<<10))
      return(false);
   if(StringLen(Check12) > 0 && !m_check_group.AddItem(Check12,1<<11))
      return(false);
   if(StringLen(Check13) > 0 && !m_check_group.AddItem(Check13,1<<12))
      return(false);
   if(StringLen(Check14) > 0 && !m_check_group.AddItem(Check14,1<<13))
      return(false);
   if(StringLen(Check15) > 0 && !m_check_group.AddItem(Check15,1<<14))
      return(false);
   if(StringLen(Check16) > 0 && !m_check_group.AddItem(Check16,1<<15))
      return(false);
   if(StringLen(Check17) > 0 && !m_check_group.AddItem(Check17,1<<16))
      return(false);
   if(StringLen(Check18) > 0 && !m_check_group.AddItem(Check18,1<<17))
      return(false);
   if(StringLen(Check19) > 0 && !m_check_group.AddItem(Check19,1<<18))
      return(false);
   if(StringLen(Check20) > 0 && !m_check_group.AddItem(Check20,1<<19))
      return(false);

//--- succeed
   return(true);
  }
//+------------------------------------------------------------------+
//| Handler of resizing                                              |
//+------------------------------------------------------------------+
bool CPanelDialog::OnResize(void)
  {
//--- call method of parent class
   if(!CAppDialog::OnResize()) return(false);
//--- succeed
   return(true);
  }
//+------------------------------------------------------------------+
//| Event handler                                                    |
//+------------------------------------------------------------------+
void CPanelDialog::OnChangeCheckGroup(void)
  {
   chk01=m_check_group.Check(0);
   chk02=m_check_group.Check(1);
   chk03=m_check_group.Check(2);
   chk04=m_check_group.Check(3);
   chk05=m_check_group.Check(4);
   chk06=m_check_group.Check(5);
   chk07=m_check_group.Check(6);
   chk08=m_check_group.Check(7);
   chk09=m_check_group.Check(8);
   chk10=m_check_group.Check(9);
   chk11=m_check_group.Check(10);
   chk12=m_check_group.Check(11);
   chk13=m_check_group.Check(12);
   chk14=m_check_group.Check(13);
   chk15=m_check_group.Check(14);
   chk16=m_check_group.Check(15);
   chk17=m_check_group.Check(16);
   chk18=m_check_group.Check(17);
   chk19=m_check_group.Check(18);
   chk20=m_check_group.Check(19);
  }

//+------------------------------------------------------------------+
//| Rest events handler                                                    |
//+------------------------------------------------------------------+
bool CPanelDialog::OnDefault(const int id,const long &lparam,const double &dparam,const string &sparam)
  {
//--- let's handle event by parent
   return(false);
  }
//+------------------------------------------------------------------+

//+------------------------------------------------------------------+
//| Global Variables                                                 |
//+------------------------------------------------------------------+
CPanelDialog ExtDialog;

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int OnInit()
  {
   ObjectsDeleteAll(ChartID(),"SCheck");

//--- create application dialog
   if(!ExtDialog.Create(0,"Strategy Checklist",0,10,10,330,GetNumLines() * 18 + 50))
      return(INIT_FAILED);
//--- run application
   if(!ExtDialog.Run())
      return(INIT_FAILED);
//--- ok
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
   ObjectsDeleteAll(ChartID(),"SCheck");

//--- destroy application dialog
   ExtDialog.Destroy(reason);
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
int start()
  {
// Call function ManageEvents on every MT4 tick

   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
  {
//---

//--- return value of prev_calculated for next call
   return(rates_total);
  }
//+------------------------------------------------------------------+
//| ChartEvent function                                              |
//+------------------------------------------------------------------+
void OnChartEvent(const int id,
                  const long &lparam,
                  const double &dparam,
                  const string &sparam)
  {
   ExtDialog.ChartEvent(id,lparam,dparam,sparam);
  }
//+------------------------------------------------------------------+

//+------------------------------------------------------------------+

void CPanelDialog::WriteIndicatorsData()
  {
   bool arr[20];
   string path=DataDirectoryName+"//"+Symbol()+DataFileName;

   arr[0] = chk01;
   arr[1] = chk02;
   arr[2] = chk03;
   arr[3] = chk04;
   arr[4] = chk05;
   arr[5] = chk06;
   arr[6] = chk07;
   arr[7] = chk08;
   arr[8] = chk09;
   arr[9] = chk10;

   arr[10] = chk11;
   arr[11] = chk12;
   arr[12] = chk13;
   arr[13] = chk14;
   arr[14] = chk15;
   arr[15] = chk16;
   arr[16] = chk17;
   arr[17] = chk18;
   arr[18] = chk19;
   arr[19] = chk20;

//--- open the file
   ResetLastError();
   int handle = FileOpen(path,FILE_READ|FILE_WRITE|FILE_BIN);
   if(handle != INVALID_HANDLE)
     {
      //--- write array data
      FileWriteArray(handle,arr);
      //--- close the file
      FileClose(handle);
     }
   else
     {
      Print("Failed to open the file, error: "+(string) GetLastError());
     }
  }
//+------------------------------------------------------------------+
//|                                                                  |
//+------------------------------------------------------------------+
void CPanelDialog::ReadIndicatorsData()
  {
   bool arr[];
   string path=DataDirectoryName+"//"+Symbol()+DataFileName;

//--- open the file
   ResetLastError();
   int file_handle = FileOpen(path,FILE_READ|FILE_BIN);
   if(file_handle != INVALID_HANDLE)
     {
      //--- read all data from the file to the array
      FileReadArray(file_handle,arr);
      int size=ArraySize(arr);

      chk01 = arr[0];
      chk02 = arr[1];
      chk03 = arr[2];
      chk04 = arr[3];
      chk05 = arr[4];
      chk06 = arr[5];
      chk07 = arr[6];
      chk08 = arr[7];
      chk09 = arr[8];
      chk10 = arr[9];

      chk11 = arr[10];
      chk12 = arr[11];
      chk13 = arr[12];
      chk14 = arr[13];
      chk15 = arr[14];
      chk16 = arr[15];
      chk17 = arr[16];
      chk18 = arr[17];
      chk19 = arr[18];
      chk20 = arr[19];

      //--- close the file
      FileClose(file_handle);
     }
   else
     {
      Print("File open failed, error: "+(string) GetLastError());
     }

  }
//+------------------------------------------------------------------+

int GetNumLines()
{
   int dy = 0;

   if(StringLen(Check01) > 0)
      dy++;
   if(StringLen(Check02) > 0)
      dy++;
   if(StringLen(Check03) > 0)
      dy++;
   if(StringLen(Check04) > 0)
      dy++;
   if(StringLen(Check05) > 0)
      dy++;
   if(StringLen(Check06) > 0)
      dy++;
   if(StringLen(Check07) > 0)
      dy++;
   if(StringLen(Check08) > 0)
      dy++;
   if(StringLen(Check09) > 0)
      dy++;
   if(StringLen(Check10) > 0)
      dy++;
   if(StringLen(Check11) > 0)
      dy++;
   if(StringLen(Check12) > 0)
      dy++;
   if(StringLen(Check13) > 0)
      dy++;
   if(StringLen(Check14) > 0)
      dy++;
   if(StringLen(Check15) > 0)
      dy++;
   if(StringLen(Check16) > 0)
      dy++;
   if(StringLen(Check17) > 0)
      dy++;
   if(StringLen(Check18) > 0)
      dy++;
   if(StringLen(Check19) > 0)
      dy++;
   if(StringLen(Check20) > 0)
      dy++;

   return dy;
}

Similar scripts

FXTT_StrategyChecklist_v1

Comments
