FTLM_KG_hist

This script functions as a specialized technical analysis tool designed to filter market noise and identify underlying price trends. Instead of using standard moving averages, it employs a sophisticated mathematical "digital filter" approach to analyze price action.

Core Logic Overview

The script operates by performing a complex weighted calculation across a specific window of historical price data (controlled by the CountBars setting). Rather than treating every price point equally, it assigns a unique mathematical weight—either positive or negative—to each historical closing price within a 62-bar sequence.

How the Calculation Works

To generate its visual signals, the script performs two distinct operations simultaneously:

  1. Dual Weighted Analysis: The logic calculates two different weighted sums (referred to in the code as value1 through value4). These calculations use highly specific decimal coefficients to determine a "filtered" value for the current price movement and the immediate preceding movement.
  2. Comparative Difference: By subtracting these weighted values from one another, the script derives two primary data points:
    • FTLM: Represents the filtered momentum of the current period.
    • FTLM1: Represents the filtered momentum of the previous period.

Visual Output and Interpretation

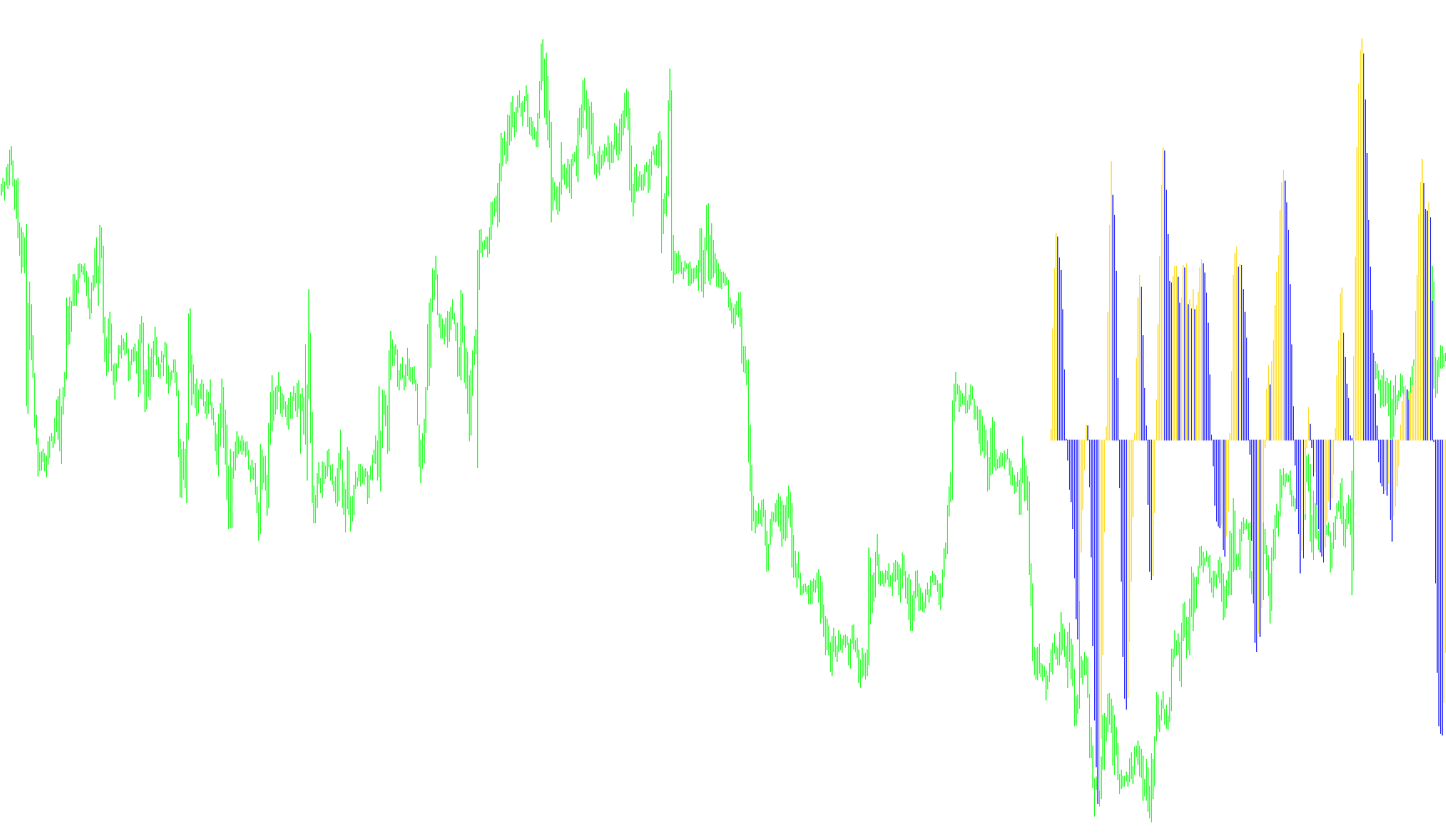

The final result is displayed in a separate window as a histogram. The logic compares the current momentum against the previous momentum to determine the visual output:

  • Green Histogram (Up): This appears when the current filtered momentum is higher than the previous filtered momentum. It suggests that the "filtered" price trend is strengthening or moving upward.
  • Red Histogram (Down): This appears when the current filtered momentum is lower than the previous filtered momentum. It indicates that the "filtered" price trend is weakening or moving downward.

Summary for the User

Essentially, this tool acts as a sophisticated "trend smoother." By using a precise digital filter, it attempts to strip away minor price fluctuations (market noise) to reveal whether the broader momentum of the market is currently tilting toward the upside or the downside. It provides a cleaner visual representation of trend changes compared to standard indicators that might react too quickly to volatile price spikes.

Miscellaneous
Implements a curve of type %1
14 Views
0 Downloads
0 Favorites
FTLM_KG_hist
//+------------------------------------------------------------------+
//| FTLM_KG_hist.mq4
//| Digital filter from Kenny-Goodman
//| Ramdass - Conversion only
//+------------------------------------------------------------------+

#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 Green
#property indicator_color2 Red

extern int CountBars=300;
//---- buffers
double Up[];
double Down[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   string short_name;
//---- indicator line
   IndicatorBuffers(2);
   SetIndexStyle(0,DRAW_HISTOGRAM);
   SetIndexBuffer(0,Up);
   SetIndexStyle(1,DRAW_HISTOGRAM);
   SetIndexBuffer(1,Down);

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| FTLM                                                             |
//+------------------------------------------------------------------+
int start()
  {
   SetIndexDrawBegin(0,Bars-CountBars+62);
   SetIndexDrawBegin(1,Bars-CountBars+62);
   int i,i2,counted_bars=IndicatorCounted();
   double FTLM,FTLM1,value1,value2,value3,value4;
//----
   if(Bars<=62) return(0);
//---- initial zero
   if(counted_bars<62)
   {
      for(i=1;i<=0;i++) Up[Bars-i]=0.0;
      for(i=1;i<=0;i++) Down[Bars-i]=0.0;
   }
//----
   i=CountBars-62-1;
//   if(counted_bars>=62) i=Bars-counted_bars-1;
   while(i>=0)
     {

value1 =
0.216679747671846*Close[i+0]
+0.211269420463811*Close[i+1]
+0.195544884029715*Close[i+2]
+0.170965415406708*Close[i+3]
+0.139777024336523*Close[i+4]
+0.10475520757496*Close[i+5]
+0.0688963726406815*Close[i+6]
+0.0350907878482374*Close[i+7]
+0.00582303578389499*Close[i+8]
-0.0170687325113629*Close[i+9]
-0.0325430291353946*Close[i+10]
-0.0404061862801786*Close[i+11]
-0.0412576874250575*Close[i+12]
-0.0363489006817302*Close[i+13]
-0.0273726712811041*Close[i+14]
-0.0162239477577438*Close[i+15]
-0.00474919988104162*Close[i+16]
+0.00546044031567738*Close[i+17]
+0.0132340752866597*Close[i+18]
+0.0179048641241163*Close[i+19]
+0.0193288196450583*Close[i+20]
+0.0178203001317383*Close[i+21]
+0.0140521142662672*Close[i+22]
+0.00890900942687798*Close[i+23]
+0.00332796683926323*Close[i+24]
-0.00183047425117888*Close[i+25]
-0.00590003260461143*Close[i+26]
-0.008470924607332*Close[i+27]
-0.00941376204563632*Close[i+28]
-0.00885433738048246*Close[i+29]
-0.00711869639879854*Close[i+30]
-0.00465317542176635*Close[i+31]
-0.00194019707183346*Close[i+32]
+0.000579603884990088*Close[i+33]
+0.00256707017356023*Close[i+34]
+0.00381977207432852*Close[i+35]
+0.00428068634338846*Close[i+36]
+0.00402313632832263*Close[i+37]
+0.0032179506176373*Close[i+38]
+0.00209012998360153*Close[i+39]
+0.000874173133673174*Close[i+40]
-0.000224786383933042*Close[i+41]
-0.0010587336898008*Close[i+42]
-0.00155052433232022*Close[i+43]
-0.00169306769372935*Close[i+44]
-0.00153786701404679*Close[i+45]
-0.00117483219738423*Close[i+46]
-0.000710127079707358*Close[i+47]
-0.000243983404727185*Close[i+48]
+0.000144391315936508*Close[i+49]
+0.000408472741254023*Close[i+50]
+0.000535354473765889*Close[i+51]
+0.000542366420043941*Close[i+52]
+0.000469190409143627*Close[i+53]
+0.000367676722499057*Close[i+54]
-0.000413583883278278*Close[i+55];

value2=
0.0364298167208155*Close[i+0]
+0.0553906231378775*Close[i+1]
+0.0739088457518267*Close[i+2]
+0.0904000966980787*Close[i+3]
+0.103396797434432*Close[i+4]
+0.111711342284296*Close[i+5]
+0.114572120305459*Close[i+6]
+0.111711342284296*Close[i+7]
+0.103396797434432*Close[i+8]
+0.0904000966980787*Close[i+9]
+0.0739088457518267*Close[i+10]
+0.0553906231378775*Close[i+11]
+0.0364298167208155*Close[i+12]
+0.0185546919366474*Close[i+13]
+0.00307900283041587*Close[i+14]
-0.00902530529856102*Close[i+15]
-0.0172075327263682*Close[i+16]
-0.0213652751829327*Close[i+17]
-0.0218155170382955*Close[i+18]
-0.0192199347960543*Close[i+19]
-0.0144736414953281*Close[i+20]
-0.00857861481888381*Close[i+21]
-0.00251119869748709*Close[i+22]
+0.00288727595213947*Close[i+23]
+0.00699768244225111*Close[i+24]
+0.00946742032203178*Close[i+25]
+0.0102203545718079*Close[i+26]
+0.0094227060558747*Close[i+27]
+0.00743023076018664*Close[i+28]
+0.00471074990083792*Close[i+29]
+0.00175970399253971*Close[i+30]
-0.000967886100918518*Close[i+31]
-0.00311971586013391*Close[i+32]
-0.00447910708609257*Close[i+33]
-0.00497764414629577*Close[i+34]
-0.00468184137410999*Close[i+35]
-0.00376409954776387*Close[i+36]
-0.00246042456645472*Close[i+37]
-0.00102590341145799*Close[i+38]
+0.000306472786469948*Close[i+39]
+0.00135737038610145*Close[i+40]
+0.00201975214731277*Close[i+41]
+0.00226346631835387*Close[i+42]
+0.00212728353418576*Close[i+43]
+0.0017015315425756*Close[i+44]
+0.00110518230941413*Close[i+45]
+0.000462229952338165*Close[i+46]
-0.000118858605382952*Close[i+47]
-0.000559818649332224*Close[i+48]
-0.000819859088114563*Close[i+49]
-0.000895230669111811*Close[i+50]
-0.00081316637313982*Close[i+51]
-0.000621207183890965*Close[i+52]
-0.000375488554341561*Close[i+53]
-0.000129009269667756*Close[i+54]
+0.0000763487100123232*Close[i+55]
+0.000215985058849768*Close[i+56]
+0.000283075358142209*Close[i+57]
+0.000286783012231603*Close[i+58]
+0.000248090283379797*Close[i+59]
+0.000194413654881473*Close[i+60]
-0.000218687638971784*Close[i+61];


value3=
0.216679747671846*Close[i+0+1]
+0.211269420463811*Close[i+1+1]
+0.195544884029715*Close[i+2+1]
+0.170965415406708*Close[i+3+1]
+0.139777024336523*Close[i+4+1]
+0.10475520757496*Close[i+5+1]
+0.0688963726406815*Close[i+6+1]
+0.0350907878482374*Close[i+7+1]
+0.00582303578389499*Close[i+8+1]
-0.0170687325113629*Close[i+9+1]
-0.0325430291353946*Close[i+10+1]
-0.0404061862801786*Close[i+11+1]
-0.0412576874250575*Close[i+12+1]
-0.0363489006817302*Close[i+13+1]
-0.0273726712811041*Close[i+14+1]
-0.0162239477577438*Close[i+15+1]
-0.00474919988104162*Close[i+16+1]
+0.00546044031567738*Close[i+17+1]
+0.0132340752866597*Close[i+18+1]
+0.0179048641241163*Close[i+19+1]
+0.0193288196450583*Close[i+20+1]
+0.0178203001317383*Close[i+21+1]
+0.0140521142662672*Close[i+22+1]
+0.00890900942687798*Close[i+23+1]
+0.00332796683926323*Close[i+24+1]
-0.00183047425117888*Close[i+25+1]
-0.00590003260461143*Close[i+26+1]
-0.008470924607332*Close[i+27+1]
-0.00941376204563632*Close[i+28+1]
-0.00885433738048246*Close[i+29+1]
-0.00711869639879854*Close[i+30+1]
-0.00465317542176635*Close[i+31+1]
-0.00194019707183346*Close[i+32+1]
+0.000579603884990088*Close[i+33+1]
+0.00256707017356023*Close[i+34+1]
+0.00381977207432852*Close[i+35+1]
+0.00428068634338846*Close[i+36+1]
+0.00402313632832263*Close[i+37+1]
+0.0032179506176373*Close[i+38+1]
+0.00209012998360153*Close[i+39+1]
+0.000874173133673174*Close[i+40+1]
-0.000224786383933042*Close[i+41+1]
-0.0010587336898008*Close[i+42+1]
-0.00155052433232022*Close[i+43+1]
-0.00169306769372935*Close[i+44+1]
-0.00153786701404679*Close[i+45+1]
-0.00117483219738423*Close[i+46+1]
-0.000710127079707358*Close[i+47+1]
-0.000243983404727185*Close[i+48+1]
+0.000144391315936508*Close[i+49+1]
+0.000408472741254023*Close[i+50+1]
+0.000535354473765889*Close[i+51+1]
+0.000542366420043941*Close[i+52+1]
+0.000469190409143627*Close[i+53+1]
+0.000367676722499057*Close[i+54+1]
-0.000413583883278278*Close[i+55+1];

value4=
0.0364298167208155*Close[i+0+1]
+0.0553906231378775*Close[i+1+1]
+0.0739088457518267*Close[i+2+1]
+0.0904000966980787*Close[i+3+1]
+0.103396797434432*Close[i+4+1]
+0.111711342284296*Close[i+5+1]
+0.114572120305459*Close[i+6+1]
+0.111711342284296*Close[i+7+1]
+0.103396797434432*Close[i+8+1]
+0.0904000966980787*Close[i+9+1]
+0.0739088457518267*Close[i+10+1]
+0.0553906231378775*Close[i+11+1]
+0.0364298167208155*Close[i+12+1]
+0.0185546919366474*Close[i+13+1]
+0.00307900283041587*Close[i+14+1]
-0.00902530529856102*Close[i+15+1]
-0.0172075327263682*Close[i+16+1]
-0.0213652751829327*Close[i+17+1]
-0.0218155170382955*Close[i+18+1]
-0.0192199347960543*Close[i+19+1]
-0.0144736414953281*Close[i+20+1]
-0.00857861481888381*Close[i+21+1]
-0.00251119869748709*Close[i+22+1]
+0.00288727595213947*Close[i+23+1]
+0.00699768244225111*Close[i+24+1]
+0.00946742032203178*Close[i+25+1]
+0.0102203545718079*Close[i+26+1]
+0.0094227060558747*Close[i+27+1]
+0.00743023076018664*Close[i+28+1]
+0.00471074990083792*Close[i+29+1]
+0.00175970399253971*Close[i+30+1]
-0.000967886100918518*Close[i+31+1]
-0.00311971586013391*Close[i+32+1]
-0.00447910708609257*Close[i+33+1]
-0.00497764414629577*Close[i+34+1]
-0.00468184137410999*Close[i+35+1]
-0.00376409954776387*Close[i+36+1]
-0.00246042456645472*Close[i+37+1]
-0.00102590341145799*Close[i+38+1]
+0.000306472786469948*Close[i+39+1]
+0.00135737038610145*Close[i+40+1]
+0.00201975214731277*Close[i+41+1]
+0.00226346631835387*Close[i+42+1]
+0.00212728353418576*Close[i+43+1]
+0.0017015315425756*Close[i+44+1]
+0.00110518230941413*Close[i+45+1]
+0.000462229952338165*Close[i+46+1]
-0.000118858605382952*Close[i+47+1]
-0.000559818649332224*Close[i+48+1]
-0.000819859088114563*Close[i+49+1]
-0.000895230669111811*Close[i+50+1]
-0.00081316637313982*Close[i+51+1]
-0.000621207183890965*Close[i+52+1]
-0.000375488554341561*Close[i+53+1]
-0.000129009269667756*Close[i+54+1]
+0.0000763487100123232*Close[i+55+1]
+0.000215985058849768*Close[i+56+1]
+0.000283075358142209*Close[i+57+1]
+0.000286783012231603*Close[i+58+1]
+0.000248090283379797*Close[i+59+1]
+0.000194413654881473*Close[i+60+1]
-0.000218687638971784*Close[i+61+1];


FTLM=value1-value2;
FTLM1=value3-value4;


if (FTLM>FTLM1) {Up[i]=FTLM;Down[i]=0.0;} else {Down[i]=FTLM;Up[i]=0.0;}

      i--;
     }
   return(0);
  }
//+------------------------------------------------------------------+

Similar scripts

FTLM_KG_hist_v1

This indicator calculates the delta between two multi-layered, kernel-weighted linear combinations of price data to identify directional momentum shifts.

FTLM_hist_v1

This indicator utilizes a dual-layered linear regression approach to compare weighted price momentum across 48-bar lookback windows, visualizing directional shifts through histogram divergence.

STLM2_v2

This indicator calculates a directional bias by comparing two distinct weighted moving averages of historical closing prices to identify bullish and bearish momentum shifts.

STLM_hist_v2

This indicator utilizes a complex weighted summation of historical closing prices to calculate and visualize momentum shifts through a dual-histogram comparison.

FTLM_hist_v2

This indicator calculates momentum by subtracting a secondary multi-coefficient weighted average from a primary 44-period weighted price matrix to identify trend direction.

FTLM_hist

This indicator calculates and compares two distinct weighted moving averages based on 44-period price coefficients to identify directional momentum shifts via a histogram.

FTLM-STLM_v2

This indicator utilizes four distinct high-order weighted moving average regressions to calculate the divergence between long-term price momentum and short-term volatility shifts.

RBCI_v1

This indicator calculates a weighted sum of the last 56 closing prices using specific coefficients to visualize price deviation and momentum dynamics.

STLM2_002

The indicator calculates two distinct weighted moving averages using fixed coefficients to determine momentum direction and intensity via a histogram.

FTLM_STLM_v1

This indicator utilizes multiple distinct weighted linear regressions over a 90-bar period to calculate price momentum shifts through differential smoothing.

s_rbci

This indicator calculates the variance between two distinct multi-period linear weighted price averages to identify momentum divergence.

Comments
