fract1

Download script
Author: Copyright 2015, Kabul
fract1

This script functions as a multi-timeframe dashboard for MetaTrader 4, designed to provide traders with a consolidated visual summary of market activity across various time intervals simultaneously. Instead of forcing you to switch between different charts to monitor the market, it pulls and organizes key data points into a single on-screen display.

Core Functionality

Multi-Timeframe Analysis The script tracks seven different timeframes: 1-minute (M1), 5-minute (M5), 15-minute (M15), 30-minute (M30), 1-hour (M60), 4-hour (M240), and Daily (M1440). For each of these periods, it calculates several critical metrics:

  • Highest and Lowest Prices: It identifies the peak and valley prices for the current period.
  • Maximum Range: The largest price gap recorded within a specific lookback window.
  • Minimum Range: The smallest price gap recorded within that same window.
  • Average Range: The mathematical average of price movement over those periods.

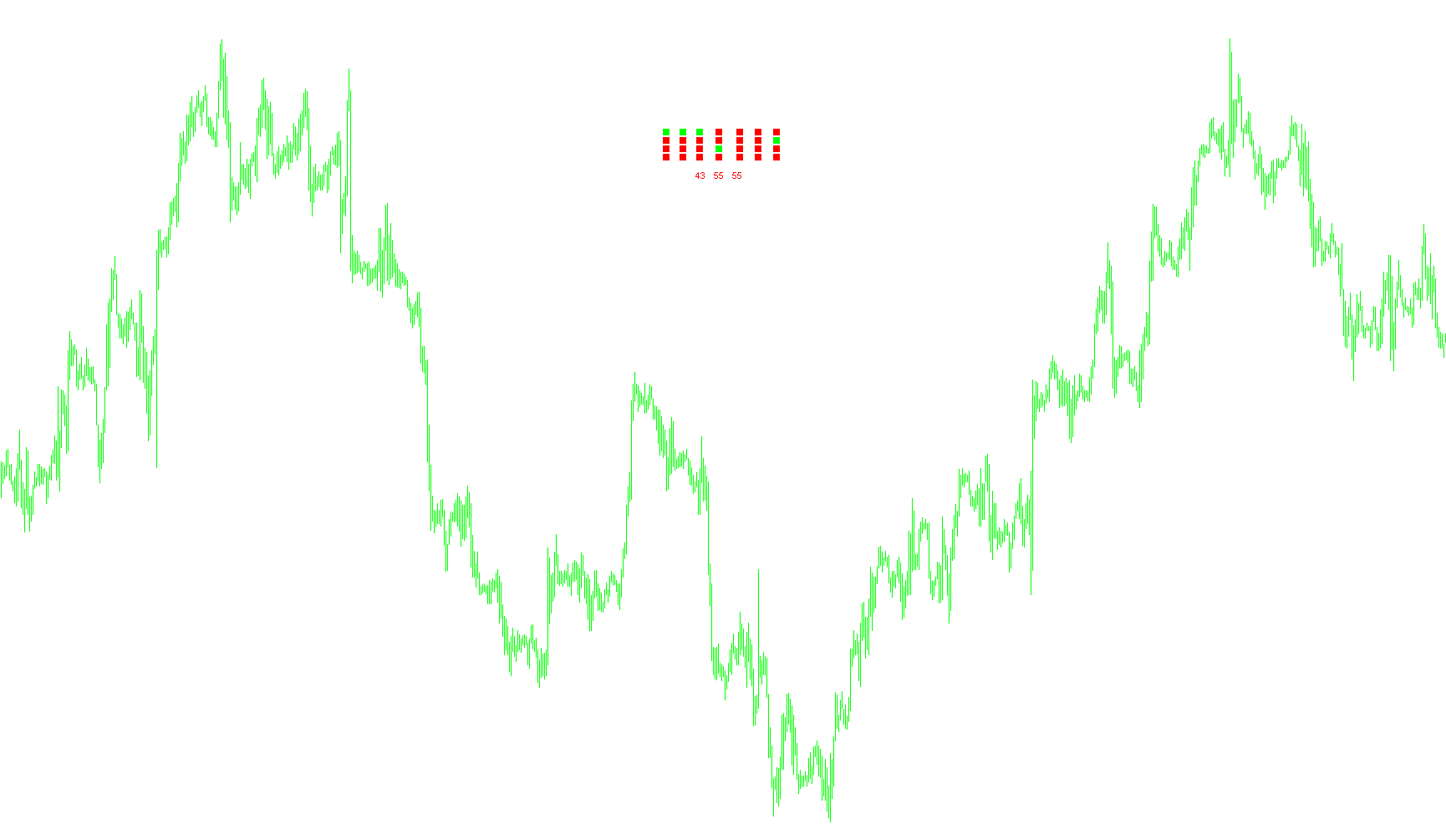

Visual Dashboard Layout The script generates an organized panel on your chart containing:

  • Static Data Labels: Clearly shows the Daily High and Low prices.
  • Statistical Grid: A structured table showing the Max, Min, and Average values for every supported timeframe.
  • Current Movement Tracking: It calculates the "Now" range (the difference between the high and low of the most recently completed candle).

Dynamic Color Coding To help with quick decision-making, the script uses a color-logic system for the current movement values:

  • White: Used when the current price movement is standard (less than the average).
  • Lime (Green): Indicates that the current move is greater than or equal to the calculated average.
  • Red: Signals that the current move has reached or exceeded the maximum recorded range for that timeframe.

User Interaction and Customization The script allows for manual positioning on the screen. By using specific keyboard inputs and mouse clicks, users can drag or adjust the horizontal (X) and vertical (Y) coordinates of the dashboard to ensure it does not obstruct other trading tools or price action.

Summary for Traders

This tool acts as a "Market Pulse" monitor. It tells you at a glance whether the current market volatility is normal, expanding, or reaching extreme levels across multiple timeframes, helping you identify high-volatility zones or exhaustion points without leaving your primary chart.

Price Data Components
Series array that contains the highest prices of each barSeries array that contains the lowest prices of each barSeries array that contains open prices of each barSeries array that contains close prices for each bar
5 Views
0 Downloads
0 Favorites
fract1
//+------------------------------------------------------------------+
//|                                                       Fract1.mq4 |
//|                                            Copyright 2015, Kabul |
//|                                               panji_xx@yahoo.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2015, Kabul"
#property link      "panji_xx@yahoo.com"
#property version   "1.00"
#property strict
#property indicator_chart_window

input int    X_distance=770;
input int    Y_distance=25;

int    X_dist,Y_dist;
int    kstrok,kdown;

double M1[5],M5[3],M15[2],M30[2],M60[4],M240[6],M1440[5];
double M1max,M1min,M1ave,M5max,M5min,M5ave,M15max,M15min,M15ave,M30max,M30min,M30ave;
double M60max,M60min,M60ave,M240max,M240min,M240ave,M1440max,M1440min,M1440ave;
color  wrn;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int OnInit()
  {
     EventSetTimer(1);
     X_dist=X_distance;
     Y_dist=Y_distance;
     return(INIT_SUCCEEDED);
  }

int deinit()
  {

  for(int i=1;i<44;i++)
    {
     ObjectDelete(StringConcatenate("Text"+IntegerToString(i)));
    }

  for(int i=0;i<4;i++)
    {
     ObjectDelete(StringConcatenate("M1"+IntegerToString(i)));
     ObjectDelete(StringConcatenate("M5"+IntegerToString(i)));
     ObjectDelete(StringConcatenate("M15"+IntegerToString(i)));
     ObjectDelete(StringConcatenate("M30"+IntegerToString(i)));
     ObjectDelete(StringConcatenate("M60"+IntegerToString(i)));
     ObjectDelete(StringConcatenate("M240"+IntegerToString(i)));
     ObjectDelete(StringConcatenate("M1440"+IntegerToString(i)));
    }

      return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
  {
//---

//--- return value of prev_calculated for next call
   return(rates_total);
  }

void OnChartEvent(const int id,         // Event identifier
                  const long& lparam,   // Event parameter of long type
                  const double& dparam, // Event parameter of double type
                  const string& sparam) // Event parameter of string type

{
    if (id==CHARTEVENT_KEYDOWN)
     {
        kstrok=lparam;kdown=StringToInteger(sparam);
     }

    if ((id==CHARTEVENT_CLICK)&&(kstrok==77)&&(kdown==16434))
     {
       X_dist=lparam;Y_dist=dparam;
       kstrok=0;kdown=0;
     }
}
//+------------------------------------------------------------------+
//| Timer function                                                   |
//+------------------------------------------------------------------+
void OnTimer()
  {
//---

    SetText("Text1","High Daily : ",X_dist,Y_dist,clrWhite,12,"Arial Black");
    SetText("Text2","Low  Daily : ",X_dist,Y_dist+20,clrWhite,12,"Arial Black");

    SetText("Text4",DoubleToString(iHigh(NULL,1440,0),Digits),X_dist+105,Y_dist,clrWhite,12,"Arial Black");
    SetText("Text5",DoubleToString(iLow(NULL,1440,0),Digits),X_dist+105,Y_dist+20,clrWhite,12,"Arial Black");


    HiLoCnd();

    SetText("Text7","Max",X_dist,Y_dist+70,clrWhite,8,"Arial");
    SetText("Text8","Min",X_dist,Y_dist+85,clrWhite,8,"Arial");
    SetText("Text9","Ave",X_dist,Y_dist+100,clrWhite,8,"Arial");

    SetText("Text40","3",X_dist,Y_dist+130,clrWhite,8,"Arial");
    SetText("Text41","2",X_dist,Y_dist+140,clrWhite,8,"Arial");
    SetText("Text42","1",X_dist,Y_dist+150,clrWhite,8,"Arial");
    SetText("Text43","0",X_dist,Y_dist+160,clrWhite,8,"Arial");

    SetText("Text10",DoubleToString(M1max,0),X_dist+25,Y_dist+70,clrWhite,8,"Arial");
    SetText("Text11",DoubleToString(M1min,0),X_dist+25,Y_dist+85,clrWhite,8,"Arial");
    SetText("Text12",DoubleToString(M1ave,0),X_dist+25,Y_dist+100,clrWhite,8,"Arial");

    SetText("Text13",DoubleToString(M5max,0),X_dist+45,Y_dist+70,clrWhite,8,"Arial");
    SetText("Text14",DoubleToString(M5min,0),X_dist+45,Y_dist+85,clrWhite,8,"Arial");
    SetText("Text15",DoubleToString(M5ave,0),X_dist+45,Y_dist+100,clrWhite,8,"Arial");

    SetText("Text16",DoubleToString(M15max,0),X_dist+65,Y_dist+70,clrWhite,8,"Arial");
    SetText("Text17",DoubleToString(M15min,0),X_dist+65,Y_dist+85,clrWhite,8,"Arial");
    SetText("Text18",DoubleToString(M15ave,0),X_dist+65,Y_dist+100,clrWhite,8,"Arial");

    SetText("Text19",DoubleToString(M30max,0),X_dist+87,Y_dist+70,clrWhite,8,"Arial");
    SetText("Text20",DoubleToString(M30min,0),X_dist+87,Y_dist+85,clrWhite,8,"Arial");
    SetText("Text21",DoubleToString(M30ave,0),X_dist+87,Y_dist+100,clrWhite,8,"Arial");

    SetText("Text22",DoubleToString(M60max,0),X_dist+109,Y_dist+70,clrWhite,8,"Arial");
    SetText("Text23",DoubleToString(M60min,0),X_dist+109,Y_dist+85,clrWhite,8,"Arial");
    SetText("Text24",DoubleToString(M60ave,0),X_dist+109,Y_dist+100,clrWhite,8,"Arial");

    SetText("Text25",DoubleToString(M240max,0),X_dist+131,Y_dist+70,clrWhite,8,"Arial");
    SetText("Text26",DoubleToString(M240min,0),X_dist+131,Y_dist+85,clrWhite,8,"Arial");
    SetText("Text27",DoubleToString(M240ave,0),X_dist+131,Y_dist+100,clrWhite,8,"Arial");

    SetText("Text28",DoubleToString(M1440max,0),X_dist+153,Y_dist+70,clrWhite,8,"Arial");
    SetText("Text29",DoubleToString(M1440min,0),X_dist+153,Y_dist+85,clrWhite,8,"Arial");
    SetText("Text30",DoubleToString(M1440ave,0),X_dist+153,Y_dist+100,clrWhite,8,"Arial");

    SetText("Text31","M1 M5  M15 M30 1H   4H   1D",X_dist+25,Y_dist+115,clrWhite,8,"Arial");

    MakePanel(X_dist+25,Y_dist+160);

    SetText("Text32","Now",X_dist,Y_dist+180,clrWhite,8,"Arial");

    warna((iHigh(NULL,1,0)-iLow(NULL,1,0))/Point,M1ave,M1max);
    SetText("Text33",DoubleToString((iHigh(NULL,1,0)-iLow(NULL,1,0))/Point,0),X_dist+25,Y_dist+180,wrn,8,"Arial");
    warna((iHigh(NULL,5,0)-iLow(NULL,5,0))/Point,M5ave,M5max);
    SetText("Text34",DoubleToString((iHigh(NULL,5,0)-iLow(NULL,5,0))/Point,0),X_dist+45,Y_dist+180,wrn,8,"Arial");
    warna((iHigh(NULL,15,0)-iLow(NULL,15,0))/Point,M15ave,M15max);
    SetText("Text35",DoubleToString((iHigh(NULL,15,0)-iLow(NULL,15,0))/Point,0),X_dist+65,Y_dist+180,wrn,8,"Arial");
    warna((iHigh(NULL,30,0)-iLow(NULL,30,0))/Point,M30ave,M30max);
    SetText("Text36",DoubleToString((iHigh(NULL,30,0)-iLow(NULL,30,0))/Point,0),X_dist+87,Y_dist+180,wrn,8,"Arial");
    warna((iHigh(NULL,60,0)-iLow(NULL,60,0))/Point,M60ave,M60max);
    SetText("Text37",DoubleToString((iHigh(NULL,60,0)-iLow(NULL,60,0))/Point,0),X_dist+109,Y_dist+180,wrn,8,"Arial");
    warna((iHigh(NULL,240,0)-iLow(NULL,240,0))/Point,M240ave,M240max);
    SetText("Text38",DoubleToString((iHigh(NULL,240,0)-iLow(NULL,240,0))/Point,0),X_dist+131,Y_dist+180,wrn,8,"Arial");
    warna((iHigh(NULL,1440,0)-iLow(NULL,1440,0))/Point,M1440ave,M1440max);
    SetText("Text39",DoubleToString((iHigh(NULL,1440,0)-iLow(NULL,1440,0))/Point,0),X_dist+153,Y_dist+180,wrn,8,"Arial");

  }
//+------------------------------------------------------------------+



void SetText(string name,string text,int x,int y,color colour,int fontsize=12, string fontname="Arial")
  {
     ObjectDelete(name);
   if(ObjectCreate(0,name,OBJ_LABEL,0,0,0))
     {
      ObjectSetInteger(0,name,OBJPROP_XDISTANCE,x);
      ObjectSetInteger(0,name,OBJPROP_YDISTANCE,y);
      ObjectSetInteger(0,name,OBJPROP_COLOR,colour);
      ObjectSetInteger(0,name,OBJPROP_FONTSIZE,fontsize);
      ObjectSetString(0,name,OBJPROP_FONT,fontname);
      ObjectSetInteger(0,name,OBJPROP_CORNER,CORNER_LEFT_UPPER);
     }
   ObjectSetString(0,name,OBJPROP_TEXT,text);
  }



 void HiLoCnd()
 {
   int hit;
   M1ave=0;M5ave=0;M15ave=0;M30ave=0;M60ave=0;M240ave=0;M1440ave=0;
   M1max=0;M5max=0;M15max=0;M30max=0;M60max=0;M240max=0;M1440max=0;
   M1min=10000;M5min=10000;M15min=10000;M30min=10000;M60min=10000;M240min=10000;M1440min=10000;
   for (hit=1;hit<6;hit++)
    {
      M1[hit-1]=(iHigh(NULL,1,hit)-iLow(NULL,1,hit))/Point;
      M1ave=M1ave+M1[hit-1];
      if(M1max<M1[hit-1]) {M1max=M1[hit-1];}
      if(M1min>M1[hit-1]) {M1min=M1[hit-1];}
    }

      M1ave=M1ave/5;
   for (hit=1;hit<4;hit++)
    {
      M5[hit-1]=(iHigh(NULL,5,hit)-iLow(NULL,5,hit))/Point;
      M5ave=M5ave+M5[hit-1];
      if(M5max<M5[hit-1]) {M5max=M5[hit-1];}
      if(M5min>M5[hit-1]) {M5min=M5[hit-1];}
    }

      M5ave=M5ave/3;
   for (hit=1;hit<3;hit++)
    {
      M15[hit-1]=(iHigh(NULL,15,hit)-iLow(NULL,15,hit))/Point;
      M15ave=M15ave+M15[hit-1];
      if(M15max<M15[hit-1]) {M15max=M15[hit-1];}
      if(M15min>M15[hit-1]) {M15min=M15[hit-1];}
    }

      M15ave=M15ave/2;

   for (hit=1;hit<3;hit++)
    {
      M30[hit-1]=(iHigh(NULL,30,hit)-iLow(NULL,30,hit))/Point;
      M30ave=M30ave+M30[hit-1];
      if(M30max<M30[hit-1]) {M30max=M30[hit-1];}
      if(M30min>M30[hit-1]) {M30min=M30[hit-1];}
    }

      M30ave=M30ave/2;

   for (hit=1;hit<5;hit++)
    {
      M60[hit-1]=(iHigh(NULL,60,hit)-iLow(NULL,60,hit))/Point;
      M60ave=M60ave+M60[hit-1];
      if(M60max<M60[hit-1]) {M60max=M60[hit-1];}
      if(M60min>M60[hit-1]) {M60min=M60[hit-1];}
    }

      M60ave=M60ave/4;

   for (hit=1;hit<7;hit++)
    {
      M240[hit-1]=(iHigh(NULL,240,hit)-iLow(NULL,240,hit))/Point;
      M240ave=M240ave+M240[hit-1];
      if(M240max<M240[hit-1]) {M240max=M240[hit-1];}
      if(M240min>M240[hit-1]) {M240min=M240[hit-1];}
    }

      M240ave=M240ave/6;

   for (hit=1;hit<6;hit++)
    {
      M1440[hit-1]=(iHigh(NULL,1440,hit)-iLow(NULL,1440,hit))/Point;
      M1440ave=M1440ave+M1440[hit-1];
      if(M1440max<M1440[hit-1]) {M1440max=M1440[hit-1];}
      if(M1440min>M1440[hit-1]) {M1440min=M1440[hit-1];}
    }

      M1440ave=M1440ave/5;
 }



   void MakePanel(int posx, int posy)
  {
     int x,y,i;
     int tf[7];
     tf[0]=1;tf[1]=5;tf[2]=15;tf[3]=30;tf[4]=60;tf[5]=240;tf[6]=1440;

     y=0;x=20;

      for (y=0;y<7;y++)
       {
        for (i=0;i<4;i++)
        {
          if (y>3) {x=22;}
          if (y==3) {x=21;}
          ObjectDelete("M"+IntegerToString(tf[y])+IntegerToString(i));
          if (iOpen(NULL,tf[y],i)<iClose(NULL,tf[y],i))
           {
             SetPanel("M"+IntegerToString(tf[y])+IntegerToString(i),0,posx+(y*x),posy-(i*10),10,10,clrLime,clrBlack,1);
           }

          if (iOpen(NULL,tf[y],i)>=iClose(NULL,tf[y],i))
           {
             SetPanel("M"+IntegerToString(tf[y])+IntegerToString(i),0,posx+(y*x),posy-(i*10),10,10,clrRed,clrBlack,1);
           }
        }
       }
  }


void SetPanel(string name,int sub_window,int x,int y,int width,int height,color bg_color,color border_clr,int border_width)
  {
   if(ObjectCreate(0,name,OBJ_RECTANGLE_LABEL,sub_window,0,0))
     {
      ObjectSetInteger(0,name,OBJPROP_XDISTANCE,x);
      ObjectSetInteger(0,name,OBJPROP_YDISTANCE,y);
      ObjectSetInteger(0,name,OBJPROP_XSIZE,width);
      ObjectSetInteger(0,name,OBJPROP_YSIZE,height);
      ObjectSetInteger(0,name,OBJPROP_COLOR,border_clr);
      ObjectSetInteger(0,name,OBJPROP_BORDER_TYPE,BORDER_FLAT);
      ObjectSetInteger(0,name,OBJPROP_WIDTH,border_width);
      ObjectSetInteger(0,name,OBJPROP_CORNER,CORNER_LEFT_UPPER);
      ObjectSetInteger(0,name,OBJPROP_STYLE,STYLE_SOLID);
      ObjectSetInteger(0,name,OBJPROP_BACK,false);
      ObjectSetInteger(0,name,OBJPROP_SELECTABLE,0);
      ObjectSetInteger(0,name,OBJPROP_SELECTED,0);
      ObjectSetInteger(0,name,OBJPROP_HIDDEN,true);
      ObjectSetInteger(0,name,OBJPROP_ZORDER,0);
     }
   ObjectSetInteger(0,name,OBJPROP_BGCOLOR,bg_color);
  }

void warna(double inow, double ave, double imax)
{
  wrn=clrWhite;
  if (inow>=ave) {wrn=clrLime;}
  if (inow>=imax) {wrn=clrRed;}
}
