Author: Copyright 2015, 3rjfx ~ 22/03/2015
forexline

This tool is designed for the MetaTrader platform to provide traders with a visual aid that clarifies market direction and trend movement. It functions by analyzing price data and transforming complex mathematical averages into two distinct, easy-to-read lines on your chart.

Core Logic and Functionality

The script operates through a multi-layered calculation process to filter out "noise" from the market:

  • Triple Layer Smoothing: The tool doesn't just look at the current price. It calculates three different types of moving averages (Fast, Medium, and Slow). By nesting these calculations—where each successive average is based on the previous one—the script effectively smooths out sudden price spikes, allowing the true underlying trend to become visible.
  • Trend Detection: The primary logic relies on the relationship between the "Fast" moving average and the "Slow" moving average.
    • When the Fast line moves above the Slow line, the system identifies an upward momentum.
    • When the Fast line drops below the Slow line, it identifies a downward momentum.

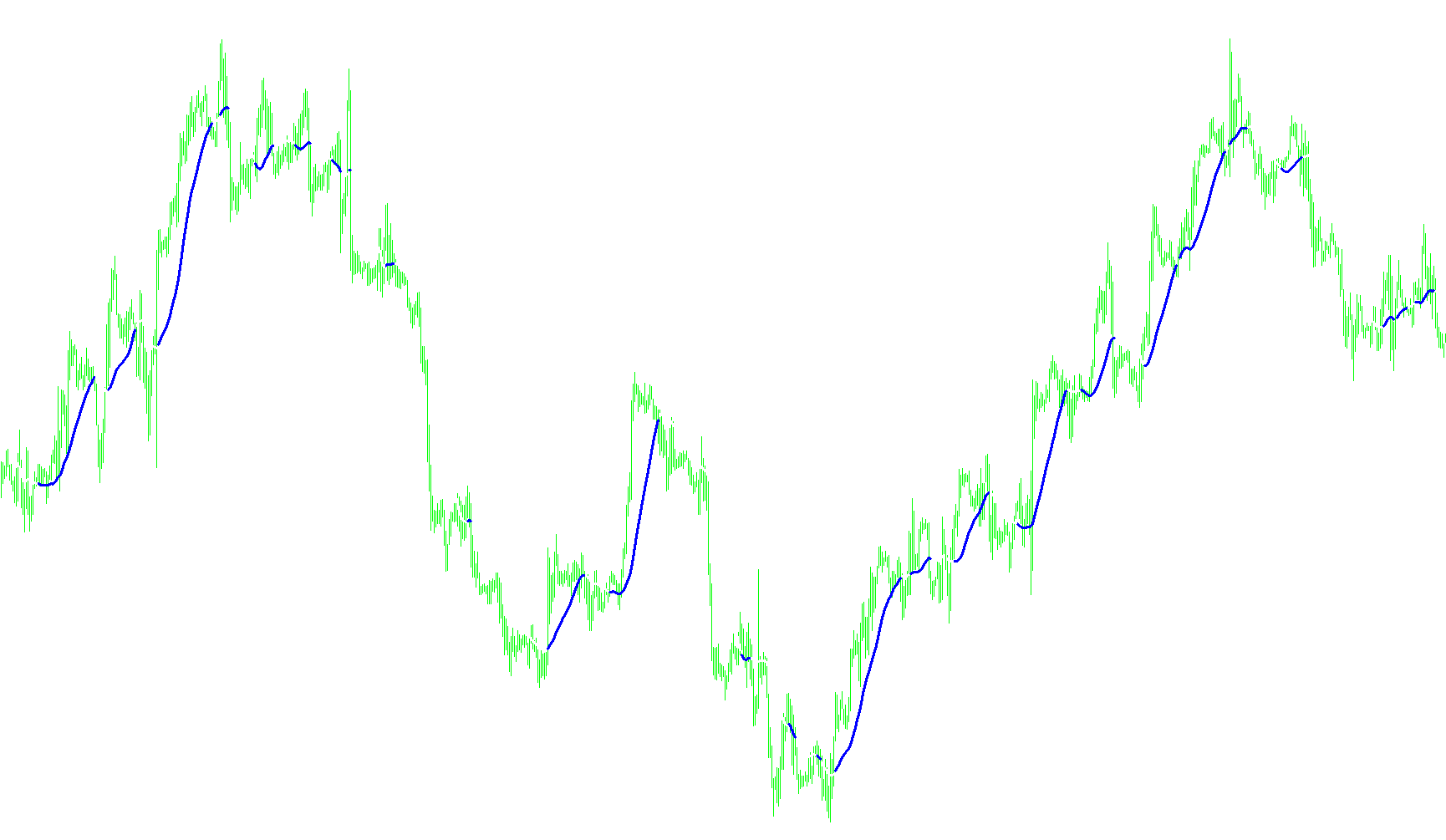

  • Dynamic Visual Representation: Instead of cluttering your screen with multiple overlapping lines, the script uses this logic to project two specific "Trend Lines":
    1. The Up Line: This appears when the market shows bullish momentum. It follows the path of the smoothed price to show you where the trend is heading.
    2. The Down Line: This appears only when the market shifts to bearish momentum, clearly highlighting the downward trajectory.

How it helps the trader

The primary goal of this script is to simplify decision-making. Rather than having to constantly interpret a sea of raw price data, the tool provides a clear visual "path." When the line color changes or the specific trend line appears, it signals a shift in market sentiment. It helps you identify whether the current environment is favorable for buying (Up Line) or selling (Down Line) by highlighting the dominant direction of the market in real-time.

Indicators Used
Moving average indicator
Miscellaneous
Implements a curve of type %1
3 Views
0 Downloads
0 Favorites
forexline
//+------------------------------------------------------------------+
//|                                                    ForexLine.mq4 |
//|                              Copyright 2015,  3rjfx ~ 22/03/2015 |
//|                              https://www.mql5.com/en/users/3rjfx |
//+------------------------------------------------------------------+
#property copyright "Copyright 2015,  3rjfx ~ 22/03/2015"
#property link      "https://www.mql5.com/en/users/3rjfx"
#property version   "1.00"
#property strict
//--
#include <MovingAverages.mqh>
//-
#property indicator_chart_window
//-
#property indicator_buffers 6
#property indicator_color1 clrNONE
#property indicator_color2 clrNONE
#property indicator_color3 clrNONE
#property indicator_color4 clrNONE
#property indicator_color5 clrBlue
#property indicator_color6 clrWhite
//--
#property indicator_width5 3
#property indicator_width6 3
//--
input color ForexLineColor1 = clrBlue;  // Line Up
input color ForexLineColor2 = clrWhite;  // Line Down
//-- buffers
double lwma05Buffers[];
double lwma10Buffers[];
double lwma20Buffers[];
double line20Buffers[];
double uplineBuffers[];
double dnlineBuffers[];
//-
int mafast=5;
int maslow=10;
int mdma20=20;
int digit;
//-
void EventSetTimer();
//--
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int OnInit(void)
  {
   //-- Checking the Digits Point
   if(Digits>=3) {digit=Digits;}
   else {digit=Digits+1;}
   IndicatorDigits(digit);
   //--
//--- indicator buffers mapping
   IndicatorBuffers(6);
   //--
   SetIndexBuffer(0,lwma05Buffers);
   SetIndexBuffer(1,lwma10Buffers);
   SetIndexBuffer(2,lwma20Buffers);
   SetIndexBuffer(3,line20Buffers);
   SetIndexBuffer(4,uplineBuffers);
   SetIndexBuffer(5,dnlineBuffers);
//--- indicator lines
   SetIndexStyle(0,DRAW_NONE);
   SetIndexStyle(1,DRAW_NONE);
   SetIndexStyle(2,DRAW_NONE);
   SetIndexStyle(3,DRAW_NONE);
   SetIndexStyle(4,DRAW_LINE,EMPTY,3,ForexLineColor1);
   SetIndexStyle(5,DRAW_LINE,EMPTY,3,ForexLineColor2);
   //--- name for DataWindow and indicator subwindow label
   SetIndexLabel(0,NULL);
   SetIndexLabel(1,NULL);
   SetIndexLabel(2,NULL);
   SetIndexLabel(3,NULL);
   SetIndexLabel(4,"LinesUp");
   SetIndexLabel(5,"LinesDn");
   //--
   SetIndexDrawBegin(3,maslow);
   SetIndexDrawBegin(4,maslow);
   //--
   IndicatorShortName("FXLine");
//---
   return(INIT_SUCCEEDED);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
void OnDeinit(const int reason)
  {
//----
   //--
   EventKillTimer();
   GlobalVariablesDeleteAll();
//----
   return;
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
  {
//---
   int i,limit;
   bool lup,ldn;
//--- check for bars count
   if(rates_total<=maslow) return(0);
//--- last counted bar will be recounted
   limit=rates_total-prev_calculated;
   if(prev_calculated>0) limit++;
   //--
//--- counting from rates_total to 0
   ArraySetAsSeries(lwma05Buffers,true);
   ArraySetAsSeries(lwma10Buffers,true);
   ArraySetAsSeries(lwma20Buffers,true);
   ArraySetAsSeries(line20Buffers,true);
   ArraySetAsSeries(uplineBuffers,true);
   ArraySetAsSeries(dnlineBuffers,true);
   //--
//--- main cycle
   for(i=limit-1; i>=0; i--)
     {
       lwma05Buffers[i]=iMA(_Symbol,0,mafast,0,3,4,i);
       line20Buffers[i]=iMA(_Symbol,0,mdma20,0,0,4,i);
     }
   //-
   LinearWeightedMAOnBuffer(rates_total,prev_calculated,0,maslow,lwma05Buffers,lwma10Buffers,i);
   LinearWeightedMAOnBuffer(rates_total,prev_calculated,0,mdma20,lwma10Buffers,lwma20Buffers,i);
   //-
   for(i=limit-1; i>=0; i--)
     {
       //--
       if(lwma05Buffers[i]>lwma20Buffers[i]) {lup=true; ldn=false;}
       if(lwma05Buffers[i]<lwma20Buffers[i]) {ldn=true; lup=false;}
       //-
       if(lup) {uplineBuffers[i]=line20Buffers[i]; dnlineBuffers[i]=EMPTY_VALUE;}
       if(ldn) {dnlineBuffers[i]=line20Buffers[i]; uplineBuffers[i]=EMPTY_VALUE;}
       //--
     }
   //---
//--- return value of prev_calculated for next call
   return(rates_total);
  }
//+------------------------------------------------------------------+
