FixedChartScale
Download script

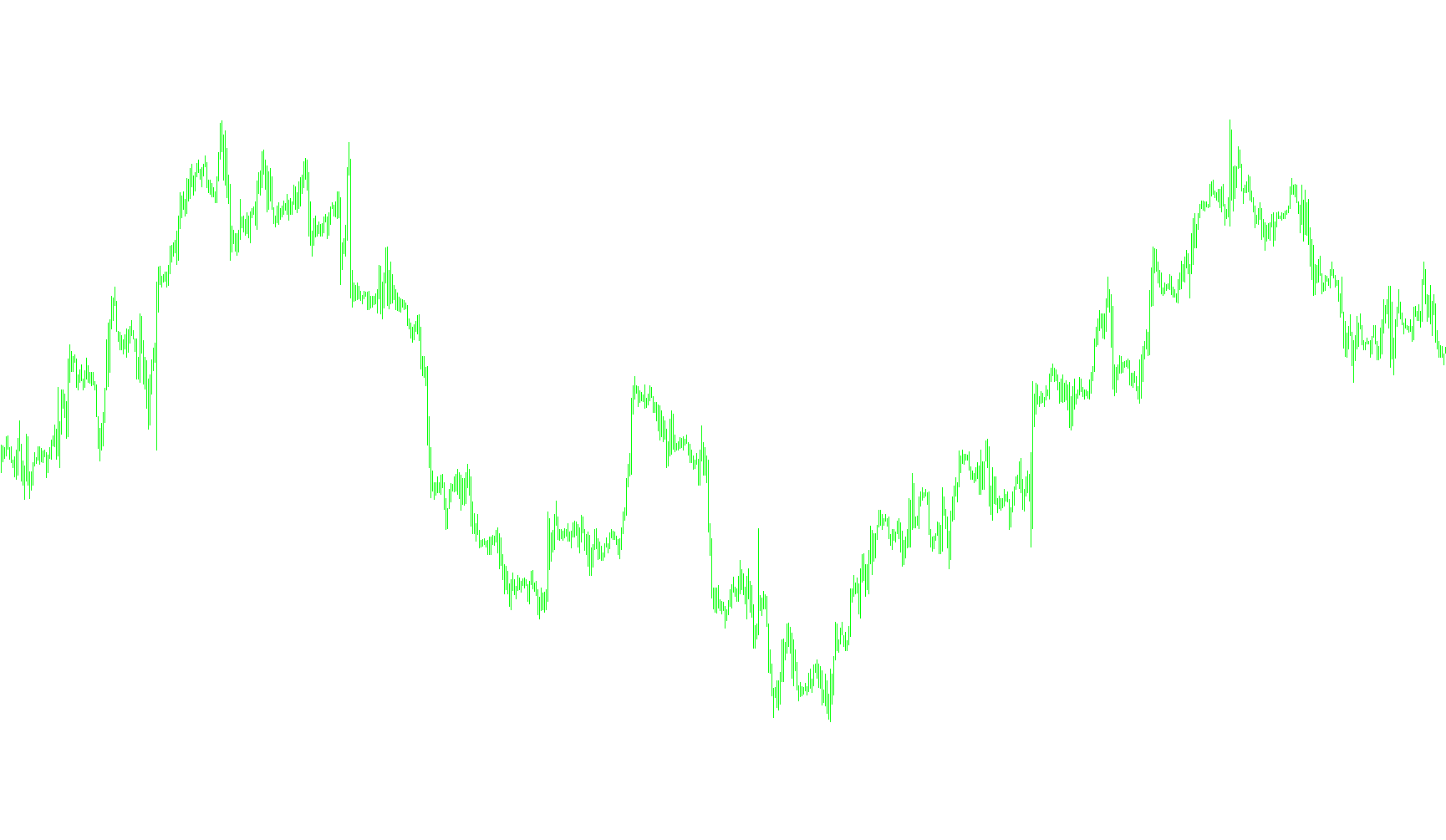

This script is designed to enhance the visual layout of your trading charts by automatically managing how price data is scaled and displayed. Its primary goal is to ensure that the candles and price movements remain clearly visible and aesthetically balanced on your screen, regardless of how volatile the market becomes.
Core Functionalities
1. Intelligent Auto-Scrolling The script includes a "Smart" Auto-Scroll feature. It monitors your position on the chart to determine if you are looking at live market action or reviewing historical data. If the chart detects that you have scrolled back into the past, it can automatically disable the platform's standard auto-scroll to keep your view steady. Conversely, when you are viewing the most recent price action, it ensures the auto-scroll is active so you don't miss new movements.
2. Dynamic Price Range Scaling To prevent the chart from "jumping" or becoming too compressed during periods of high volatility, the script calculates the visible price range. It looks at the highest and lowest prices currently shown on your screen and identifies the overall movement. It then uses these figures to determine the best way to frame the candles so that they occupy the screen space effectively without being cut off.
3. Automated Margin Adjustment One of the script's key features is its ability to create "breathing room" (margins) at the top and bottom of your chart. Instead of the price hitting the very edge of your screen, the script calculates a buffer zone based on market volatility.
Depending on the current price trend (determined by a moving average calculation), it intelligently decides which side of the chart needs more space. For example, if the price is trending strongly in one direction, it adjusts the top and bottom boundaries to ensure there is always a consistent visual gap, making it much easier for the trader to see the full context of the price movement.
Summary of Benefits
- Visual Consistency: Keeps your candles at an optimal size regardless of whether the market is moving 10 pips or 100 pips.
- Reduced Eye Strain: By maintaining constant margins, you don't have to constantly resize your windows to keep the price in view.
- Contextual Awareness: Automatically detects "Head" and "Tail" movements to provide more space where the price is moving most aggressively.
//+------------------------------------------------------------------+
//| ChartScale.mq4 |
//| Copyright 2016, MetaQuotes Software Corp. |
//| https://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "Copyright 2016, MetaQuotes Software Corp."
#property link "https://www.mql5.com"
#property version "1.06"
#property strict
#property indicator_chart_window
//--- input parameters
input double HeadMargin=20.0;
input double TailMargin=20.0;
//input double PipScale=0;
double pip1=1/pow(10,Digits-1);
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
enum onoff
{
ON, // On
OFF // Off
};
input onoff ascr=ON; // "Smart" Auto-Scroll
input onoff atrR=OFF; // ATR Range
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int OnInit()
{
//--- indicator buffers mapping
IndicatorShortName(NULL);
ChartSetInteger(0,CHART_SCALEFIX,true);
//---
return(INIT_SUCCEEDED);
}
//+------------------------------------------------------------------+
//| Custom indicator iteration function |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
const int prev_calculated,
const datetime &time[],
const double &open[],
const double &high[],
const double &low[],
const double &close[],
const long &tick_volume[],
const long &volume[],
const int &spread[])
{
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
void OnChartEvent(const int id, // Event ID
const long& lparam, // Parameter of type long event
const double& dparam, // Parameter of type double event
const string& sparam // Parameter of type string events
)
{
int pos,xpos;
double priceHigh,priceLow,priceMax,priceMin,priceRange,headClose,midRange;
bool cshift=ChartGetInteger(0,CHART_SHIFT,0);
xpos=(int)(WindowBarsPerChart()*ChartShiftSizeGet()/100);
if(cshift==true) pos=WindowFirstVisibleBar()+xpos-WindowBarsPerChart(); // Chart position for AutoScroll On/Off
else pos=WindowFirstVisibleBar()-WindowBarsPerChart(); // Check for chart shift
if(ascr==ON)
{
if(pos>0) ChartSetInteger(0,CHART_AUTOSCROLL,false); // If chart scrolled backwards switch off Autoscroll
else ChartSetInteger(0,CHART_AUTOSCROLL,true); // if chart at front switch Autoscroll on
}
//---
int bars_count=WindowBarsPerChart();
int bar=WindowFirstVisibleBar();
priceHigh= High[bar];
priceLow = Low[bar];
for(int i=0; i<bars_count; i++,bar--) // Find High/Low price on visible chart
{
if(bar>=0)
{
if(High[bar]>priceHigh) priceHigh=High[bar];
if(Low[bar]<priceLow) priceLow=Low[bar];
}
}
if(pos<1) pos=1;
if(atrR==ON) priceRange=iATR(NULL,PERIOD_D1,14,0);
else priceRange=0;
//double Rmul=1/sqrt(Period()+5);
//Rmul=Rmul<1?1:Rmul; // Visible price range
//priceRange*=Rmul;
if(priceHigh-priceLow>priceRange) priceRange=priceHigh-priceLow;
headClose=(Close[0]+iMA(NULL,0,3,0,MODE_SMMA,PRICE_MEDIAN,pos))/2;
midRange=(priceHigh+priceLow)/2;
if(headClose>=midRange)
{
priceMax=priceHigh+priceRange*(HeadMargin/100.0); // Calculate top margin
priceMin=priceLow-priceRange*(TailMargin/100.0); // Calculate bottom margin
}
else
{
priceMax=priceHigh+priceRange*(TailMargin/100.0); // Calculate top margin
priceMin=priceLow-priceRange*(HeadMargin/100.0); // Calculate bottom margin
}
//priceMax=priceHigh+Rmul*50*pip1;
//priceMin=priceLow-Rmul*50*pip1;
ChartSetDouble(0,CHART_FIXED_MAX,priceMax); // Set top margin
ChartSetDouble(0,CHART_FIXED_MIN,priceMin); // Set bottom margin
ChartRedraw();
}
//+------------------------------------------------------------------+
//| The function receives shift size of the zero bar from the right |
//| border of the chart in percentage values (from 10% up to 50%). |
//+------------------------------------------------------------------+
double ChartShiftSizeGet(const long chart_ID=0)
{
//--- prepare the variable to get the result
double result=EMPTY_VALUE;
//--- reset the error value
ResetLastError();
//--- receive the property value
if(!ChartGetDouble(chart_ID,CHART_SHIFT_SIZE,0,result))
{
//--- display the error message in Experts journal
Print(__FUNCTION__+", Error Code = ",GetLastError());
}
//--- return the value of the chart property
return(result);
}
//+------------------------------------------------------------------+
