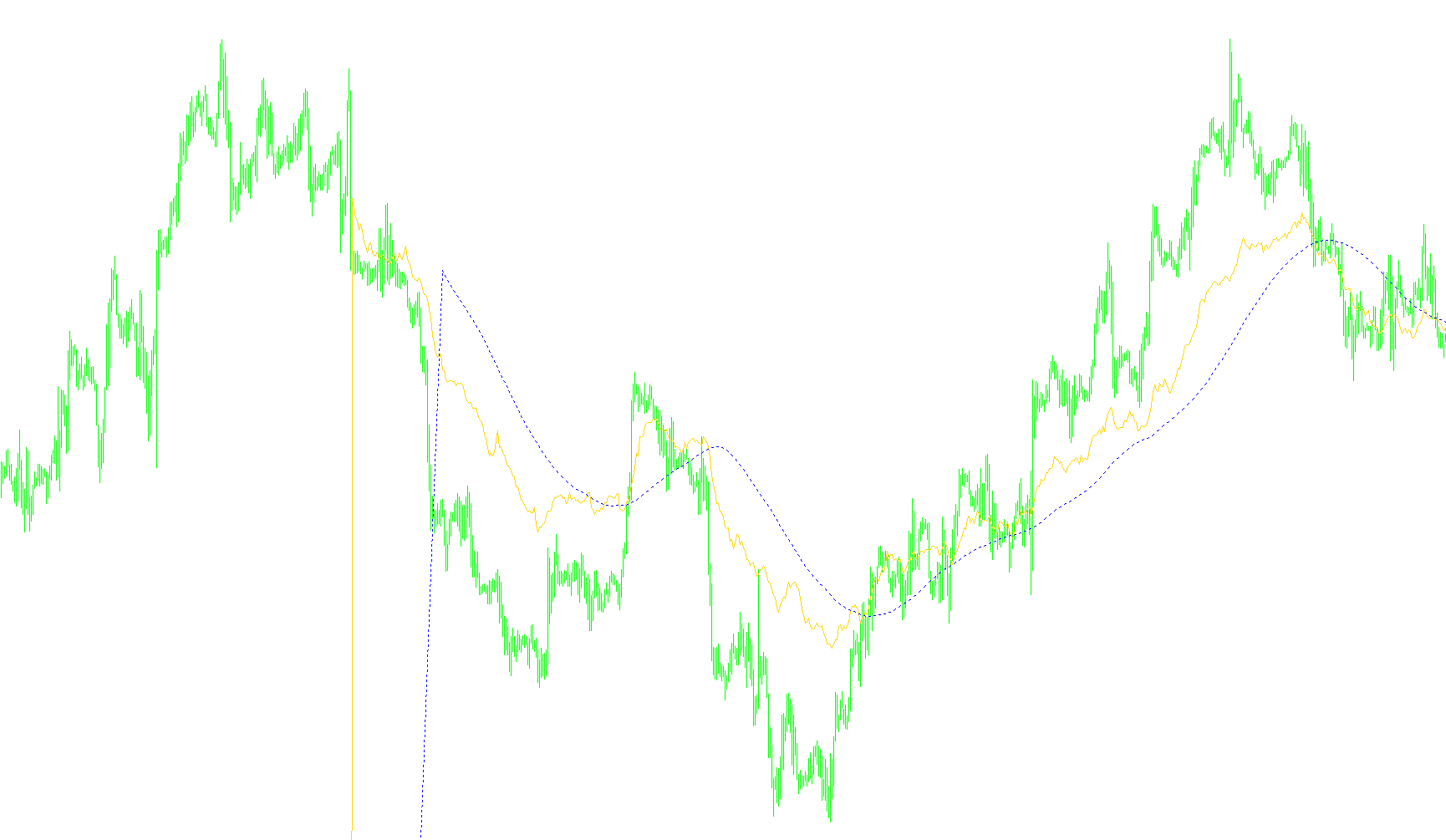

This script is designed to display two lines on a price chart, aiming to provide potential trading signals based on price averages. Here's a breakdown of how it works:
-
User-Defined Settings: The script starts by allowing the user to customize its behavior through a few settings:
- FiboNumPeriod: This determines how many numbers from a specific sequence (similar to the Fibonacci sequence) are used to calculate the first line on the chart.
- nAppliedPrice: This setting lets the user choose which price data to use in the calculations (e.g., the closing price, opening price, high, low, or some combination of these).
- maPeriod: This sets the period (number of bars) for calculating the moving average, which will be displayed as the second line.
- maMethod: This allows the user to select the type of moving average (e.g., simple, exponential, etc.).
-
First Line Calculation (MainBuffer): The script calculates the first line (displayed in blue) by taking an average of the chosen price data over a specific number of bars. It uses a sequence of numbers (derived similarly to a Fibonacci sequence) to offset the price data being averaged. This means that for each bar on the chart, it looks back a different number of bars based on this sequence, grabs the price (as determined by the "nAppliedPrice" setting), and then averages all of those prices together.
-
Second Line Calculation (maBuffer): The script calculates the second line (displayed in yellow with dots) by calculating a moving average of the values that created the first line. The type of moving average and period are determined by user settings. This smooths out the first line to highlight the trend.
-
Price Selection: The function
AppliedPriceallows for flexibility in what price is used for the first line's calculation. The user can choose to use the closing price, the opening price, the high, the low, or even some average between these prices, giving them control over how the indicator reacts to price movements.
/*------------------------------------------------------------------+
| Fibo-Average-2B.mq4 |
| Copyright © 2011 |
| basisforex@gmail.com |
+------------------------------------------------------------------*/
#property copyright "Copyright © 2011"
#property link "basisforex@gmail.com"
//----------------------------------
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Blue
#property indicator_color2 Yellow
//+------------------------------------------------------------------+
extern int FiboNumPeriod = 15;// Numbers in the following integer sequence;
extern int nAppliedPrice = 0;// PRICE_CLOSE=0; PRICE_OPEN=1; PRICE_HIGH=2; PRICE_LOW=3; PRICE_MEDIAN=4; PRICE_TYPICAL=5; PRICE_WEIGHTED=6;
extern int maPeriod = 55;// Averaging period for calculation;
extern int maMethod = 0;// MODE_SMA=0; MODE_EMA=1; MODE_SMMA=2; MODE_LWMA=3;
//----
double MainBuffer[];
double maBuffer[];
//+------------------------------------------------------------------+
int init()
{
SetIndexBuffer(0, MainBuffer);
SetIndexStyle(0, DRAW_LINE);
SetIndexBuffer(1, maBuffer);
SetIndexStyle(1, DRAW_LINE, STYLE_DOT);
return(0);
}
//+------------------------------------------------------------------+
int start()
{
int i, j, nCountedBars;
int F[];
ArrayResize(F, FiboNumPeriod);
ArrayInitialize(F, 0);
double A;
nCountedBars = IndicatorCounted();
i = Bars - nCountedBars;
//----
while(i >= 0)
{
for(j = 0; j < FiboNumPeriod; j++)
{
A += (AppliedPrice(nAppliedPrice, i + F[j]));
if(j == 0) F[j+1] = 1;
if(j == 1) F[j+1] = 2;
if(j >= 2) F[j+1] = F[j] + F[j-1];
}
MainBuffer[i] = A / FiboNumPeriod;
A = 0;
i--;
}
i = Bars - nCountedBars;
while(i >= 0)
{
maBuffer[i] = iMAOnArray(MainBuffer, 0, maPeriod, 0, maMethod, i);
i--;
}
//----
}
//+------------------------------------------------------------------+
double AppliedPrice(int nAppliedPrice, int nIndex)
{
double aPrice;
switch(nAppliedPrice)
{
case 0: aPrice = Close[nIndex]; break;
case 1: aPrice = Open[nIndex]; break;
case 2: aPrice = High[nIndex]; break;
case 3: aPrice = Low[nIndex]; break;
case 4: aPrice = (High[nIndex]+Low[nIndex]) / 2.0; break;
case 5: aPrice = (High[nIndex]+Low[nIndex] + Close[nIndex]) / 3.0; break;
case 6: aPrice = (High[nIndex]+Low[nIndex] + 2 * Close[nIndex]) / 4.0; break;
default: aPrice = 0.0;
}
return(aPrice);
}
//+------------------------------------------------------------------+
