FATL_v3
Download scriptThis script is a custom technical analysis tool designed for the MetaTrader platform to identify trend reversals and visualize specific price movements on a chart. Below is a non-technical breakdown of how the logic operates:
Core Functionality
The primary purpose of this script is to detect shifts in market momentum by calculating a weighted value based on historical price data. It looks at the relationship between current prices and a series of previous closing prices to determine if the market is moving upward or downward.
How the Logic Works
1. Weighted Price Calculation The script performs a sophisticated calculation where it assigns different levels of importance (weights) to the last 39 candles on the chart. Some past prices are given positive weights, while others are given negative weights. By combining these various data points, the script creates a unique "signal" value that represents the current state of the trend.
2. Trend Detection The logic compares the weighted value of the current candle against the weighted value of the preceding candle:
- Upward Trend: If the current calculated value is higher than the previous one, the script identifies an upward movement.
- Downward Trend: If the current calculated value is lower than the previous one, it identifies a downward movement.

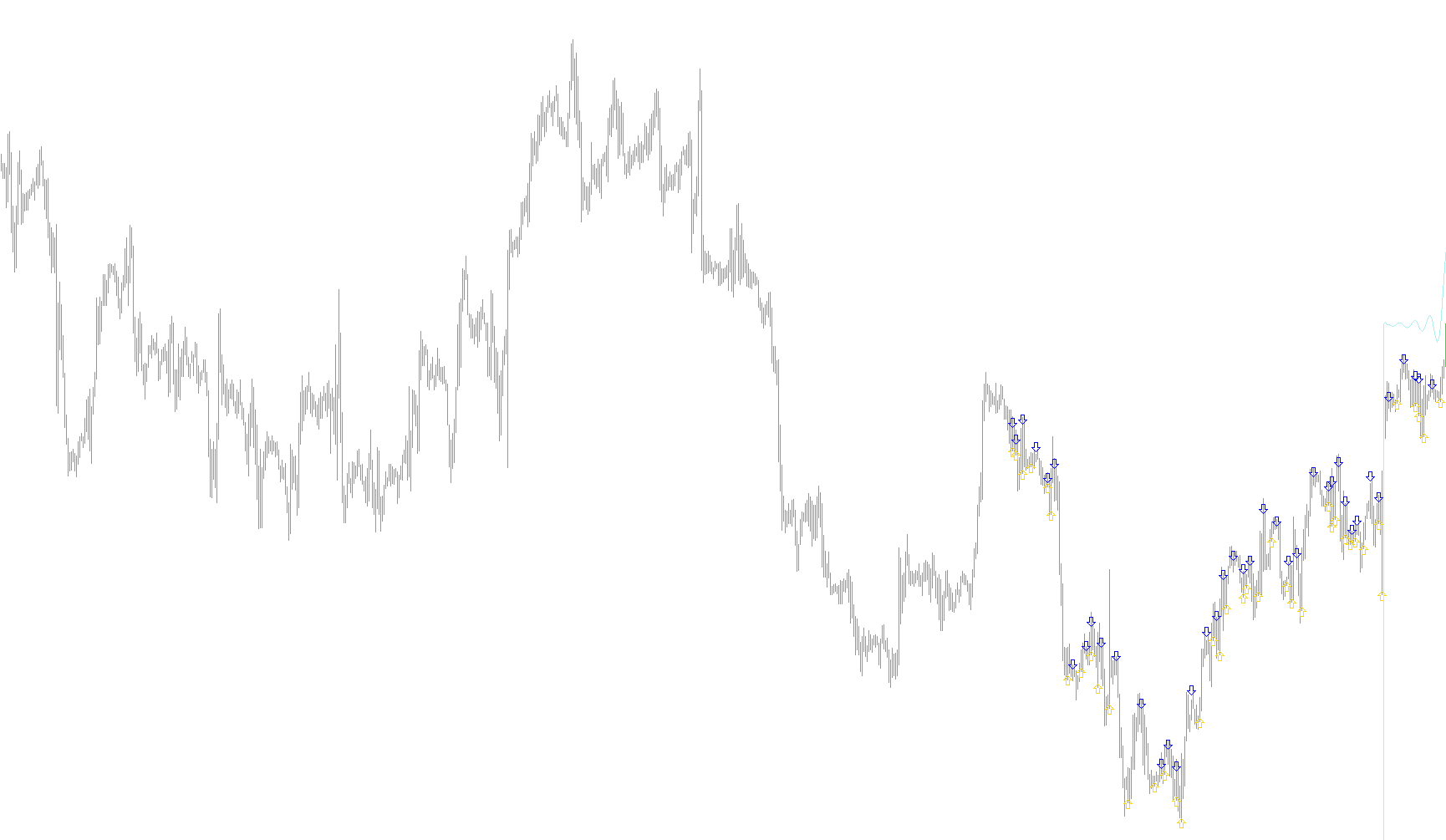

3. Visual Signaling (Arrows) Instead of showing a constant line, the script focuses on "turning points." It monitors for the exact moment the trend flips:
- Buy Signals: When the logic detects a switch from a downward trend to an upward trend, it places a Blue Arrow below the price candle.
- Sell Signals: When the logic detects a switch from an upward trend to a downward trend, it places a Red Arrow above the price candle.
4. Auxiliary Data Visualization In addition to the primary arrows, the script calculates a secondary "Line Buffer." This is a specific mathematical conversion that adjusts the weighted prices relative to the current Bid price. This provides an additional layer of data points on the chart, though its primary role in this specific script is to provide a baseline for the calculation logic.
Summary for the User
Essentially, this tool filters out market "noise" by looking at a window of 39 historical bars simultaneously. It tells you: "The momentum has just officially flipped from down to up (or vice versa), and here is the specific point where that change occurred." This helps traders identify potential entry or exit points based on structural trend changes rather than just following every small price flicker.
/*-----------------------------+
| |
| Shared by www.Aptrafx.com |
| |
+------------------------------*/
//+------------------------------------------------------------------+
//| FATLs.mq4
//| Ramdass - Conversion only
//+------------------------------------------------------------------+
#property indicator_chart_window
#property indicator_buffers 3
#property indicator_color1 Blue
#property indicator_color2 Red
#property indicator_color3 White
extern int CountBars=300;
//---- buffers
double UPBuffer[];
double DownBuffer[];
double LineBuffer[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
string short_name;
//---- indicator line
IndicatorBuffers(3);
SetIndexStyle(0,DRAW_ARROW);
SetIndexArrow(0,241);
SetIndexBuffer(0,UPBuffer);
SetIndexStyle(1,DRAW_ARROW);
SetIndexArrow(1,242);
SetIndexBuffer(1,DownBuffer);
SetIndexStyle(2,DRAW_LINE);
SetIndexBuffer(2,LineBuffer);
//----
return(0);
}
//+------------------------------------------------------------------+
//| FATLs |
//+------------------------------------------------------------------+
int start()
{
SetIndexDrawBegin(0,Bars-CountBars+38);
SetIndexDrawBegin(1,Bars-CountBars+38);
int i,counted_bars=IndicatorCounted();
double val1, val2, i1;
bool trend,old;
//----
if(Bars<=38) return(0);
//---- initial zero
if(counted_bars<38)
{
for(i=1;i<=0;i++) UPBuffer[CountBars-i]=0.0;
for(i=1;i<=0;i++) DownBuffer[CountBars-i]=0.0;
}
//----
i=CountBars-38-1;
// if(counted_bars>=38) i=Bars-counted_bars-1;
while(i>=0)
{
val1=
0.4360409450*Close[i+0]
+0.3658689069*Close[i+1]
+0.2460452079*Close[i+2]
+0.1104506886*Close[i+3]
-0.0054034585*Close[i+4]
-0.0760367731*Close[i+5]
-0.0933058722*Close[i+6]
-0.0670110374*Close[i+7]
-0.0190795053*Close[i+8]
+0.0259609206*Close[i+9]
+0.0502044896*Close[i+10]
+0.0477818607*Close[i+11]
+0.0249252327*Close[i+12]
-0.0047706151*Close[i+13]
-0.0272432537*Close[i+14]
-0.0338917071*Close[i+15]
-0.0244141482*Close[i+16]
-0.0055774838*Close[i+17]
+0.0128149838*Close[i+18]
+0.0226522218*Close[i+19]
+0.0208778257*Close[i+20]
+0.0100299086*Close[i+21]
-0.0036771622*Close[i+22]
-0.0136744850*Close[i+23]
-0.0160483392*Close[i+24]
-0.0108597376*Close[i+25]
-0.0016060704*Close[i+26]
+0.0069480557*Close[i+27]
+0.0110573605*Close[i+28]
+0.0095711419*Close[i+29]
+0.0040444064*Close[i+30]
-0.0023824623*Close[i+31]
-0.0067093714*Close[i+32]
-0.0072003400*Close[i+33]
-0.0047717710*Close[i+34]
+0.0005541115*Close[i+35]
+0.0007860160*Close[i+36]
+0.0130129076*Close[i+37]
+0.0040364019*Close[i+38];
val2=
0.4360409450*Close[i+0+1]
+0.3658689069*Close[i+1+1]
+0.2460452079*Close[i+2+1]
+0.1104506886*Close[i+3+1]
-0.0054034585*Close[i+4+1]
-0.0760367731*Close[i+5+1]
-0.0933058722*Close[i+6+1]
-0.0670110374*Close[i+7+1]
-0.0190795053*Close[i+8+1]
+0.0259609206*Close[i+9+1]
+0.0502044896*Close[i+10+1]
+0.0477818607*Close[i+11+1]
+0.0249252327*Close[i+12+1]
-0.0047706151*Close[i+13+1]
-0.0272432537*Close[i+14+1]
-0.0338917071*Close[i+15+1]
-0.0244141482*Close[i+16+1]
-0.0055774838*Close[i+17+1]
+0.0128149838*Close[i+18+1]
+0.0226522218*Close[i+19+1]
+0.0208778257*Close[i+20+1]
+0.0100299086*Close[i+21+1]
-0.0036771622*Close[i+22+1]
-0.0136744850*Close[i+23+1]
-0.0160483392*Close[i+24+1]
-0.0108597376*Close[i+25+1]
-0.0016060704*Close[i+26+1]
+0.0069480557*Close[i+27+1]
+0.0110573605*Close[i+28+1]
+0.0095711419*Close[i+29+1]
+0.0040444064*Close[i+30+1]
-0.0023824623*Close[i+31+1]
-0.0067093714*Close[i+32+1]
-0.0072003400*Close[i+33+1]
-0.0047717710*Close[i+34+1]
+0.0005541115*Close[i+35+1]
+0.0007860160*Close[i+36+1]
+0.0130129076*Close[i+37+1]
+0.0040364019*Close[i+38+1];
i1=val1-val2;
UPBuffer[i]=0.0; DownBuffer[i]=0.0;
if (i1>0) trend=true;
if (i1<0) trend=false;
if ((! trend==old) && trend==true) UPBuffer[i]=Low[i]-5*Point;
if ((! trend==old) && trend==false) DownBuffer[i]=High[i]+5*Point;
old=trend;
i--;
}
//clear buffer
for(i=0;i<=100;i++) LineBuffer[i]=0.0;
LineBuffer[00]=(( 0.4360409450 *Close[0])/200)+Bid;
LineBuffer[01]=(( 0.3658689069 *Close[1])/200)+Bid;
LineBuffer[02]=(( 0.2460452079 *Close[2])/200)+Bid;
LineBuffer[03]=(( 0.1104506886 *Close[3])/200)+Bid;
LineBuffer[04]=(((-0.0054034585)*Close[4])/200)+Bid;
LineBuffer[05]=(((-0.0760367731)*Close[5])/200)+Bid;
LineBuffer[06]=(((-0.0933058722)*Close[6])/200)+Bid;
LineBuffer[07]=(((-0.0670110374)*Close[7])/200)+Bid;
LineBuffer[08]=(((-0.0190795053)*Close[8])/200)+Bid;
LineBuffer[09]=(( 0.0259609206 *Close[9])/200)+Bid;
LineBuffer[10]=(( 0.0502044896 *Close[10])/200)+Bid;
LineBuffer[11]=(( 0.0477818607 *Close[11])/200)+Bid;
LineBuffer[12]=(( 0.0249252327 *Close[12])/200)+Bid;
LineBuffer[13]=(((-0.0047706151)*Close[13])/200)+Bid;
LineBuffer[14]=(((-0.0272432537)*Close[14])/200)+Bid;
LineBuffer[15]=(((-0.0338917071)*Close[15])/200)+Bid;
LineBuffer[16]=(((-0.0244141482)*Close[16])/200)+Bid;
LineBuffer[17]=(((-0.0055774838)*Close[17])/200)+Bid;
LineBuffer[18]=(( 0.0128149838 *Close[18])/200)+Bid;
LineBuffer[19]=(( 0.0226522218 *Close[19])/200)+Bid;
LineBuffer[20]=(( 0.0208778257 *Close[20])/200)+Bid;
LineBuffer[21]=(( 0.0100299086 *Close[21])/200)+Bid;
LineBuffer[22]=(((-0.0036771622)*Close[22])/200)+Bid;
LineBuffer[23]=(((-0.0136744850)*Close[23])/200)+Bid;
LineBuffer[24]=(((-0.0160483392)*Close[24])/200)+Bid;
LineBuffer[25]=(((-0.0108597376)*Close[25])/200)+Bid;
LineBuffer[26]=(((-0.0016060704)*Close[26])/200)+Bid;
LineBuffer[27]=(( 0.0069480557 *Close[27])/200)+Bid;
LineBuffer[28]=(( 0.0110573605 *Close[28])/200)+Bid;
LineBuffer[29]=(( 0.0095711419 *Close[29])/200)+Bid;
LineBuffer[30]=(( 0.0040444064 *Close[30])/200)+Bid;
LineBuffer[31]=(((-0.0023824623)*Close[31])/200)+Bid;
LineBuffer[32]=(((-0.0067093714)*Close[32])/200)+Bid;
LineBuffer[33]=(((-0.0072003400)*Close[33])/200)+Bid;
LineBuffer[34]=(((-0.0047717710)*Close[34])/200)+Bid;
LineBuffer[35]=(( 0.0005541115 *Close[35])/200)+Bid;
LineBuffer[36]=(( 0.0007860160 *Close[36])/200)+Bid;
LineBuffer[37]=(( 0.0130129076 *Close[37])/200)+Bid;
LineBuffer[38]=(( 0.0040364019 *Close[38])/200)+Bid;
return(0);
}
//+------------------------------------------------------------------+
