Doji_Reader_1.0

This script is a specialized technical analysis tool designed for the MetaTrader platform. Its primary purpose is to automatically identify and visually highlight three specific types of candlestick patterns known as "Dojis." In trading, these patterns often signify market indecision or potential trend reversals.

Core Functionality

The script scans historical price data to detect specific geometric properties of candlesticks. When it identifies a match based on the user's defined criteria, it performs two actions: it draws a visual marker on the chart and, depending on your settings, triggers a real-time alert.

Types of Patterns Detected

The tool distinguishes between three distinct variations of the Doji pattern:

  • Regular Doji: Identified when the opening and closing prices are virtually identical, and the candle possesses both upper and lower "tails" (wicks) that meet a minimum length requirement. The script highlights these with a Red marker.
  • Dragonfly Doji: Identified by a very short or non-existent upper tail and a long lower tail, occurring when the price opens and closes at the same level. These are highlighted with a Blue marker.
  • Gravestone Doji: The opposite of the Dragonfly; it features a long upper tail and a very short or non-existent lower tail, with the open and close prices being equal. These are highlighted with a Gold marker.

How the Logic Works

  1. User Customization: Upon setup, the user can toggle each type of Doji on or off. You can also define the specific minimum or maximum lengths for the "tails" (the lines representing price movement outside the main body). This ensures the script only flags significant patterns rather than minor market noise.
  2. Historical Scanning: When first loaded, the script automatically reviews past candles on your chart to find and mark every instance where these patterns occurred.

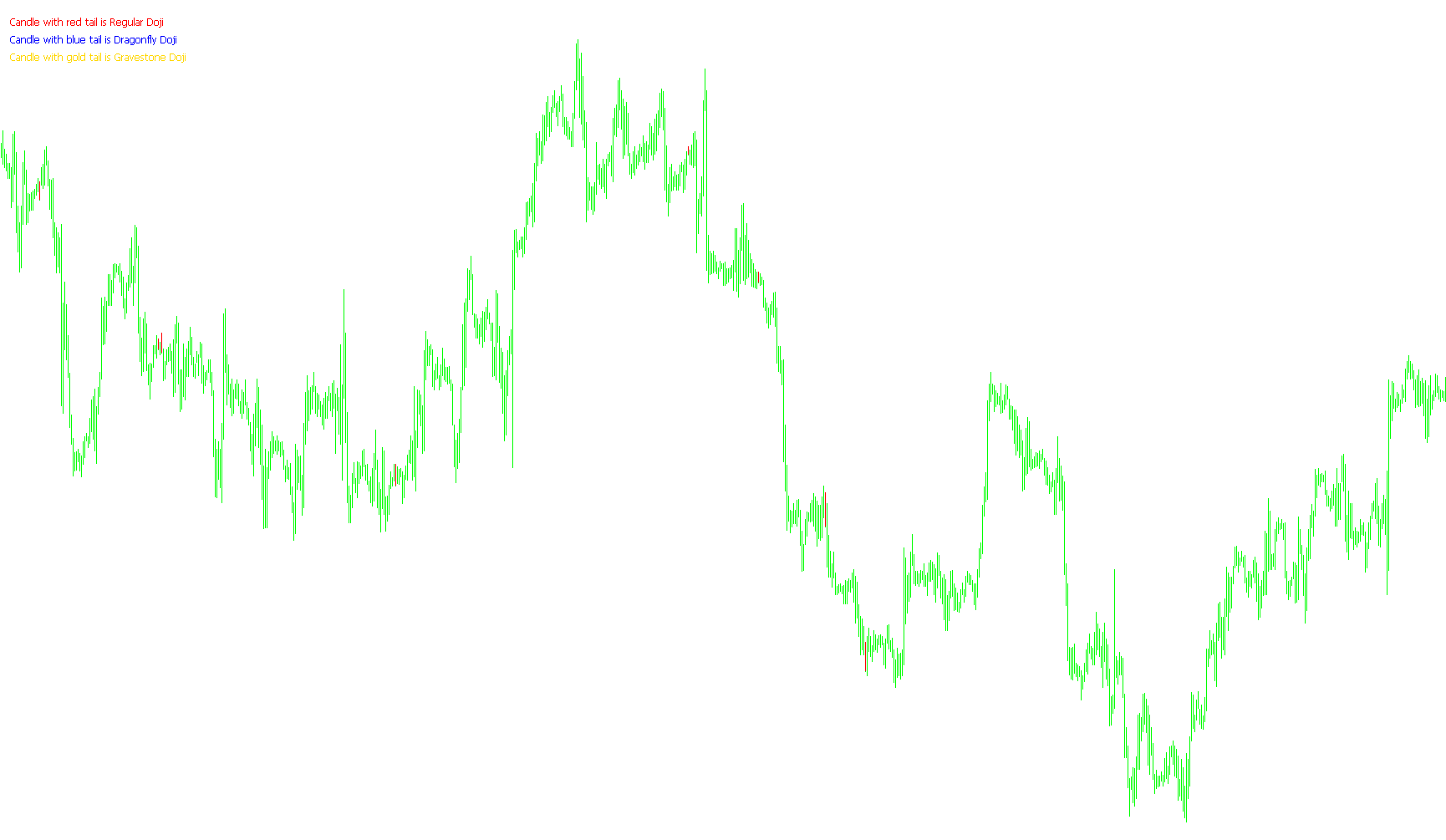

  3. Visual Mapping: For every pattern found, the script draws a trend line connecting the high and low points of that specific candle, making it easy to see where these "balance points" occurred in the past.
  4. Real-Time Monitoring: The script continuously monitors the most recently completed candle. If a new Doji pattern forms that meets your custom criteria, the script will trigger an immediate pop-up alert on your screen. This allows traders to react to potential price reversals as they happen without having to watch the charts constantly.

User Experience

The tool is designed to be "set and forget." Once you define your preferred tail lengths and enable the types of Dojis you are interested in, the script manages the heavy lifting—scanning the history, drawing the indicators, and notifying you of new activity instantly.

Miscellaneous
It issuies visual alerts to the screen
6 Views
0 Downloads
0 Favorites
Doji_Reader_1.0
//+------------------------------------------------------------------+
//|                                             Doji Reader d 01.mq4 |
//|                               Copyright © 2009,  MQL PROGRAMMING |
//|                                  mailto:mqlprogramming@gmail.com |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2009,  MQL PROGRAMMING"
#property link      "mailto:mqlprogramming@gmail.com"

#property indicator_chart_window

extern bool      AnAlert=true;

//---- input parameters for regular doji
extern bool      FindRegularDoji=true;
extern int       MinLengthOfUpTail=3;
extern int       MinLengthOfLoTail=3;

//---- input parameters for dragonfly doji
extern bool      FindDragonflyDoji=true;
extern int       MaxLengthOfUpTail1=0;
extern int       MinLengthOfLoTail1=3;

//---- input parameters for gravestone doji
extern bool      FindGravestoneDoji=true;
extern int       MinLengthOfUpTail2=3;
extern int       MaxLengthOfLoTail2=0;

//---- initialization for variables
int counter1=1, counter2=1, counter3=1, counterA=0, counterB=0, counterC=0, counterX=0,
    counterY=0, counterZ=0, counterH=0, counterI=0, counterJ=0;
string name1="Regular Doji", name2="Dragonfly Doji", name3="Gravestone Doji";
bool sound1=false, sound2=false, sound3=false;
double H=0.0, L=0.0, C=0.0, O=0.0;
datetime T=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- set texts for regular doji's notes
   ObjectCreate(name1, OBJ_LABEL, 0, 0, 0);
   ObjectSet(name1, OBJPROP_XDISTANCE, 15);
   ObjectSet(name1, OBJPROP_YDISTANCE, 21);
   ObjectSetText(name1, "Candle with red tail is Regular Doji", 9, "Tahoma", Red);
//---- set texts for dragonfly doji's notes
   ObjectCreate(name2, OBJ_LABEL, 0, 0, 0);
   ObjectSet(name2, OBJPROP_XDISTANCE, 15);
   ObjectSet(name2, OBJPROP_YDISTANCE, 42);
   ObjectSetText(name2, "Candle with blue tail is Dragonfly Doji", 9, "Tahoma", Blue);
//---- set texts for gravestone doji's notes
   ObjectCreate(name3, OBJ_LABEL, 0, 0, 0);
   ObjectSet(name3, OBJPROP_XDISTANCE, 15);
   ObjectSet(name3, OBJPROP_YDISTANCE, 63);
   ObjectSetText(name3, "Candle with gold tail is Gravestone Doji", 9, "Tahoma", Gold);
 //---- initialization done
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//---- delete all object
   ObjectsDeleteAll(0, OBJ_LABEL);
   ObjectsDeleteAll(0, OBJ_TREND);
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int i, counted_bars=IndicatorCounted();
//---- check for error
   if(counted_bars<0) return(-1);
//---- scan all bars except current bar for doji
   for(i=Bars-1; i>0; i--)
      {
//---- save bar price into variables
       H=High[i]; L=Low[i]; C=Close[i]; O=Open[i];
//---- save bar open time into variable
       T=Time[i];
//---- find regular doji if desired by user
       if(FindRegularDoji)
         {
//---- if high price minus close price is higher or equal with MinLengthOfUpTail and
//---- close price minus low price is higher or equal with MinLengthOfLoTail and
//---- close price is equal with open price, it is a regular doji
          if(H-C>=MinLengthOfUpTail*Point && C-L>=MinLengthOfLoTail*Point && C==O)
            {
//---- than we have to color its tail
             if(ObjectFind(name1+counter1)==-1) //if tail is not colored yet
               {
                if(ObjectCreate(name1+counter1, OBJ_TREND, 0, T, H, T, L))
                  {
                   ObjectSet(name1+counter1, OBJPROP_COLOR, Red);
                   ObjectSet(name1+counter1, OBJPROP_WIDTH, 1);
                   ObjectSet(name1+counter1, OBJPROP_RAY, false);
                   counter1++;
                   sound1=true;
                  }
               }
            }
         }
//---- find dragonfly doji if desired by user
       if(FindDragonflyDoji)
         {
//---- if high price minus close price lower or equal with MaxLengthOfUpTail1 and
//---- close price minus low price is higher or equal with MinLengthOfLoTail1 and
//---- close price is equal with open price , it is dragonfly doji
          if(H-C<=MaxLengthOfUpTail1*Point && C-L>=MinLengthOfLoTail1*Point && C==O)
            {
//---- than we have to color its tail
             if(ObjectFind(name2+counter2)==-1) //if tail is not colored yet
               {
                if(ObjectCreate(name2+counter2, OBJ_TREND, 0, T, H, T, L))
                  {
                   ObjectSet(name2+counter2, OBJPROP_COLOR, Blue);
                   ObjectSet(name2+counter2, OBJPROP_WIDTH, 1);
                   ObjectSet(name2+counter2, OBJPROP_RAY, false);
                   counter2++;
                   sound2=true;
                  }
               }
            }
         }
//---- find gravestone doji if desired by user
       if(FindGravestoneDoji)
         {
//---- if high price minus close price higher or equal with MinLengthOfUpTail2 and
//---- close price minus low price is lower or equal with MaxLengthOfLoTail2 and
//---- close price is equal with open price, it is gravestone doji
          if(H-C>=MinLengthOfUpTail2*Point && C-L<=MaxLengthOfLoTail2*Point && C==O)
            {
             if(ObjectFind(name3+counter3)==-1) //if tail is not colored yet
               {
                if(ObjectCreate(name3+counter3, OBJ_TREND, 0, T, H, T, L))
                  {
                   ObjectSet(name3+counter3, OBJPROP_COLOR, Gold);
                   ObjectSet(name3+counter3, OBJPROP_WIDTH, 1);
                   ObjectSet(name3+counter3, OBJPROP_RAY, false);
                   counter3++;
                   sound3=true;
                  }
               }
            }
         }
      }
//---- if  an alert is false, than we discontinued the program
   if(!AnAlert) return(0);
//---- working once per bar
   if(Volume[0]>1) return(0);
//---- save latest completed bar price into variables
   H=High[1]; L=Low[1]; C=Close[1]; O=Open[1];
//---- we looking for latest doji and give an alert if we found it
//---- if find regular doji is true, than we looking for it
   if(FindRegularDoji)
     {
//---- if high price minus close price is higher or equal with MinLengthOfUpTail and
//---- close price minus low price is higher or equal with MinLengthOfLoTail and
//---- close price is equal with open price, it is a regular doji
      if(H-C>=MinLengthOfUpTail*Point && C-L>=MinLengthOfLoTail*Point && C==O)
        {
//---- than we have to give an alert to user
         Alert("new regular doji at ",Symbol()," M",Period());
        }
     }
//---- if find deagonfly doji is true, than we looking for it
   if(FindDragonflyDoji)
     {
//---- if high price minus close price lower or equal with MaxLengthOfUpTail1 and
//---- close price minus low price is higher or equal with MinLengthOfLoTail1 and
//---- close price is equal with open price , it is dragonfly doji
      if(H-C<=MaxLengthOfUpTail1*Point && C-L>=MinLengthOfLoTail1*Point && C==O)
        {
//---- than we have to give an alert to user
         Alert("new dragonfly doji at ",Symbol()," M",Period());
        }
     }
//---- if find gravestone doji is true, than we looking for it
   if(FindGravestoneDoji)
     {
//---- if high price minus close price higher or equal with MinLengthOfUpTail2 and
//---- close price minus low price is lower or equal with MaxLengthOfLoTail2 and
//---- close price is equal with open price, it is gravestone doji
      if(H-C>=MinLengthOfUpTail2*Point && C-L<=MaxLengthOfLoTail2*Point && C==O)
        {
//---- than we have to give an alert to user
         Alert("new gravestone doji at ",Symbol()," M",Period());
        }
     }
   return(0);
  } //end of file
//+------------------------------------------------------------------+
