This script is a custom technical analysis tool designed for the MetaTrader trading platform. It functions as a mathematical processor that analyzes historical price data to generate four distinct numerical values, which are then displayed on the user's trading screen in real-time.
Core Logic and Functionality
Data Processing Method The script operates by looking at a specific "window" of past market prices (specifically the closing prices of previous candles). Instead of using simple averages, it applies complex weighted formulas to these prices. Each of the four indicators calculates its own unique result by multiplying various past prices by specific positive or negative coefficients.
Key Components:
- Weighted Calculations: The logic distinguishes between different types of price behavior. Some indicators place heavy weight on very recent price action, while others look deeper into the past to identify broader trends.
- Dynamic Calculation: The script continuously scans through the history of the chart. As new candles form and old ones pass, it recalculates these four values to ensure the data remains current.
- Real-Time Feedback: Every time the script performs a calculation, it automatically updates an on-screen comment. This provides the user with a live "dashboard" of four specific numbers: FATL, SATL, RSTL, and RFTL.

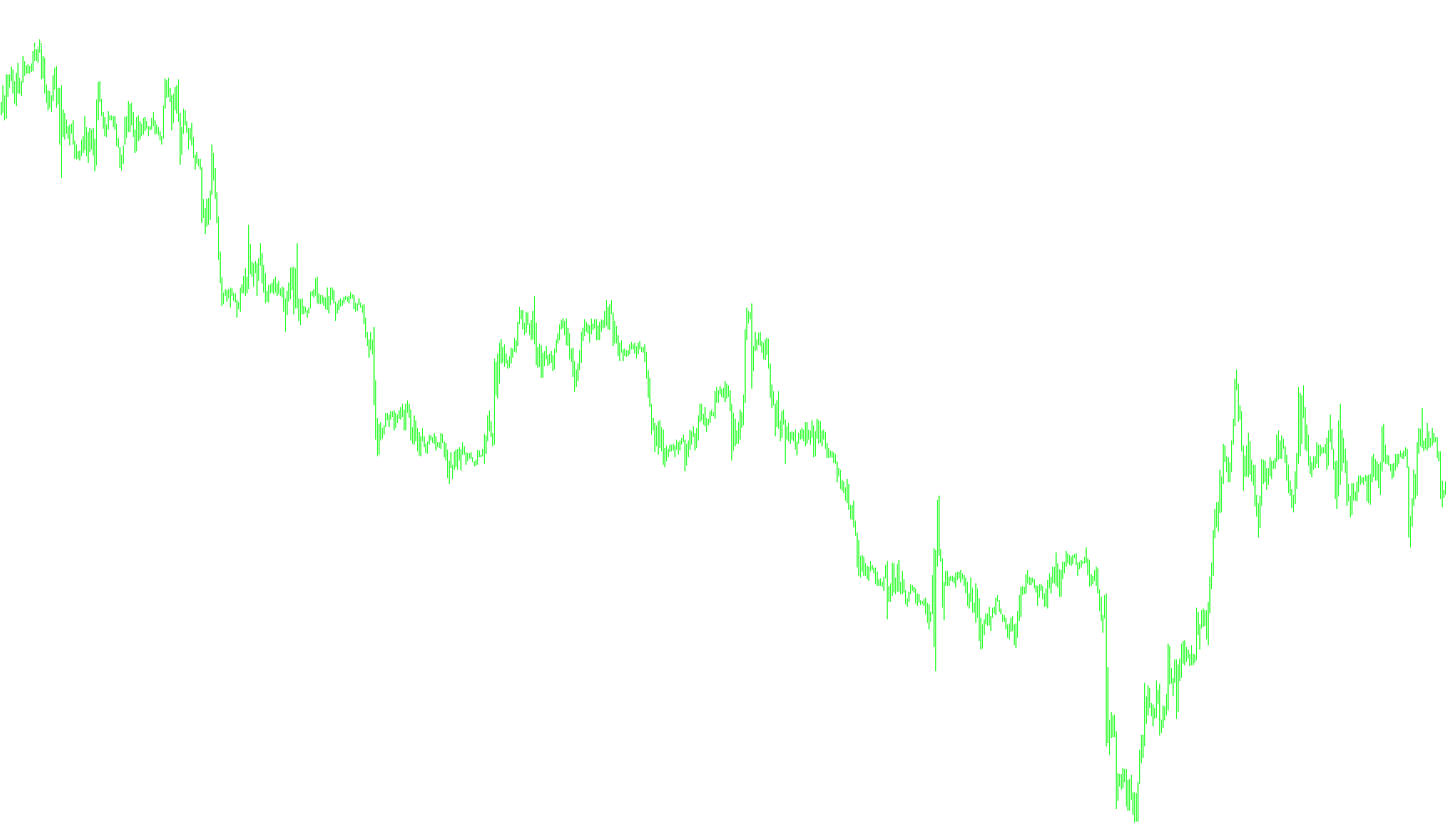

Visual Representation In addition to providing the raw numerical data in the corner of the screen via comments, the script is designed to map these values onto the chart as lines. This allows a trader to see the movement of these calculations visually over time, helping to identify patterns or trends that are not immediately obvious from looking at price action alone.
Summary for the User
Essentially, this tool takes raw price history and "filters" it through four different mathematical lenses simultaneously. It translates complex market movements into four readable numbers and visual lines, allowing you to monitor specific technical metrics at a glance while trading.
Miscellaneous
12
Views
0
Downloads
0
Favorites
Digits_comment_v2
//+------------------------------------------------------------------+
//| Digits_Comment.mq4 |
//| Ramdass - Conversion only |
//+------------------------------------------------------------------+
#property copyright "Copyright 2002, Finware.ru Ltd."
#property link "http://www.finware.ru/"
//----
#property indicator_chart_window
#property indicator_buffers 4
#property indicator_color1 Blue
#property indicator_color2 SteelBlue
#property indicator_color3 DarkViolet
#property indicator_color4 Red
extern int CountBars=300;
//---- buffers
double FATLBuffer[];
double SATLBuffer[];
double RSTLBuffer[];
double RFTLBuffer[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
string short_name;
//---- indicator line
IndicatorBuffers(4);
SetIndexStyle(0,DRAW_LINE);
SetIndexBuffer(0,FATLBuffer);
SetIndexLabel(0,"FATL");
SetIndexStyle(1,DRAW_LINE);
SetIndexBuffer(1,SATLBuffer);
SetIndexLabel(1,"SATL");
SetIndexStyle(2,DRAW_LINE);
SetIndexBuffer(2,RSTLBuffer);
SetIndexLabel(2,"RSTL");
SetIndexStyle(3,DRAW_LINE);
SetIndexBuffer(3,RFTLBuffer);
SetIndexLabel(3,"RFTL");
//----
return(0);
}
//+------------------------------------------------------------------+
//| Custom |
//+------------------------------------------------------------------+
int start()
{
SetIndexDrawBegin(0,Bars-CountBars+38);
SetIndexDrawBegin(1,Bars-CountBars+64);
SetIndexDrawBegin(2,Bars-CountBars+98);
SetIndexDrawBegin(3,Bars-CountBars+44);
int i,counted_bars=IndicatorCounted();
//----
if(Bars<=38) return(0);
//---- initial zero
if(counted_bars<38)
for(i=1;i<=0;i++) FATLBuffer[CountBars-i]=0.0;
//----
i=CountBars-38-1;
// if(counted_bars>=38) i=Bars-counted_bars-1;
while(i>=0)
{
FATLBuffer[i]=
0.4360409450*Close[i+0]
+0.3658689069*Close[i+1]
+0.2460452079*Close[i+2]
+0.1104506886*Close[i+3]
-0.0054034585*Close[i+4]
-0.0760367731*Close[i+5]
-0.0933058722*Close[i+6]
-0.0670110374*Close[i+7]
-0.0190795053*Close[i+8]
+0.0259609206*Close[i+9]
+0.0502044896*Close[i+10]
+0.0477818607*Close[i+11]
+0.0249252327*Close[i+12]
-0.0047706151*Close[i+13]
-0.0272432537*Close[i+14]
-0.0338917071*Close[i+15]
-0.0244141482*Close[i+16]
-0.0055774838*Close[i+17]
+0.0128149838*Close[i+18]
+0.0226522218*Close[i+19]
+0.0208778257*Close[i+20]
+0.0100299086*Close[i+21]
-0.0036771622*Close[i+22]
-0.0136744850*Close[i+23]
-0.0160483392*Close[i+24]
-0.0108597376*Close[i+25]
-0.0016060704*Close[i+26]
+0.0069480557*Close[i+27]
+0.0110573605*Close[i+28]
+0.0095711419*Close[i+29]
+0.0040444064*Close[i+30]
-0.0023824623*Close[i+31]
-0.0067093714*Close[i+32]
-0.0072003400*Close[i+33]
-0.0047717710*Close[i+34]
+0.0005541115*Close[i+35]
+0.0007860160*Close[i+36]
+0.0130129076*Close[i+37]
+0.0040364019*Close[i+38];
//----
SATLBuffer[i]=
0.0982862174*Close[i+0]
+0.0975682269*Close[i+1]
+0.0961401078*Close[i+2]
+0.0940230544*Close[i+3]
+0.0912437090*Close[i+4]
+0.0878391006*Close[i+5]
+0.0838544303*Close[i+6]
+0.0793406350*Close[i+7]
+0.0743569346*Close[i+8]
+0.0689666682*Close[i+9]
+0.0632381578*Close[i+10]
+0.0572428925*Close[i+11]
+0.0510534242*Close[i+12]
+0.0447468229*Close[i+13]
+0.0383959950*Close[i+14]
+0.0320735368*Close[i+15]
+0.0258537721*Close[i+16]
+0.0198005183*Close[i+17]
+0.0139807863*Close[i+18]
+0.0084512448*Close[i+19]
+0.0032639979*Close[i+20]
-0.0015350359*Close[i+21]
-0.0059060082*Close[i+22]
-0.0098190256*Close[i+23]
-0.0132507215*Close[i+24]
-0.0161875265*Close[i+25]
-0.0186164872*Close[i+26]
-0.0205446727*Close[i+27]
-0.0219739146*Close[i+28]
-0.0229204861*Close[i+29]
-0.0234080863*Close[i+30]
-0.0234566315*Close[i+31]
-0.0231017777*Close[i+32]
-0.0223796900*Close[i+33]
-0.0213300463*Close[i+34]
-0.0199924534*Close[i+35]
-0.0184126992*Close[i+36]
-0.0166377699*Close[i+37]
-0.0147139428*Close[i+38]
-0.0126796776*Close[i+39]
-0.0105938331*Close[i+40]
-0.0084736770*Close[i+41]
-0.0063841850*Close[i+42]
-0.0043466731*Close[i+43]
-0.0023956944*Close[i+44]
-0.0005535180*Close[i+45]
+0.0011421469*Close[i+46]
+0.0026845693*Close[i+47]
+0.0040471369*Close[i+48]
+0.0052380201*Close[i+49]
+0.0062194591*Close[i+50]
+0.0070340085*Close[i+51]
+0.0076266453*Close[i+52]
+0.0080376628*Close[i+53]
+0.0083037666*Close[i+54]
+0.0083694798*Close[i+55]
+0.0082901022*Close[i+56]
+0.0080741359*Close[i+57]
+0.0077543820*Close[i+58]
+0.0073260526*Close[i+59]
+0.0068163569*Close[i+60]
+0.0062325477*Close[i+61]
+0.0056078229*Close[i+62]
+0.0049516078*Close[i+63]
+0.0161380976*Close[i+64];
//----
RSTLBuffer[i]=
-0.00514293*Close[i+0]
-0.00398417*Close[i+1]
-0.00262594*Close[i+2]
-0.00107121*Close[i+3]
+0.00066887*Close[i+4]
+0.00258172*Close[i+5]
+0.00465269*Close[i+6]
+0.00686394*Close[i+7]
+0.00919334*Close[i+8]
+0.01161720*Close[i+9]
+0.01411056*Close[i+10]
+0.01664635*Close[i+11]
+0.01919533*Close[i+12]
+0.02172747*Close[i+13]
+0.02421320*Close[i+14]
+0.02662203*Close[i+15]
+0.02892446*Close[i+16]
+0.03109071*Close[i+17]
+0.03309496*Close[i+18]
+0.03490921*Close[i+19]
+0.03651145*Close[i+20]
+0.03788045*Close[i+21]
+0.03899804*Close[i+22]
+0.03984915*Close[i+23]
+0.04042329*Close[i+24]
+0.04071263*Close[i+25]
+0.04071263*Close[i+26]
+0.04042329*Close[i+27]
+0.03984915*Close[i+28]
+0.03899804*Close[i+29]
+0.03788045*Close[i+30]
+0.03651145*Close[i+31]
+0.03490921*Close[i+32]
+0.03309496*Close[i+33]
+0.03109071*Close[i+34]
+0.02892446*Close[i+35]
+0.02662203*Close[i+36]
+0.02421320*Close[i+37]
+0.02172747*Close[i+38]
+0.01919533*Close[i+39]
+0.01664635*Close[i+40]
+0.01411056*Close[i+41]
+0.01161720*Close[i+42]
+0.00919334*Close[i+43]
+0.00686394*Close[i+44]
+0.00465269*Close[i+45]
+0.00258172*Close[i+46]
+0.00066887*Close[i+47]
-0.00107121*Close[i+48]
-0.00262594*Close[i+49]
-0.00398417*Close[i+50]
-0.00514293*Close[i+51]
-0.00609634*Close[i+52]
-0.00684602*Close[i+53]
-0.00739452*Close[i+54]
-0.00774847*Close[i+55]
-0.00791630*Close[i+56]
-0.00790940*Close[i+57]
-0.00774085*Close[i+58]
-0.00742482*Close[i+59]
-0.00697718*Close[i+60]
-0.00641613*Close[i+61]
-0.00576108*Close[i+62]
-0.00502957*Close[i+63]
-0.00423873*Close[i+64]
-0.00340812*Close[i+65]
-0.00255923*Close[i+66]
-0.00170217*Close[i+67]
-0.00085902*Close[i+68]
-0.00004113*Close[i+69]
+0.00073700*Close[i+70]
+0.00146422*Close[i+71]
+0.00213007*Close[i+72]
+0.00272649*Close[i+73]
+0.00324752*Close[i+74]
+0.00368922*Close[i+75]
+0.00405000*Close[i+76]
+0.00433024*Close[i+77]
+0.00453068*Close[i+78]
+0.00465046*Close[i+79]
+0.00469058*Close[i+80]
+0.00466041*Close[i+81]
+0.00457855*Close[i+82]
+0.00442491*Close[i+83]
+0.00423019*Close[i+84]
+0.00399201*Close[i+85]
+0.00372169*Close[i+86]
+0.00342736*Close[i+87]
+0.00311822*Close[i+88]
+0.00280309*Close[i+89]
+0.00249088*Close[i+90]
+0.00219089*Close[i+91]
+0.00191283*Close[i+92]
+0.00166683*Close[i+93]
+0.00146419*Close[i+94]
+0.00131867*Close[i+95]
+0.00124645*Close[i+96]
+0.00126836*Close[i+97]
-0.00401854*Close[i+98];
//----
RFTLBuffer[i]=
-0.02232324*Close[i+0]
+0.02268676*Close[i+1]
+0.08389067*Close[i+2]
+0.14630380*Close[i+3]
+0.19282649*Close[i+4]
+0.21002638*Close[i+5]
+0.19282649*Close[i+6]
+0.14630380*Close[i+7]
+0.08389067*Close[i+8]
+0.02268676*Close[i+9]
-0.02232324*Close[i+10]
-0.04296564*Close[i+11]
-0.03980614*Close[i+12]
-0.02082171*Close[i+13]
+0.00243636*Close[i+14]
+0.01950580*Close[i+15]
+0.02460929*Close[i+16]
+0.01799295*Close[i+17]
+0.00470540*Close[i+18]
-0.00831985*Close[i+19]
-0.01544722*Close[i+20]
-0.01456262*Close[i+21]
-0.00733980*Close[i+22]
+0.00201852*Close[i+23]
+0.00902504*Close[i+24]
+0.01093067*Close[i+25]
+0.00766099*Close[i+26]
+0.00145478*Close[i+27]
-0.00447175*Close[i+28]
-0.00750446*Close[i+29]
-0.00671646*Close[i+30]
-0.00304016*Close[i+31]
+0.00143433*Close[i+32]
+0.00457475*Close[i+33]
+0.00517589*Close[i+34]
+0.00336708*Close[i+35]
+0.00034406*Close[i+36]
-0.00233637*Close[i+37]
-0.00352280*Close[i+38]
-0.00293522*Close[i+39]
-0.00114249*Close[i+40]
+0.00083536*Close[i+41]
+0.00215524*Close[i+42]
+0.00604133*Close[i+43]
-0.00013046*Close[i+44];
Comment("FATL=",FATLBuffer[i],"\n","SATL=",SATLBuffer[i],"\n","RSTL=",RSTLBuffer[i],"\n","RFTL=",RFTLBuffer[i] );
i--;
}
return(0);
}
//+------------------------------------------------------------------+
