Detrended_Synthetic_Price_dbarsf
Download script
Functional Overview
This script is designed as a visual trading indicator that helps identify and visualize market trends by analyzing price movement dynamics. Instead of simply plotting a standard line, it transforms price data into a dynamic histogram that reacts to momentum and volatility.
Core Logic and Processing
1. Data Customization (Price Selection) The tool is highly flexible in how it "sees" the market. It allows you to choose between various types of price calculations rather than just looking at the closing price. This includes standard data (Open, High, Low, Close), weighted averages, or even specialized "Heiken Ashi" calculations. These options allow the user to smooth out noise or focus on specific price behaviors depending on their trading style.
2. Momentum and Trend Detection The underlying logic works by calculating two different Exponential Moving Averages (EMAs) of the chosen price. By subtracting one from the other, the script identifies "momentum."
- When the momentum is positive and expanding, it indicates strength in the current direction.
- When the momentum is negative and contracting, it indicates weakness or a reversal.
3. Dynamic Level Tracking The indicator creates upper and lower "threshold" levels based on the volatility of the price movement. These levels act as boundaries. The script monitors whether the current momentum value is breaking out beyond these boundaries (the "Outer" levels). This helps filter out minor fluctuations and focus only on significant trend shifts.

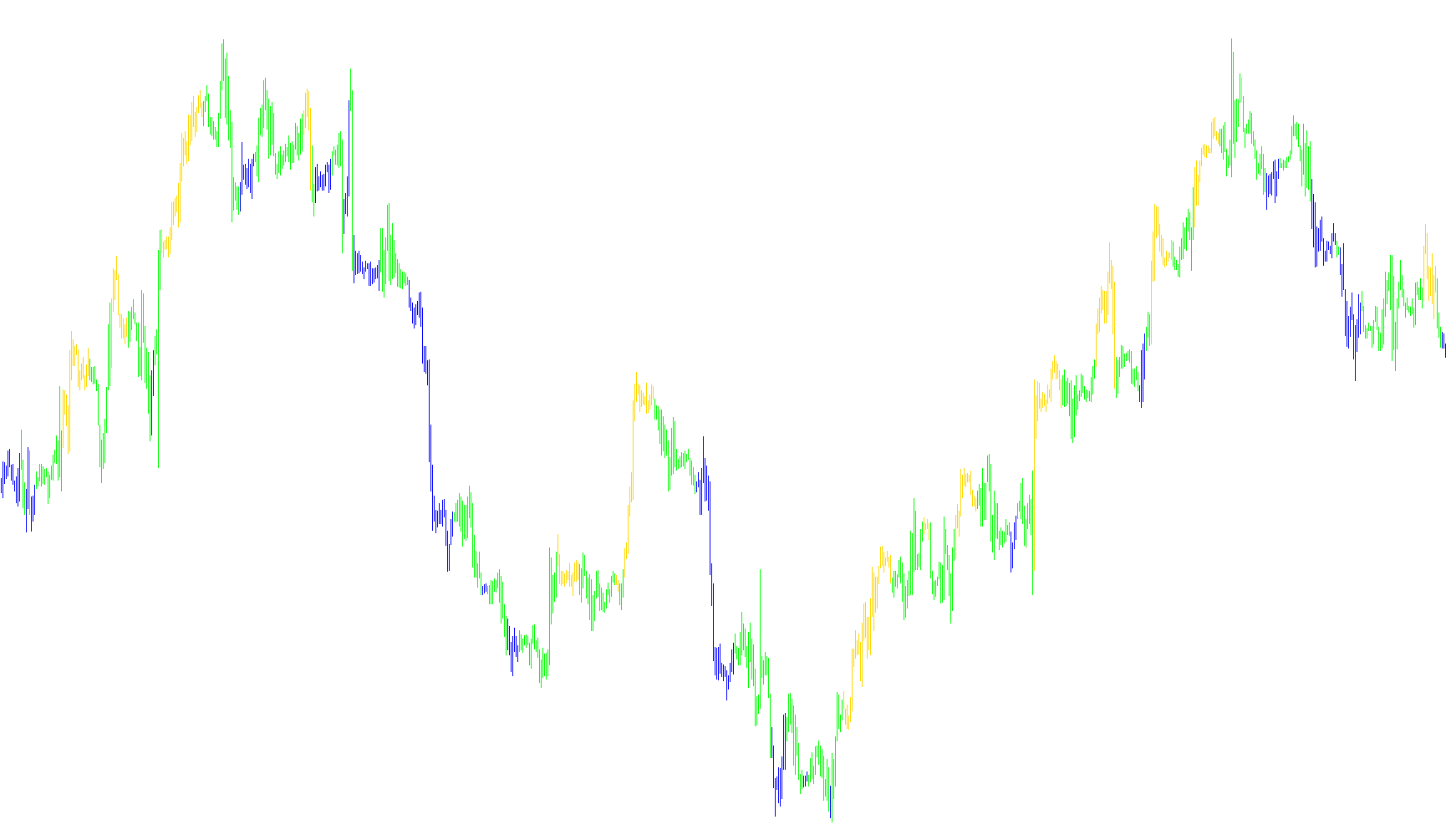

4. Visual Representation (The Histogram) The final visual output is a colored histogram that covers the price candles:
- Bullish Sentiment: When the momentum exceeds the upper threshold, the script fills the area between the High and Low prices with a specific color (Lime Green), signaling a strong upward move.
- Bearish Sentiment: When the momentum falls below the lower threshold, it fills the area with a different color (Orange Red), signaling a strong downward move.
User Experience Summary
For a trader, this means the indicator acts as a visual filter. It suppresses "choppy" sideways price action and highlights clear, high-momentum trends. By changing the settings, you can decide whether the indicator should react to every small price change (Zero Cross), only significant momentum breakouts (Outer Levels), or based on the direction of the slope.
Miscellaneous
10
Views
0
Downloads
0
Favorites
Detrended_Synthetic_Price_dbarsf
//------------------------------------------------------------------
#property copyright "mladen"
#property link "mladenfx@gmail.com"
#property link "www.forex-station.com"
//------------------------------------------------------------------
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 clrLimeGreen
#property indicator_color2 clrOrangeRed
#property indicator_width1 2
#property indicator_width2 2
#property strict
//
//
//
//
//
enum enPrices
{
pr_close, // Close
pr_open, // Open
pr_high, // High
pr_low, // Low
pr_median, // Median
pr_typical, // Typical
pr_weighted, // Weighted
pr_average, // Average (high+low+open+close)/4
pr_medianb, // Average median body (open+close)/2
pr_tbiased, // Trend biased price
pr_tbiased2, // Trend biased (extreme) price
pr_haclose, // Heiken ashi close
pr_haopen , // Heiken ashi open
pr_hahigh, // Heiken ashi high
pr_halow, // Heiken ashi low
pr_hamedian, // Heiken ashi median
pr_hatypical, // Heiken ashi typical
pr_haweighted, // Heiken ashi weighted
pr_haaverage, // Heiken ashi average
pr_hamedianb, // Heiken ashi median body
pr_hatbiased, // Heiken ashi trend biased price
pr_hatbiased2 // Heiken ashi trend biased (extreme) price
};
enum enColorOn
{
chg_onZero, // Change color on zero cross
chg_onOuter, // Change color on levels cross
chg_onOuter2, // Change color on opposite levels cross
chg_onSlope // Change color on slope change
};
input int DspPeriod = 14; // DSP period
input enPrices Price = pr_median; // DSP price
extern int SignalPeriod = 9; // Signal period
input enColorOn ColorOn = chg_onOuter; // Change color on :
double val[],histu[],histd[],levelu[],leveld[],state[];
//------------------------------------------------------------------
//
//------------------------------------------------------------------
//
//
//
//
//
int OnInit()
{
IndicatorBuffers(6);
SetIndexBuffer( 0, histu); SetIndexStyle(0,DRAW_HISTOGRAM);
SetIndexBuffer( 1, histd); SetIndexStyle(1,DRAW_HISTOGRAM);
SetIndexBuffer( 2, val);
SetIndexBuffer( 3, levelu);
SetIndexBuffer( 4, leveld);
SetIndexBuffer( 5, state);
IndicatorShortName("DSP bars ("+(string)DspPeriod+")");
return(0);
}
void OnDeinit(const int reason) { }
//------------------------------------------------------------------
//
//------------------------------------------------------------------
//
//
//
//
//
int OnCalculate(const int rates_total,
const int prev_calculated,
const datetime &time[],
const double &open[],
const double &high[],
const double &low[],
const double &close[],
const long &tick_volume[],
const long &volume[],
const int &spread[])
{
int counted_bars = prev_calculated;
if(counted_bars < 0) return(-1);
if(counted_bars > 0) counted_bars--;
int limit=MathMin(rates_total-counted_bars,rates_total-1);
//
//
//
//
//
double alphas = 2.0/(1.0+SignalPeriod);
double alpham = 2.0/(1.0+DspPeriod);
for(int i=limit; i>=0 && !_StopFlag; i--)
{
double price = getPrice(Price,open,close,high,low,i,rates_total);
val[i] = iEma(price,alpham,i,rates_total,0)-iEma(price,alpham/2.0,i,rates_total,1);
levelu[i] = (i<Bars-1) ? (val[i]>0) ? levelu[i+1]+alphas*(val[i]-levelu[i+1]) : levelu[i+1] : 0;
leveld[i] = (i<Bars-1) ? (val[i]<0) ? leveld[i+1]+alphas*(val[i]-leveld[i+1]) : leveld[i+1] : 0;
switch(ColorOn)
{
case chg_onOuter : state[i] = (val[i]>levelu[i]) ? 1 : (val[i]<leveld[i]) ? -1 : 0; break;
case chg_onOuter2 : state[i] = (val[i]>levelu[i]) ? 1 : (val[i]<leveld[i]) ? -1 : (i<rates_total-1) ? state[i+1]: 0; break;
case chg_onZero : state[i] = (val[i]>0) ? 1 : (val[i]<0) ? -1 : 0; break;
default : state[i] = (i<rates_total-1) ? (val[i]>val[i+1]) ? 1 : (val[i]<val[i+1]) ? -1 : state[i+1] : 0;
}
histu[i] = EMPTY_VALUE; histd[i] = EMPTY_VALUE;
if (state[i] == 1) { histu[i] = high[i]; histd[i] = low[i]; }
if (state[i] == -1) { histd[i] = high[i]; histu[i] = low[i]; }
}
return(rates_total);
}
//------------------------------------------------------------------
//
//------------------------------------------------------------------
//
//
//
//
//
double workEma[][2];
double iEma(double price, double alpha, int r, int _bars, int instanceNo=0)
{
if (ArrayRange(workEma,0)!= _bars) ArrayResize(workEma,_bars); r=_bars-r-1;
workEma[r][instanceNo] = price;
if (r>0 && alpha!=-1)
workEma[r][instanceNo] = workEma[r-1][instanceNo]+alpha*(price-workEma[r-1][instanceNo]);
return(workEma[r][instanceNo]);
}
//------------------------------------------------------------------
//
//------------------------------------------------------------------
//
//
//
//
//
//
#define _priceInstances 1
#define _priceInstancesSize 4
double workHa[][_priceInstances*_priceInstancesSize];
double getPrice(int tprice, const double& open[], const double& close[], const double& high[], const double& low[], int i, int bars, int instanceNo=0)
{
if (tprice>=pr_haclose)
{
if (ArrayRange(workHa,0)!= bars) ArrayResize(workHa,bars); instanceNo*=_priceInstancesSize;
int r = bars-i-1;
//
//
//
//
//
double haOpen;
if (r>0)
haOpen = (workHa[r-1][instanceNo+2] + workHa[r-1][instanceNo+3])/2.0;
else haOpen = (open[i]+close[i])/2;
double haClose = (open[i] + high[i] + low[i] + close[i]) / 4.0;
double haHigh = MathMax(high[i], MathMax(haOpen,haClose));
double haLow = MathMin(low[i] , MathMin(haOpen,haClose));
if(haOpen <haClose) { workHa[r][instanceNo+0] = haLow; workHa[r][instanceNo+1] = haHigh; }
else { workHa[r][instanceNo+0] = haHigh; workHa[r][instanceNo+1] = haLow; }
workHa[r][instanceNo+2] = haOpen;
workHa[r][instanceNo+3] = haClose;
//
//
//
//
//
switch (tprice)
{
case pr_haclose: return(haClose);
case pr_haopen: return(haOpen);
case pr_hahigh: return(haHigh);
case pr_halow: return(haLow);
case pr_hamedian: return((haHigh+haLow)/2.0);
case pr_hamedianb: return((haOpen+haClose)/2.0);
case pr_hatypical: return((haHigh+haLow+haClose)/3.0);
case pr_haweighted: return((haHigh+haLow+haClose+haClose)/4.0);
case pr_haaverage: return((haHigh+haLow+haClose+haOpen)/4.0);
case pr_hatbiased:
if (haClose>haOpen)
return((haHigh+haClose)/2.0);
else return((haLow+haClose)/2.0);
case pr_hatbiased2:
if (haClose>haOpen) return(haHigh);
if (haClose<haOpen) return(haLow);
return(haClose);
}
}
//
//
//
//
//
switch (tprice)
{
case pr_close: return(close[i]);
case pr_open: return(open[i]);
case pr_high: return(high[i]);
case pr_low: return(low[i]);
case pr_median: return((high[i]+low[i])/2.0);
case pr_medianb: return((open[i]+close[i])/2.0);
case pr_typical: return((high[i]+low[i]+close[i])/3.0);
case pr_weighted: return((high[i]+low[i]+close[i]+close[i])/4.0);
case pr_average: return((high[i]+low[i]+close[i]+open[i])/4.0);
case pr_tbiased:
if (close[i]>open[i])
return((high[i]+close[i])/2.0);
else return((low[i]+close[i])/2.0);
case pr_tbiased2:
if (close[i]>open[i]) return(high[i]);
if (close[i]<open[i]) return(low[i]);
return(close[i]);
}
return(0);
}
