Overview of the TrendJudge Logic

The TrendJudge tool is designed as a visual aid for traders to identify market conditions by analyzing price volatility and momentum. Rather than showing standard price movements, it processes complex mathematical data to categorize the current state of the market into three distinct zones: Trend, Correction, and Sleep.

How the Tool Works

The logic operates by calculating two specific types of market measurements simultaneously:

  1. Volatility Tracking: It monitors how much the price is "swinging" or fluctuating over a specific period.
  2. Standard Deviation Analysis: It measures how much the current price deviates from its average behavior.

The tool then applies a secondary layer of analysis (Relative Strength) to these two measurements. By checking where these values sit relative to a predefined threshold (the "Level"), the script determines which of the three states the market is currently in.

Market States Defined

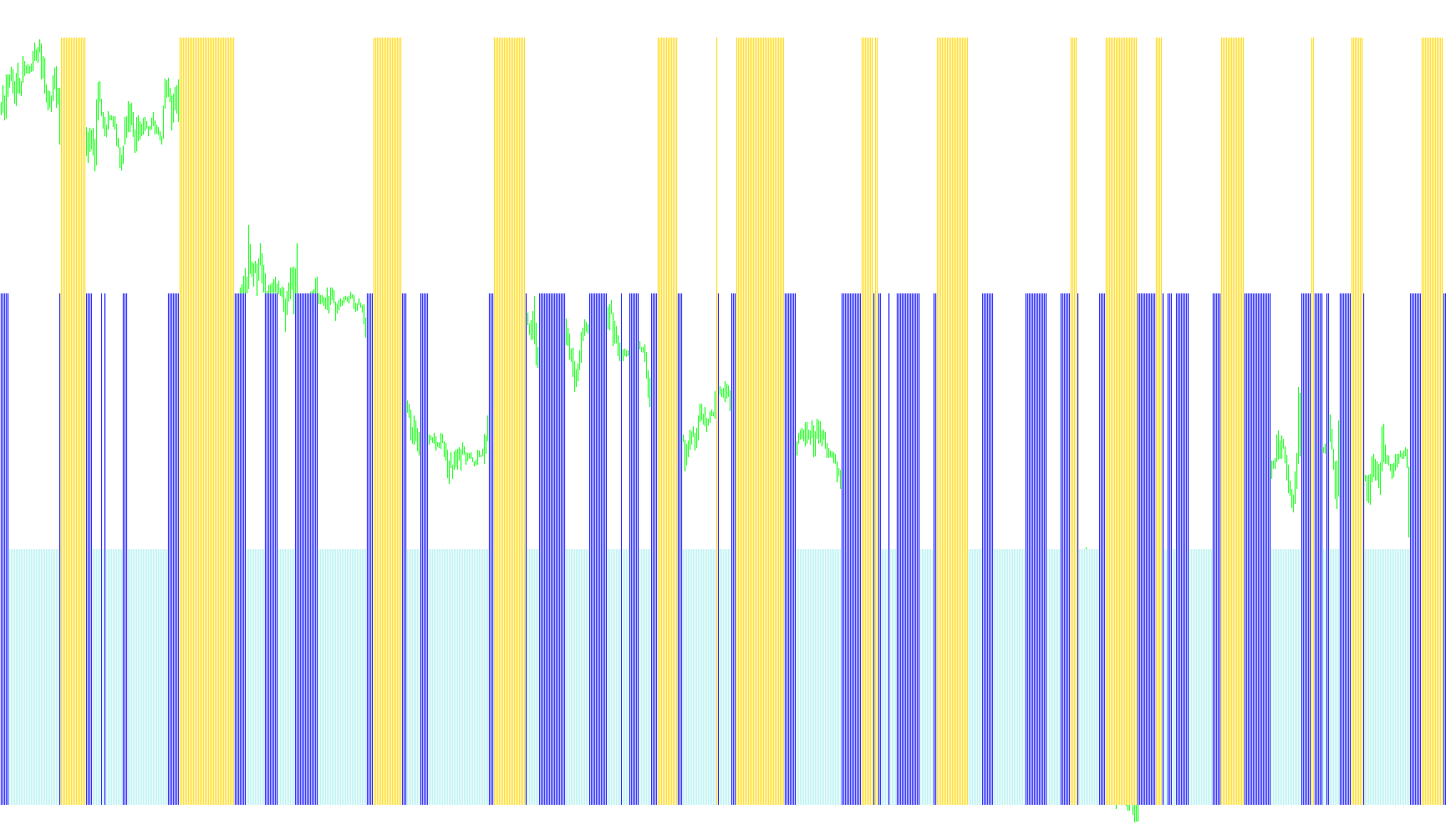

The indicator visualizes these results as a histogram, allowing you to see the market's "mood" at a glance:

  • Trend (Green): This state is triggered when both the volatility and the price deviation are high. It suggests that the market has strong momentum and is moving decisively in a specific direction.
  • Sleep (Red): This state occurs when both volatility and price deviation are low. It indicates a "quiet" market where there is very little movement or interest, suggesting a period of stagnation or consolidation.
  • Correction (Yellow): This is the middle ground. If one metric is high while the other is low, the tool identifies this as a correction. It suggests that while there is some activity, it lacks the consistency of a full trend, often signaling a transition or a temporary price adjustment.

Summary for the User

Essentially, this script filters out the "noise" of the market. Instead of forcing you to interpret messy price candles, it simplifies the data into a clear visual signal: it tells you when the market is moving with purpose (Trend), when it is resting (Sleep), or when it is in between (Correction).

Indicators Used
Indicator of the average true rangeStandard Deviation indicatorRelative strength index
Miscellaneous
Implements a curve of type %1
10 Views
0 Downloads
0 Favorites
CK_Speed
//+------------------------------------------------------------------+
//|                                                   TrendJugde.mq4 |
//|                      Copyright © 2008, MetaQuotes Software Corp. |
//|                                        http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2008, MetaQuotes Software Corp."
#property link      "http://www.metaquotes.net"
extern int period=20;
extern double level=50;
//extern int ema1=34;
//extern int ema2=89;
#property indicator_separate_window
#property  indicator_buffers 3
#property  indicator_color1  Green
#property  indicator_color2  Red
#property  indicator_color3  Yellow


#property indicator_maximum 3

bool uptrend=false;
bool downtrend=false;
double fast[],medium[],slow[],atr[],std[],rsistd[],rsiatr[];

//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- indicators
IndicatorBuffers(7);
//---- drawing settings

   SetIndexBuffer(0,fast);//bbMacd line
   SetIndexStyle(0,DRAW_HISTOGRAM,STYLE_SOLID,1);
   SetIndexBuffer(1,medium);//Upperband line
   SetIndexStyle(1,DRAW_HISTOGRAM,STYLE_SOLID,1);
   SetIndexDrawBegin(0,period);
   SetIndexDrawBegin(1,period);

   SetIndexBuffer(2,slow);//overbough
   SetIndexStyle(2,DRAW_HISTOGRAM,STYLE_SOLID,1);
    SetIndexDrawBegin(2,period);

  SetIndexBuffer(3,atr);//overbough
  SetIndexBuffer(4,std);//overbough
  SetIndexBuffer(5,rsistd);//overbough
  SetIndexBuffer(6,rsiatr);//overbough

  IndicatorShortName("CK Speed "+ period);
  SetIndexLabel(0,"Trend");
  SetIndexLabel(1,"Correction");
SetIndexLabel(2,"Sleep");

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----

//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {

//----
double prev,current,tmp;
   int limit;
   int counted_bars=IndicatorCounted();
//---- check for possible errors
   if(counted_bars<0) return(-1);
//---- last counted bar will be recounted
   if(counted_bars>0) counted_bars--;
   limit=Bars-counted_bars;
   //uptrend=true;
   //owntrend=true;
   double filterbuy=60;
   double filtersell=40;
//----
for(int k=limit-1;k>=0;k--){
   atr[k]=iATR(Symbol(),0,period,k);
     std[k]=iStdDev(Symbol(),0,period,0,0,PRICE_MEDIAN,k);
}
//for(int t=limit-period;t>=0;t--){

//}
for(int i=limit-1; i>=0; i--)
 {
     rsistd[i]=iRSIOnArray(std,0,period,i);
     rsiatr[i]=iRSIOnArray(atr,0,period,i);

      if(rsistd[i]>=level&&rsiatr[i]>=level){
         fast[i]=3;
         medium[i]=0;
         slow[i]=0;

       }else if(rsistd[i]<level&&rsiatr[i]<level){
         fast[i]=0;
         medium[i]=0;
         slow[i]=1;
      } else{
         fast[i]=0;
         medium[i]=2;
         slow[i]=0;
      }
  }
   return(0);
  }
//+------------------------------------------------------------------+
